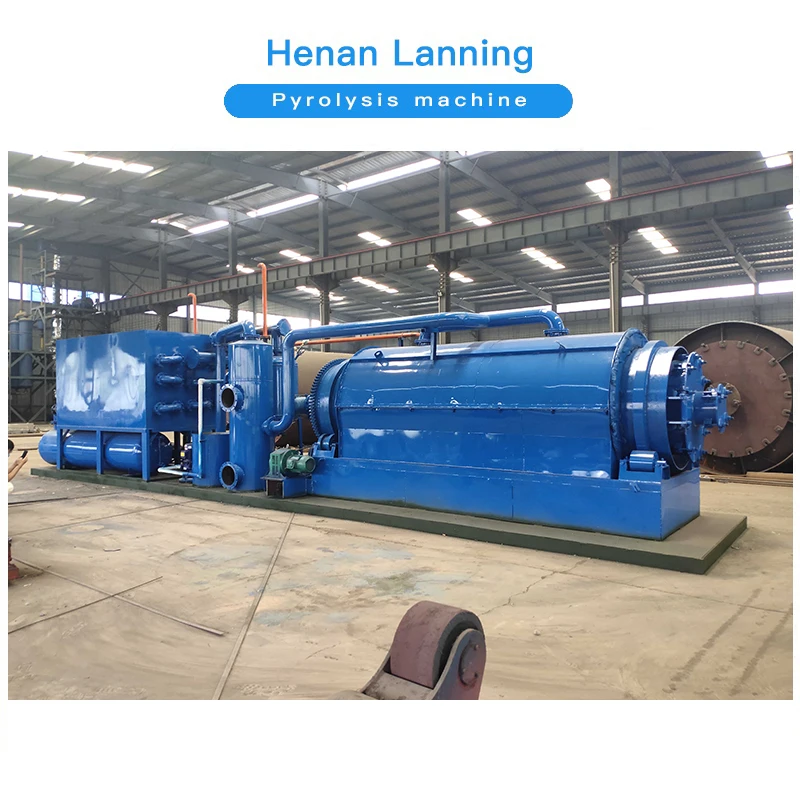

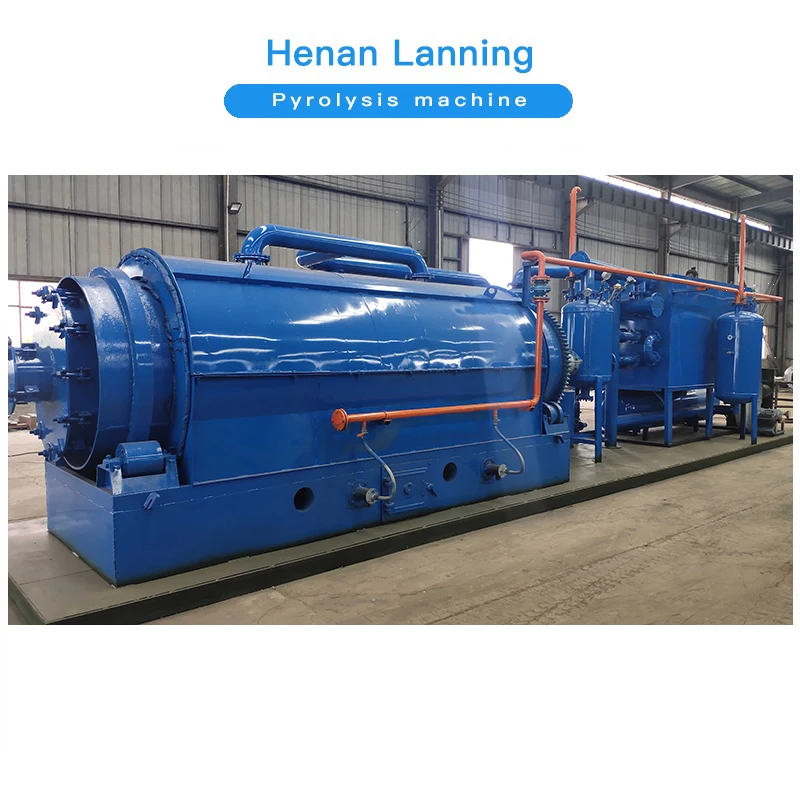

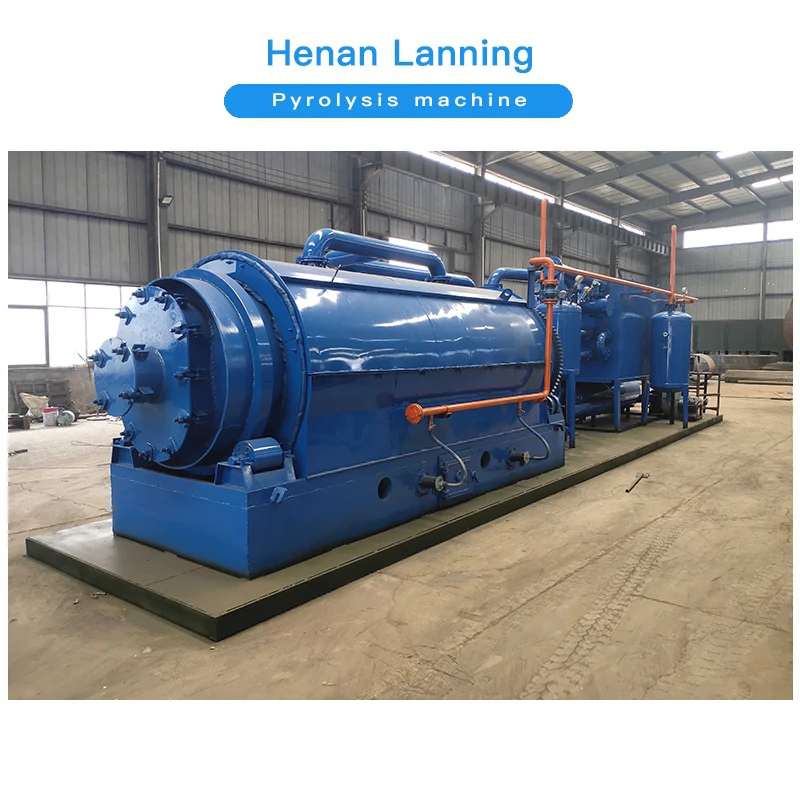

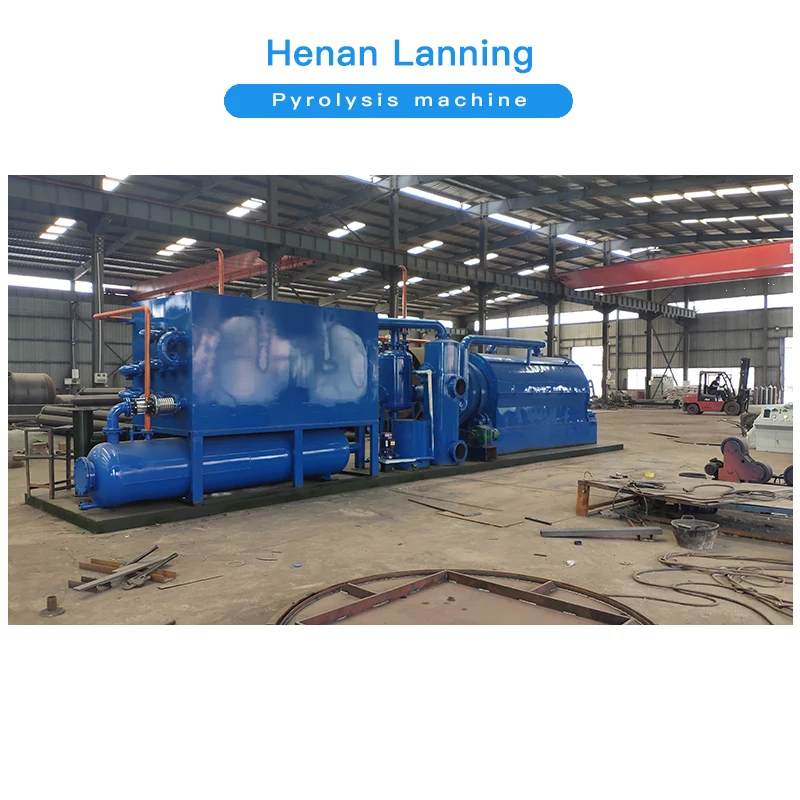

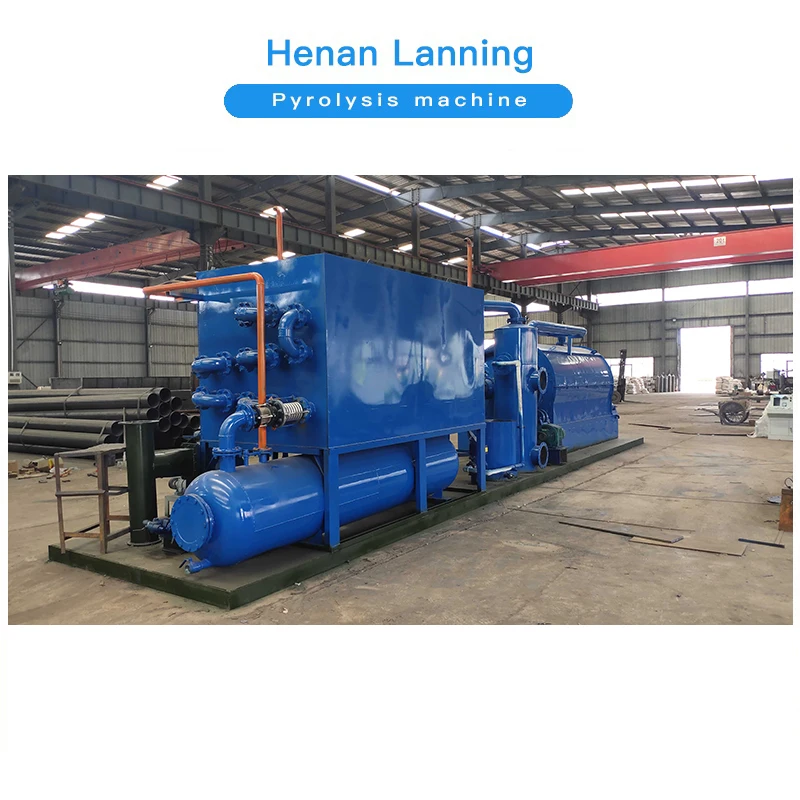

High performance small scale waste plastic pyrolysis to fuel oil machine
- Category: >>>
- Supplier: Henan Lanning Technology Co. Ltd.
Share on (1600547811236):
Product Overview
Description
High performance small scale waste plastic pyrolysis to fuel oil machine
Plant information
1. The Raw Material For Pyrolysis Machine
We will choose freight forwarding and logistics services according to our customers. Now we have no goods to export.
NO. | Raw material | Note |
1 | Waste tyre | Steel tyre ,Nylon tyre ,Bick tyre |
2 | Waste plastic | PE,PVC,Waste washed mixture plastic from waste Paper Factory |
3 | Waste rubber | Shoes Soles,Cable Skin |
4 | oil sludge,waste oil sludge |
|
We have our own lab to test the oil output rate of your raw material ,welcome you contact | ||
2. Pyrolysis plant models and specification
Product Model | Specifications | Per batch capacity | Per day output | Containers | Gross weight | Power |
LN-2200*6000 | 2200mm*6000mm | 6ton | 3ton | 2*40HQ | 25ton | 12kw |
LN-2200*6600 | 2200mm*6600mm | 7ton | 4ton | 2*40HQ | 27ton | 12kw |
LN-2600*6000 | 2600mm*6000mm | 8ton | 5ton | 1*40HQ&1*FR | 30ton | 16kw |
LN-2600*6600 | 2600mm*6600mm | 10ton | 6ton | 1*40HQ&1*FR | 33ton | 17kw |
LN-2800*6000 | 2800mm*6000mm | 10ton | 6ton | 1*40HQ&1*FR | 36ton | 17kw |
LN-2800*6600 | 2800mm*6600mm | 12ton | 7ton | 1*40HQ&1*FR | 39ton | 17kw |
Economic Analysis Report | ||||
| ( Henan Lanning 10T Pyrolysis machine LN-2800-6000 ) | ||||
cost | Item | USD | total | |
| waste tyre | 10ton*78.6USD=786.0USD |
cost 952.85USD
| ||
choose one | Coal | 0.5T*57.2USD=28.6USD | ||
| Fuel | 0.4T*171.5USD=68.6USD | |||
| Gas | 150m³*171.5USD=48.0USD | |||
| Electricity | 15KW*15H*0.15USD=33.75USD | |||
| People | 3*21.5USD=64.5USD | |||
| water | recycling*0.0USD=0.0USD | |||
| Income | Tyre oil | 4.5T*400USD= 1,800.00USD | Income 2121.53USD | |
| Carbon Black | 3.5T*42.86USD= 150.01USD | |||
| Steel wire | 1T*171.43USD =171.43USD | |||
| Profit | Daily Profit 1168.68USD | |||
| Month Profit 29217.00USD | ||||
| Annual Profit 350604.00USD | ||||
| Based on cost and benefit analysis in China | ||||
3.The available fuel for pyrolysis processing
NO. | Fuel |
1 | Oil(fuel oil, tyre oil, heavy oil etc..) |
2 | Natural gas |
3 | Coal |
4 | Firewood |
5 | Carbon black pellet |
4. End product percentage and useage( Example : raw material is tyre)
NO. | Name | Percentage | Usage |
1 | Tyre oil | 45% | * can be sold directly. * make diesel and gasoline by use oil distillation machine. * can be as fuel. |
2 | Carbon black | 30% | * can be sold directly. * make fine carbon by use carbon black refining machine. * make pellet by use carbon make pellet machine. |
3 | Steel wire | 15% | * can be sold directly. * make steel bloom by use hydraulic press-packing |
4 | Oil gas | 10% | * can be as fuel burn by use gas burn system (pyrolysis machine included) *extra gas also be storage as fuel for other heating. |
5. Pyrolysis machine advantage and main technical characteristics
1. High oil output rate 45%--55% with special catalyst formula and high tech .
2. Rapid condensers and large cooling area,assure you get much more and higher quality oil.
diversiform cooling system can be choose according to client's willingness
3. Dust-removing device -four levels dust processing system make sure no any population and the
output smoking is the spray .more environmental protection.
4. Double tail-gas recycling and burning system, saving energy.
5. Q245R boiler plate, high temperature resistance, thickness reaches 14mm—16mm,guarantee
4-7 years service lives. and optional plate is Q345R
6. OptionalAuto feeder and carbon black discharge elevator, high automation, saving time and labors.
7. Eco-friendly and no any population, environmental protection
6.Machine 3D drawing flow chart and working processing
Apare parts
Advantage
Reactor:
1. The gear can be seperated from reactor, instead of welding on reactor. So it will not be destroyed by cycling heating.
and very easily to be re-placed
2. The reactor is supported in a centre line by rollers. It will remain stable while running.
3. Auto-welding, both inside and outside.
4. Made by special boiler plate Q245R/ Q345R. Security and long service life.
5. Made by rock wool insulation board. Save fuel and ensure heating effect.
Auto-feeder(optional device):
1. 50 ton hydraulic pressure help feeding more raw materials.
2. The diameter is 1.4m. It can feed all kinds of raw materials, including plastic, packages of plastic, truck tire,
car tire, or tire pieces after cutting.
3. Save labor, save time.
4. After finishing production it can feed raw material instead of waiting the reactor to be cooled.
Oil separator:
1. Water from raw material will be separated here.
2. Water sealing design prevent tempering. Ensure saftety.
3. Heavy oil will be collected here.
Cooling system :
1. Coil pipe cooling system : there are 22-30 pipes lied in the water pond,each pipe 6 meters long, oil gas can be cooled in larger area and longer time,thus get higher oil yield .
2. Vertical condensrs : we supply 4 cndensors, each has 44 pipes inside the condensors. Save land and
looks more neat and beautiful.
Anti-back fire device:
1. Little residual gas can not be cooled. It will recycle these gas to furnace burned to heat the reactor.
2. Water sealing disign will prevent tempering. Ensure safety.
Double dust removal device:
1. Dispose of flue gas caused by heating reactor using coal, wood, oil or natual gas.
2. Environment protection.
Safety system:
Final products
Packaging & Shipping
The machine can delivery within 15 working days after receiving deposit
Suitable container & shipping company will recommend to you to save shipping fee.
Company Information
1) History:
Founded in 2006 with Ningling Lanning Technology Co.,LTD.
Renamed in 2017 by Henan Lanning Technology Co.,LTD
2) Location:
Located in Ningling county, Shangqiu city, Henan province, China.
3) Main Products:
Tyre/ Plastic Pyrolysis machine;
Oil distillation machine;
Carbon black make pellet machine;
4) Certification:
ISO 9001
CE (International exports to the European Union certification)
BV (French authority certification)
TUV (Germany authority certification)
Our Services
About installation
We will send you one engineer for installation and training of your works.
About Guarantee & after service
All the various series of the equipment we sell enjoy perfect after -sale service :
1. We will send engineers to help you with the installation of the machine and the training of your
workers until everything runs smoothly.
2. We guarantee the complete machine one year since installation. If during the first year, there is any
problem caused by the machine quality, we take responsibility.
3. We guarantee the reactor life more than 6 years, other parts no need change expect the vulnerable
parts .
4. We provide the whole life machine maintenance. we will try our best to solve the customers' extra worries.
