Vicam Under ground snake camera HD 40mm self leveling image Push rod pipe camera 60m to 150m cable length

Share on (1600547817421):


Price:$1,400.00 - $1,600.00

Quantity:


Product Overview

Description



Vicam HD 60m to 150m 9mm fiberglass cable sewer pipe camera with 40mm self
leveling camera head and 10inch HD display


Product Description




Details Images






Specification


Model  Number
V10-3288
Screen Size
10inch LCD IPS Screen, 1280*720 resolution
Cable length
9mm Fiberglass rod push cable &reel
Camera Diameter
1/3 CMOS,1.3MP pixel AHD 40mm waterproof self leveling camera head
Power supply
12V 8800mA Recharge li-ion battery

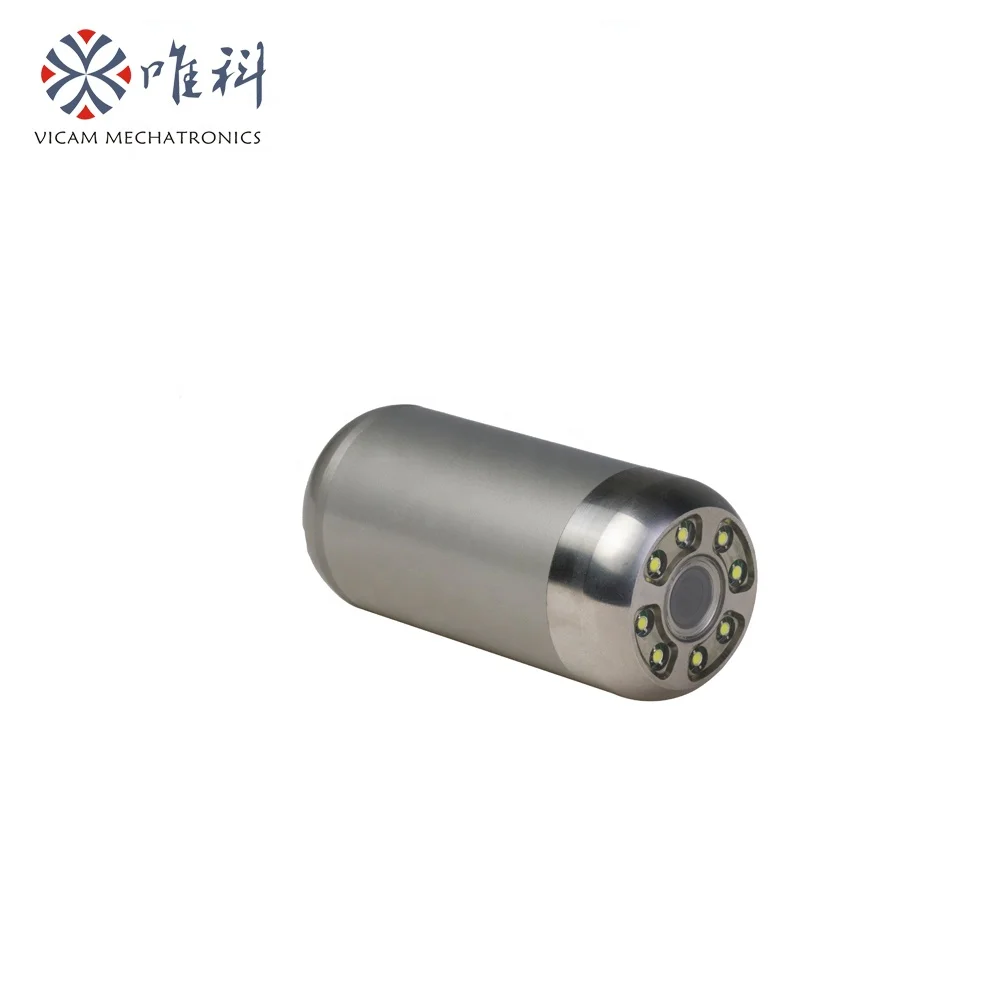

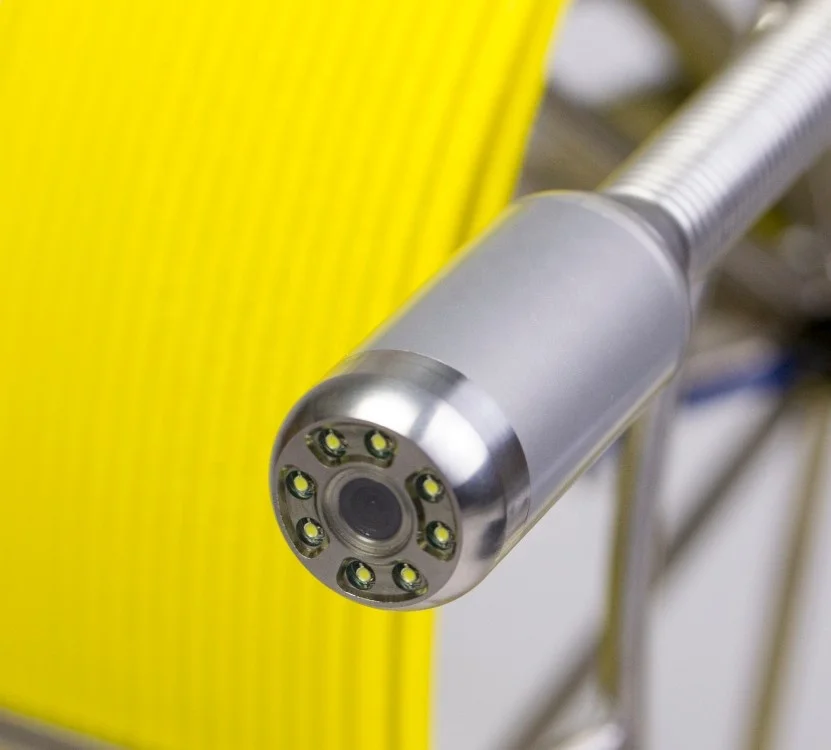

HD 40mm self leveling camera
* Camera head size Φ40 x 60mm
* AHD module, sensor 1/3" CMOS ,1.3MP pixel
* Waterproof and self leveling image
* Camera head casing material stainless steel
* Detachable with pins type connection to Cable Reel
* Field of view 90°,IP68 waterproof
* 8 pcs high intensity white LED * Built in 512hz transmitter option ( The camera size is Φ40 x 88mm)

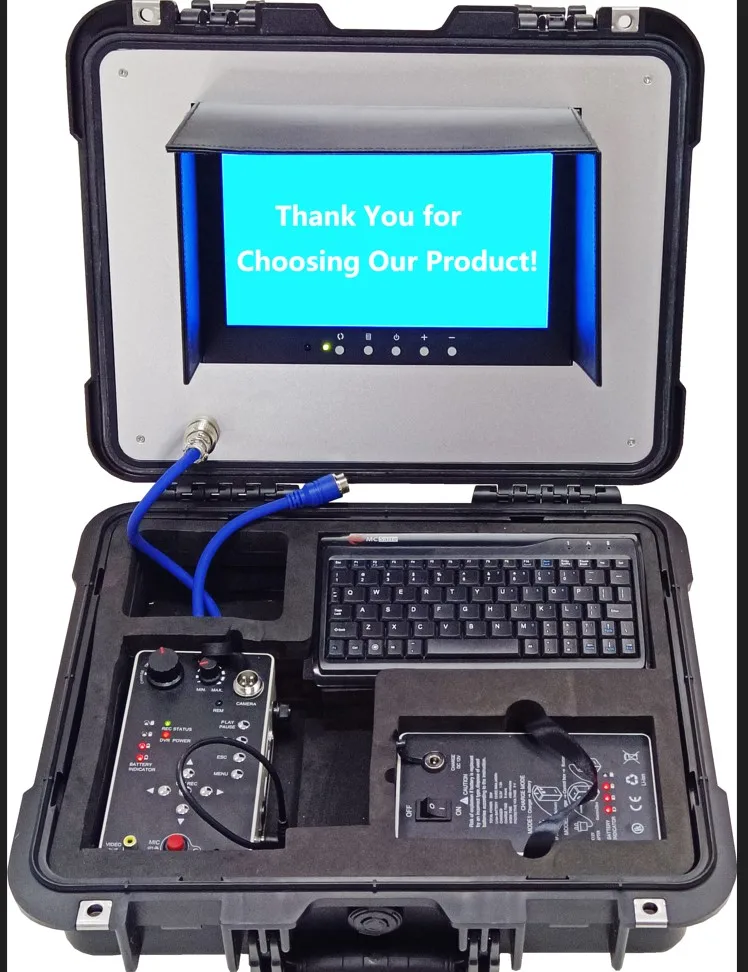

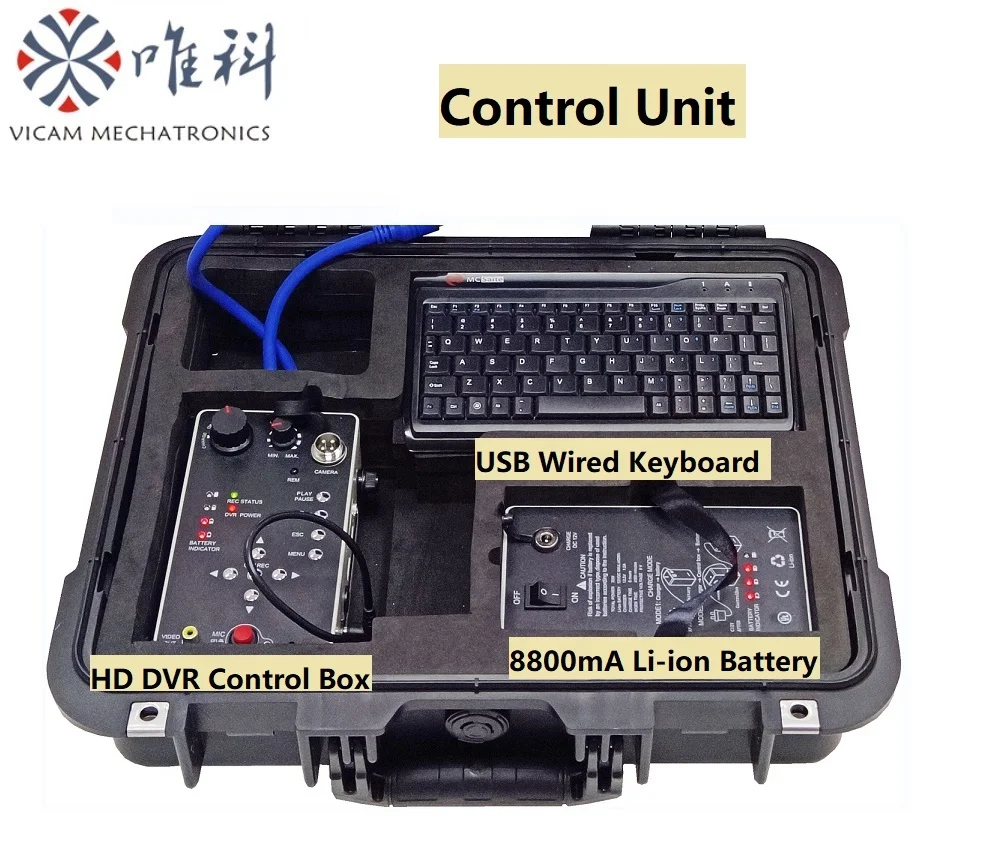

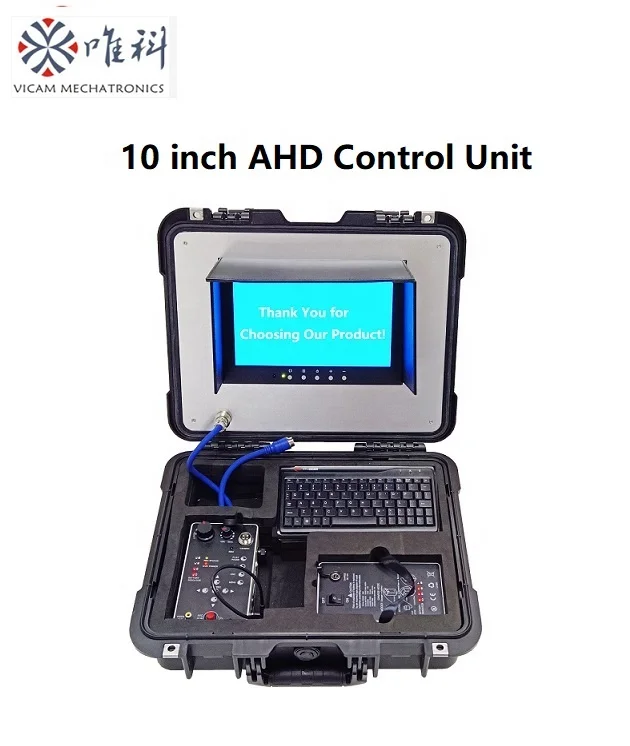

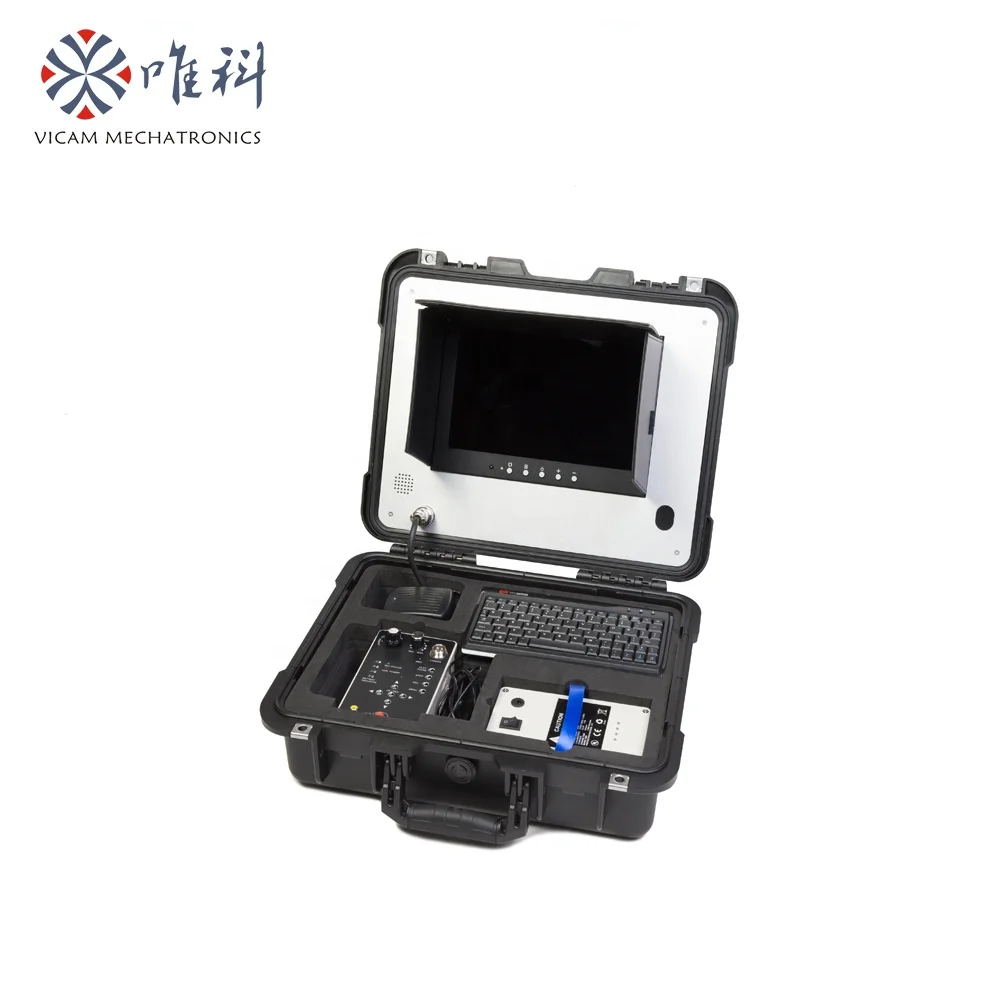

Waterproof DVR control unit

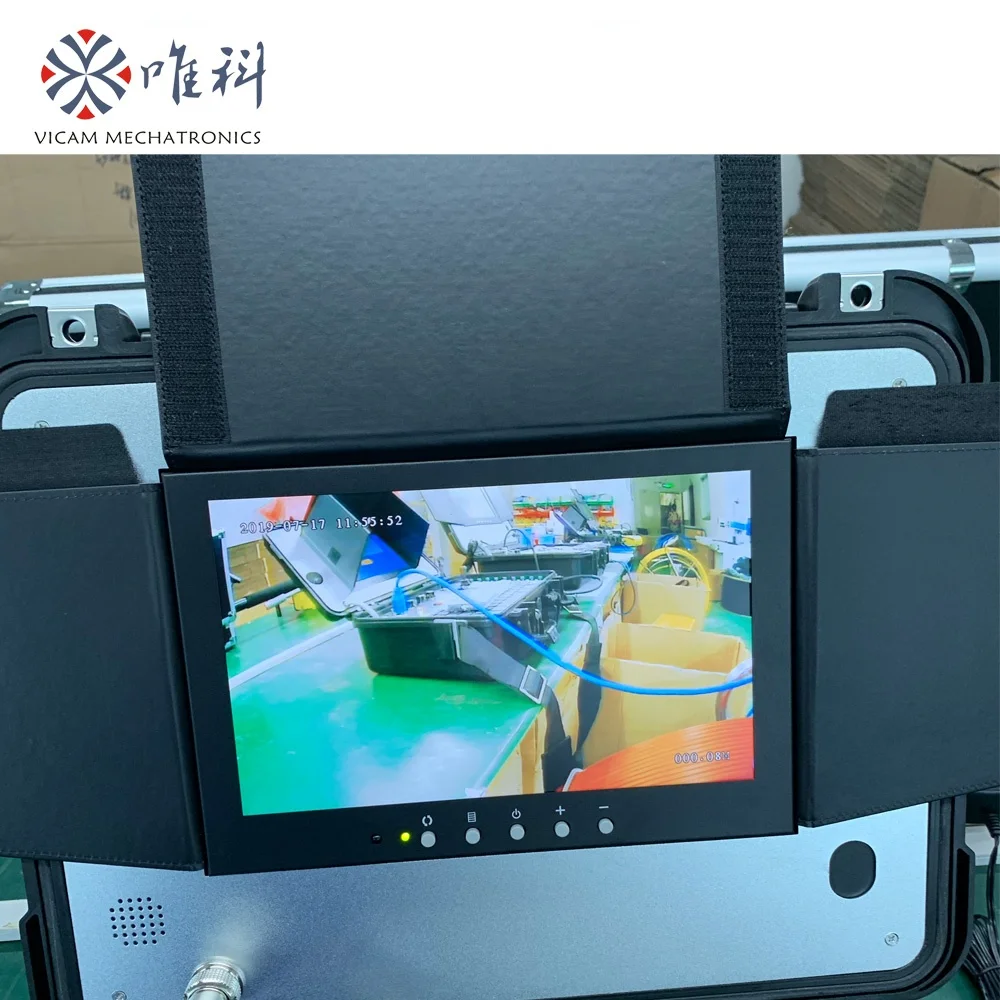

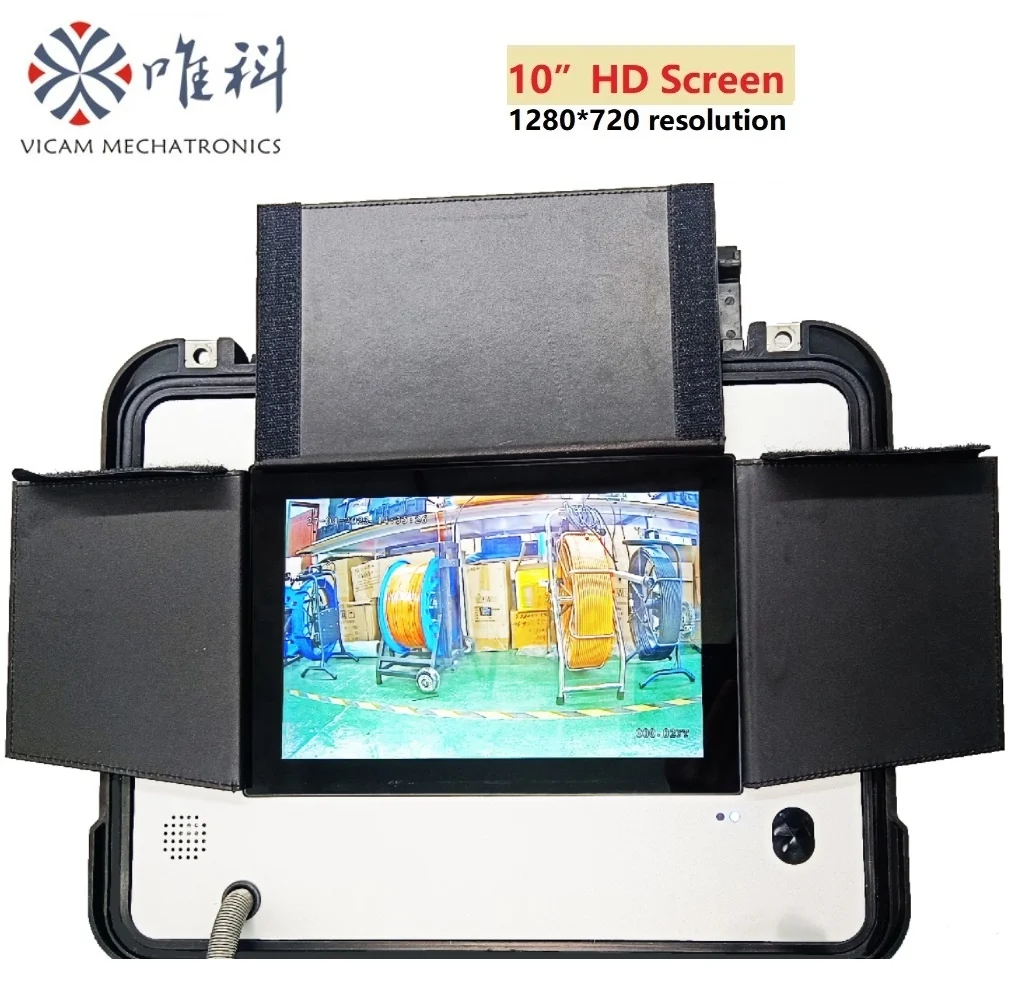

*10"HD IPS LCD Screen, 1280X720 resolution
*HD DVR SYSTEM with 720P video
*Audio ,video and screen capture function
 *Waterproof LCD panel
*USB wireless Keyboard
* USB port to connect storage device
( 16G USB flash disk)
* 8800mA rechargeable
Li-ion Battery Pack
* Sunshade is included
*Charging time 7 hours,
working time about 4 hours

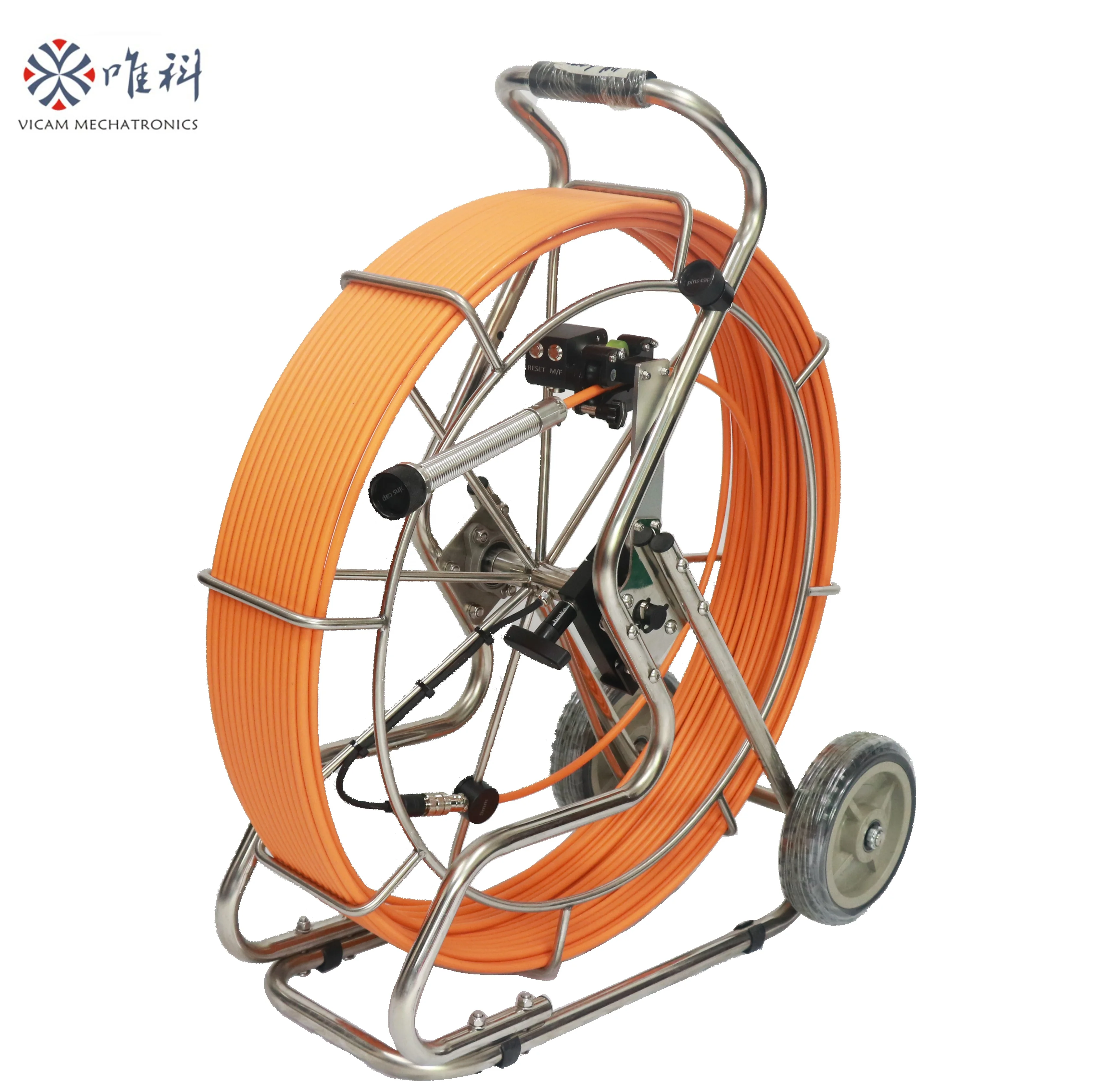

Cable Reel
* Fiberglass push rod cable
* Cable diameter 9mm
* Reel size L70*W28*H84cm
 * Reel brake available
* Cable length 60m to 150m

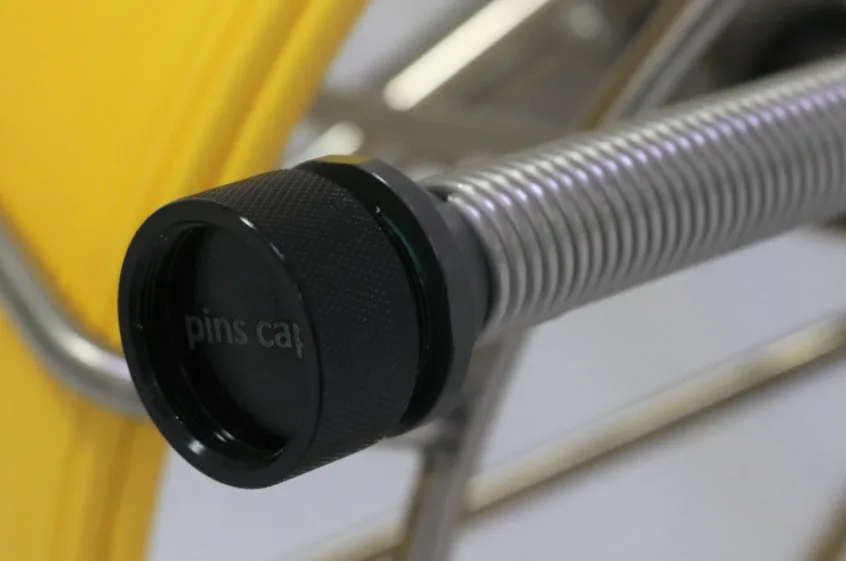

* Pin cap to protect the cable connector

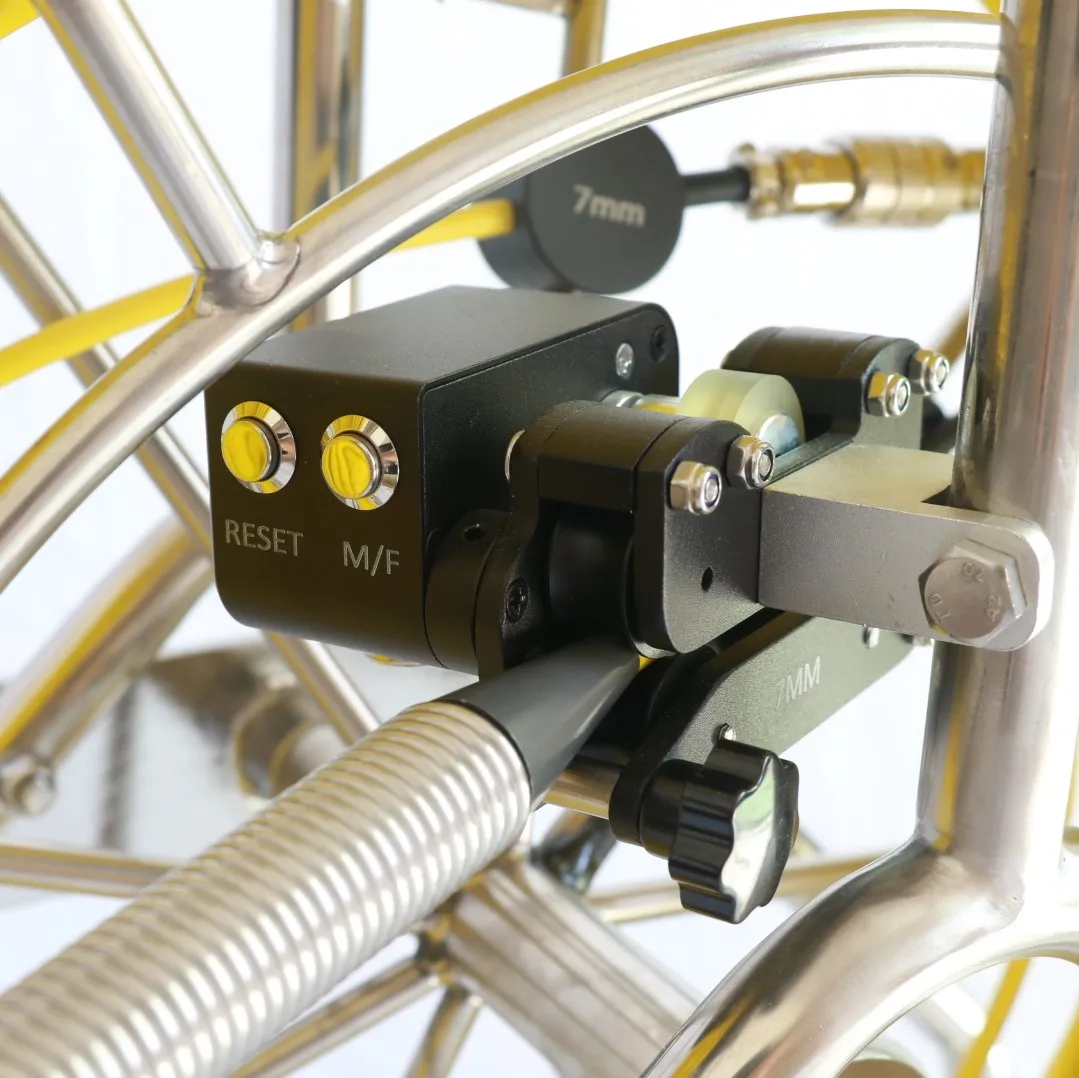

* Updated digital meter counter,error rate less than 1%

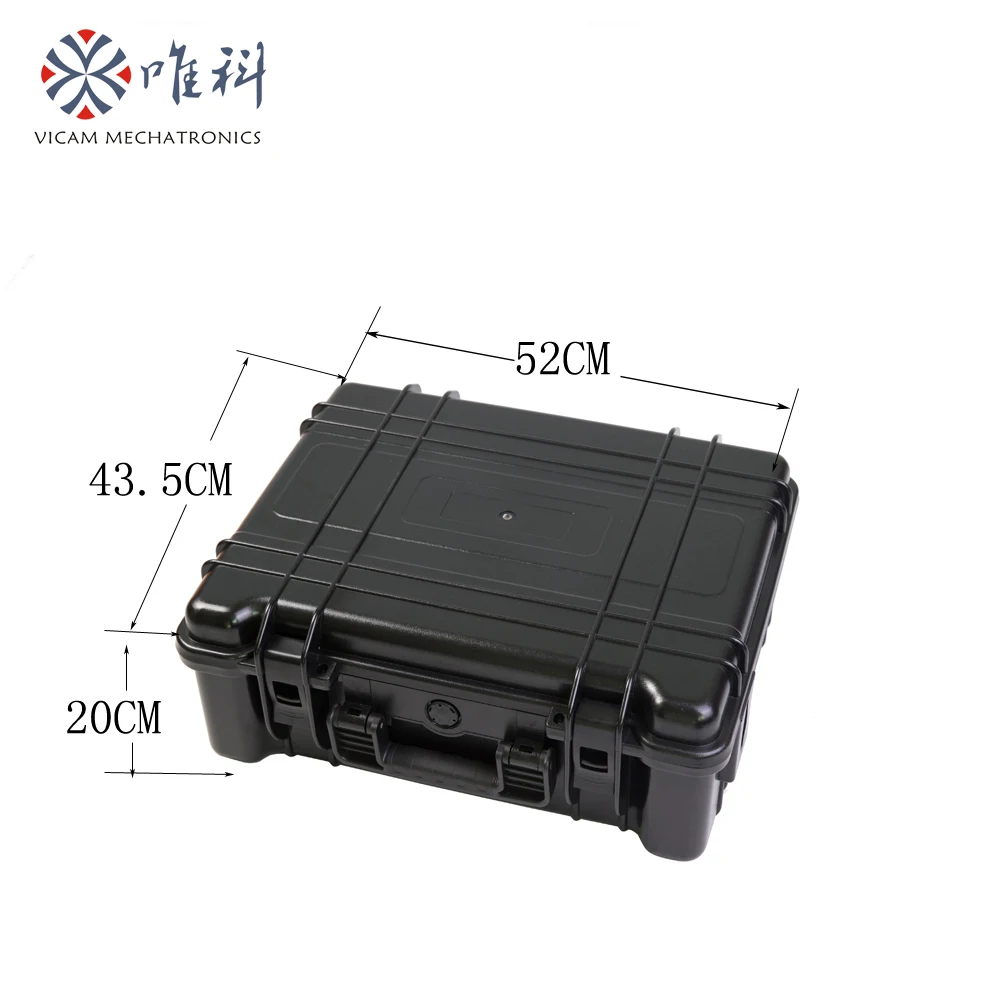

Control box
*Easy to carry

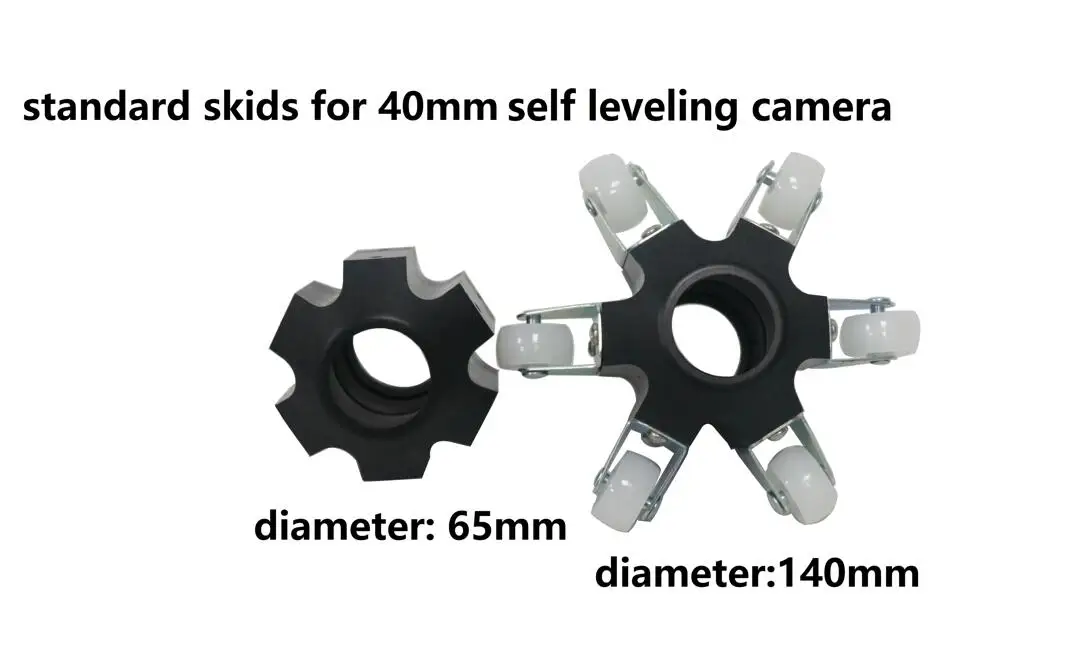

Camera Skid
The small one: Diameter 75mm
The big one :Diameter 140mm
We also have wheeled skid for option .If you need ,welcome to contact with us.


Company Profile












About Vicam
Shenzhen Vicam Mechatronics Co., Ltd. was founded in 2010 in Shenzhen, with its own professional “Design, R&D, Production and Sales" Department, mainly engaged in industry video inspection camera system.

We have
* Sewer drain pipe inspection cameras, pan tilt push cameras and under water inspection cameras.

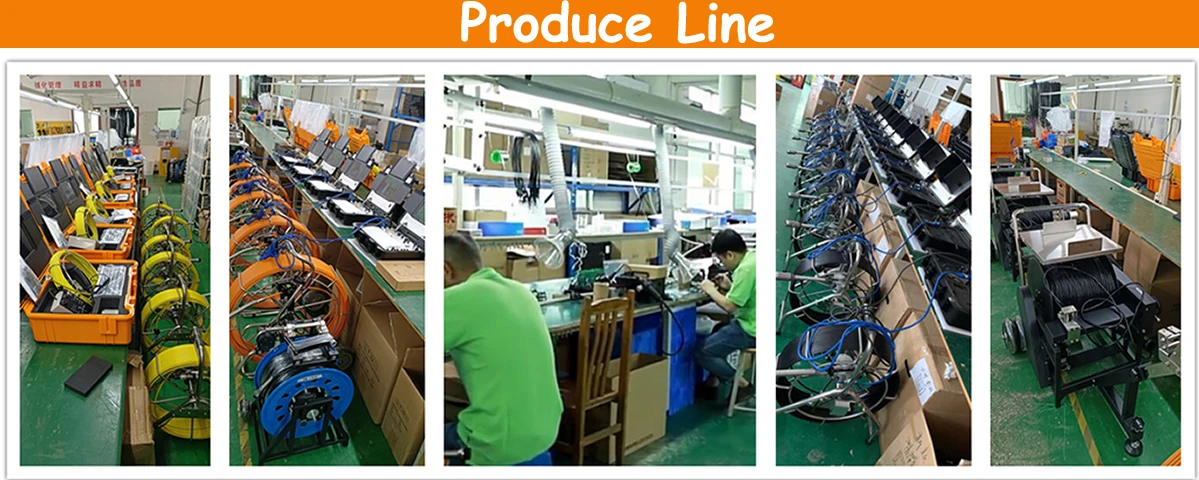

* More than 2,000 square meters production and processing bases
* 20 advanced high-tech production equipment and 4 complete production lines
* Perfect quality inspection measures in all aspects of production
* Multi-channel marketing, like Amazon, Alibaba, AliExpress, eBay, Domestic sales
* Products have been supported and affirmed by worldwide customers

We can offer you
* Excellent quality products
* Software and other research and development services
* Factory directly price
* Professional & Responsible after-sale service
* OEM, ODM processing customized services
* 1pcs MOQ trial order service
* Speed & Safe shipping service




FAQ


FAQ

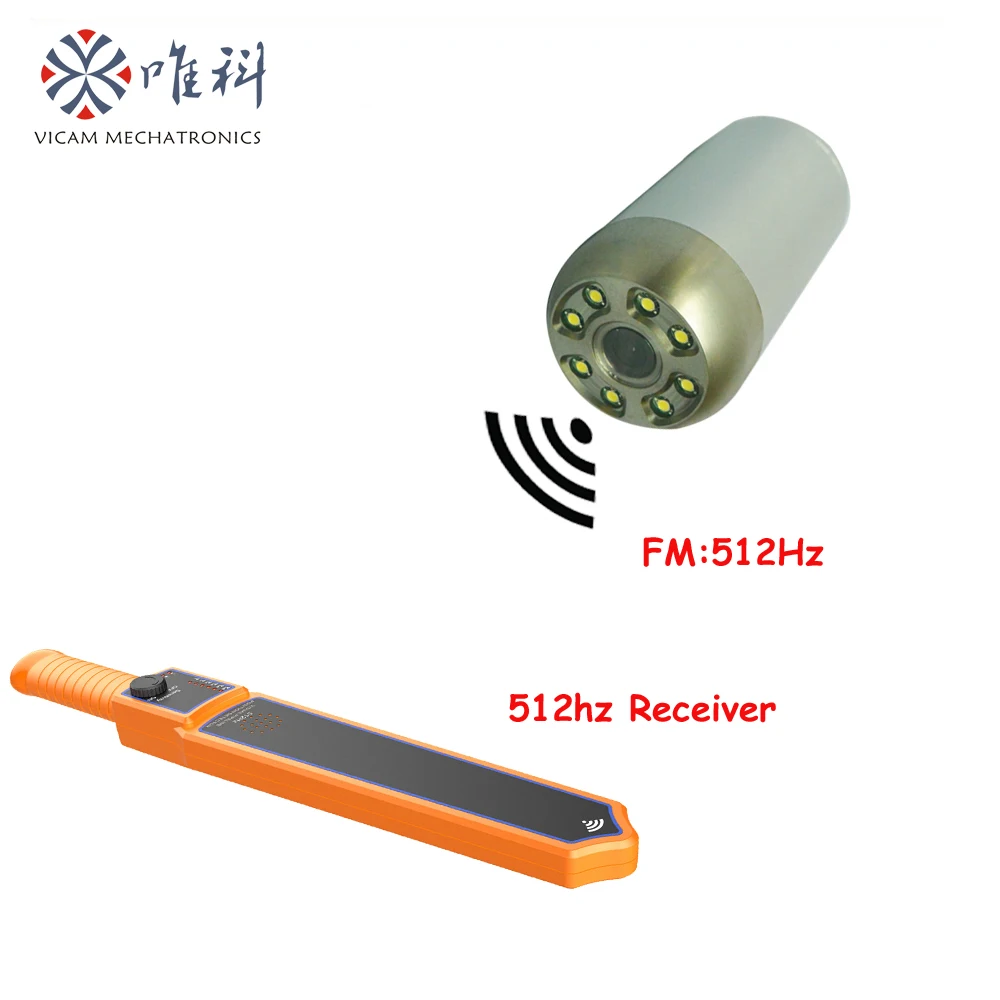

1 .Can it built in 512hz transmitter?
 Yes.It can . It is optional


2.Can it be longer cable? Such as 120m?
Yes. It can. The standard length is 60m 7mm cable . If you need longer cable ,we can use 9mm fiberglass cable. The max length is 120m.


3.Is it HD model?
Yes. It is HD model .The video is 720P avi format. The camera is 1.3M pixels resolution
