Product Overview

Description



Product Description

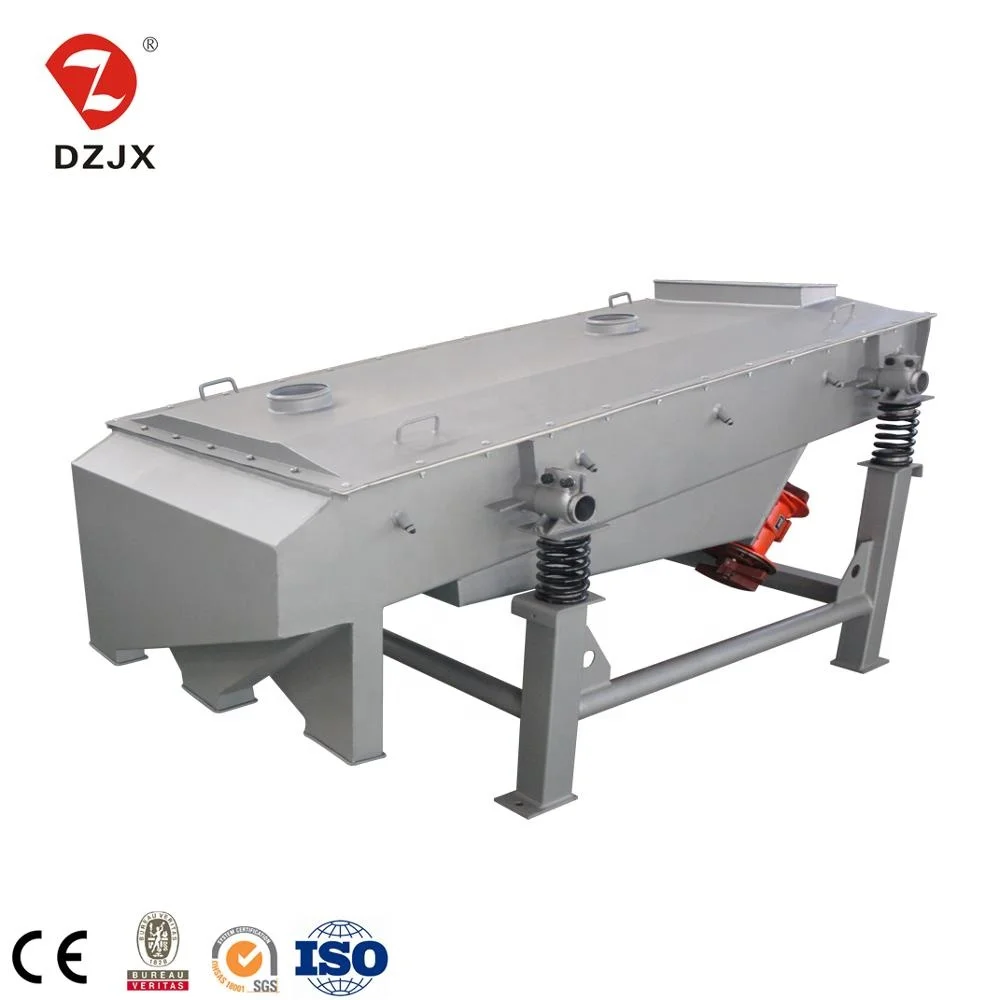

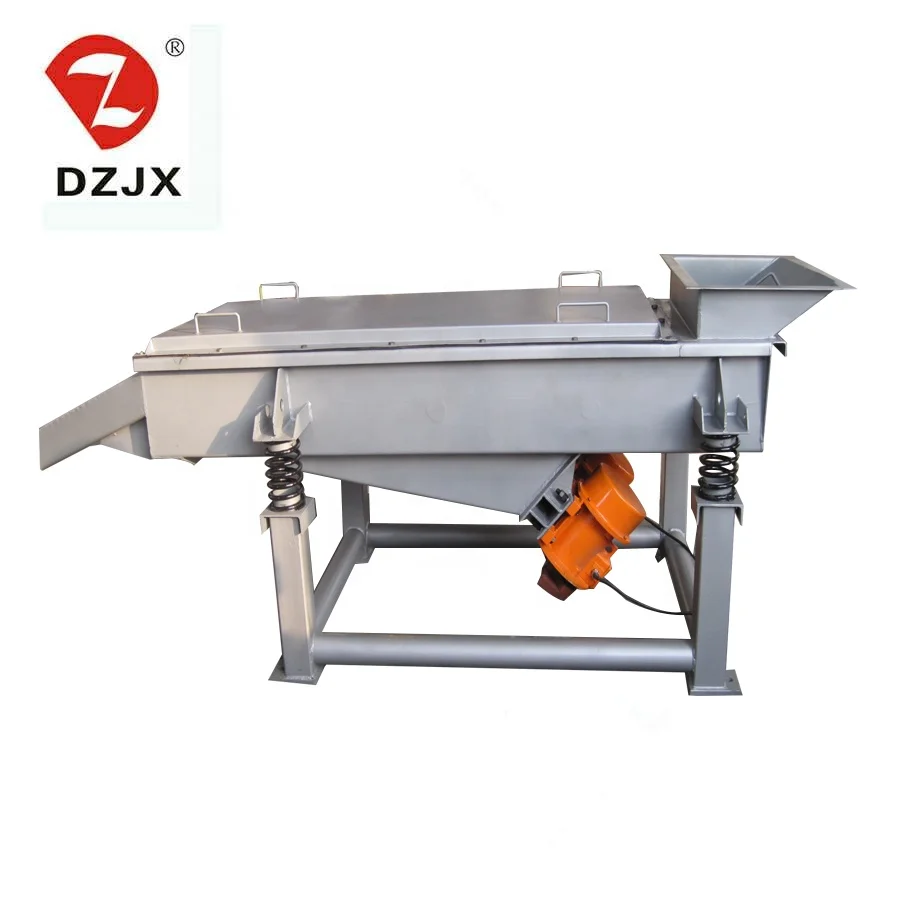

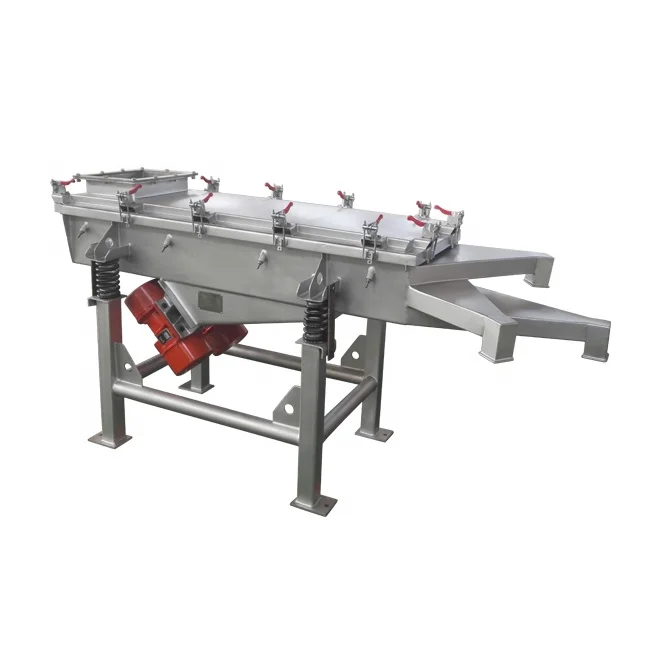

Industrial Stainless Steel Linear Screen Vibrating Screener Sifter Vibratory Sorting Sieve Vibro Sieving Machine




DZJX linear vibrating screen can equip with single-layer or multi-layer screens to achieve the target of rating,impurity,removing powder,testing,washing,dehydration, etc.
Materials are put into the inlet of the screen machine by the feeder evenly and are divided into several products,unqualified sieve materials,qualified sieve materials through the multi-layer screen and all of them discharge from their own outlet. It can be used in the automatic work of the assembly line.


Details Images

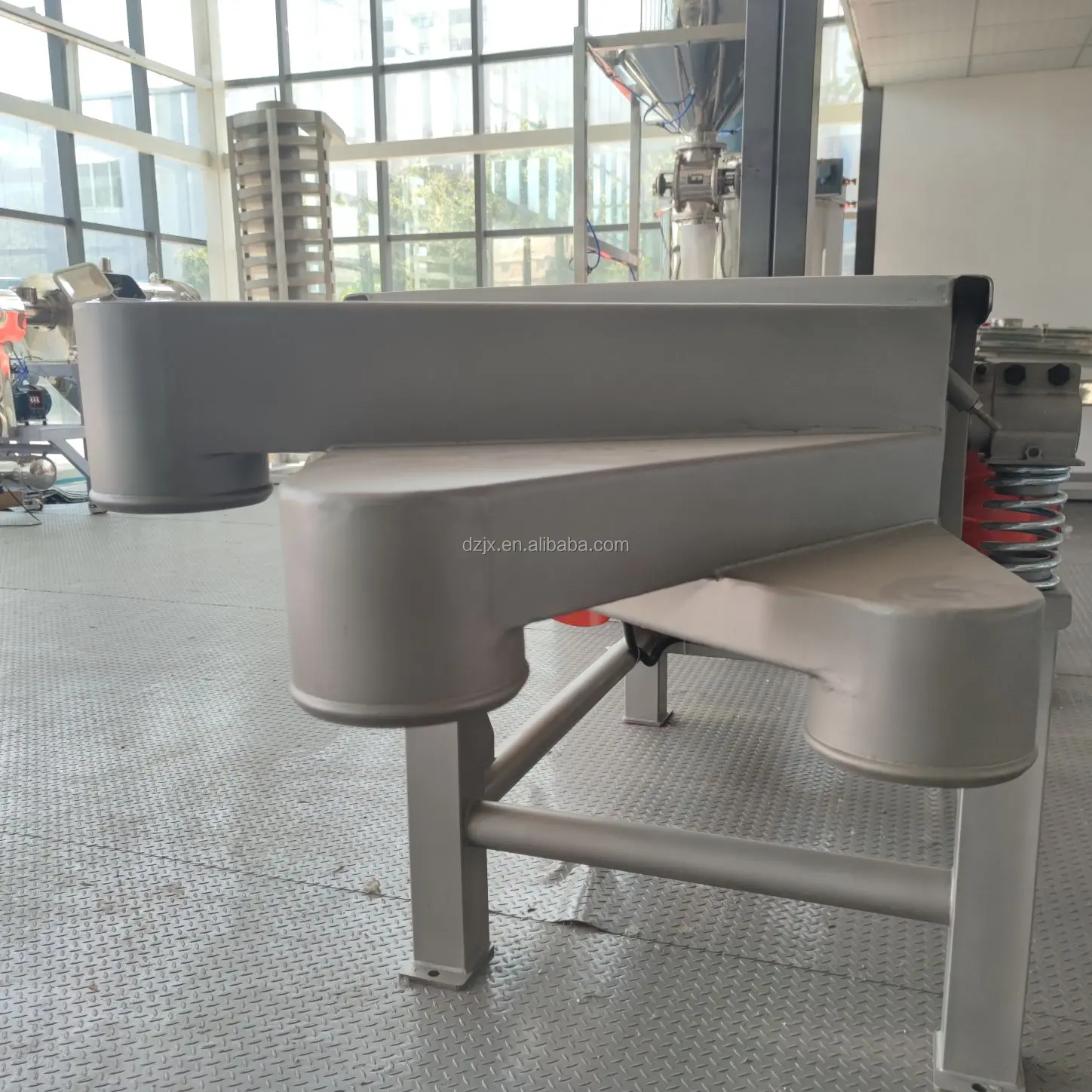

Discharge port
Opening direction can be designed according to requirements;The machine material can be carbon steel or high quality 304/316 stainless steel according to requirements

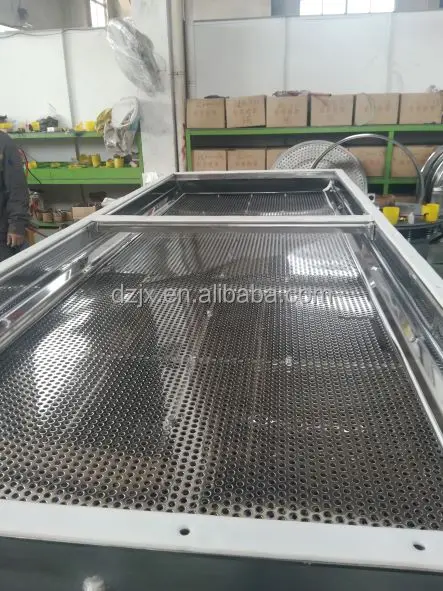

Screen
The screen mesh is made of high quality 304 stainless steel, screening size can be customized according to customer requirements.

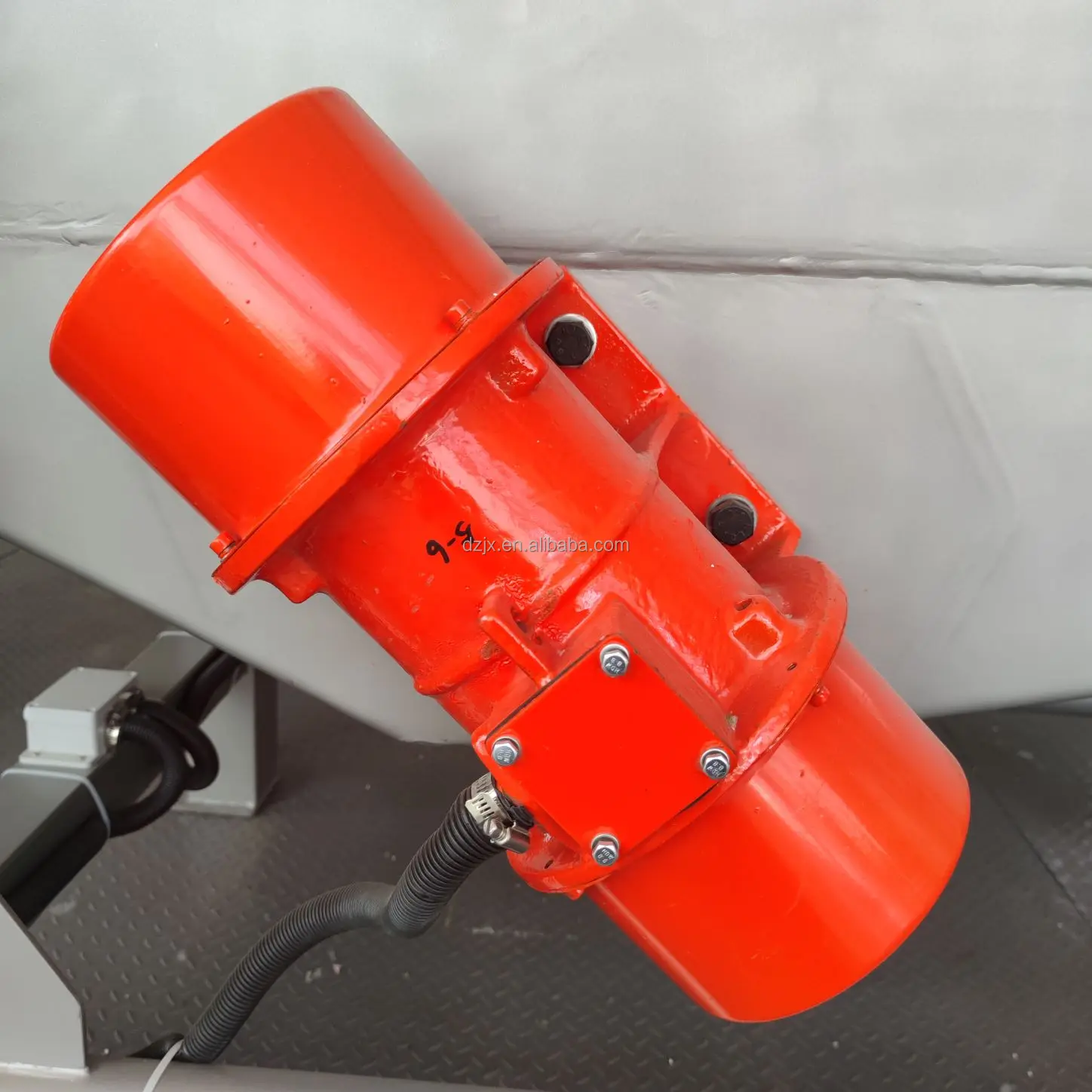

Vibration motor
High quality Italian Oli motor, more durable

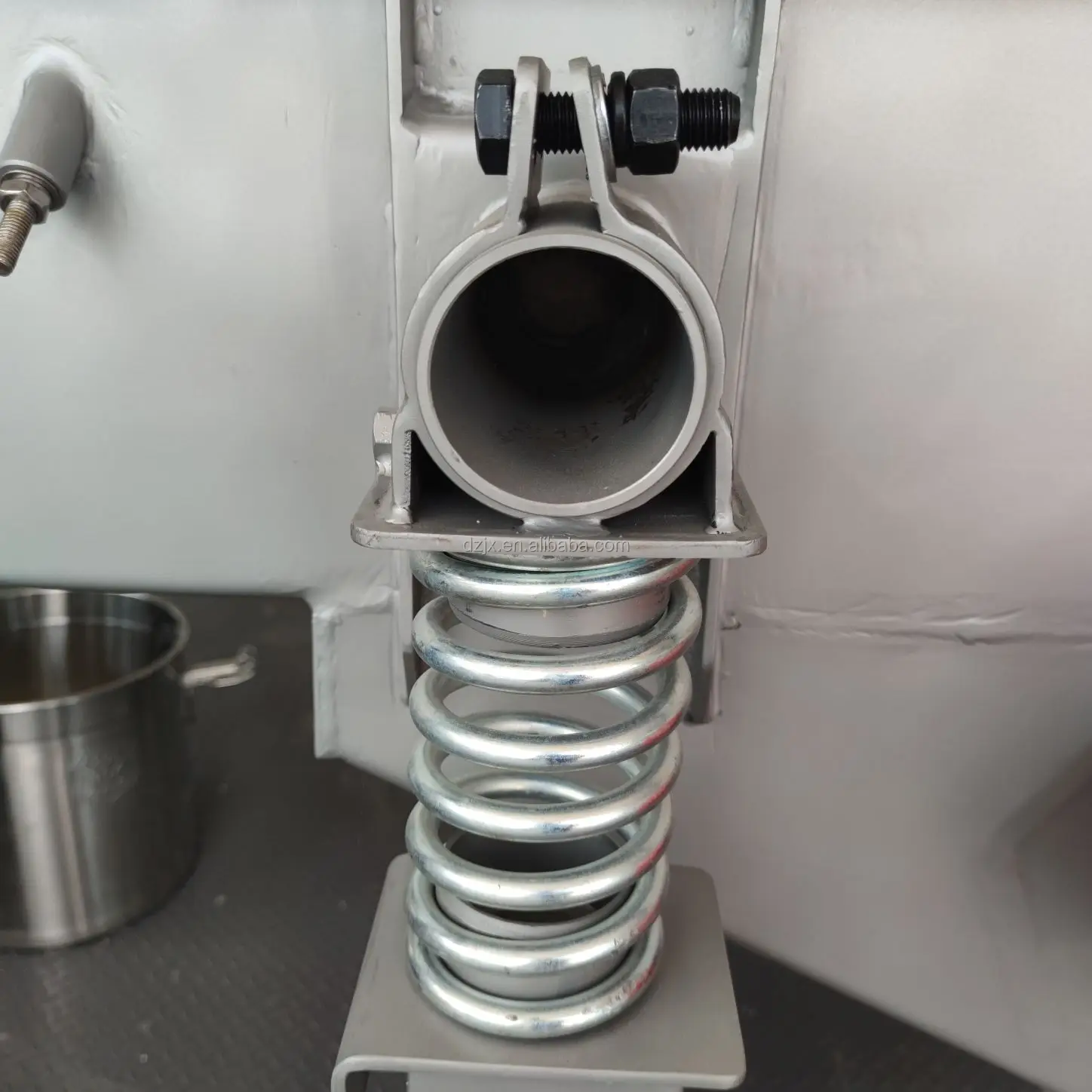

Spring
Adopt high quality domestic famous brand spring

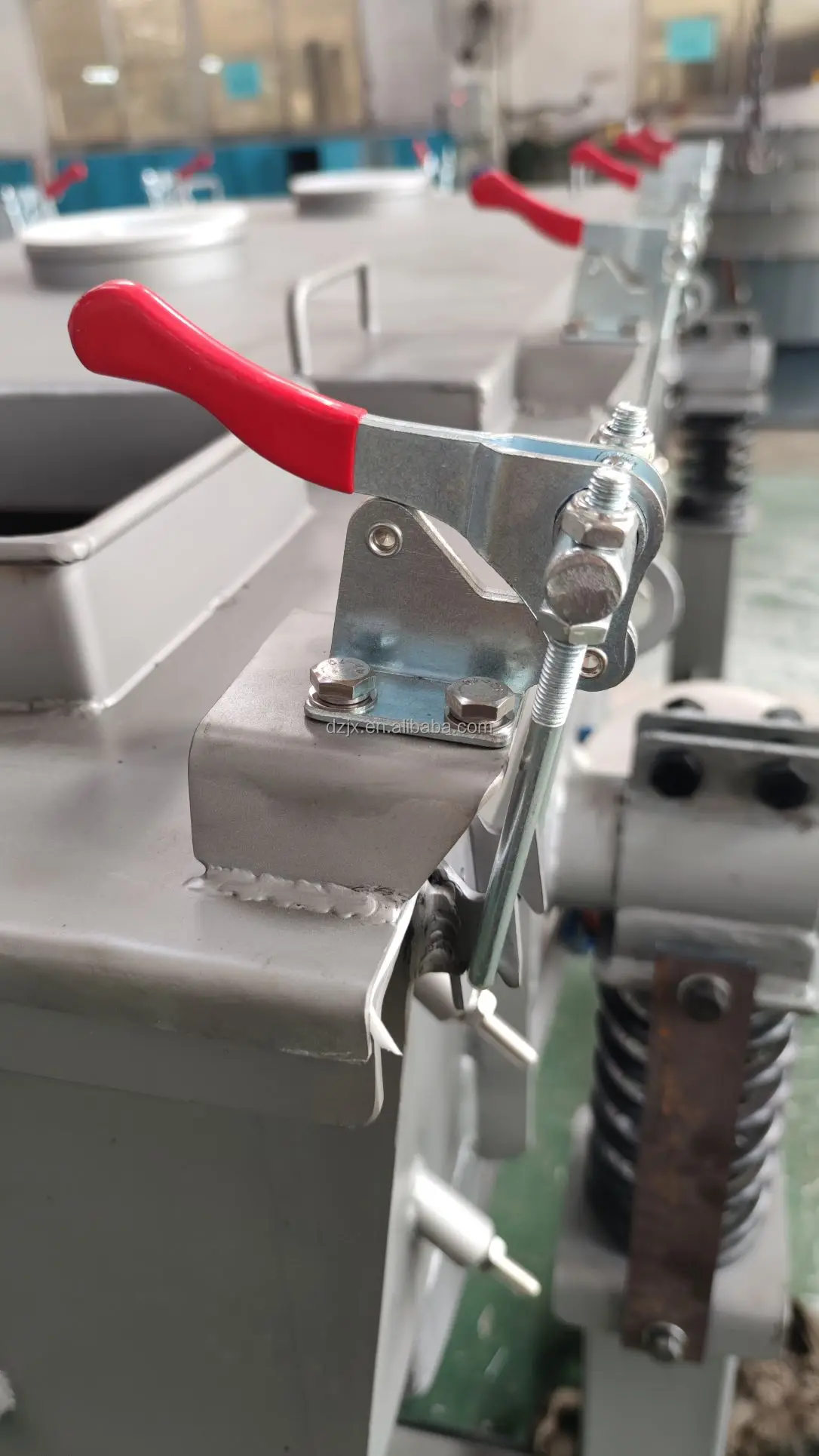

Dust-proof cover
According to customer requirements, add dust-proof cover for the equipment, design observation hole, and the use of quick switch,
convenient cleaning screen.

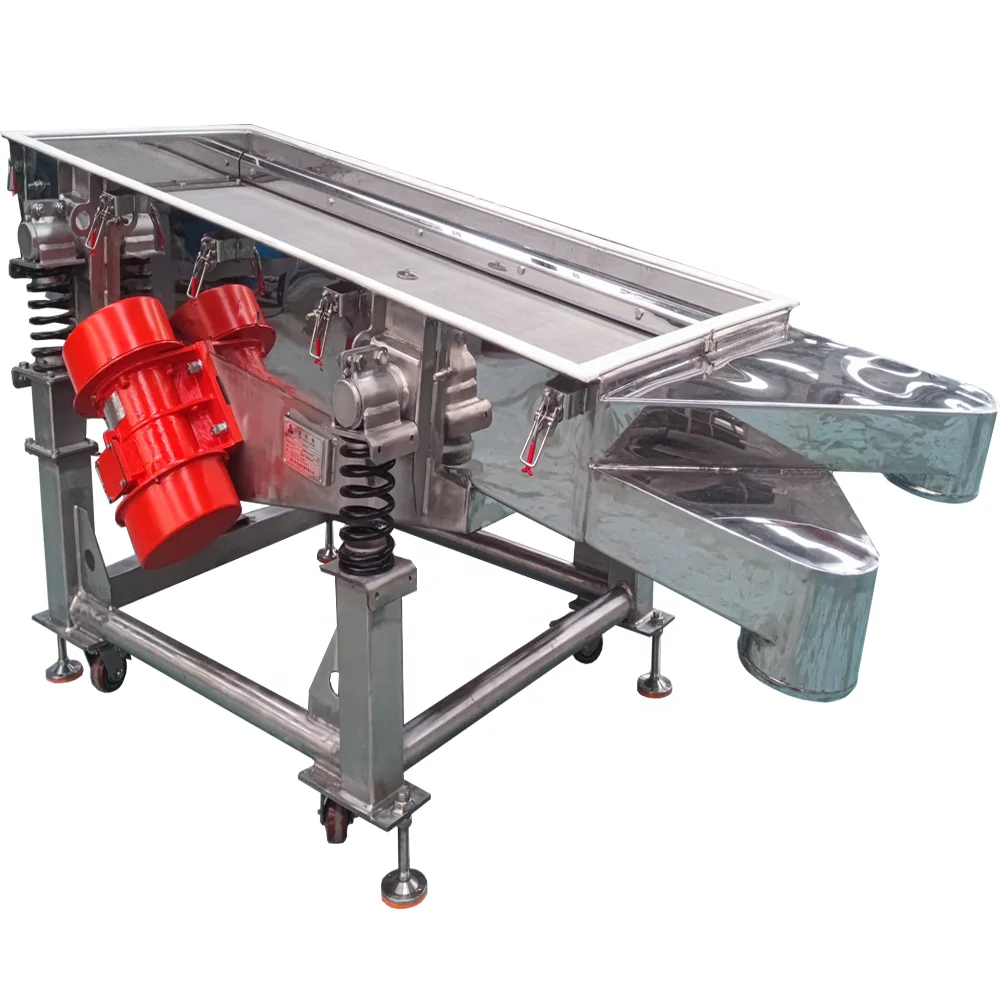

Products Show








Customer site






Application


linear vibrating screen is suitable for any dry material screening.
It is widely used in chemical , food , plastics , pharmaceuticals , metallurgy , glass , building materials , food , fertilizers , abrasives , ceramics and other industries.




Technical Parameter


Model
Effective screening area
Granularity size
Deck
Power(kw)
Speed(r/min)
Amplitude(mm)
ZSQ-520
500*2000
0.074-60
1-4
2*0.75
960
4-8
ZSQ-840
800*4000
0.074-60
1-4
2*1.5
960
4-8
ZSQ-1030
1000*3000
0.074-60
1-4
2*1.9
960
4-8
ZSQ-1255
1200*5500
0.074-60
1-4
2*2.2
960
4-8
ZSQ-1650
1600*5000
0.074-60
1-4
2*3.0
960
4-8

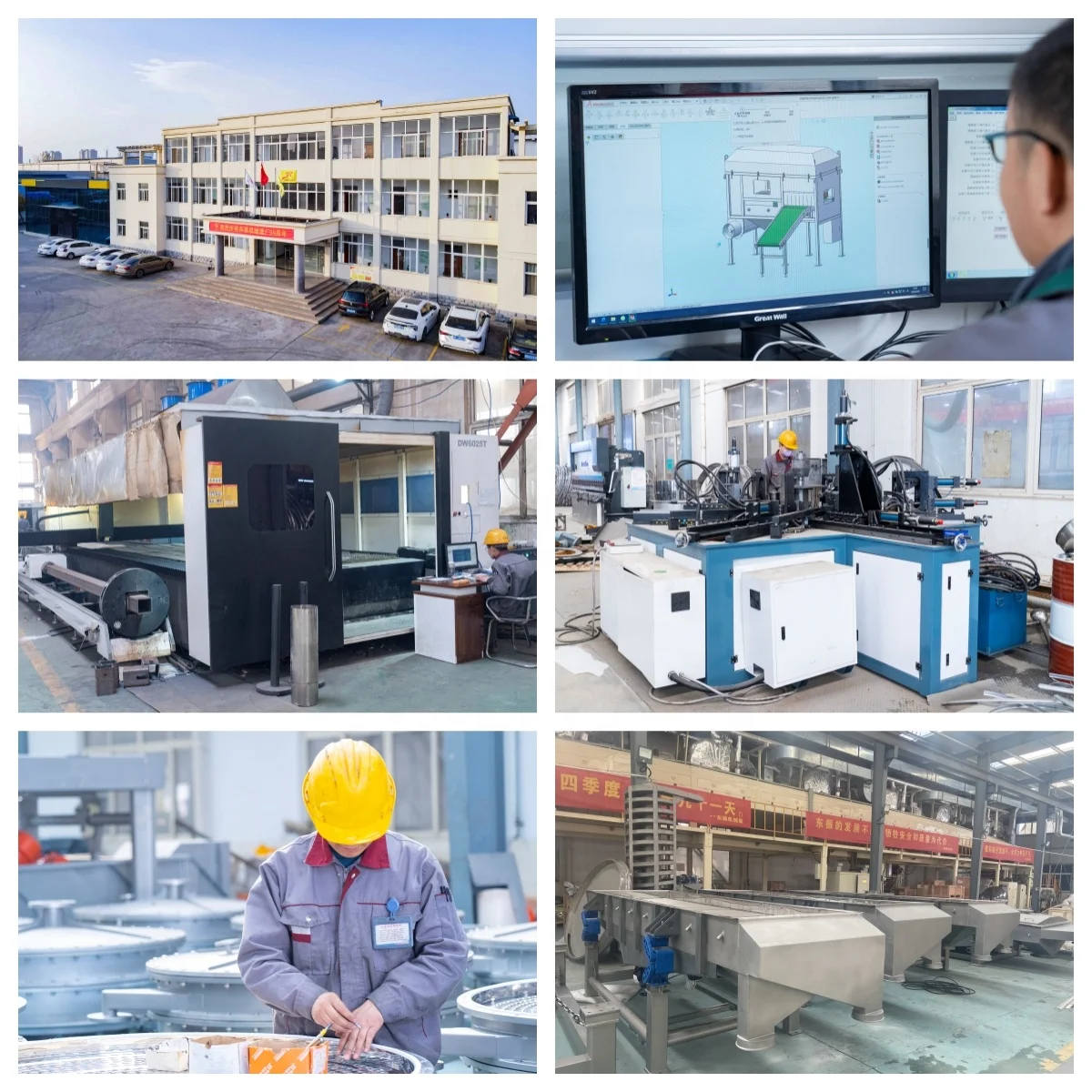

Company Profile

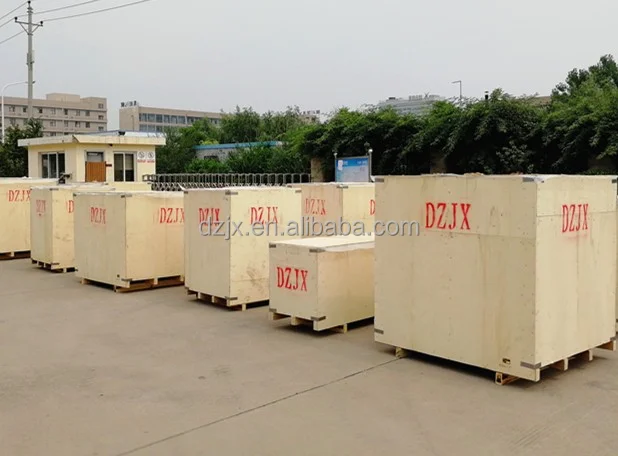

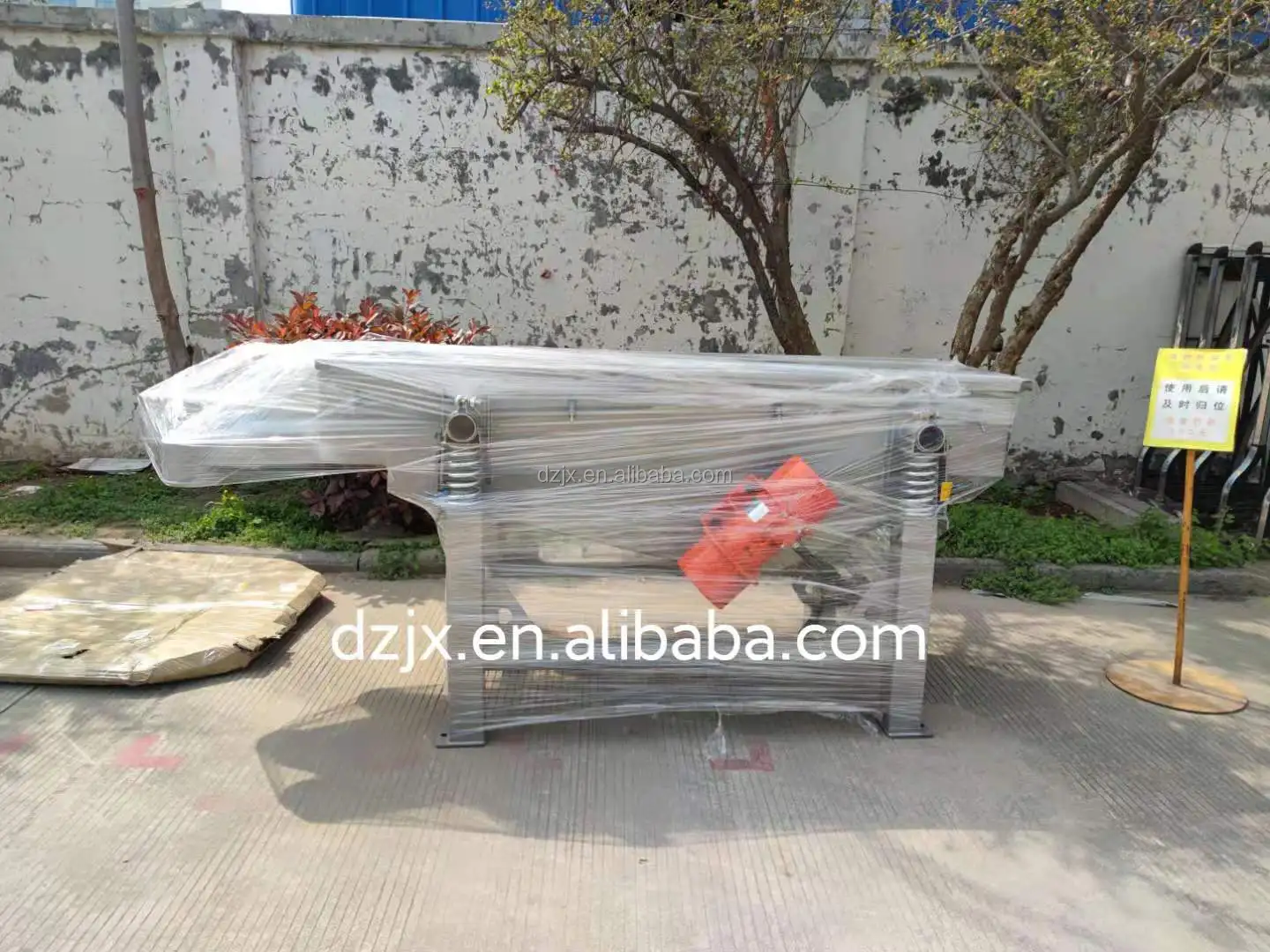

Packing & Delivery
