125 мм турбо Сегментированный двухрядный бетонный алмазный шлифовальный круг
- Category: Grinding Wheels >>>
- Supplier: Johnson,Tools,Manufactory,Co.,Ltd.
Share on:
Product Overview
Description

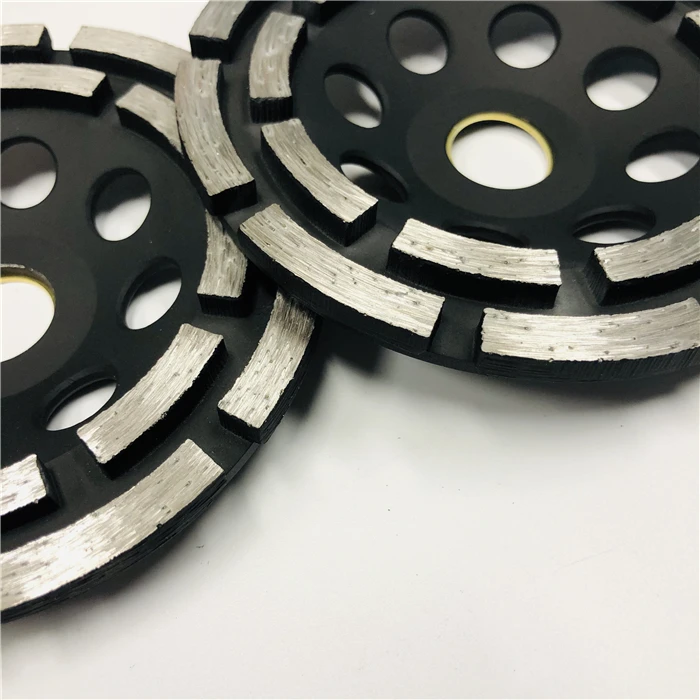

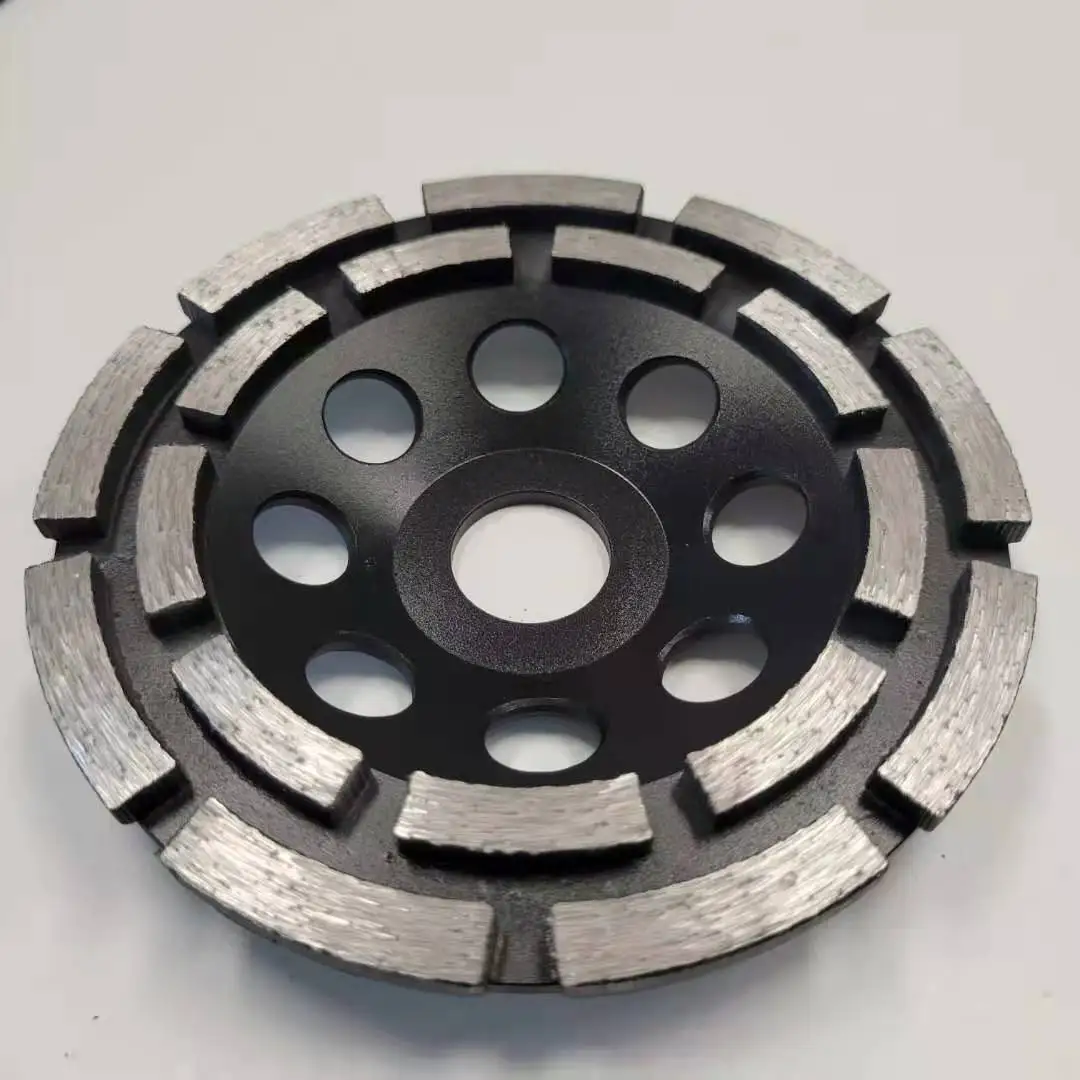

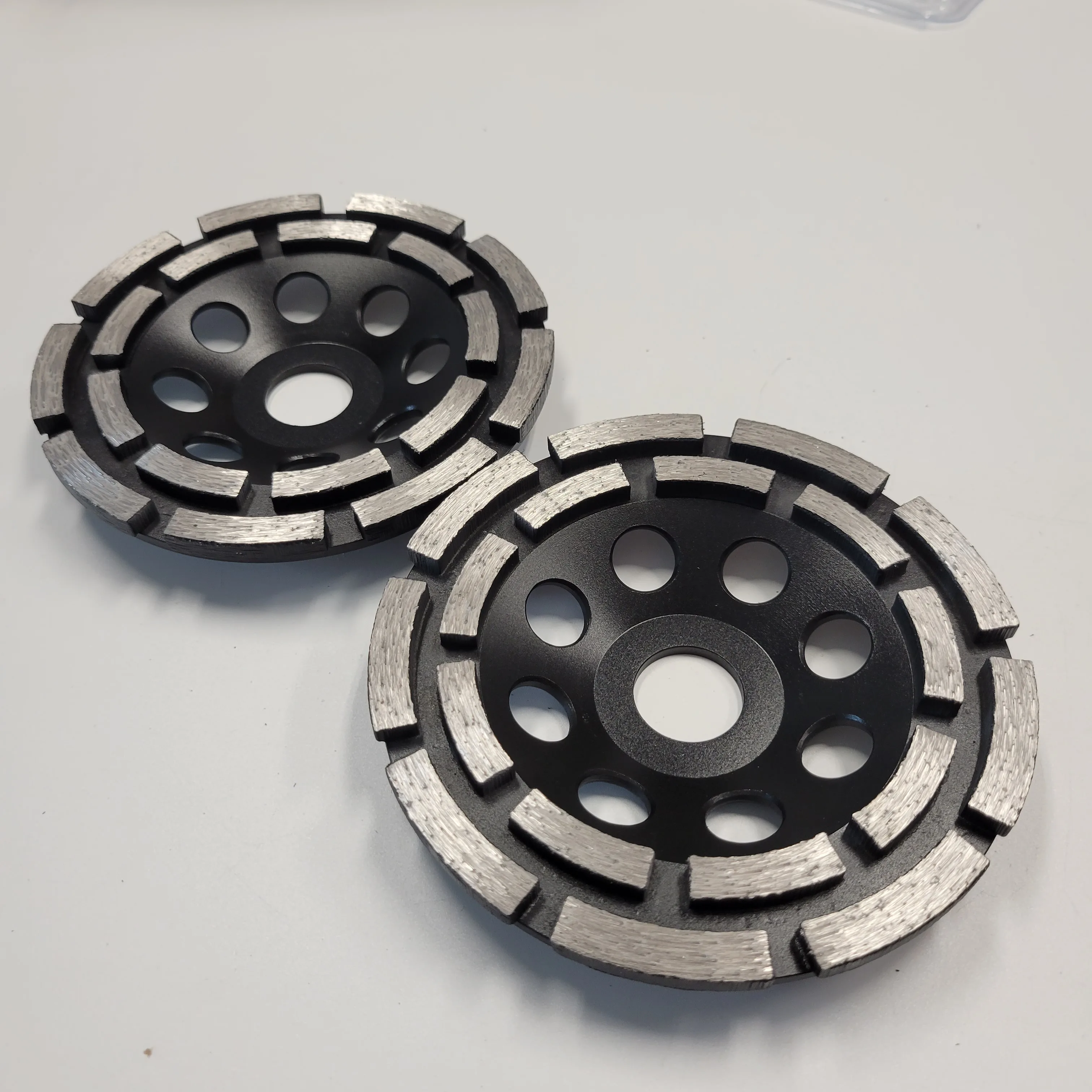

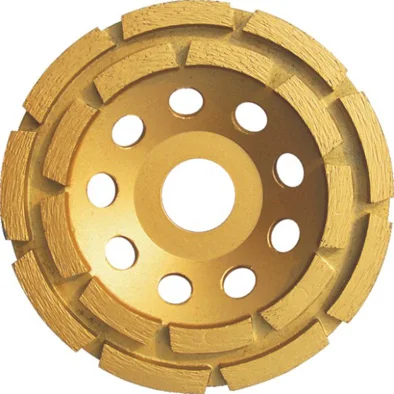

Turbo Segmented Rim Double Row Concrete Diamond Grinding Cup Wheel For Stone

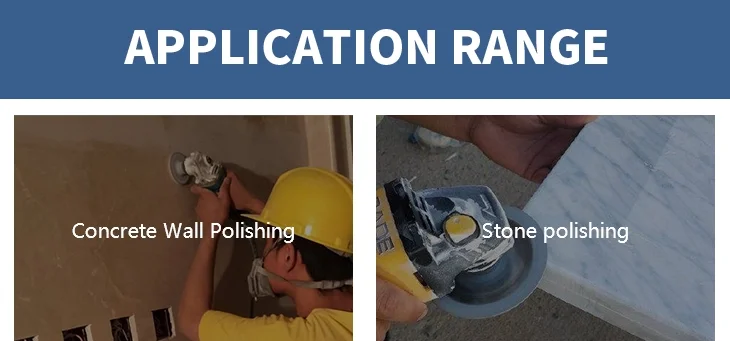

Application:
For granite,marble,concrete products,masonry,construction materials,and all types of natural stones.

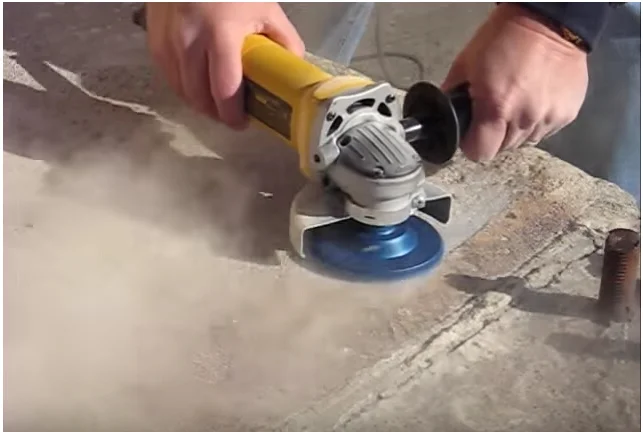

1) For grinding concrete, hard granite, marble, engineered stone
2) Flange with thread M14 or 5/8"-11available
3) Coarse, medium and fine grit on request
2) Flange with thread M14 or 5/8"-11available
3) Coarse, medium and fine grit on request
Product Name | Turbo Segmented Rim Double Row Concrete Diamond Grinding Cup Wheel For Stone |
Blade Material | Diamond |
Body Material | 65Mn Steel |
Segment Type | Double Row (Single Row, Continuous Rim, Continuous Turbo Rim, Segmented Turbo Rim, T Segment, C Segment, Tornado Segment, and Boomerang Segment are available.) |
Process | Cold Pressed Sintered, High-Frequency Welded |
Size | 80-180mm |
Surface Finish | Color Painting |
Color | As clients' requests |
Grit | Coarse/medium/fine |
Arbor | 5/8"-11, M14, 22.23mm etc |
Package | in PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell, Metal Box |
Features | 1.The high diamond concentration provides for a faster cut rate while the high quality of the diamonds provides longer blade life. 2.The double row of diamonds on these blades provides for heavy material removal and provides longer life. 3.Grinding segments with heat treated steel bodies which provide increases durability and wheel life. 4.Venting holes for fast, dry or wet grinding with long life. 5.Suitable for use on grinding on marble, tile, concrete, and rock. |
Type | Inch | Seg. Dimension (mm) | Segments | ||
Double Row diamond wheel | 4" | (O)30x8x5 | (I)20x8x5 | 16 | |
4.5" | (O)30x8x5 | (I)20x8x5 | 16 | ||
5" | (O)31x8x5 | (I)22x8x5 | 18 | ||
6" | (O)31x8x5 | (I)22x8x5 | 20 | ||
7" | (O)31x8x5 | (I)28x8x5 | 24 | ||
7" | 24x5 | 40 | |||
