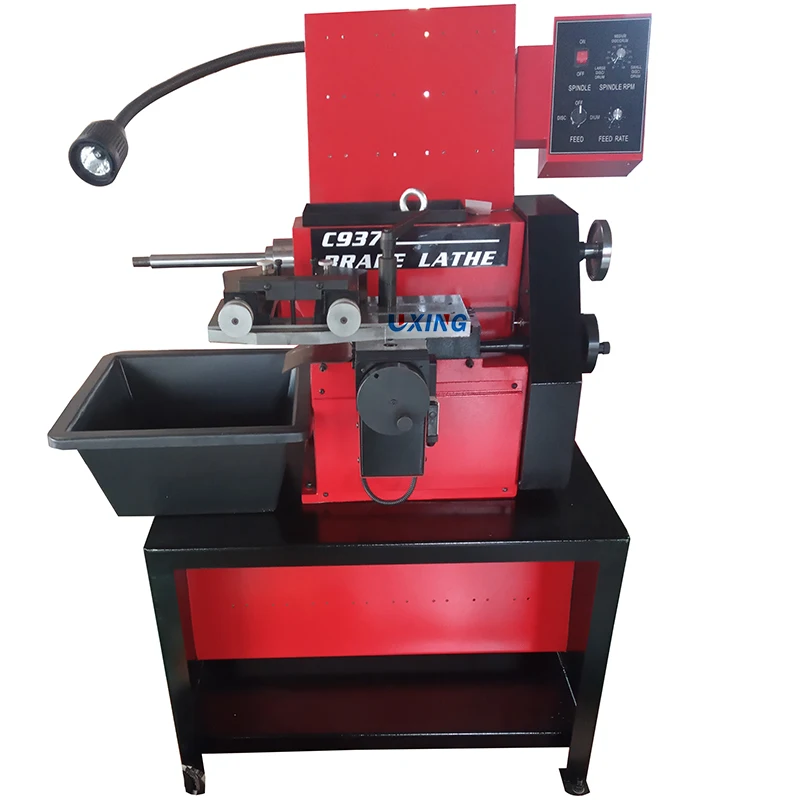

car brake disc and drum cutting lathe machine C9372 for repair
- Category: >>>
- Supplier: Zaozhuang Luxing Machine Tool Co. Ltd.
Share on (1600547859394):
Product Overview
Description

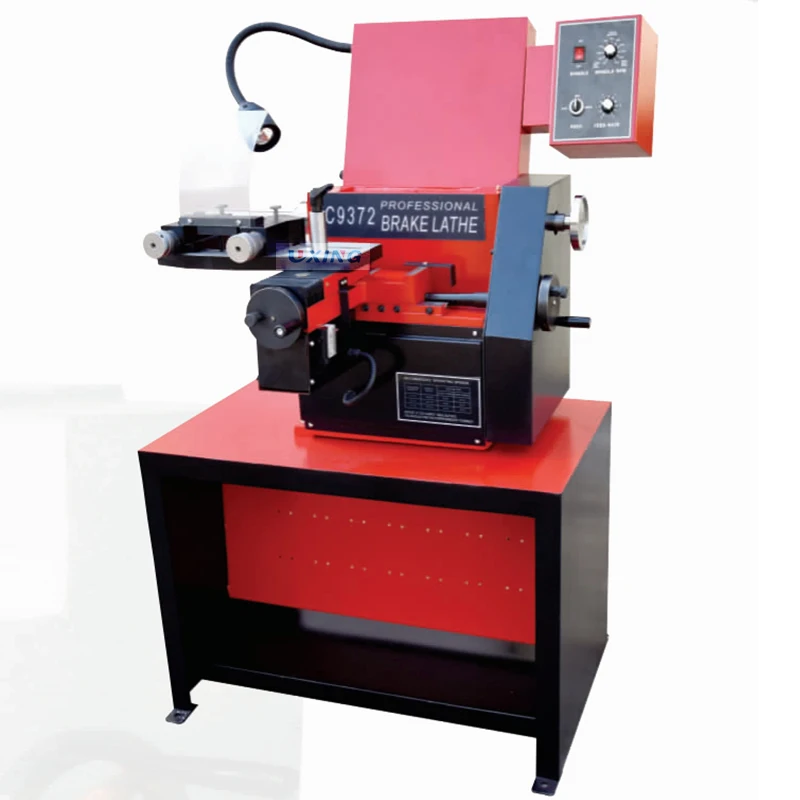

car brake disc and drum cutting lathe machine C9372 for repair
Features of C9372:
Applicable for repairing medium/small brake disc/drum.
DC drive enables variable feeding speed(Max. 320rpm) & feeding sped.
Main specifications:
Model | C9350C | C9370C | C9372 | ||
Brake disc | Diameter mm | 178-368 | 178-457 | 180-508 | |
Thickness mm | 48 | 48 | 73 | ||
Brake drum | Diameter mm | 152-450 | 152-711 | 152-500 | |
Depth mm | 160 | 220 | 165 | ||
spindle speed rpm | 70,88,118 | 70,88,118 | 70-320 | ||
Cross feeding capacity mm/r | 0-0.4 | 0-0.4 | 0-0.66 | ||
spindle feeing capaity mm/r | 0-0.4 | 0-0.4 | |||
Motor power kw | 0.75 | 0.75 | 0.6 | ||
Overall dimensions(L*M*H)mm | 1200*900*1500 | 1280*1100*1445 | 1010*720*1430 | ||
Weight kg | 290 | 290 | 270 | ||
Details:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
