Power Wall 48V 100Ah 200Ah 5Kwh 10Kwh Lifepo4 battery pack wall mounted Solar Lithium home Battery 48V200ah powerwall
- Category: >>>
- Supplier: Dongguan City Gonghe Electronics Co. Ltd.
Share on (1600547876437):
Product Overview
Description
Products Description
6000Cycles
Best Qualtiy, Long Cycles Life
10Years Warranty
Good After Sales Service
Smart BMS
Very smart and good quality BMS to protect itself very well
Wider Comptability
Compatible with a lot of inverters like Deye, INVT, Growatt, Sofar, MEGAREVO, Sol-ark, Victron and so on
Product Details
Type | Module | Powerwall | ||||||
Model | LFP48V50AH | LFP48V100AH | LFP48V150AH | LFP48V200AH | ||||
Nominal Energy | 2.4KWH | 5KWH | 7KWH | 10KWH | ||||
Max Discharge Current [A] | 50 | 100 | 150 | 200 | ||||
Recommended MAX Charge Currect | 50A | |||||||
Inner Resistance | <30mΩ | |||||||
Net Weight | 30kg | 59kg | 75kg | 90kg | ||||
Operating Temperature Range | Discharge: -20℃-60℃（pack internal temperature） | |||||||
Life Cycles | >3000 cycles (100% DOD); >6000 cycles (80% DOD) | |||||||
Nominal Voltage [V] | 48V | |||||||
Warranty | 10 Years | |||||||
Charge Mode | 0.2C to 54V, then 54V,charge current to 0.02C (CC/CV) | |||||||
Battery Pack | Comply UN38.3, CE | |||||||

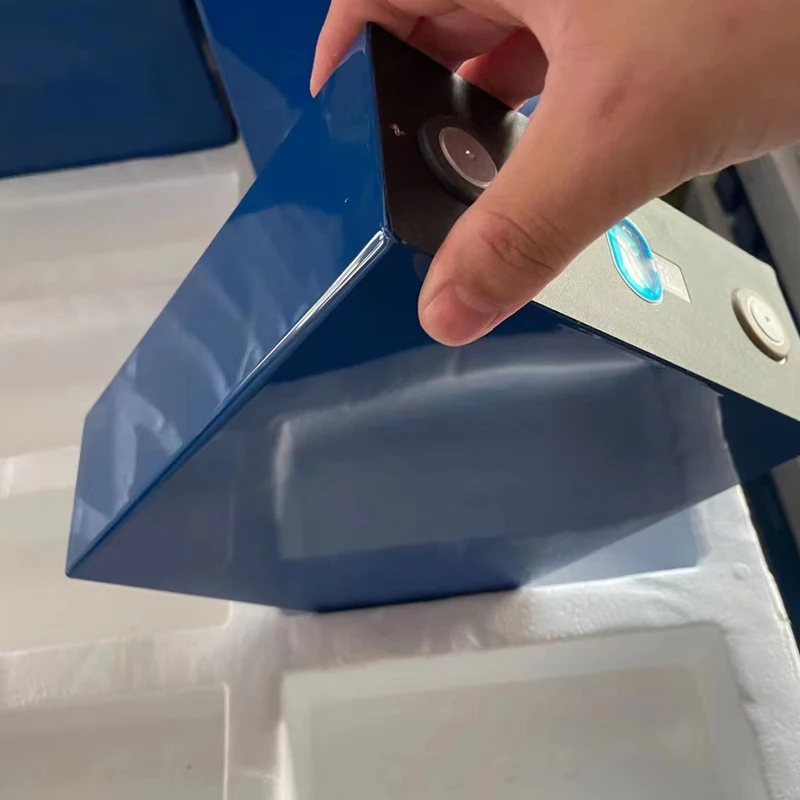

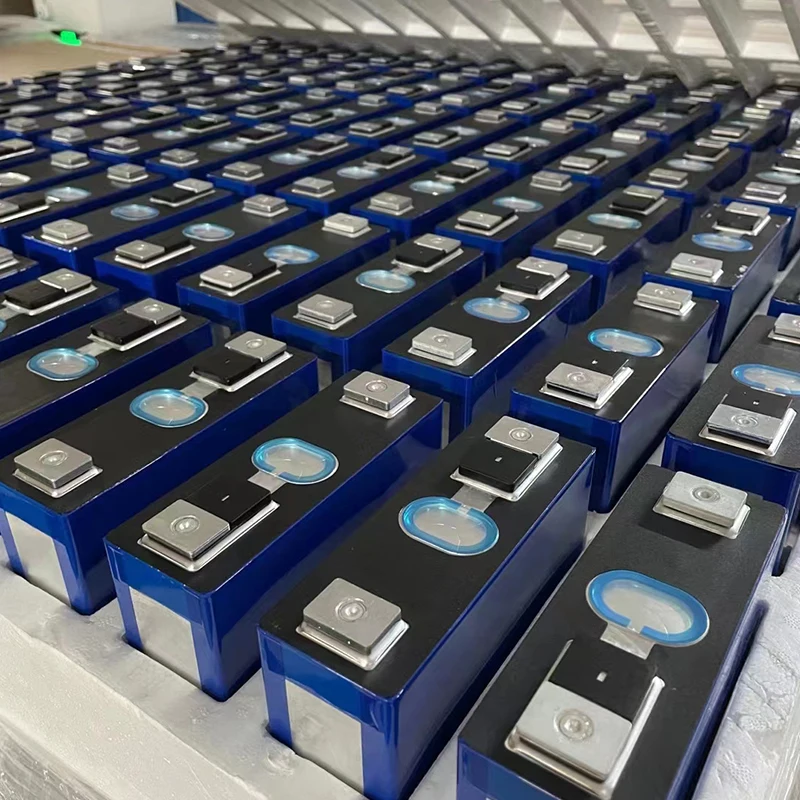

Battery Cell | 3.2V LIFEPO4 Type (UN38.3, UL 1642, CE) | |||||||
BMS | Built-in BMS | |||||||
Others | LCD Screen, Support Parallel | |||||||
10 Years Warranty, More than 20 Years Design Life | ||||||||

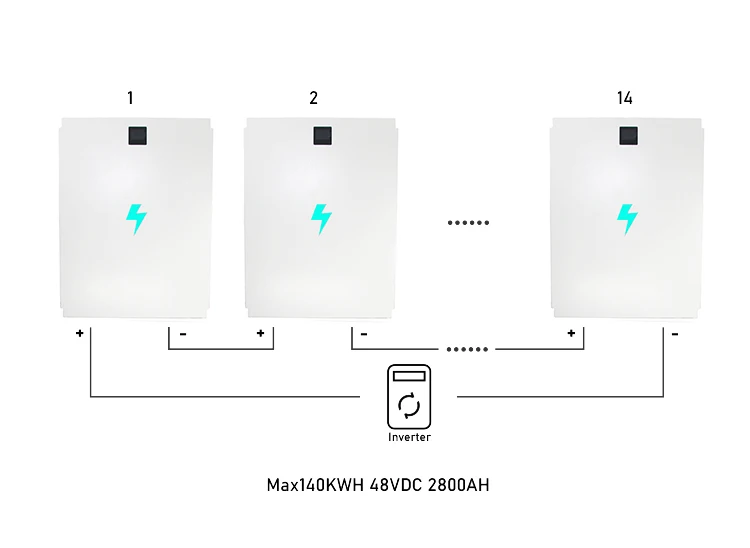

Max support 14 units parallel connection.
Grade A Best safety on lifepo4 battery.
