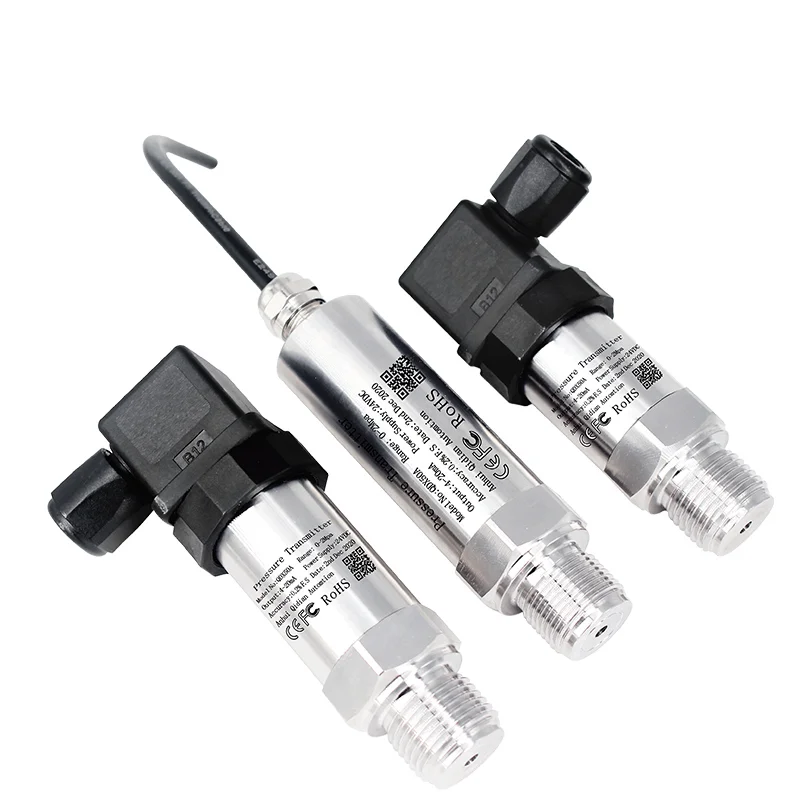

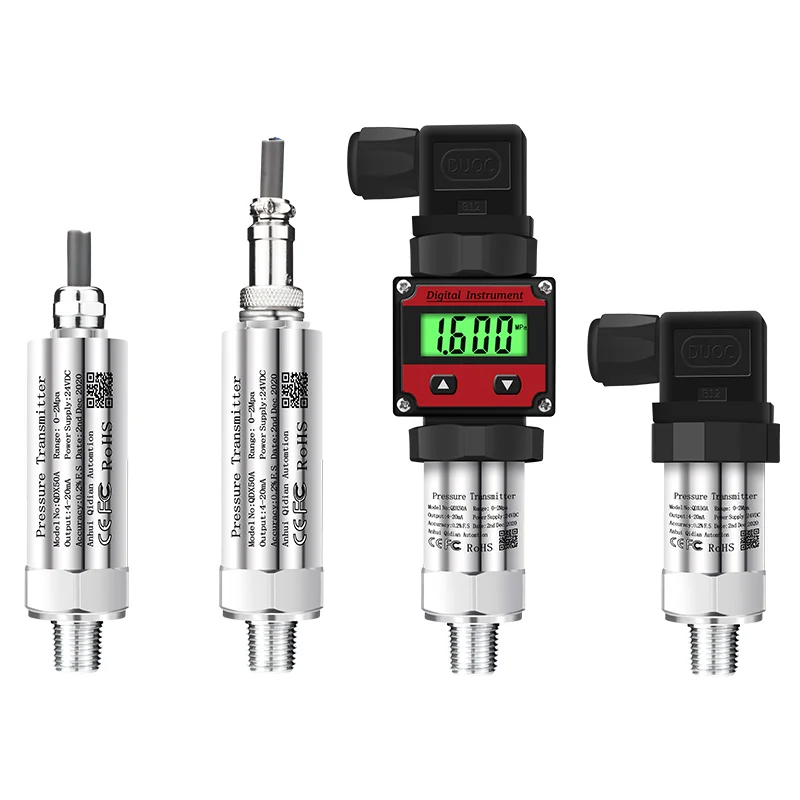

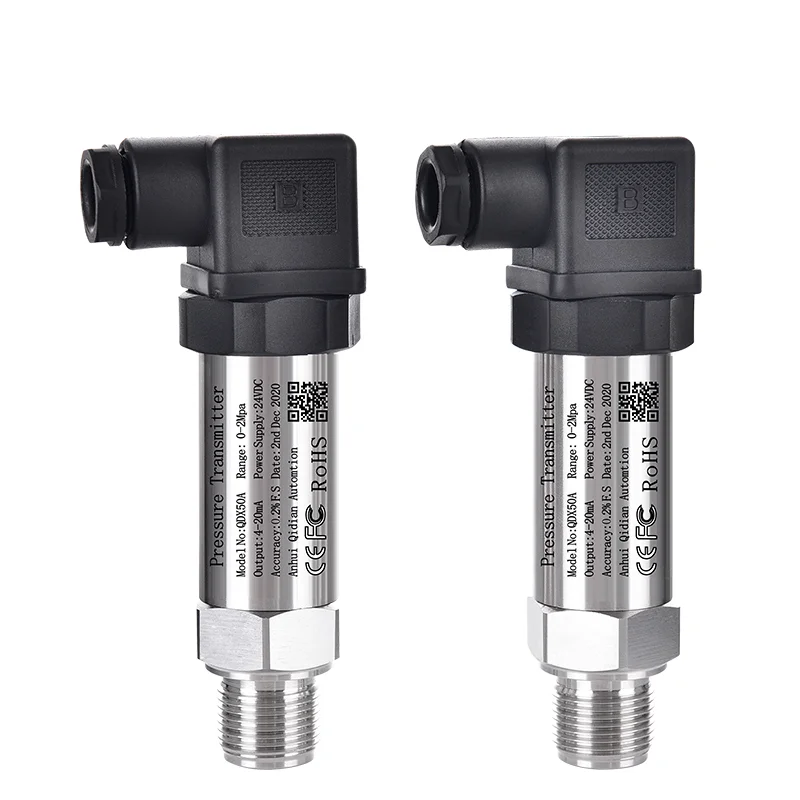

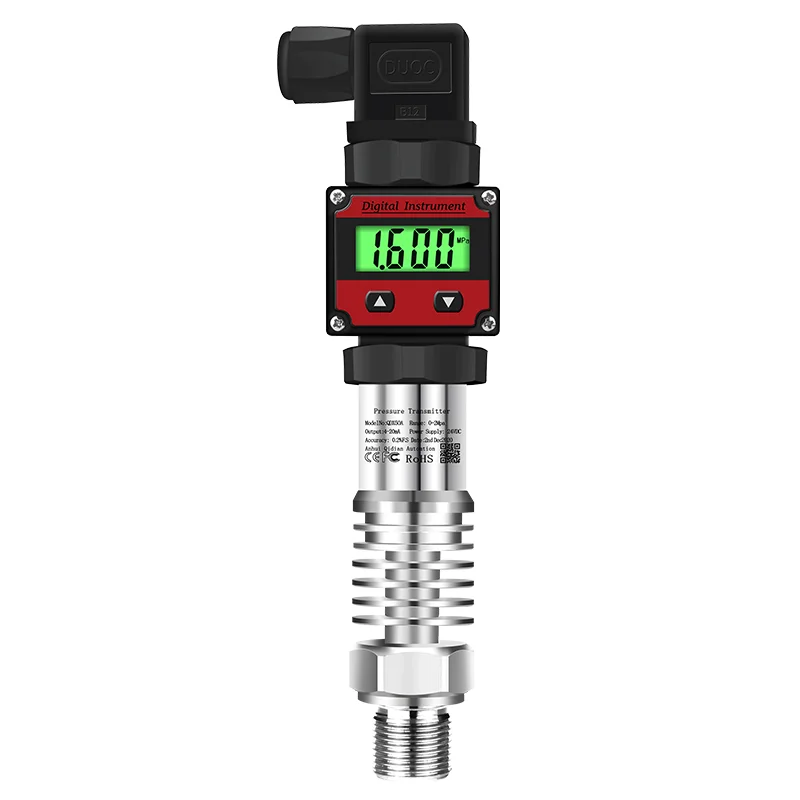

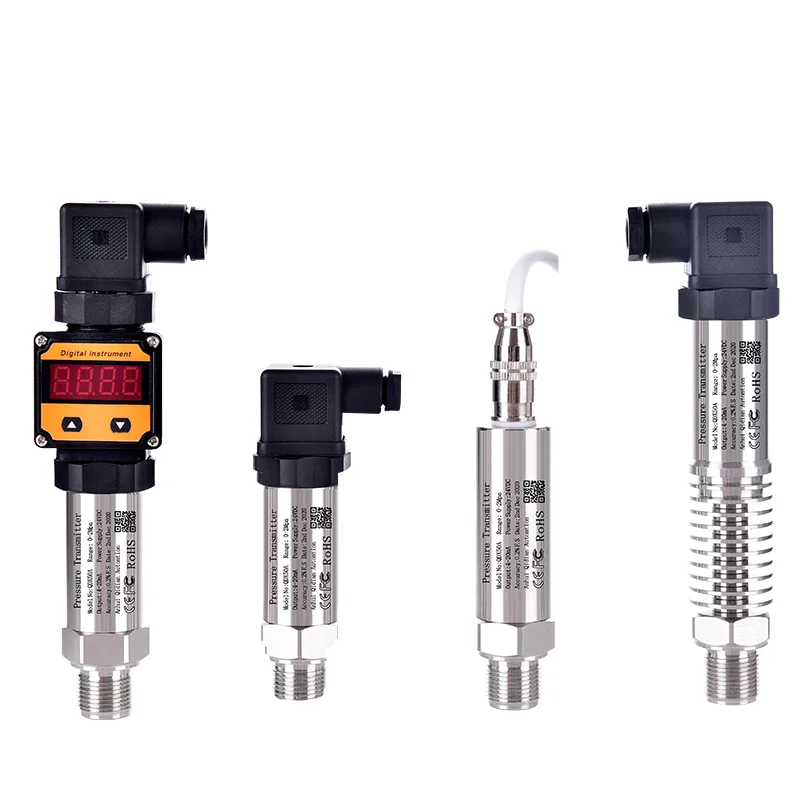

Hydraulic pressure transmitter 0 10v pressure transmitter piezoresistive pressure transmitter
- Category: >>>
- Supplier: Anhui Qidian Automation Technology Co. Ltd.
Share on (1600547887138):
Product Overview
Description
MeasuringRange | -0.1~0~60MPa |
Accuracy | 0.5%FS(Default);0.2%F.S |
Power Supply | DC12~36V(DC24V) |

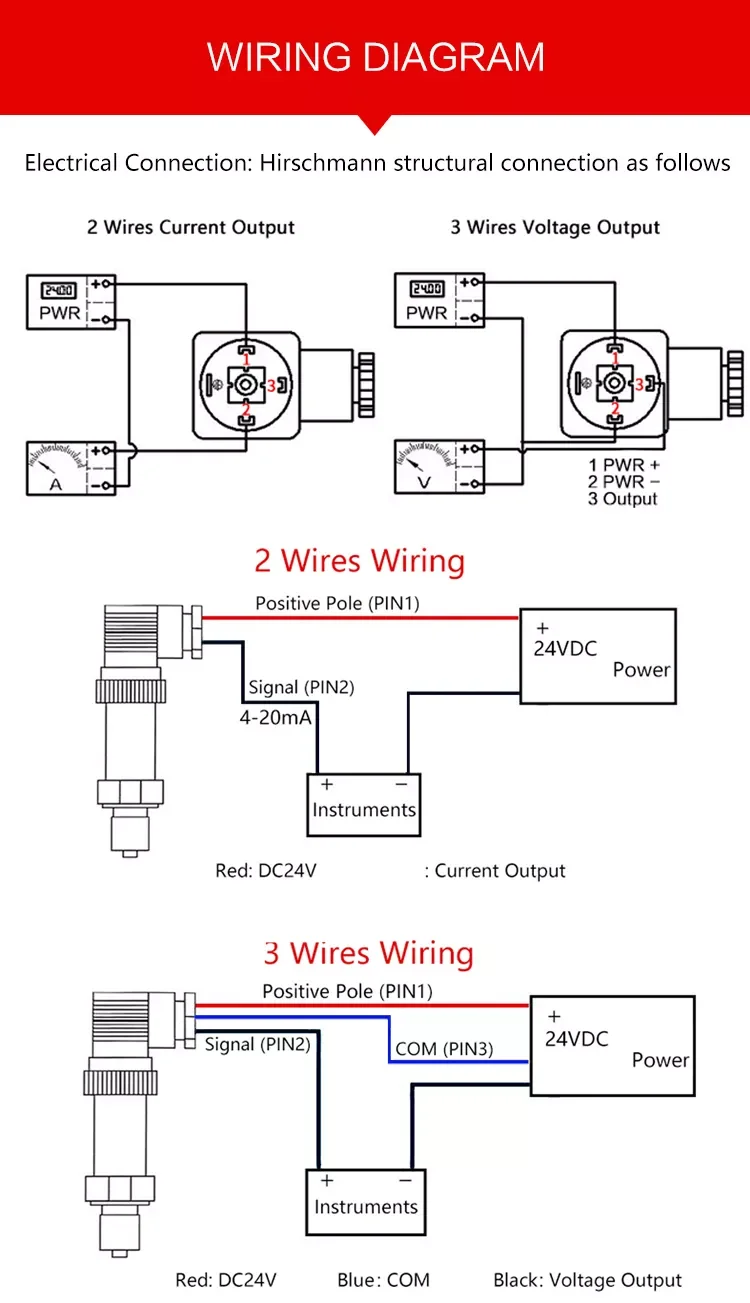

Output Signal | 4~20mA1~5V0~5V0~10VRS485Etc |
Compensation Temperature | -10~70℃ |
Pressuretype | Gauge，Absolute; Negative,Sealed gauge pressure |
Measuring Medium | Oil, Gas, Water,Liquid |
Natural Frequency | 5khz~650khz |
Protection Grade | IP65 |
Long-Term Stability | Standard:0.2%F.s+0.05% |
Overload | 200%F.S |
Respond Time | less than 8ms |
Full-Load Consumption | 2W |
Ambient Temperature | -40~85℃ |
Zero Temperature Drift | 0.03%FS/C(100Kpa) |
FS Temperature Drift | 0.003%FS/C(100KPa) |

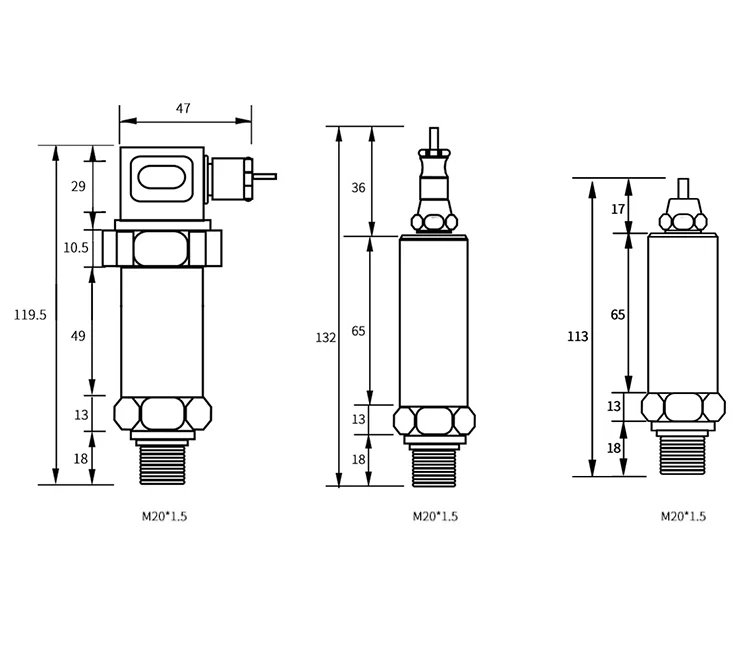

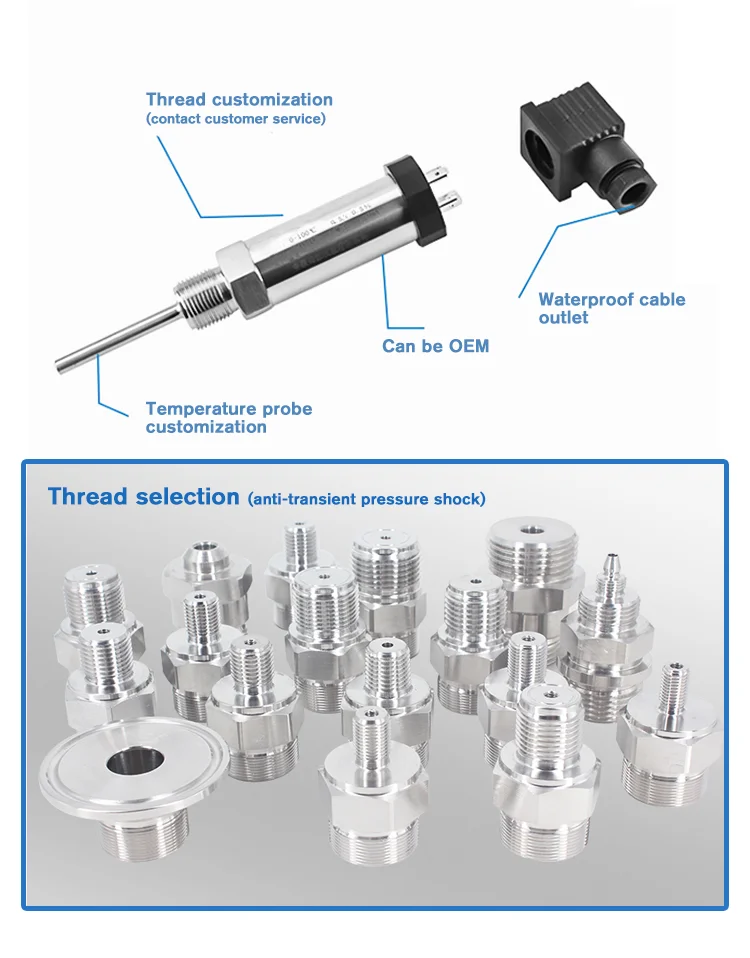

Process Connection | M20x15(default)flangeCustomization |
1. Are you manufacture ?
Yes,We are factory and exporter in china over 10 years experience,
with CE,ROHS,FCC ISO and 4 patents.
2. What is your delivery time?
It is in 3-5 working days since the payment confirmed.
If your order is over 2000pcs, we need 10 days
3. How is your quality assurance service?
All our products have 3 years warranty.
4. Could we make a visit to your factory?
We warmly welcome you to visit our factory and make good cooperation with you.
Yes,We are factory and exporter in china over 10 years experience,
with CE,ROHS,FCC ISO and 4 patents.
2. What is your delivery time?
It is in 3-5 working days since the payment confirmed.
If your order is over 2000pcs, we need 10 days
3. How is your quality assurance service?
All our products have 3 years warranty.
4. Could we make a visit to your factory?
We warmly welcome you to visit our factory and make good cooperation with you.
