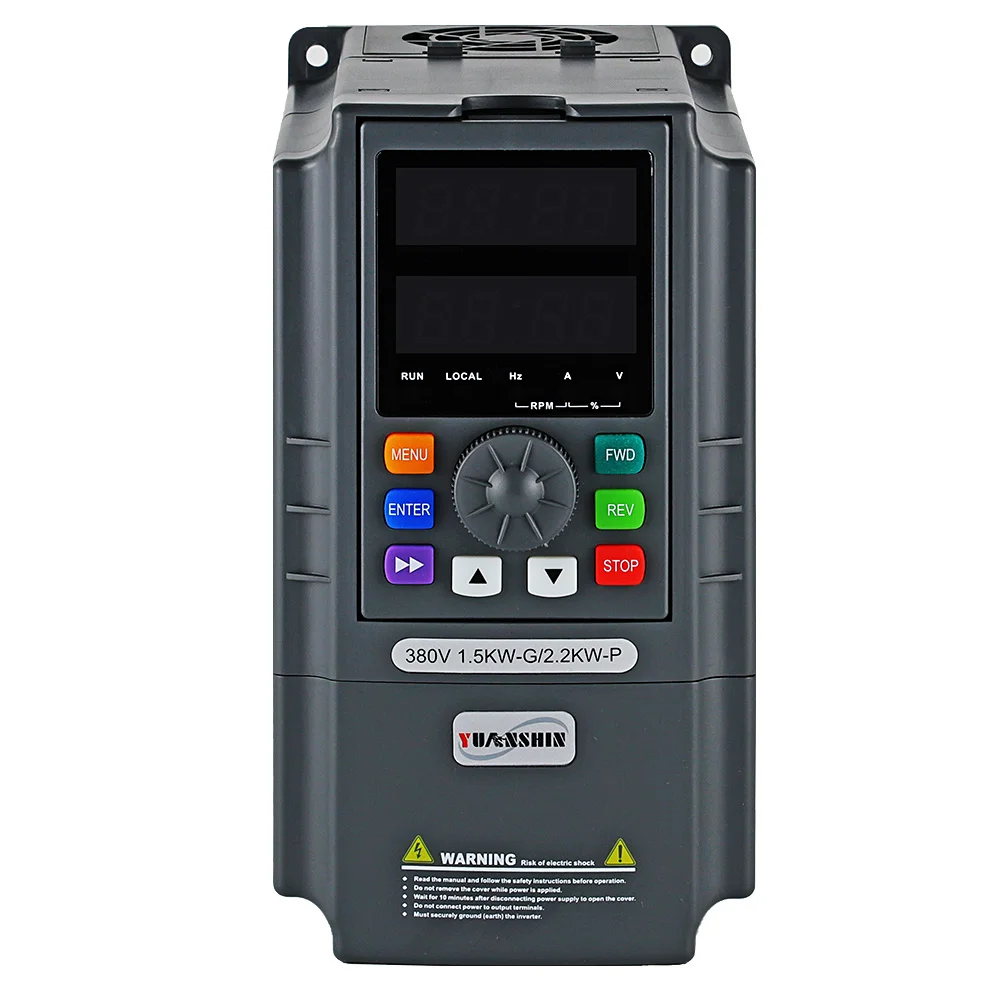

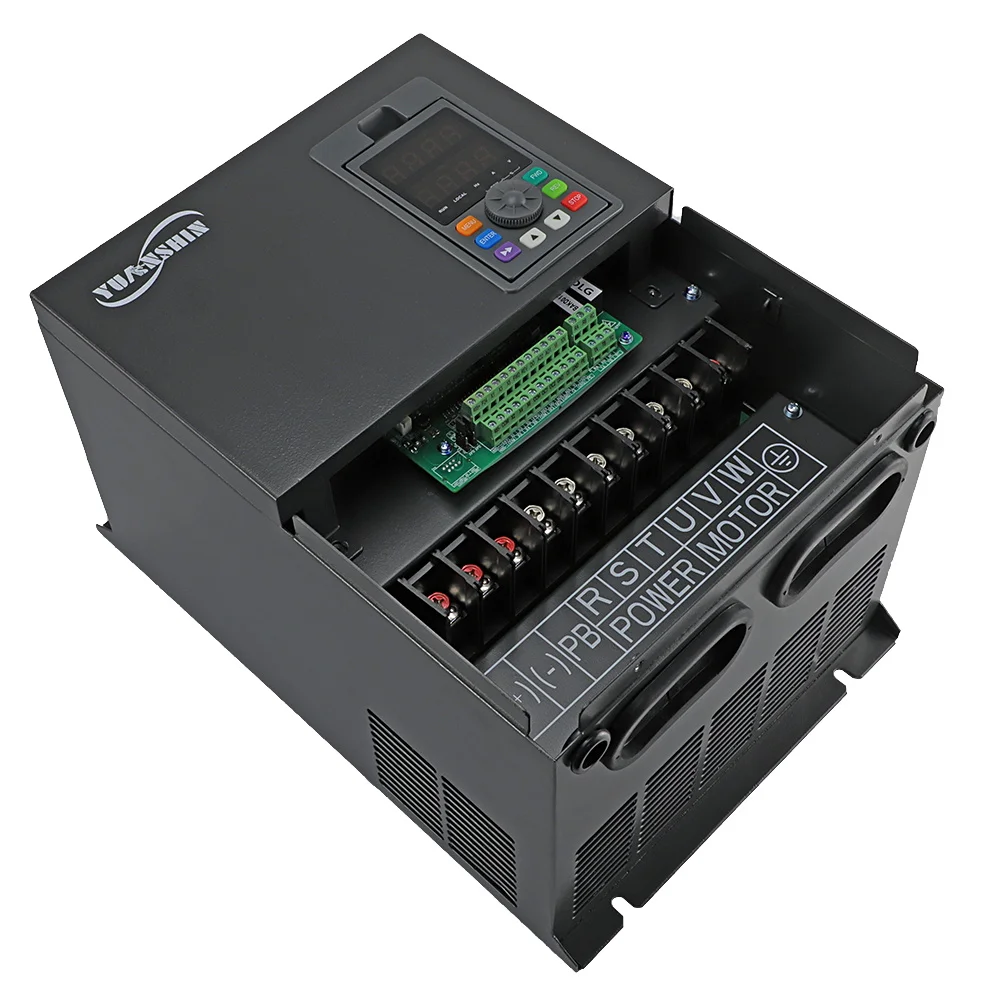

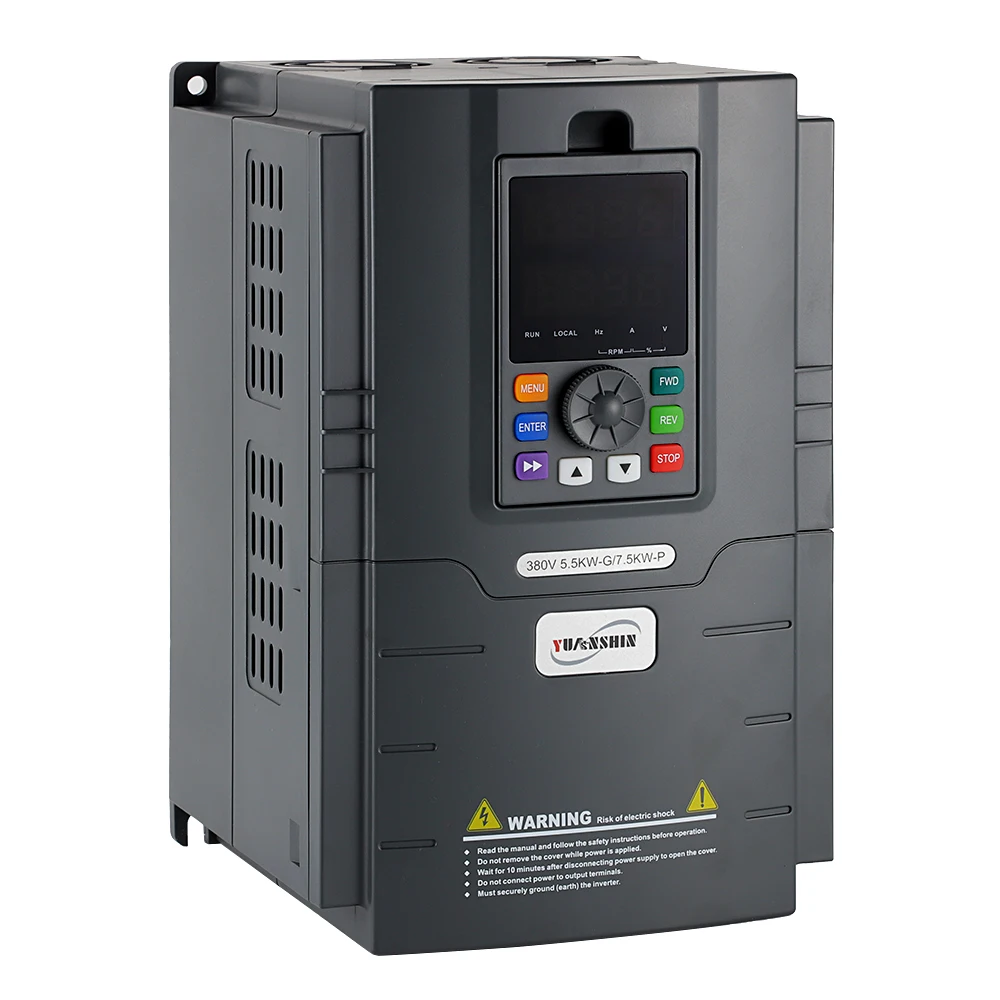

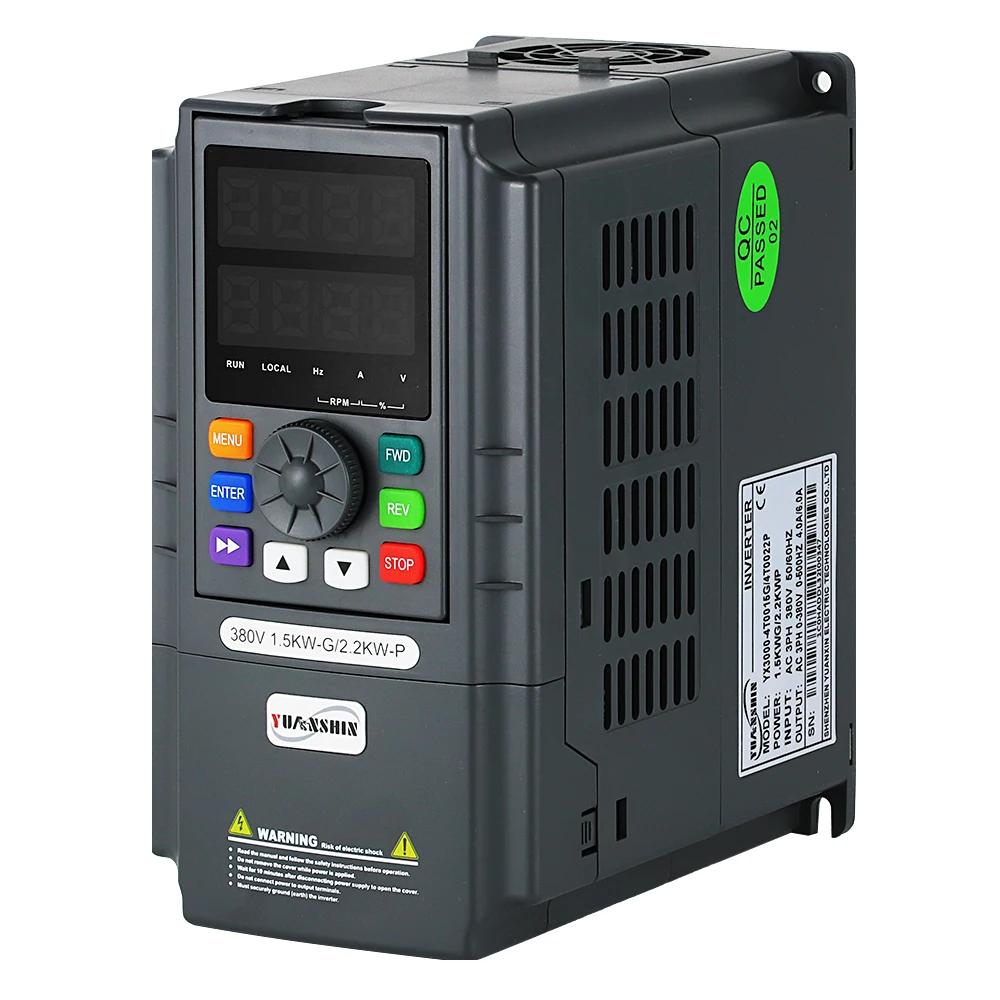

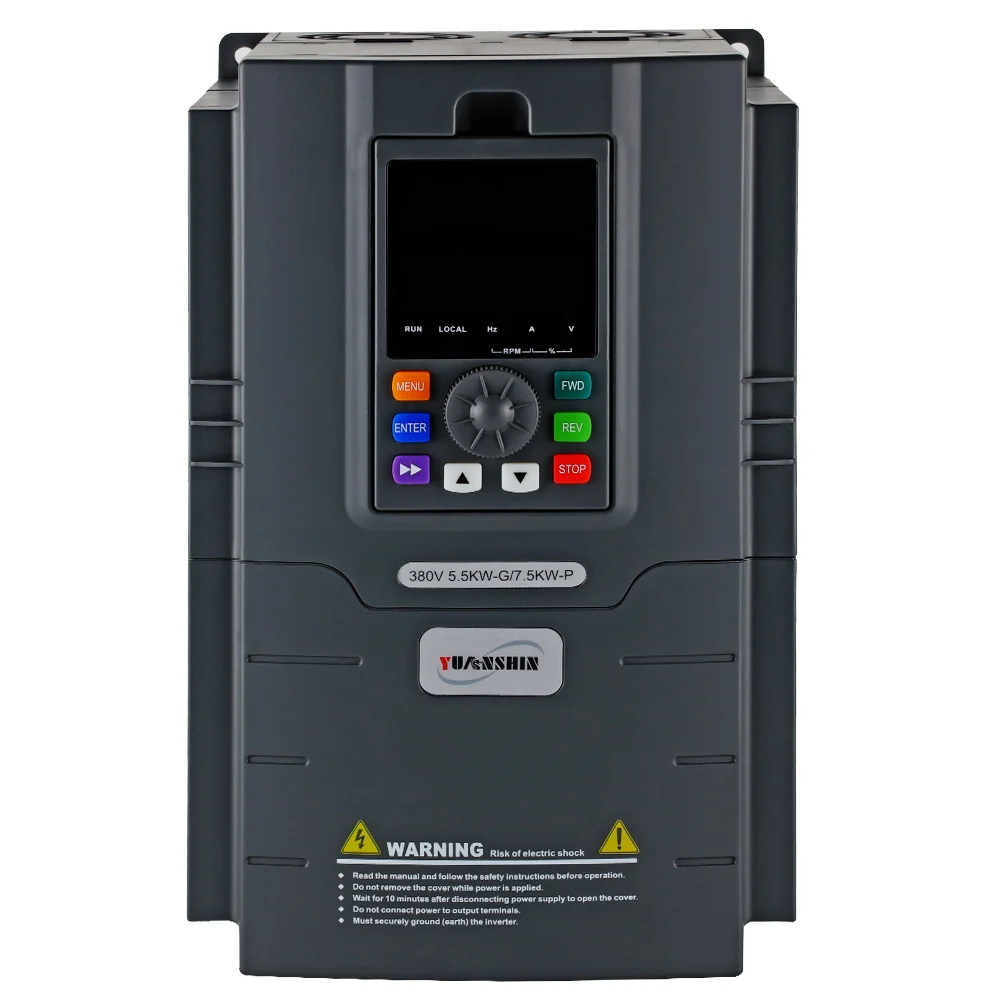

5.5kw 7.5kw 11kw 15kw 22kw 380v Frequency Inverters Converters AC Drive/VFD/Speed Controller
- Category: >>>
- Supplier: Shenzhen Yuanxin Electric Technologies Co. Ltd.
Share on (1600547894101):
Product Overview
Description
5.5kw 7.5kw 11kw 15kw 22kw 380v Frequency Inverters Converters AC Drive/VFD/Speed Controller
Product Description
This model is specially designed for site where there's only 220V single phase power supply. Our VFD can transfer 220V single phase to 380V/440V/460V/480V three phase power supply and control the speed of the motor at same time.
The power available from 0.75kw to 1000kw for industrial control.
The power available from 0.75kw to 1000kw for industrial control.
Specification
Items | Specifications | ||
Input | Rated Voltage | single phase 220V/230V/240V;50Hz/60Hz | |
Range | Voltage: ±20% voltage unbalance rate:<3%; frequency: ±5% | ||
Output | Output voltage | 380V | |
Frequency range | 0Hz~5000Hz | ||
Frequency resolution | 0.01Hz | ||
Overload ability | 150% rated current for1minute, 180% rated current for3 seconds | ||
Control function | Modulation modes | Optimized space voltage vector SVPWM modulation | |
Control mode | V/F, Sensor less vector and Closed loop vector control | ||
Frequency accuracy | Digital setting: The highest frequency×± 0.01% Analog setting: The highest frequency ×±0.2% | ||
Frequency resolution | Digital setting: 0.01Hz; Analog setting: The highest frequency× 0.1% | ||
Start frequency | 0.40Hz~20.00Hz | ||
Torque boost | Auto torque boost, manual torque boost 0.1%~30.0% | ||
V/F curve | Five ways: constant torque V/F curve, 1 kind of user defined V/F curve ,3 kinds of down torque curve(2.0/1.7/1.2times the power) | ||
Acc./Dec. curve | Two ways: linear Acc./Dec.,S-curveAcc./Dec.;7 kinds of Acc./Dec. time, Time unite (minute/second) optional, max time: 6000 minutes. | ||
DC braking | DC braking start frequency:0~15.00Hz braking time:0~60.0s braking current:0~80% | ||
Energy consuming braking | Below 22KW drive built-in energy consuming braking unit, 30-37KW built-in braking unit optional, external braking resistor is optional. | ||
Jog running | Jog frequency range:0.1Hz~50.00Hz, JOG Acc./Dec. time: 0.1~60.0s | ||
PID built-in | Easily constitute a close loop control system | ||
Multi-stage speed running | Multi-stage speed running available through built-in PLC or control terminals | ||
Textile swing frequency | Swing frequency available with preset and central frequency adjustable | ||
Auto voltage regulation | Keep a stable voltage automatically when the grid voltage transients | ||
Auto energy saving running | Saving energy by auto optimizing V/F curve according to the load | ||
Auto current limiting | Auto current limiting to prevent frequent over current fault trip | ||
Multi pumps control | With water supply card, the function can implement multi pumps constant pressure water supply | ||
Communication | 4 field bus: Modbus, Profibus, CANlink, CANopen | ||
Running function | Running command channel | Control panel : control terminal :serial port :3 channels switchable | |
Switch input channel | FWD/REV command: 8channels programmable switch inputs, 35kinds of function can be set separately | ||
Analog input channel | 4~20mA: 0-10V: 2 optional analog inputs | ||
Analog output channel | 4~20mA or 0~10V optional, setting frequency and output frequency ,etc feature output | ||
Switch/pulse output channel | 2 channels Programmable open collectors output, 2 channels relays output, 1 channel 0~20KHz pulse output | ||
Control panel | LED digital display | Display setting frequency, output voltage, output current, etc. | |
External meter display | Display output frequency, output current, output voltage, etc. | ||
Key lock | All the keys can be locked | ||
Parameter copy | Function code parameters are able to be copied between inverters when use remote control panel. | ||
Protection function | Overcurrent protection; overvoltage protection; undervoltage protection; overheating protection; overload protection, etc. | ||
Environment | Environment | Indoors, free from direct sunlight, dust, corrosive gas, oil mist, steam, water dropper salt, etc | |
Altitude | Lower than 1000m (derating is necessary above 1000m) | ||
Ambient temperature | -10℃~+40℃ | ||
Humidity | <90%RH, no condensation | ||
Vibration | Lower than 5.9m/s (0.6g) | ||
Structure | Protection level | IP20(In the selection of state display unit or the keyboard state) | |
Cooling | Forced air cooling | ||
Installation | Wall mounted; Floor mounted | ||
