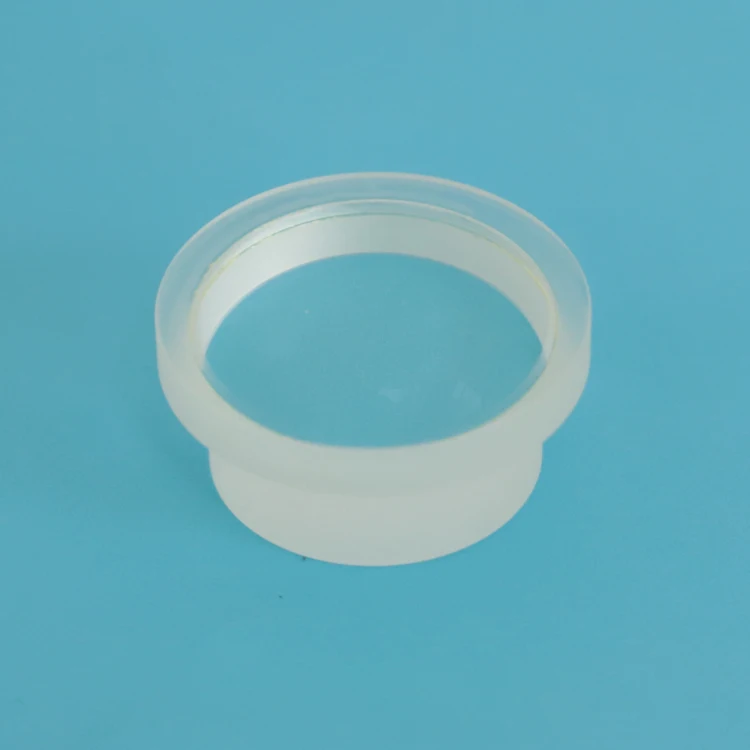

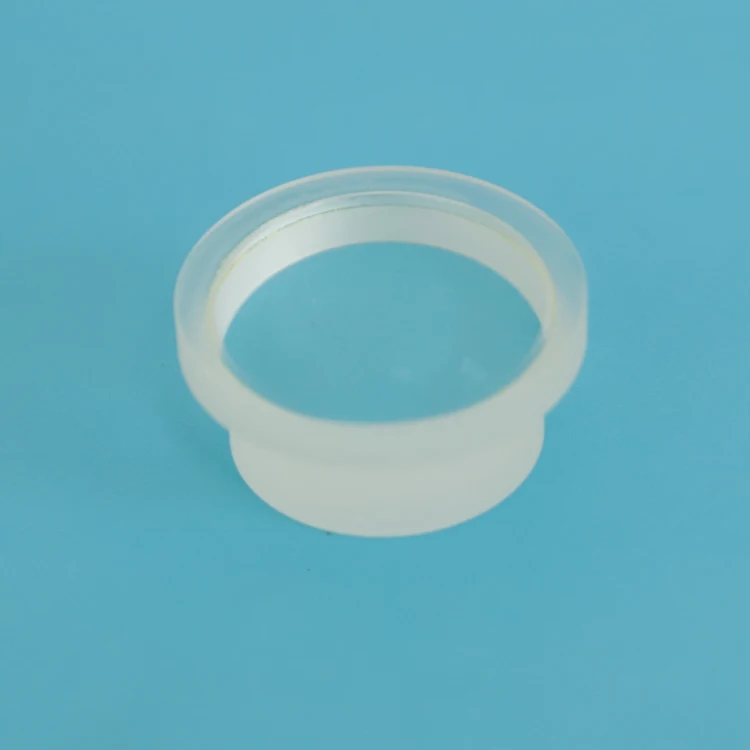

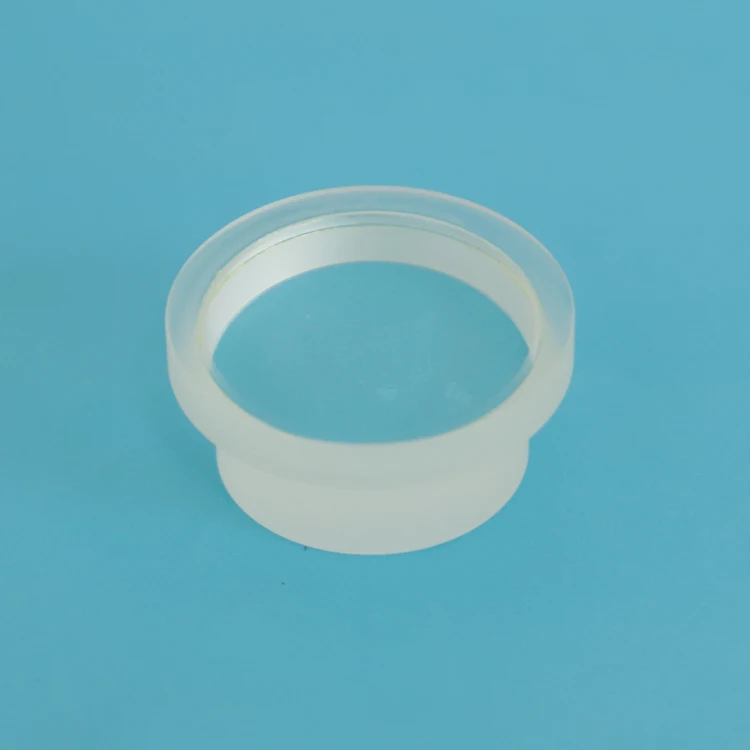

The global sell good quality customized coating optical lenses color cemented optical lens cemented lens

Product Overview

Description

The global sell good quality customized coating optical lenses color cemented optical lens cemented lens

Product name	Cemented lens,achromatic lenses
Material	K9, BK7, ZK2,ZK3,ZK6, CDGM, Corning Fused Silica,  JGS1,JGS2, Corning 7980,Schott, Ohara
Shape	plano convex lens,plano concave lens,double convex lens,double concave lens,meniscus lenses
Dimension tolerance	-0.02mm
Center thickness tolerance	-0.02mm
Tolerance of curvature radius	less than 0.0001mm
Finish	10/5, 20/10, 40/20, 60/40
Surface type	in/8~in/2
Beveling	<0.3mm X 45.
Coating	Dielectric film



Principle:

Cemented lenses are also called achromatic lenses. Cemented lenses are used to minimize or eliminate chromatic aberration. Its achromatic design also helps to minimize spherical aberration. Glue two or more components together during the manufacturing process. Compared with a single lens, an achromatic lens can form a smaller spot



Features:

The role of the cemented lens in the optical system is: focusing, collimation, imaging.



Application:

Achromatic lenses are suitable for various applications such as fluorescence microscopy, image relay, inspection or spectroscopy.

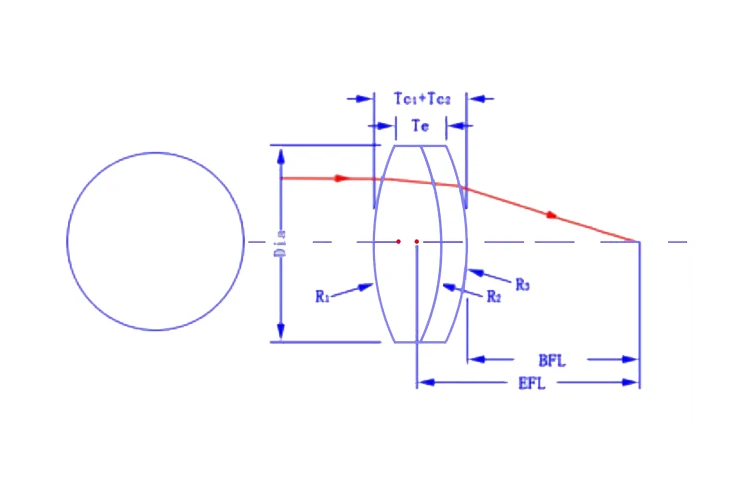

Positive cemented lens:

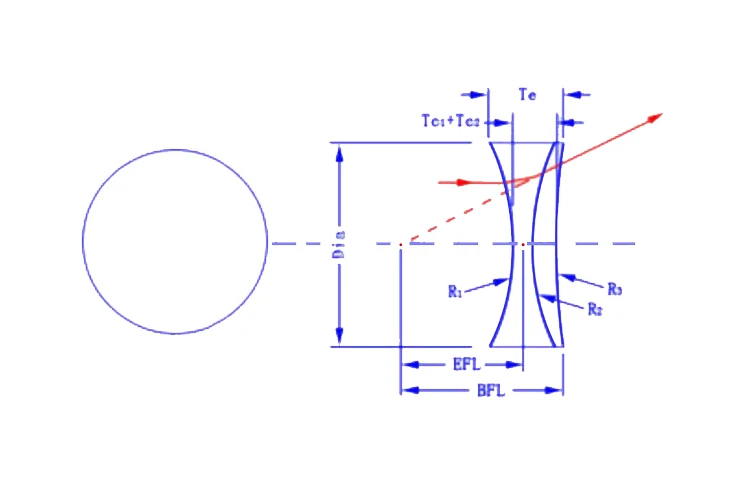

Negative cemented lens:
