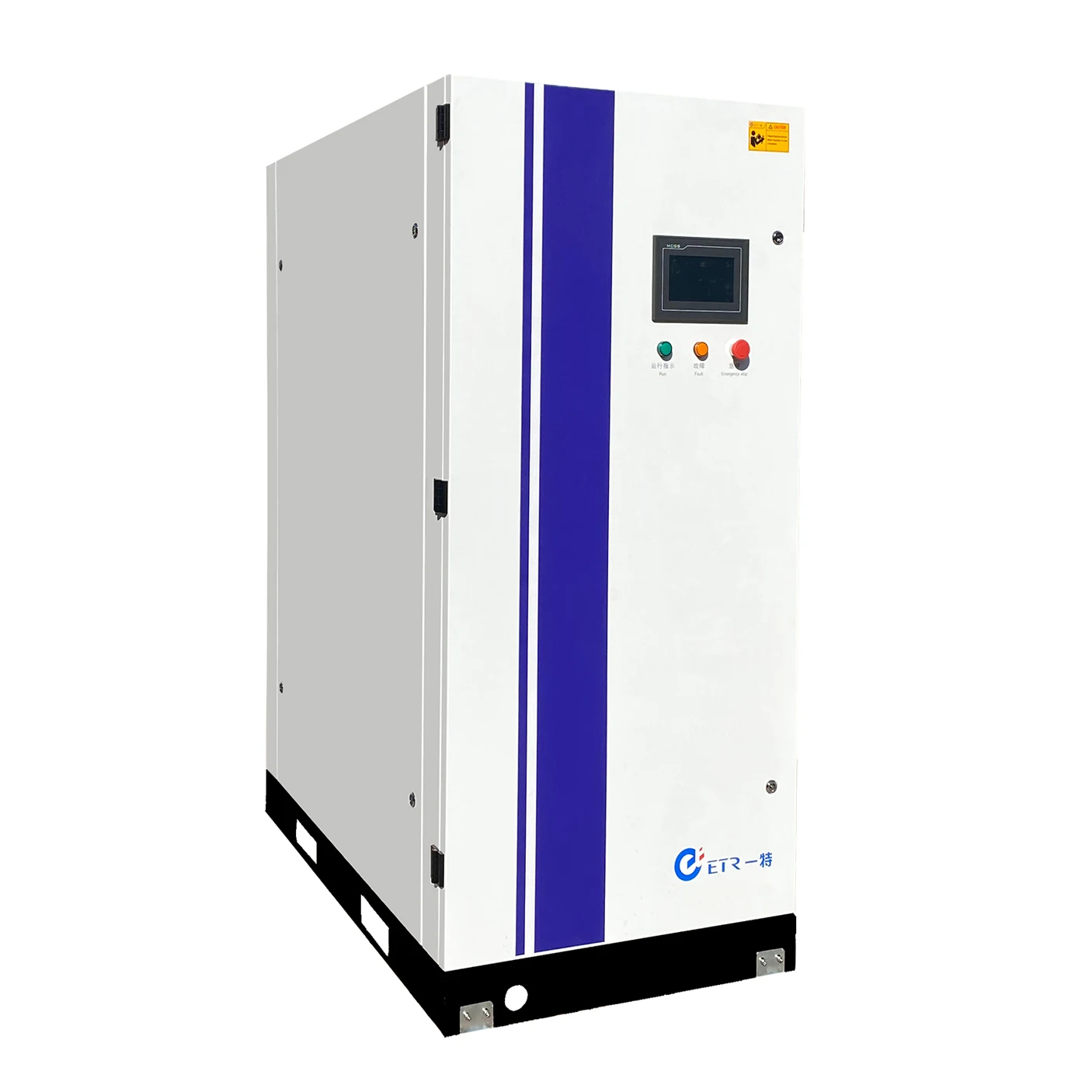

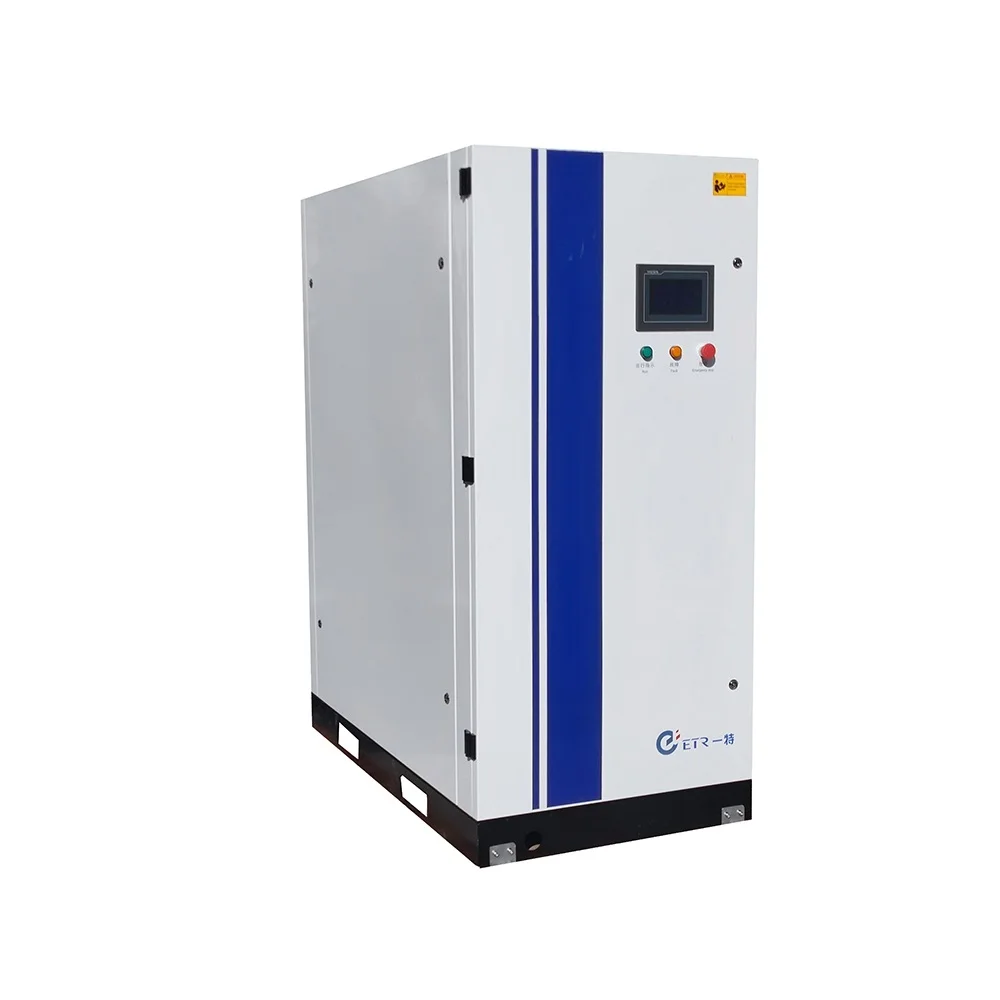

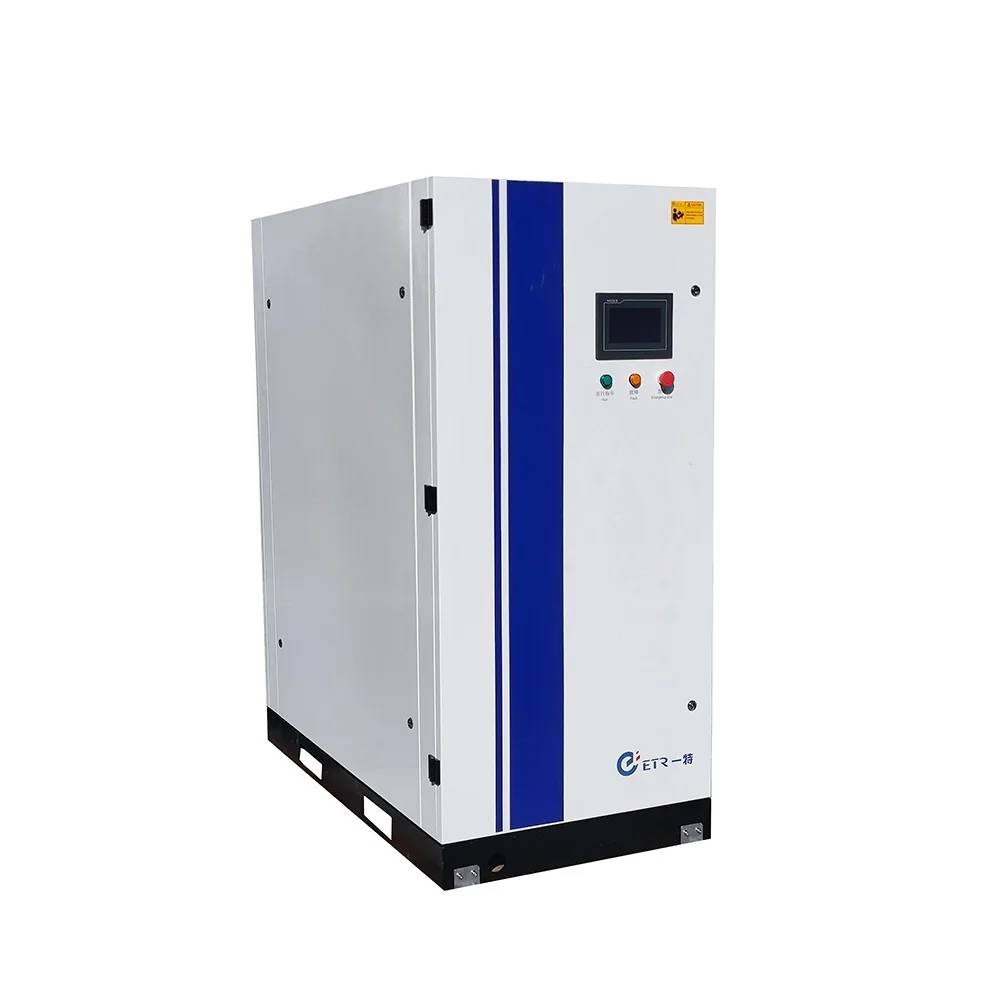

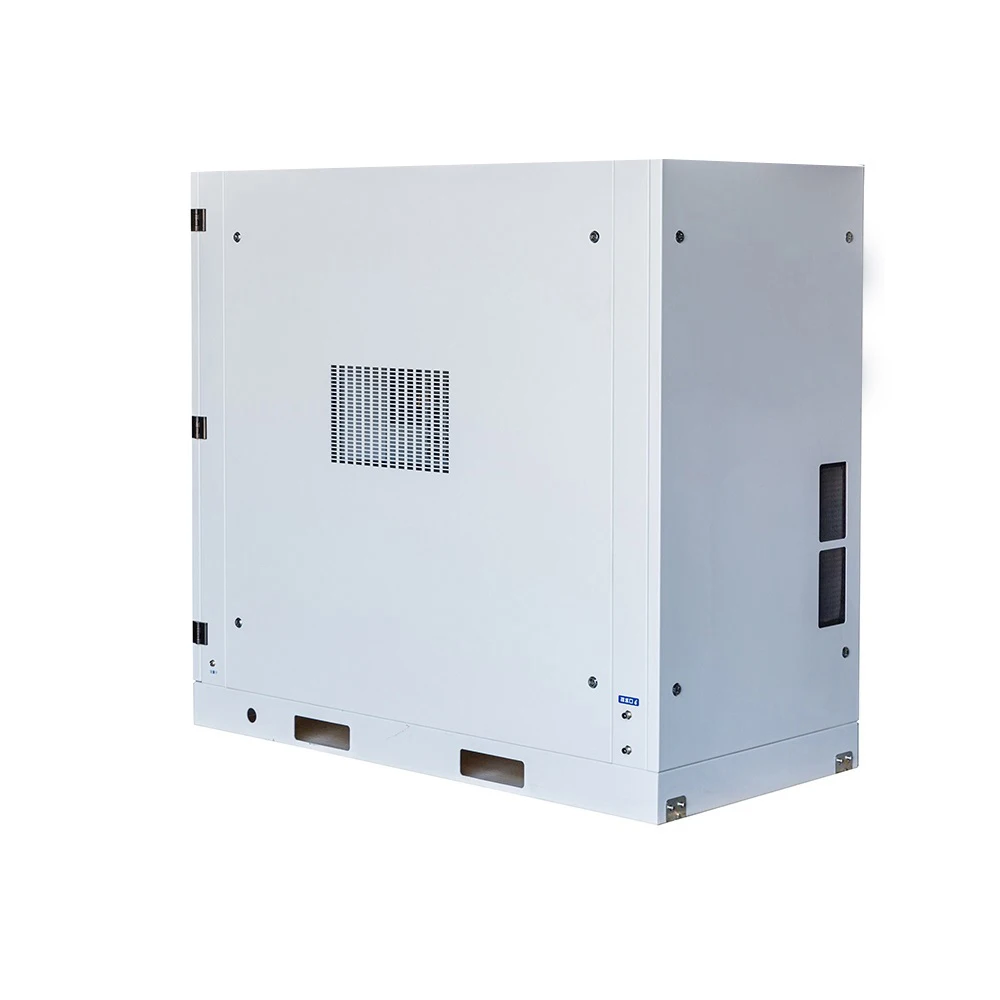

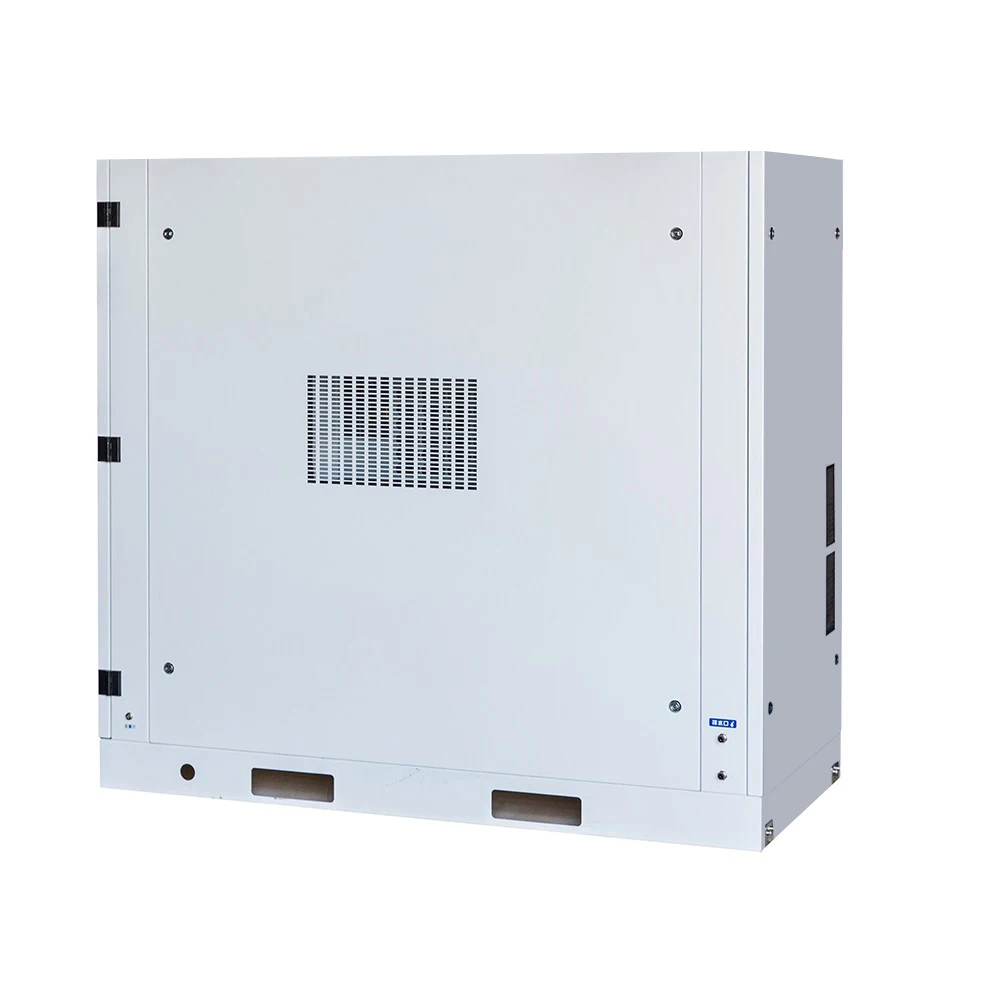

Медицинский кислородный генератор psa oxigen, цена на продажу
- Category: Construction & Building Machinery >>>
- Supplier: Hunan Eter Medical Co. Ltd.
Share on (1600547921273):
Product Overview
Description
Product Overviews
Simple usage with a oxygen tank , direct oxygen to pipeline for small hospital or clinic .
Advantage
(1) The main components are imported to ensure product quality;
(2) The oxygen production process is controlled by microcomputer, fully automatic operation, and the output of oxygen flow is adjustable;
(3) oil-free design, stable concentration, safe and reliable.
(4) Low concentration alarm to ensure oxygen quality.
(5) Using three-phase 380V low-voltage power supply, low noise and low energy consumption.
(6) It can be directly connected to the oxygen supply pipeline system of small medical institutions, which is convenient and flexible to use.
(7) Beautiful appearance, small footprint and less consumables
(8) Integrated oxygen plant system
| Model | Oxygen Production | Motor Power (KW) | Size (mm) | Weight (KG) | Oxygen Purity | Noise Level (dB(A)) | Additional Tank | Machine Room (m2) |
| ETO-A20 | 1Nm3/h (20LPM) | 2.50 | 1600*750*1300 | 420 | 93%±3% | 60±3 | 300L/0.6Mpa | 10~12 |
| ETO-A30 | 2Nm3/h (30LPM) | 4.00 | 1600*750*1300 | 480 | 93%±3% | 62±3 | 600L/0.6Mpa | 10~12 |
| ETO-A50 | 3Nm3/h (50LPM) | 6.00 | 1600*800*1500 | 550 | 93%±3% | 63±3 | 600L/0.6Mpa | 12~15 |
| ETO-A80 | 5Nm3/h (80LPM) | 10.00 | 1600*800*1920 | 750 | 93%±3% | 65±3 | 800L/0.6Mpa | 12~15 |
Power Supply:380V/50Hz/3ph Oxygen Pressure :0.35-0.45Mpa | ||||||||
Why Choose O2 Plant
| Oxygen Sources | Bottled Oxygen | Liquid Oxygen | Oxygen Generator |
| Economy | Repeat purchase, No autonomy | Repeat purchase, No autonomy | Self-sufficiency, only power cost |
| Convenience | Change bottles frequently, complex to store and operate, high cost in human source | Transportation with high pressure tank car,canning, dangerous | Air as raw material,automatically controlled by controller, handling safety and convenience |
| Safety | High pressure, transportation and storage risk, explosion problem | Low security, leakage and fire risk, ultralow temperature problem (harmful to pipeline\\tank and harmful body if touch) | High safety, oxygen generated in normal temperature, no transportation, switched off automatically if fire or earthquake |
| Cost | One dollar per cube meter in China | 0.7 dollar per cube meter in china | 0.15 dollar per cube meter in china |
| Using life | Repeat purchase | Tank Maintenance in every 2 year and replace in every 5 year | More than 10 years |
| Management | human input for carrying, no modernization management | No intelligent control, oxygen supplied from natural evaporation,no modernization management | Intelligent control, modernization management, various of alarm protection function |
| Monitoring | No oxygen monitoring function | No oxygen monitoring function | Oxygen purity monitoring function |
| Pressure | 15MP | 1MP, -183°C(temperature) | ≈0.4MP |
Installation requirement | Strictly requirement | 30m away from civil architecture, 50m away from public buildings | Only not in basement room |
Quality Control
Our Services
1. Setting trace file for every sold product and survey it quarterly.
2. Providing remote instruction and training for free.
3. Providing on-site services and repairs for free under warranty if problems caused by Eter.
4. Spare parts and on-site services would be provided with best price out of warranty.
5. 7*24 hours online services for free, solution for any problems will be provided within 48 hours.
6. Professional engineer for on-site services will reach within 7 days when needed. (Visa apply should be considered.)
Company Information
FAQ
1. Are you manufacturer or Trade Company?
We are the manufacturer of oxygen plant factory , founded in 2003.
2. What's the order oxygen plant factory process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Printing file--- PDF, Ai, CDR, PSD, the picture resolution must be at least 300 dpi.
d. Contract confirmation---provide correct contract details.
e. Payment terms--- Negotiable.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
h. Installation and commissioning
3.What terms of payment you use?
T/T, L/C etc.
4. How to get a prompt quotation of oxygen plant factory ?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/PH/HZ
5) Application:
6) Project Location:
