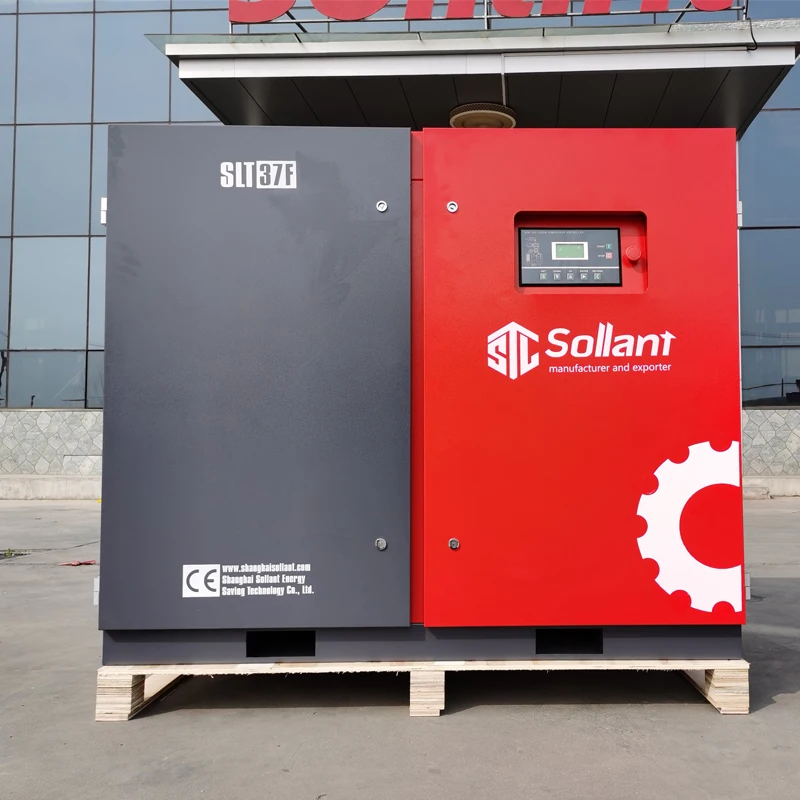

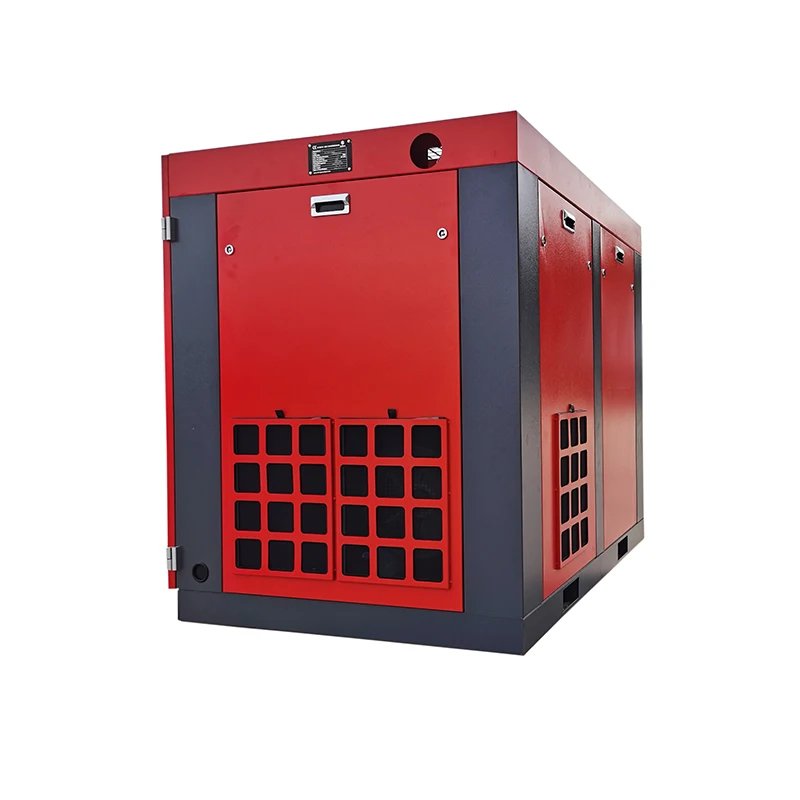

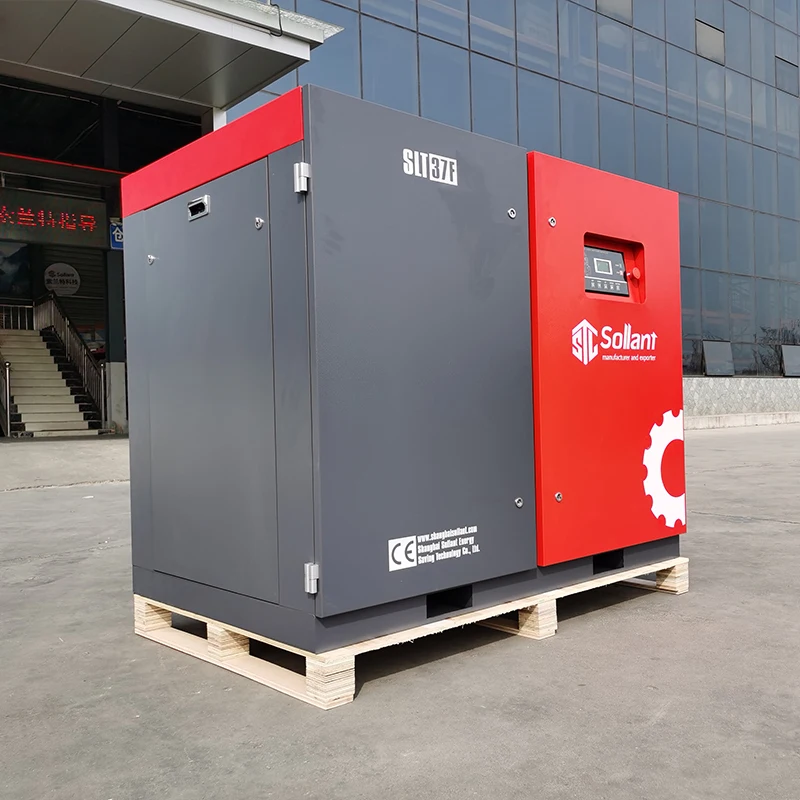

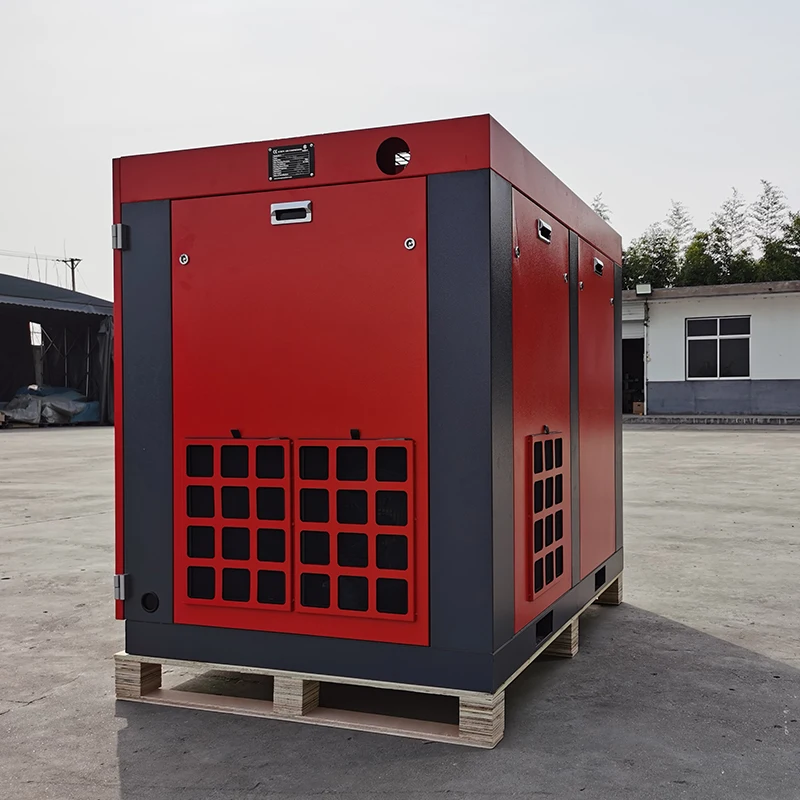

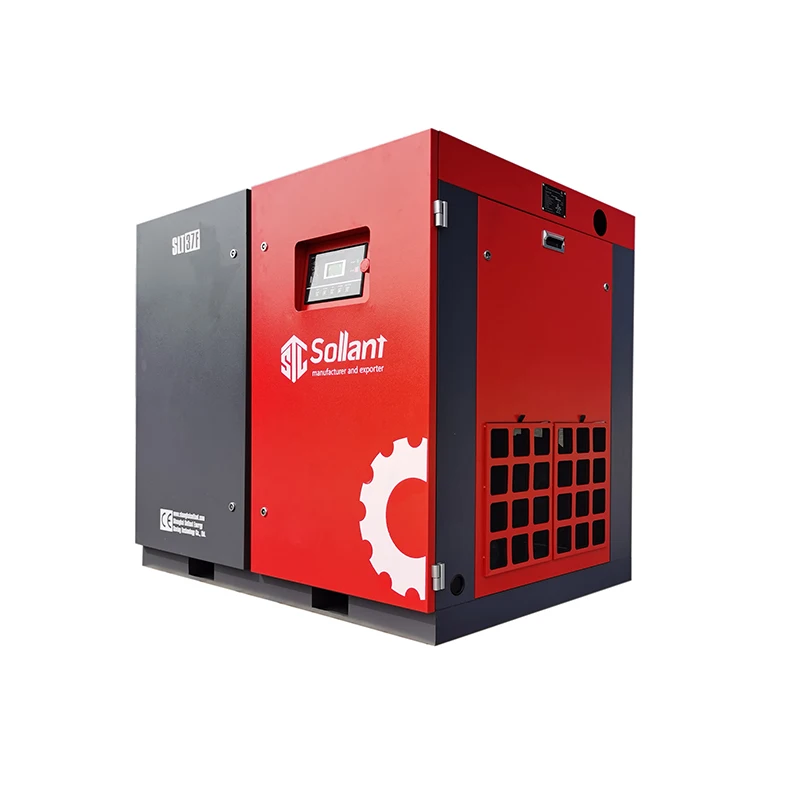

high efficiency 50hp 37kw 8 bar screw compresor air compressor for industrial usage
- Category: >>>
- Supplier: Shanghai Sollant Energy Saving Technology Co. Ltd.
Share on (1600547930983):
Product Overview
Description
Product Overview
1. Intelligent Control System
Direct display of discharge temperature and pressure, operating frequency,current,power,operating state.Real time monitoring of discharge temperature and pressure, current, frequency fluctuations.
2. The Latest Generation High Efficiency Permanent Motor
Insulation grade F, protective grade IP55, suitable for the bad working conditions.No gearbox design, motor and main rotor
through the coupling directly connected, high transmission efficiency.Wide range of speed regulation, high precision, wide range of air flow regulation.The efficiency of the permanent magnet motor is higher 3%-5% than regular motor, efficiency is constant,when the speed drops, still remain the high efficiency.
2. The Latest Generation High Efficiency Permanent Motor
Insulation grade F, protective grade IP55, suitable for the bad working conditions.No gearbox design, motor and main rotor
through the coupling directly connected, high transmission efficiency.Wide range of speed regulation, high precision, wide range of air flow regulation.The efficiency of the permanent magnet motor is higher 3%-5% than regular motor, efficiency is constant,when the speed drops, still remain the high efficiency.
3. The Latest Generation Super Stable Inverter
Constant pressure air supply, air supply pressure is accurately controlled within 0.01Mpa.Constant temperature air supply,
general constant temperature set at 85℃, make the best oil lubrication effect and avoid high temperature to stop.No empty load,reduce energy consumption by 45%, eliminate excess pressure.For each 0.1mpa increase of air compressor pressure, energy consumption increases by 7%.Vector air supply ,accurate calculation, to ensure that the air compressor production and customer system air demand at all times to maintain the same.
Constant pressure air supply, air supply pressure is accurately controlled within 0.01Mpa.Constant temperature air supply,
general constant temperature set at 85℃, make the best oil lubrication effect and avoid high temperature to stop.No empty load,reduce energy consumption by 45%, eliminate excess pressure.For each 0.1mpa increase of air compressor pressure, energy consumption increases by 7%.Vector air supply ,accurate calculation, to ensure that the air compressor production and customer system air demand at all times to maintain the same.
Power | 37KW |
Horsepower | 50HP |
Working pressure | 0.7-1.3MPa |
Air displacement | 5.0-6.8m3/min |
Air outlet diameter | DN40 |
Noise level | 66±2 |
Driven method | Direct driven |
Start method | VSD |
Shanghai Sollant Energy Saving Technology Co., Ltd has been involved in research & development, manufacturing, sales & marketing and services of Compressed Air Systems. Sollant adheres to the development concept of "technological innovation is the first productive force", realizes the diversified value of customers, and meets the differentiated gas demand of customers in different industries.
The current products series include:
Air Compressors for Laser Cutting, Rotary Screw Type Air Compressors , Diesel Air Compressors, Centrifugal Air Compressors , Low-Pressure Air Compressors , Oil-Free Air Compressors , Diaphragm Air Compressors
Air Compressors for Laser Cutting, Rotary Screw Type Air Compressors , Diesel Air Compressors, Centrifugal Air Compressors , Low-Pressure Air Compressors , Oil-Free Air Compressors , Diaphragm Air Compressors
Keeping product quality on the top, Sollant owned several core technology patents and also got certified by CE, ISO, ASME, French BV and other international certifications.
Q1: Are you a factory or trade company?
A1: We are an integration of industry and trade. The factory and international trade department are in the same place.
Q2: What the exact address of your company?
A2: C109, No.215, Songri Center, Beihongqiao, Jiading District, Shanghai, China
Q3: Warranty terms of your machine?
A3:24 months for the whole machine, 36 months for air end, technical support for life.
Q4: How long is your delivery?
A4: 25-30 days after receiving your 30% down payment.
Q5: Terms of payment?
A5: T/T and L/C at sight.
Q6: What is the MOQ?
A6: 1 PC.
Q7: Can you accept OEM orders?
A7: Yes, with a professional design team, OEM orders are highly welcome.
Q8: Can you accept color customization?
A8: Yes we can.
Q9: Will you provide some spare parts for the air compressor?
A9: Yes, of course.
Q10: What's your factory's production capacity?
A10: About 1000 units per month.Thank you.
A1: We are an integration of industry and trade. The factory and international trade department are in the same place.
Q2: What the exact address of your company?
A2: C109, No.215, Songri Center, Beihongqiao, Jiading District, Shanghai, China
Q3: Warranty terms of your machine?
A3:24 months for the whole machine, 36 months for air end, technical support for life.
Q4: How long is your delivery?
A4: 25-30 days after receiving your 30% down payment.
Q5: Terms of payment?
A5: T/T and L/C at sight.
Q6: What is the MOQ?
A6: 1 PC.
Q7: Can you accept OEM orders?
A7: Yes, with a professional design team, OEM orders are highly welcome.
Q8: Can you accept color customization?
A8: Yes we can.
Q9: Will you provide some spare parts for the air compressor?
A9: Yes, of course.
Q10: What's your factory's production capacity?
A10: About 1000 units per month.Thank you.
