SDE100 1P2W Multifunction Bi directional Din Micro single phase rail meter/RS485/dormitory/shop/wireless installation

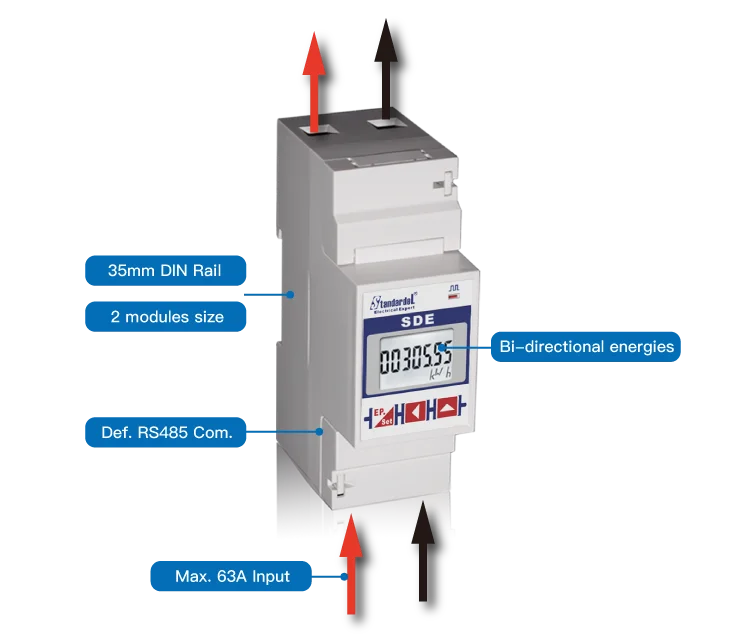

     SDE100 Mini Single Phase DIN rail Energy Analyzer is the high accuracy energy measuring device. It is designed for Energy Management System(EMS). It may measure all the parameters on the electrical networks, such as current, voltage, active power, reactive power, apparent power, frequency, power factor and bidirectional energies.
     It has RS485 interface with Modbus protocol, to realize transfer the all energy data to master device; It has a energy pulse output to PLC or to pulse counter.

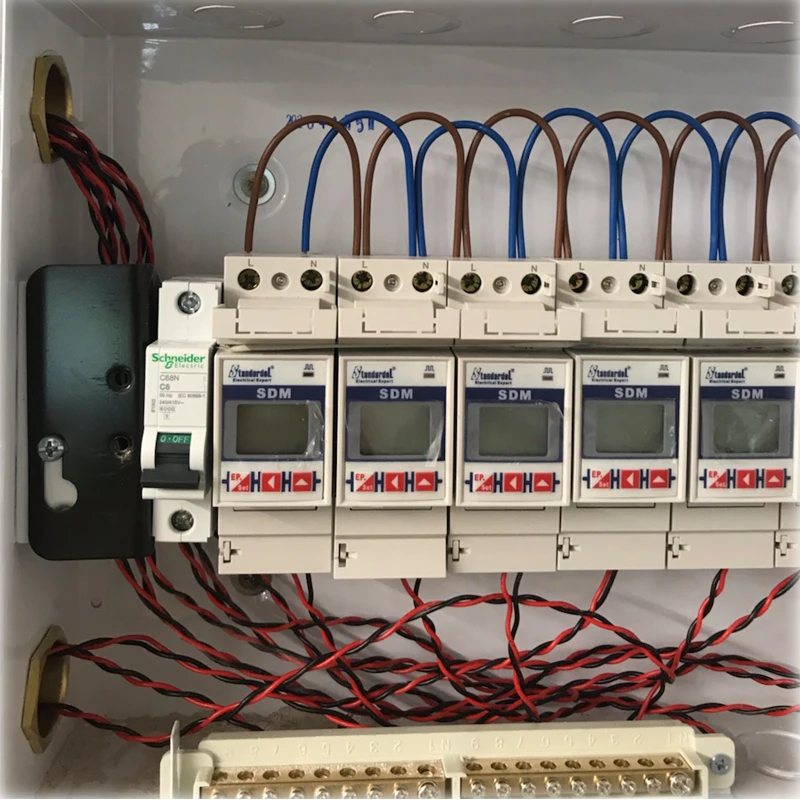

     SDE100 is being used in many intelligent building, factories, universities, to realize the accurate energy count in time segments, so that it can save much electricity for users.

- Measuring: U, I, P, Q, S, PF, Fr, bidirectional energies (imp & exp kWh);
- Display: With 7 digits LCD white background light, display range 000000.00~9999999 kWh;
             keep kWh value without power;
             dot will move according to energy value to 7 integer digits;
- Input: 0~63A,50/60Hz,100V/110V/220V/230V/240V;
- Power Supply: by input;
- Communication: With 2 cables isolated RS485 interface up to 38400bps (Def. Modbus-RTU protocol);
- Quick Menu: To check setting parameters easily;
- Output: With kWh impulse output (comply DIN43864);
- Mounting: 35mm standard DIN rail installation, 2 seal points for anti-stealing;
- Software: With free testing software, to easily read its data and set its parameters by computer;
- Secondary Develop: provide DLL dynamic library and C# example, to develop you own software;

Q: Can I ask for sample ?
A: Yes, for sample orders, please order from our online shop.

Q: Are you trading company or manufacturer ?
A: We are factory located in Shanghai.

Q: How long is your delivery time?
A: 3-5 working days for the items were in stock, 10-15 days for the items out of stock.

Q: What is your terms of payment ?
A: Order amount less than $5000, 100% paid before shipment; order amount more than $5000,30% as deposit, 70% before shipment, or by negotiated for the both parties.

Q: Do you provide software ?
A: We have the free testing software for every model device. In the meantime, we also provide detection software to manage the device data, and charge of these software, you may demand our salers.
