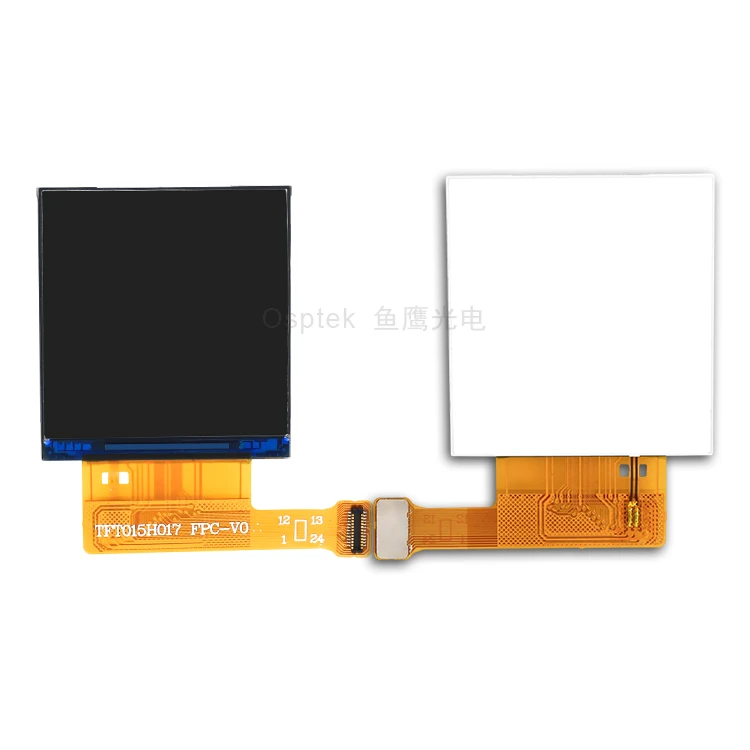

Mcu Interface Lcd Display 1.54 Inch For Smart Watch Touch Screen Ips 240x240 Dots Tft Lcd Module
- Category: >>>
- Supplier: Shenzhen Osprey Optoelectronics Technology Co. Ltd.
Share on (1600547984609):
Product Overview
Description
Product Description

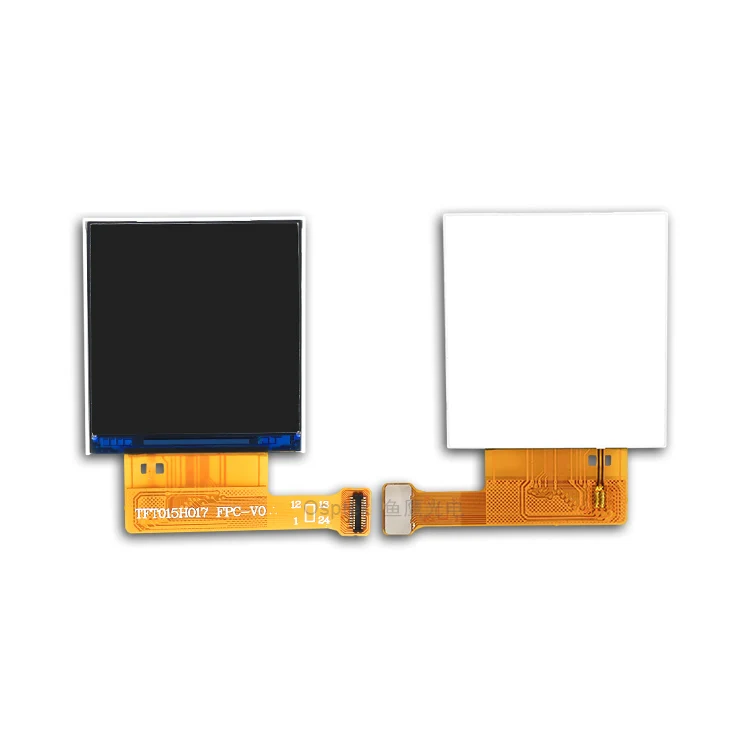

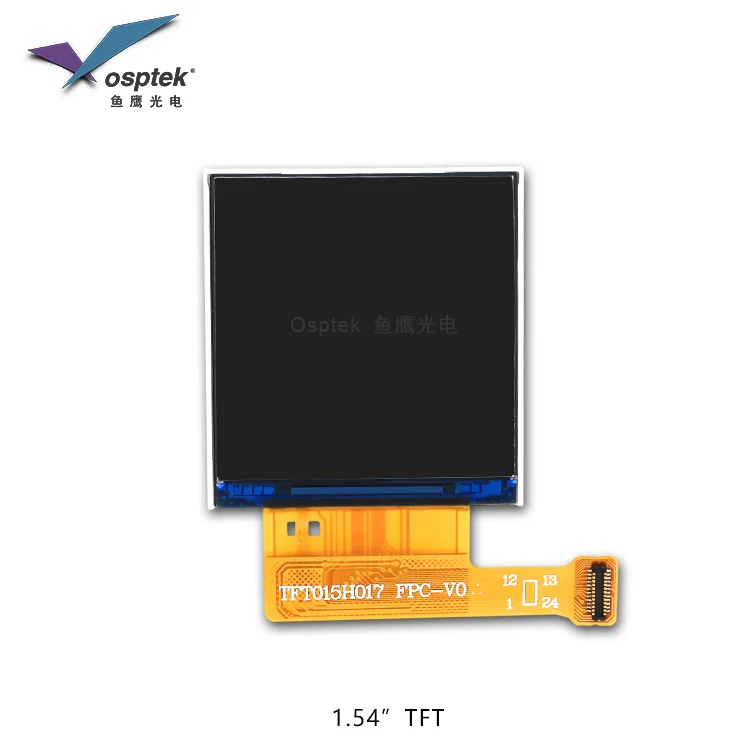

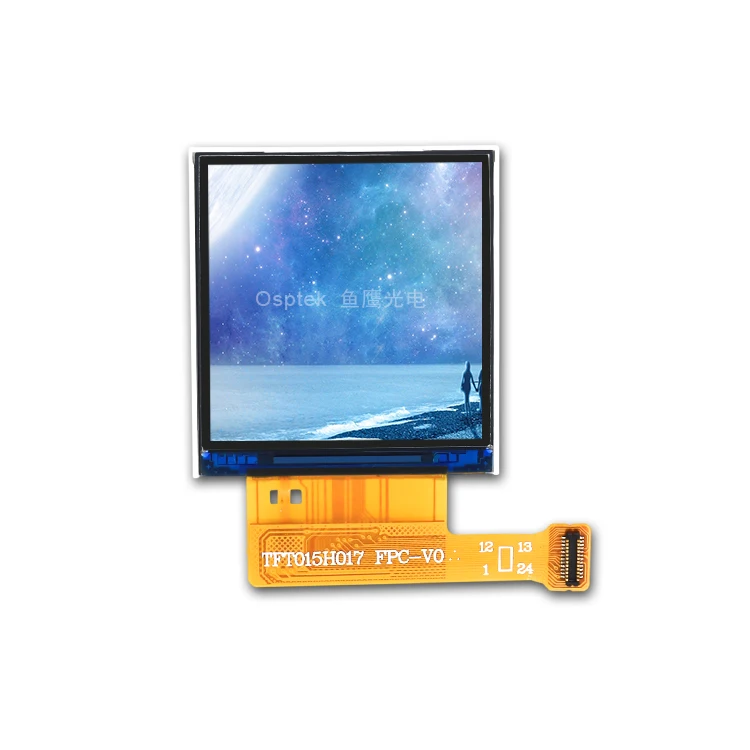

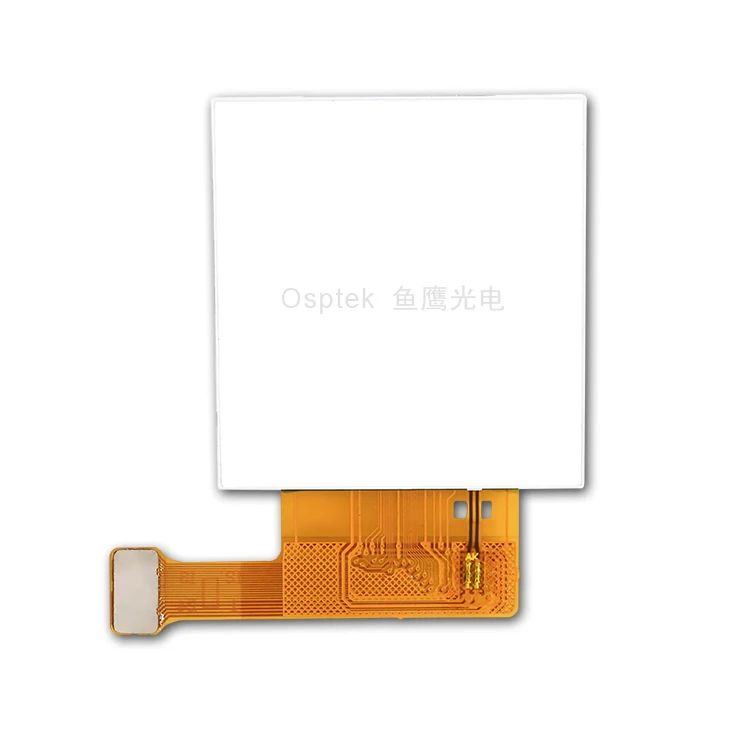

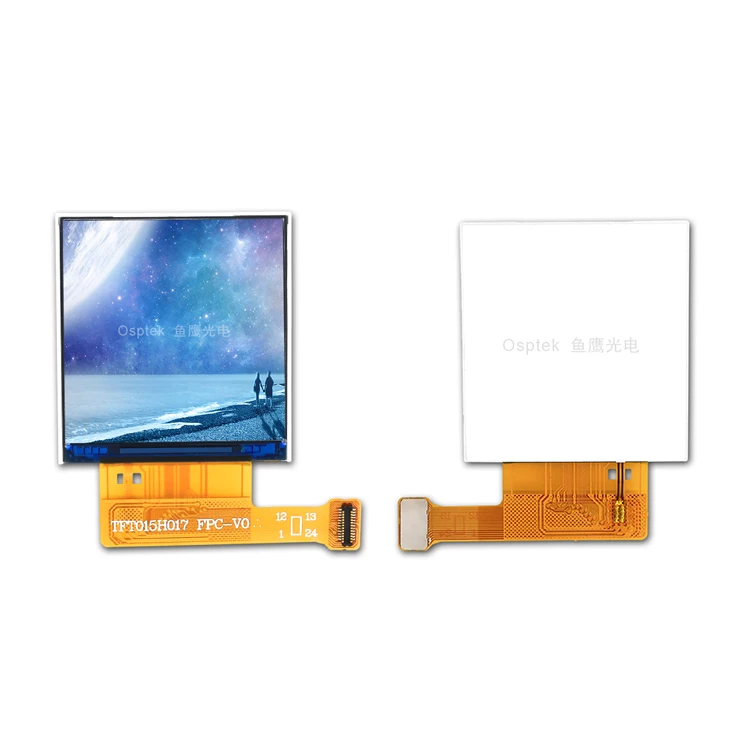

1.PRODUCT DISPLAY
2.MECHANICAL DATA
NO | ITEM | SPCIFICATION | UNIT |
1 | Display Type | TFT | |
2 | LCD Size | 1.54 | Inch |
3 | Panel Type | IPS | - |
4 | Resolution | 240RGBx240 | Pixel |
5 | Display Mode | Normally Black | - |
6 | Number of Colors | 262K | - |
7 | Viewing Direction | ALL | - |
8 | Contrast Ratio | 800 | - |
9 | Luminance | 250 | cd/m2 |
10 | Module Size | 31.52(H)x33.72(V)x1.65(D) | mm |
11 | Active Area | 27.72x27.7 | mm |
12 | Dot Pitch | 0.1155(H) x 0.1155(V) | mm |
13 | Pixel Arrangement | RGB stripe | - |
14 | With / Without TP | Without TP | - |
15 | Driver IC | ST7789 | - |
16 | TP IC | / | - |
17 | Light Source | 3 LED | - |
18 | Interface | SPI/ MCU | - |
19 | Operating Temperature | -20~+70 | ℃ |
20 | Storage Temperature | -30~+80 | ℃ |

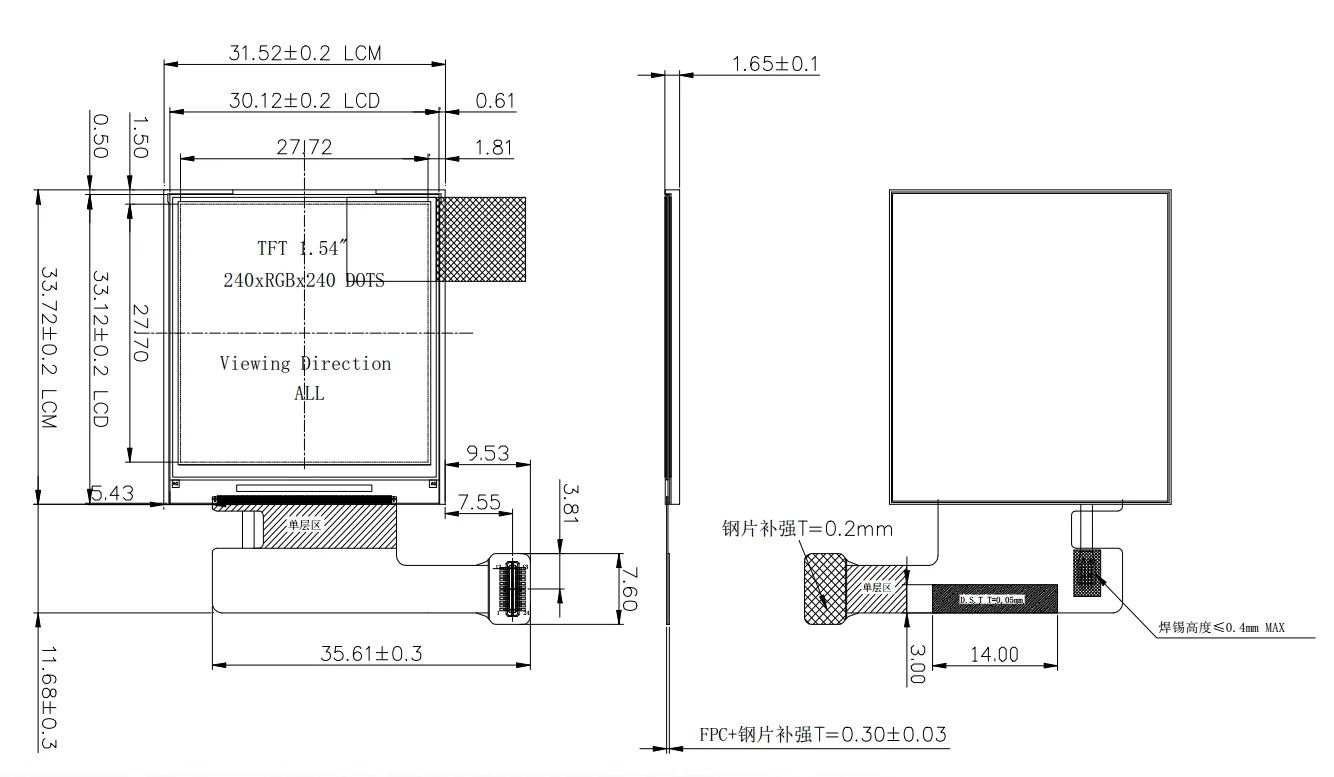

3.EXTERNAL DIMENSION

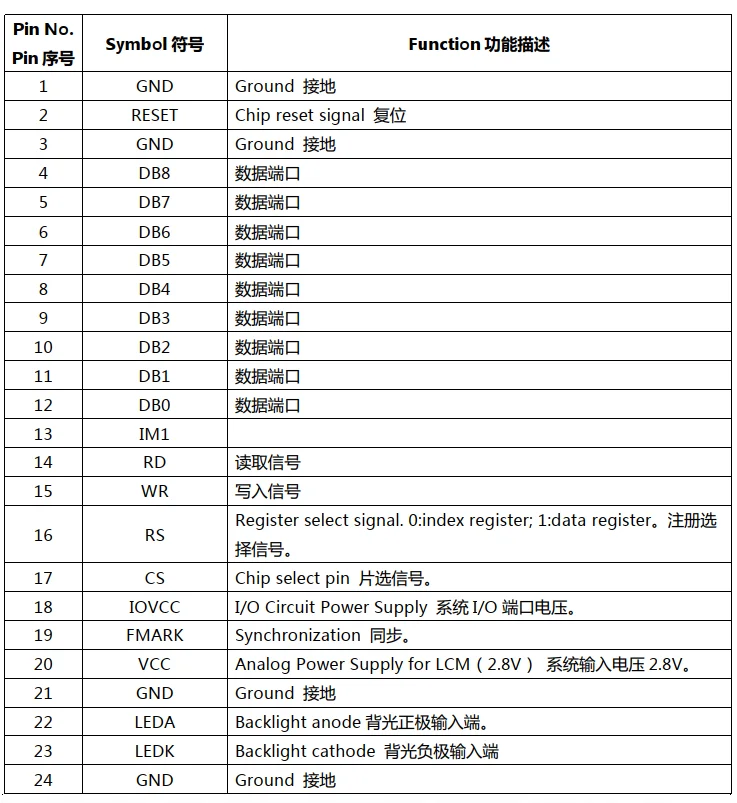

4.PIN ASSIGNMENTS
