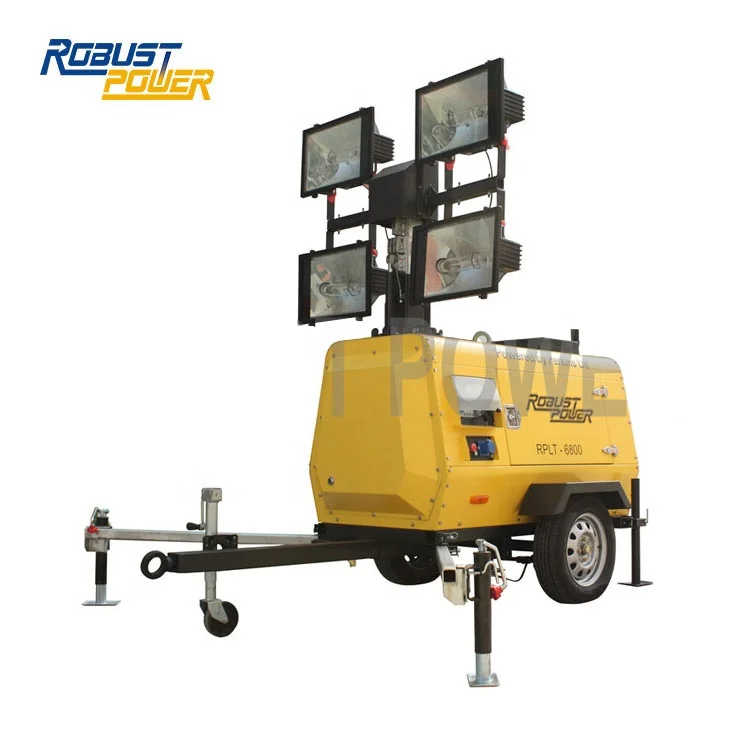

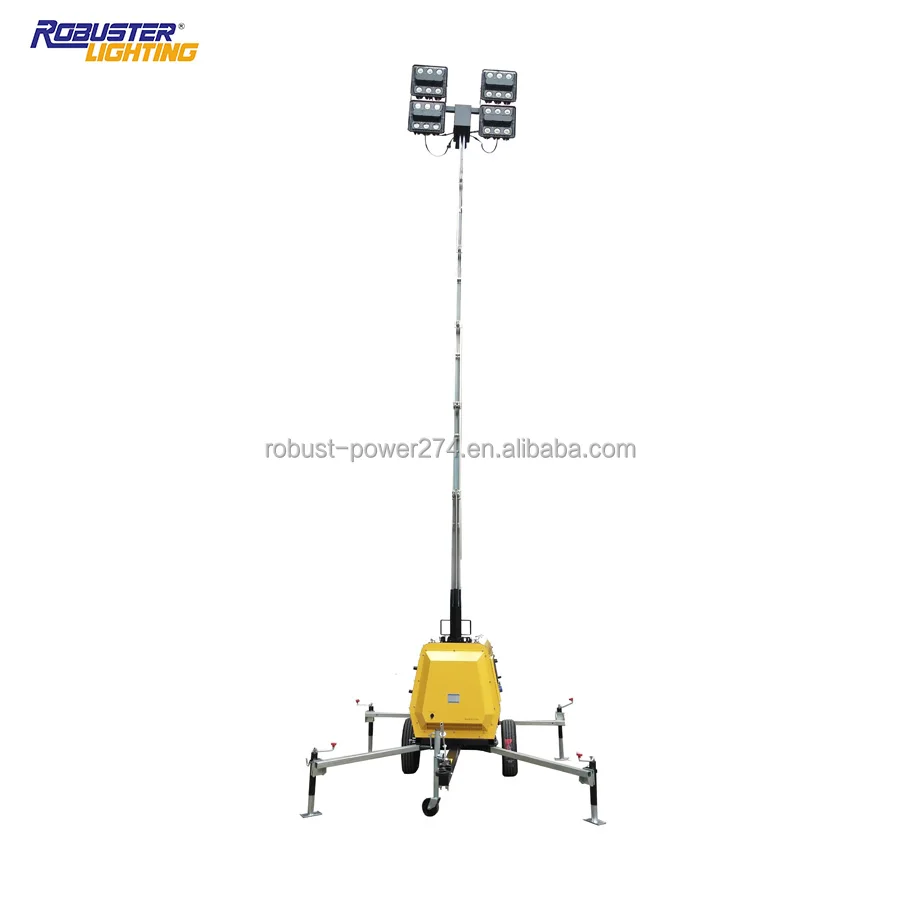

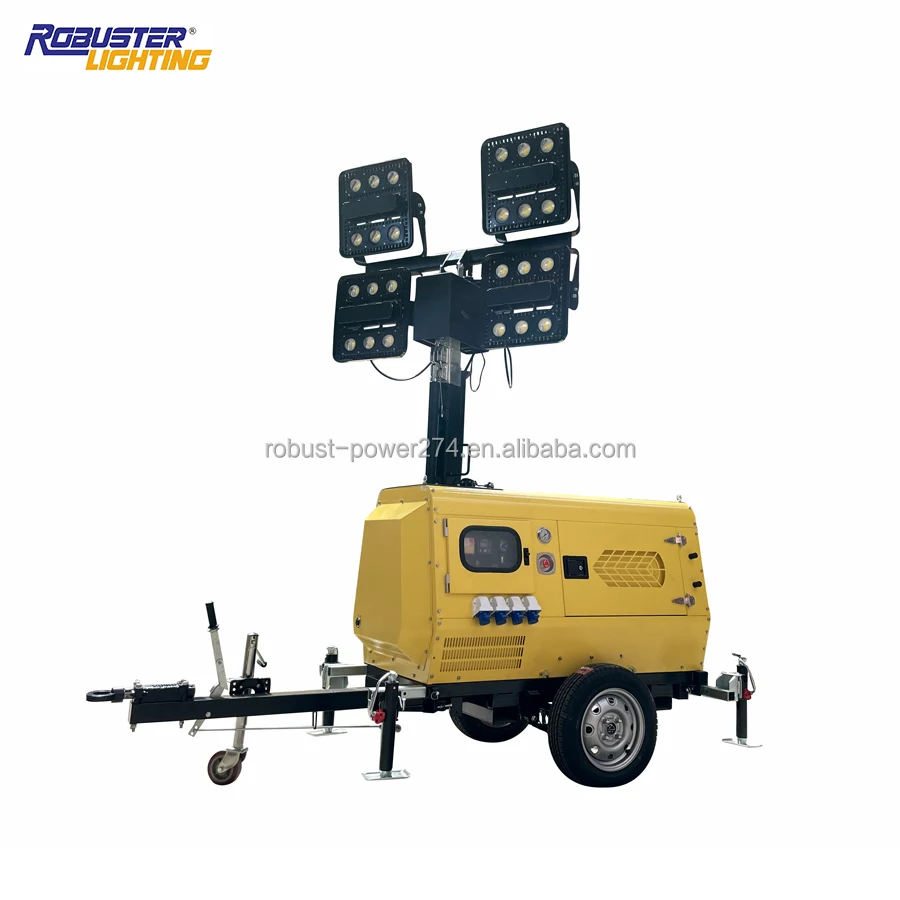

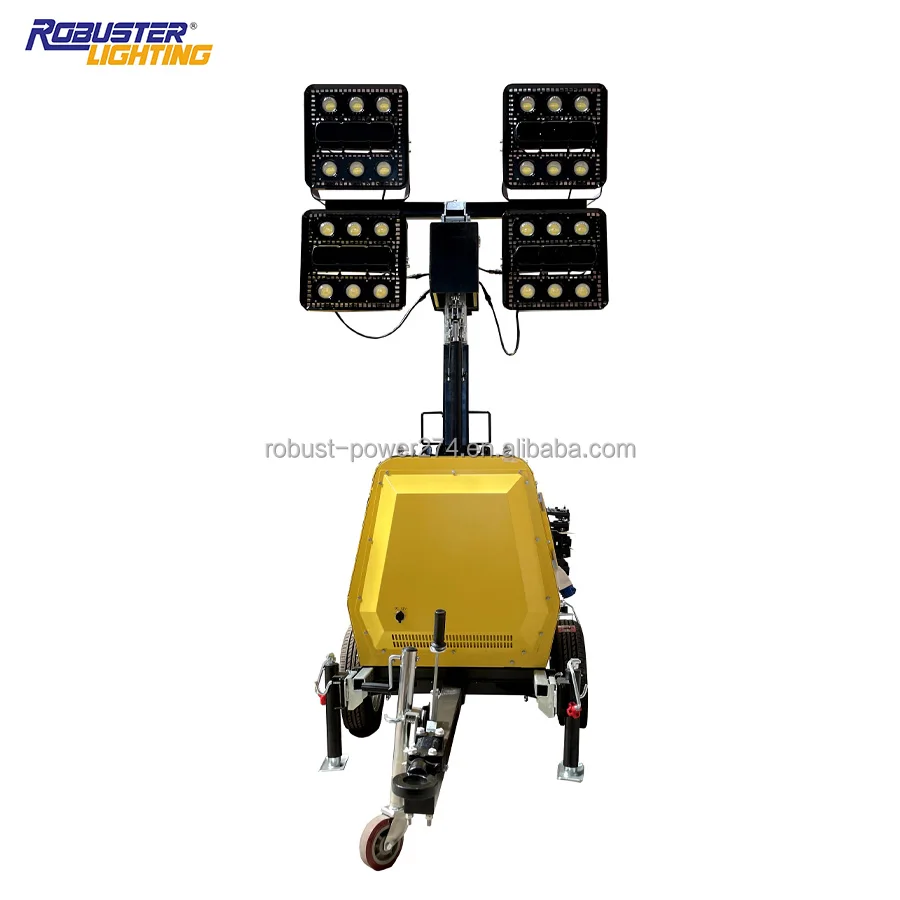

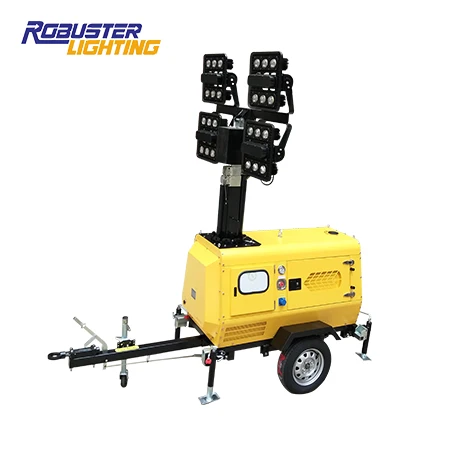

8M Hydraulic Lighting Tower Generator Engine portable Light Tower
- Category: >>>
- Supplier: Fujian Robust Power Co. Ltd.
Share on (1600548004228):
Product Overview
Description
Product Overview

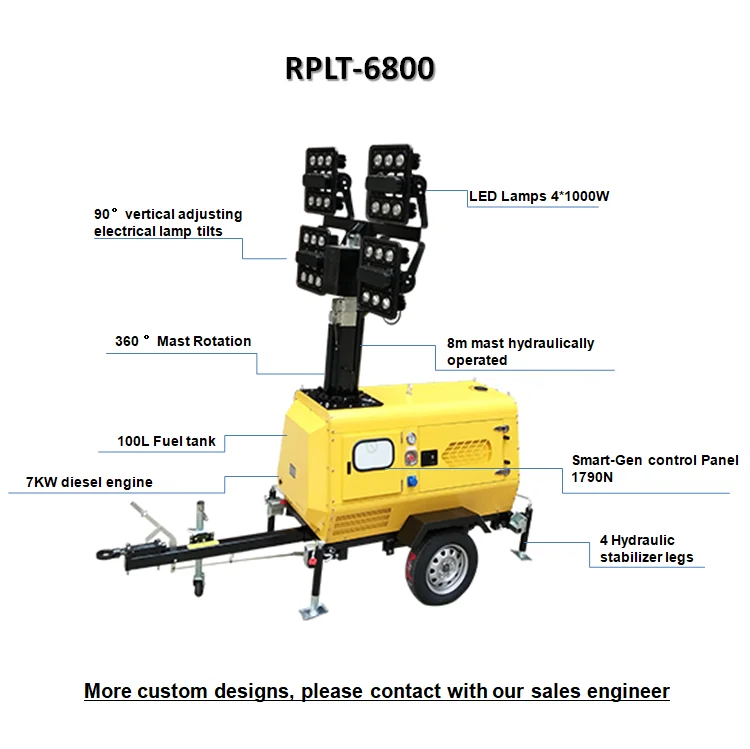

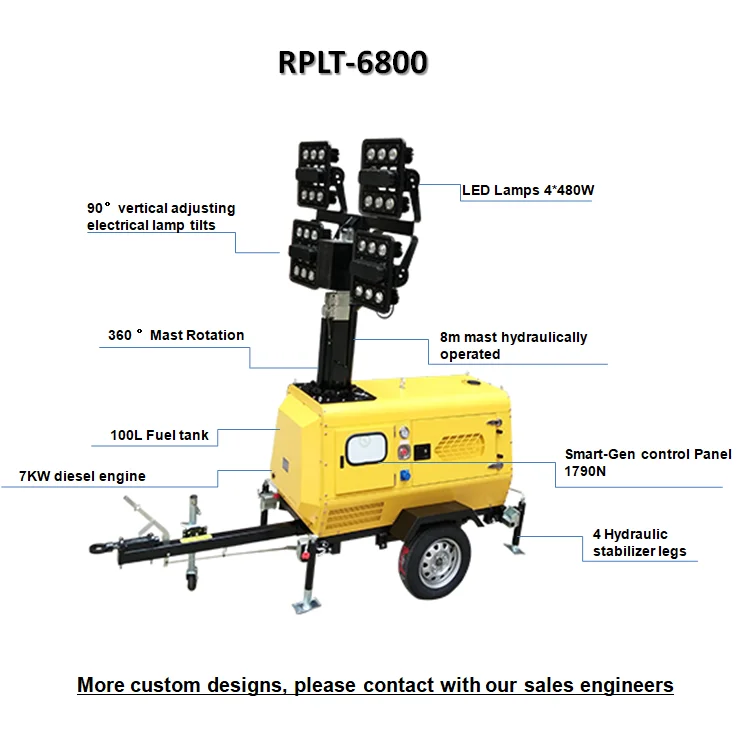

Our RPLT-6800 main spec:
This model fit with telescopic vertical mast, controlled by hydraulic system and could reached at 8 meter in maximum. Lighting tower could set up by one-man operation, and also for the lamps that means all of the operation could perform on the ground.
Control panel could read most data of machine, mast extension, and could adjust lamp tilt for 90°. Good for saving time, easy control and labour saving. Both Four 1000 Watt metal halide is the standard configuration for this model and could provide bright lighting for areas up to 7 acres. Beside it,we also offer 4*480w LED lamps for option. In this way, the light effects is the same and better for the people’s eyes when workers work under it. And the fuel consumption is reduce great so the refueling time will be much longer. The spiral wire looks neat when the mast goes up and down. We Use Pro E for design to minimize the dimension error and insure the delivery time. All of our lighting tower, our QC people will examine every details before shipment.
FEATURES AT A GLANCE
• Kubota origin D1105 Engine
• Full hydraulic tower lift
• 4*1000w Metal Halide lamps / 4*480w LED lamps
•LED lights 3 years warranty
• 120L plastic fuel tank against rust
• consumption 2L/h (up to 7 day runtime, based on 7 hour shifts)
• Control panel - state of the art
• maunal rotation
• optional 4 hydraulic stabilizer legs
• Emergency stop
• Auxiliary Sokets

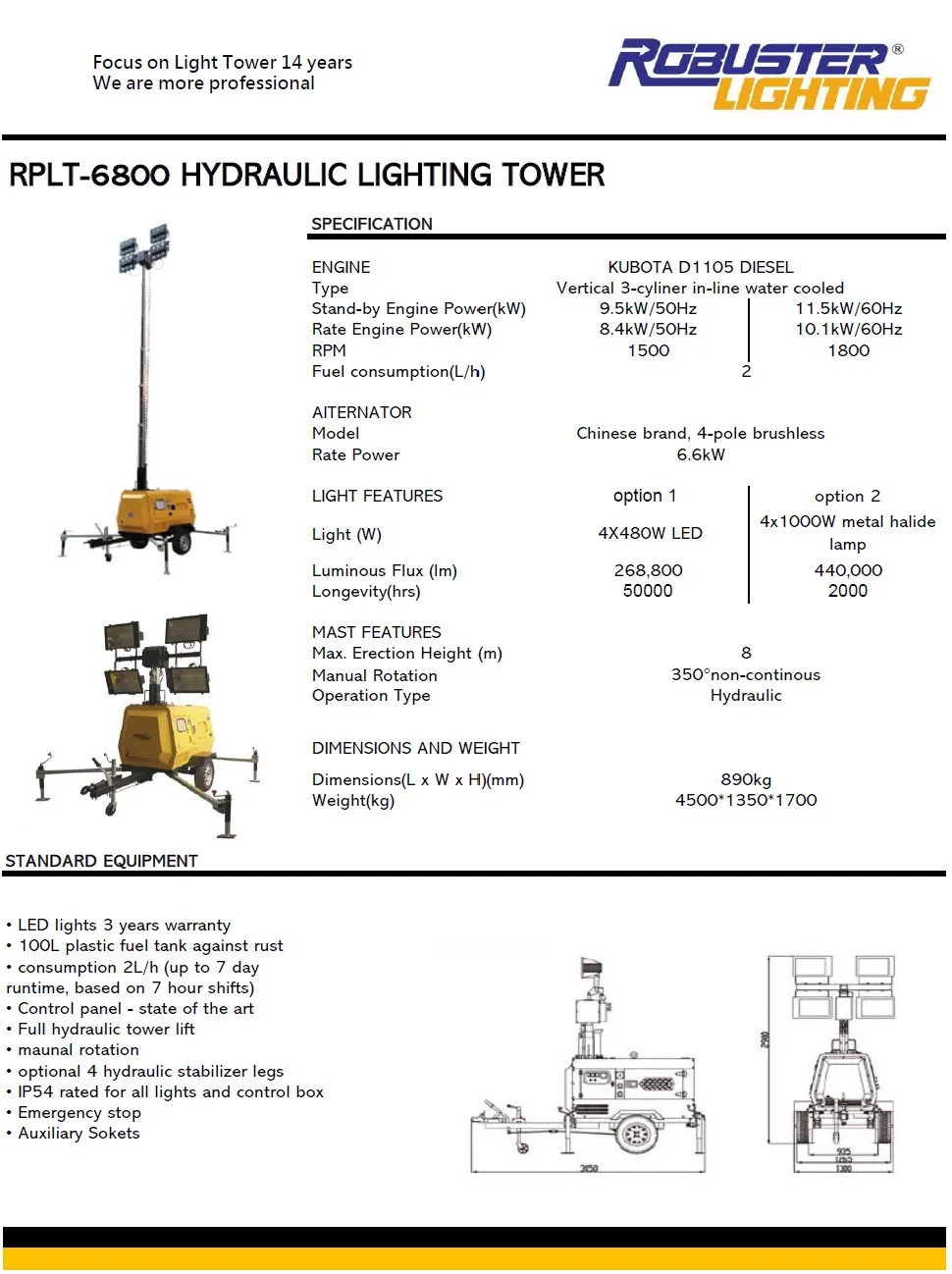

RPLT-6800K | ||||||||||||
Generator | ||||||||||||
Rate power | KW | 7 / 8 | ||||||||||
Voltage | V | 110V / 120V / 220V / 230V | ||||||||||
Operating temperature | ℃ | -20 ~ +50 | ||||||||||
Control panel | Smart Gen 1790N , Digital control panel | |||||||||||
engine | ||||||||||||
Model | Kubota D1105-BG Diesel Engine | |||||||||||
Speed | rpm | 1500/1800 | ||||||||||
Number of cylinders | 3 | |||||||||||
Coolant | water cooled | |||||||||||
alternator | ||||||||||||
Model | Chinese brand alternator/4-pole / Brushless,excitation | |||||||||||
Insulation/enclosure protection | Class/IP | H/23 | ||||||||||
Mast & Stabilizer legs | ||||||||||||
Elevation Type | Hydraulic mast | |||||||||||
Model | 6-Sections Telescoping mast | |||||||||||
Maximum hight | m | 8 | ||||||||||
Mast Handle | Yes | |||||||||||
Rotation degree | degree | 350 | ||||||||||
Jacky wheel | Yes | |||||||||||
Stabilizer legs model | Manual / Hydraulic | |||||||||||
Stabilizer legs quantity | units | 4 | ||||||||||
dimension & weight | ||||||||||||
Dimension(L*W*H) | mm | 4500*1350*2980 | ||||||||||
Weight | kg | 890 | ||||||||||
Loading(20GP/40HQ) | Sets | 6/12 | ||||||||||
Lamp | ||||||||||||
Model of lamp | Metal halide lamp | LED Lamp | ||||||||||
COB | ||||||||||||
capacity | 4X1000W | 6X1000W | 4X480W | |||||||||
lumens | 440,000 | 660,000 | 268,800 | |||||||||
IP | 54 | 54 | 65 | |||||||||
Successful Project
Project in Laotian Mining job site

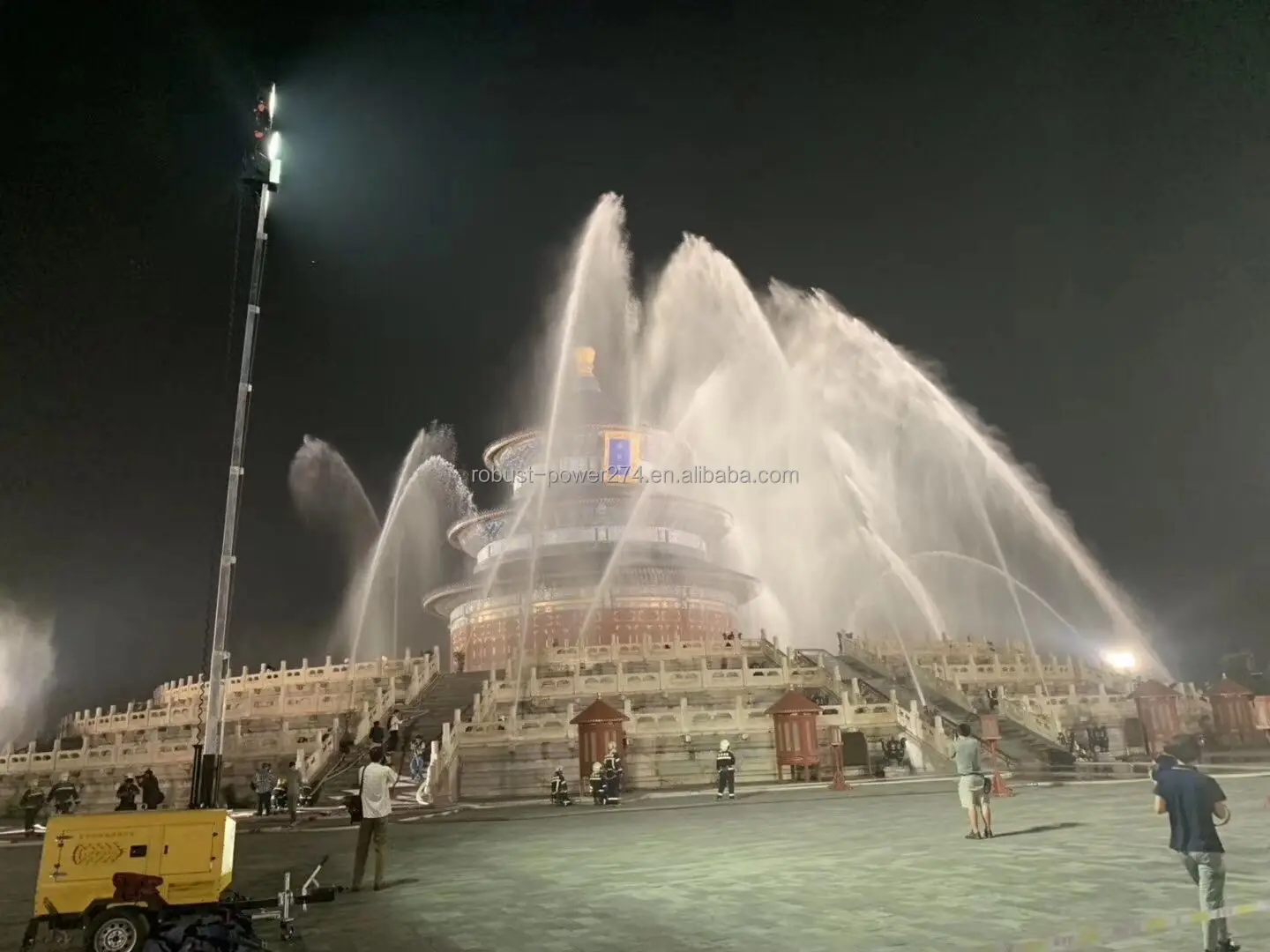

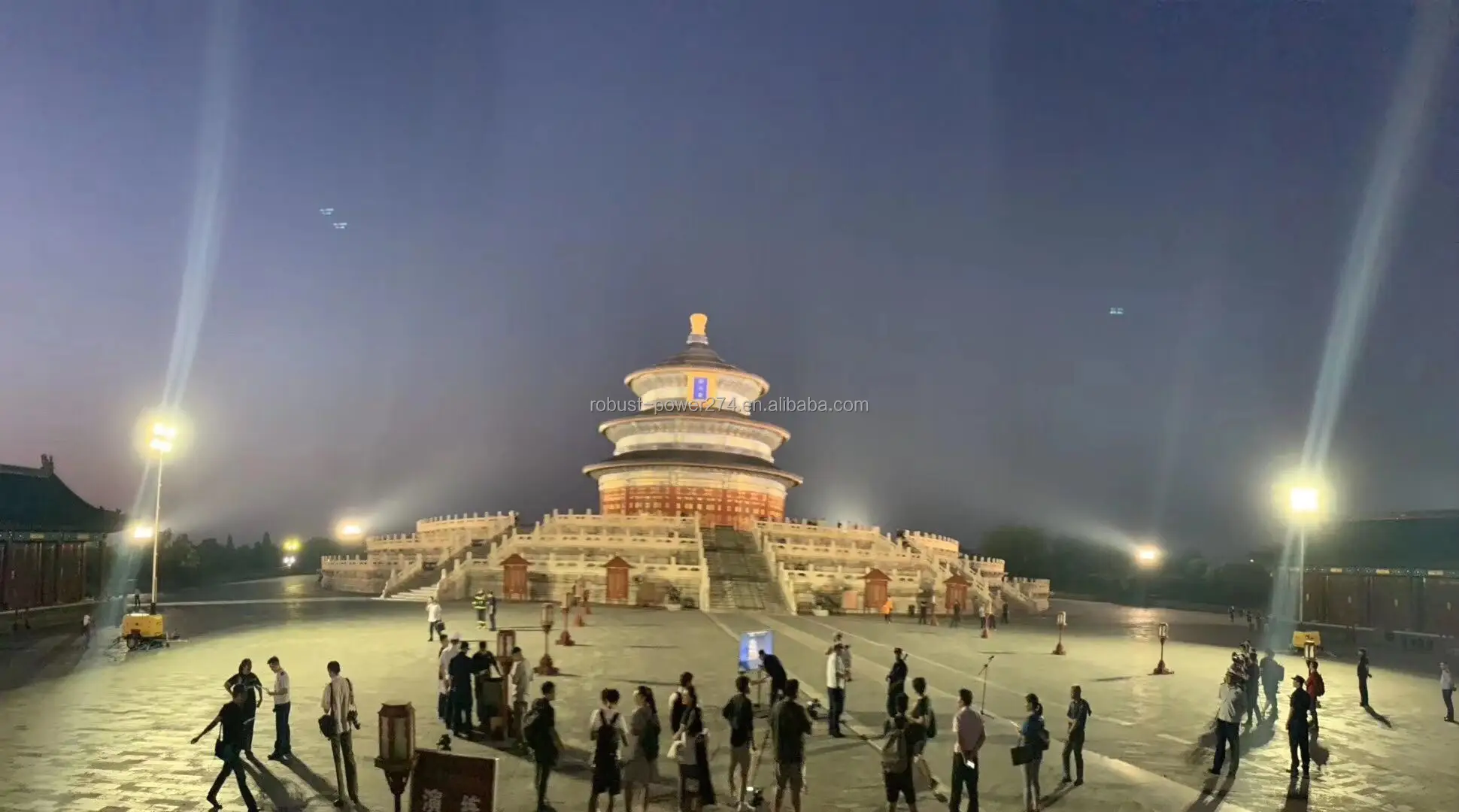

Project in Chinese theater shooting at night
Project in Indonesia

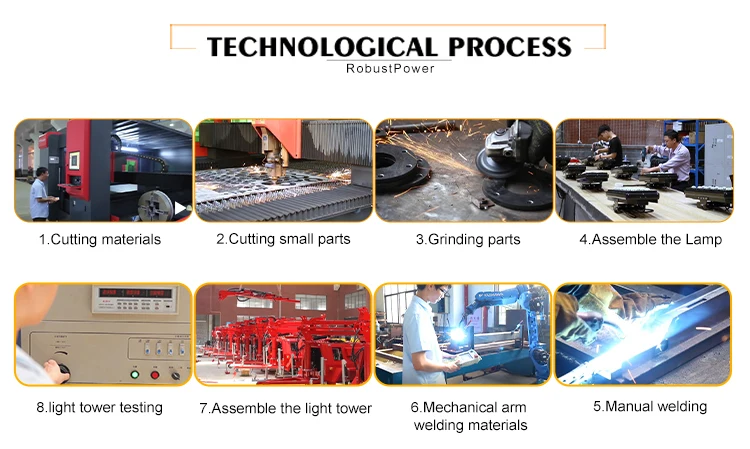

WorkShop
Why Choose Us
Our Advantages

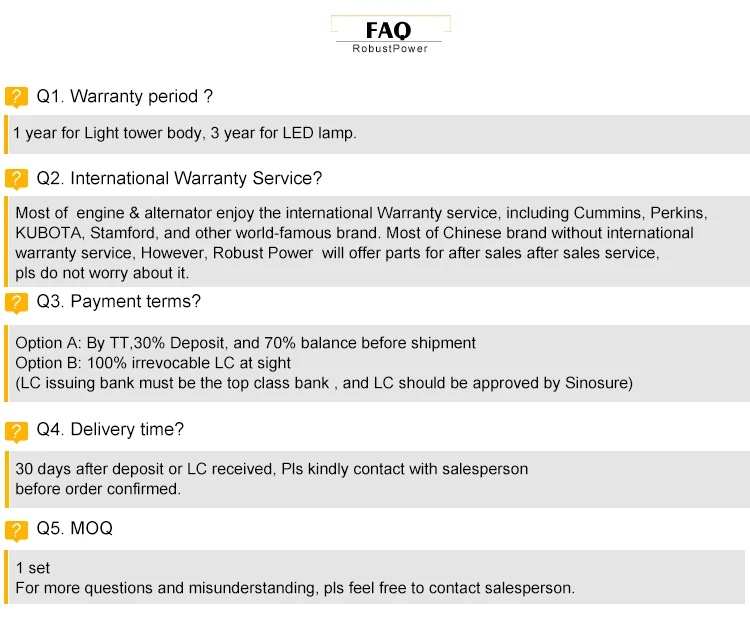

FAQ
