40pc Professional SAE & metric inch hex threading dies thread tools tap and die set
- Category: >>>
- Supplier: Hangzhou Pangong Tool Co. Ltd.
Share on (1600548011334):
Product Overview
Description
Taps and dies are hand cutting tools used to create screw threads, which is called threading. A tap is used to cut the female portion of the mating pair (e.g., anut). A die is used to cut the male portion of the mating pair (e.g., a screw). The process of cutting threads using a tap is called tapping, whereas the process using a die is called threading. Both tools can be used to clean up a thread, which is called chasing.
Product Description
Specifications
1.OEM: Accpetable
2.Logo Printing: We can print your LOGO on the handle and package.
3.Free Samples: We are willing to provde free samples.
| 40pc Professional SAE & Metric Tap and Die Set T-Handle Wrench Screw Pitch Gauge |
| METRIC |
| 16PC dies sizes: 3×0.5, 3×0.6, 4×0.7, 4×0.75, 5×0.8, 5×0.9, 6×1.0, 6×0.75, 7×0.75, 7×1, 8×1.25, 8×1.0, 10×1.25, 10×1.5, 12×1.75, 12×1.5 NPT die size:1/8-27 16PC taps:size as dies NPT tap size:1/8-27 1PC Tap wrench 1PC Die handle:1"OD 1PC T Type Tap Wrench 1/4" capacity Screw-pitch gauge |
| SAE |
| 10UNC dies size: 4-40 6-32 8-32 10-24 12-24 1/4"-20 5/16"-18 3/8-16 7/16"-14 1/2"-13 6UNF dies size:10-32 1/4"-28 5/16"-24 3/8"-24 7/16"-20 1/2"-20 NPT die size:1/8-27 10UNC taps:same size as dies 6UNF taps: same size as dies NPT size:1/8-27 1PC Tap wrench 1PC Die handle:1"OD 1PC T Type Tap Wrench 1/4" capacity 1PC Screw-pitch gauge 1PC Screwdriver |
| Combination |
| 17PC Dies size: M3×0.5 M4×0.7 M5×0.8 M6×1.0 M7×1.0 M8×1.25 M10×1.5 M12×1.75 1/8NPT27 4NC40 6NC32 8NC32 1/4NC20 5/16NC18 3/8NC16 7/16NC14 1/2NC13 17PC Taps:same size as dies 1PC Tap Wrench 1PC Die Handle:1"OD 1PC T Type Tap Wrench 1/4" capacity 1PC Screw-pitch Gauge 1PC Screwdriver |
Pictures

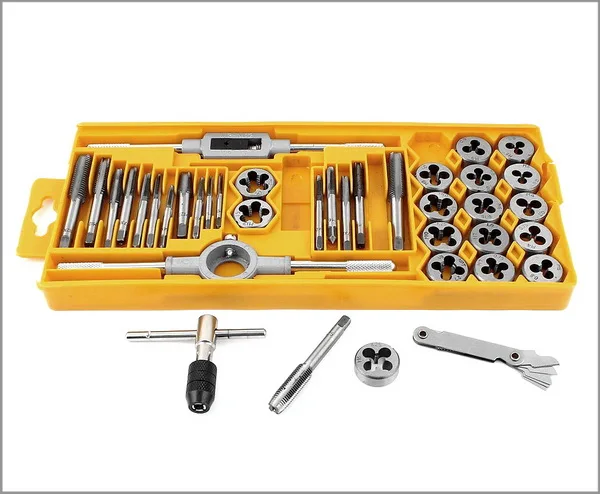

40 PC Hand Tools Kit contains:
17 Taps +17 Dies + 1 Tap wrench + 1 T Type Tap wrench +1 Die handle+ 1 Screw-driver+1 Screwpitch Gauge
How to create outernal screw threads :
1.Choose the required thread diameter and the associated thread pitch.
2.Select a suitable bolt,and fix a suitable die in the die stock. Before positioning the die over the bolt, deburr workpiece and file it to a slightly taper.
3.Cut the outside thread by turning the die stock backwards and forwards several times. Keep the workpiece lubricated with cutting oil.State cutting only possible from the marked side
How to create internal screw threads :
1.Choose the required thread diameter and the associated thread pitch.
2.Drill a pilot hole in the appropriate diameter.
3.Fix a suitable tap in the tap wrench. Cut the thread by truning the tapping tool backwards and forwards a few times,at the same time putting cutting oil into the drilled hole.
