Hot Sale Wire Rope Hoist High Speed 110V 220V Electric Mini Winch With Remote Control
- Category: >>>
- Supplier: Tianjin,Kunda,Hoisting,Equipment,Co.,Ltd
Share on:
Product Overview
Description

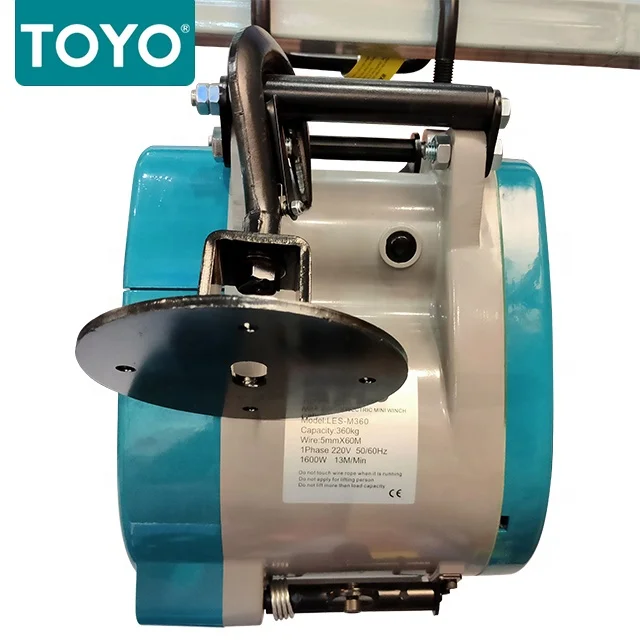

Hot Sale Wire Rope Hoist High Speed 110V 220V Electric Mini Winch With Remote Control
 |
Motor System
Using brushless motor series excited of high-efficiency industrial grade; there are two selected configurations of single-phase voltage (110V / 220V); its enameled heat levels up to 200 degrees. |
Brake System Dual brake system with ratchet gear brakes and the other brake resistor short circuit controller. | |
Cable Specifications
Japan steel wire with 3- fold safety
|
| Model | Capacity (kg) | Power (Voltage) | Phase | Wire Rope (mm) | Wire Rope Lift(m) | Speed (M/min) | Motor (kW) | ||||
| 50Hz | 60Hz | ||||||||||
| TY-S160 | 160 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.2 |
| TY-S180 | 180 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.3 |
| TY-S230 | 230 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.3 |
| TY-S250 | 250 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.5 |
| TY-S300 | 300 | 100-120 | 200-240 | 1 | 5 | 4 | 28 | 43 | 19 | 23 | 1.5 |
| TY-S280 | 280 | 100-120 | 200-240 | 1 | 5 | - | 58 | - | 12 | 19 | 1.3 |
| TY-S360 | 360 | 100-120 | 200-240 | 1 | 5 | - | 58 | - | 12 | 19 | 1.5 |
| TY-S500 | 500 | 100-120 | 200-240 | 1 | 6 | - | 30 | - | 13 | 20 | 1.6 |
 | Motor System Using brushless motor series excited of high-efficiency industrial grade;
There are two selected configurations of single-phase voltage (110V / 220V);
Its enameled heat levels up to 200 degrees, specifically designed for the long crane. |
Brake System Dual brake system with one mechanical ratchet
Brake resistor short circuit controller; formula oiled copper disc brakes with
High friction coefficient, which needs no adjustment; immediately brake in
Power outage or malfunction, great safety, and long life. |
|
 | Cable Specifications Japan imported steel wire from large manufacturing firms with 3-fold safety factor. |
