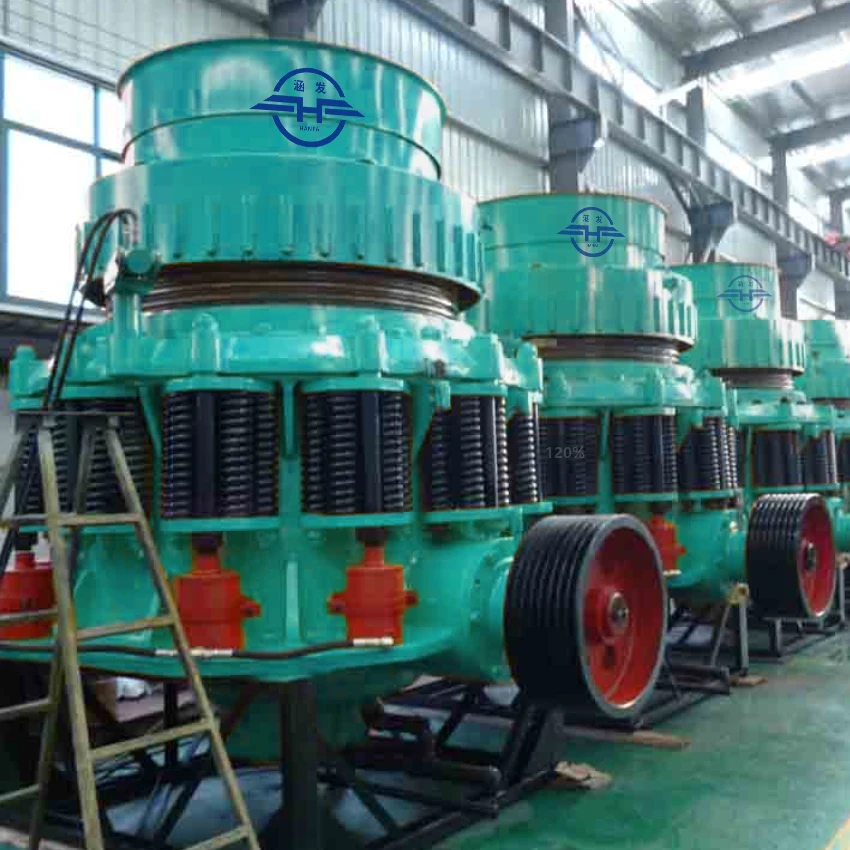

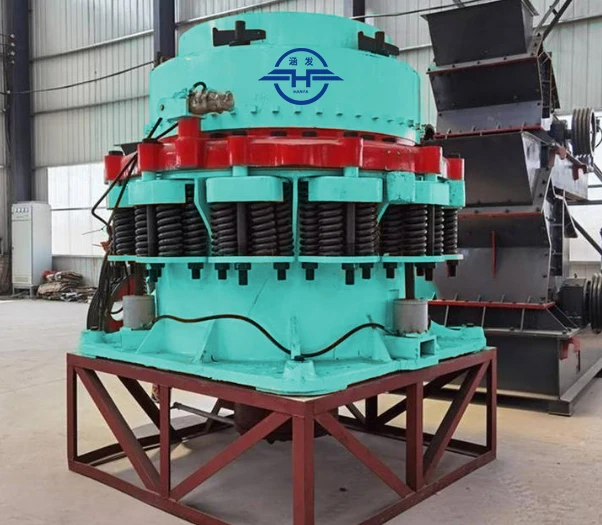

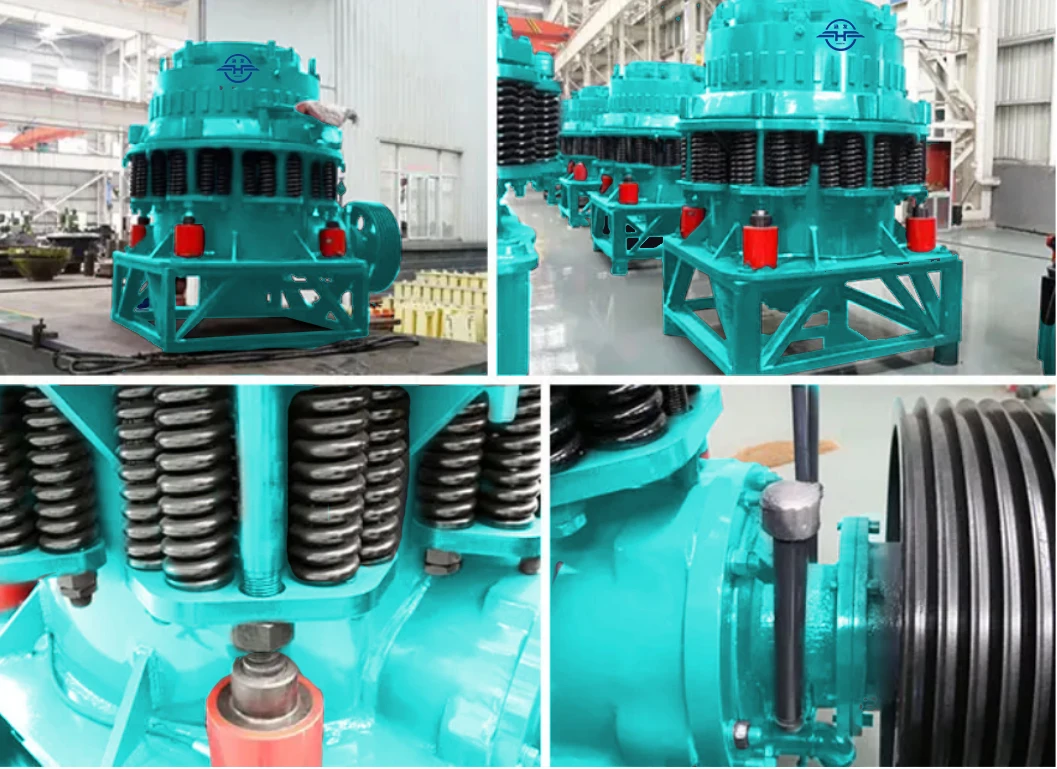

Road Building Cheap Price Symons Cone Crusher Compound Cone Crusher Cone Crusher
- Category: >>>
- Supplier: Jiaozuo Hanfa Industrial Co. Ltd.
Share on (1600548102078):
Product Overview
Description
Products Description
Scope of application

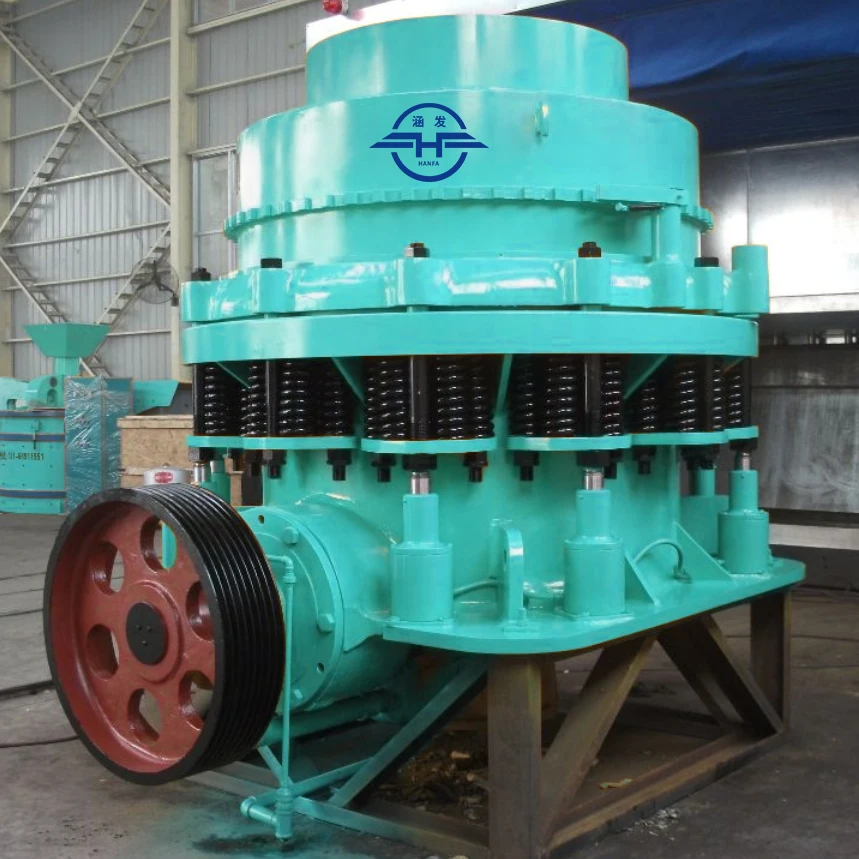

Symons cone crusher is also named compound cone crusher. It's semi hydraulic and semi spring stone cone crusher, which can crush materials of above medium hardness. When used with jaw crusher, it can be used as secondary, tertiary or quaternary crushing. Each specification of the crusher has more cavity types, which can be used to choose different cavity types according to different needs.
Technical Parameter
Specification | Model | Cavity Type | Max Feeding Size(mm) | Output Size(mm) | Capacity (t/h) | Power (kW) | Weight (t) |
PYF-900 | PYFB-0910 | STD F | 85 | 9-22 | 45-91 | 75 | 12.4 |
PYFB-0917 | STD C | 150 | 13-38 | 59-163 | 75 | 12.2 | |
PYFB-0918 | STD EC | 150 | 25-38 | 118-163 | 75 | 12.2 | |
PYFD-0904 | SH F | 35 | 3-13 | 27-90 | 75 | 13.3 | |
PYFD-0906 | SH M | 51 | 3-16 | 27-100 | 75 | 13.3 | |
PYFD-0907 | SH C | 65 | 6-19 | 59-127 | 75 | 13.3 | |
PYFB-1313II | STD F | 115 | 13-31 | 109-181 | 160 | 21.4 | |
PYFB-1321II | STD M | 178 | 16-38 | 132-253 | 160 | 21.1 | |
PYFB-1324II | STD C | 205 | 19-51 | 172-349 | 160 | 21.1 | |
PYFB-1325II | STD EC | 220 | 25-51 | 236-358 | 160 | 21.1 | |
PYFD-1308II | SH M | 78 | 6-16 | 82-163 | 160 | 20.6 | |
PYFD-1310II | SH C | 89 | 8-25 | 109-227 | 160 | 20.7 | |
PYFD-1313II | SH EC | 113 | 16-25 | 209-236 | 160 | 20.8 |
Applications
Widely used in metallurgical industry, building materials industry, road building industry, chemical industry and other fields.
Applicable materials
Crushing various ores and rocks of medium and medium
hardness, such as iron ore, copper ore, limestone, granite, basalt, gabbro, shale, quartzite, river pebbles, etc.

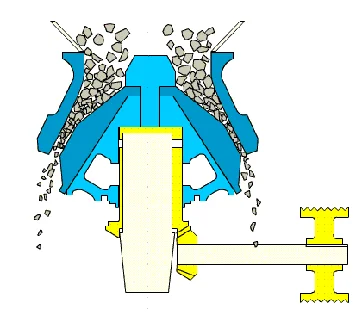

Working Principle
In the working process of the cone crusher, the motor drives the eccentric sleeve to rotate through the transmission device, and the moving cone rotates under the force of the eccentric shaft sleeve, and the section near the static cone becomes a broken
cavity.
cavity.
The material is crushed by the extrusion and impact of the moving cone and the static cone. When the moving cone leaves the section, the material of the required particle size falls under the action of its own gravity and is discharged from the bottom of the cone.

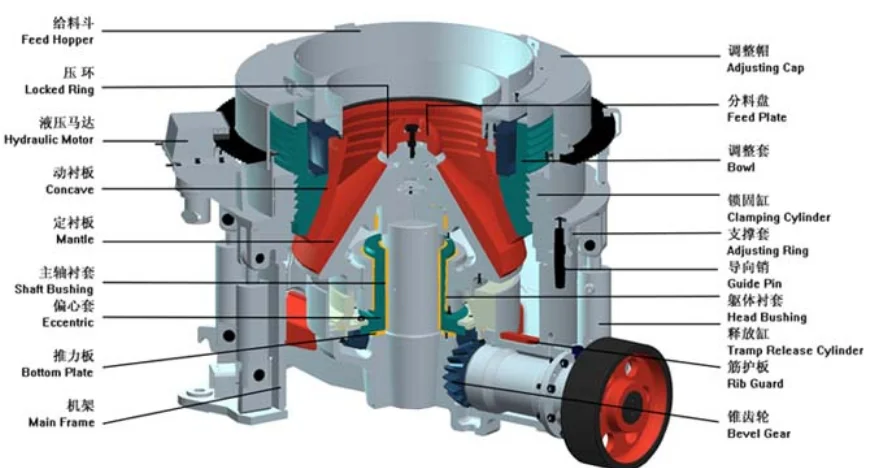

Product Structure
Product Advantages
1. High crushing ratio and high production efficiency;
2. Low consumption of wearing parts and low operating costs;
3. Laminated crushing with excellent particle shape;
4. Hydraulic protection and hydraulic cleaning, high degree of automation, reduce downtime;
5. Thin oil lubricating, reliable and advanced, improve service life;
6. A variety of broken cavity type, flexible application, strong adaptability;
7. Simple maintenance and convenient operation;
8. It has greater flexibility and reliability, really create more value for users.
2. Low consumption of wearing parts and low operating costs;
3. Laminated crushing with excellent particle shape;
4. Hydraulic protection and hydraulic cleaning, high degree of automation, reduce downtime;
5. Thin oil lubricating, reliable and advanced, improve service life;
6. A variety of broken cavity type, flexible application, strong adaptability;
7. Simple maintenance and convenient operation;
8. It has greater flexibility and reliability, really create more value for users.
If you need a cone crusher, please contact us, this is my WhatsApp. Or you can directly click the blue font below to send an inquiry, we will help you make more money.
WhatsApp：+8617739786040
E-mail：info@hanfagroup.com
phone：0086-371-55019599
WhatsApp：+8617739786040
E-mail：info@hanfagroup.com
phone：0086-371-55019599
Company Introduction
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
