CCS Certificate marine Rubber Inflatable Pontoon for Ship Launching

Inflatable marine Pontoons are designed using principle of rolling wood. "XINCHENG" marine rubber airbags choose the whole intertwine technology to make rubber airbags on the structure more reasonable, has higher safety coefficient and bearing capacity. Size : D0.5 m x L6.0 m ~ D 2.5 x L25m. “XINCHENG” Marine rubber airbags are produced in strict accordance with the ISO17357-2002 and GB/T 2002-2002 international quality standard, our products have exported to all over the world.

Material Marine Inflatable Pontoon

1. Choosing the best quality from imported natural rubber, such as Thailand and Malaysia smoked sheet rubber and 3L natural rubber, which has good elasticity, ageing resistance and not take offer layer. Meanwhile, efficient stabilizer is used to make rubber more environmental friendly and no cracks.

2. Our ship rubber airbag is using 3 strands synthetic-tyre-cord, which tensile strength can be 31kgs, that make our airbags much higher bearing capacity and safety.

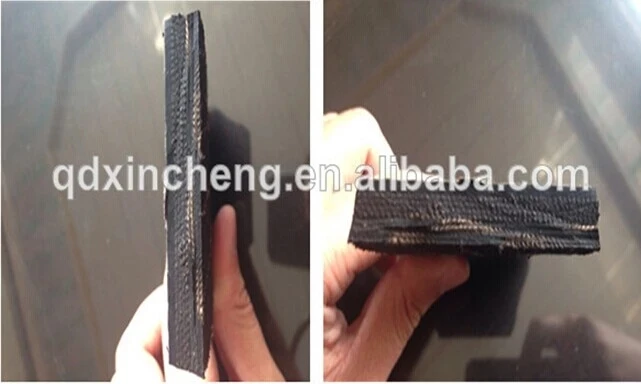

Synthetic-tyre-cord

1. Wrap threads that run vertically through the synthetic tyre-cord pattern.

2. Weft threads that run perpendicular to the warp threads

Structure

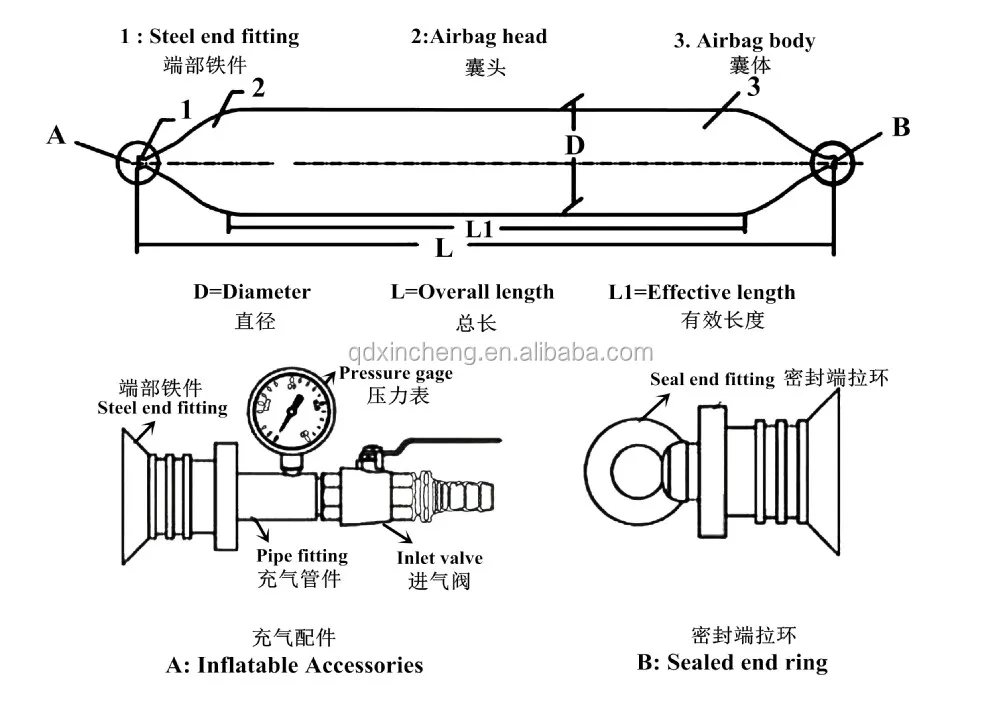

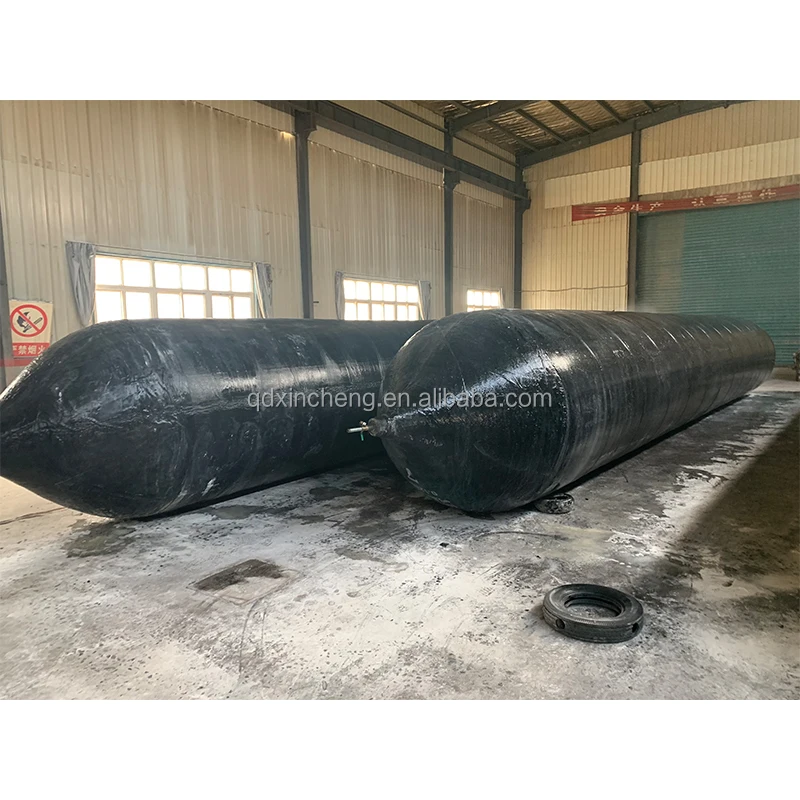

“Xincheng” Marine Air Bag is consist of outer rubber layer, synthetic cord reinforced rubber layers and inner rubber layer.

Its shape characteristics is central body cylindrical and tapered on both ends.

Cord layers: 4,5,6,7,8,9,10, layers

Accessories: Pressure gage, Inlet valve, Pipe fitting and seal end ring

Advantage Marine Inflatable Pontoon

1. Advanced manufacturing technology

2. Best imported natural rubber from Thailand and Malaysia

3. Safety and reliability

4. Good air tightness

5. Saving labor and cost

6. Long using time

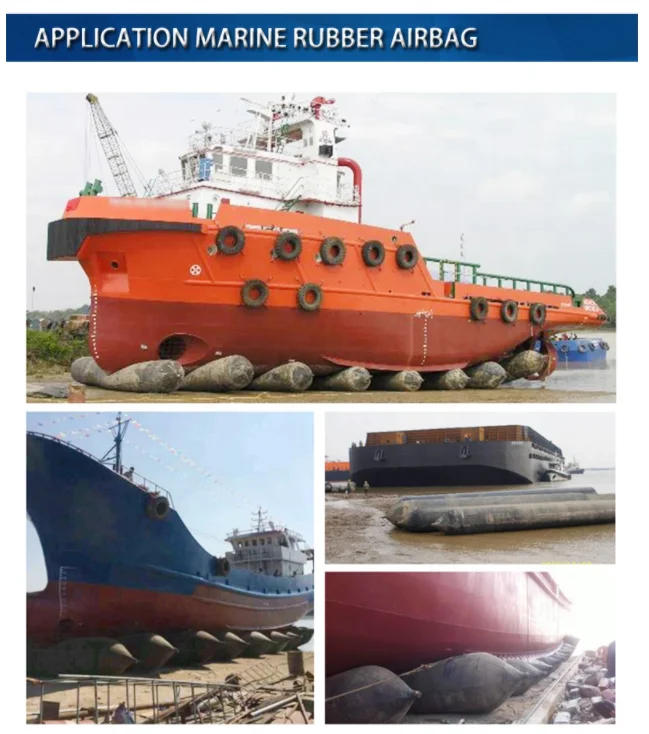

Application Marine Air Bag

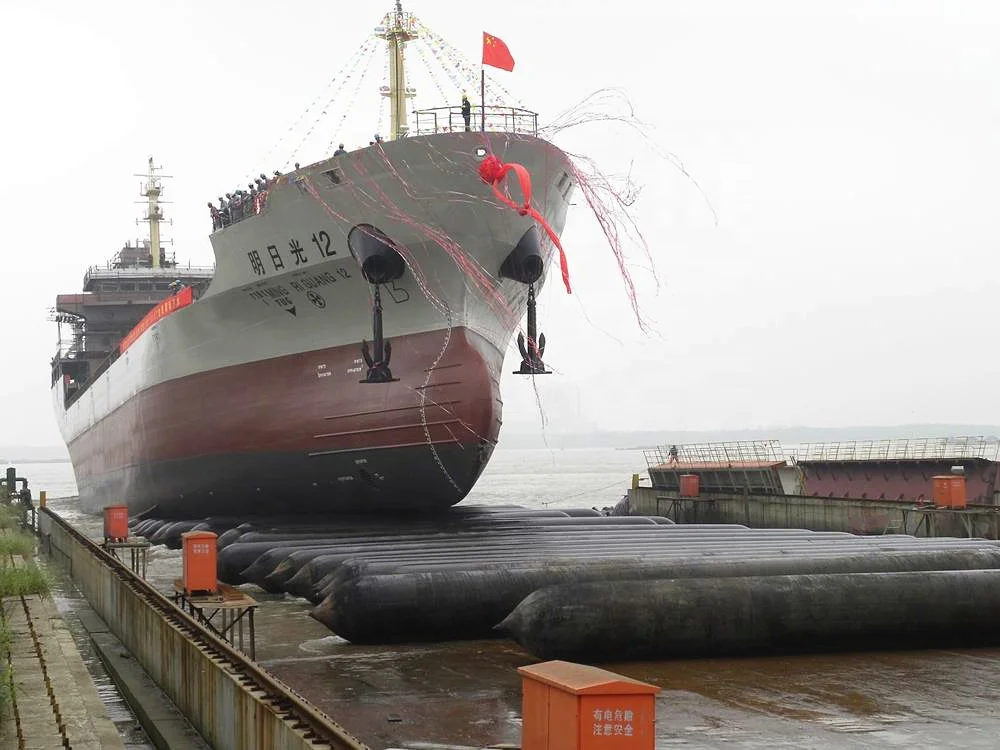

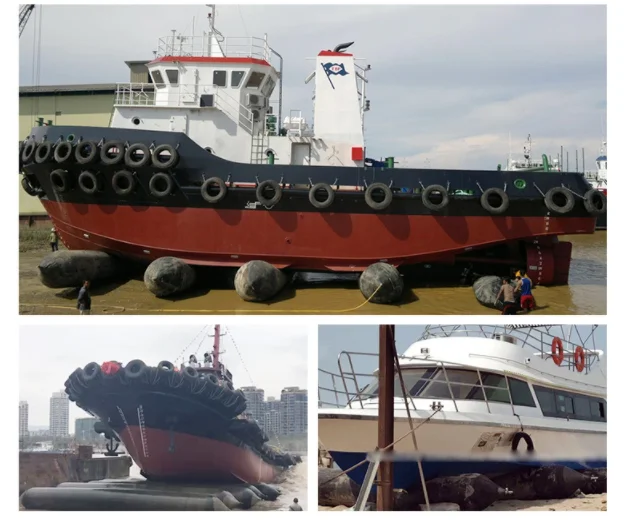

1. Ship launching and landing

2. Heavy lifting and moving

3. Ship salvage rescue project

Standard size of marine Inflatable Pontoon

Diameter (D): 0.8m-2.0m

Effective length (EL): 6.0m-18m

Total Length (TL): 7m-20m

Cord layers: 4,5,6,7,8,9,10, layers

NOTE: Your custom size is accepted.

1.One-to-one VIP service.

2.Lifelong after-sale service.

3.Professional suggestions for suitable rubber airbags size and quantity.

4.Teach customers to use the rubber airbags on site .

5.Any questions will be replied within 24 hours.

How to choose a suitable air bag for your ship?

The selection of airbag should follow the vessel dimensions, type and launching weight.

Airbag Diameter:

It should consider the height of docking blocks. In order to lift the ship safety, the airbag diameter must be higher than docking blocks. Generally, it should be increased by 0.5m based on the black height. For example, if the docking block height is 1.0m, the airbag diameter needs not less than 1.5m.

Airbag length:

It depends on the width of the vessel. The airbag effective length must be larger than the width of the vessel. It will enhance the safety and steadiness of launching.

Airbag bearing capacity:

The most important factor of ship launching, it must be consider the airbag’s bearing capacity, which must be higher than the ship launching weight to guarantee launching process safety. So the numbers of layers will decide the airbag’s bearing capacity.

JUST TELL US YOUR VESSEL INFORMATION, WE WILL CHECK WHICH SIZE OF AIRBAG IS SUITABLE FOR YOU.

Qingdao Xincheng was founded in 1986, mainly produces pneumatic rubber fenders, marine rubber airbags, ship airbags price, ship docking rubber airbag, marine boat salvage airbag, foam filled fenders and other rubber fenders, which as the leading enterprise has passed the certification of CCS , ISO9001:2008, SGS, BV etc.

Since the 2000, the Company has accumulated a lot of production experience in the field of marine rubber airbags and fenders, which has bring together a large number of professional design and production technical personnel. The Company always adhere to improve product quality and customer service. In 2011,China top 10 rubber products production enterprise" and "China rubber seal products production top ten best-selling famous brand"; In 2015,Company won the China shipbuilding industry group outstanding product suppliers. For now, our products have exported to all over the world, such as Southeast Asia, Middle East, South America and EU countries etc.

1. Are you a factory or trading company?

A: We are a factory.

2. What is your MOQ?

A: ONLY 1 piece.

3. What is your lead time for production?

A: Generally, production time is about 5 working days after receipt of deposit.

4. What is your payment terms?

A: T/T and L/C at sight.

5. What is your warranty?

A: Warranty is 24 months.

6. What certificate do you have?

A: ISO9001:2008, CCS, SGS, BV, LR, RS.
