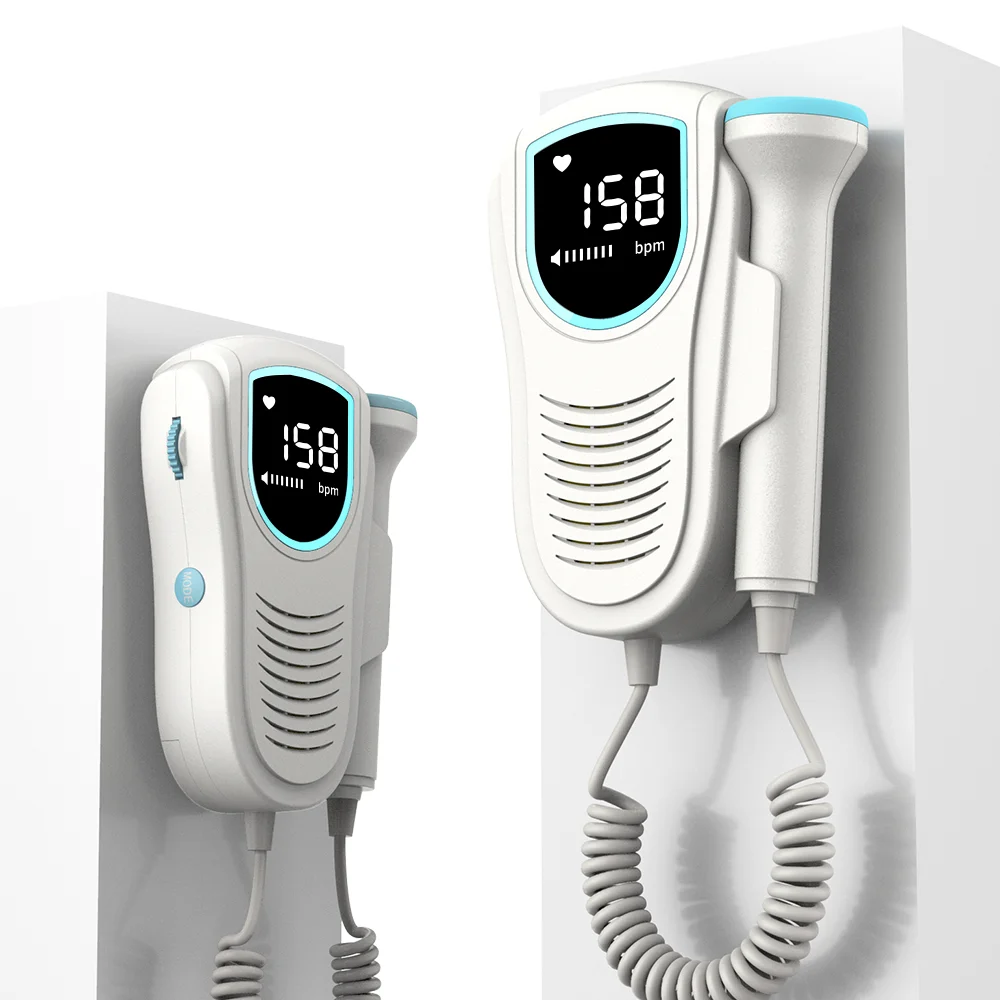

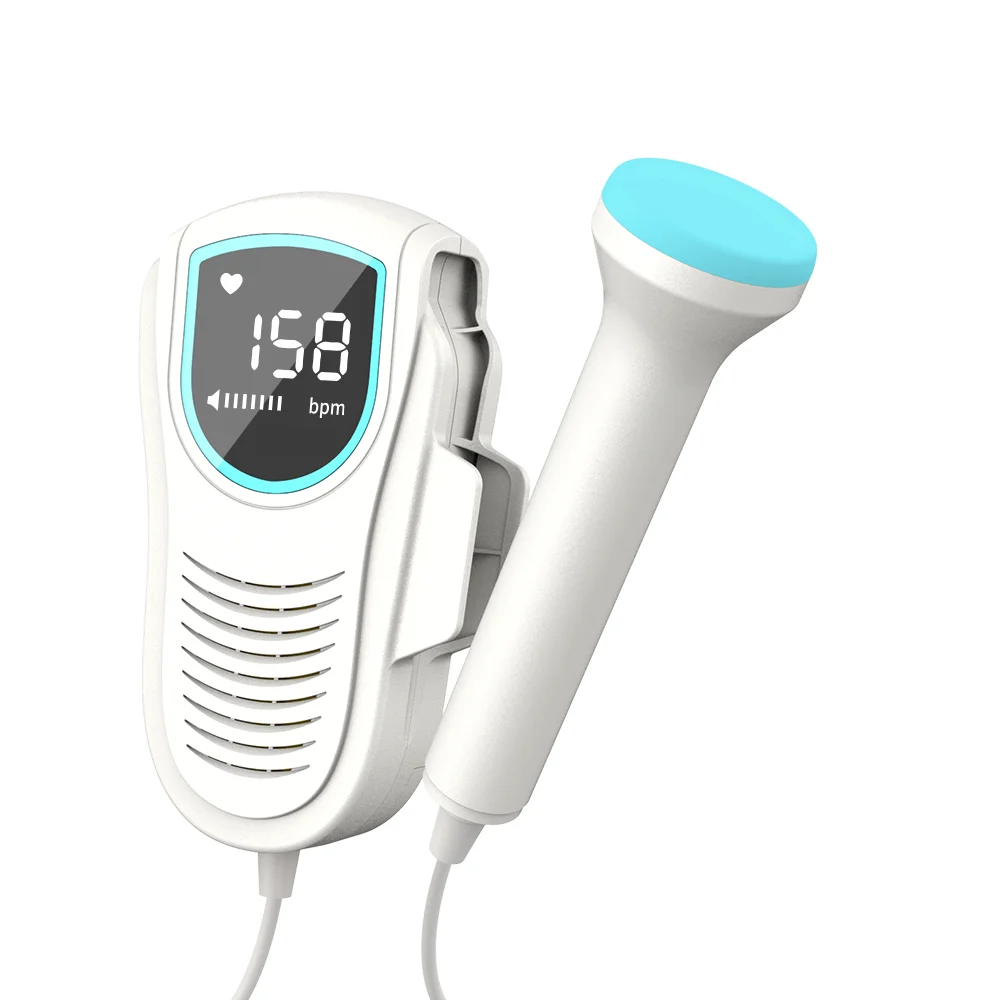

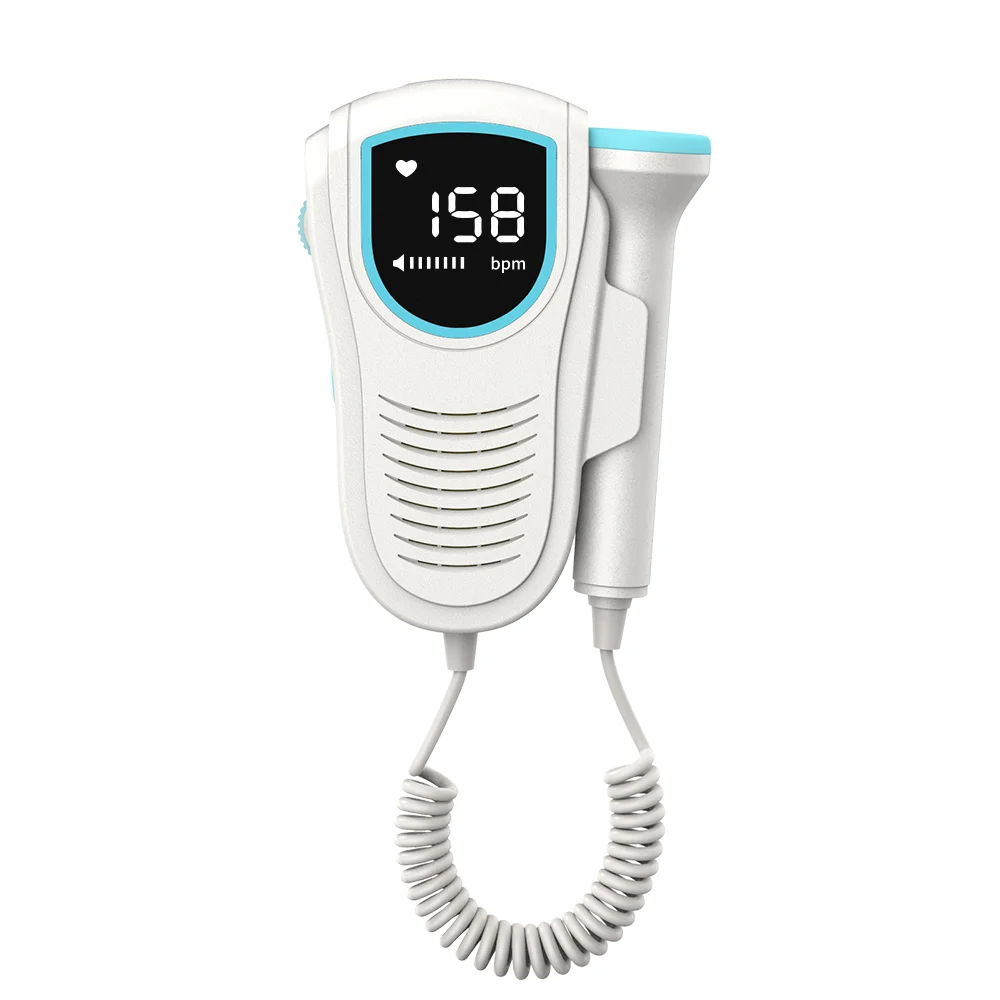

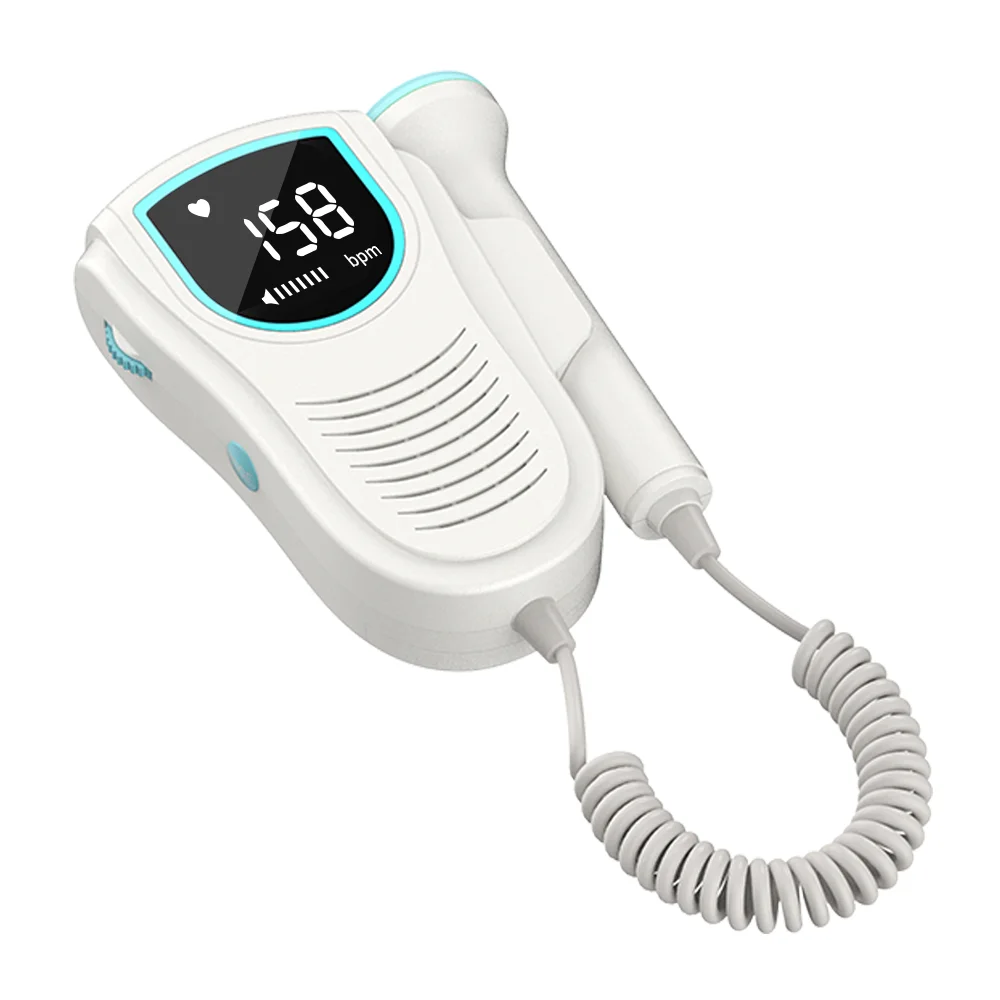

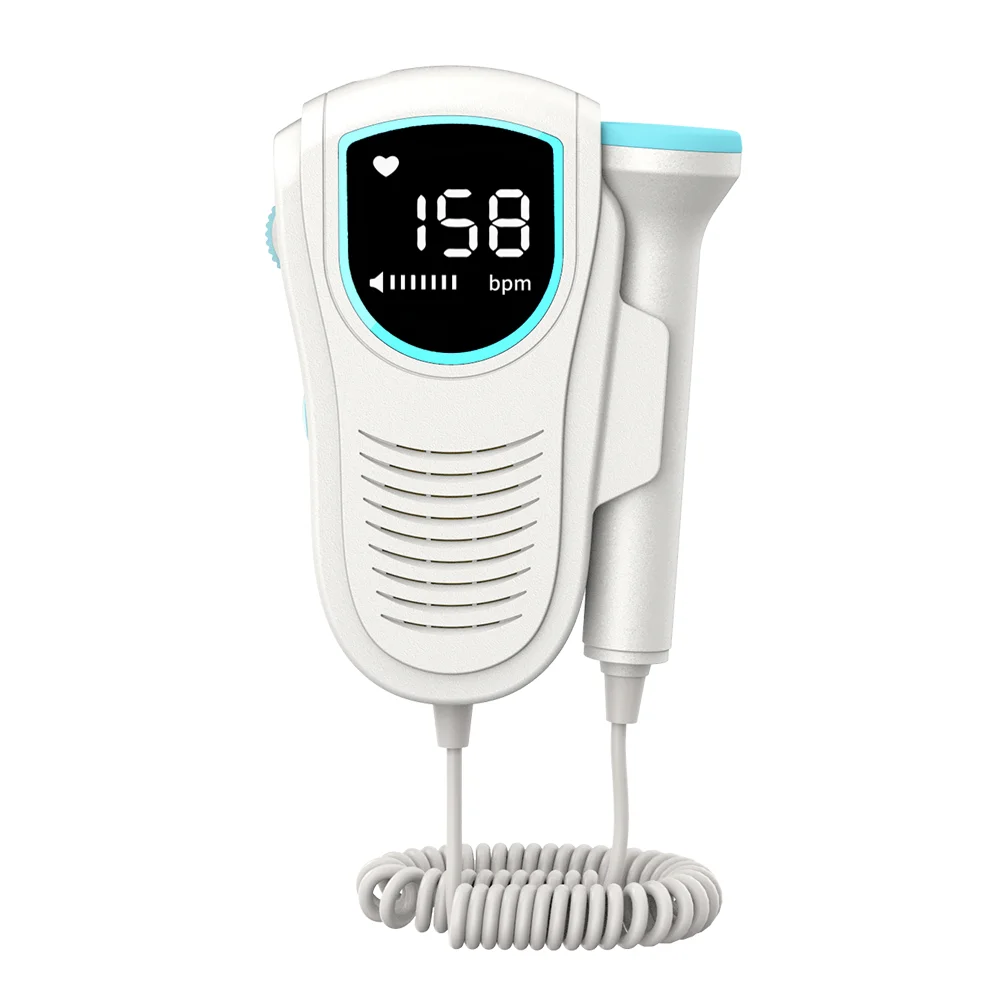

Hot selling household doppler fetal baby heart ultrasound hand held fetal doppler
- Category: >>>
- Supplier: Shenzhen Xingaodeng Technology Co. Ltd.
Share on (1600548122063):
Product Overview
Description
ultrasound fetal dopplers machine
Product Paramenters
Introduction
Pocket Fetal Doppler is a hand-held fetal heart rate detecting device adopted Doppler theory. It displays fetal heart rate on
digital LCD screen. With easy and convenient operation, it can be used in hospital and clinic for daily self-check by pregnant woman, realizing early monitoring and care for life.
digital LCD screen. With easy and convenient operation, it can be used in hospital and clinic for daily self-check by pregnant woman, realizing early monitoring and care for life.
Features
1) Delicate and compact design, portable and easy to use.
2) Crooked probe structure, which is easy to operate and increases the feeling of comfort, embodies the humanized design.
3) Three working mode: Real-time FHR Display Mode, Averaged FHR Display Mode and Manual Mode.
4) High precision FHR digital LCD screen.
5) Probe falls off detection, battery status indication.
6) Pluggable USB probe interface, probe can be replaced.
7) Automatic shutdown: The device will automatically turn off if there is no signal within 1 minute.
8) Audio interface: Can be connected to other recording devices by recording cable, record fetal heart sound in real-time
9) Two 1.5V batteries (AA LR6) can last more than 8 hours for normal use.
2) Crooked probe structure, which is easy to operate and increases the feeling of comfort, embodies the humanized design.
3) Three working mode: Real-time FHR Display Mode, Averaged FHR Display Mode and Manual Mode.
4) High precision FHR digital LCD screen.
5) Probe falls off detection, battery status indication.
6) Pluggable USB probe interface, probe can be replaced.
7) Automatic shutdown: The device will automatically turn off if there is no signal within 1 minute.
8) Audio interface: Can be connected to other recording devices by recording cable, record fetal heart sound in real-time
9) Two 1.5V batteries (AA LR6) can last more than 8 hours for normal use.
10）PERFECT PREGNANCY GIFT FOR FAMILIES – celebrate your new baby-to-be with a gift to Mom and give loved ones far and near.
the ability to send loving messages to the new addition to the family.
11）PORTABLE AND DISCREET – messages to your bump whether you are at the office, going for a walk or relaxing at home.
12）CONNECT AND BOND WITH BABY – Use the included audio splitter so you or a loved one can listen to sounds with your baby.
the ability to send loving messages to the new addition to the family.
11）PORTABLE AND DISCREET – messages to your bump whether you are at the office, going for a walk or relaxing at home.
12）CONNECT AND BOND WITH BABY – Use the included audio splitter so you or a loved one can listen to sounds with your baby.
Performance
1) Safety classification: internally powered equipment, type CF applied part
2) Display: 38 mm × 32 mm LCD screen
3) Range of fetal heart rate: 50 BPM ~ 240 BPM (BPM: beats per minute)
4) Resolution: 1 BPM
5) Accuracy: ± 2 BPM
6) Power consumption: 7) Rated operational voltage: DC3 V
8) Battery: two 1.5V batteries (type: AA LR6)
1) Nominal Frequency: 2.0 MHz
2) Working Frequency: 2.0 MHz ± 10%
3) Maximum Output Sensitivity: ≥90 dB
4) Ultrasonic Output Power: P < 20 mW
5) Negative Peak Sound Pressure: P_ < 1 MPa
6) Output Beam Intensity: Iob < 20 mW/cm2
7) Spatial-peak Temporal-average Derived Intensity: Ispta < 100 mW/cm2
8) Working Mode: Continuous wave doppler
9) Effective Radiating Area of Transducer: < 157 mm2
2) Display: 38 mm × 32 mm LCD screen
3) Range of fetal heart rate: 50 BPM ~ 240 BPM (BPM: beats per minute)
4) Resolution: 1 BPM
5) Accuracy: ± 2 BPM
6) Power consumption: 7) Rated operational voltage: DC3 V
8) Battery: two 1.5V batteries (type: AA LR6)
1) Nominal Frequency: 2.0 MHz
2) Working Frequency: 2.0 MHz ± 10%
3) Maximum Output Sensitivity: ≥90 dB
4) Ultrasonic Output Power: P < 20 mW
5) Negative Peak Sound Pressure: P_ < 1 MPa
6) Output Beam Intensity: Iob < 20 mW/cm2
7) Spatial-peak Temporal-average Derived Intensity: Ispta < 100 mW/cm2
8) Working Mode: Continuous wave doppler
9) Effective Radiating Area of Transducer: < 157 mm2
Accessories
User manual 1
2MHz crooked probe 1
2MHz crooked probe 1
Physical characteristic
Dimension: 135 mm(L)×92 mm(W)×29 mm(H)
Weight: about 245 g (with battery)
Weight: about 245 g (with battery)
Company Profile
Exhibition
Shipping Methods
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2011,sell to North America(40.00%),Domestic Market(20.00%),South America(16.00%),Mid
East(6.00%),Southeast Asia(5.00%),Western Europe(4.00%),Oceania(3.00%),Eastern Asia(2.00%),Africa(1.50%),Northern
Europe(1.00%),Eastern Europe(0.50%),Southern Europe(0.50%),Central America(0.30%),South Asia(0.20%). There are total about 101-200
people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Health detector,health mirror,health mouse,health monitor,health clock
4. Why should you buy from us not from other suppliers?
1. OEM&ODM development of Android, Windows and IOS APP, terminal equipment's software and hardware.
We are based in Guangdong, China, start from 2011,sell to North America(40.00%),Domestic Market(20.00%),South America(16.00%),Mid
East(6.00%),Southeast Asia(5.00%),Western Europe(4.00%),Oceania(3.00%),Eastern Asia(2.00%),Africa(1.50%),Northern
Europe(1.00%),Eastern Europe(0.50%),Southern Europe(0.50%),Central America(0.30%),South Asia(0.20%). There are total about 101-200
people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
Health detector,health mirror,health mouse,health monitor,health clock
4. Why should you buy from us not from other suppliers?
1. OEM&ODM development of Android, Windows and IOS APP, terminal equipment's software and hardware.
2. With over 100 technology patents; CE, FCC, RoHS and UL standards approved. 3. Over 120 skilled factory workers and 35 professional engineers.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:
English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
