Price:$18.50 - $19.80

Quantity:


Product Overview

Description


Specification
Product name

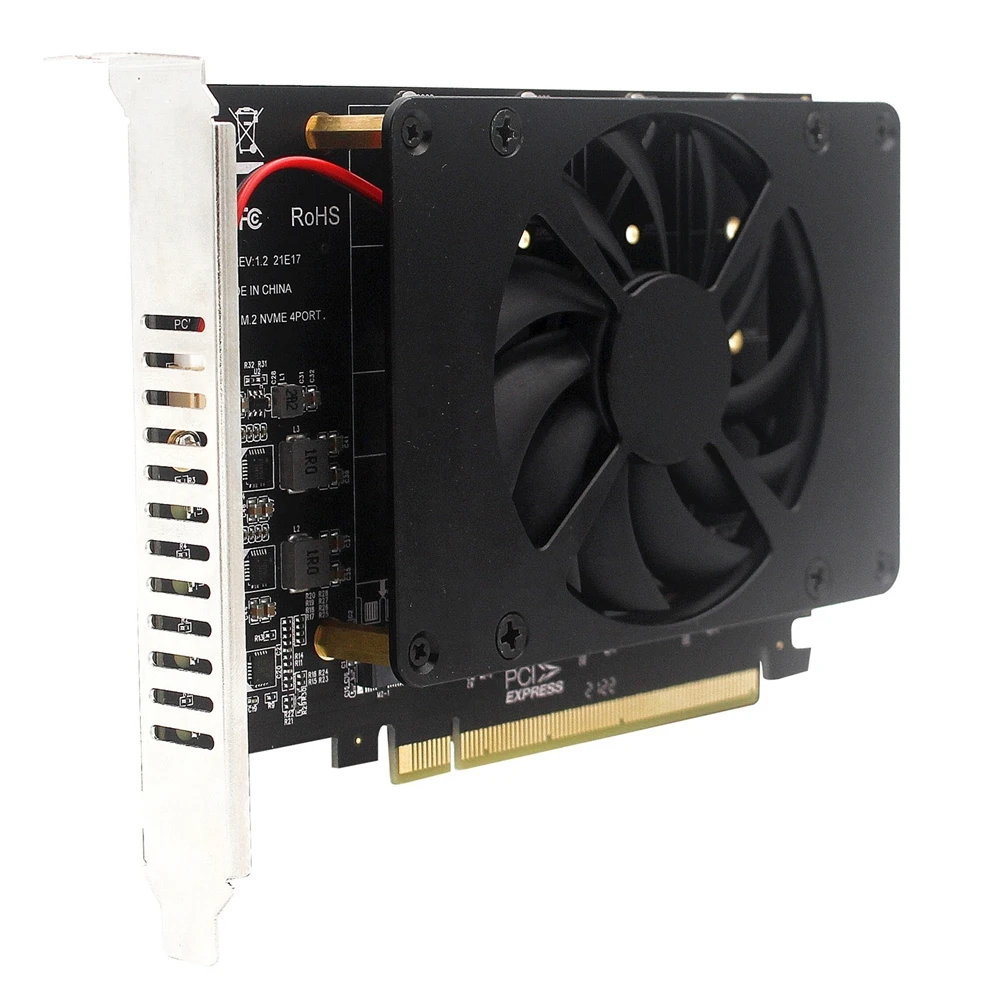

PCIE X16 to 4 bay NVME expansion card with cooling fan
PCI-E X16 4-disk expansion card with cooling fan
the motherboard must support
The main board supports PCI-E split function and can set PCI-E X4X4X4 or 4X4 mode;

The main board supports PCI-E RAID function;
Support SSD
SSD/M.2 PCI-E device of M. 2 NVME protocol
Speed
PCI-E X16 4-disk expansion card with 4* 32Gbps full-speed signal and simultaneous expansion.
Dimension
143*102x25mm
Product Description
Description
PCI-E X16 4-disk expansion card with 4* 32Gbps full-speed signal and simultaneous expansion.
The main board supports PCI-E split or PCI-E RAID function, and supports PCI-E 3.0 and 4.0 transmission protocols.
4-disk solid-state drive array card, solid structure, thick PCB, stable PCIEX16 interface, care for your important data.

Feature
Adopt high-quality ball bearing ball fan, with long service life, high efficiency and silence.

Support 4-disk soft RAID, realize soft RAID under WIN10, 4-disk consistency is good and RAID is stable.

Do not drop disk, slow down, and block, and import high-power DC power chip to ensure the stable operation of M.2 NVME SSD.

The technology is mature, and you can use it with confidence. Only when four disks correspond to four LED indicators, the SSDaccess LED will light up, and the SSD read and write LED will flash.
Feature
Multi-system compatibility, compatibility with various mainstream operating systems

drive-free installation

plug-in and use (PS: other systems need to install drivers except Win8/10 system).
Specification:
Hard disk support: SSD/M.2 PCI-E device of M. 2 NVME protocol Transmission speed: 4*32Gbps Packing: packed in neutral cowhide box Packing size: 19. 5*13*3. 2CM Product weight: product+baffle 73.6G Whole package weight: 119G
Instructions for use:
1. the motherboard must support: The main board supports PCI-E split function and can set PCI-E X4X4X4 or 4X4 mode;
The main board supports PCI-E RAID function; ASUS motherboard supports the function of HyperM.2X16 expansion card;
Different motherboards have different PCI-E split channels, and some motherboards have a PCI-E RAID of X8+X4+X4.

This motherboard 4-bit M.2 card can only support three M.2 SSDs or devices, and 2-bit M.2 card can only support one M.2 SSD or device.
Package Included:
1* array card
1* baffle
1* screwdriver
1 set of screws
1 * Cooling fan
