High quality ARM embedded board with i.mx8m mini for edge computing, industrial4.0

OKMX8MM-C Single Board Computer

Based on NXP processor i.MX8M Mini, quad-core ARM Cortex-A53 up to 1.8GHz, and a 400MHz Cortex-M4 processor
MIPI-CSI, MIPI-DSI, USB, PCIe, UART, eCSPI, IIC and Gigabit Ethernet
Suit for medical inspection, machine vision inspection and management, machine learning and automotive multimedia
1, Up to 2GB LPDDR4 and 8GB eMMC;
2, A wide range of audio interfaces, I2S, AC97, TDM, PDM and SPDIF;
3, High-performance, low-power, flexible memory;
4, mini-PCIe, 10/100/1000 Ethernet port, 2x USB, RS485.




Superior Performance cool experience
Based on ARM Cortex-A53 quad-core processor iMX8M Mini@ 1.8GHz, with 2GB DDR4,
high performance and powerful hashrate make system running more smoothly


1080p60 H.265 decode, 1080p60 H.264 encode
Reduce band width occupancy rate VP9 and H.265 decoder can support 1080P@ 60Hz,
which is 50% more efficient, but bandwidth and capacity only 50% of H.264.


Operating Systems: Linux4.14+Qt5.10.1, Android9.0
SoM FETMX8MM-C can support Android9.0 and Linux4.14(QT5.10)
64-bit systems, which can take users higher security and better human-machine interactive experience.


10 years of product longevity program
i.MX8M Mini processor's life time is more than 10 years, which ensures users of stability of product supplying.

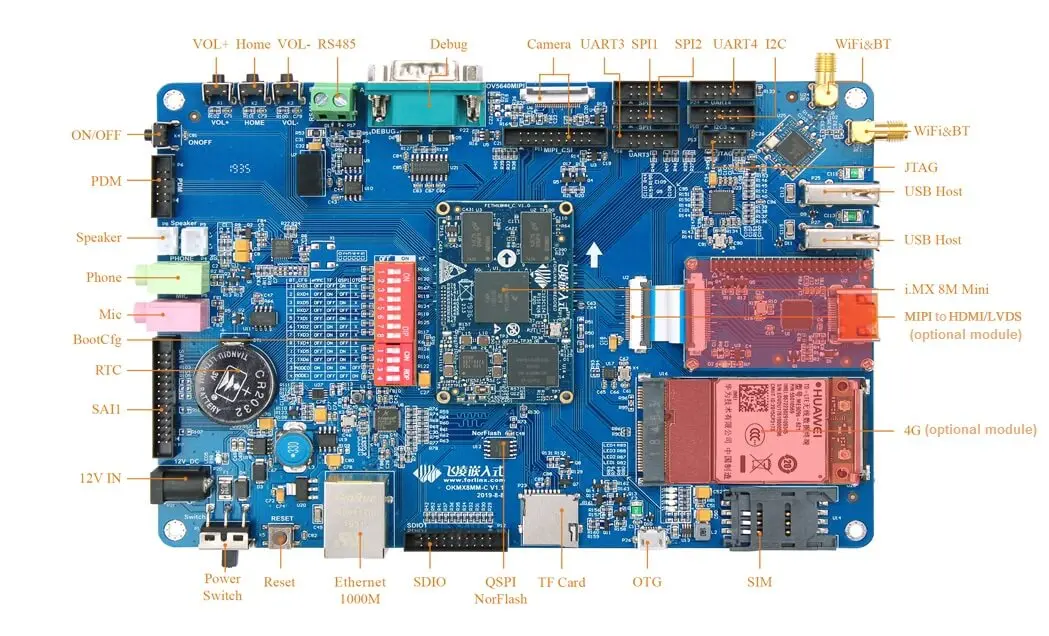

OKMX8MM-C SBC
OKMX8MM-C single board computer consists of SoM FETMX8MM-C and carrier board


Specification


Hardware Features
Overview of FETMX8MM-C System on Module
CPU
NXP i.MX 8M Mini
Architecture
Quad-core Cortex-A53+ single core Cortex-M4
Main Frequency
≤1.8GHz
RAM
2GB DDR4
ROM
8GB eMMC
OS
Linux4.14.78+Qt5.10.1, Android9.0
Voltage Input
5V
Package
ultra thin connector(3*80pin, pitch of 0.5mm)
Working Temp Width
0℃~70℃
Dimensions
56mm×36mm


FETMX8MM-C System on Module Features
Peripherals
QTY
Spec.
CAMERA
1
4-lane MIPI, up to 1.5Gbps
SD/SDIO
≤2
SD, SDIO, 1.8V mode and 3.3V mode
USB
2
USB 2.0( up to 480 Mbps), both can be configured to OTG
SAI
≤5
up to 5x SAI
UART
≤4
each up to 4.0 Mbps
eCSPI
≤3
full duplex strengthened synchronous serial interface, up to 52 Mbit/s, it can be configured to host/ slave mode
IIC
≤4
320Kbps
Ethernet
≤1
10/100/1000Mbps auto-negotiation
PWM
≤4
16-bit
JTAG
supported
FlexSPI
1
support single pad/dual pad/quad pad mode
Display
1
4-lane MIPI display, up to 1.5Gbps
PDM
≤1
up to 4-wire 8 channels
PCIe
1
PCIe 2.0
