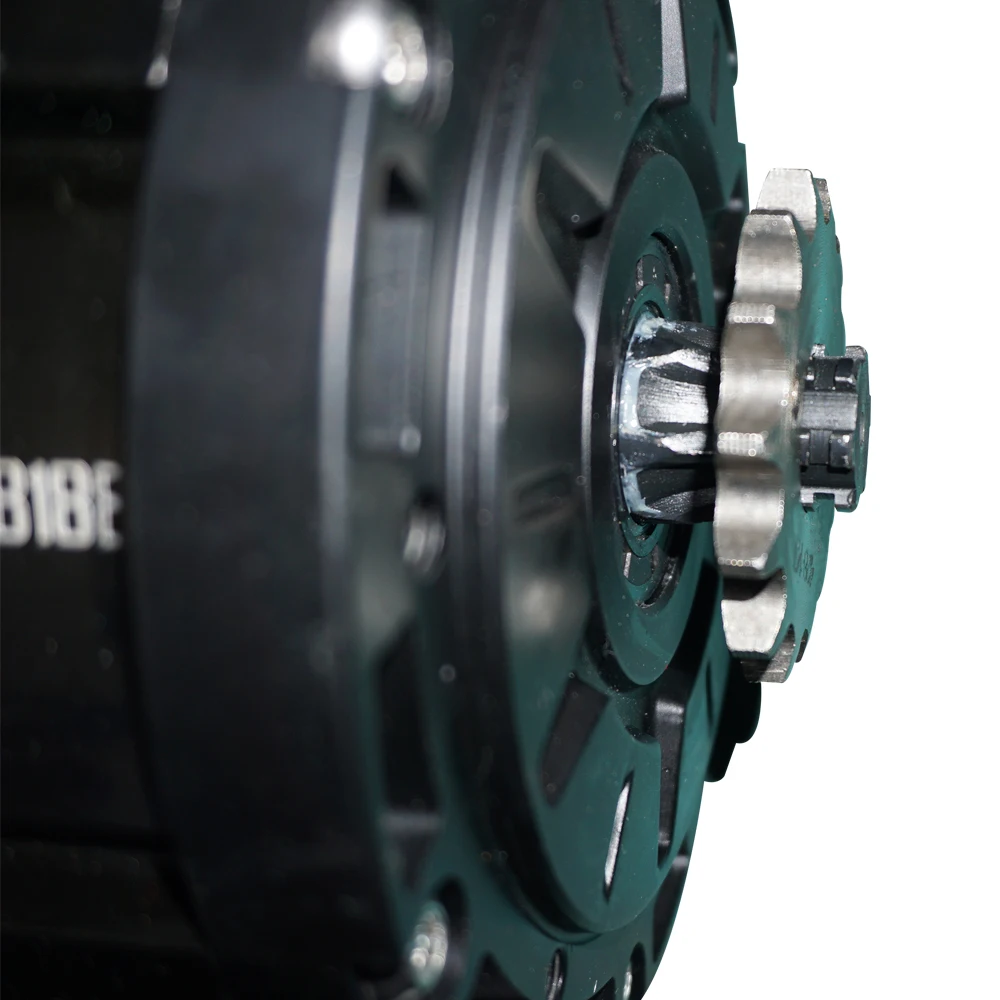

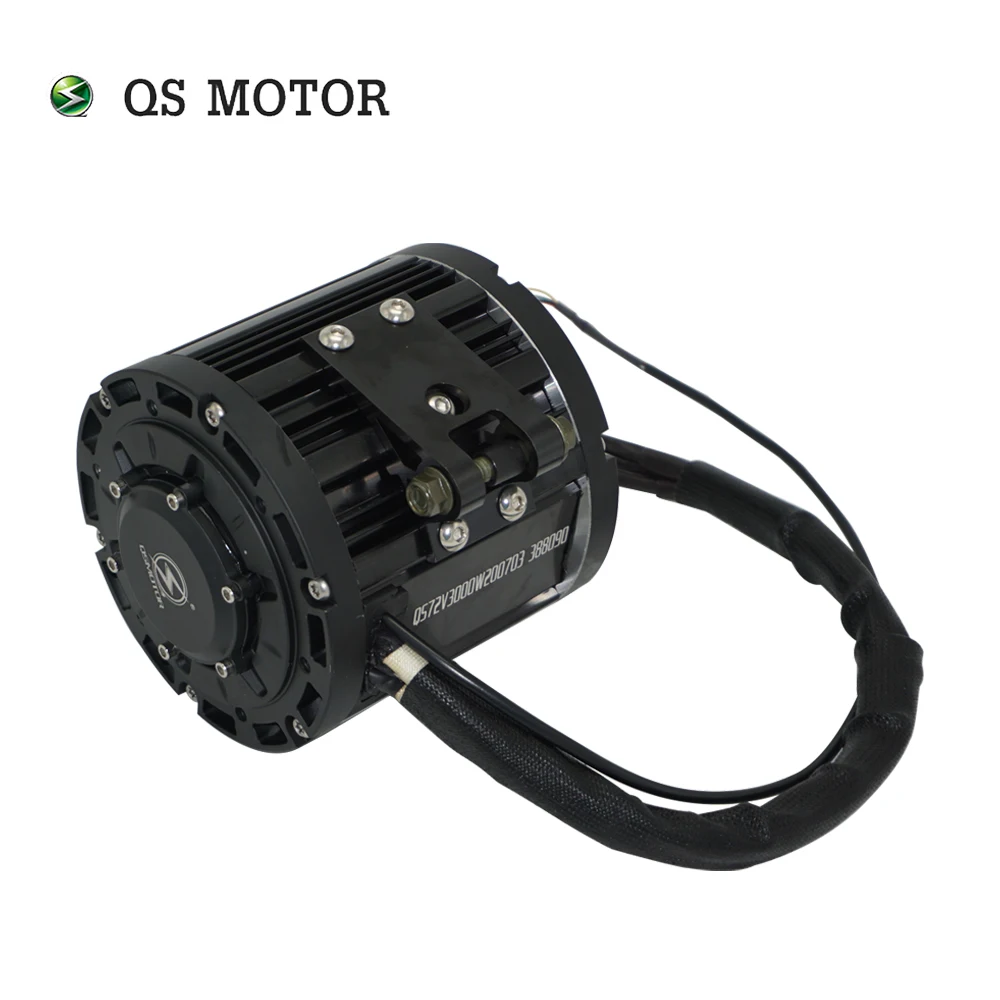

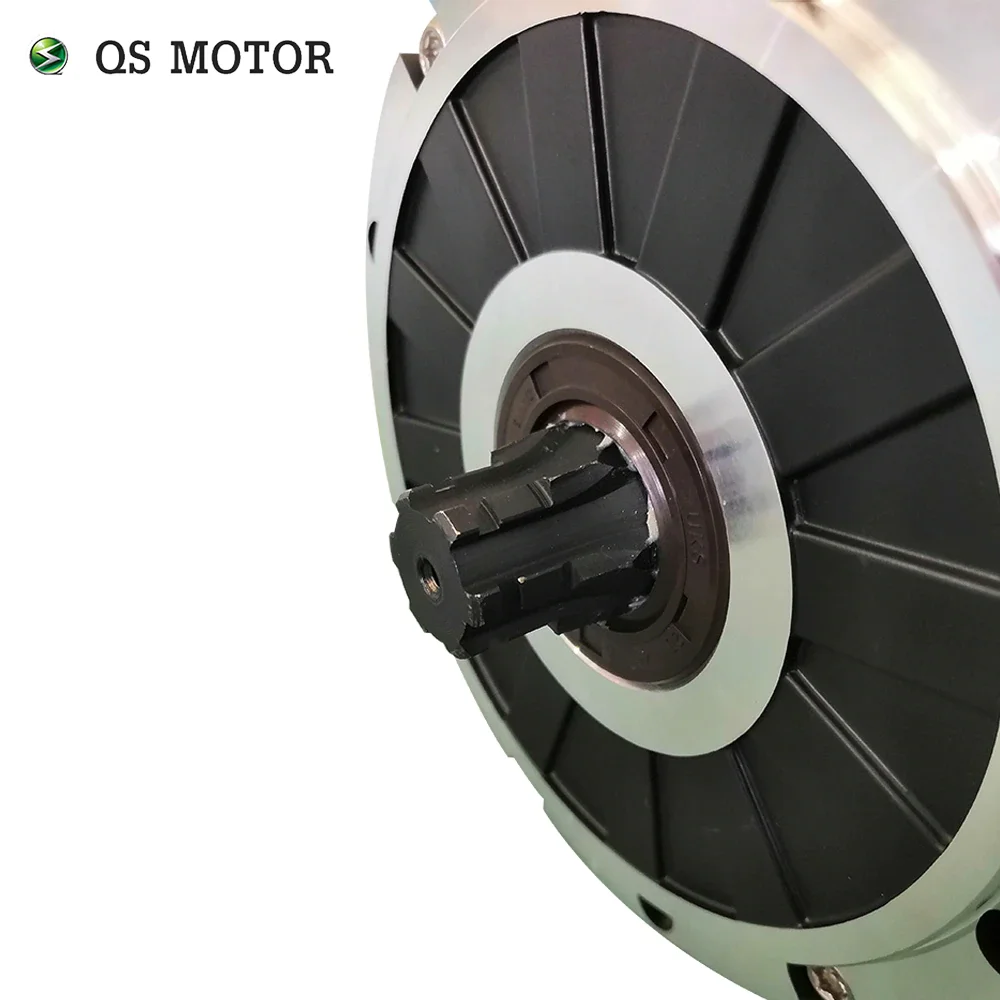

QS 120 2kW 72V60KPH Mid drive motor with 428 sprocket

Product Overview

Description

QS 120 2kW 72V60KPH Mid drive motor with 428 sprocket driven

For 1202000W mid drive motor kit assembly, it could be used for electric scooter, electric motorcycle.

It could be 72V 60KPH.

PS: We have some in stock, so first come first deserve!

Key Features



1). Simplify to make a electric-motorcycle. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%



Packing List

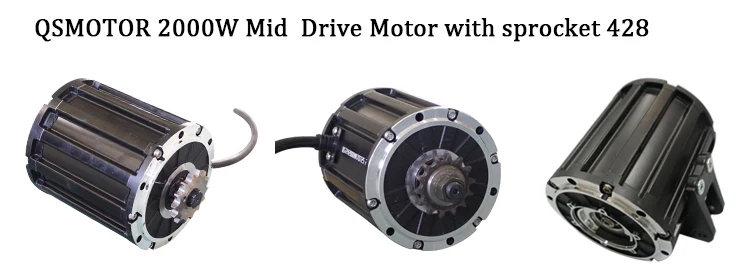

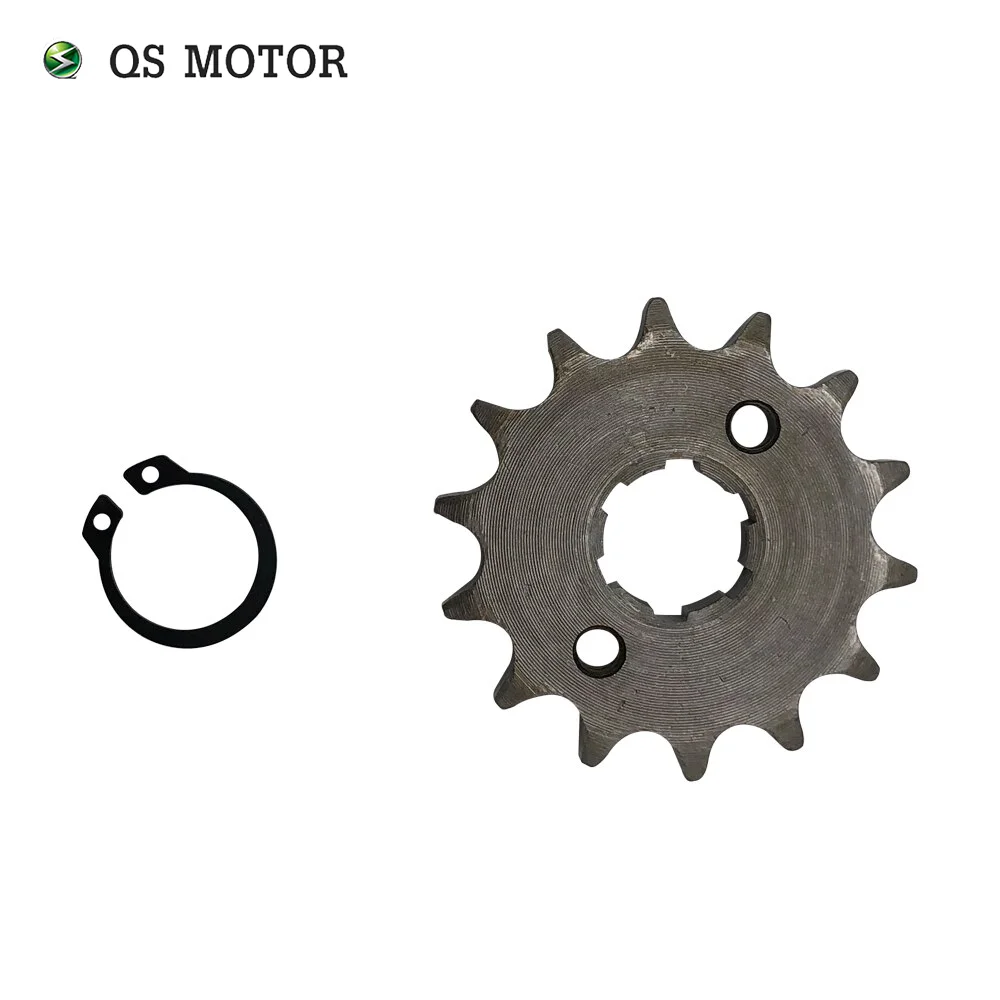

QS 2KW mid drive motor with sprocket 428 14T sprocket

Product description

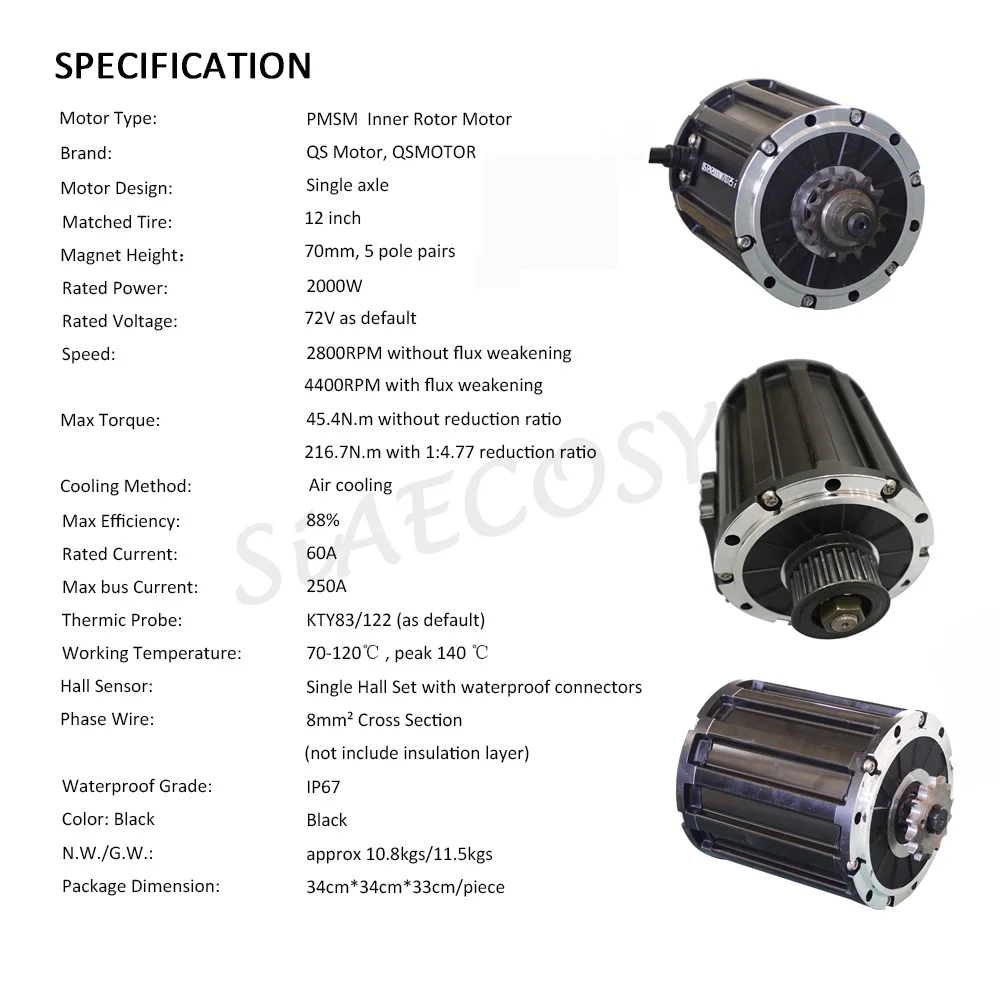

Genearlly Spec:





P.S.: For 2kW 138 old mid drive motor, it can be designed as belt driven.(As default)

If you want to buy such mid drive motor, please kindly click below picture.

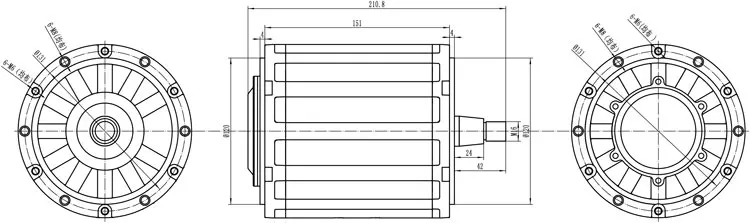

Dimension Drawing:



•


  QS 2kW 120 mid drive motor(old appearance, belt driven)

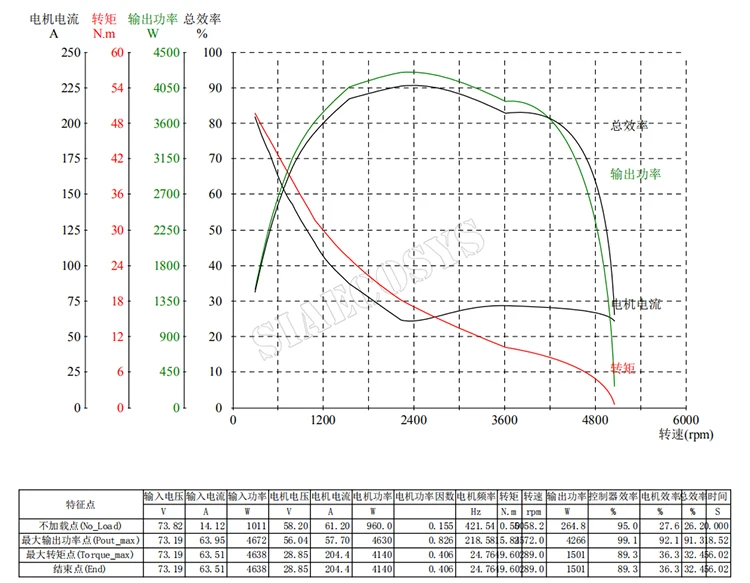

Test Report:

Please noted:



Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.

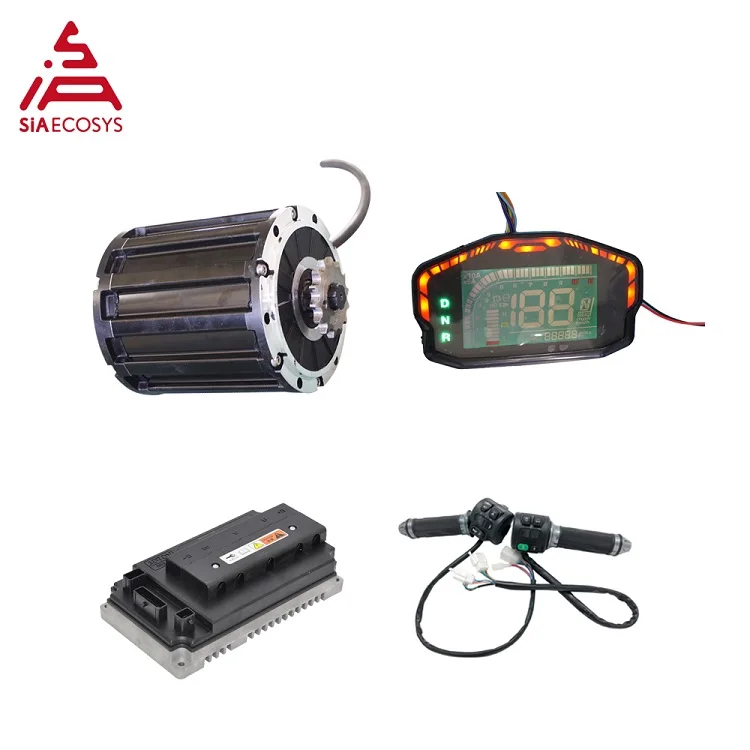

Conversion kits for QS 2kW mid dirve hub motor



We're able to supply Controller, display, dc-dc converter, disc brake system, twist throttle, matched tire...etc.

Application for 2kW mid drive motor
