Factory Outdoor Single mode Duct G652D FRP strength member 12 24 48 96 core optical fiber cable fibra optic GYFTY
- Category: >>>
- Supplier: Shenzhen Foclink Communication Tech. Co. Ltd.
Share on (1600548141592):
Product Overview
Description
Product Description
Factory Outdoor Single mode Duct G652D FRP strength member 12 24 48 96 core optical fiber cable fibra optic GYFTY

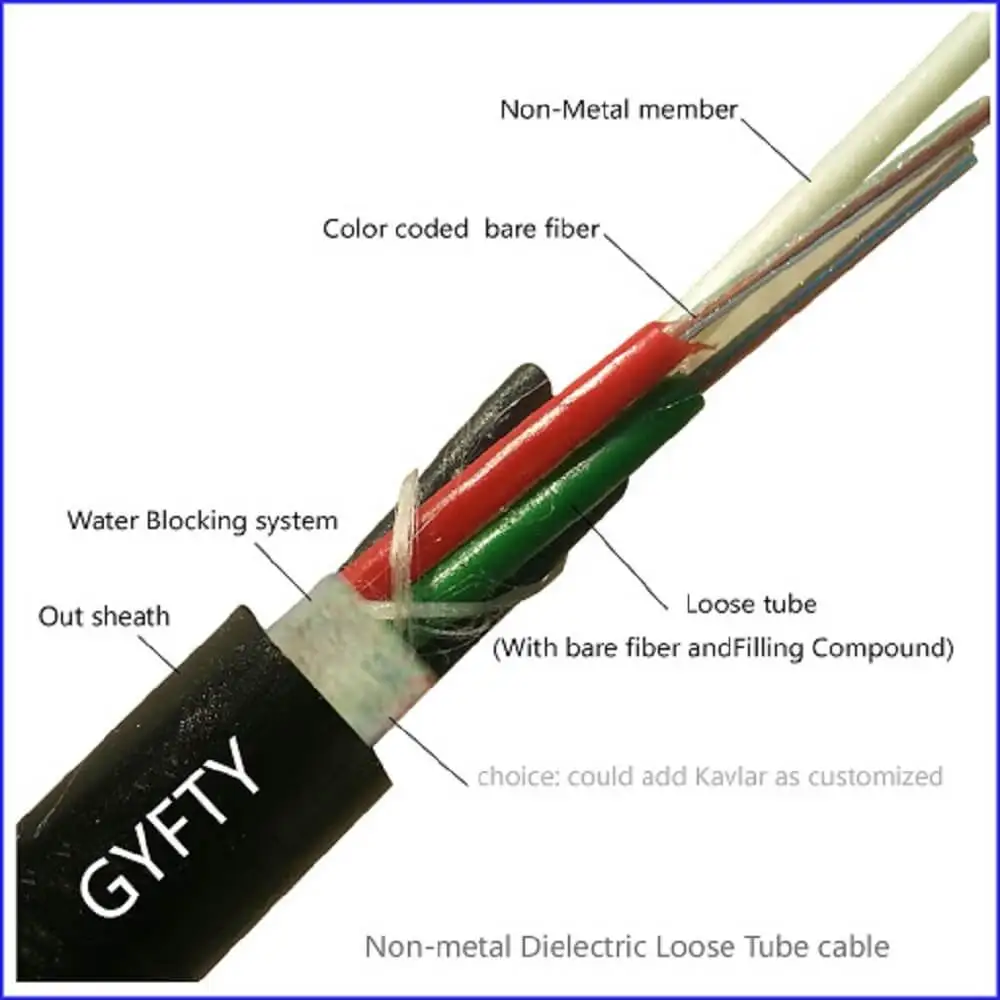

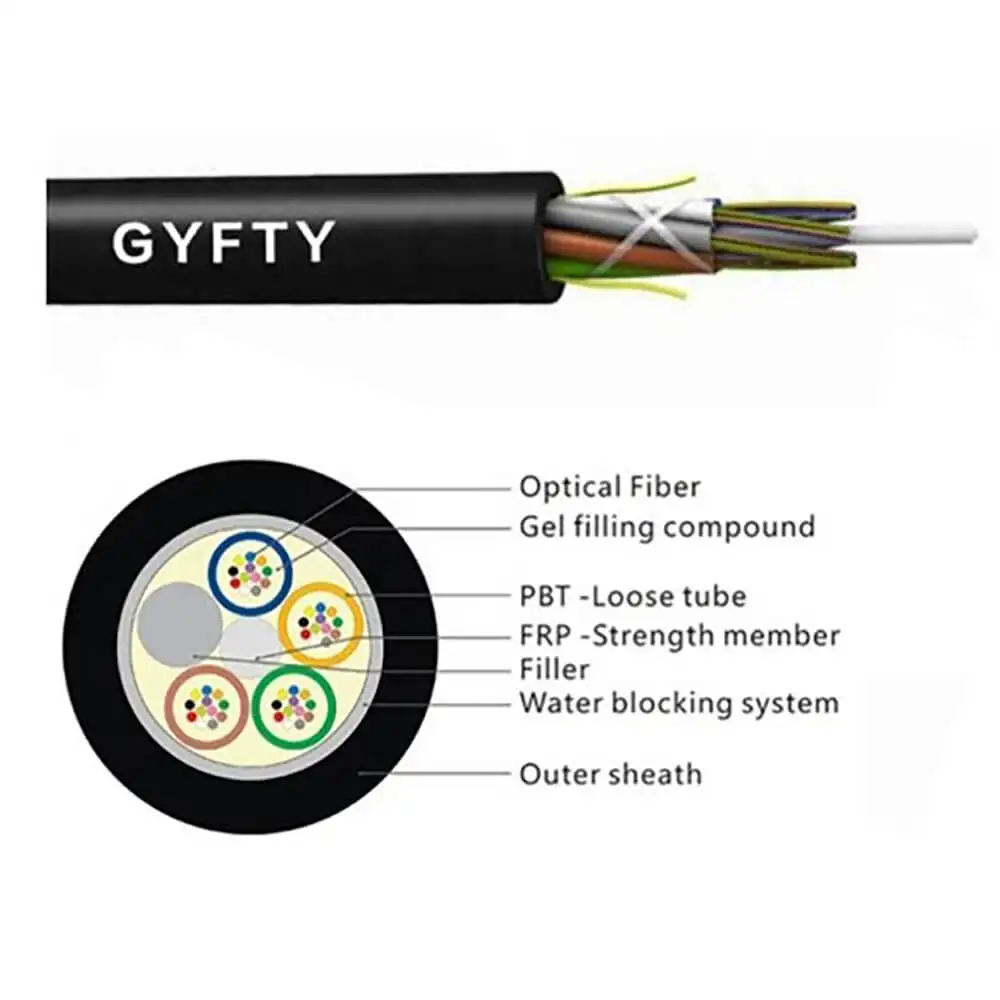

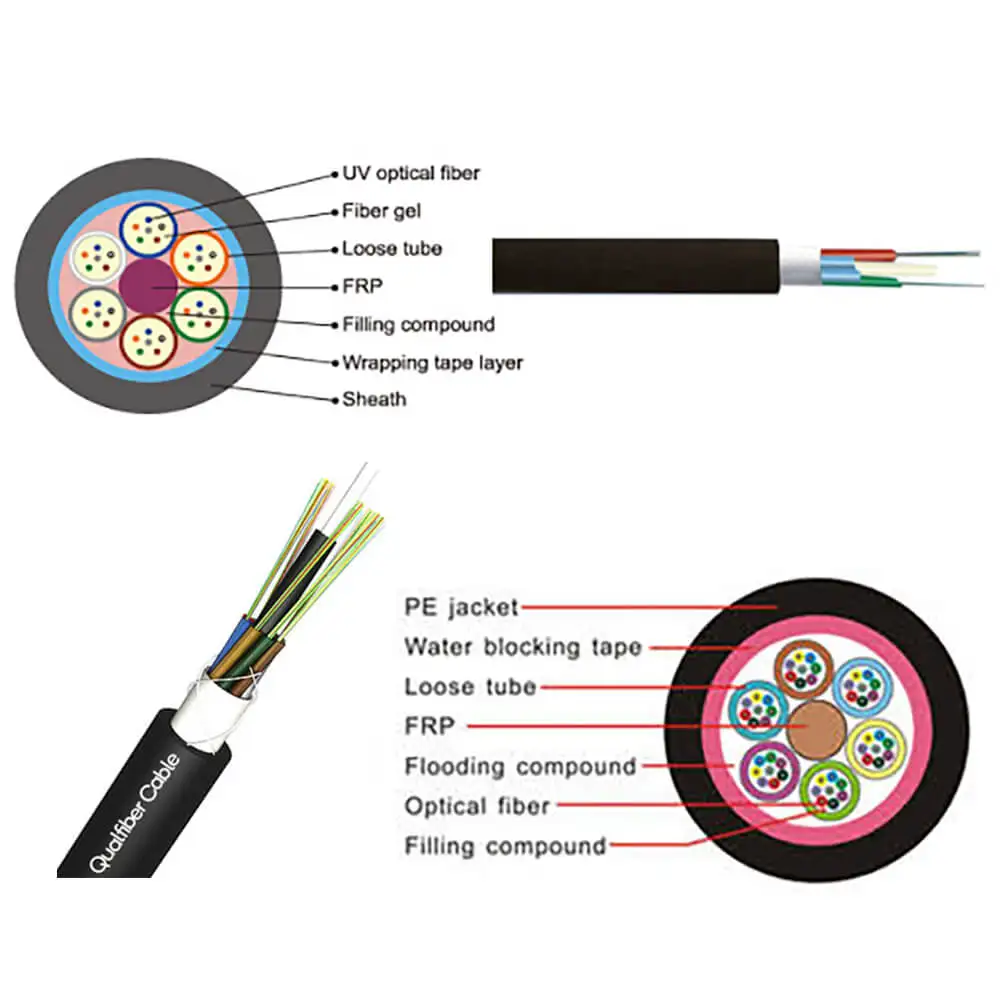

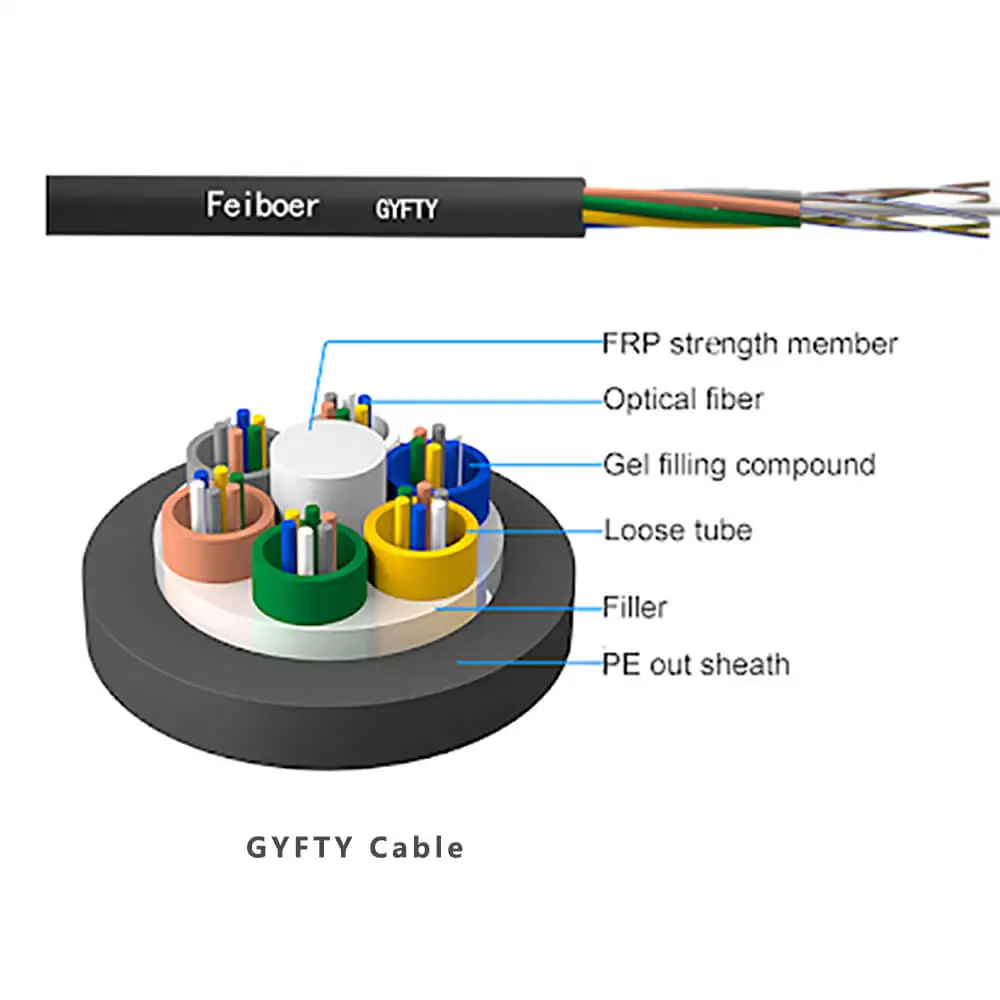

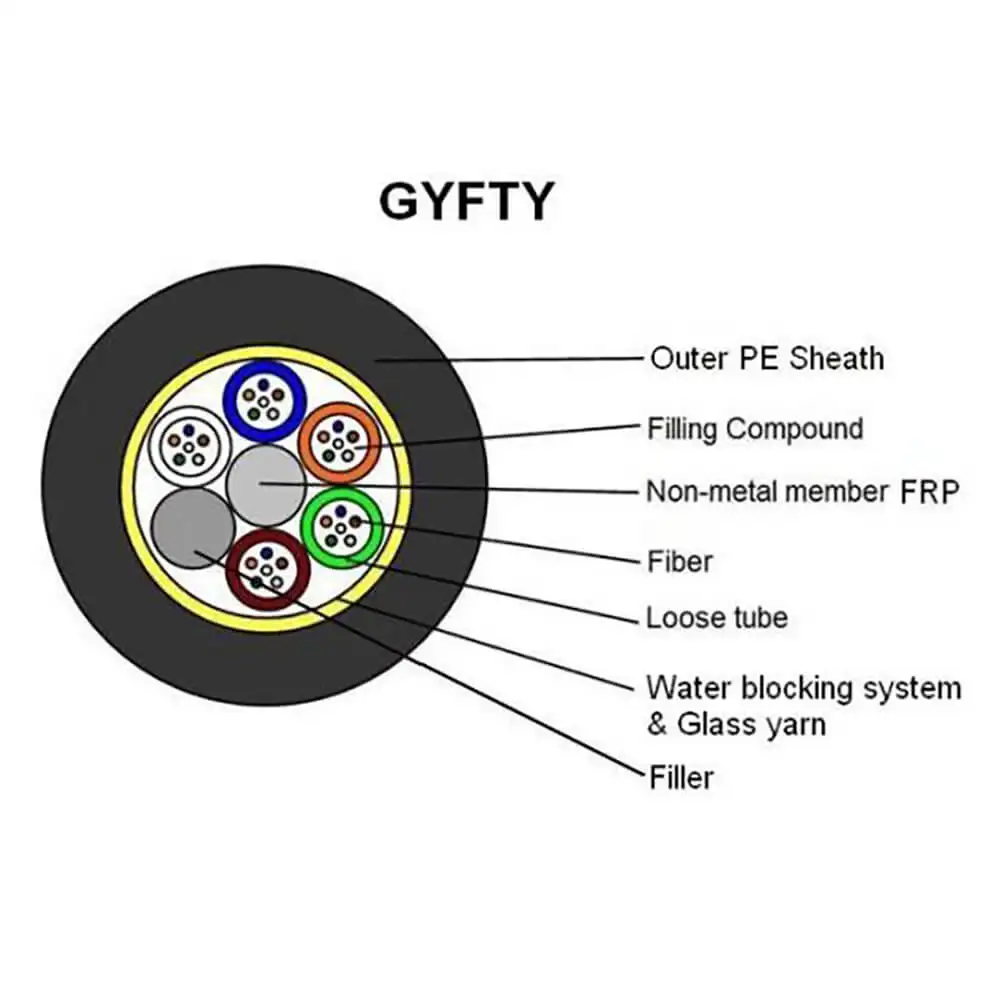

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling
compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is
applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The
parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is
applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The
parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Size Information
Fiber Parameters
XS | 2-96 fibers | 98-288fibers | |||
Max. Tension (N) | Short-term | 1500 | 3000 | ||
Max. Tension (N) | Long-term | 600 | 1000 | ||
Max. Crushing Resistance (N/100mm2) | 1000 | ||||
Temperature range(°C) | -40°C-- +70°C | ||||
Min. Bending Radius(mm) | Install | 20D | |||
Min. Bending Radius(mm) | Static | 10D | |||
G.652 | G.655 | 50/125μm | 62.5/125μm | ||
Attenuation (+20℃) | @850nm | ≤3.0 dB/km | |||
@1300nm | ≤1.0 dB/km | ||||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
@1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
@1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable Cut-off Wavelengthλcc | ≤1260nm | ≤1480nm |
Related Products
Customers Feedback

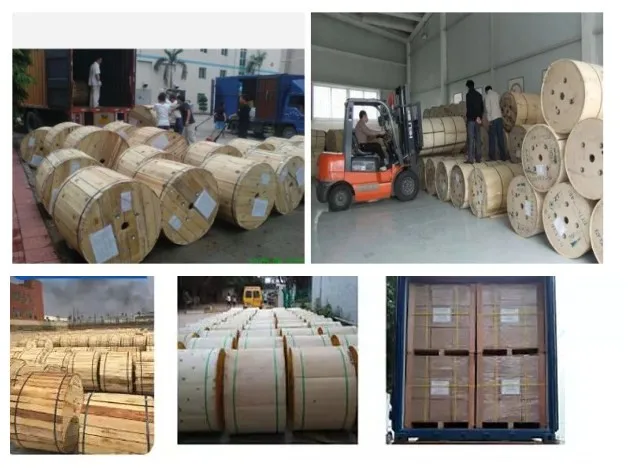

Packing&Shipping
1.Wooden reel, 1000m/reel,2000m/reel,3000m/reel,customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battenswet.
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet,then sealed by strong wooden battenswet.
