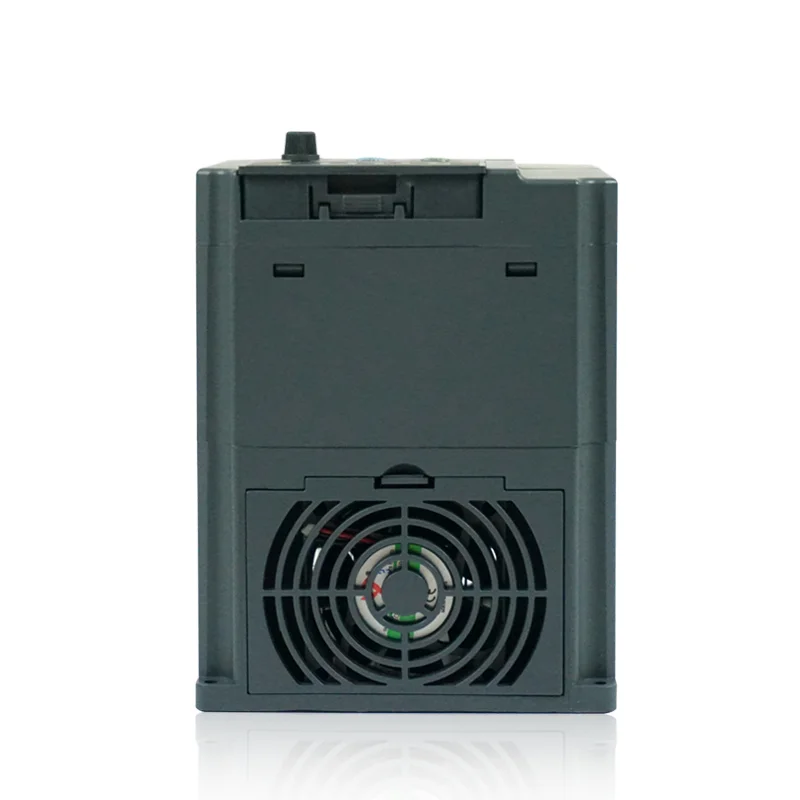

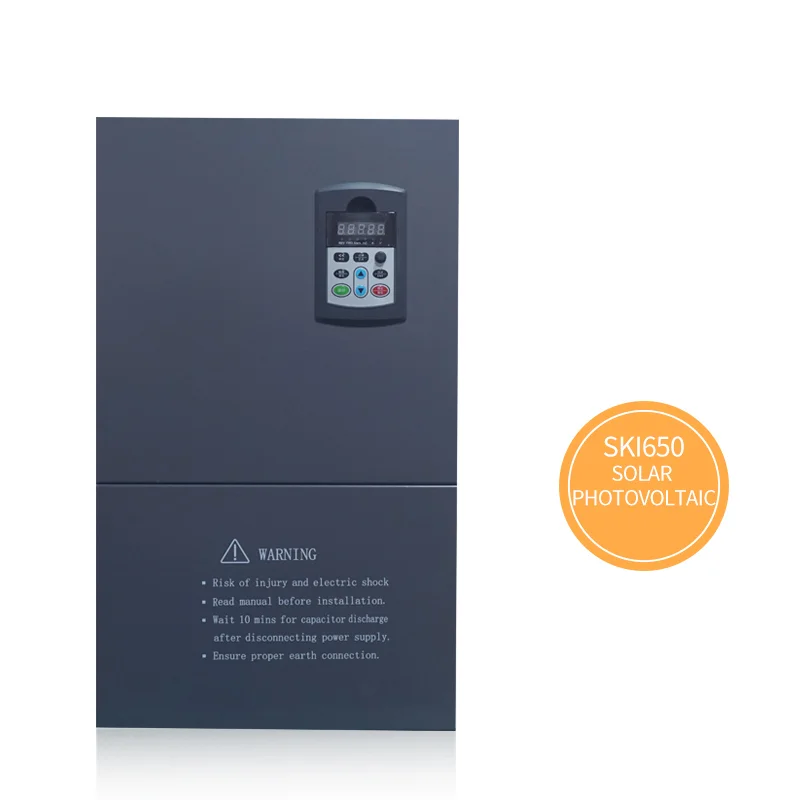

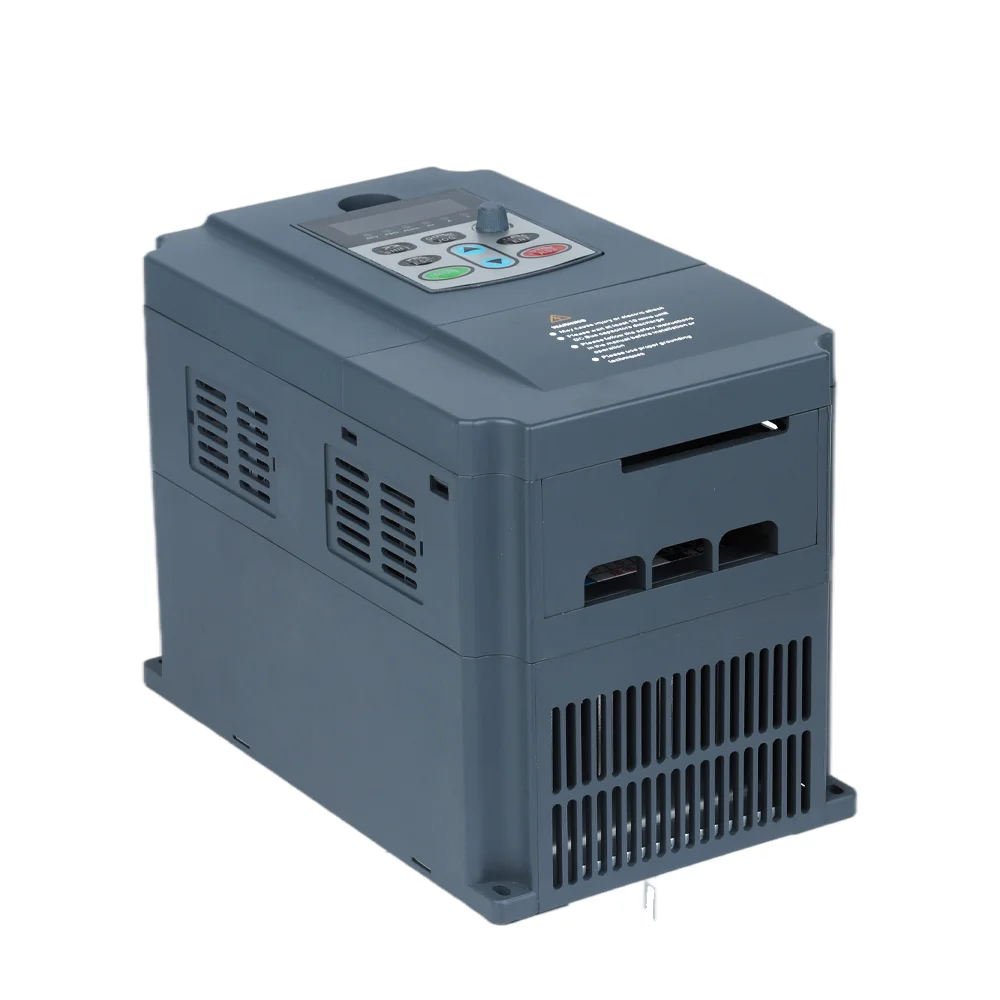

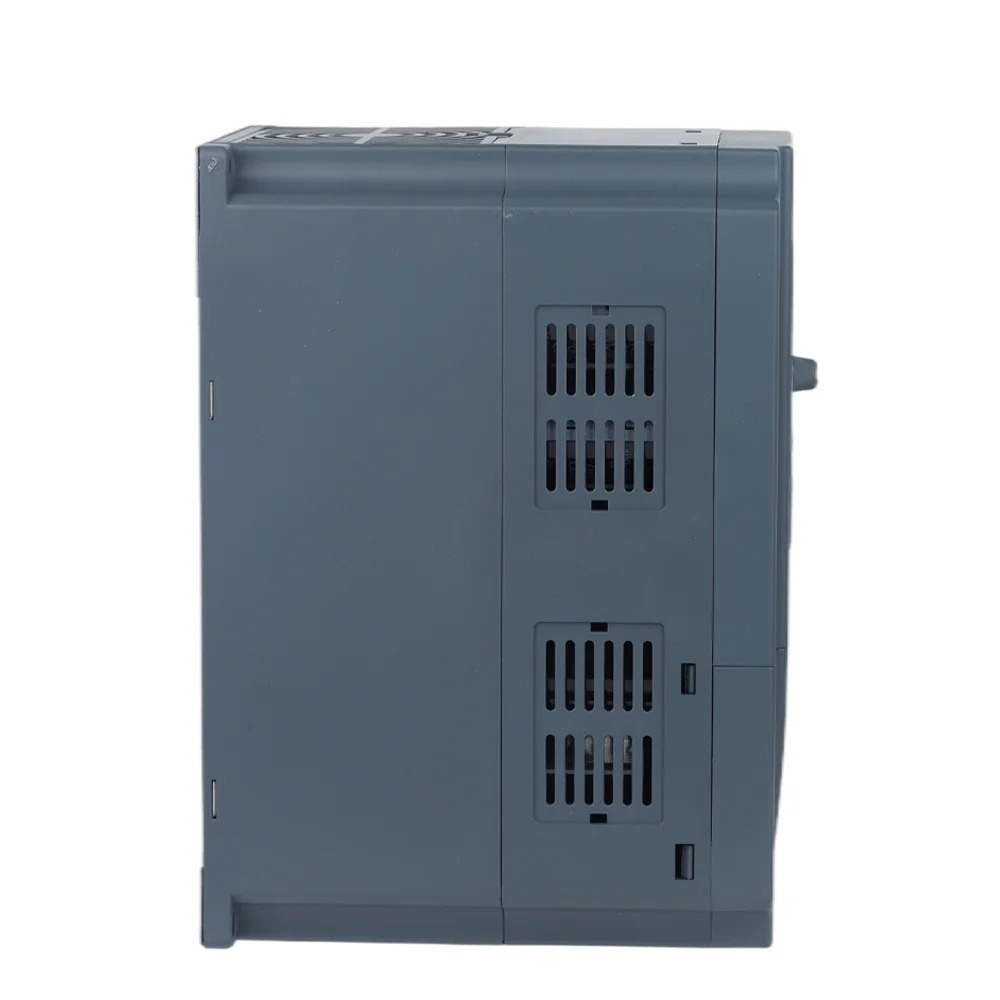

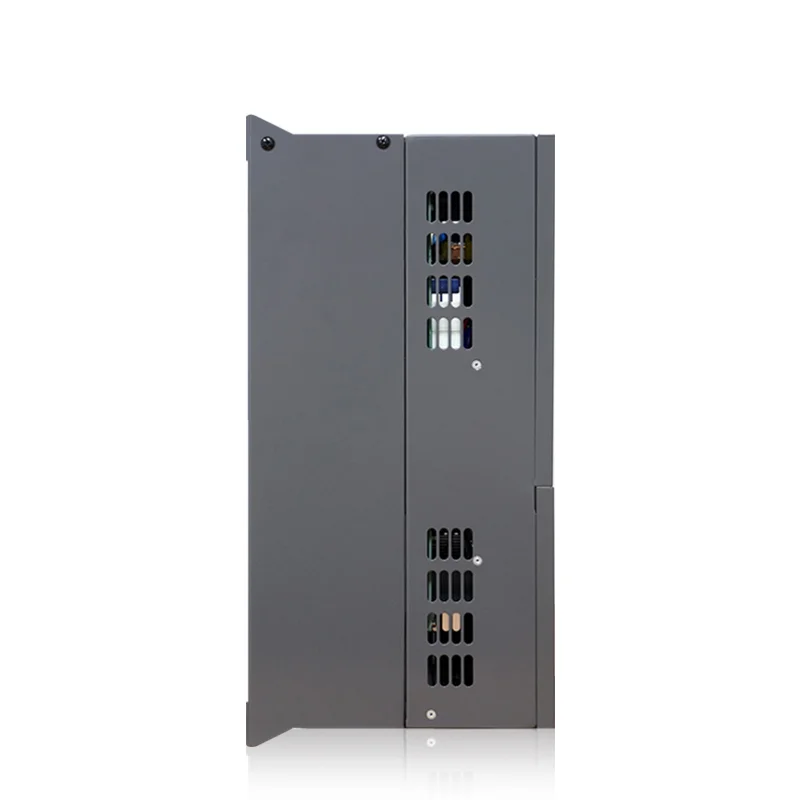

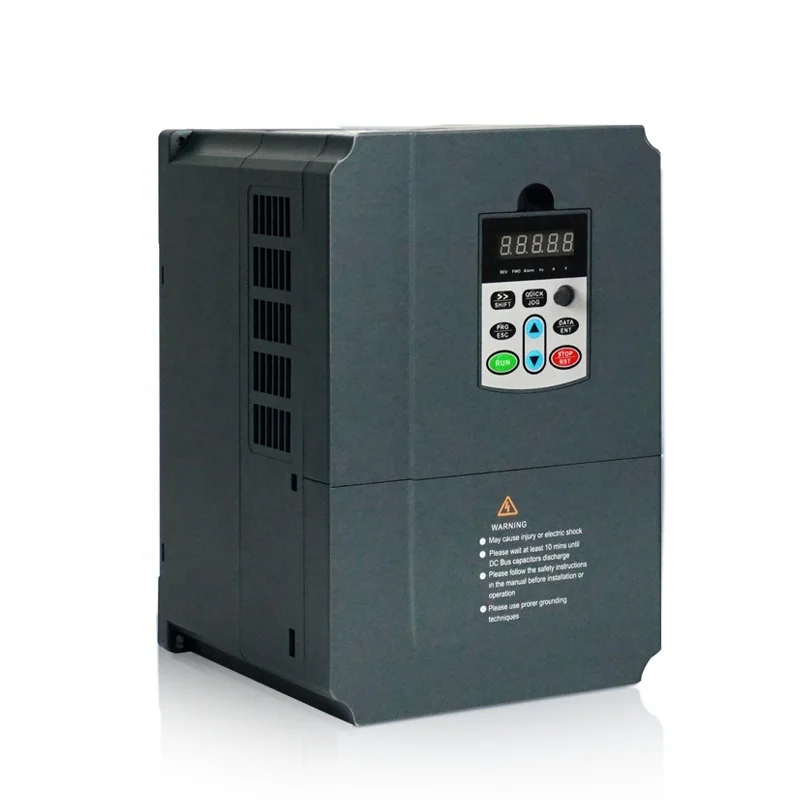

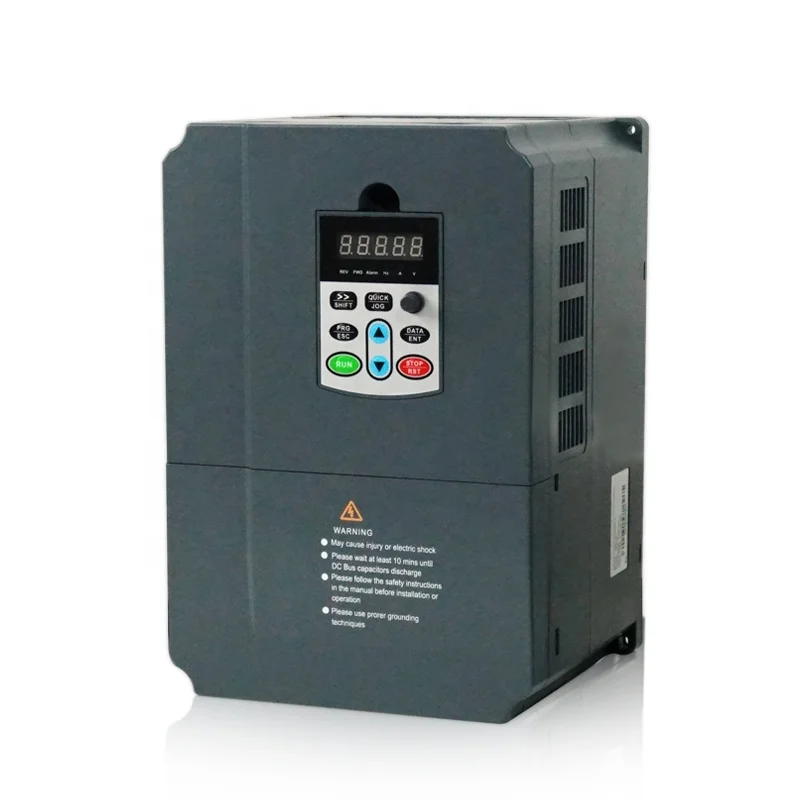

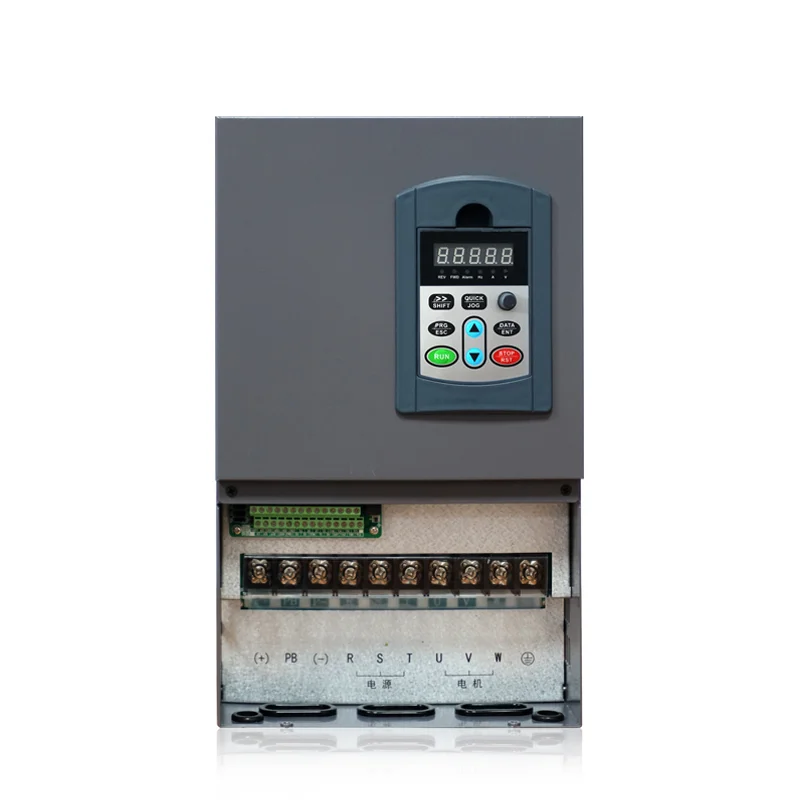

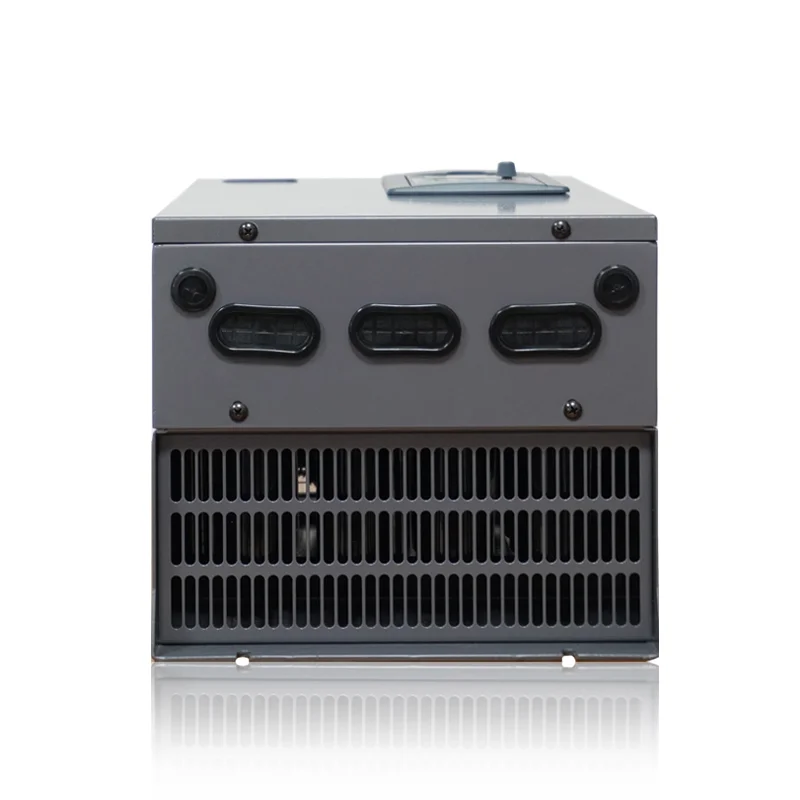

Solar Pump inverter 3 Phase 0.75kw 1.5kw 2.2kw 4kw 5.5kw 7.5kw variable frequency DC to AC
- Category: >>>
- Supplier: Adcfiber Communications Co. Ltd.
Share on (1600548145885):
Product Overview
Description
Product Description
The solar pumping system serves to provide water in remote applications where electrical grid power is either unreliable or unavailablle. The system pumps water using a high-voltage DC power source such as a pohtovoltaic array of solar panels. Since the sun is only avaliable during certain hours of a day and only in good weather conditions, the water is generally pumped into a storage pool or tank for furher usage. And water sources are those natural or special such as river, lake, well or waterway, etc.
Solar Pumping Inverter In order to satisfy the demands of various pumping applications the solar pump controller adopts Max Power Point Tracking and proven motor drive technology to maximize output from solar modules. It supports both DC and AC power inputs.
When solar power is not available, the controller can be switched to an alternate single-phase or three-phase AC input such as a generator or inverter from battery, if available. The controller provides fault detection, motor soft start.and speed control.The controller is designed to proceed these features with the plug and play ease of installation.
Solar Pumping Inverter In order to satisfy the demands of various pumping applications the solar pump controller adopts Max Power Point Tracking and proven motor drive technology to maximize output from solar modules. It supports both DC and AC power inputs.
When solar power is not available, the controller can be switched to an alternate single-phase or three-phase AC input such as a generator or inverter from battery, if available. The controller provides fault detection, motor soft start.and speed control.The controller is designed to proceed these features with the plug and play ease of installation.
Features:
* No fuel cost and very high ROI against diesel powered pomping systems
* Zero-carbon emission
* Long life expectancy and proven in international service record
* Designed for application in remote and harsh conditions
* Portable and scalable system solutions
* Fast and simple installation
* Smart modular design for simple and cost effective servicing and maintenance
* A wide range of pumps to closely and locally match each application and optimize effciency
* Compatible with popular solar modules
* Compatible with any standard IEC three-phase asynchronous motor pumps
* Zero-carbon emission
* Long life expectancy and proven in international service record
* Designed for application in remote and harsh conditions
* Portable and scalable system solutions
* Fast and simple installation
* Smart modular design for simple and cost effective servicing and maintenance
* A wide range of pumps to closely and locally match each application and optimize effciency
* Compatible with popular solar modules
* Compatible with any standard IEC three-phase asynchronous motor pumps
Specification
Input Data | ||
PV Source | ||
Max Input Voltage(Voc)[V] | 750 | |
Min Input Voltage, at mppM | 350 | |
Recommended voltage ,at mpp | 500VDC-600VDC | |
Recommed Amps Input.at mpp[A] | 56 | |
Recommend Max Power at mpp[kW] | 44 | |
Alternate AC Generato | ||
Input voltage | 380V AC(+/-15%), Three Phase | |
MaxAmps(RMS)[A] | 62 | |
Power and VA capability [kVA] | 30 | |
Output Data | ||
Rated Output Power[kW] | 22 | |
Rated Output Voltage | 220/230/240V AC, Three Phase | |
Max Amps(RMS)[A] | 45 | |
Output Frequency | 0-50HZ/60HZ | |
Pump System Configuration Parameters | ||
Recommended Sola Panel Power(KW) | 28.6-35.2 | |
Solar Panel Connection(for reference) | 250Wx120Px30V | |
Applicable Pump(KW) | 18.5 | |
Pump Motor Voltage(V) | 3 phase 380 | |
Packaging & Shipping
FAQ
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality
controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.AII of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!
Q:Warranty and return:
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
A: Quality is the priority. We always attach great importance to quality
controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.AII of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!
Q:Warranty and return:
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q:Do you accept customized order?
A:Yes, we do.
Q:What's the delivery time?
A:It usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity.
A:Yes, we do.
Q:What's the delivery time?
A:It usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity.
