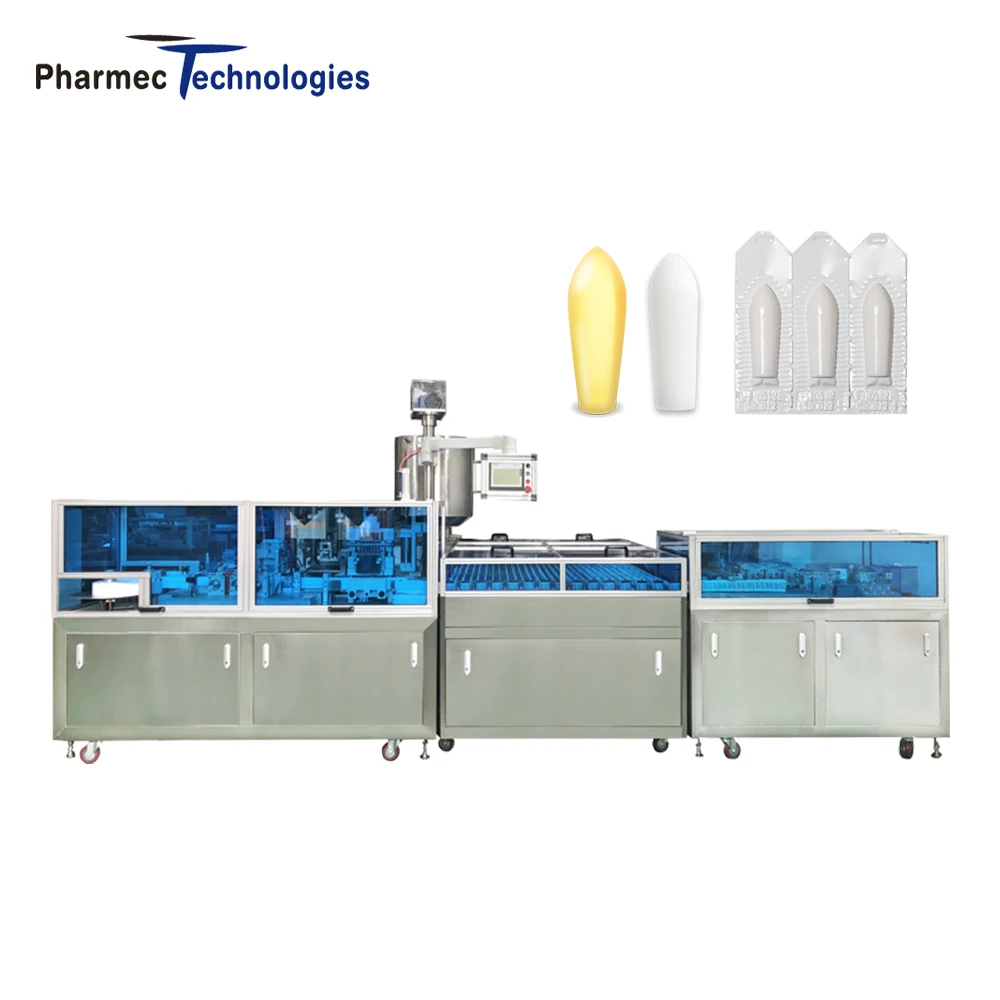

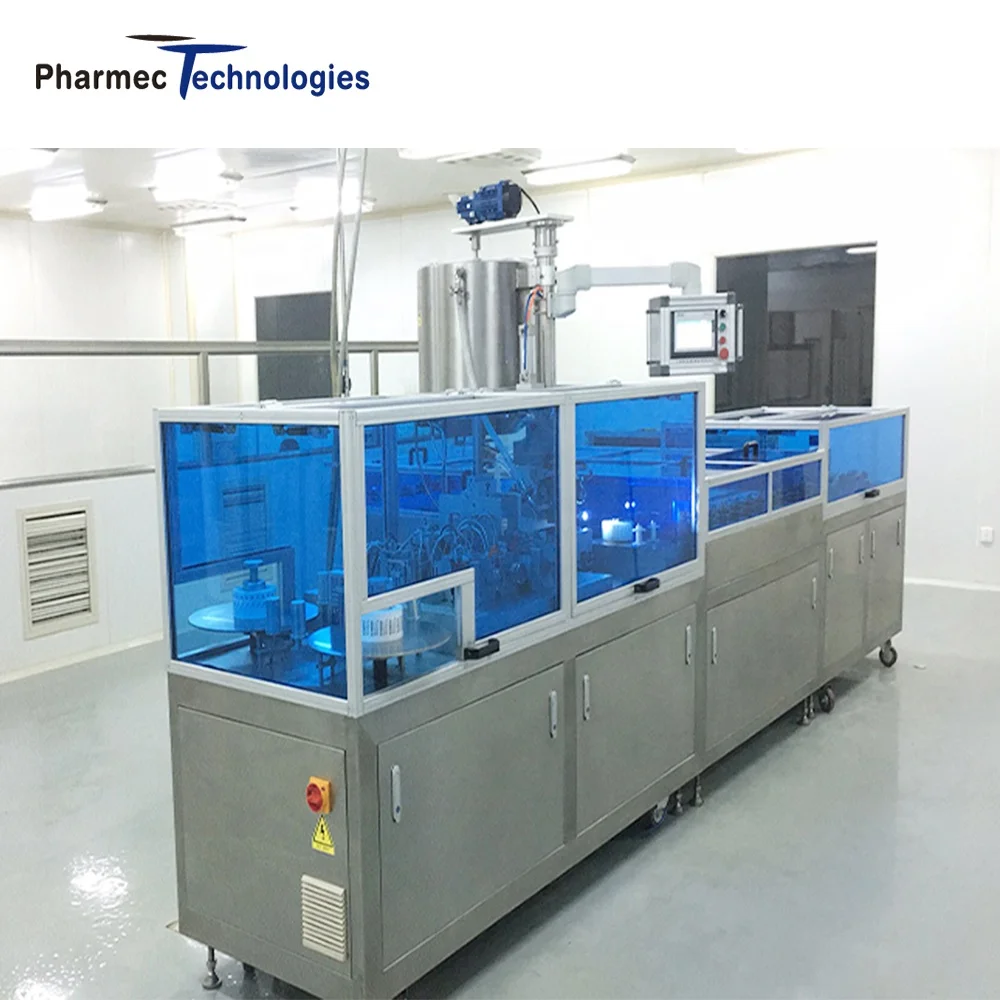

Pharmaceutical Fully Automatic Suppository Filling and Packaging Machine
- Category: >>>
- Supplier: Pharmec Technologies Co. Ltd.
Share on (1600548149029):
Product Overview
Description
Products Description
Introduction

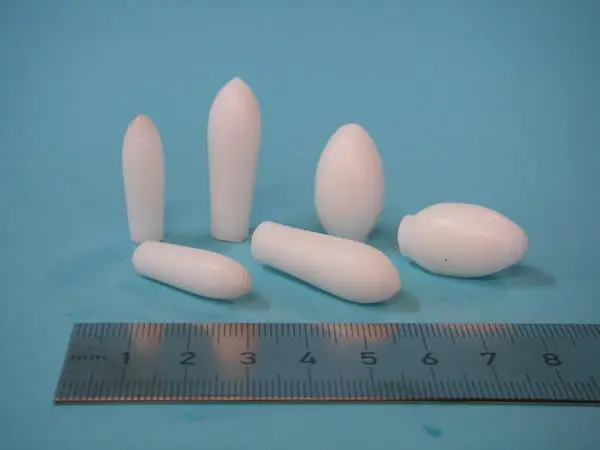

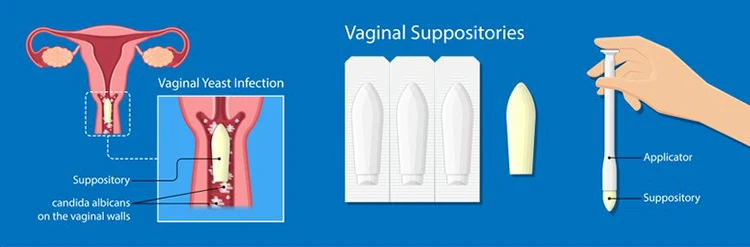

Automatic suppository production line is suitablefor the production of special shapesof slugs such as bulletshape, torpedo shape and duckbill shape, which can meet the production of suppositories of various shapes. (Make a mold according to the sampleor requirement.)

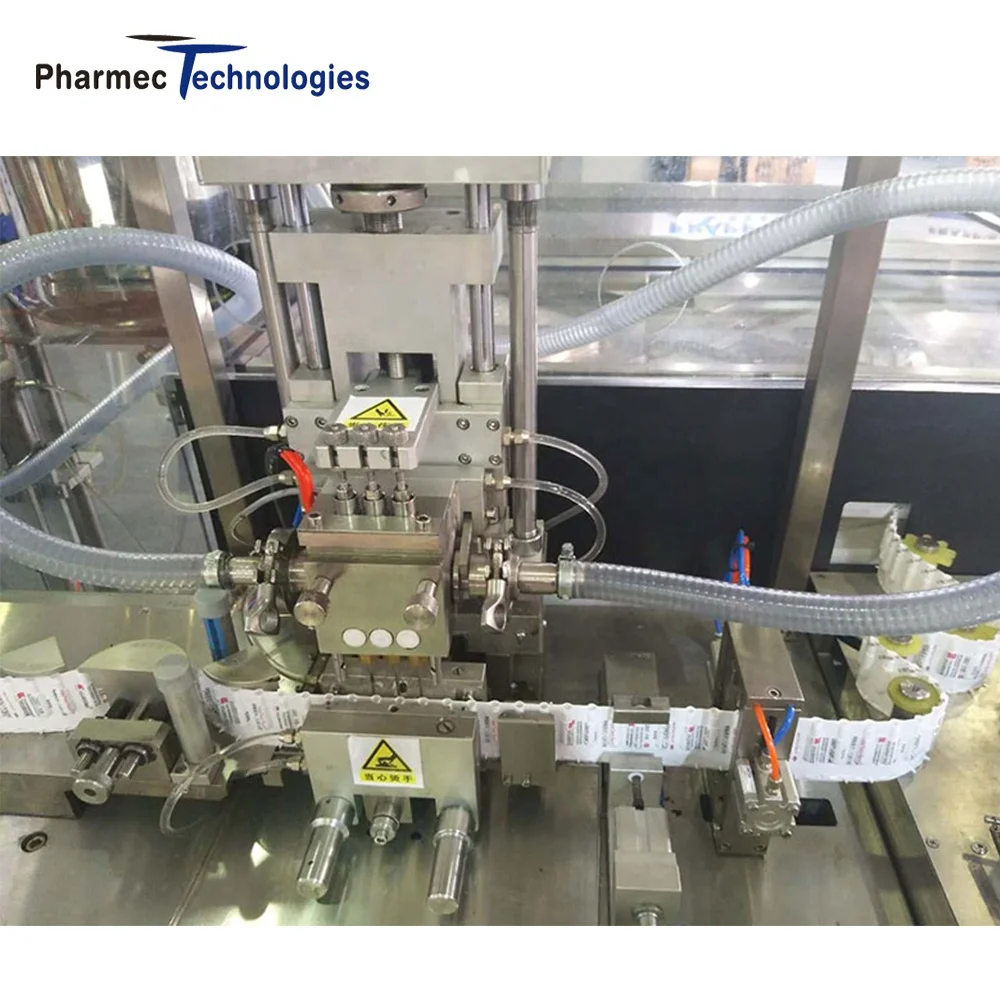

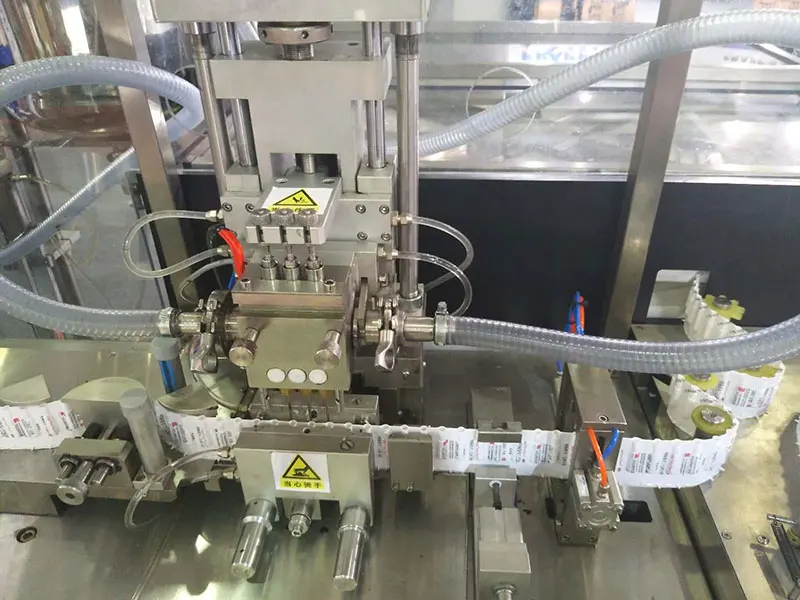

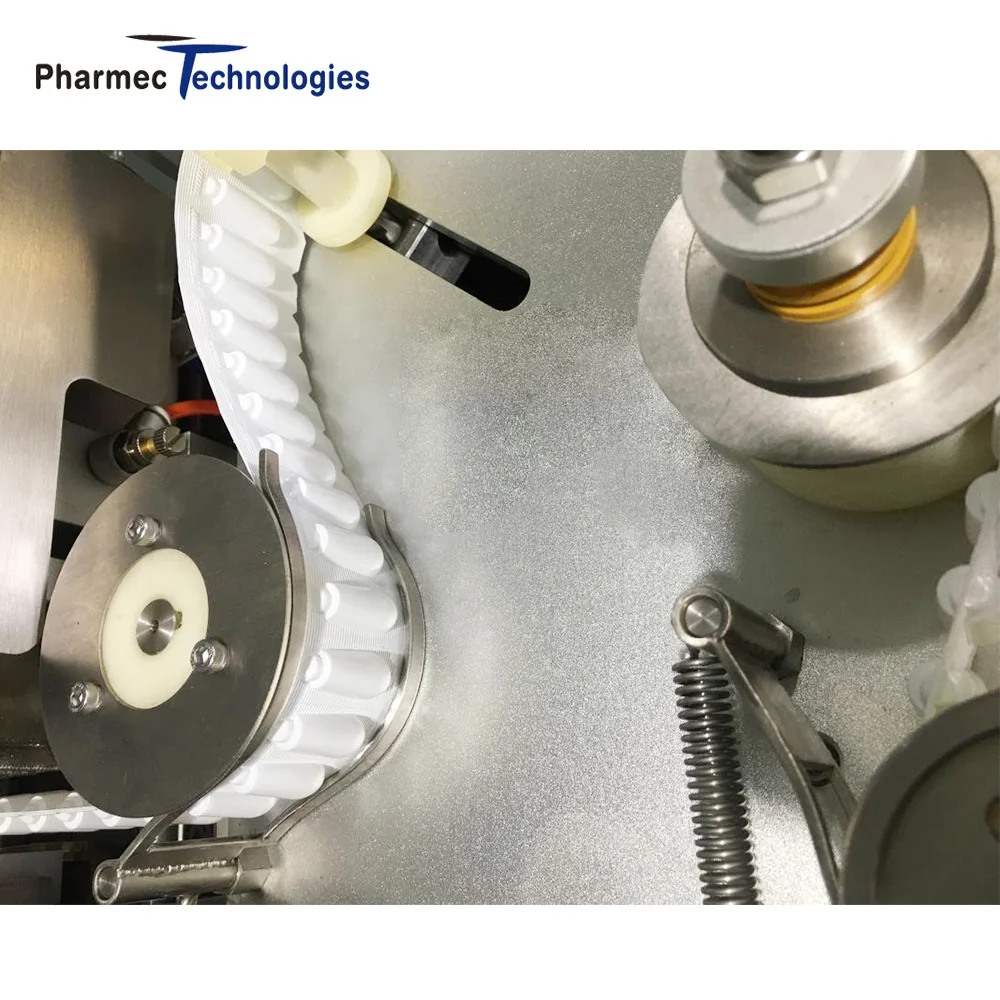

From the beginning of the automatic suppository shell molding, to the filling station of the liquid medicine, the recip-rocating cooling setting (liquid conversion solid state), the continuous sealing, the batch number, the finished product cutting (the number of cutting particles is arbitrarily set on the touch screen,1-10 Free cutting)
Technical Parameters
Automatic suppository production line is suitablefor the production of special shapesof slugs such as bulletshape, torpedo shape and duckbill shape, which can meet the production of suppositories of various shapes. (Make a mold according to the sampleor requirement.)
From the beginning of the automatic suppository shell molding, to the filling station of the liquid medicine, the recip-rocating cooling setting (liquid conversion solid state), the continuous sealing, the batch number, the finished product cutting (the number of cutting particles is arbitrarily set on the touch screen,1-10 Free cutting)
Technical Parameters
Name | Laboratory Automatic Suppository Production Line | Continuous Automatic Suppository Production Line | |||
Model | PT-1LS | PT-3LS | PT-7LS | ||
Output | 1,000-2,000 pcs/h 5,000-6,000 pcs/h | 10,000-12,000 pcs/h 15,000-18,000 pcs/h 18,000-23,000 pcs/h | |||
Stirring tank capacity | 20L/30L | 70L | |||
Air consumption/min | 1.5m3/min | 1.6m3/min | |||
Total power | 4KW/5KW | 7.5KW/9.5KW | |||
Machine Weight | 500kg/1000kg | 2000kg/2500kg | |||
Single Dosage | 0.5-5g | ||||
Dosage Allowed | <±2% | ||||

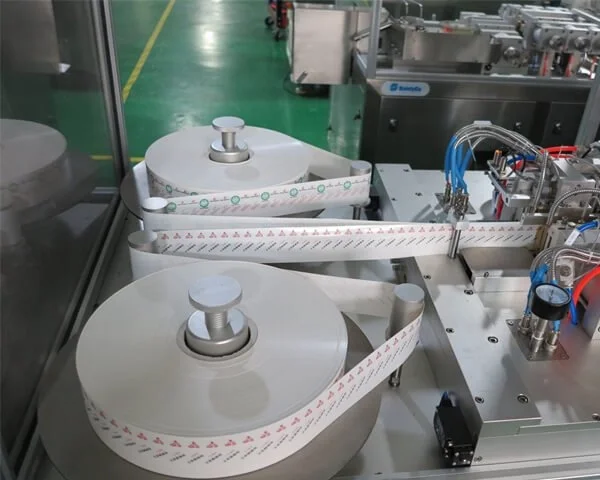

Packaging Film | PVC/PE Thickness: 0.15-0.18mm | ||||
Work pressure | ≥0.7MPa | ||||
Water consumption | 50kg/h(recycle use) | ||||
Working voltage | 3 phase, 380V(customized) | ||||
Center distance | 17.4mm | ||||
Shape | The bullet,torpedoes,duck bill and other various shapes | ||||
Application | Synthetic fatty acid glycerides,glycerin,gelation and polyethylene glycol,etc | ||||
Overall size | PT-1LS L2300 x W1200 x H1800mm | PT-3LS L3578 x W1388 x H1828mm | PT-7LS L5839 x W1456 x H2115mm | ||
Material | Stainless Steel |
Customized | Accept |
Service | OEM and OEM |
Package | Standard wooden packing for sea shipping |
