China changli hzs75 portable cement mixing plant cost of concrete batching plant
- Category: >>>
- Supplier: Zhengzhou Changli Machinery Manufacturing Co. Ltd.
Share on (1600548159097):
Product Overview
Description
Concrete Batching/Mixing Plant
PRODUCT INSTRUCTIONS
hzs75 Concrete batching plant
75 concrete mixing plant is a complete set of concrete mixing equipment composed of batching system, mixing host, electrical control system, etc. The station runs smoothly and reliably during operation, and is deeply trusted by customers. The theoretical productivity of HZS 75 concrete batching plant is 75 cubic meters per hour, which can be widely used in various construction projects, roads, bridges and commercial concrete production plants to prepare high-quality concrete.
◆ The required space is small
75 concrete batching plant can save one-half to two-thirds of the site area compared with the usual inclined belt conveying method.
◆ Simple installation and optional mode
Customers can choose steel beam type or fixed type. The mixing main system on the steel beam mixing plant only takes a few hours from the transport vehicle to the installation. Together with other supporting equipment such as the control room and the batching station, the whole station only needs two hours. Pre-production preparations can be completed in four days.
◆ Hoist and lift, save space
The material is loaded by hoisting and lifting the hopper. The special design of the hopper and the track can easily and efficiently load and dump the aggregate, and at the same time greatly reduce the area occupied by the site.
◆ Small investment, high benefit
Less investment capital, less space occupied, less equipment, simple equipment maintenance, can be equipped with a high-performance vertical control room, the equipment is easy to operate and safe, and can produce high-quality and efficient concrete under the condition of accurate metering of the batching machine.
75 concrete batching plant can save one-half to two-thirds of the site area compared with the usual inclined belt conveying method.
◆ Simple installation and optional mode
Customers can choose steel beam type or fixed type. The mixing main system on the steel beam mixing plant only takes a few hours from the transport vehicle to the installation. Together with other supporting equipment such as the control room and the batching station, the whole station only needs two hours. Pre-production preparations can be completed in four days.
◆ Hoist and lift, save space
The material is loaded by hoisting and lifting the hopper. The special design of the hopper and the track can easily and efficiently load and dump the aggregate, and at the same time greatly reduce the area occupied by the site.
◆ Small investment, high benefit
Less investment capital, less space occupied, less equipment, simple equipment maintenance, can be equipped with a high-performance vertical control room, the equipment is easy to operate and safe, and can produce high-quality and efficient concrete under the condition of accurate metering of the batching machine.
WHY CHOOSE US?
1. Excellent environmental performance. All powdery materials run in a closed state from the beginning to the end. The pollution of dust and noise to the environment is greatly reduced.
2. Double shafts concrete mixer, with sufficient material fusion and sealing patent, without material leakage.
3. Good control system.The whole machine is controlled by computer, which can be controlled automatically or manually. The main electrical components are of well-known brands at home and abroad, which are durable.
4. The concrete batching plant is equipped with maintenance platform or ladder to facilitate inspection and maintenance.
2. Double shafts concrete mixer, with sufficient material fusion and sealing patent, without material leakage.
3. Good control system.The whole machine is controlled by computer, which can be controlled automatically or manually. The main electrical components are of well-known brands at home and abroad, which are durable.
4. The concrete batching plant is equipped with maintenance platform or ladder to facilitate inspection and maintenance.
The composition of concrete batching plant
Weighing system
*Direct viewing operation
*Measuring accurate

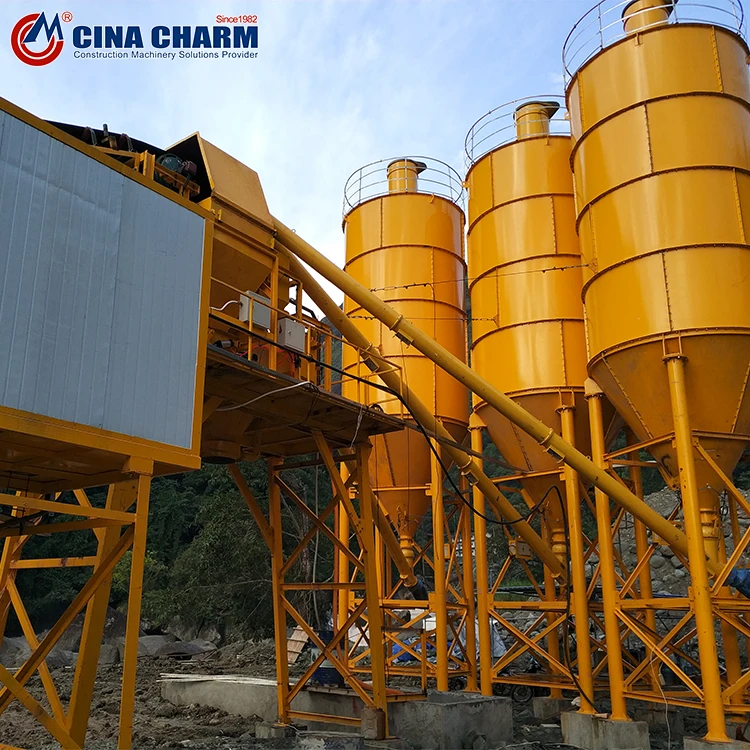

Cement Silo
*Welded & bolted type Save space and cost
Suitable for powder materials
Suitable for powder materials
Belt conveyor
*Simple single-layer process
*Good double-layer strength and stability
*Good double-layer strength and stability
Additive weighing
*Accurate measurement
*Quickly changing
Mixing system
About concrete mixing plant,it composes of concrete mixer batching machine,electric control system etc.
Control system
*Full automatic & semi-automatic
*Clear response low cost
Details Images
Technical Parameters
Model | HZS60 | HZS90 | HZS120 | HZS180 | HZS240 | ||||
Rated Productivity(m³/h) | 60 | 90 | 120 | 180 | 240 | ||||
Main Mixer | JS1000 | JS1500 | JS2000 | JS3000 | JS4000 | ||||
Max. Aggregate Diameter(mm) | 80 | 80 | 80 | 80 | 80 | ||||
Aggregate Conveying MZode | Flat Belt Conveyor | Flat Belt Conveyor | Flat Belt Conveyor | Flat Belt Conveyor | Flat Belt Conveyor | ||||
Aggregate Weighing Precision(±2%) | 1-3000kg | 1-3500kg | 1-3500kg | 1-4000kg | 1-4500kg | ||||
Cement Weighing Precision(±1%) | 1-1500kg | 1-1500kg | 1-1500kg | 1-1500kg | 1-1800kg | ||||
Fly Ash Weighing Precision(±1%) | 1-600kg | 1-600kg | 1-1000kg | 1-1000kg | 1-1000kg | ||||
Water Weighing Precision(±1%) | 600kg | 600kg | 1000kg | 1000kg | 1000kg | ||||
Additive Weighing Precision(±1%) | 50kg | 50kg | 100kg | 100kg | 100kg | ||||
Concrete batching machine(±1%) | PLD1600 | PLD2400 | PLD3200 | PLD4800 | PLD6400 | ||||
Total weight | 60T | 88T | 118T | 125T | 145T | ||||
Succesful Projects
Company Information
Zhengzhou Changli Machinery Manufacturing Co., Ltd. was established in 1982. We are a comprehensive group corporation combining the design, production and sales, located in the "Construction Machinery Base" - Xingyang, Zhengzhou City. With more than 20 years' development, Zhengzhou Changli has become one of the leading professional manufacturers and exporters of construction machinery in China.
Till now, our factory area has reached 120,000 sqm with about 1,000 people, including engineers, workers, salesmen, and service staff.Our main products are concrete mixing/batching plants, stabilized soil mixing stations, concrete batching machines, concrete mixers, concrete pumps, concrete mixing trucks, concrete block making machines, dry-mix mortar production lines, asphalt mixing plants, tower cranes, wheel loaders, cement silos, screw conveyors and other construction machinery.We are ISO9001:2000 certified.
At present, our products are popular at home and abroad. Holding "High Quality Products and Honest Operation" as our tenet, we have developed international markets very well, such as Russia, Southeast Asia, Central Asia, the Middle East, South Africa, America, etc., totaling more than twenty countries and regions.
Our service
Delivery Time | 3-5 days after receiving advance payment. |
Warranty Pewriod | 15 months after delivery from factory,12 months after installation. |
Technical Support | We will send two engineers(two engineers excluding interpreter,one for machinery and the other for electricity) to guide installation. |
Respond Promptly | We will online 24 hours,and reply you as soon as possible. |
Sale Service | Door to door installation,on-site training operation technology,user training mechanical and electrical maintenance personnel free of charge. |
Exhibition
Customers Feedback
Certifications
Packing & Delivery
FAQ
Q:Are you trading company or manufacturer ?
A: We are a manufacturer, established in 1982, with 40 years of production experience, located in the "Construction Machinery Base" - Xingyang, Zhengzhou City.
A: We are a manufacturer, established in 1982, with 40 years of production experience, located in the "Construction Machinery Base" - Xingyang, Zhengzhou City.
Q:How much concrete can the concrete batching plant produce per hour?
Answer: The theoretical production capacity per hour is 75 cubic meters of concrete. In actual production, due to the influence of various factors, the actual output is about 50--60m³.
Q:How much transformer is needed to build a 75 concrete batching plant?
Answer: It is recommended that the total power of the transformer built by the user is not less than 150KW.
Q:What type of mixer is used in the concrete batching plant?
Answer: According to theoretical calculations and related industry standards, most of the HZS75 batching plants are forced twin-shaft JS1500 concrete mixers.
Q:How to choose the batching machine of the concrete batching plant?
A: Most of them are PLD2400 batching machines. The number of storage bins of the concrete batching machine is determined according to the type of sand and gravel aggregate.
Answer: The theoretical production capacity per hour is 75 cubic meters of concrete. In actual production, due to the influence of various factors, the actual output is about 50--60m³.
Q:How much transformer is needed to build a 75 concrete batching plant?
Answer: It is recommended that the total power of the transformer built by the user is not less than 150KW.
Q:What type of mixer is used in the concrete batching plant?
Answer: According to theoretical calculations and related industry standards, most of the HZS75 batching plants are forced twin-shaft JS1500 concrete mixers.
Q:How to choose the batching machine of the concrete batching plant?
A: Most of them are PLD2400 batching machines. The number of storage bins of the concrete batching machine is determined according to the type of sand and gravel aggregate.
