HVS 1000 digital display micro vickers hardness tester automatic loading unloading metal hardness tester
- Category: >>>
- Supplier: Laizhou Metallographic Testing Equipment Co. Ltd.
Share on (1600548179203):
Product Overview
Description
Product Paramenters
Model | HVS-1000 | HVS-1000A | |
Test force | 10,25,50,100,200,300,500,1000gf | ||
Conversion Scale | HRA.HRB,HRC,HRD, HRF,HV, HK, HBW, HR15N, HR30N, HR45N, HR15T,HR30T,HR45T | ||
Loading control | automatic (loading, dwelling, unloading) | ||
Test force holding time | 1-60S | ||
Turret mode | Manual turret | Automatic turret | |
Optical system | objective lens: 10X, 40X eyepiece: 10X, total magnification: 100X, 400X | ||
Hardness testing range | 5-3000HV | ||
XY testing bench (optical) | size(mm):100*100, range(mm): 25*25, min. readout: 0.01mm | ||
Max. height of workpiece | 90mm | ||
Max. wide of workpiece | 110mm (from center indenter to wall of machine) | ||
Data output | Reserved built-in micro printer interface, RS232 serial interface, optional installation | ||
Executive standard | GB/T4340.2 Chinese Standard, JJG151 inspection Rule | ||
Input voltage | AC 220V 50Hz (can be change motor to your required power supply) | ||
Dimension | 530*290*490mm | ||
Weight | 42KG | ||
Products Description

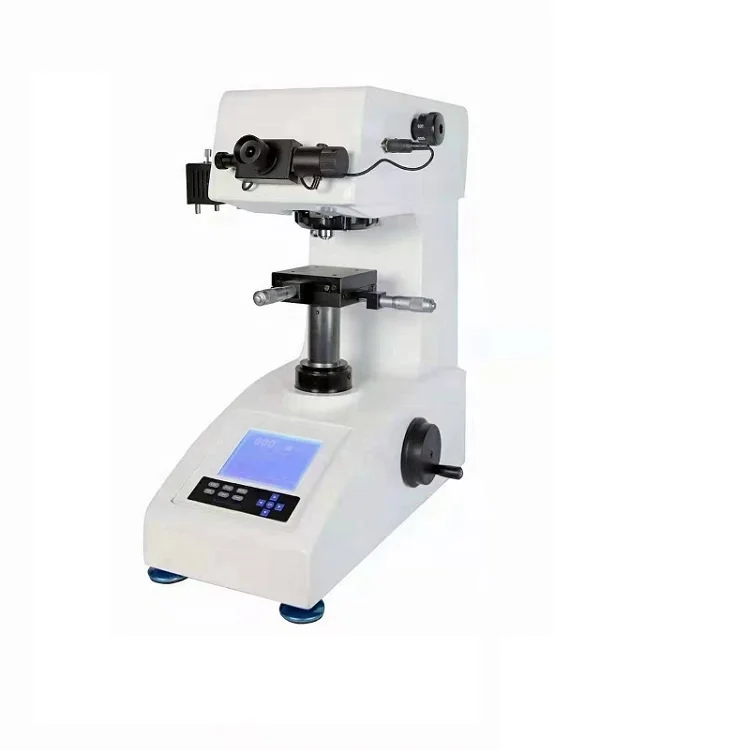

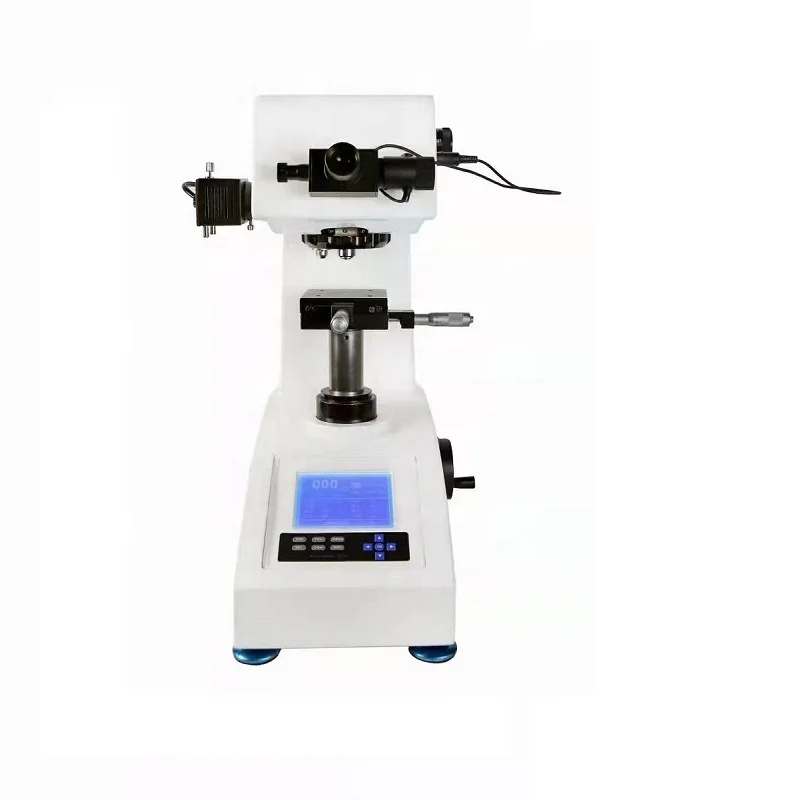

HVS-1000 large-screen manual turret digital micro hardness tester is mainly used for the micro-Vickers hardness measurement of various metals and some non-metallic materials etc.), non-ferrous metals, heat post-treated parts, various tiny and thin parts, glass, ceramics, agate, gemstones, etc.
To know more detailed information about our company, the price, delivery time, parameter, application etc. please contact with me.
Company Profile
LAIZHOU METALLOGRAPHIC TESTING EQUIPMENT CO., LTD
Focus on metallographic sample preparation machines and hardness testers for 15 years.
Application
Certifications

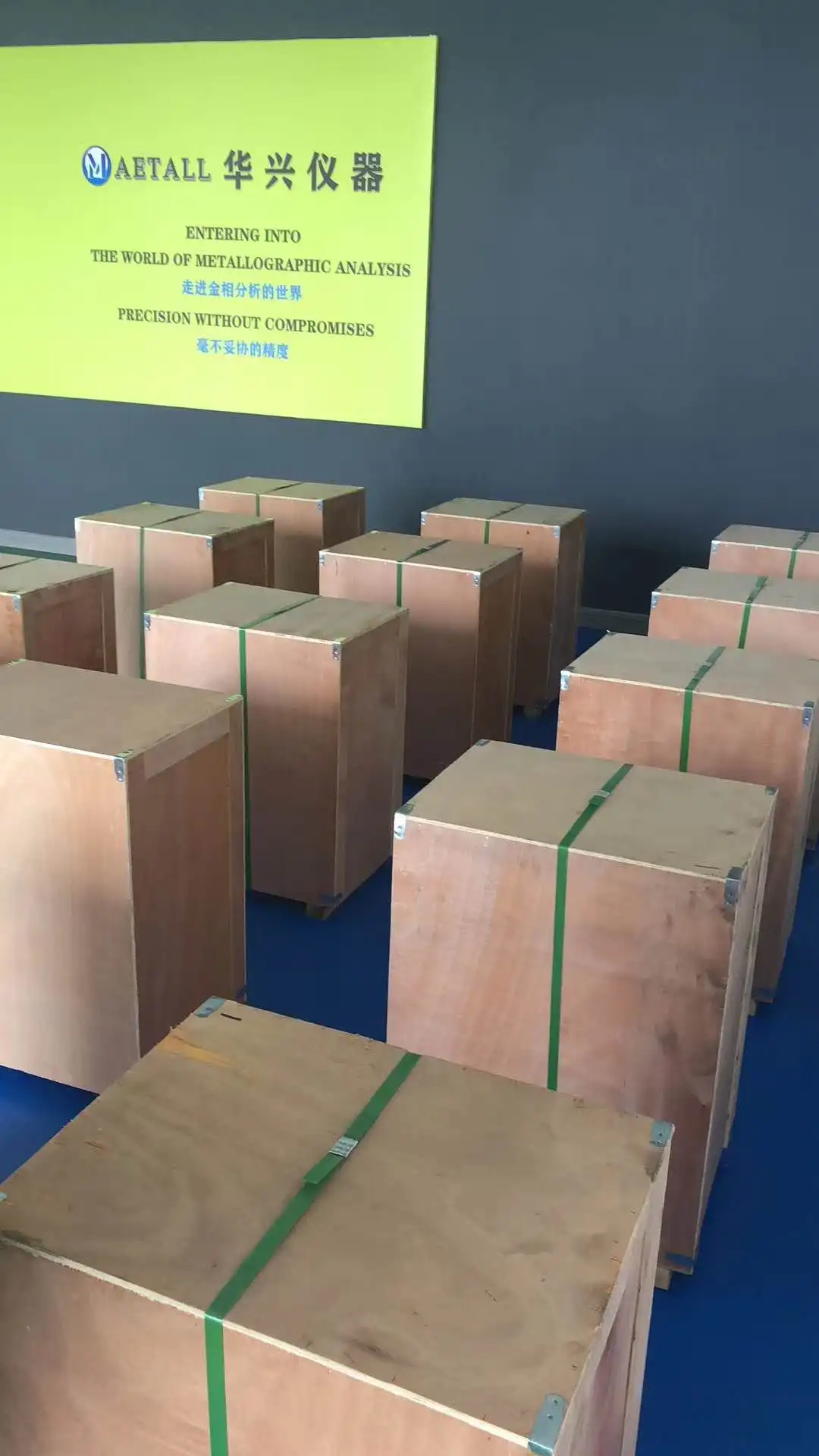

Product packaging

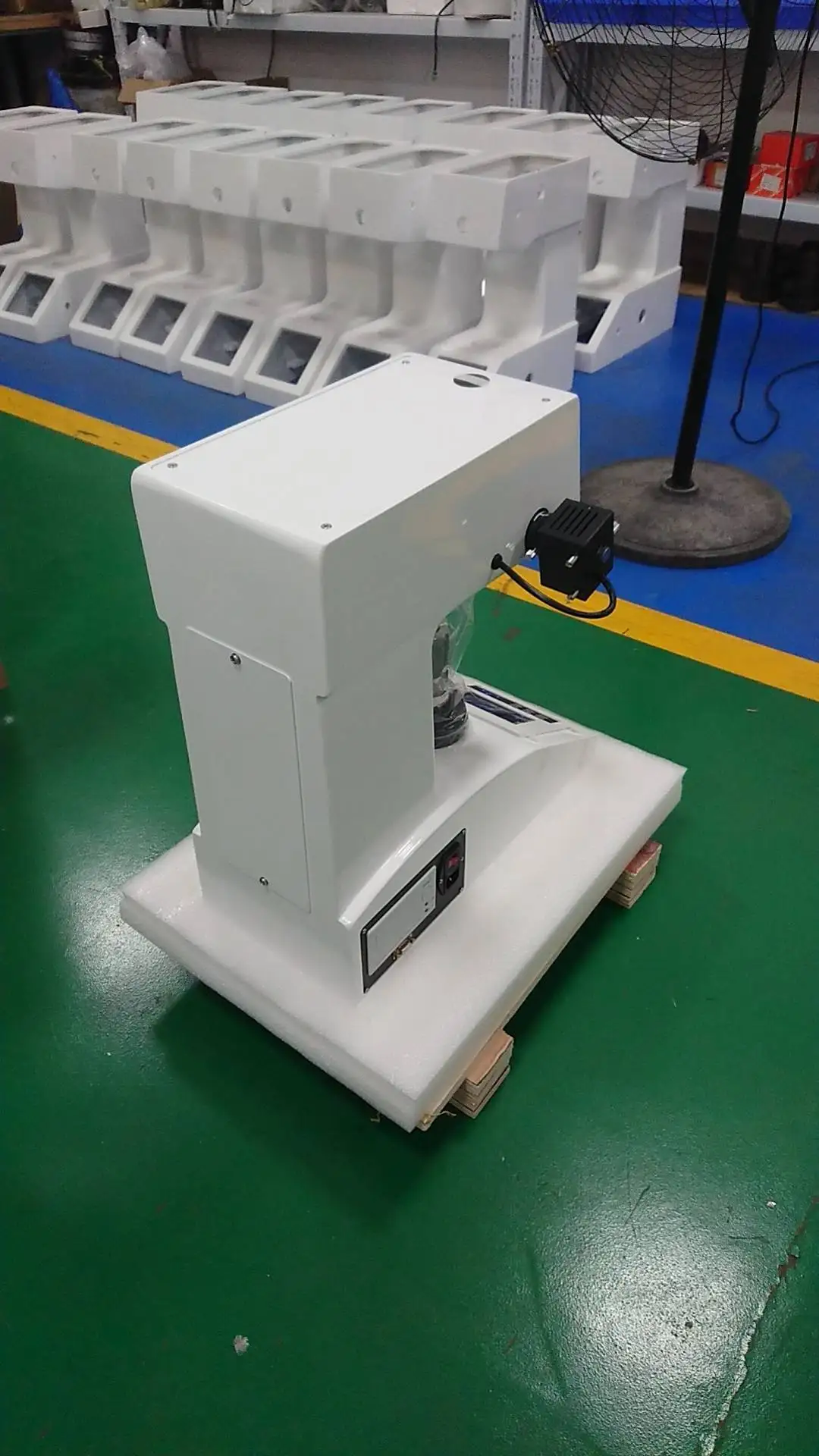

The hardness tester is fixed on the ply-wooden pallet to not move when transporation, the height of the wooden feet 9cm, and bottom with pearl wool or other packing materials to protect the machine from impacting. Accessory box at side of the machine. Then covered with ply-wooden box, to fixed box and bottom with screws, at last fasten with packing belts.
FAQ
1. Are your company a trading company or a manufactor, and do you have technical team?
We are a manufacturor, with more than 15 years experience in this field, our exporting office is at Qingdao, and our professional technicians with serveral years' experence.
2. What's your main products?
Our main products are full set metallographic sample prepration machines and hardness testers.
3. Whats' the delivery term?
For normal models of machines, we have stock in workshop. The time is only testing of machine before sending out and packaging. Normally 2-3 days.
If there is no stock, the delivery time will be 5-10 days, depend on quantity of machine.
Special requirement or large quantity please confirm with us before ordering.
4.Do you accept customization service?
Yes, for sure. We not only offer standard machines, but also do customized machines, our techinician will make the machine as your required. Just need to communicate before ordering.
5.How to choose a suitable device?
We have expert sales, tell them the material you want to test and other informations, our people will give you a suggestion of the model.
6.How is your after-sale service and what's your warranty?
Before sending the goods, we will first test the machines and after receiving the goods, there is manual to show you how to install the machine,and how to operate, if you are not sure, we will send video to show how to operate, if there is any question, our people will do online service to teach how to operate and how to fix problems.
Our warranty time is 1 year.
We are a manufacturor, with more than 15 years experience in this field, our exporting office is at Qingdao, and our professional technicians with serveral years' experence.
2. What's your main products?
Our main products are full set metallographic sample prepration machines and hardness testers.
3. Whats' the delivery term?
For normal models of machines, we have stock in workshop. The time is only testing of machine before sending out and packaging. Normally 2-3 days.
If there is no stock, the delivery time will be 5-10 days, depend on quantity of machine.
Special requirement or large quantity please confirm with us before ordering.
4.Do you accept customization service?
Yes, for sure. We not only offer standard machines, but also do customized machines, our techinician will make the machine as your required. Just need to communicate before ordering.
5.How to choose a suitable device?
We have expert sales, tell them the material you want to test and other informations, our people will give you a suggestion of the model.
6.How is your after-sale service and what's your warranty?
Before sending the goods, we will first test the machines and after receiving the goods, there is manual to show you how to install the machine,and how to operate, if you are not sure, we will send video to show how to operate, if there is any question, our people will do online service to teach how to operate and how to fix problems.
Our warranty time is 1 year.
