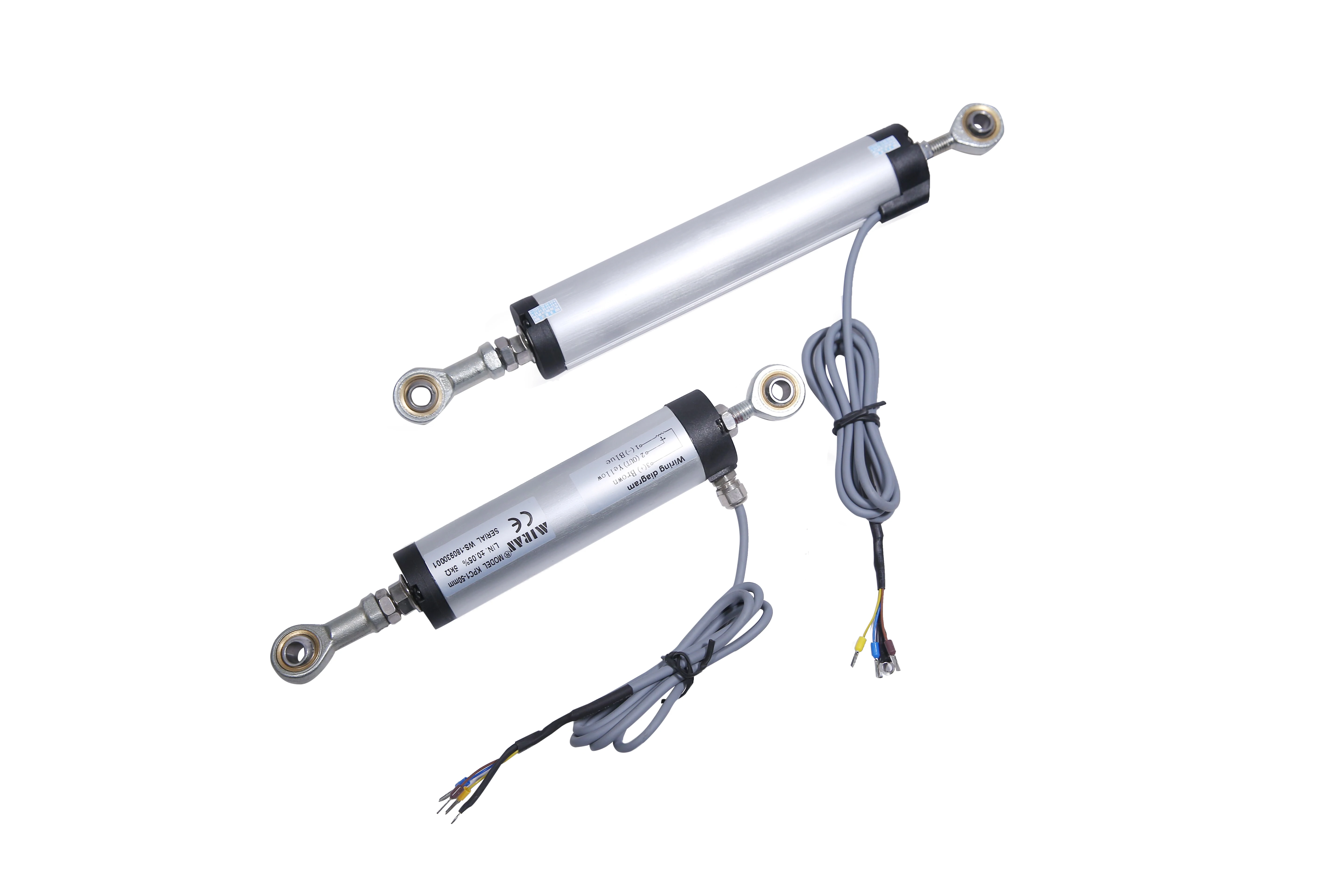

KPC linear displacement measurement instrument 400 750mm Mechanical fixing potentiometer sensor
- Category: >>>
- Supplier: Zaoyang City Milang Science & Technology Co. Ltd.
Share on (1600548182342):
Product Overview
Description

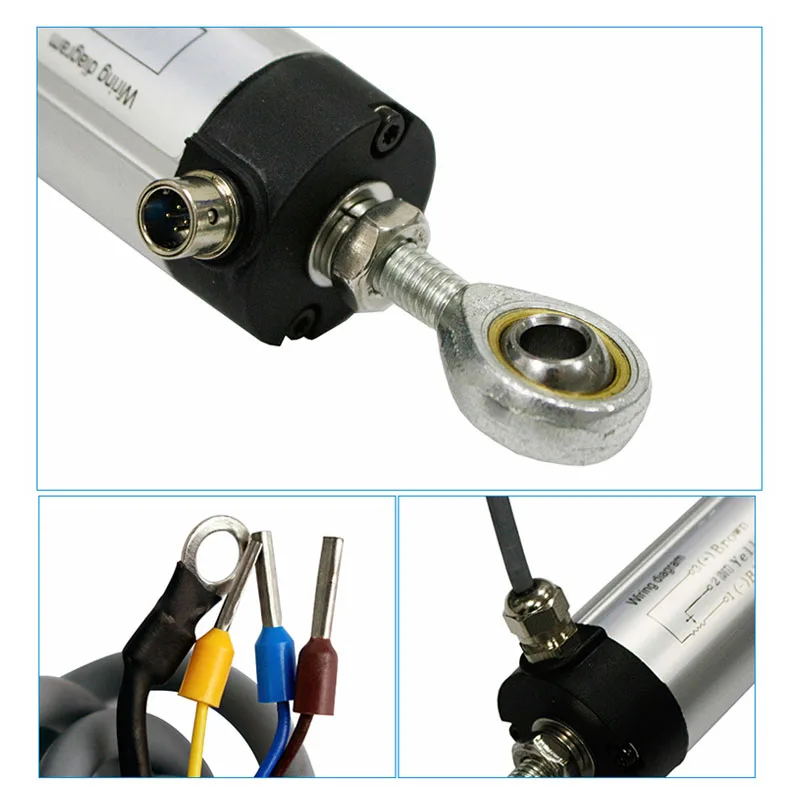

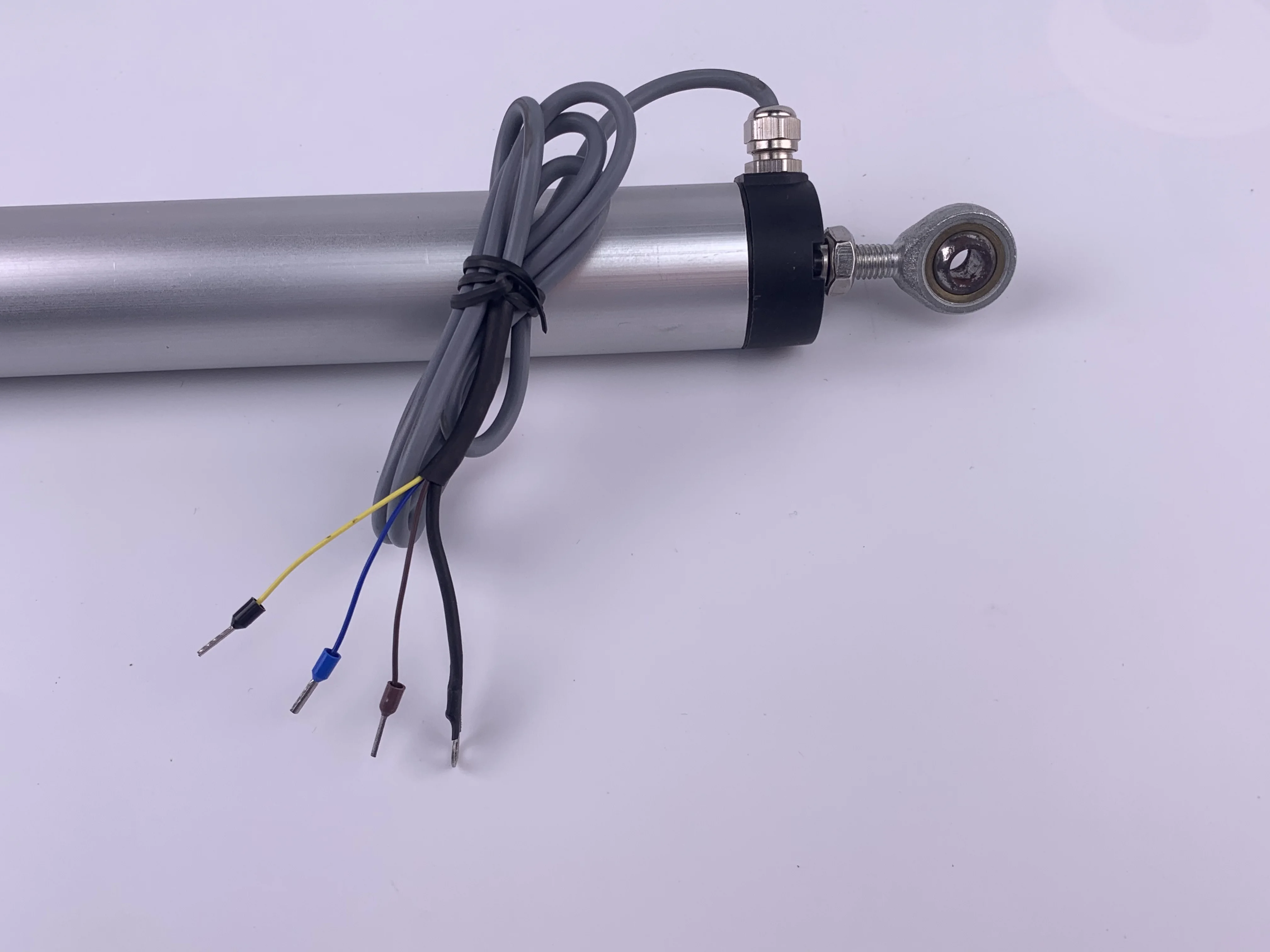

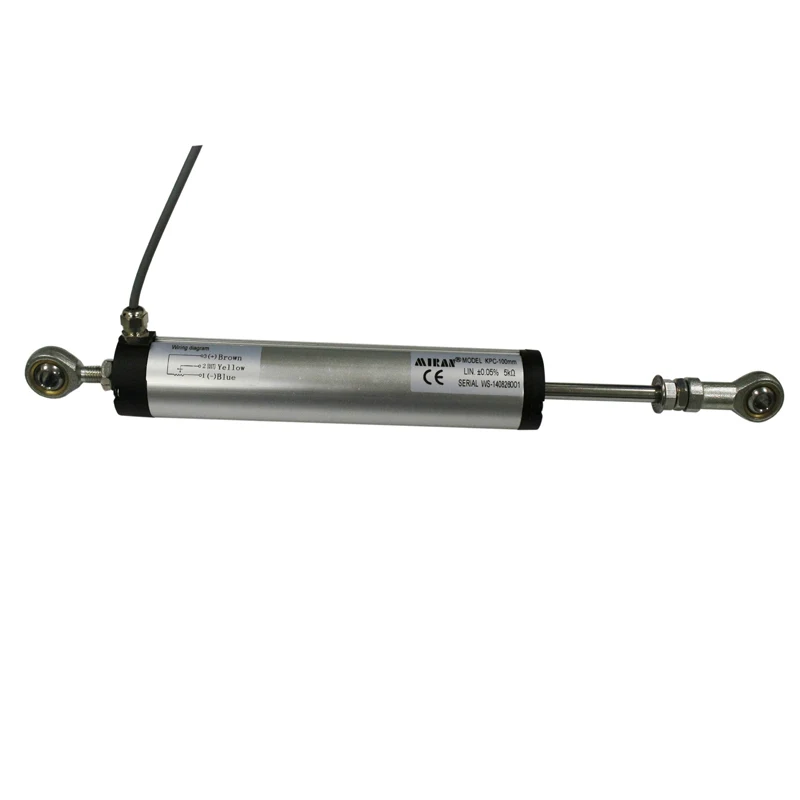

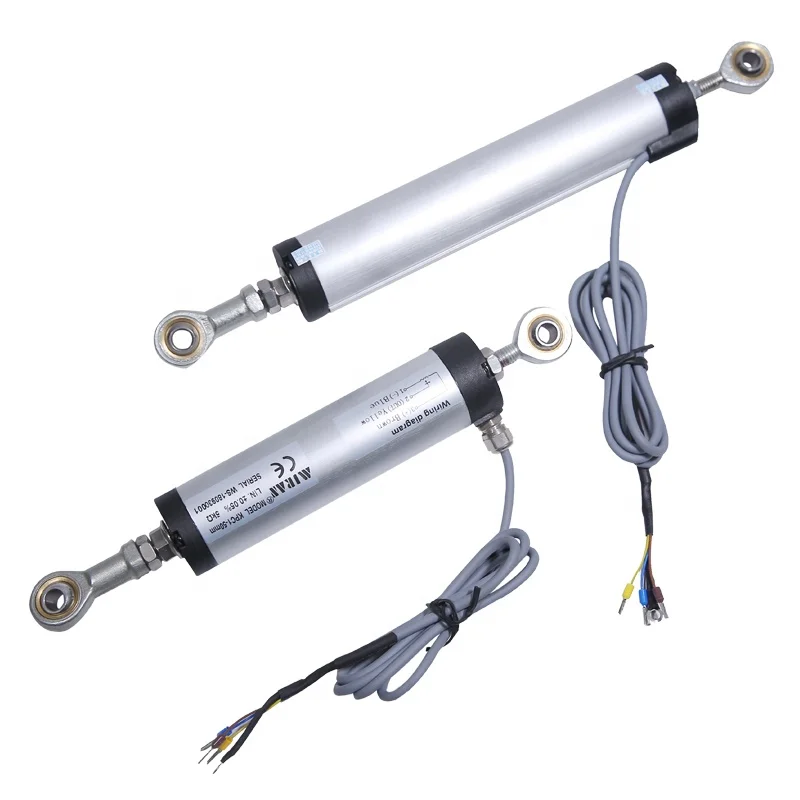

KPC linear displacement measurement instrument 400-750mm Mechanical fixing potentiometer sensor
Product Description
| KPC1 articulated type sensor | 75~110mm | 125~175mm | 200~550mm | 600~750mm |
| Linear Precision (±%FS) | ±0.1% | ±0.05% | ||
| Resistance (±10%) | 5ΚΩ | 10ΚΩ | ||
| Mechanical stroke | range+7mm | |||
| Resolution | Infinite | |||
| Repeatability Precision | 0.01mm | |||
| Max Speed | 10m/S | |||
| Recommended Temperature | 0℃-80℃ ;-20℃~+100℃ | |||
| Output signal | standard: 0~100% × input voltage (change with the movement of the rod) | |||
| optional: 0-5V/0-10V/4-20mA/RS485 output need an extra module | ||||
| Sensitivity | 1 | |||
| Temperature Drift | infinitesimal | |||
| Material for transducer case | Anodised aluminium | |||
| Material for pull shaft | Stainless steel | |||
| Protection level | IP65 | |||

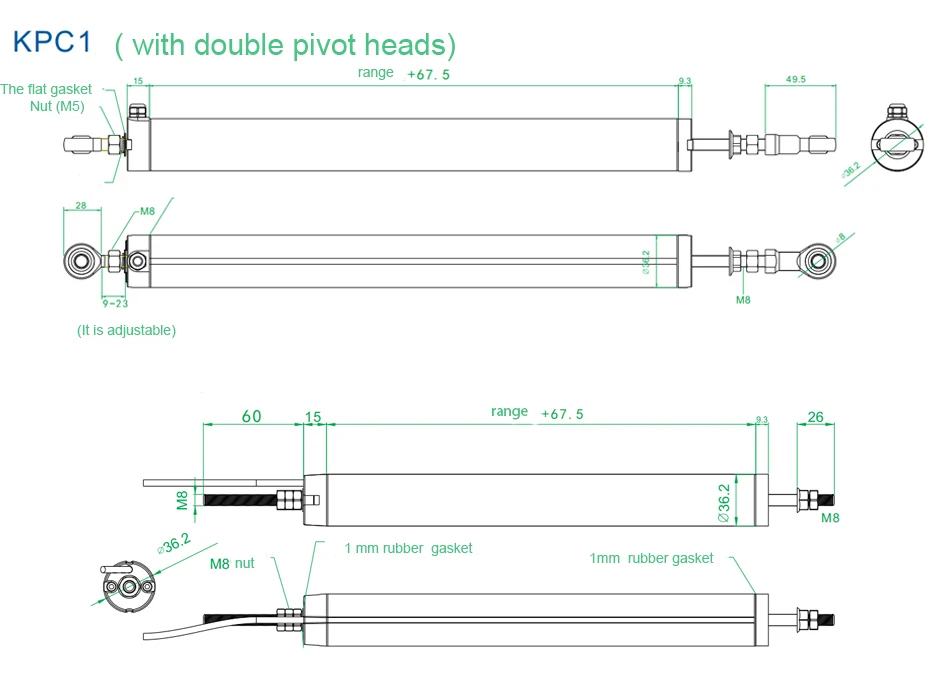

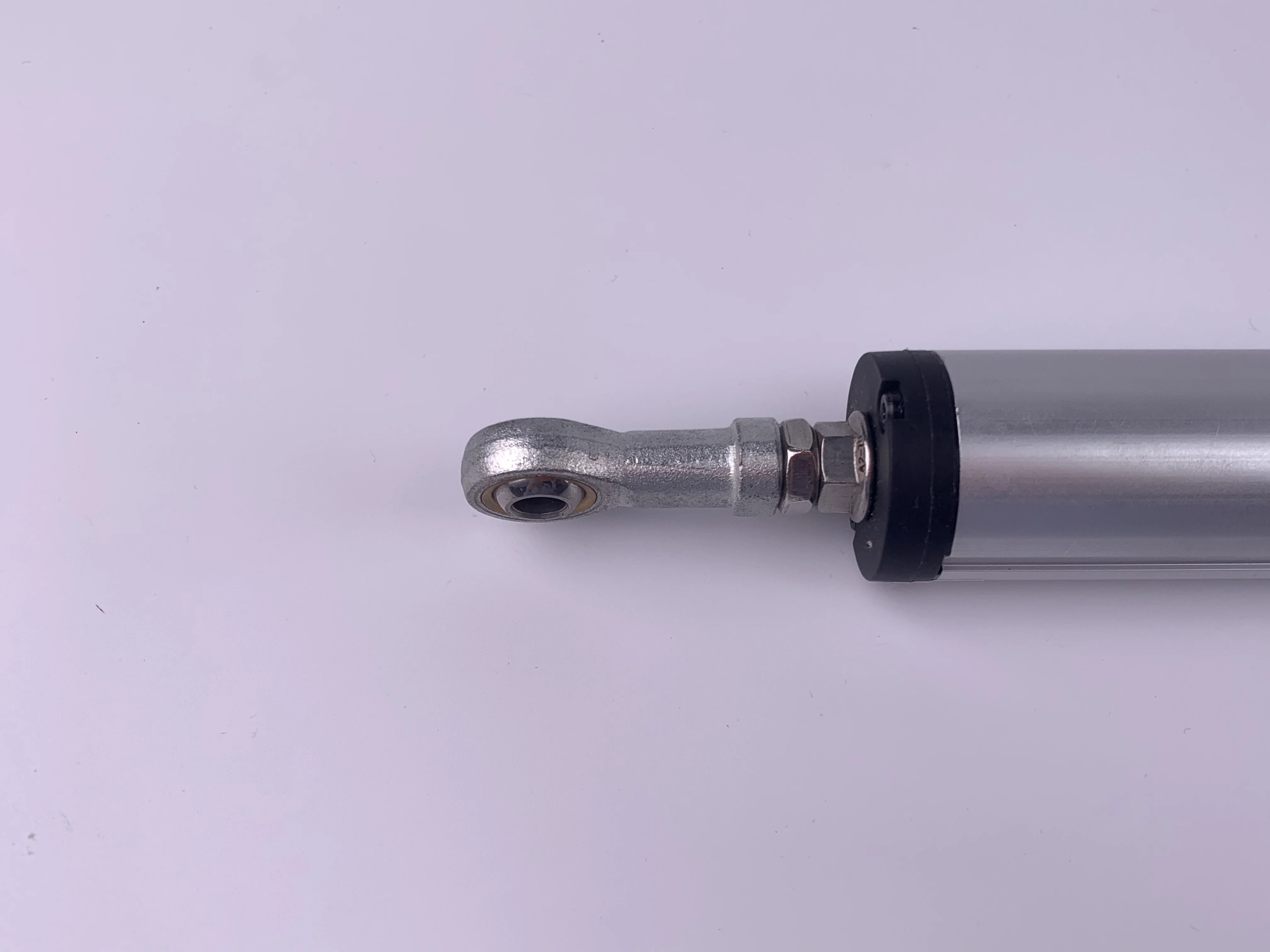

| Mounting | Fixed by the heims joint at both ends | |||
| Life | >100*1000000 cycles,>25*1000000 m | |||
| Useful electrical stroke(mm) | 75 100 110 125 130 150 175 200 225 250 275 300 325 350 360 375 400 425 450 475 500 550 600 650 700 750 | |||

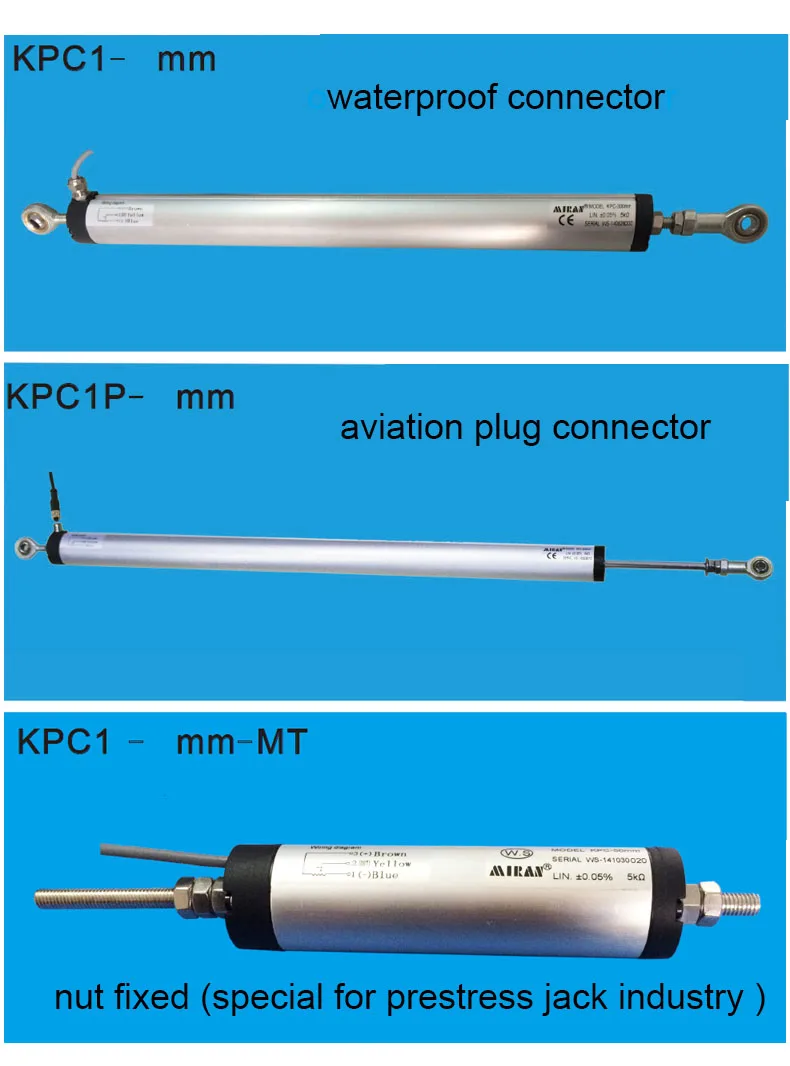

| Note: This linear position sensor has three different kinds of appearance.You can choose the more suitable one. KPC1------waterproof connector KPC1P----aviation plug connector KPC1-MT--nut fixed (special for prestress jack industry ) | ||||

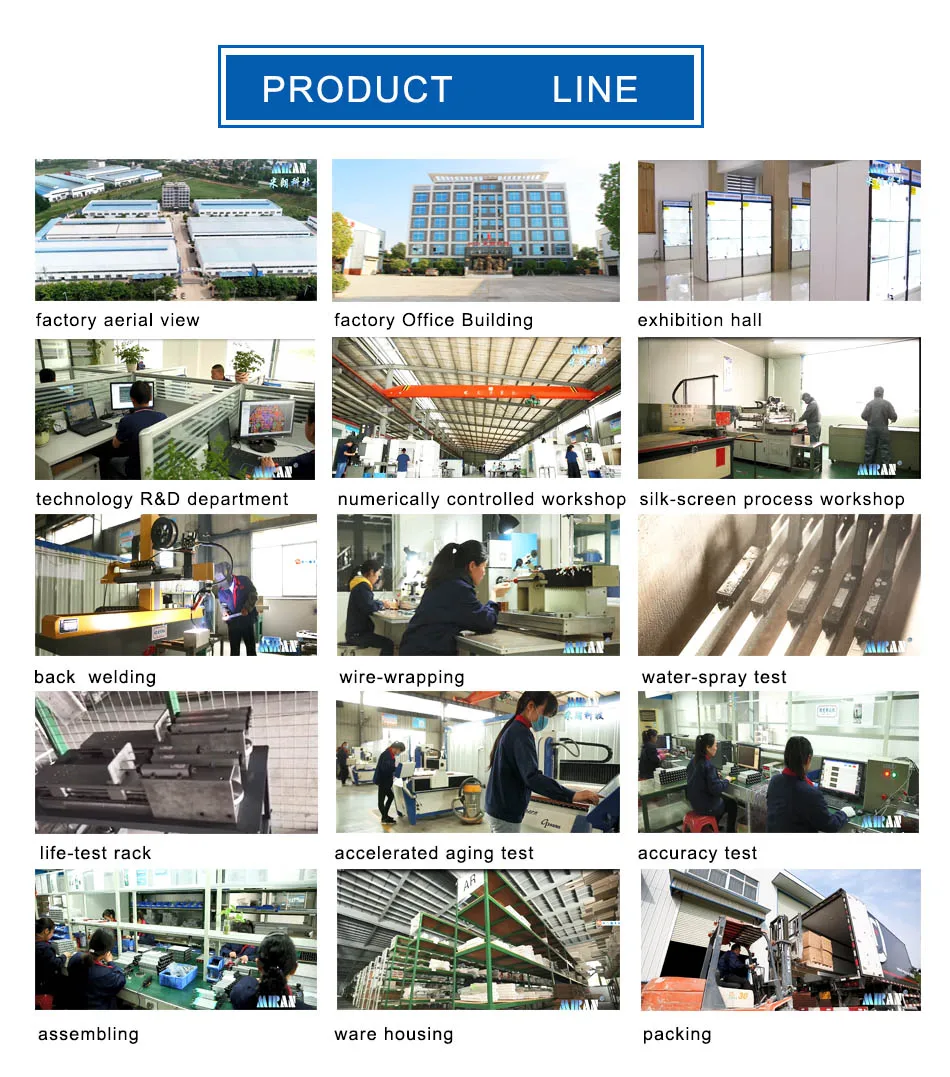

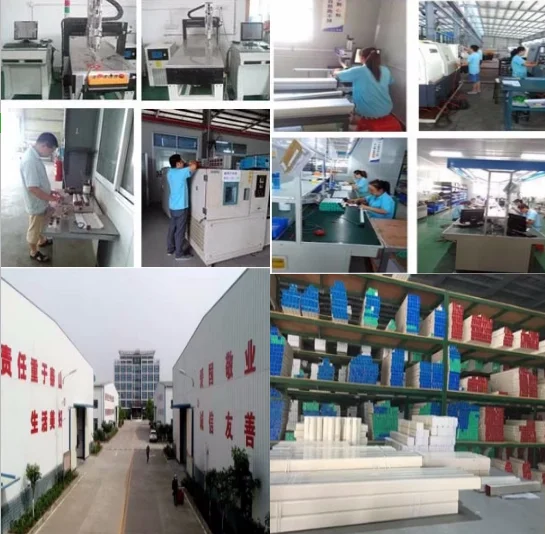

Company Information

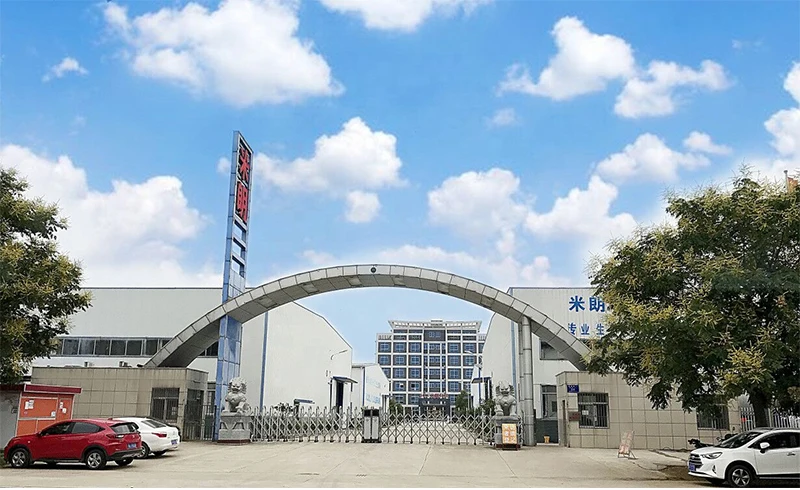

Zaoyang City Milang Science & Technology Co., Ltd. is the production bases of the SHENZHEN MIRAN technology Co.,Ltd.Since Miran establishment in 2003,Miran has long been committed to the design,development,production and sales of displacement sensors.it has 20 years of rich experience and has become a world-leading sensor exporter.our main production and operation:potentiometer/resistance principle displacement sensor (electronic ruler), magnetoresistive displacement sensor, pull
rope/line displacement sensor (pull rope/wire type electronic ruler), magnetostrictive displacement sensor (no contact) Magnetic induction electronic ruler, magnetostrictive
principle liquid level sensor (level gauge measurement and control system), angle sensor (angle ruler) and supporting V/A conversion module, LVDT differential transformer
displacement sensor, eddy current displacement sensor, ultrasonic Displacement sensors, inclination displacement sensors, magnetic scales, display controllers and related
application products, centralized lubrication system products (lubricating oil pumps), oil circuit accessories and other products. Companies adhering to the "quality first, customer first, integrity-based" purpose, We can offer you the competitive perfect products.We also support to put your logo on the products if you need.Welcome to visit our factory,Hope we can build up the long-term and harmonious business relationship!
Certifications

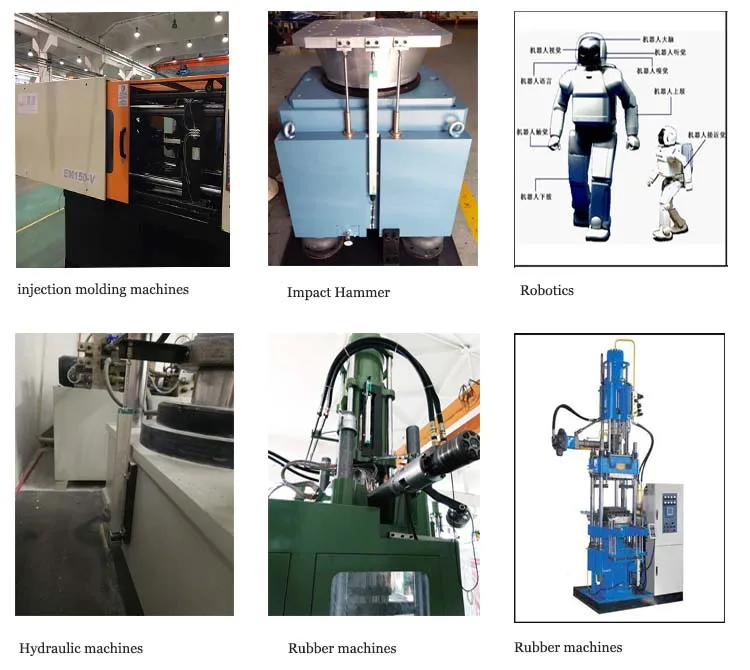

Application

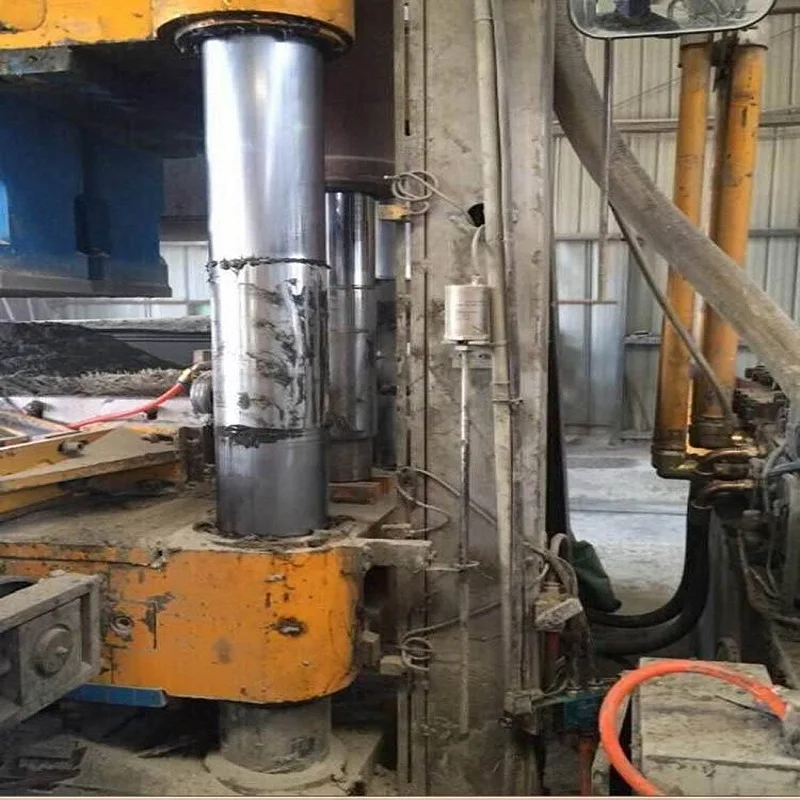

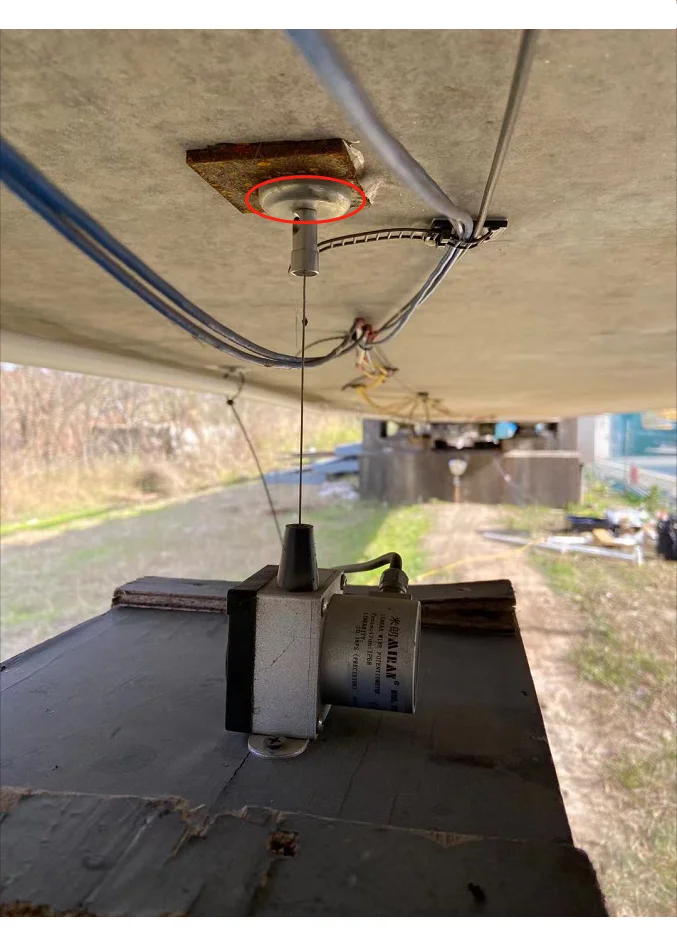

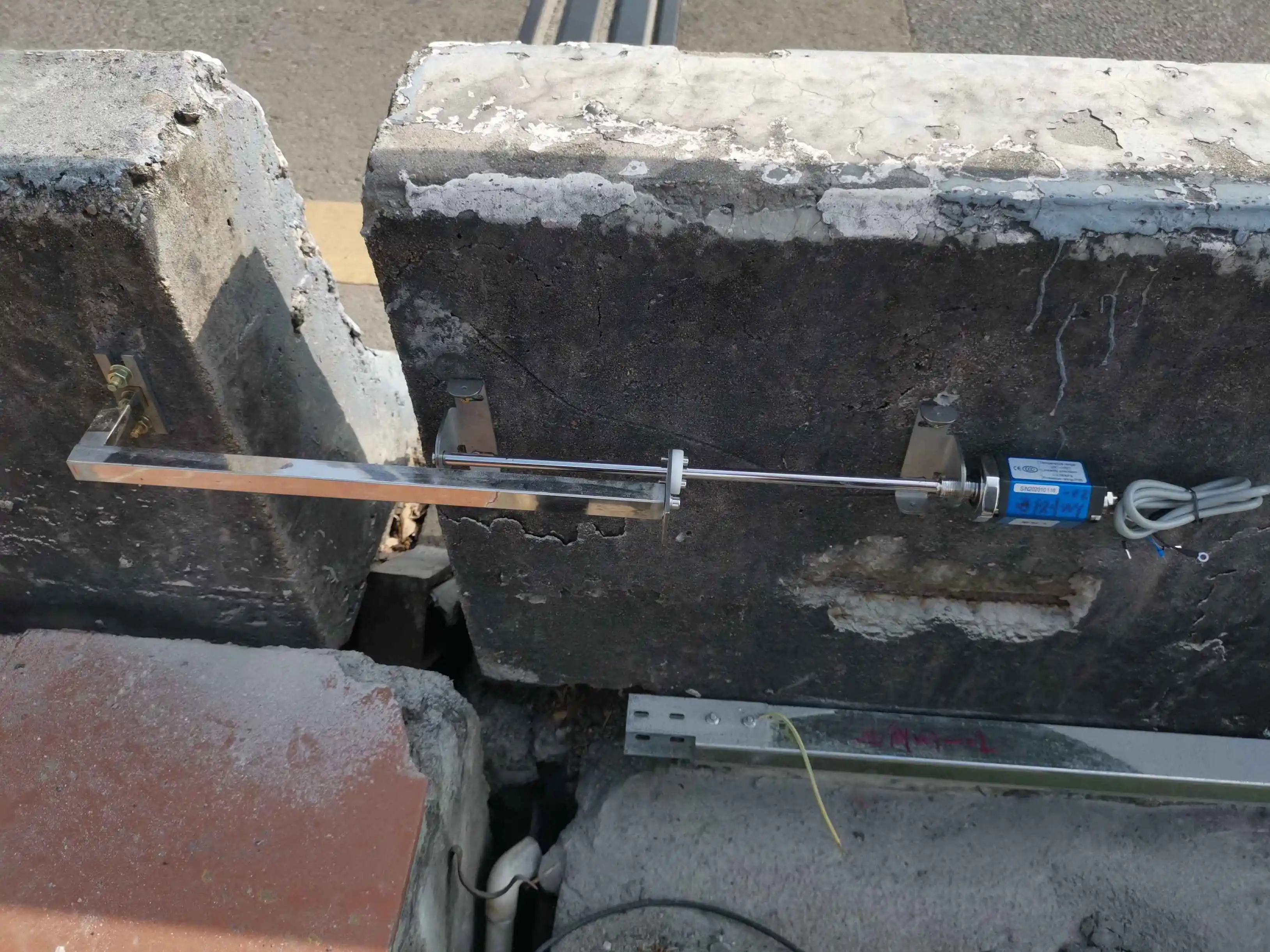

Apply to a lot of industrial branch, especially in OEM market, such as: Plastic (Injecting molding machine), glass machine, printing machine, medical machine, wood and coal mine machine and so on. our products can be used with PLC industrial control systems, servo, frequency converter, singlechip microcomputer, supporting the use of achieve frequency control, the precise position detection and control signal feedback ect.
FAQ
Q: Can you offer digital indicator?
A: Yes, we can.
Q: Are you a factory or trading company?
A: Yes, we are a manufacturer of position sensor/transducer.
Q: Can you offer samples? Is it free?
A: Yes, samples are available to sent out for testing. Please contact us freely for more details.
Q: what's your term of payment?
A:T/T,L/C,paypal ,westerm union .
Q:what's your warranty?
A:12 months .if the items your purchased from our company are no't with the perfect quality or can't work well,you could send back to replacement or refund.

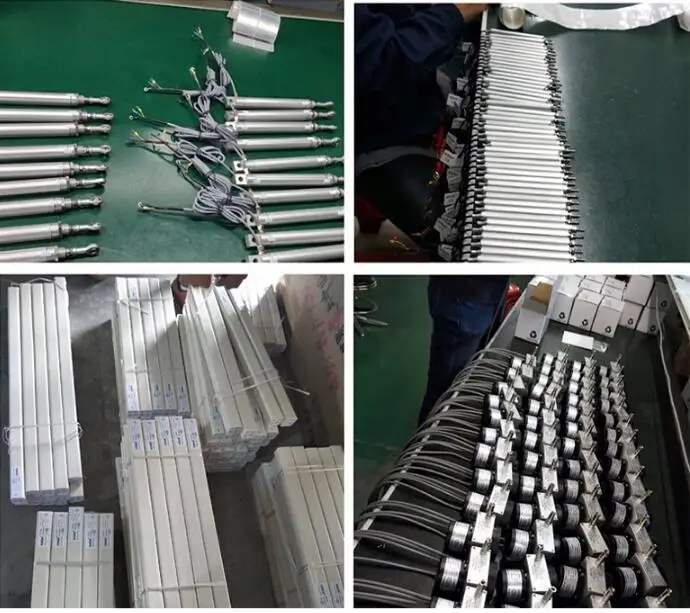

Packaging & Shipping
