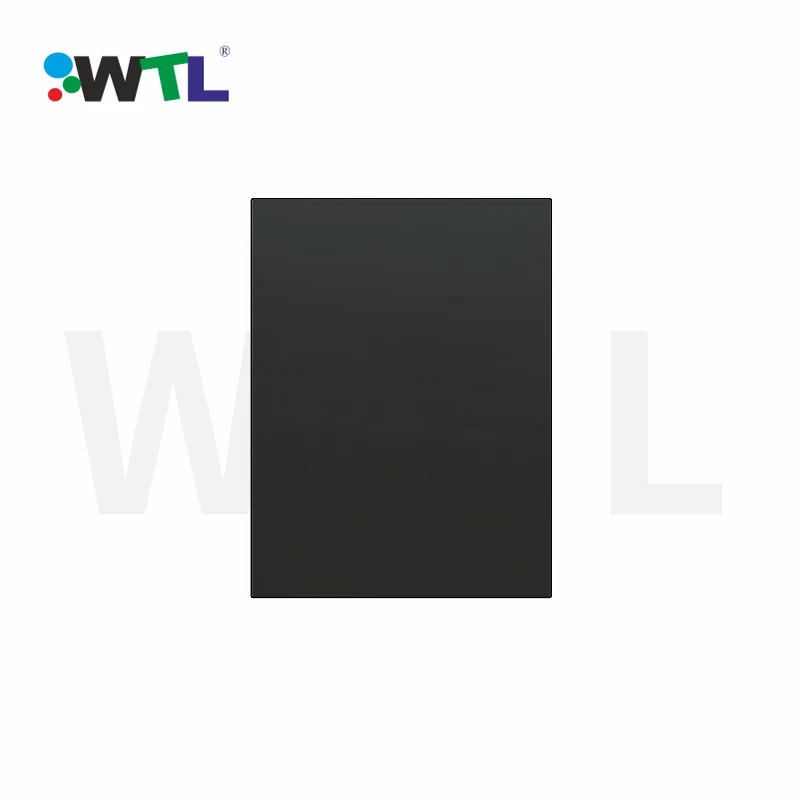

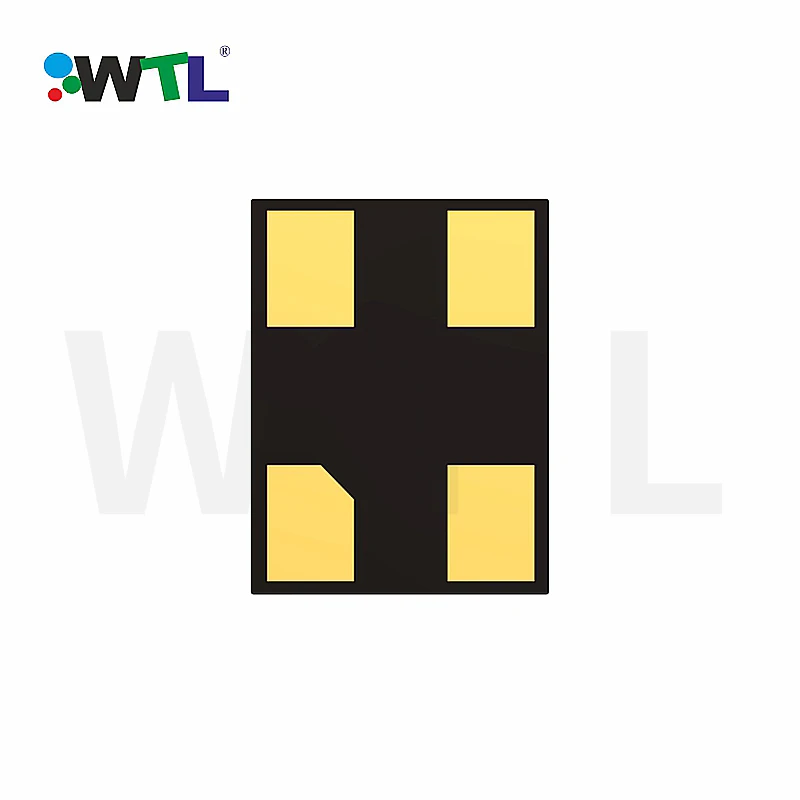

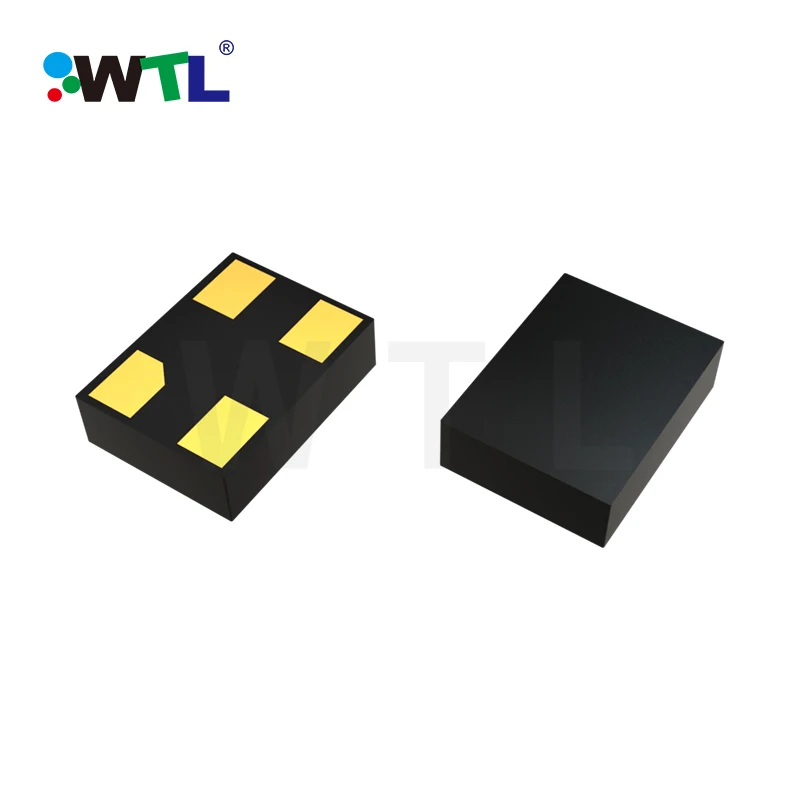

WTL SR1 2.0 x 1.6mm SMD 315MHz 75kHz 1.5dB saw resonator
- Category: Resonators >>>
- Supplier: WTL International Limited
Share on (1600548189702):
Product Overview
Description
Product Description
SAW Resonator, Series SR1

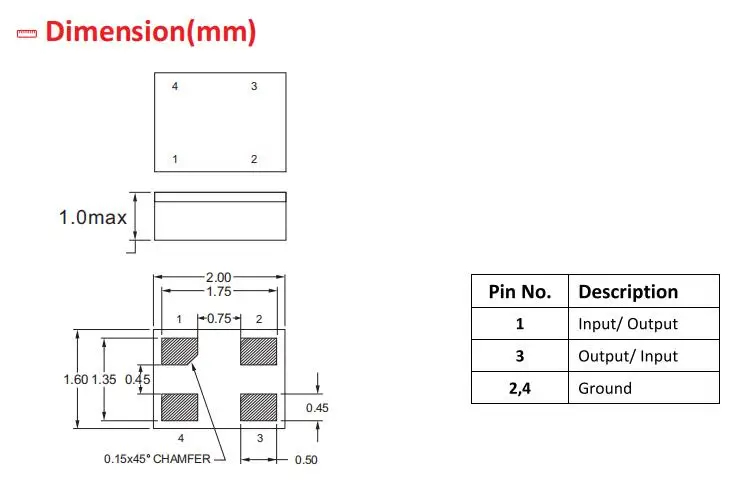

SMD 2.0×1.6×1.0mm
Feature
1.Small size 2.0×1.6x1.0mm
2.The optional frequency can be customized
3.High transmit and receive sensitivity
4.High temperature resistance and impact resistance
5.Good power and reliability
6.RoHS compliant
Electrical Specifications
| Item | Specifications |
| Frequency(MHz) | 315 MHz |
| Frequency Tolerance( at 25°C ) | ±75 kHz |
| Insertion loss | 1.5 dB |
| Operating Temperature Range | -40~+85°C |
| Storage Temperature Range | -40~+85°C |
| Aging @25 °C 1st Year (Max) | ±10ppm |
Our Advantages
1.Established: Year 2012.
2.Full range of frequency components including:
Quartz Crystal, Watch Crystal, Saw(ceramic) Resonator&Filter, Oscillator, TCXO,VCXO,VC-TCXO,OCXO and Dielectric Antenna etc.
3. Complete quality system including:
a)IQC,IPQC,FQC,OQC,QA
b)Whole ERP system control
c)ISO9001,ISO14001
d)RoHS &SGS,meet the export standards of EU
4. The professional team Such as:
a)365 days online serivce
b)Solid knowledge of English language,support you solving quality problems
c)Professional operating global courier
d)Salesman graduated from the domestic or overseas foreign trade university
e)Perfect training system,all team members have to be trained before working
5.Over 100+ Countries and Regions, 30+ Distributors.
Benefits for you if we cooperate
1.PCB VS Crystal Matching Test for Free
2.FAE Support
3.Provide A Full Set of Reliability Lab
4.Door to Door Service
5.Global 180 Days Return
6.Custom-made Frequencies Due to we have our own Wafer Production Line
