High Quality Plumbing Sewer Inspection Camera System
- Category: >>>
- Supplier: Shenzhen Hivibel Technology Co. Limited
Share on (1600548232522):
Product Overview
Description
9 Inch HD Screen Sewer Pipe Industrial Endoscope Tool
Products Description
This HD sewer pipe inspection camera system is with compact, rugged, portable and humanized design for efficient operation in sewer; drain, duct ,chimney, milk pipes, water mains, central air conditioning, heating system, pipe ventilation systems,plumbing related sites and where a pipe inspection camera is required. It consists of three main parts:

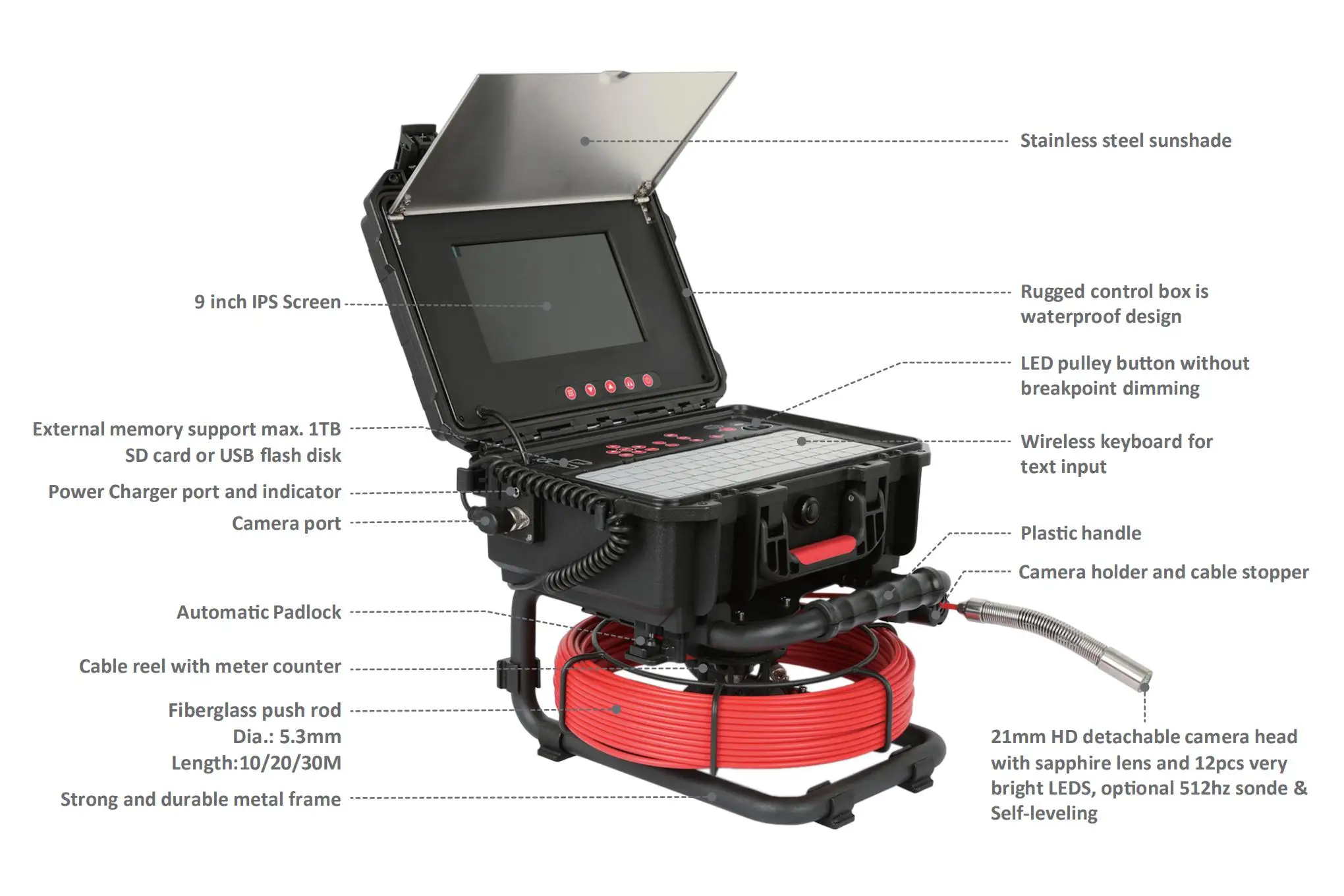

1. control box with 9 inch or 13.3 inch big IPS DVR monitor and wireless keyboard for text input;
2. Metal frame with automatic padlock;
3. Big cable reel with meter counter equipment, fiberglass push rod and 12.8mm or 21mm HD Camera(sapphire lens).
It is suitable for pipes with inner diameter at 15mm-200mm. Ability to go through 90° bends in pipe at:
32mm (for 12.8mm camera with 4.8mm push rod ),
45mm (for 21mm camera with 5.3mm push rod),
52mm (for 21mm camera with 6.8mm push rod).
32mm (for 12.8mm camera with 4.8mm push rod ),
45mm (for 21mm camera with 5.3mm push rod),
52mm (for 21mm camera with 6.8mm push rod).
2 Pothooks make the cable settle easier
Automatic Padlock: just one step to lock and unlock the tool case with metal frame
Side-mounted interface prevent contamination
The equipment can be charged even the case is closed and the power indicator shows the charging state
Features:
1/4'' CMOS camera, 90 degree view angle
Stainless steel camera housing
Camera diameter 12.8mm
Scratch-proof Sapphire glass lens cover
Built-in 6 intensity LEDs source
IP66 waterproof level
10-60m fiberglass rod cable
1/4'' CMOS camera, 90 degree view angle
Stainless steel camera housing
Camera diameter 12.8mm
Scratch-proof Sapphire glass lens cover
Built-in 6 intensity LEDs source
IP66 waterproof level
10-60m fiberglass rod cable
Camera
Sensor:1/4'' CMOS
View Angle:90 degree
Focus Distance: 5cm (approx)
Depth of View: 20cm(approx)
Camera size: φ12.8mm*12mm(main body)
Camera length: 135mm
Front Lens: Sapphire glass
Shell Material: Aluminum
Lighting: Built-in 6*LED(white)
Waterproof: 20m water(camera fixed on cable)
Power supply: 12V
Sensor:1/4'' CMOS
View Angle:90 degree
Focus Distance: 5cm (approx)
Depth of View: 20cm(approx)
Camera size: φ12.8mm*12mm(main body)
Camera length: 135mm
Front Lens: Sapphire glass
Shell Material: Aluminum
Lighting: Built-in 6*LED(white)
Waterproof: 20m water(camera fixed on cable)
Power supply: 12V
Specifications
Item | 21mm camera | 12.8mm camera | ||
General | Operating Temperature | -10~50°C/+14~+122°F | ||
Operating Humidity | 30%RH~90%RH | |||
Storage Temperature | -20~60°C/+4~+140°F | |||
Power adapter | Input:110VAC~240V AC, Output:12V DC 2A | |||
Power Supply | DC 12 input | |||
Current Consume | 750mA Max | |||
Batter y Capacity | 9000mAh Li-ion Battery | |||
A Single Charge Work Time | 7.5 Hour(9inch DVR); 4 Hour(13.3inch DVR) | |||
Charge Time | 7Hour | |||
Waterproof | P66 ( Whole machine is waterproof only when the control box is closed and camera fully installed) | |||
MEA S. | QY6566: 445*385*355mm; QY6688: 540*430*365mm | |||
Weight | QY6566:Approx 9Kg; QY6688:Approx 13Kg (slight different from different length of cable) | QY6566:Approx 8.5Kg; QY6688:Approx 12Kg (slight different from different length of cable) | ||
Camera | Sensor | 1/ 3" CMOS | 1/ 4" CMOS | |
TV-Line | 720P (1280*720) | |||
View Angle | 120° | 90° | ||
Focus Distance | 15cm (approx) | 5cm (approx) | ||
Depth Of Field | 100cm(approx) | 100cm(approx) | ||
Camera Size | Φ21mm×38mm (Main body) | Φ12.8mm×12mm (Main body) | ||
Camera Length | 160mm | 135mm | ||
Front Lens | Sapphire | |||
Shell Material | 304#Stainless Steel | |||
Lighting | Built-in 12×LED (White) | Built-in 6×LED (White) | ||
LED Driver | Built-in Dimmer(Pulley button) | |||
Water-resistant | 20m water (Camera fix on Cable) | |||
DVR | Screen | IPS 16:9 super bright high-definition color LCD screen | ||
Resolution | 9inch DVR: 1024(RGB)×600; 13.3inch DVR:1920(RGB)×1080 | |||
Mirror and Flip | 9inch DVR: Support image mirror, Flip, Mirror & Flip; 13.3ich DVR: None | |||
Video Resolution | 1280×720 | |||
Video Encoding | H.264 | |||
Photograph | 1280×720 | |||
Audio Recording | Local Sound | |||
Out Put | TV and Audio output | |||
External Memory | Support MAX. 1TB SD Card or USB storage device | |||
Play Back | Photo and Video with Audio | |||
Language | English, Chinese | |||
Keyboard Compatibility | Support Specific PC Wireless keyboard | |||
Typing Language | English | |||
Precision of Meter | Counter ±0.5% | |||
Meter and Feet Switch | Support | |||
Set Zero | Support | |||
Cable | Cable Diameter | Φ5.3mm ( QY6688 can be optional diameter 6.8mm cable) | Φ4.8mm | |
Cable Color | Red | Blue | ||
Cable Length | QY6566:10/20/ 30meter (Selectable); QY6688: 30/40/50M( 6.8mm cable:20/30/40M) | QY6566:10/20/ 30meter (Selectable); QY6688: 30/40/50M | ||
Meter Counter | Standard | |||
Control Box | Size | 361*262*157mm | ||
Box color | Black+Red | |||

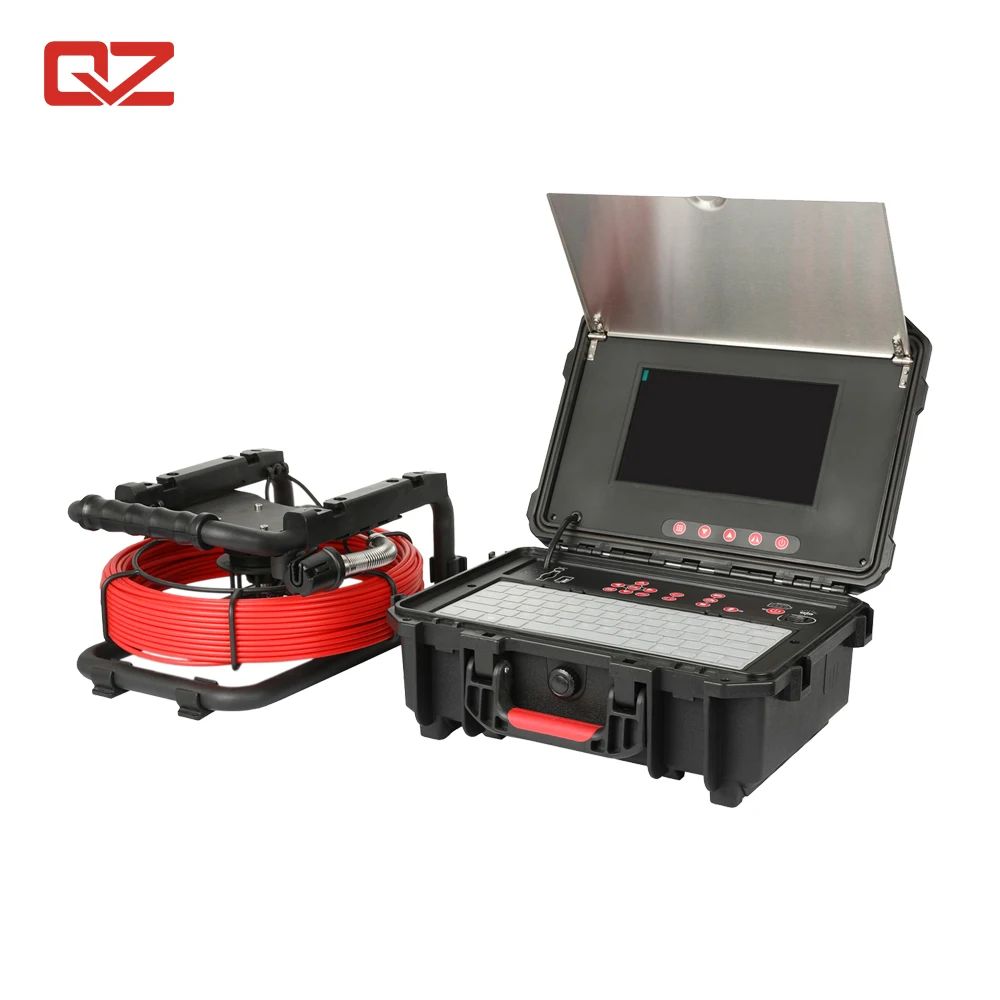

Control box ( DVR )
Cable reel with meter counter
Stainless camera head and Bracket
Application
Industrial inspection camera applications:
Locating source of water intrusion.
Locating insects or dead rats or corrosion inside cavity walls.
Black mold inspection, insulation levels etc.
Electrical, plumbing, wiring, network/phone and CATV routing.
Small automotive engines and other related inspections.
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Aviation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verification of standards protocols in small and tight areas.
Building appraisal applications
Construction, property managers and contractors
Locating source of water intrusion.
Locating insects or dead rats or corrosion inside cavity walls.
Black mold inspection, insulation levels etc.
Electrical, plumbing, wiring, network/phone and CATV routing.
Small automotive engines and other related inspections.
Gun bore and related inspections.
Motor Inspections.
HVAC duct systems.
Sewer pipe inspections and related plumbing applications.
Aviation related applications.
Natural gas pipe inspections.
Internal machinery part inspections.
Quality assurance inspections.
Mold and mildew inspections.
Insurance litigation and verification inspections.
Verification of standards protocols in small and tight areas.
Building appraisal applications
Construction, property managers and contractors
Packaging & Shipping

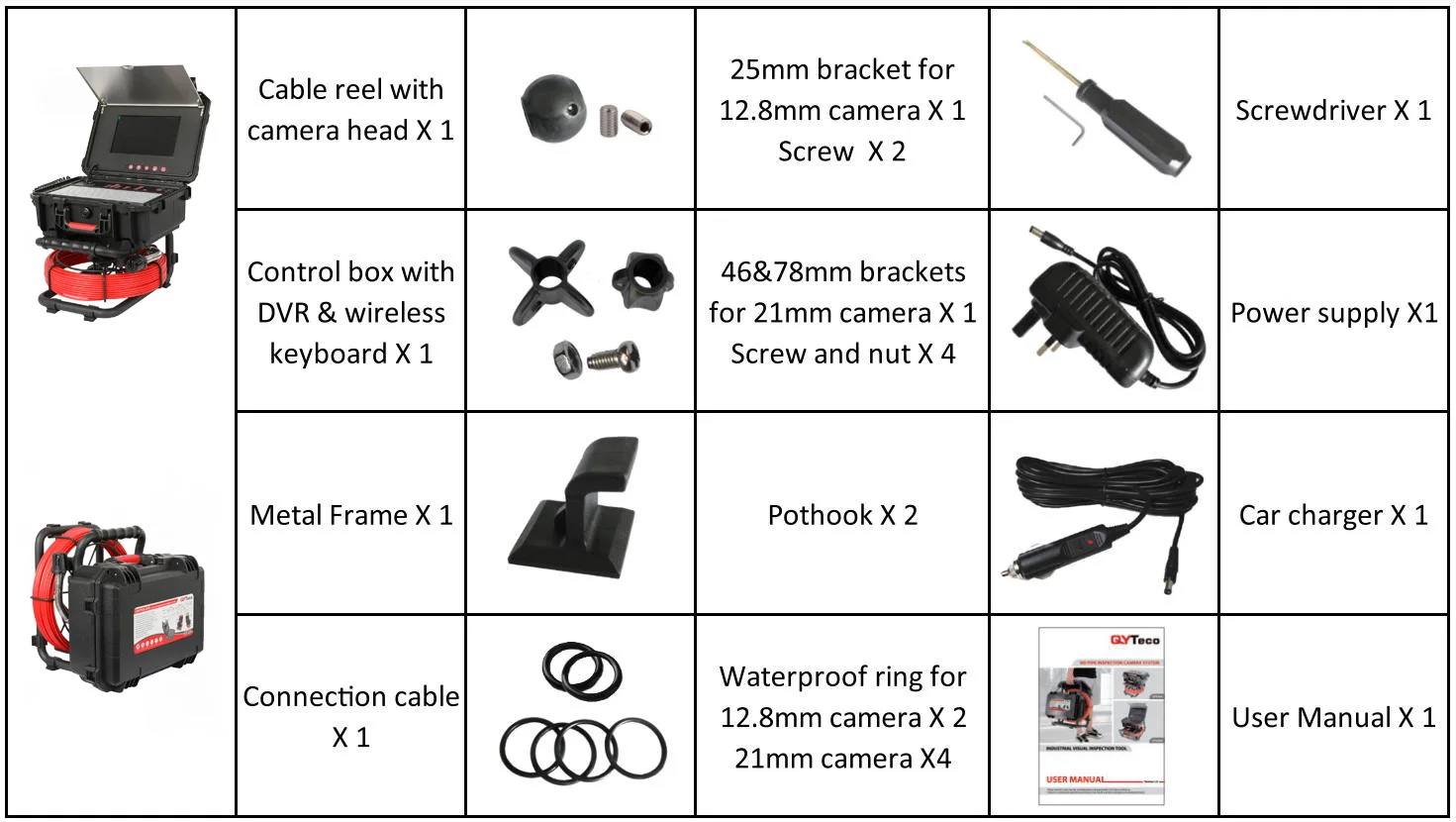

Packing List
Packing
Customized packaging for specific models to ensure the products get better protection.
333
Shipping
Shipping way could be chosen according to customer requirements, courier delivery, air cargo, sea cargo or designated freight forwarding . We will coordinate with every delivery from factory to destination, and keep reporting the status of transportation.
