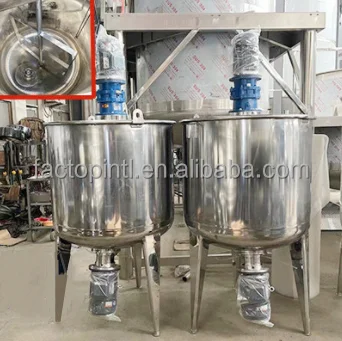

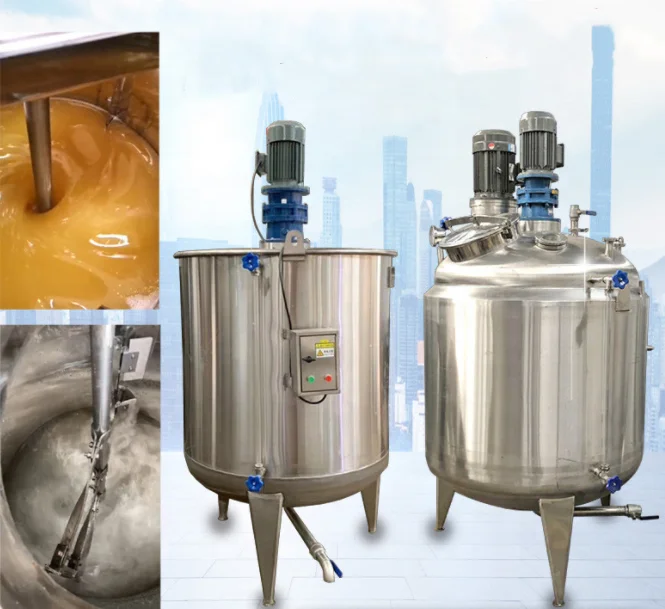

Stainless steel mixer type electric heating for hand wash liquid mixing tank
- Category: >>>
- Supplier: Jining Factop International Trade Co. Ltd.
Share on (1600548237328):
Product Overview
Description
Product Description
Stainless Steel Mixing Tank

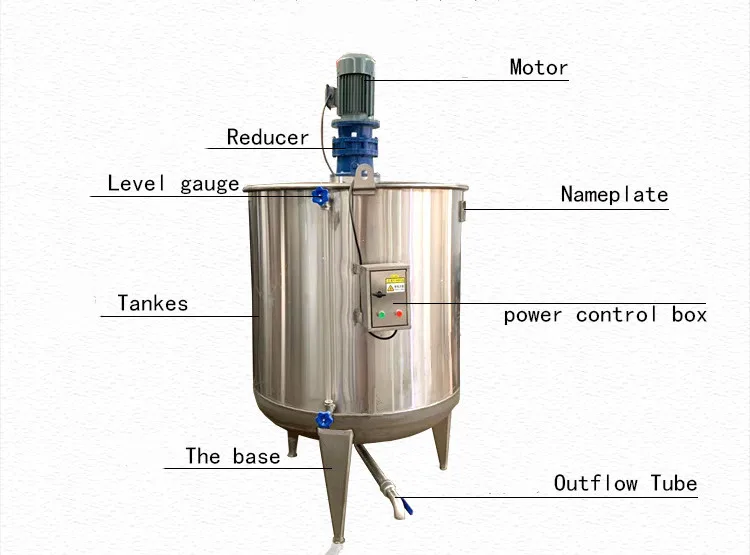

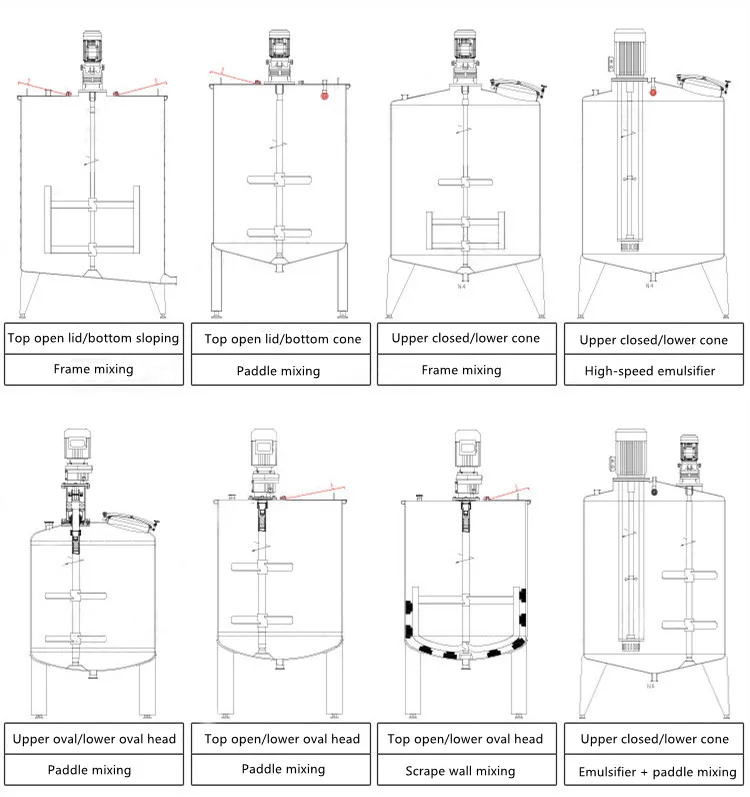

Stainless steel mixing tank is composed of mixing tank body, mixing tank cover, agitator, support, transmission device, shaft sealing device, etc. It is widely used in coatings, medicine, building materials, chemicals, pigments, resins, food, scientific research and other industries.
Material: The equipment can be made of carbon steel, stainless steel and other materials according to the process requirements of the user's products, and set up heating and cooling devices to meet different process and production needs.
Heating type: The heating forms include jacket electric heating, coil heating, far-infrared heating, steam heating and other forms; the cooling forms include coil cooling, spray water cooling, condenser cooling and other forms.
According to the size of the volume is divided into:
100L-10000L and other specifications, can also be designed and manufactured according to the actual needs of customers.
100L-10000L and other specifications, can also be designed and manufactured according to the actual needs of customers.
Specification
Barrel Volume (L) | Motor power(kw) | Drum diameter(mm) | Drum height(mm) | Speed (r/min) | Output diameter(DN) | Output height(mm | Heating power(kw) |
100L | 0.75 | 550 | 663 | 40 | 25 | 400 | 6 |
200L | 0.75 | 650 | 798 | 40 | 25 | 400 | 6 |
300L | 0.75 | 750 | 823 | 40 | 32 | 400 | 9 |
500L | 1.1 | 900 | 1000 | 40 | 40 | 400 | 12 |
800L | 1.1 | 1000 | 1275 | 40 | 40 | 400 | 12 |
1000L | 1.5 | 1100 | 1300 | 40 | 40 | 400 | 18 |
1500L | 1.5 | 1300 | 1350 | 40 | 40 | 400 | 18 |
2000L | 2.2 | 1500 | 1400 | 40 | 50 | 400 | 24 |
3000L | 3 | 1600 | 1645 | 40 | 50 | 400 | 36 |
4000L | 4 | 1800 | 1695 | 40 | 50 | 400 | 36 |
5000L | 5.5 | 1900 | 2025 | 40 | 65 | 400 | 54 |

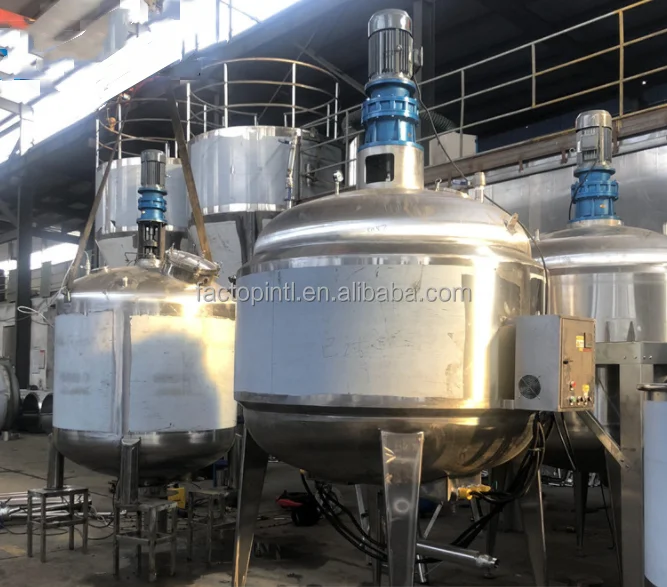

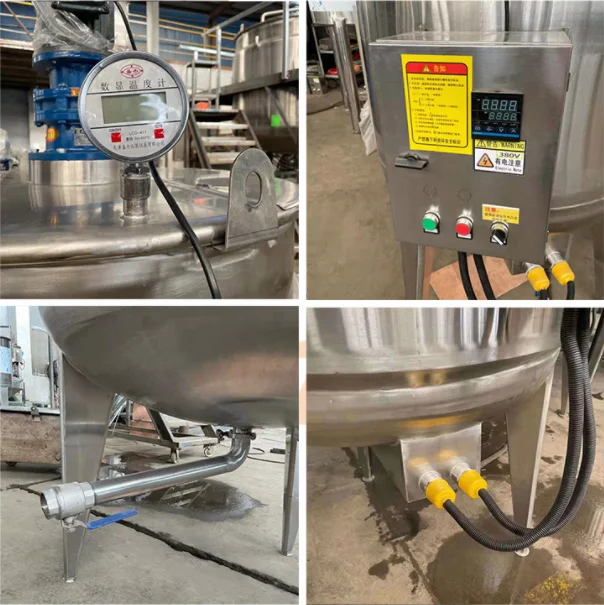

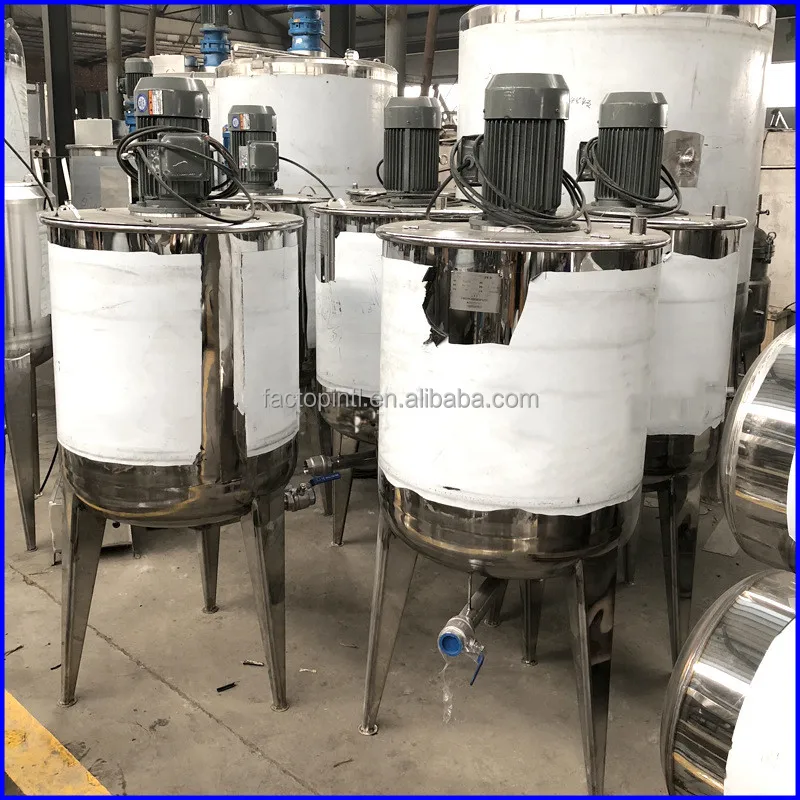

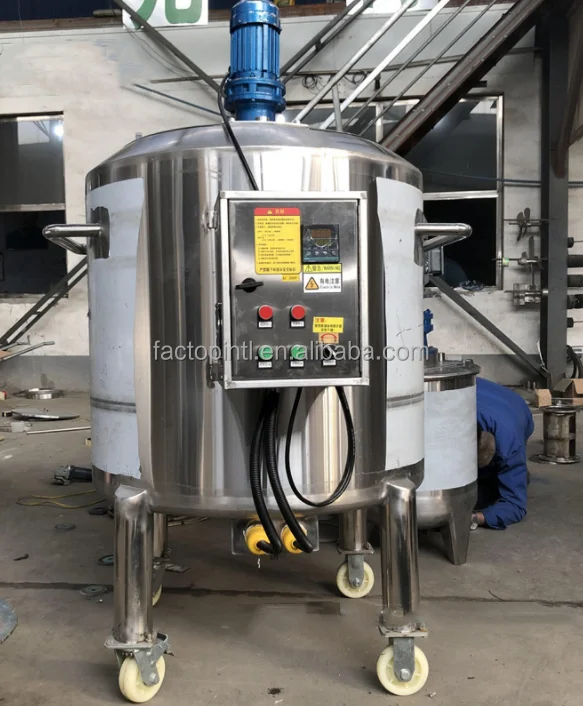

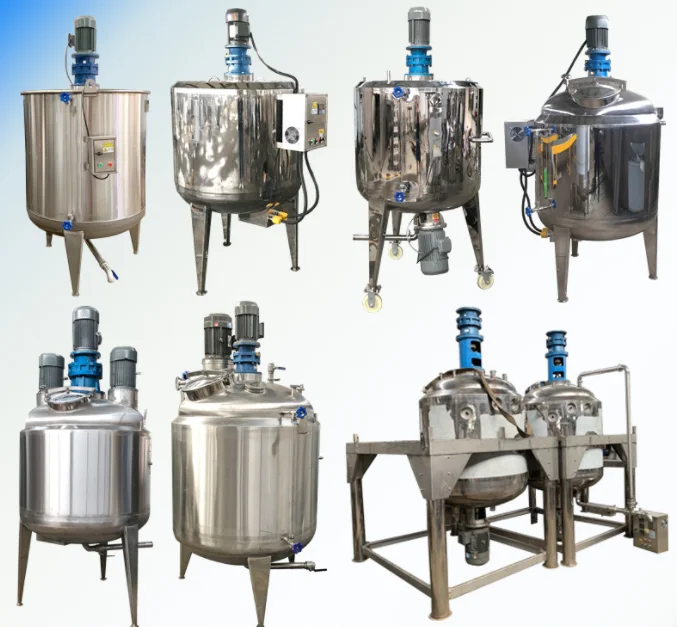

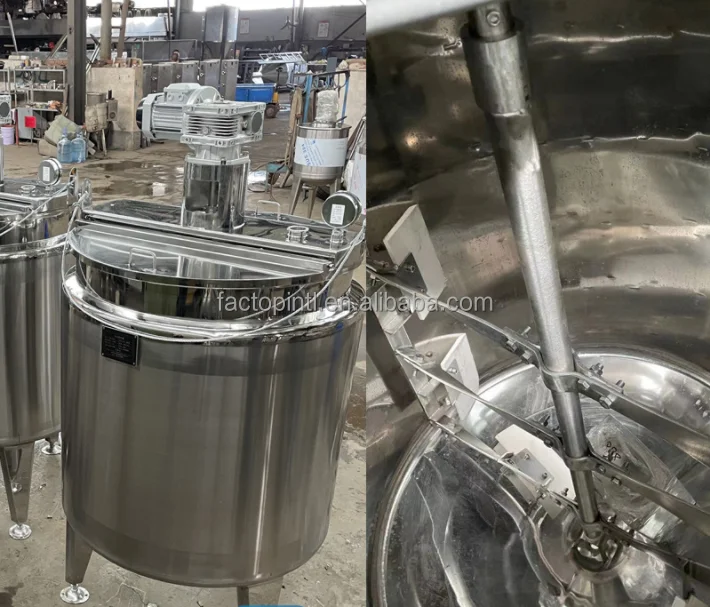

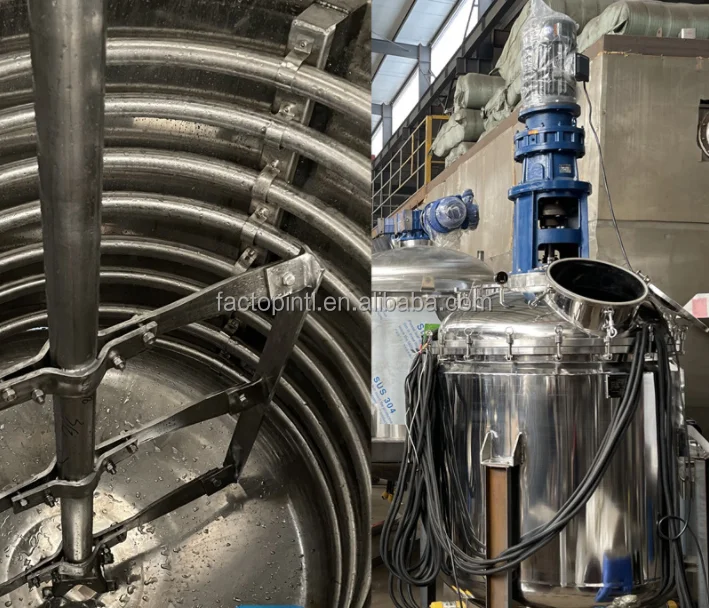

Real Photos
Application
The stainless steel vacuum emulsification tank is a necessary equipment for making laundry detergent, toothpaste, detergent, shower gel, shampoo and other products. The vacuum emulsification tank can reduce the bubbles of these materials to a low level. Emulsification can increase the stability and surface finish of the material.

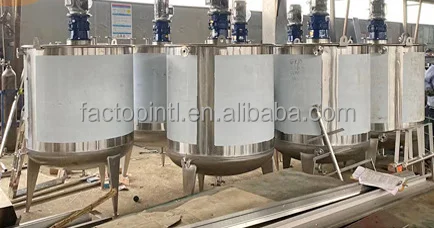

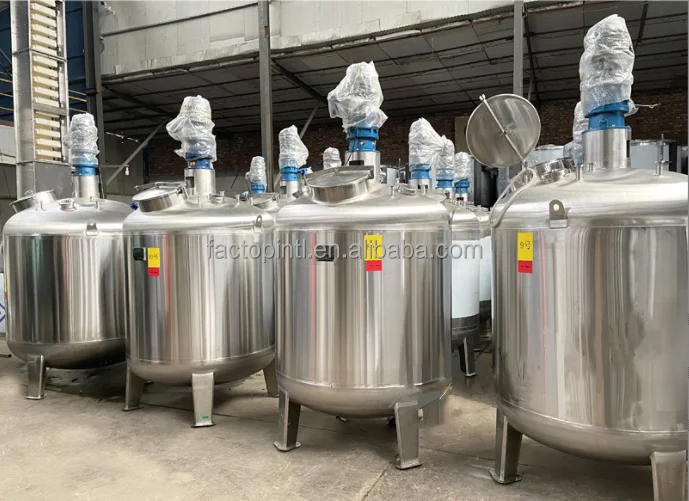

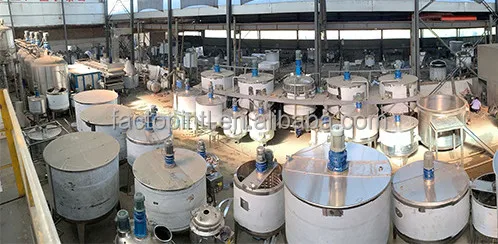

Factory Wearhouse
