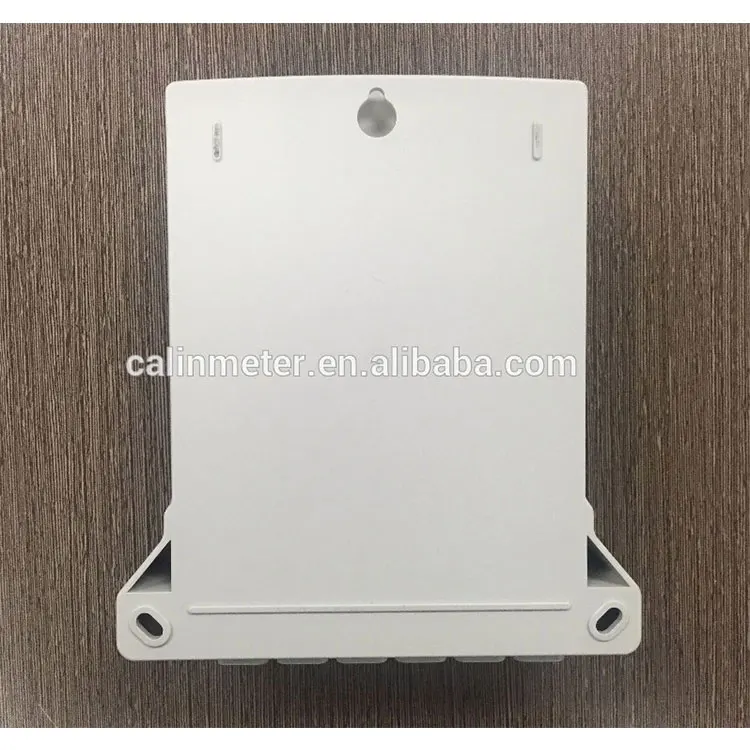

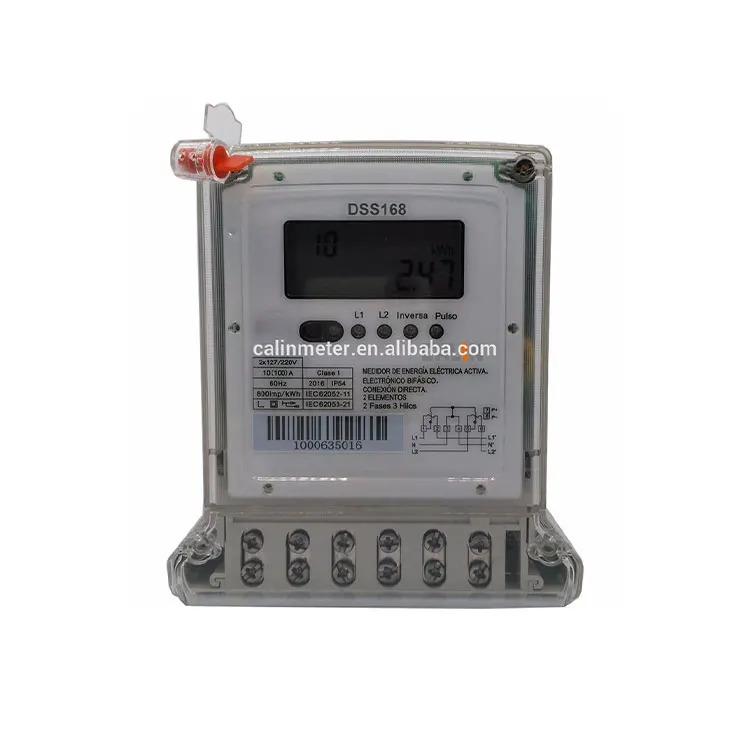

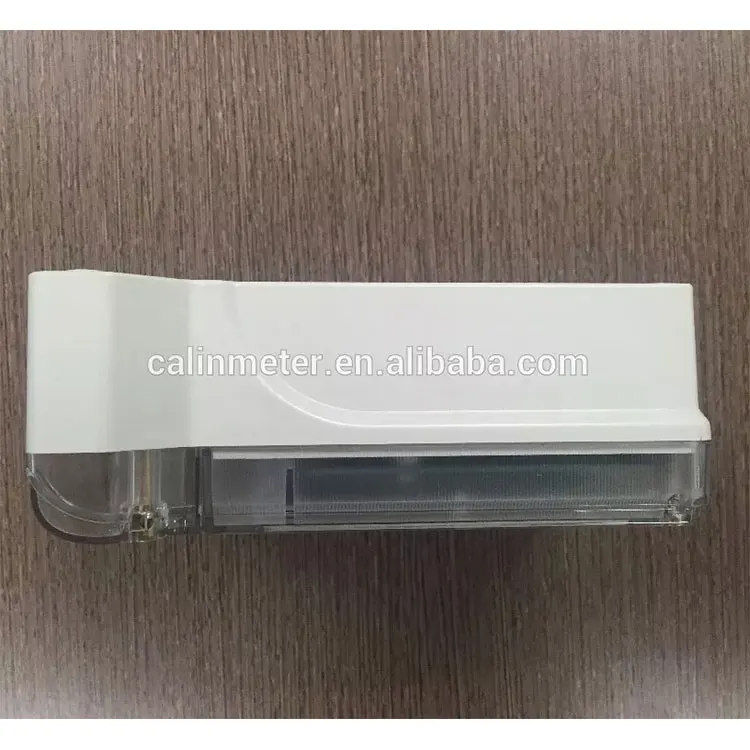

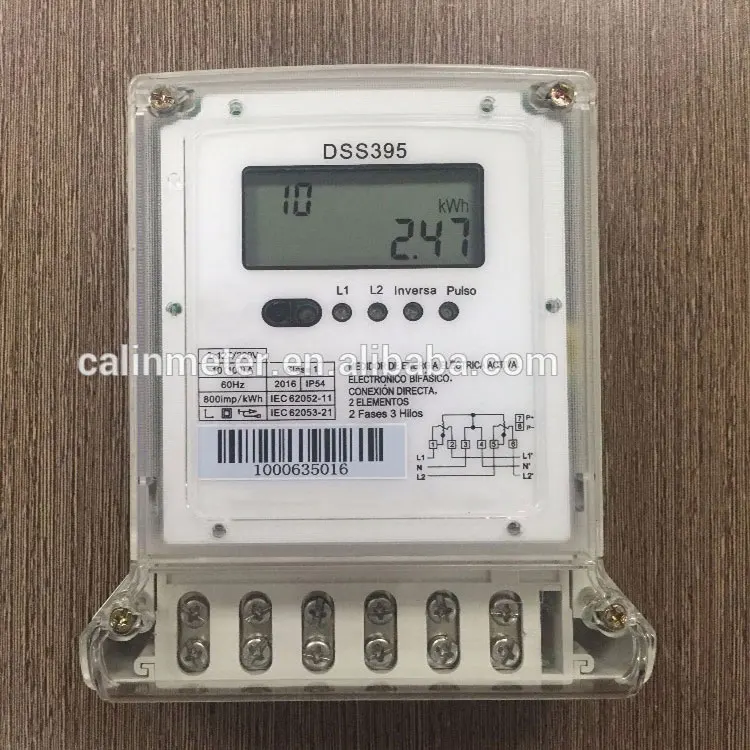

Two Phase Three Wire Electronic Electric Electricity Energy Meter Power Meter Kwh Meter Watt hour Meter
- Category: >>>
- Supplier: Shenzhen Calinmeter Co. Ltd.
Share on (1600548253652):
Product Overview
Description
User Benefits
1. On request, PLC/RF/GPRS Communication support.
2. Time of Use (TOU). Muti-tariff, holiday setting
3. 15 years designed life
4. According to user needs, Banlance alarm can be setting
5. Easy connection to User Interface Unit (UIU) for split type applications
Main Features
1. Prograrmmable under and over voltage trip
2. Enhanced tamper detection
3. Reverse energy measurement
4. Lage-capacity magnetic latch relay control, measure energy in security mode
5. Tamper shutdown protection
6. Load control, Over load switching automatically
7. IP54 rated
Specification
1. On request, PLC/RF/GPRS Communication support.
2. Time of Use (TOU). Muti-tariff, holiday setting
3. 15 years designed life
4. According to user needs, Banlance alarm can be setting
5. Easy connection to User Interface Unit (UIU) for split type applications
Main Features
1. Prograrmmable under and over voltage trip
2. Enhanced tamper detection
3. Reverse energy measurement
4. Lage-capacity magnetic latch relay control, measure energy in security mode
5. Tamper shutdown protection
6. Load control, Over load switching automatically
7. IP54 rated
Specification
Nominal Voltage Un | 220V |
Extended Operating Voltage Range | 80%~115% Un |
Limited Voltage | 70%~120% Un |
Nominal Frequency | 50HZ/60Hz |
Tolerance | 5% |
Basic Current (Ib) | 10A |
Maximum Current (Imax) | 100A |
Starting Current (Ist) | 30mA |
Active Energy Constant | 400 imp/kWh |
Active Energy to IEC62053-21 | Class 1.0 |
Active Energy to IEC62053-23 | Class 2.0 |
Power consumption in Voltage circuit | <2W <8VA |
Power consumption in Current circuit | <1VA |
Operation Meter | -25℃ ~ +70℃ |
Storage | -40℃~ + 85℃ |
AC insulation strength | 4KV at 50Hz during 1 min |
Inpulse Voltage 1.2/50 μs mains connections | 8 KV |
Contact discharge | 8 KV |
Air discharge | 16 KV |
27 MHz to 500 MHz typital | 10V/m |
100kHz to 1GHz typital | 30V/m |
Fast transient burst | 4KV |
Meter Shell Protection Rate | IP 54 |
Protection | Calss Ⅱ |
Q: Are you a trade company or a manufacturer?
A: We are a original meter manufacturer and solution provide, we can provide more support for you.
Q: Do you provide samples for testing, free or extra?
A: We can provide samples, but we will charge reasonable cost.
Q: What's paypment terms you accept?
A: Paypal/West Union/ T/T / L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shippment.
Q; How long is your delivery time?
A: Generaly it is 5-10 days if the goods is stock, or it is 15-30 days based on your order quantity.
A: We are a original meter manufacturer and solution provide, we can provide more support for you.
Q: Do you provide samples for testing, free or extra?
A: We can provide samples, but we will charge reasonable cost.
Q: What's paypment terms you accept?
A: Paypal/West Union/ T/T / L/C is available. payment ≤USD2000, 100% In advance. payment>USD2000, 30% in advance by T/T, balance payment before shippment.
Q; How long is your delivery time?
A: Generaly it is 5-10 days if the goods is stock, or it is 15-30 days based on your order quantity.
