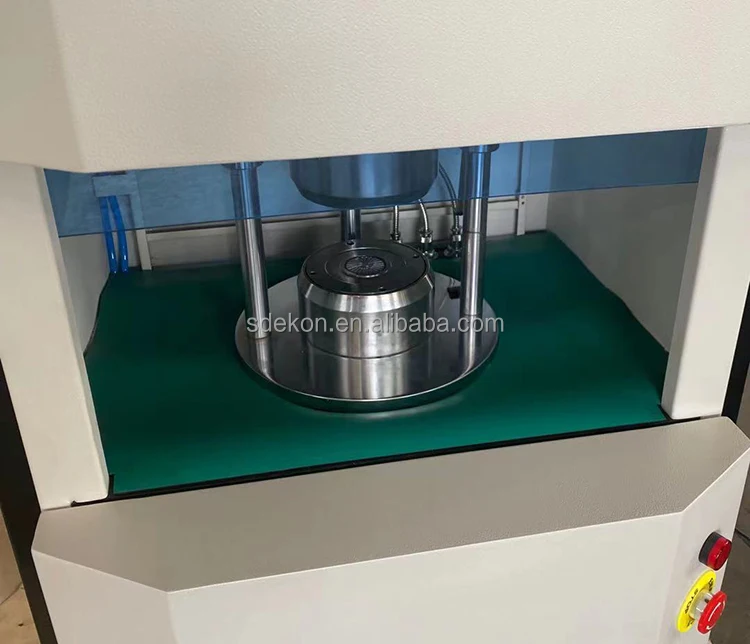

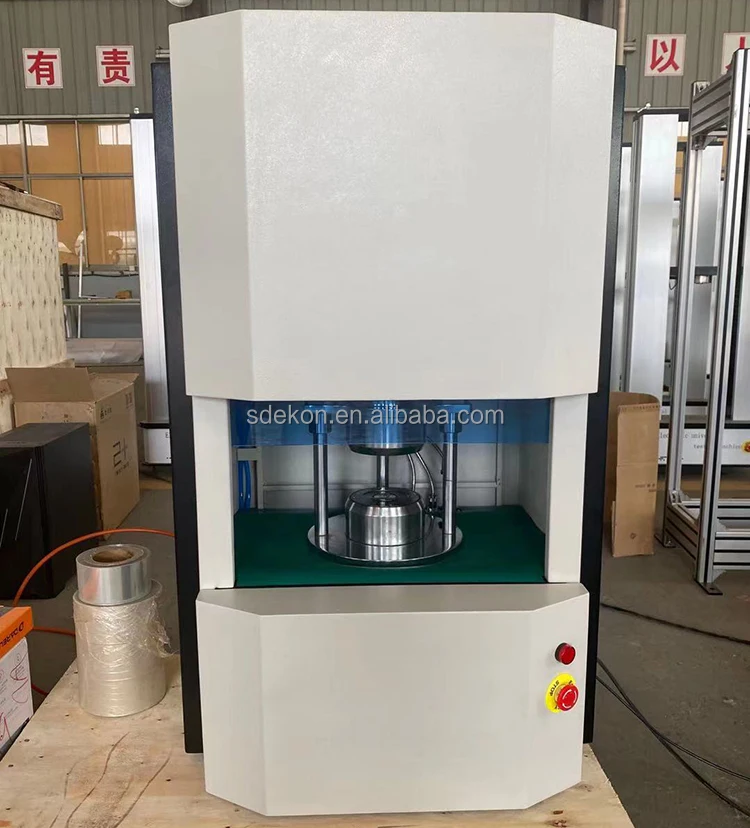

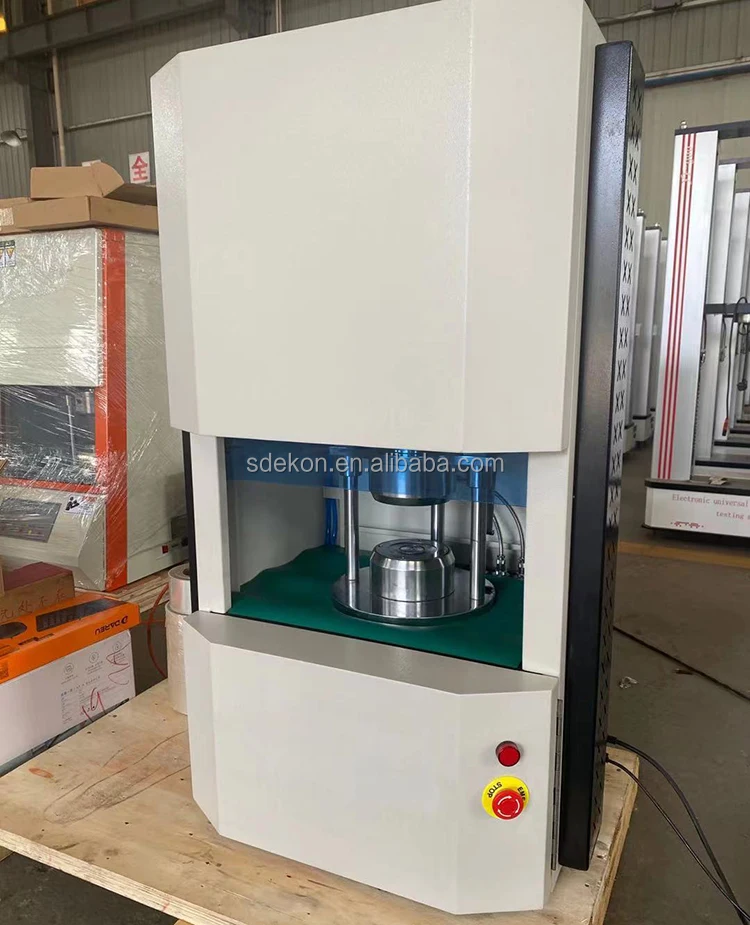

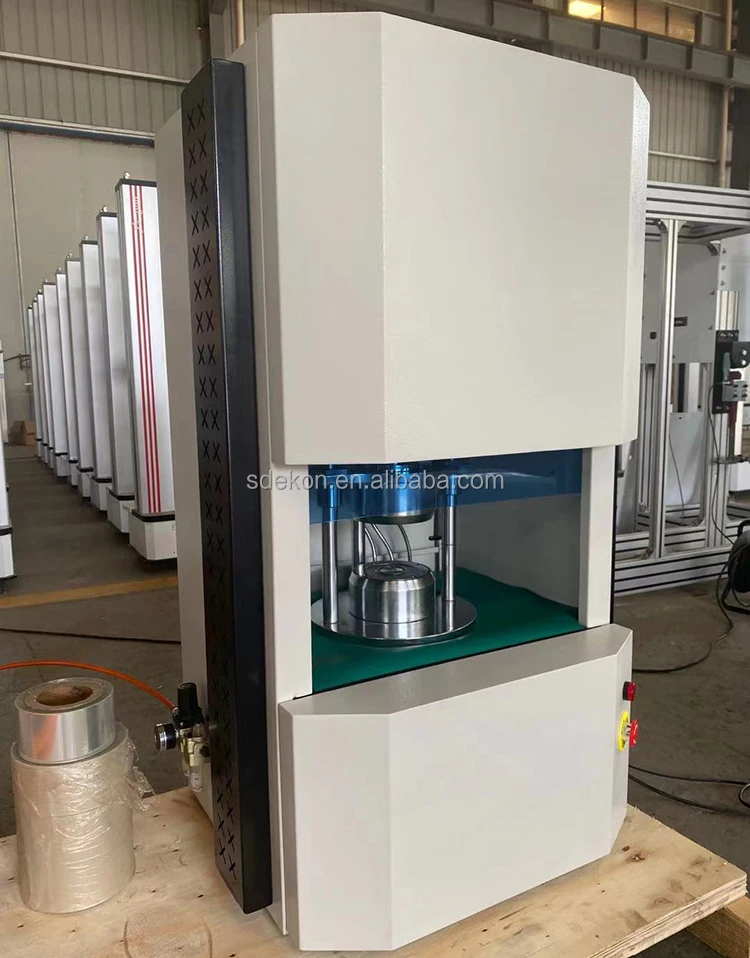

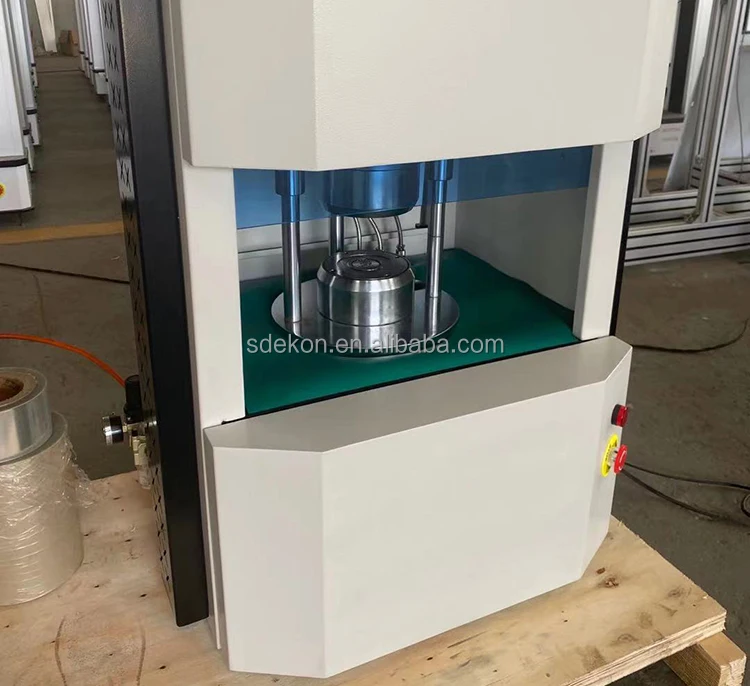

DK 8105 Computer Control No Rotor Rubber Rheometer

Product Overview

Description

DK-8105

Computer Control No Rotor Rubber Rheometer



Applications:
DK-8105 Computer Control No Rotor Rubber Rheometer is used to determine characteristics

of unvulcanized rubber and find out the most suitable vulcanization time of rubber compound.
It adopts imported intelligent digital temperature control instrument, which is easy to adjust

and set, wide temperature control range and high control precision.

Its stability, reproducibility and accuracy are superior to those of general rotor vulcanizer.
It is using computer control and interface board to collect, save, process and print the test

results makes the function more powerful.

It fully shows the characteristics of high automation.

It also has the functions of curve comparison and enlargement.



Main Specification:

Model	DK-8105
Measuring Range	0℃ - 200℃
Temperature Measurement Accuracy	≤±0.3℃
Control Accuracy	≤±0.3℃
Temperature Resolution	0.1℃
Torque Range	0 - 10 N.m; 0 - 20.m N
Torque Resolution	0.001 N.m
Cavity Frequency	1.7 Hz
Amplitude	±0.5º±1º
Ambient Temperature	0-35℃ Relative Humidity
