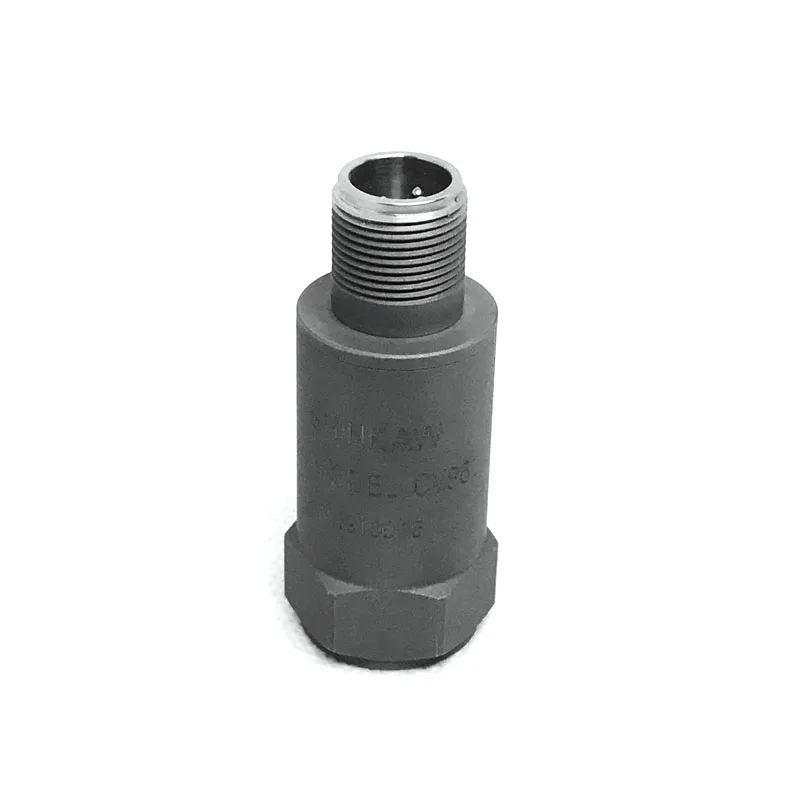

ICP/IEPE Piezoelectric Ceramic Vibration Sensor Accelerometer For Fan Motor Water Pump
- Category: >>>
- Supplier: Chengdu Liangzhuo Technology Co. Ltd.
Share on (1600548280271):
Product Overview
Description
Product Description

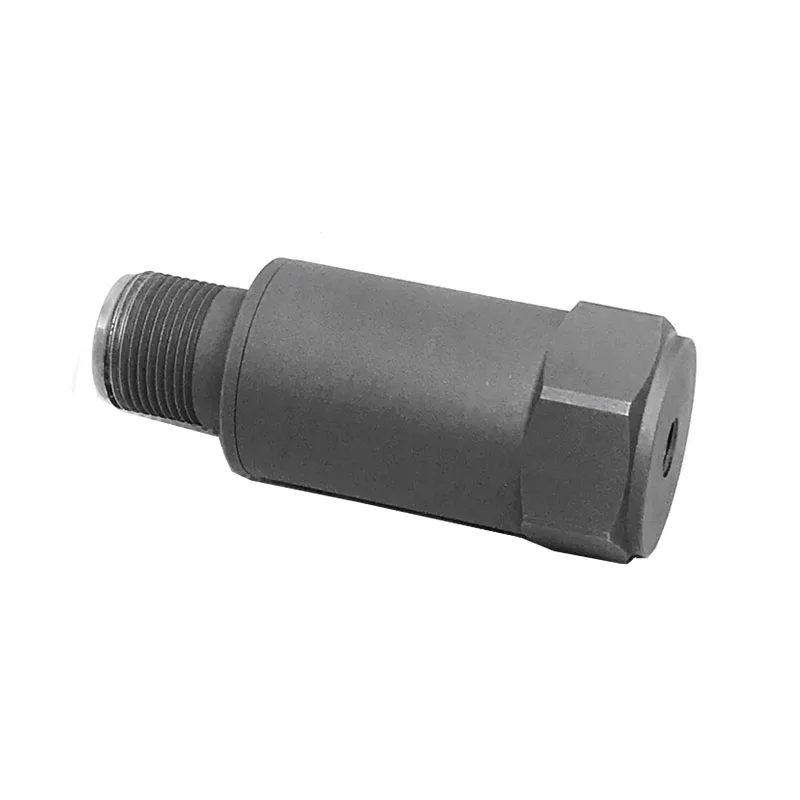

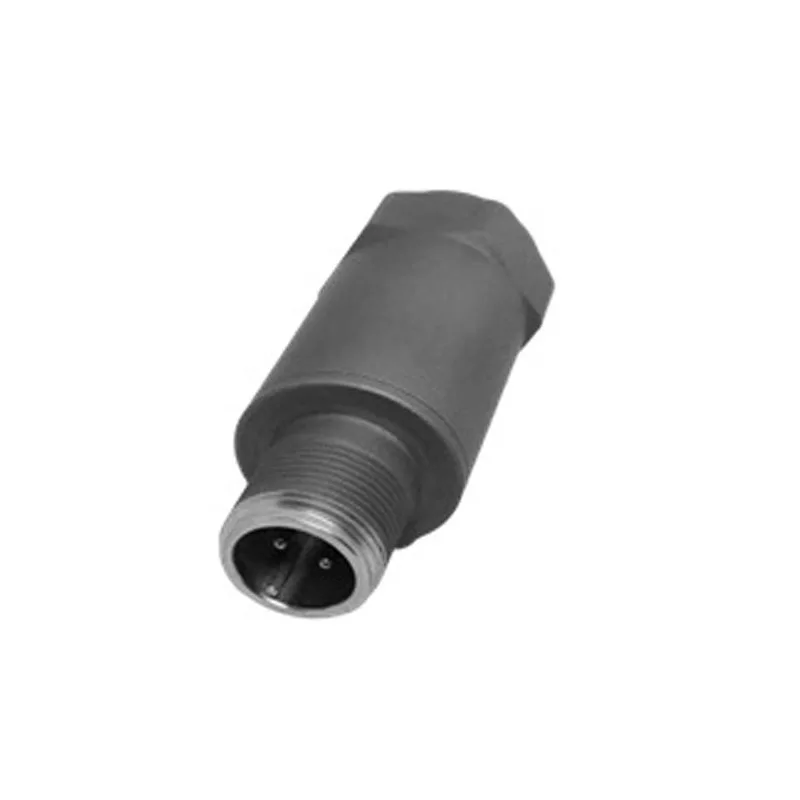

Piezoelectric Ceramic Vibration Sensor
Fetures
● Two-core low-voltage output, with shielded cable, double-layer isolation and shielding structure.
● Low noise, anti-interference.
● The signal ground is insulated from the housing.
● The signal ground is insulated from the housing.
● Sealed and waterproof.
Specification
Physics Properties | Structural Style | Cutting |
Shell Material | 304 Stainless Steel | |

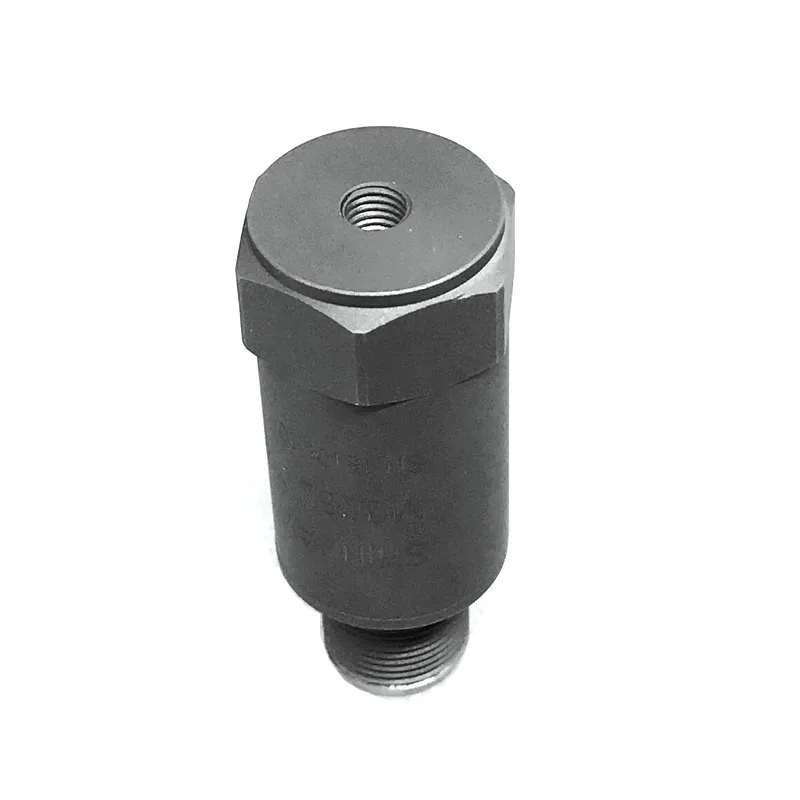

Installation | M6 | |
Weight | 95g | |
Electrical Properties | Range | ±10g pk |
Sensitivity | 50mV/g | |
Frequency Response | 0.1-5000Hz | |
Power parameters | Transverse Sensitivity Ratio | ≤5% |
Resonance frequency | 17kHz | |
Shock limit | 500g | |
Maximum output signal | 5V | |
Operation Temp | ＜50mV | |
Environment Properties | Operating Voltage | ±12-24V(DC) |
Constant current | 2-10mA | |
Output impedance | ＜100Ω | |
Output | 5/8-24UNDF |
Details Images
Application

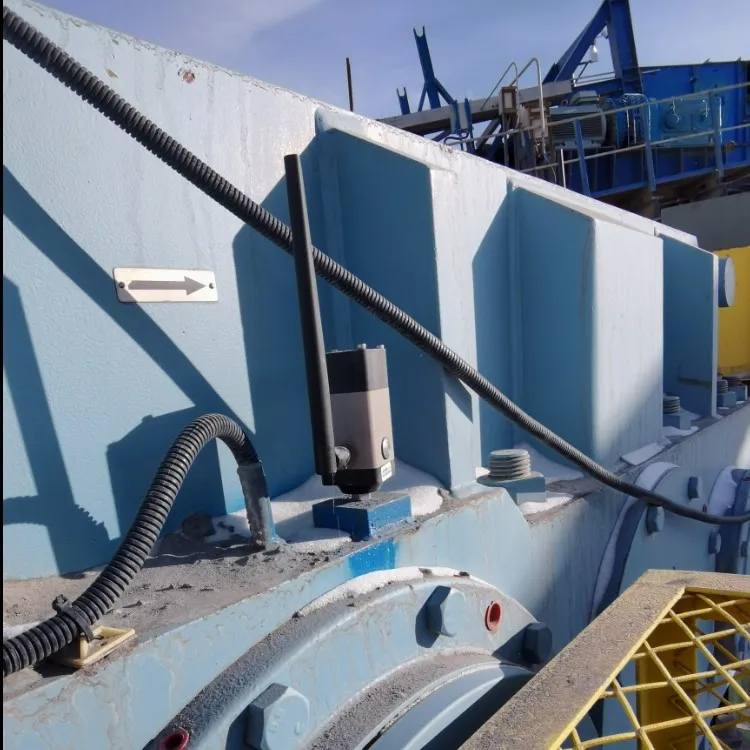

It is suitable for all users who need wide-frequency vibration detection, such as general and long-term vibration monitoring of automobiles, ships, bridges, wind power equipment, buildings, outdoor environments, etc.
Built-in integrated circuit sensor, the internal structure adopts advanced isolation shear structure, wide frequency range, stable and reliable technical performance. It can be used for long-term vibration monitoring. The output signal is a voltage signal that changes with the vibration state, which can be directly connected to a voltmeter or collector.
Company Profile
Chengdu Liangzhuo Technology Co., Ltd. is a manufacturer and exporter specializing in the development and production of sensors.
Our company has experienced design team, industry-leading R & D capability and strong manufacturing strength. In addition to independent research and development, we have also cooperated with many universities and factories in various aspects, and have obtained a number of patents and certifications. Unique technology enables our products to be widely used in various manufacturing plants, railways, bridges and environmental protection and many other fields.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us, we sincerely hope to establish friendly business relations with customers from all over the world.
Our company has experienced design team, industry-leading R & D capability and strong manufacturing strength. In addition to independent research and development, we have also cooperated with many universities and factories in various aspects, and have obtained a number of patents and certifications. Unique technology enables our products to be widely used in various manufacturing plants, railways, bridges and environmental protection and many other fields.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us, we sincerely hope to establish friendly business relations with customers from all over the world.
Certifications
FAQ
Q: What are the three axes of the vibration sensor?
A: Refers to the vibration data in three different directions. Some customers misunderstand that the three axes refer to
acceleration, velocity, and amplitude, and this understanding is wrong.
Q: Why do you want to measure the data in the three-axis direction of the rotating equipment?
A: It can comprehensively and accurately understand the motion state of the equipment, and realize the fault early warning of the
equipment in different axes (X, Y, Z).
Q: Why monitor the acceleration, velocity, amplitude of the equipment?
A: 1. Amplitude, the position and friction of the equipment can be known, which is convenient for people to identify the vibration
state and find the vibration source.
2. Speed, which reflects the fatigue stress on the related structure of the equipment, which is an important reason for the
failure of rotating equipment.
3. Acceleration, which measures the speed of the equipment in space, reflects the comprehensive action of various forces inside the equipment and the abnormal vibration state.
A: Refers to the vibration data in three different directions. Some customers misunderstand that the three axes refer to
acceleration, velocity, and amplitude, and this understanding is wrong.
Q: Why do you want to measure the data in the three-axis direction of the rotating equipment?
A: It can comprehensively and accurately understand the motion state of the equipment, and realize the fault early warning of the
equipment in different axes (X, Y, Z).
Q: Why monitor the acceleration, velocity, amplitude of the equipment?
A: 1. Amplitude, the position and friction of the equipment can be known, which is convenient for people to identify the vibration
state and find the vibration source.
2. Speed, which reflects the fatigue stress on the related structure of the equipment, which is an important reason for the
failure of rotating equipment.
3. Acceleration, which measures the speed of the equipment in space, reflects the comprehensive action of various forces inside the equipment and the abnormal vibration state.
