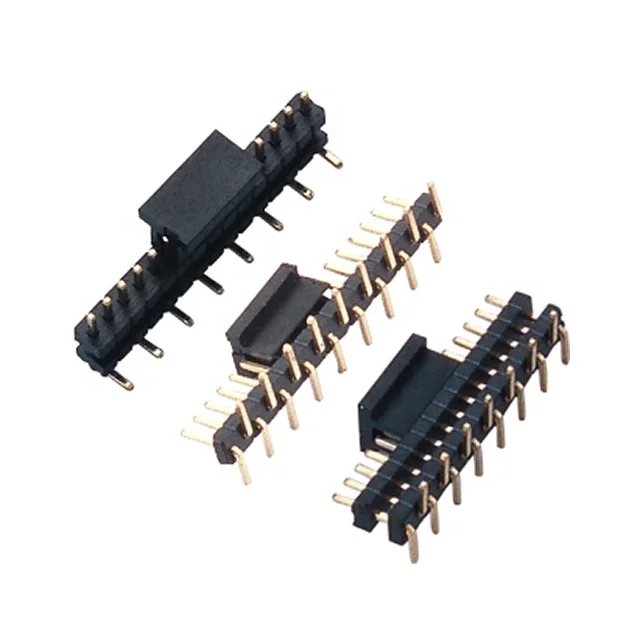

1.27*2.54mm Pitch SMD SMT Type Male Header H2.5 Dual Row Pin Header Connector
1.27*2.54mm Pitch SMD SMT Type Male Header H2.5 Dual Row Pin Header Connector
1.27*2.54mm Pitch SMD SMT Type Male Header H2.5 Dual Row Pin Header Connector
1.27*2.54mm Pitch SMD SMT Type Male Header H2.5 Dual Row Pin Header Connector
1.27*2.54mm Pitch SMD SMT Type Male Header H2.5 Dual Row Pin Header Connector
1.27*2.54mm Pitch SMD SMT Type Male Header H2.5 Dual Row Pin Header Connector
1.27*2.54mm Pitch SMD SMT Type Male Header H2.5 Dual Row Pin Header Connector

1.27*2.54mm Pitch SMD SMT Type Male Header H2.5 Dual Row Pin Header Connector

Share on (1600548302265):


Price:

Quantity:


Product Overview

Description





Place of Origin
GUA
Brand Name
BSC
Model Number
1525-22XXXWXXMXXXX01
Type
ADAPTER
Application
PCB
Gender
Male
Product name
Electrical Connector
Type
Right angle/Straight/SMT
Rated Current
1.0AMP
Contact Resistance
20mΩ Max
Withstand Voltage
500V AC/DC
Insulation Resistance
1000MΩ Min
Contact Material
Brass
Contact Plating
Au or Sn over Ni
Insulator Material
PBT/PA6T/PA9T/LCP black+30%GF
Operation Temperature
-40°C to + 105°C














Pin header is a form of electrical connector, it can be widely used in PCB circuit boards of various electronics, electrical appliances, instrumentation and instruments. Especially in the PCB board of the integrated circuit. A male pin header consists of one or more rows of metal pins molded into a plastic base, available in many spacing.


1. Cost-effective.
2. Easy to transport.
3. Widely used.
4. ROHS-Compliant
5. High stability
Mating times are twice the industry standard
6. Long service life
The service life of more than 5 years
7. Anti-oxidation
Maintain anti-oxidation for more than 3 years.
8. High and low-temperature resistance
Can withstand changes in a temperature difference of 145℃.








Bestconn(Wuhan) Technology Co.,Ltd is a specialized provider of connector total solution, in developing and delivering reliable Bconnectors, cable, and wire harness that stand for quality, reliability, and convenience. Our products are widely used in electronic applications around the world including telecommunications, household appliances, electronic toys, automotive, medical equipment, and more. We can provide standard or custom products to your requirement. Creating superior products and the highest value for our customers is our ultimate goal. Welcome to join us and let’s link to the future together!




Products Range
PIN HEADERS/FEMALE HEADERS/EJECTOR HEADERS/BOX HEADERS/PLCC/IC SOCKET/IC ADAPTER/MACHINE FEMALE HEADER/MACHINE PIN HEADER/WAFER/DIP PLUG/IDC SOCKET/DIN41612/BOARD-TO-BOARD CONNECTOR/TERMINAL BLOCKS/MMICRO MATCH/CABLE ASSEMBLY
