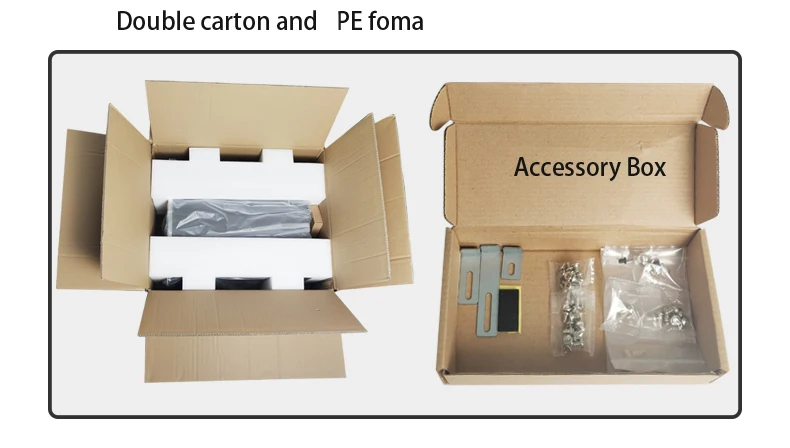

Packing Materials:Double carton and PE foam
Packing Size:85*60*27CM
Weight: 19.463KG
Delivery:3-7 days after payment via DHL,FedEx,UPS or your forwarder.
3u 16bays Hot swap storage server case rackmount computer case for Data Center and video server
- Category: >>>
- Supplier: Dongguan Qirui Hardware Technology Co. Ltd.
Share on (1600548371710):
Product Overview
Description
Product Description
Product Description

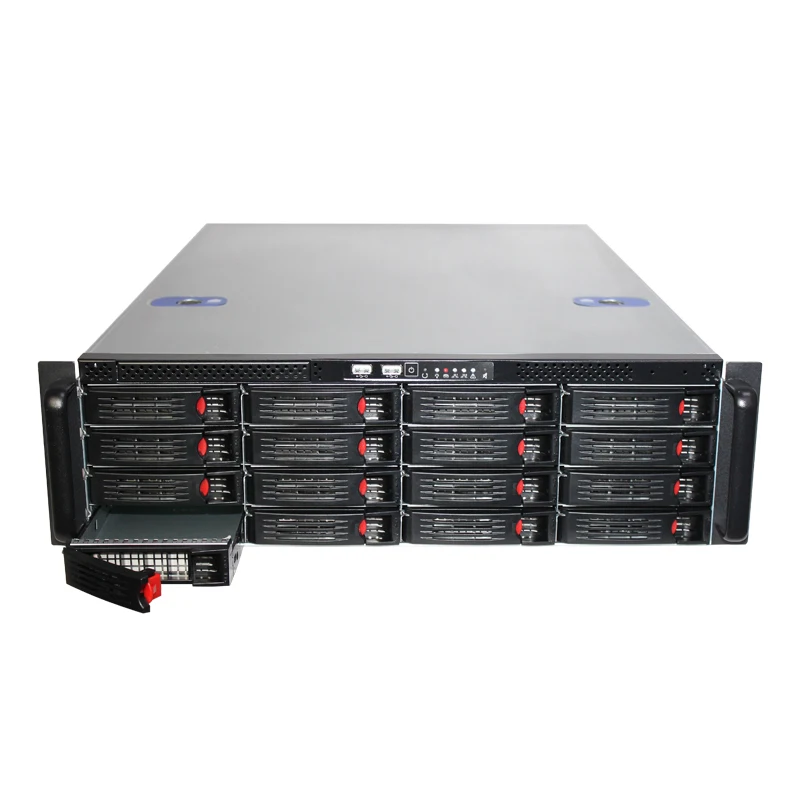

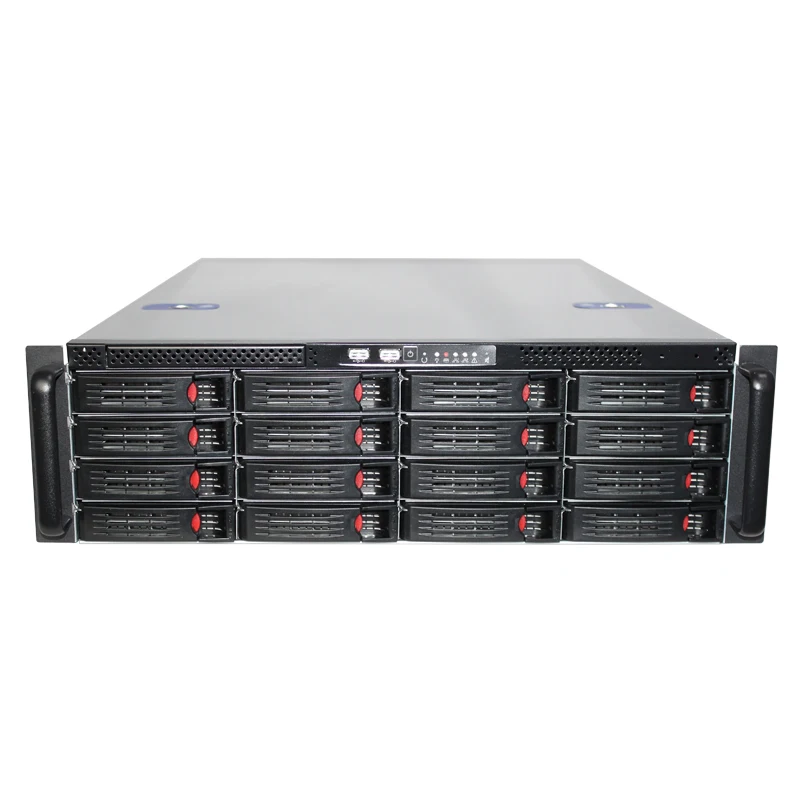

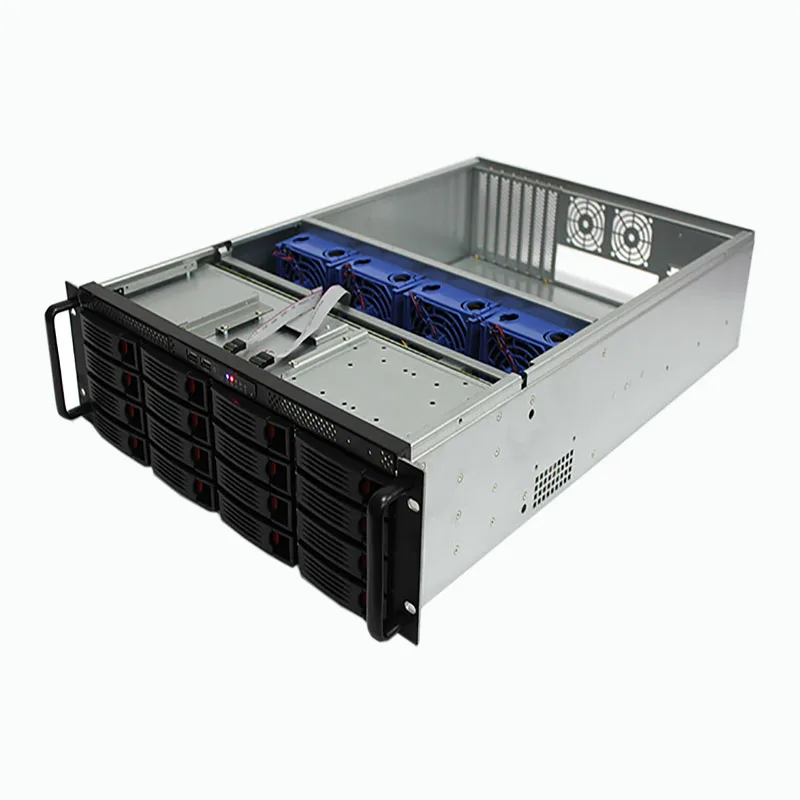

3u 16bays Hot swap storage server case rackmount computer case for Data Center and video server
3U 16bay 19inch Ultra Large Storage Rackmount Server Case
The 3U 16 hot swap bays chassis comes with optical drives, drive cages and other clutter and leave a big open platform allowing for creative modification.
It's Strong, with no wobble , It's ideal for many applications where old style chassis no longer make sense. It can take dual
front 80MM fans with easy clean dust filters.You can still add storage drives at the top of the chassis on a cross member.
Feature
1. 16 x hot-swappable SATA/SAS interfaces,sixteen 3.5" plus two 2.5" OS drive brackets for maximum configuration flexibility.,also 2-24 bays are alternative.
2. Support mainboard up to 12"* 13"(305 * 345MM),compatible with EATX,ATX,MATX,ITX mainboard.
3. Support sixteen hot swap SAS/SATA III drives
4. Come with one notebook slim optical drive room

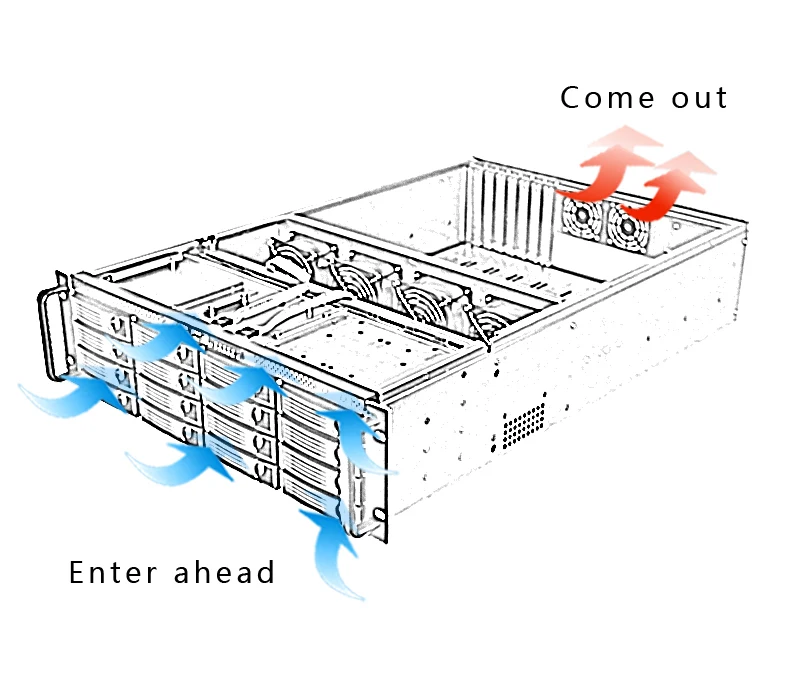

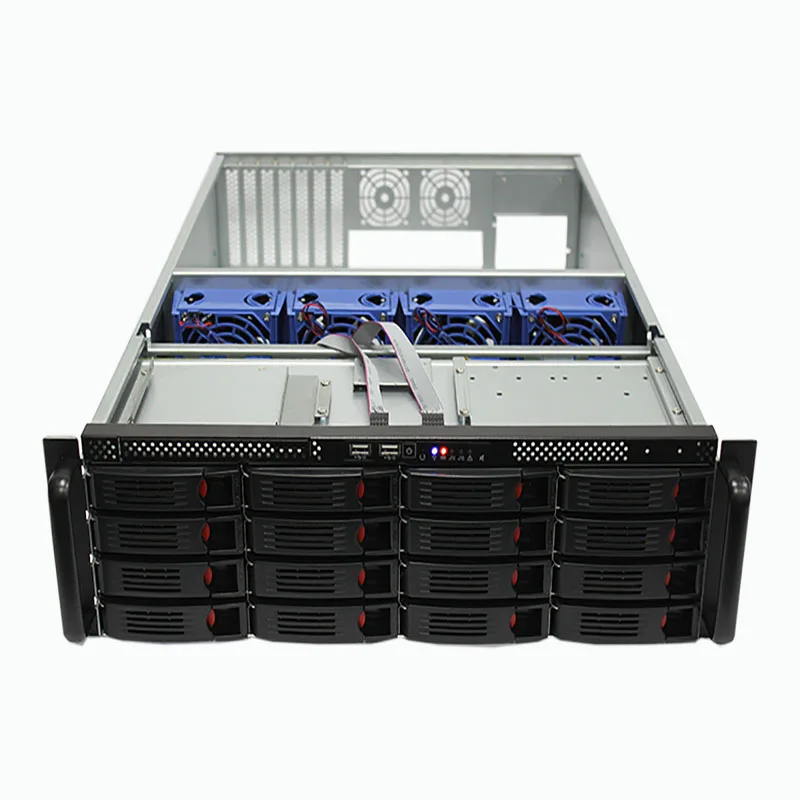

5. Come with four standard 80mm fans for superior airflow
5. Come with four standard 80mm fans for superior airflow
6. User friendly design on lifting handle (stand-alone)
7. Truly isolated anti-vibration design on internal HDD and drive cages
8. Support 2U PSU
8. Support 2U PSU
9. Front two USB2.0 ports
10. Card retainers to hold seven full height and vertical add-on cards
11. Support all operating systems
12. CE,RoHS Compliant
Application
All typical industrial market segments:
1.Data acquisition for Gauging, Statistical Process Control and automatic machinetool control applications
2.Stand-alone or networked controller for data collection
2.Stand-alone or networked controller for data collection
3.Handling equipment, motion control
4. Manufacturing, cell controllers
5.General automation and factory applications

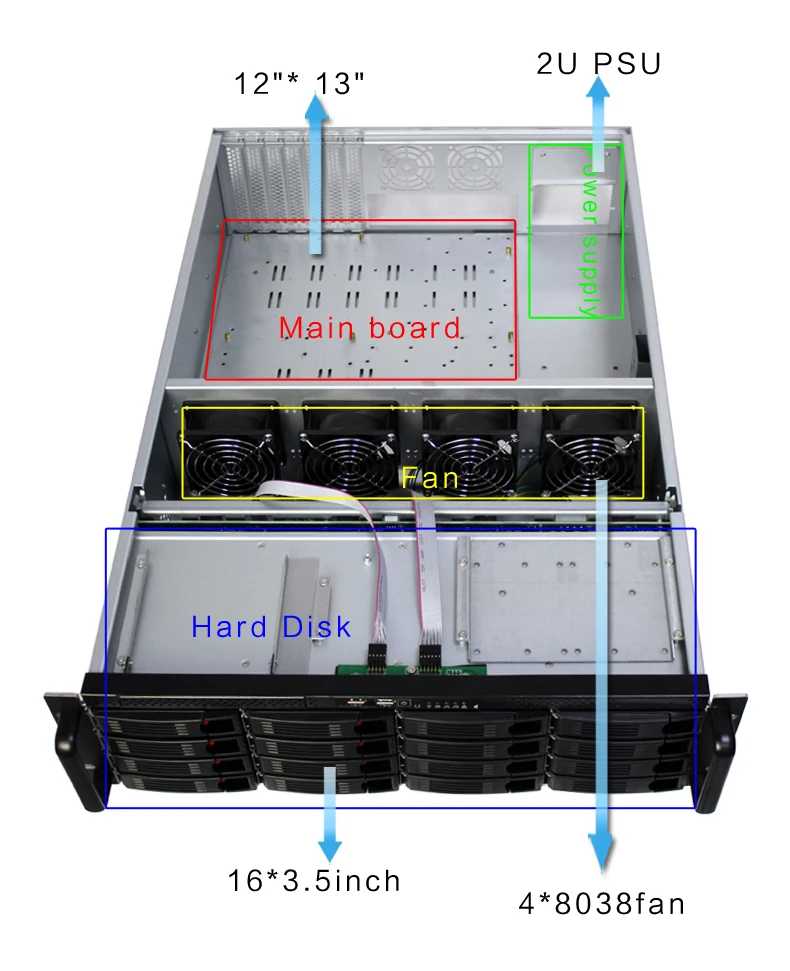

Technical Details
Technical Details
Model | R366-16 |

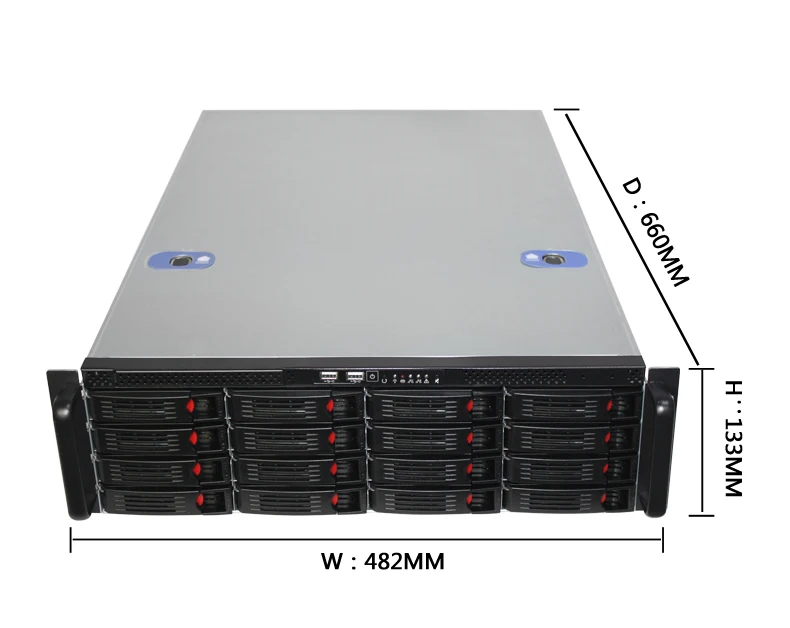

Dimensions | 482(W)*660(D)*133mm(H) |
Main Board | 12"* 13"(305 * 345MM) |
Hard Disk | 16*3.5-inch Hot Swap Hard Disks,Two 2.5-inch Hard Disks |
CD-ROM | one notebook optical drive room |

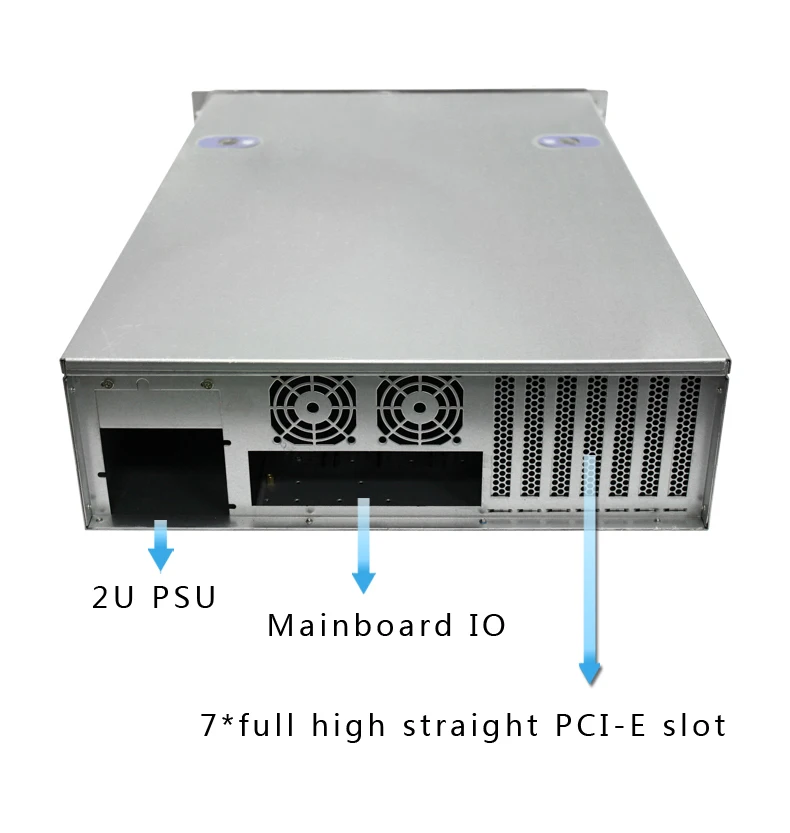

Power | 2U PSU |
Fan | 4*8038 cooling fan |
Expansion Slot | 7 full height and vertical PCI-E slot |
Panel Setting | Two USB2.0;One Power Switch;One Restart Switch;One Power Indicator;One HD Indicator;Two Yellow Network Connection Indicator |
Case Material | SGCC |
Material Thickness | 1.2MM |
Packaging size | 85*60*27CM |
G.W | 19.463KG |
N.W | 15.187KG |

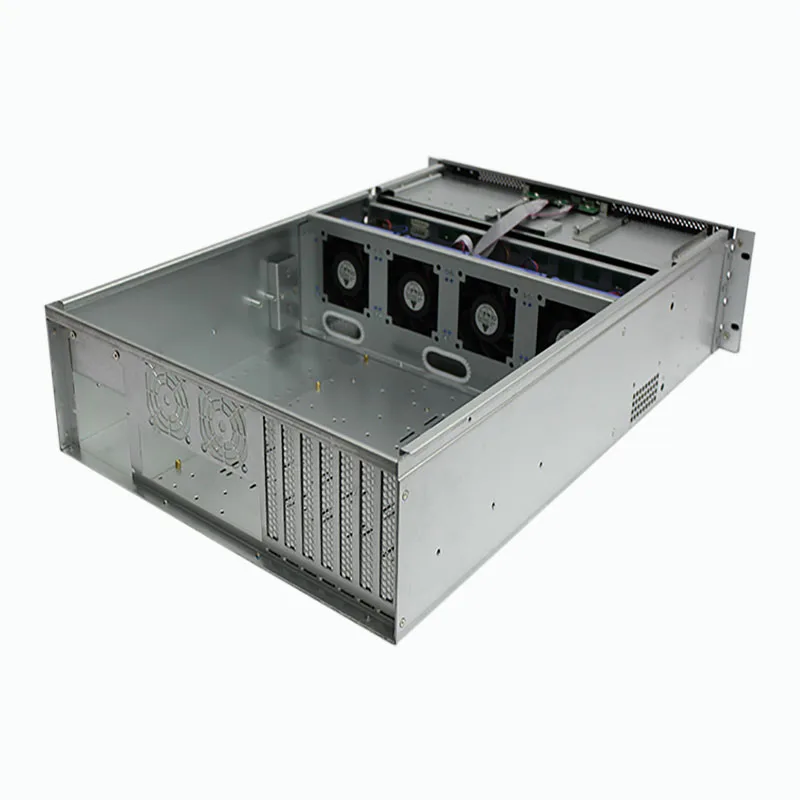

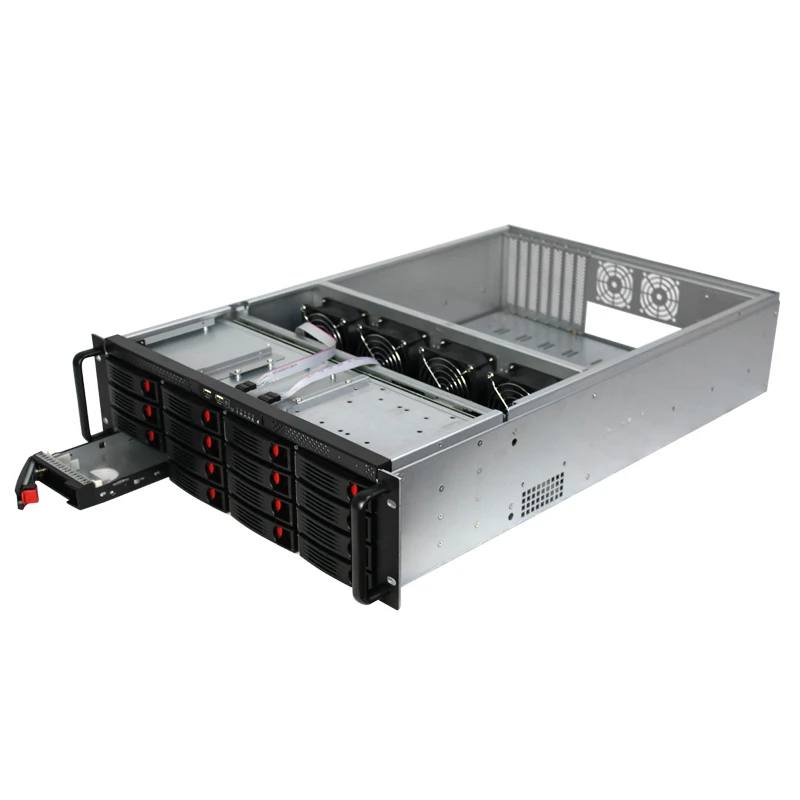

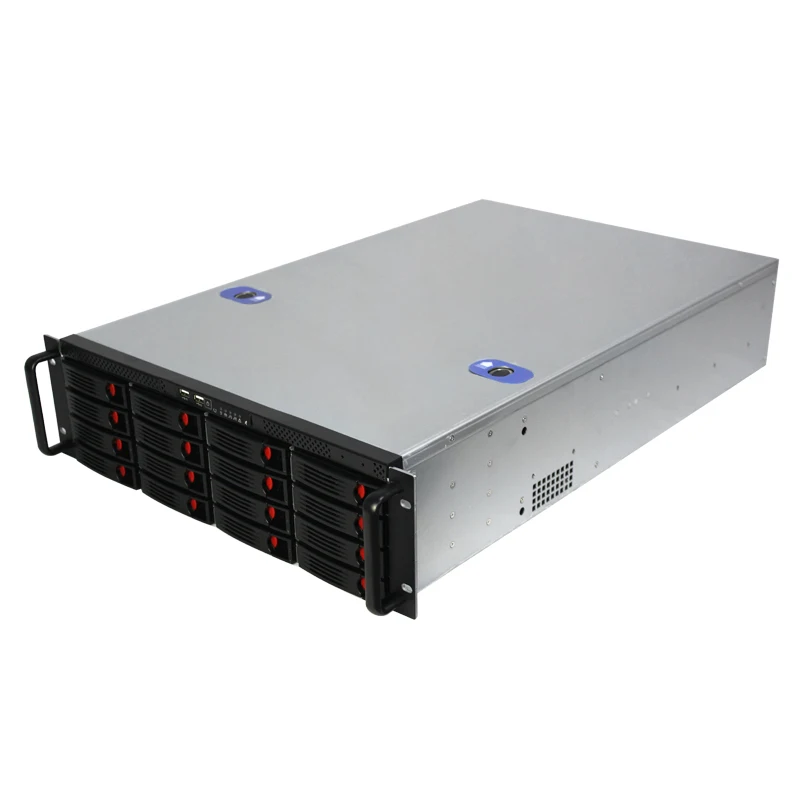

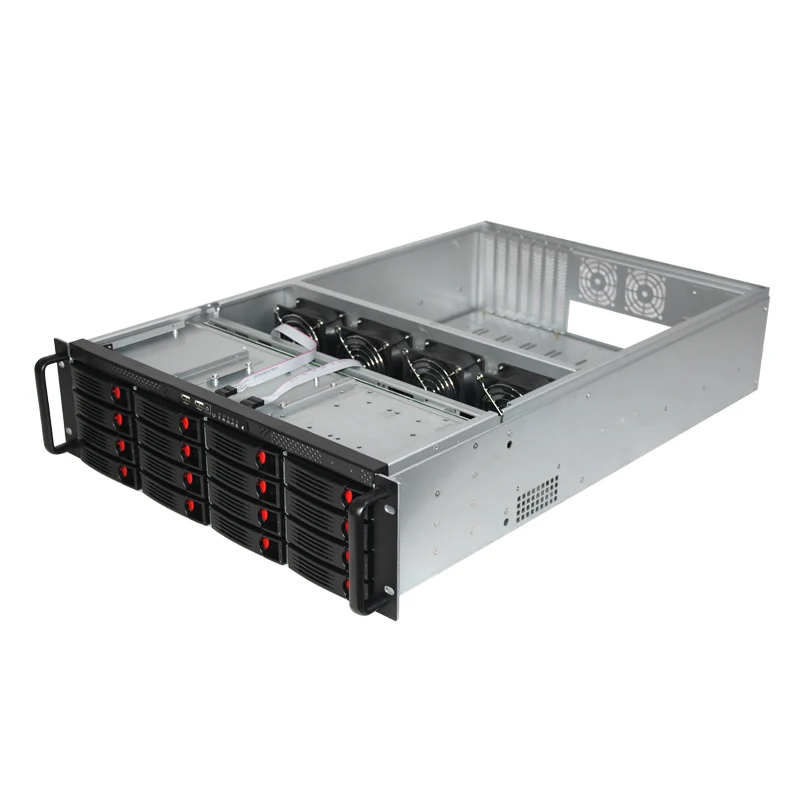

Detailed Images
Detailed Images

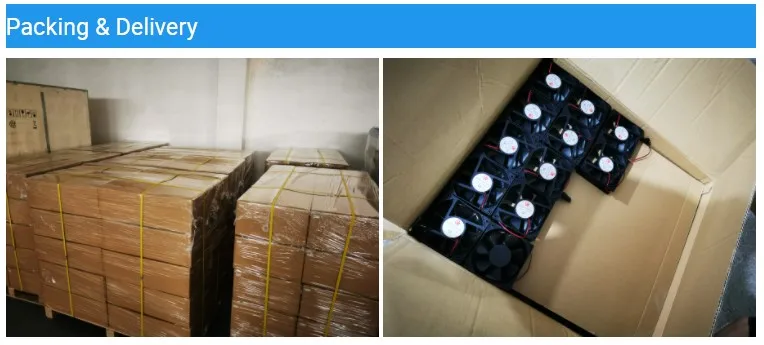

Packing & Delivery
Packing & Delivery
Packing Size:85*60*27CM
Weight: 19.463KG
Delivery:3-7 days after payment via DHL,FedEx,UPS or your forwarder.
FAQ
FAQ
Q1:Can you get better price?Or discount?
Yes.We can give you discount,but it's based on quantity,bigger quantity,more attractive price.
Q2:OEM/ODM?
Yes,we accept OEM and ODM,send us 2D/3D drawing please if you have.
Q3:How about the payment terms?
T/T,Trade Assurance,Money Gram,WU,paypal etc before shipment.
Q4:Can you be responsible for shipment?
We will organize and arrange all transportation after finishing production,and the freight will be paid by yourself in general.
Our all products ships by air(usually via FedEx UPS and DHL,or your own forwarder),which ensures you can receive the goods within 7-10 days,also can be shipped by sea,just according to your demand.
Q5:Lead time for bulk order?
If we have enough stock,3-7 work days after payment.
Q6:What is your warranty period?
Warranty is 1 years,not include man-made damage.
Yes.We can give you discount,but it's based on quantity,bigger quantity,more attractive price.
Q2:OEM/ODM?
Yes,we accept OEM and ODM,send us 2D/3D drawing please if you have.
Q3:How about the payment terms?
T/T,Trade Assurance,Money Gram,WU,paypal etc before shipment.
Q4:Can you be responsible for shipment?
We will organize and arrange all transportation after finishing production,and the freight will be paid by yourself in general.
Our all products ships by air(usually via FedEx UPS and DHL,or your own forwarder),which ensures you can receive the goods within 7-10 days,also can be shipped by sea,just according to your demand.
Q5:Lead time for bulk order?
If we have enough stock,3-7 work days after payment.
Q6:What is your warranty period?
Warranty is 1 years,not include man-made damage.
