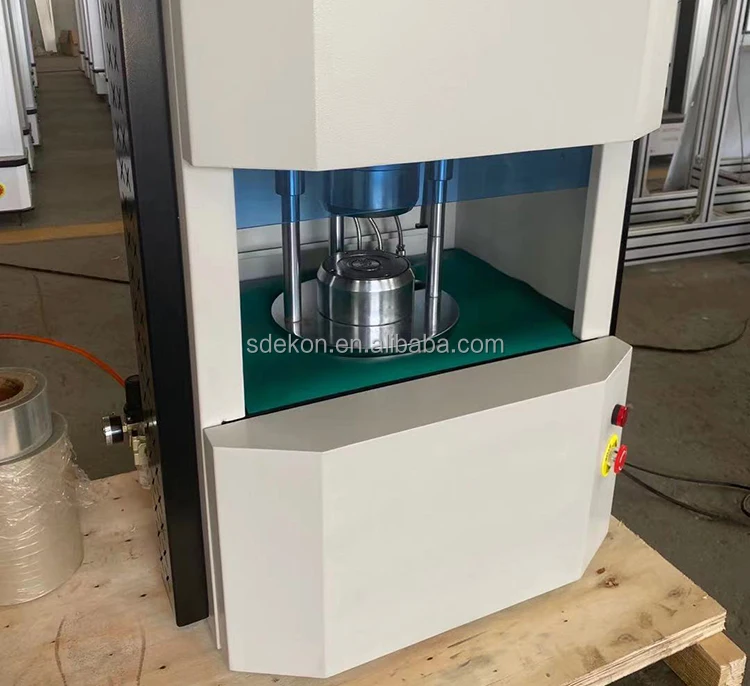

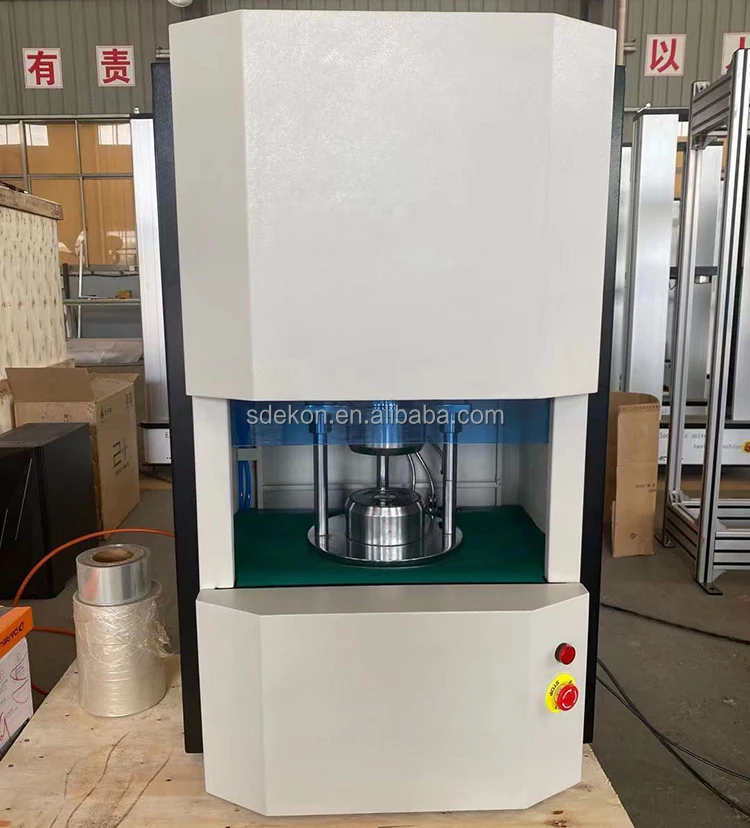

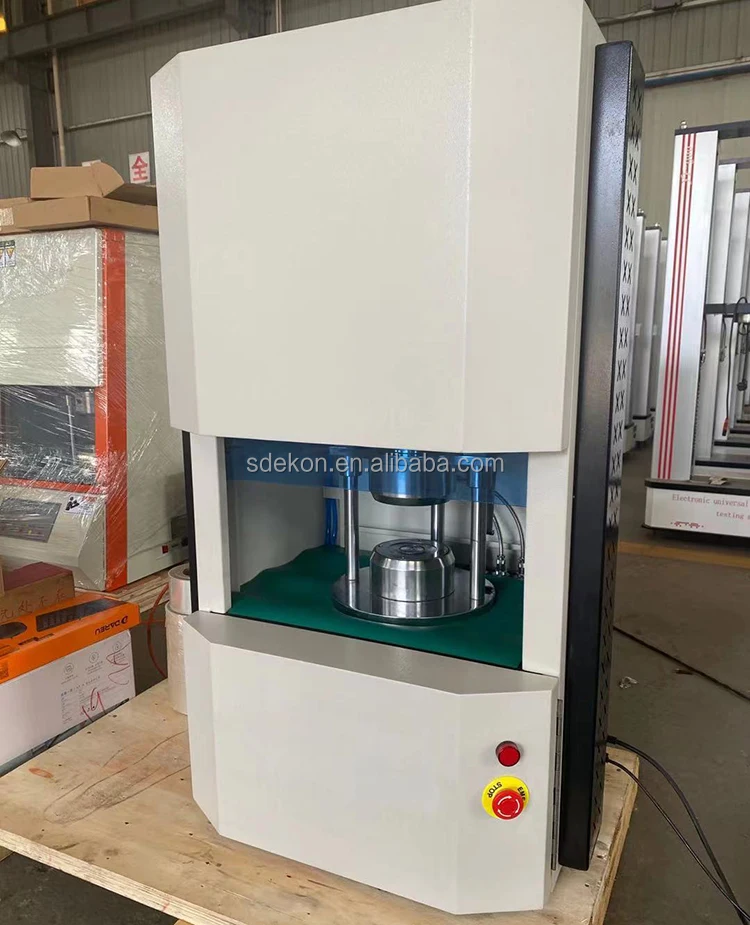

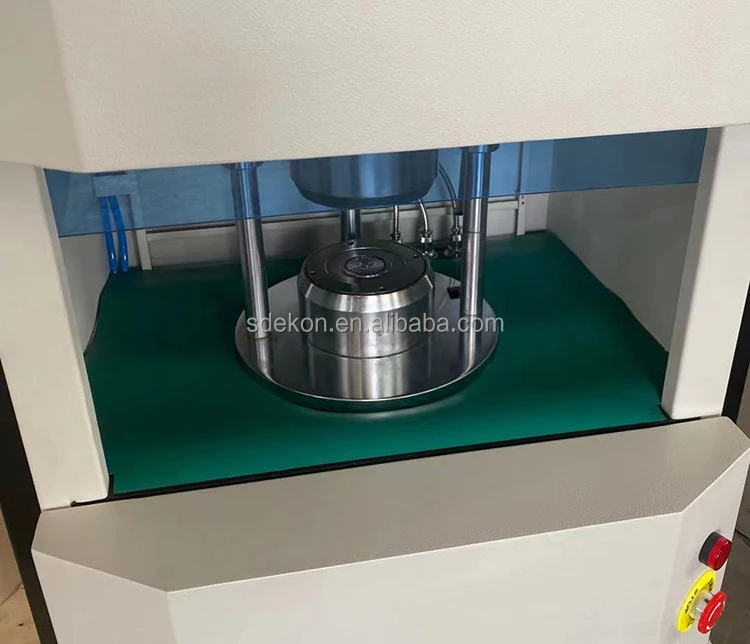

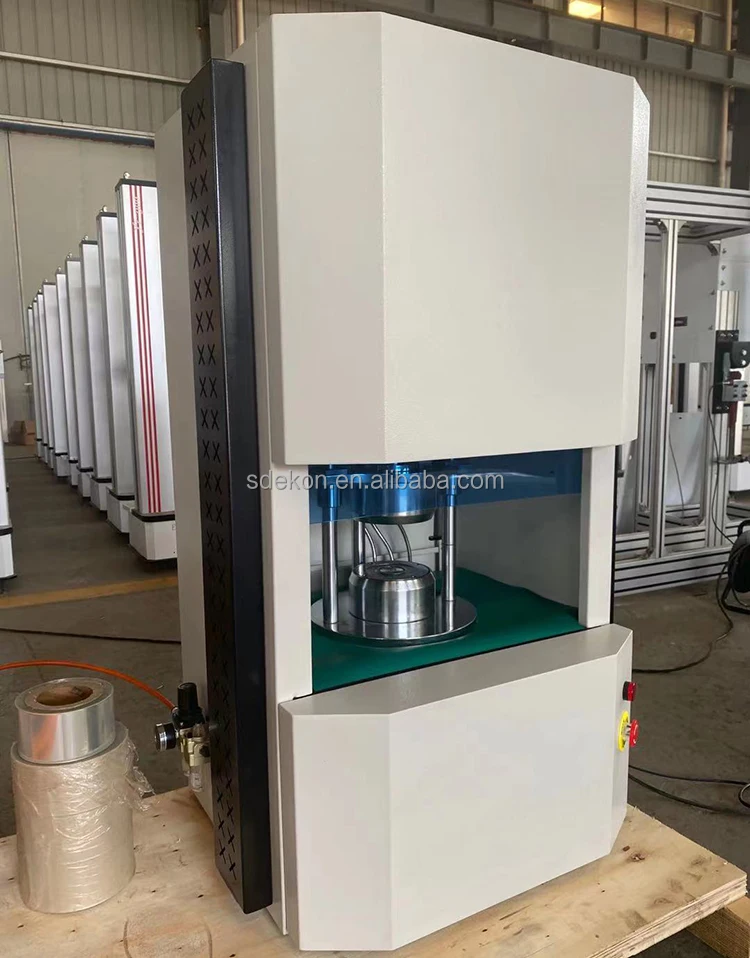

DK 8105 Laboratory Moving Die Programmable Rotorless Rubber Rheometer

Product Overview

Description

DK-8105 Laboratory Moving Die Programmable

Rotorless Rubber Rheometer



Applications:
DK-8105 Laboratory Moving Die Programmable Rotorless Rubber Rheometer is used to

determine characteristics of unvulcanized rubber and find out the most suitable vulcanization

time of rubber compound.
It adopts imported intelligent digital temperature control instrument, which is easy to adjust

and set, wide temperature control range and high control precision.

Its stability, reproducibility and accuracy are superior to those of general rotor vulcanizer.
It is using computer control and interface board to collect, save, process and print the test

results makes the function more powerful.

It fully shows the characteristics of high automation.

It also has the functions of curve comparison and enlargement.



Main Specification:

Model	DK-8105
Measuring Range	0℃ - 200℃
Temperature Measurement Accuracy	≤±0.3℃
Control Accuracy	≤±0.3℃
Temperature Resolution	0.1℃
Torque Range	0 - 10 N.m; 0 - 20.m N
Torque Resolution	0.001 N.m
Cavity Frequency	1.7 Hz
Amplitude	±0.5º±1º
Ambient Temperature	0-35℃ Relative Humidity
