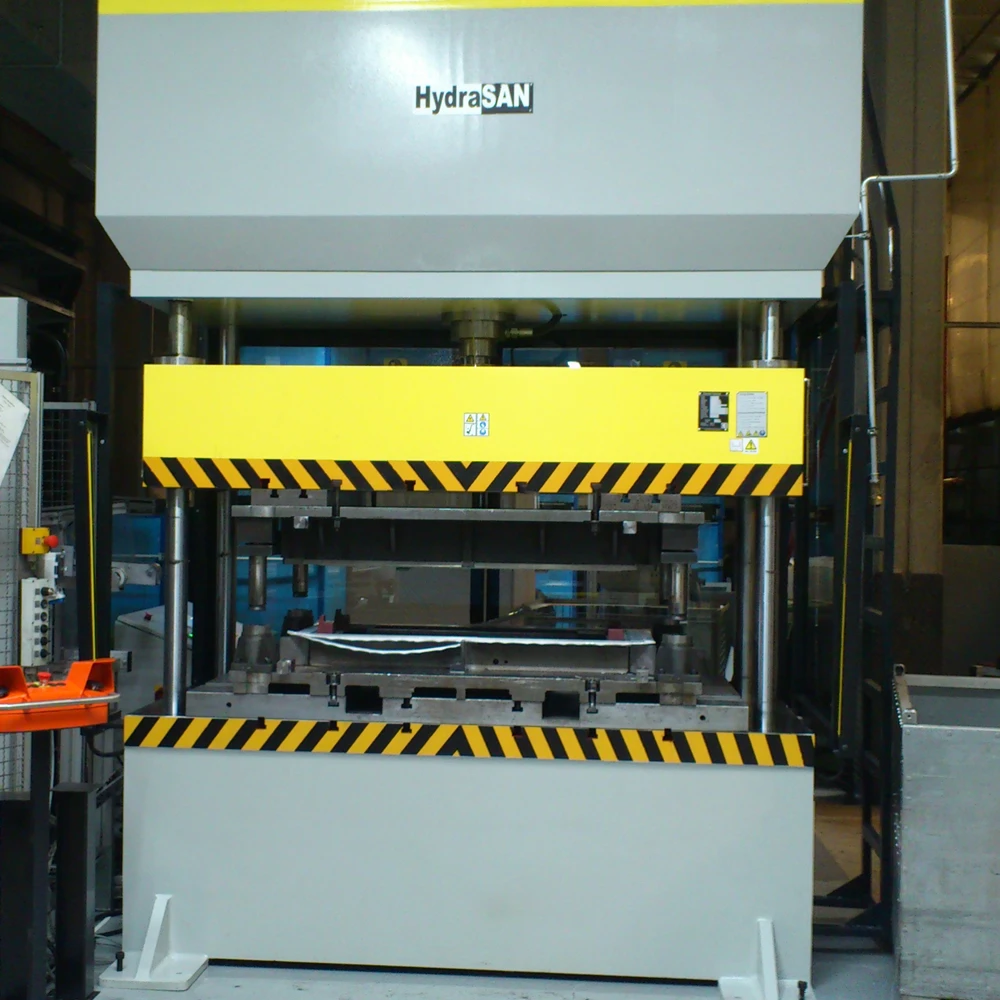

Hydraulic Column Press 600 kN

Product Overview

Description



Used for:

• Drawing, bending, printing, forming and part dropping processes for metal sheet.


• Production of Wooden and Plastic parts


• Manufacture auto parts and machine parts


• Manufacture house hold electric parts


• Manufacture steel sheet and aluminium doors Production of Tungsten alloys, Teflon parts


• Production fine ceramic and high-tech materials



Features:

• User friendly


• Service friendly design, low maintenance costs by using only high quality components and tools


• Sturdy construction and proven design which is a guaranty for a long life-span


• Advanced control system with PLC


• Computer optimised vertical frame structure with high rigidity Adjustable stroke and pressure in the specified scope.


• Pressure pre-release unit equipped in hydraulic system minimum hydraulic shock.

Working system:

• when it is free, it is fast, when it is loaded, it is slowing down for both cylinders.

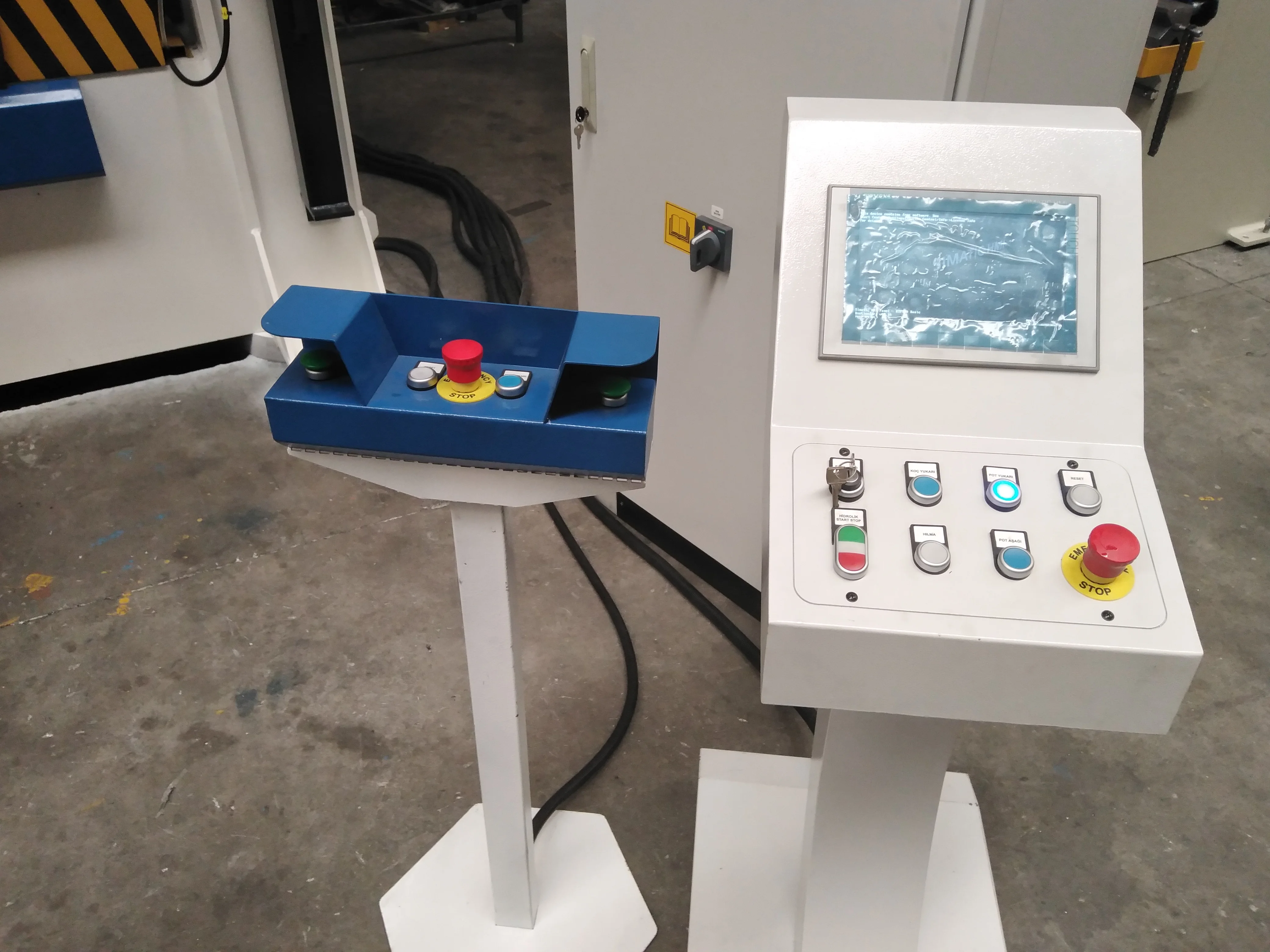

• PLC: Siemens S7, touch screen, 50 different programs memory,


• automatic mode, manual mode


• Pressures: The pressure for Pot-Cylinders is also adjustable. You can regulate the desired pressure.


• Cylinder operations: Pressing distance is also programmable: Start position y1 and Stop position y2,


• Security-System:



  • light guards,


  • Photo cell kits (protection screen) are assembled on the backside and front side of press






• Cylinder Speed: The speed for slider cylinders is adjustable.

Technical Features



Type		HTEP800
Force	kN	600
Effect
1x effect		yes
2x effect		yes
more effect		yes
Table size- lenght	mm	700
Table size- depht	mm	700
Stroke	mm	400
Daylight	mm	500
Guiding lines		4x
Prisms		yes
Speed
Approach	mm/s	150
Under pressure	mm/s	10
Backwards	mm/s	150
Used for
Forming		yes
Ironing		yes
Mounting		yes
Bending		yes
Embossing		yes
Contoll
Conventional		yes
PLC		yes
