OEM rackmount 1U short body server computer chassis for mini ITX MB server case 1u
- Category: >>>
- Supplier: Dongguan Qirui Hardware Technology Co. Ltd.
Share on (1600548395511):
Product Overview
Description
>>Contact with us<< if you want the full complete set with motherboard, cpu,psu,ram,ssd, contact with us now
Product Description
Product Description

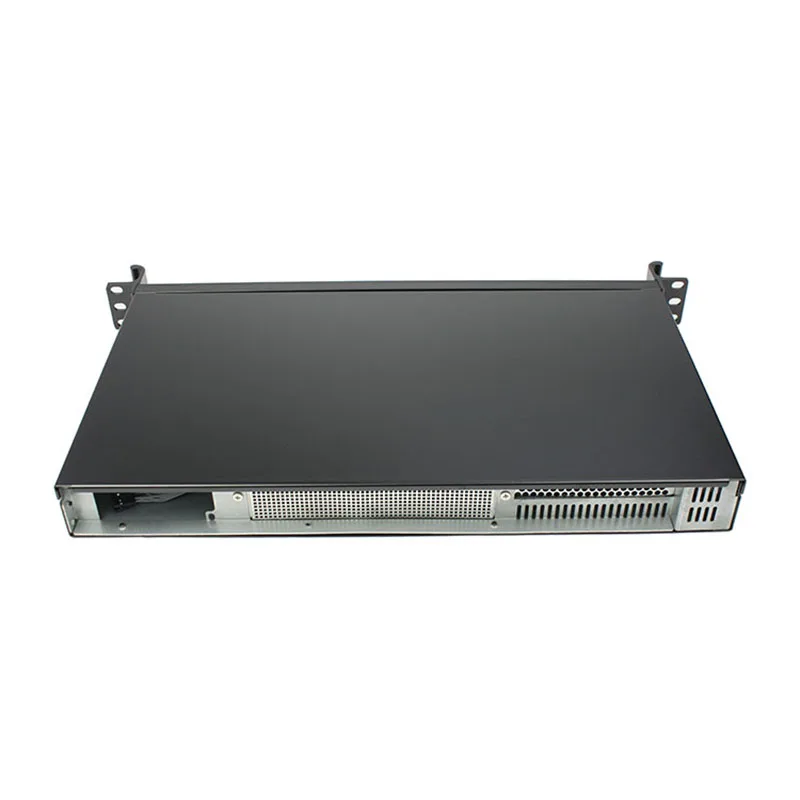

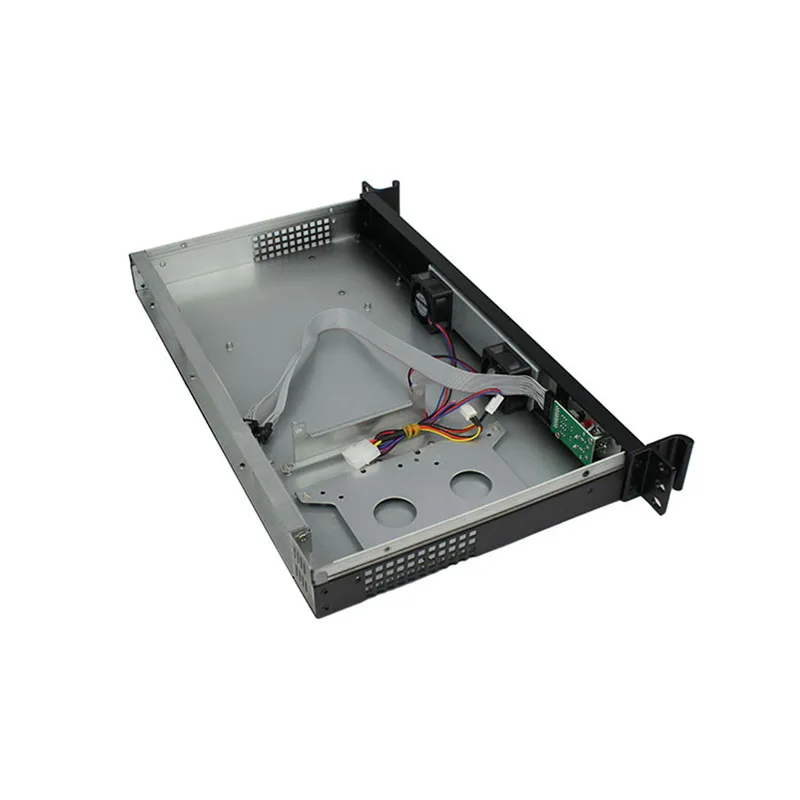

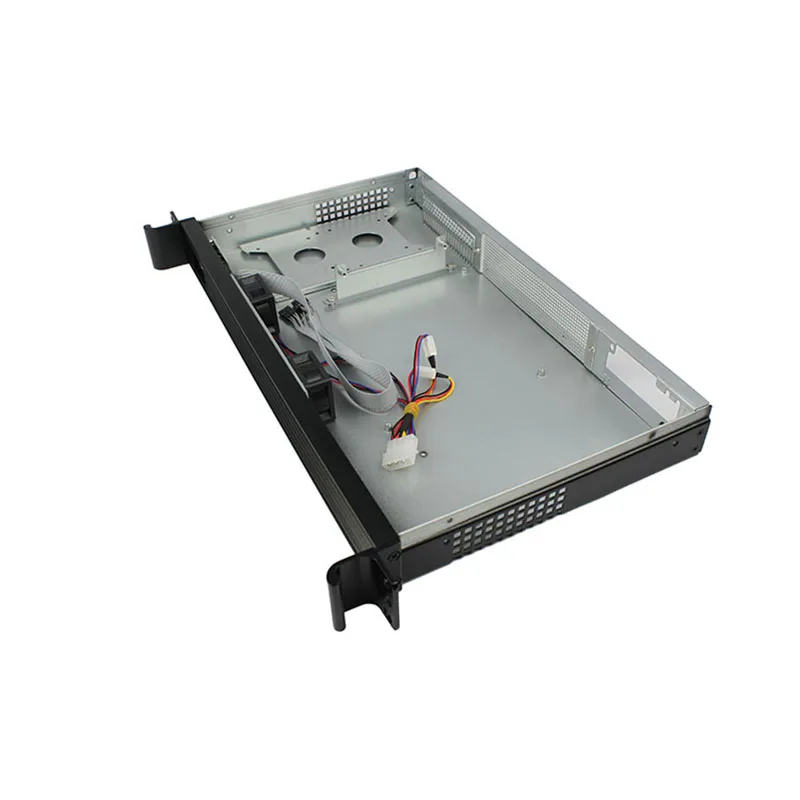

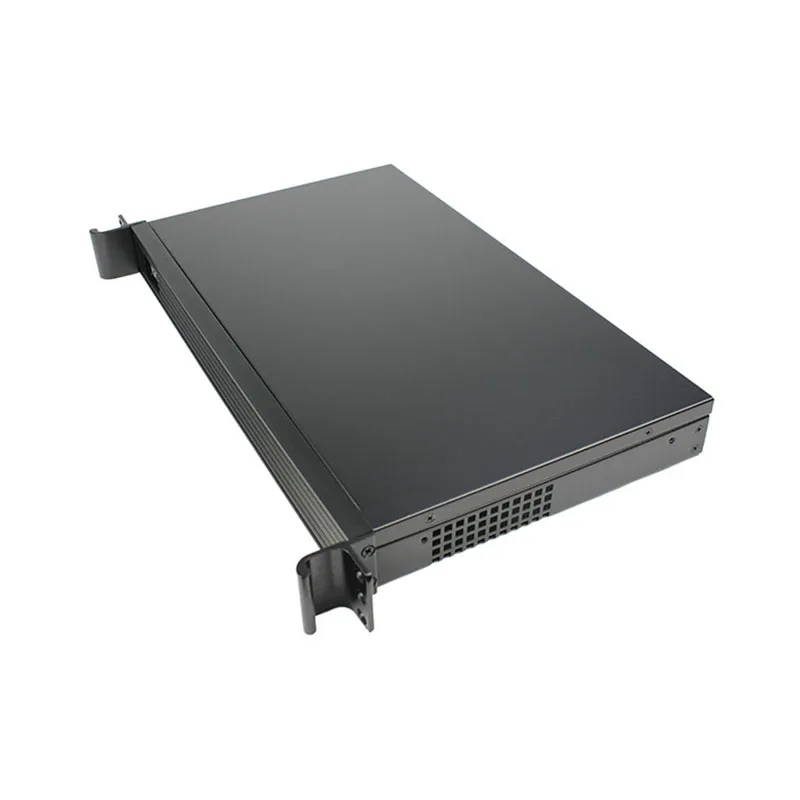

OEM rackmount 1U short body server computer chassis for mini ITX MB server case 1u
1U19inch Mini ITX LCD Server Case

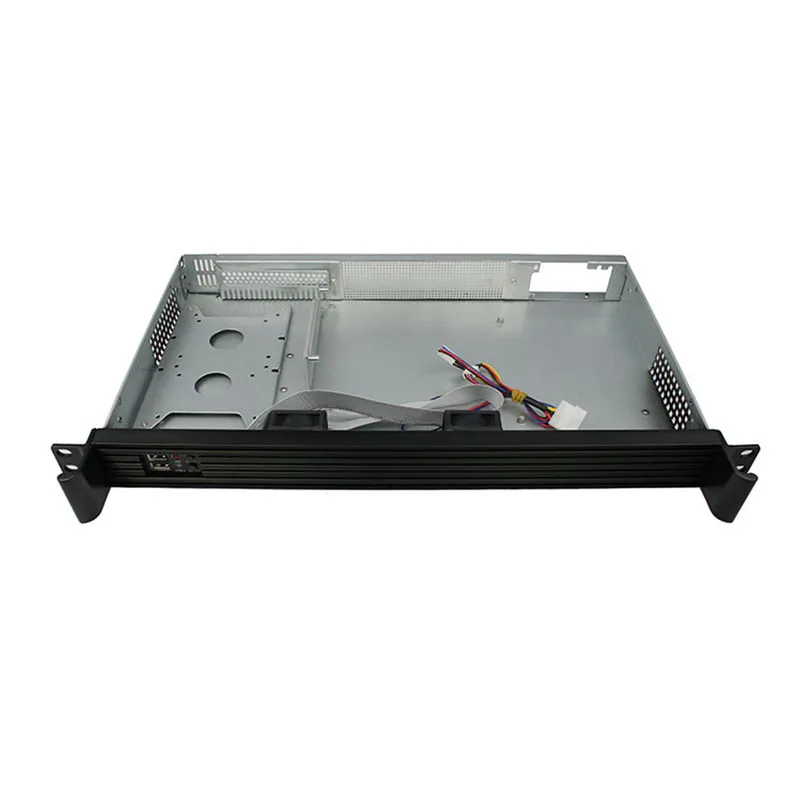

Steel front panel with vented slats makes this as ideal mini ITX system where looks are important. It has a full height expansion slot which falls past the motherboard giving better clearance.
You can fit 1 x 3.5" drives or 2x2.5" -chassis takes away optical drives, drive cages and other clutter and leave a big open platform allowing for creative modification.
Feature
1x3.5″ or 2x2.5" inch OS drive brackets for maximum configuration flexibility.

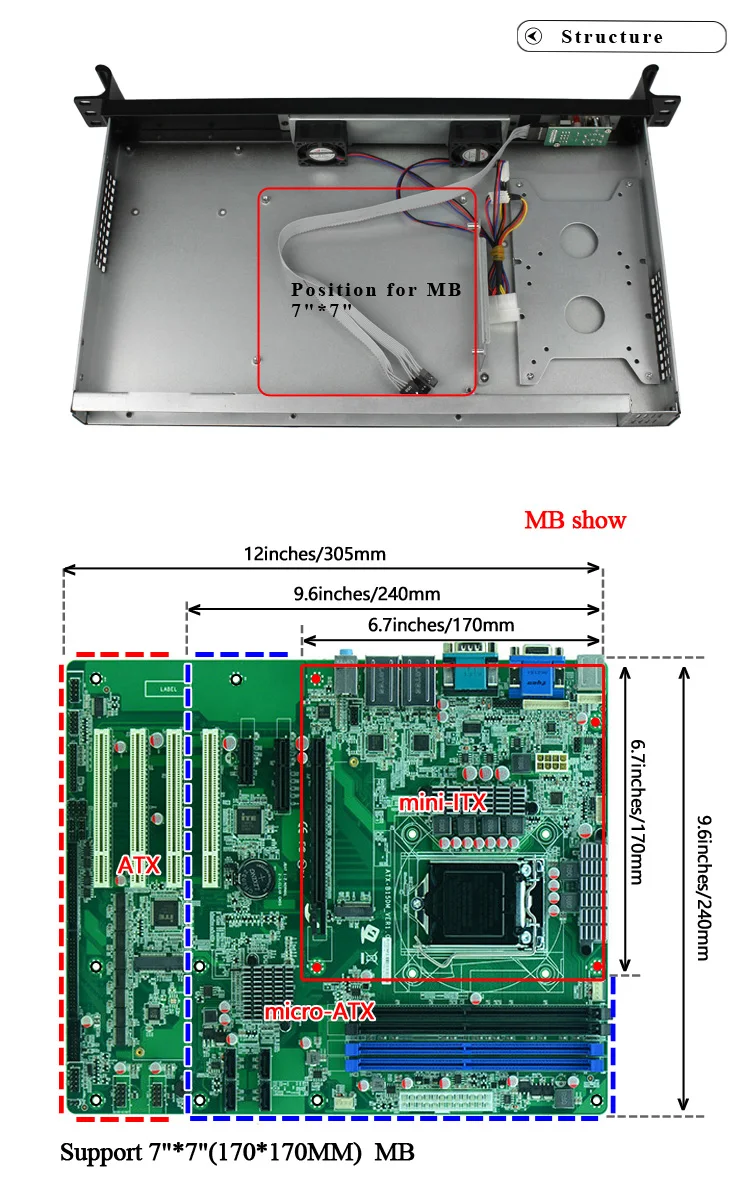

Support mainboard mini ITX 7"*7"(170*170MM)

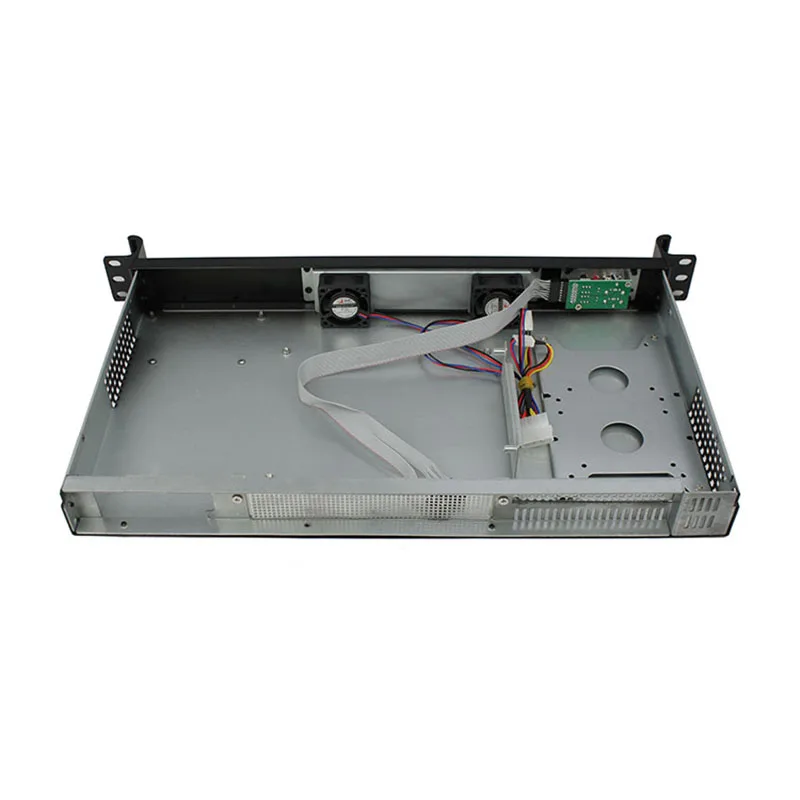

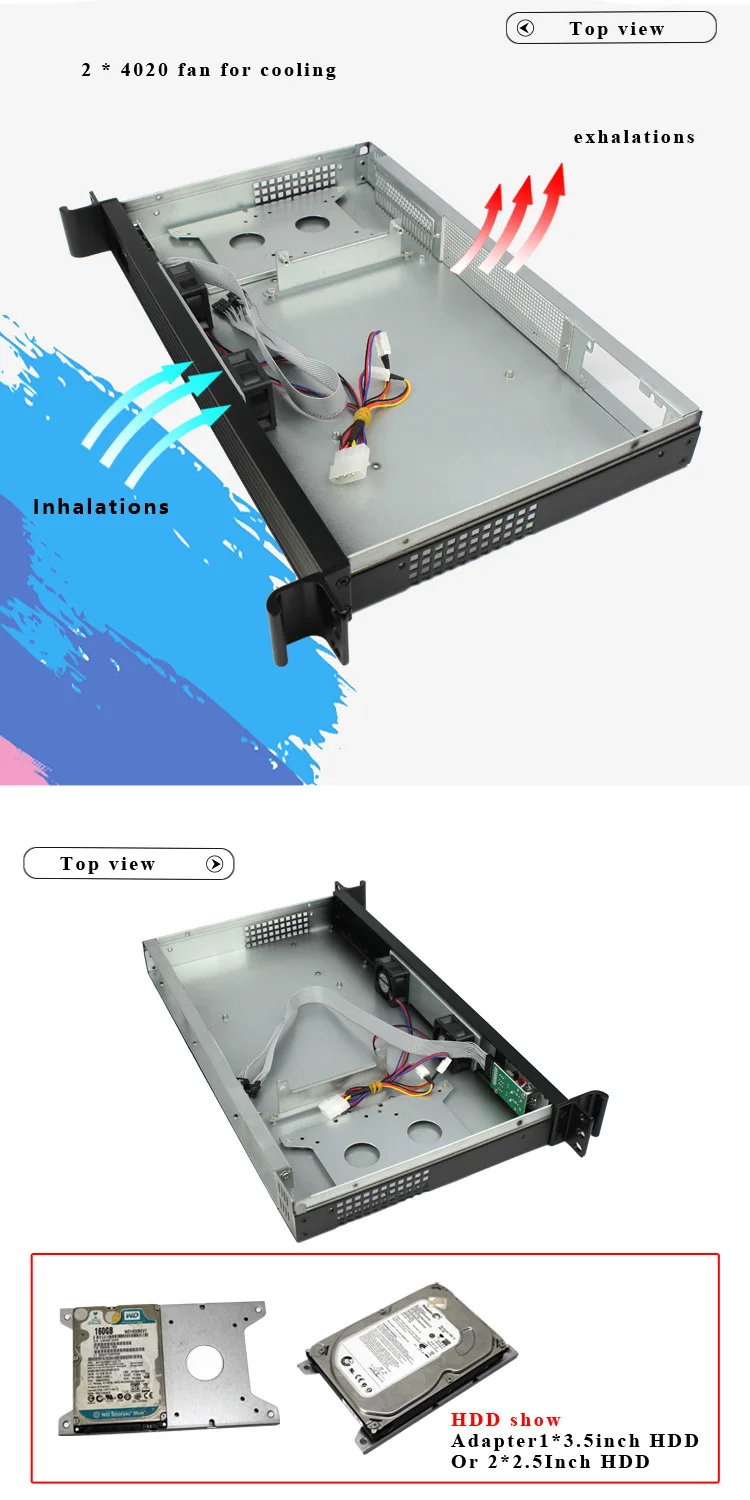

Come with two standard 40mm fans forsuperior airflow
User friendly design on lifting handle (stand-alone)
Truly isolated anti-vibration design on internal HDD and drive cages
Support 1U FLEX PSU adapter
Support 1U FLEX PSU adapter
Two front USB2.0
One card retainers to hold full height and parallel add-on cards
Support all operating systems
CE,RoHS Compliant
Technical Details
Technical Details
Model | K125L |

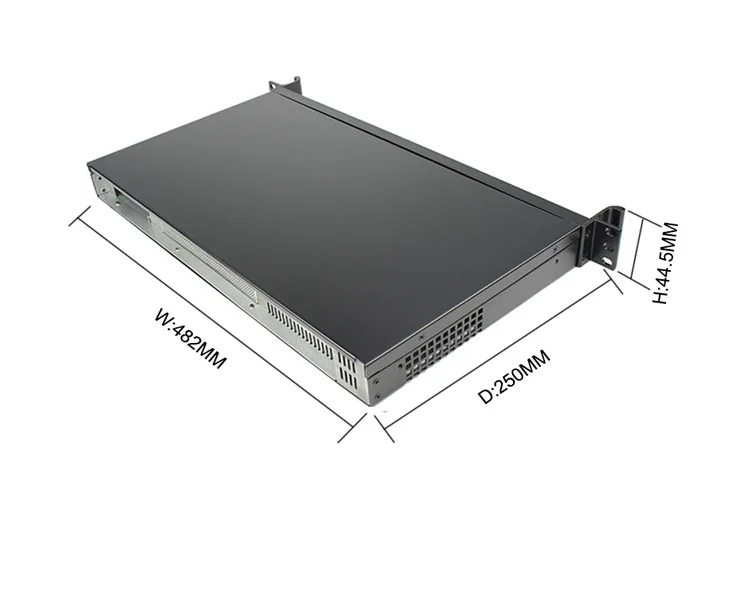

Dimensions | 482(W)*250(D)*44.5(H) |
Main Board | 7"*7"(170*170MM) |
Hard Disk | 1* 3.5 inch hard disks or 2 *2.5 inch hard disks |
CD-ROM | No |
Power | 1U FLEX PSU |
Fan | 2*4020 fans |
Expansion Slot | One Full Height and Parallel Slot (Riser Card is needed/sold separately) |

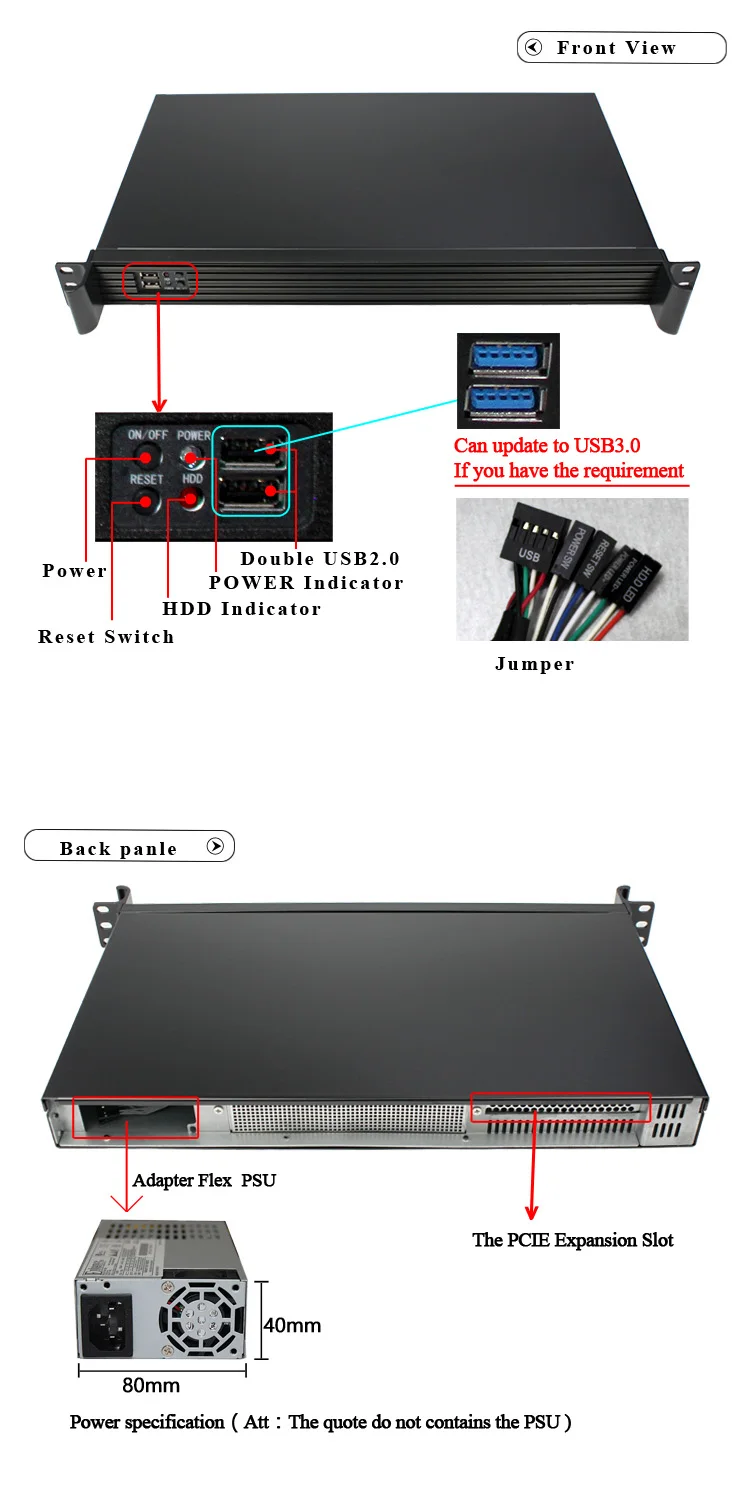

Panel Setting | 2 USB2.0, a power switch, a restart switch, a power indicator, a hard disk indicator |
Case Material | Ma Steel flowers-free zinc plating |
Material Thickness | 1.0MM |
Packaging size | 56*41*15CM |
G.W | 3.65KG |
N.W | 2.55KG |
Detailed Images
Detailed Images

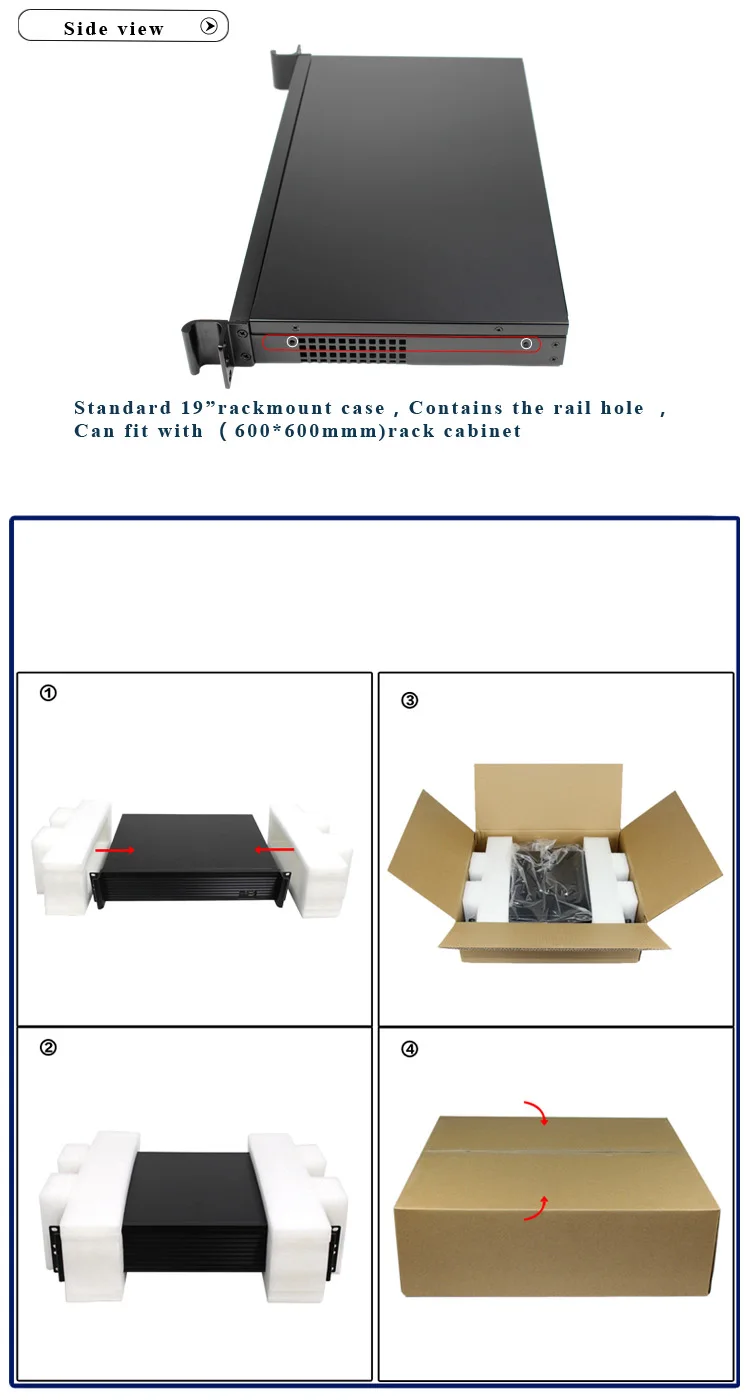

Packing & Delivery
