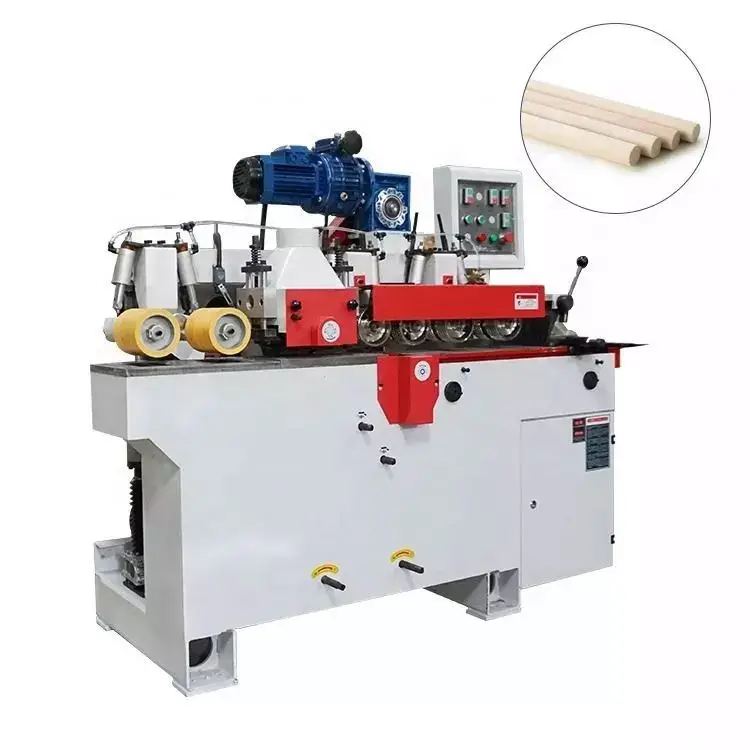

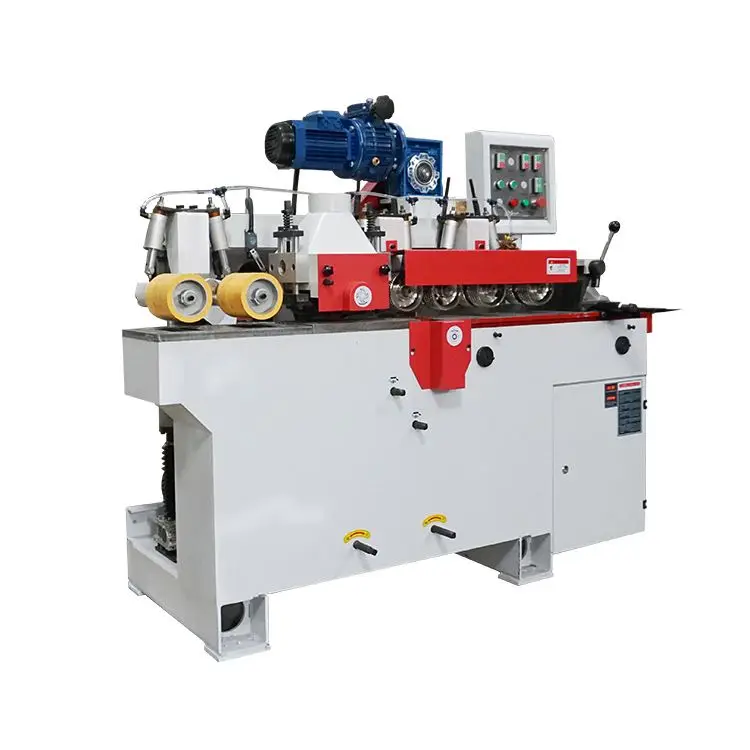

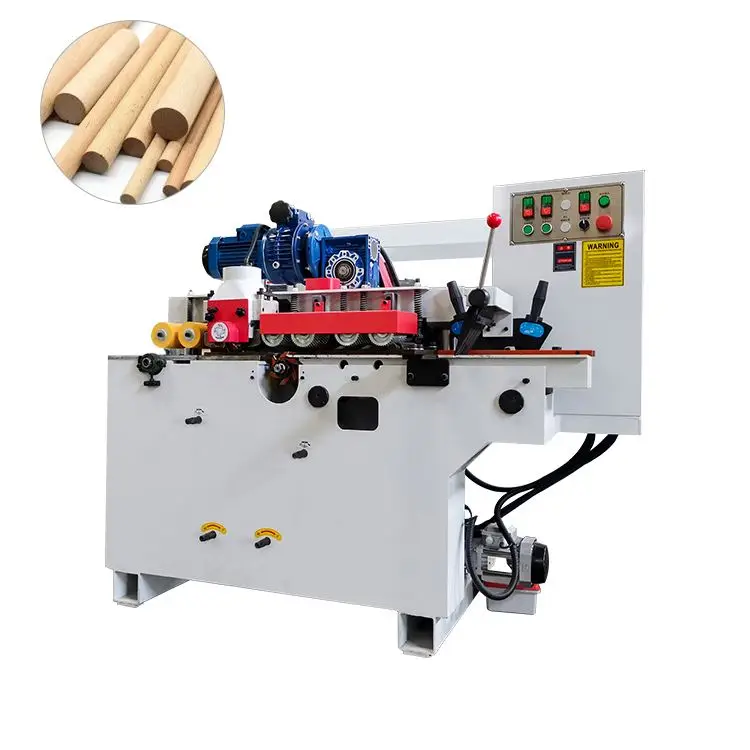

Wooden Broom Handle Mop Stick Making Machine/Wood Polishing Machine/Round Wood Stick Making Machine
- Category: >>>
- Supplier: Zhengzhou Furui Machinery Co. Ltd.
Share on (1600548485066):
Product Overview
Description

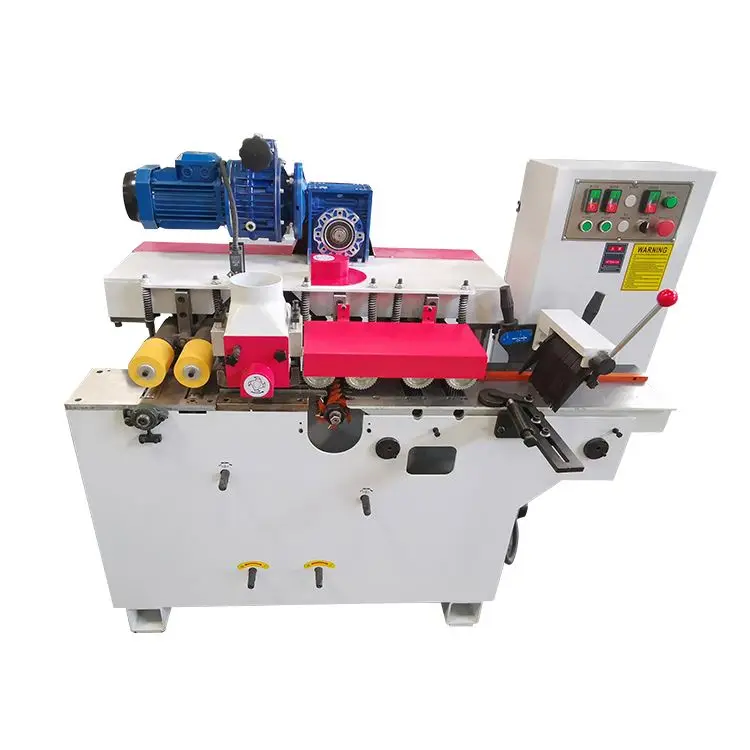

Wooden Broom Handle Mop Stick Making Machine/Wood Polishing Machine/Round Wood Stick Making Machine
Product Description

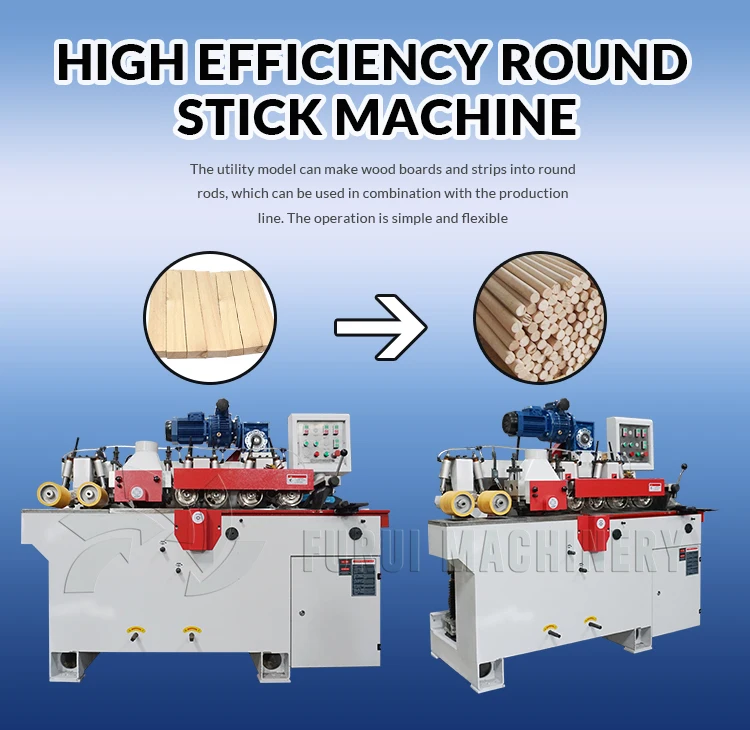

We have three model high efficiency wood round stick machine. MB2012A, MB2012B and MB2012C. They can process round rods in different quantities.
If you are interested in our machine, in order to choose suitable model machine, pls tell us the below questions.
1. What's the diameter of round rod do you want?
2. How many pcs round rod to processing per time?
3. Do you have any requirements about machine?
Technical data
Model | MB2012A | MB2012B | MB2012C |
Processing width | 10-120mm | 10-120mm | 10-150mm |
Minimum Length | 250mm-MAX. | 250mm-MAX. | 500mm-MAX. |
Wooden Rod Diameter | Φ6-30mm | Φ6-40mm | Φ10-80mm |
Feed Motor Power | 1.1kw | 1.5kw | 2.2kw |
Power | 5.5kw+5.5kw | 7.5kw+7.5kw | 11kw+11kw |
Lifting Motor Power | / | 0.37kw | 0.55kw |
Spindle Diameter | 30mm | 30mm | 40mm |
Feeding speed | 5-30m/min | 5-30m/min | 5-25m/min |
Shaft rotate speed | 8500r/min | 8500r/min | 7500r/min |
Dimension | 1050*770*1300mm | 1550*900*1250mm | 1790*980*1550mm |
Weight | 330kg | 1000kg | 1300kg |

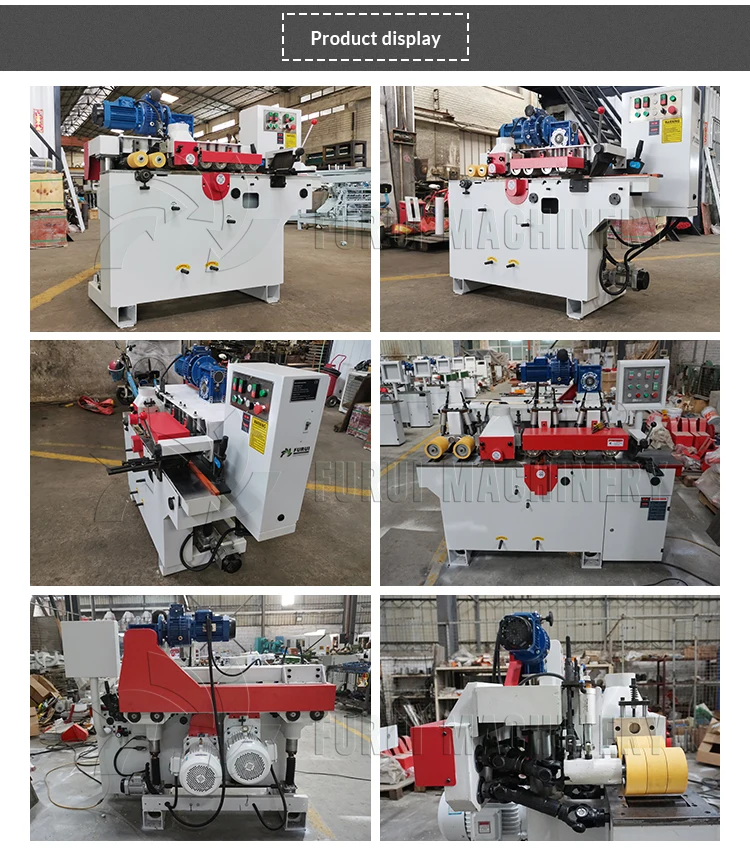

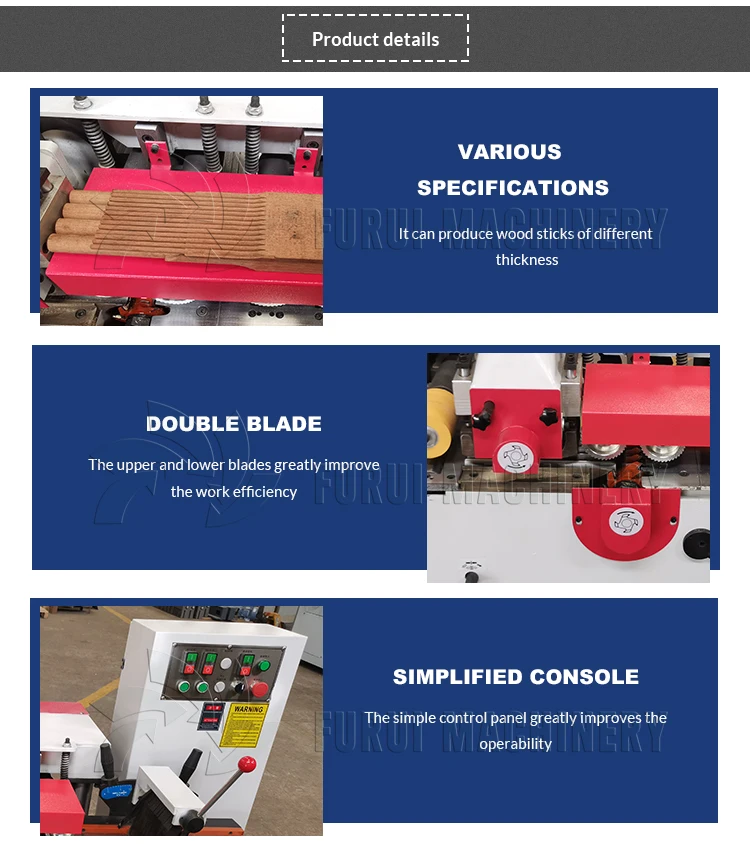

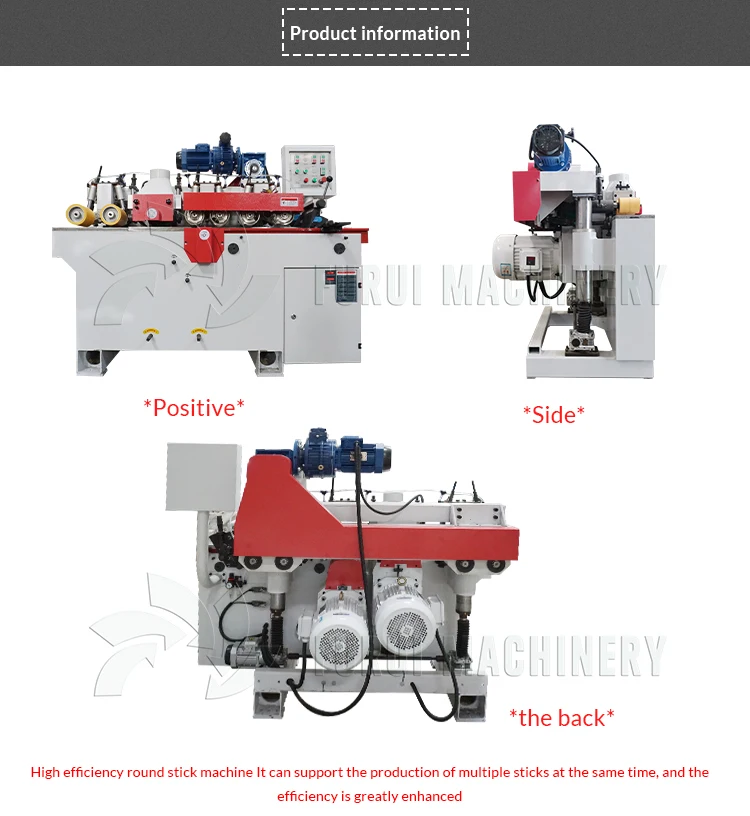

Detail photos
contact information
If you want to get more information, pls contact with us feel free.
