3 Years Warranty 24v 100ah Long Cycle Life Recharge Lithium Ion Lifepo4 Battery Pack
- Category: >>>
- Supplier: Shenzhen Delong Energy Technology Co. Ltd.Shenzhen Ltd.
Share on (1600548498013):
Product Overview
Description
24v lifepo4 100ah rechargeable lifepo4 100ah solar energy storage battery
Why choose Delong:
1. DELONG original factory. Factory price
2. 3 years long Warranty
3. OEM/ODM is acceptable
4. No MOQ Request
5. Fast delivery time
5. Fast delivery time
6. Nice quantity with certication
7.ONLINE PAYMENT
8. Made of powerful brand Grade A lifepo4 battery cell
9.High current charger optional 10.With advanced BMS (Battery Management System)
10.Both capacity and housing can be customized
Product Description
Nominal voltage | 24V |
Nominal capacity | 100ah（OEM） |

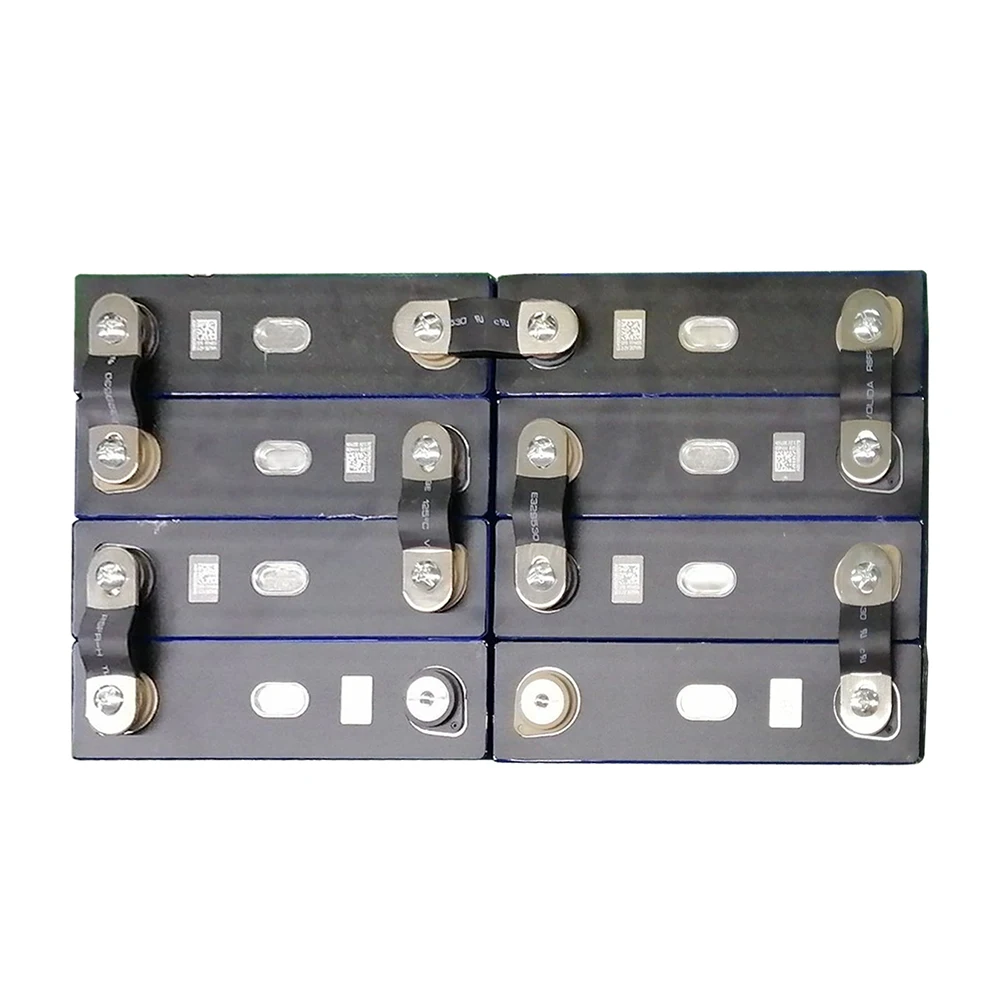

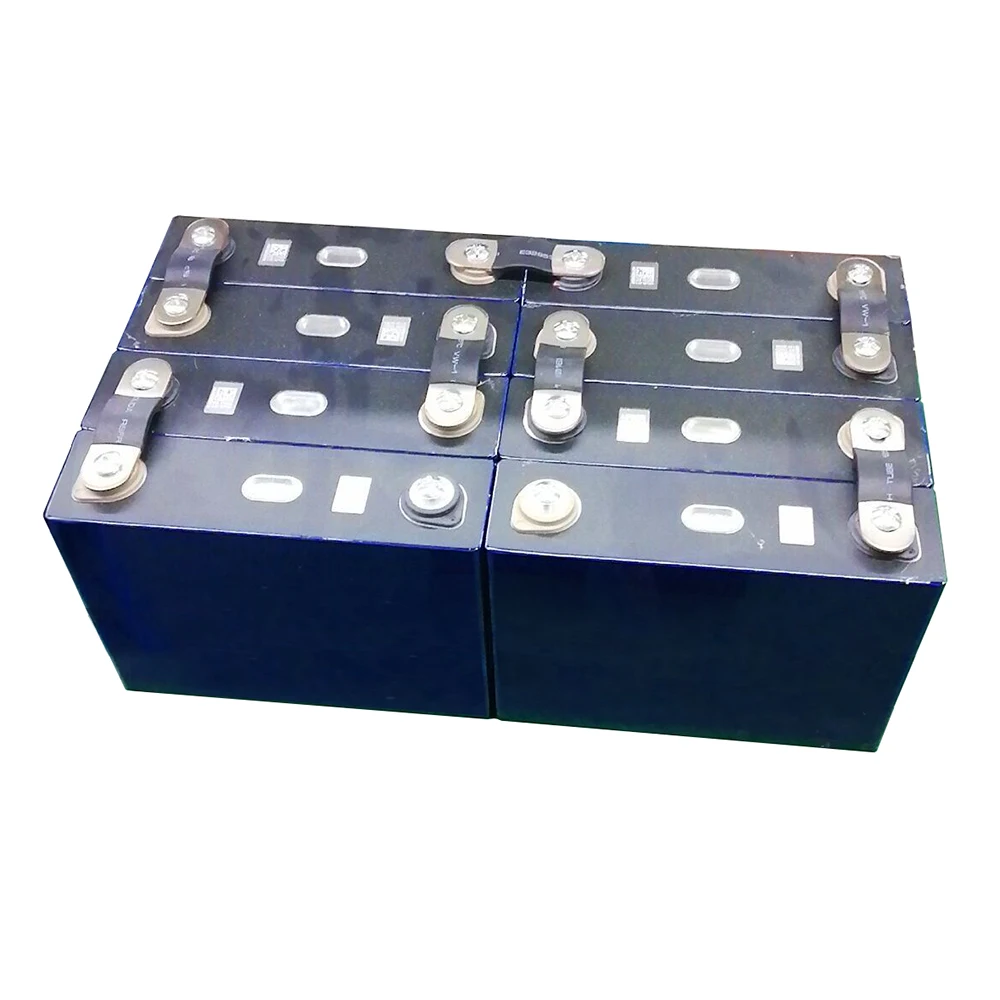

Battery type | Top grade A 3.2V 100Ah LifePO4 Prismatic Lithium iron phosphate battery cell |
Model | DL-24100 8S1P |
Battery configation | 8S1P |
Internal resistance | ≤420mΩ |
End of charge voltage | 29.2V |
End of charge current | 200mA |
End of discharge voltage | 20V |
Charge method | CC/CV(constant current/constant voltage) |
Max continuous charge current | 50A-100A |
Max continuous discharge current | 100A |
Max pulse discharge current | 200A/10S |
Net weight | 100ah：25kg |
Case material | Waterproof ABS case or metal case or stainless steel case |

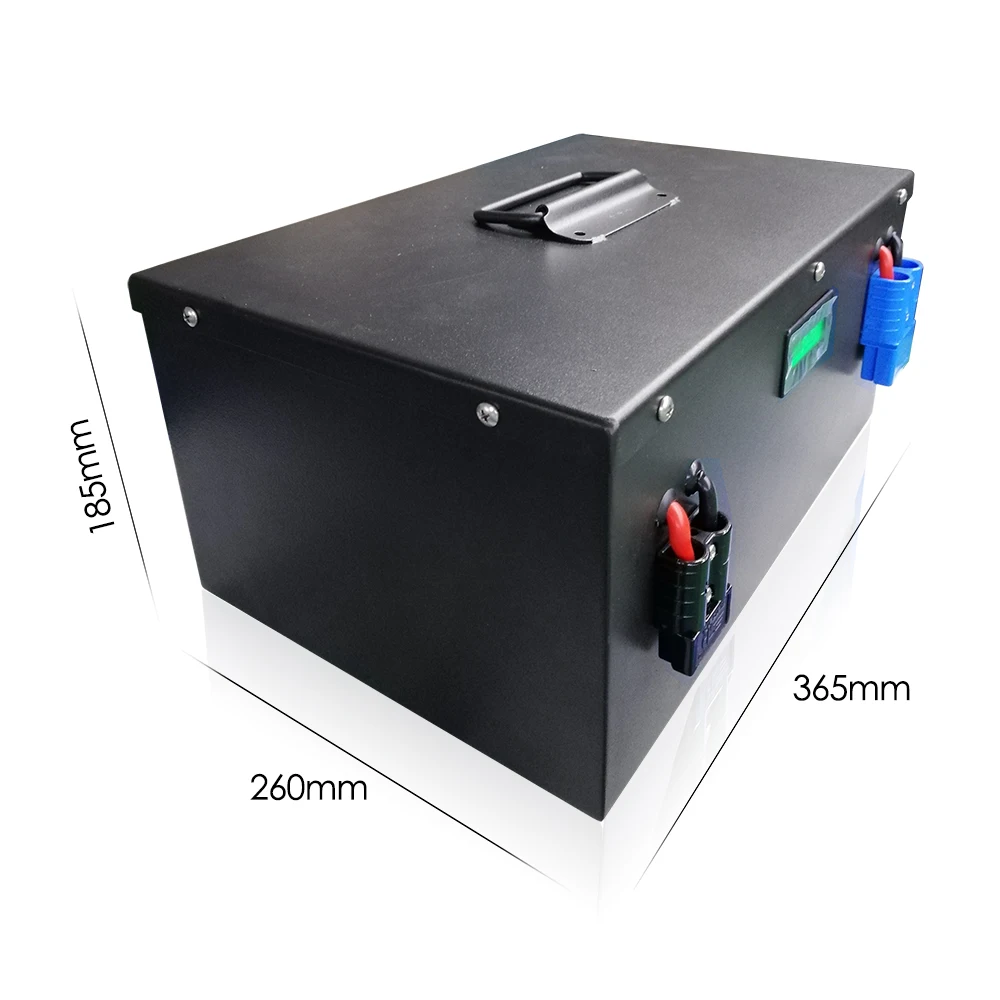

Case dimension | 100ah ：365*260*185mm （ all dimension can be customized ） |
Warranty | 3 Years |
Built-in BMS | Monitoring of cell and PCB temperature, current, voltage, cell balancing, etc |
Terminal Type | M8 or anderson or another bolt screw |
Lifecycle | Deep cycle life 2000 times, 80%dod,5000 times , 65% dod, 8000 times, 40% dod |
Charge temperature | 0~45℃ |
Discharge temperature | -20~60℃ |
Storage temperature | -10~45℃ |
Certificate | CE, RoHS ,MSDS and UN38.3 certification |
Parallel assembly | up to 10 items (48V-1000Ah) |
Enclosure Protection | IP65- IP67 available |

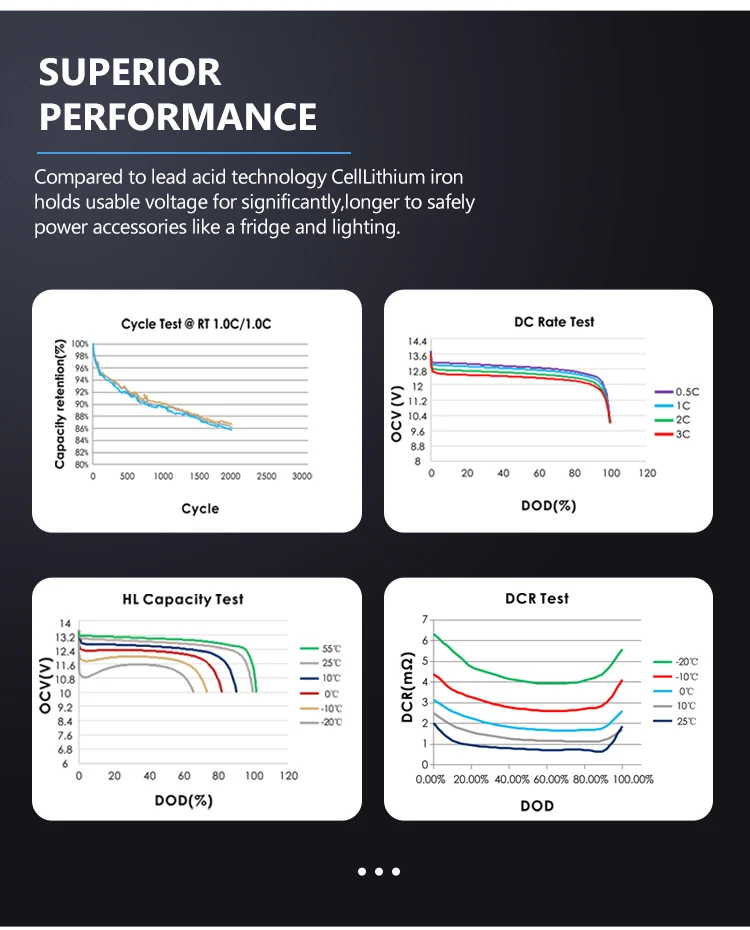

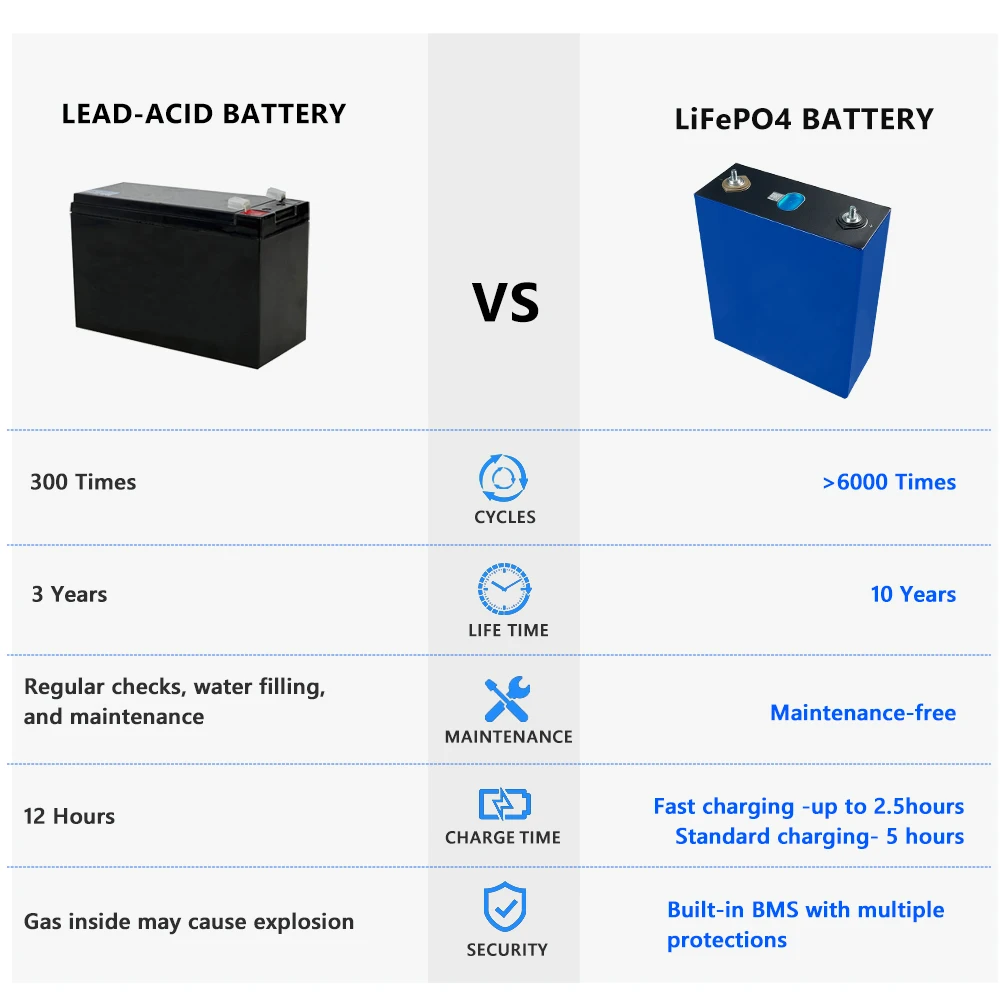

Lithium Battery Advantage:
( Reasons for Why you choose Lithium battery to replace lead acid battery )
1. Long cycle life than lead acid Battery
-at least 3000 times - 8000 times 40% dod
2.Less half the weight of similar-capacity than lead-acid batteries
3. Fast charge- charging to 99% in 2.5 hours versus up 13 hours for lead acid batteries.
4.Can accept high charge rates (100A)
5.No maintenance required
6. No battery memory
7.Almost no temperature derating effects
8. 95% energy efficient
( Reasons for Why you choose Lithium battery to replace lead acid battery )
1. Long cycle life than lead acid Battery
-at least 3000 times - 8000 times 40% dod
2.Less half the weight of similar-capacity than lead-acid batteries
3. Fast charge- charging to 99% in 2.5 hours versus up 13 hours for lead acid batteries.
4.Can accept high charge rates (100A)
5.No maintenance required
6. No battery memory
7.Almost no temperature derating effects
8. 95% energy efficient

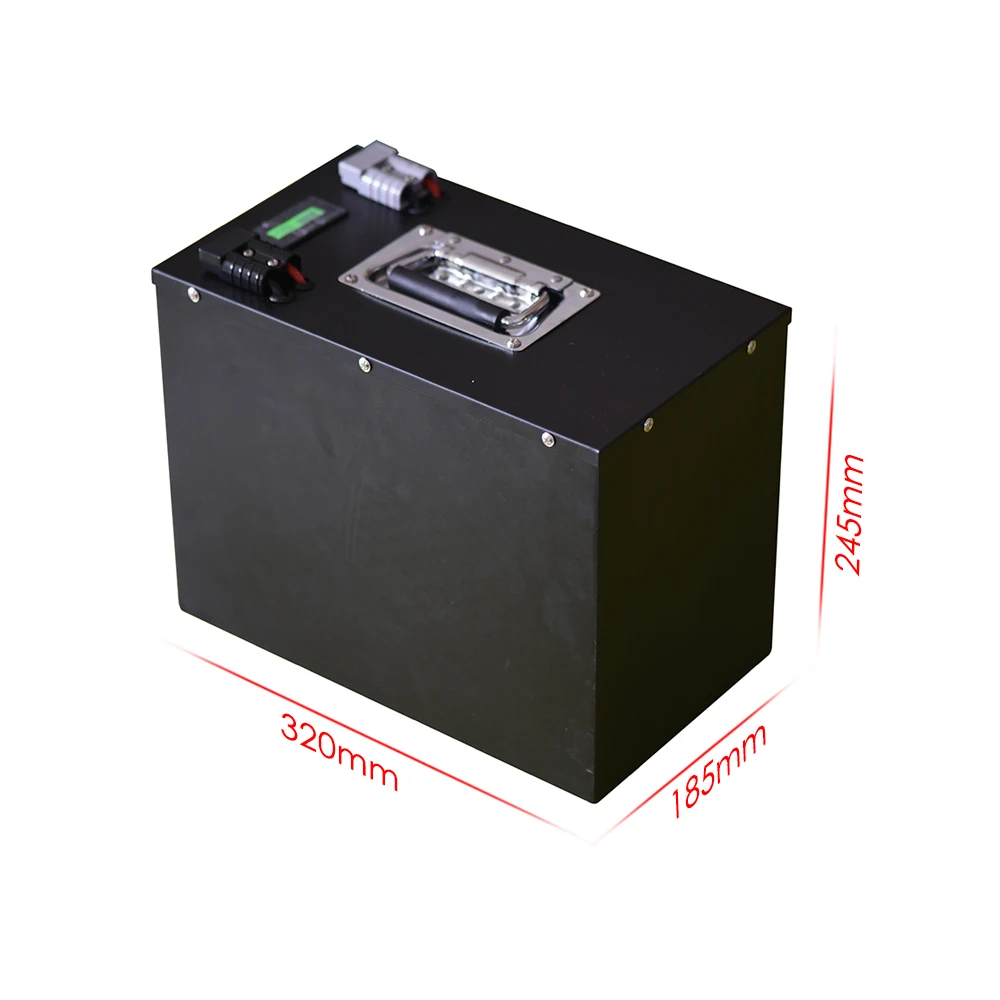

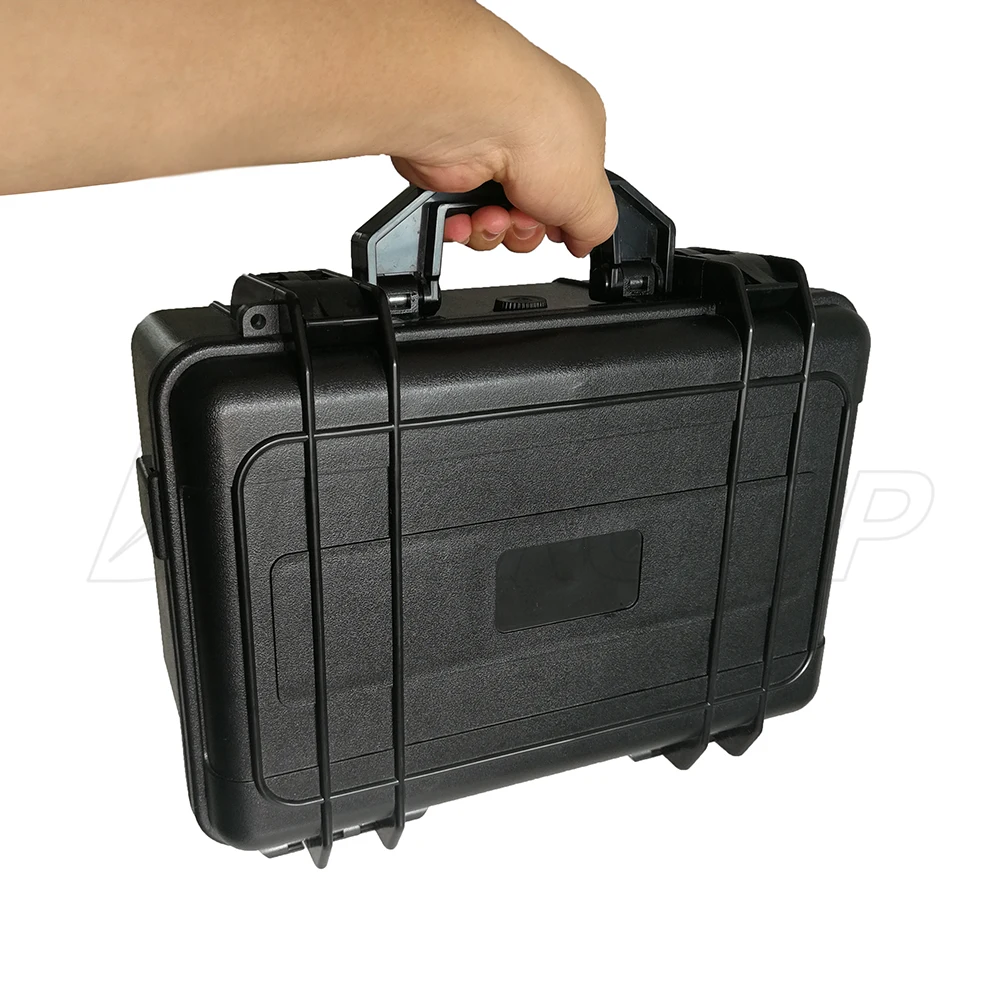

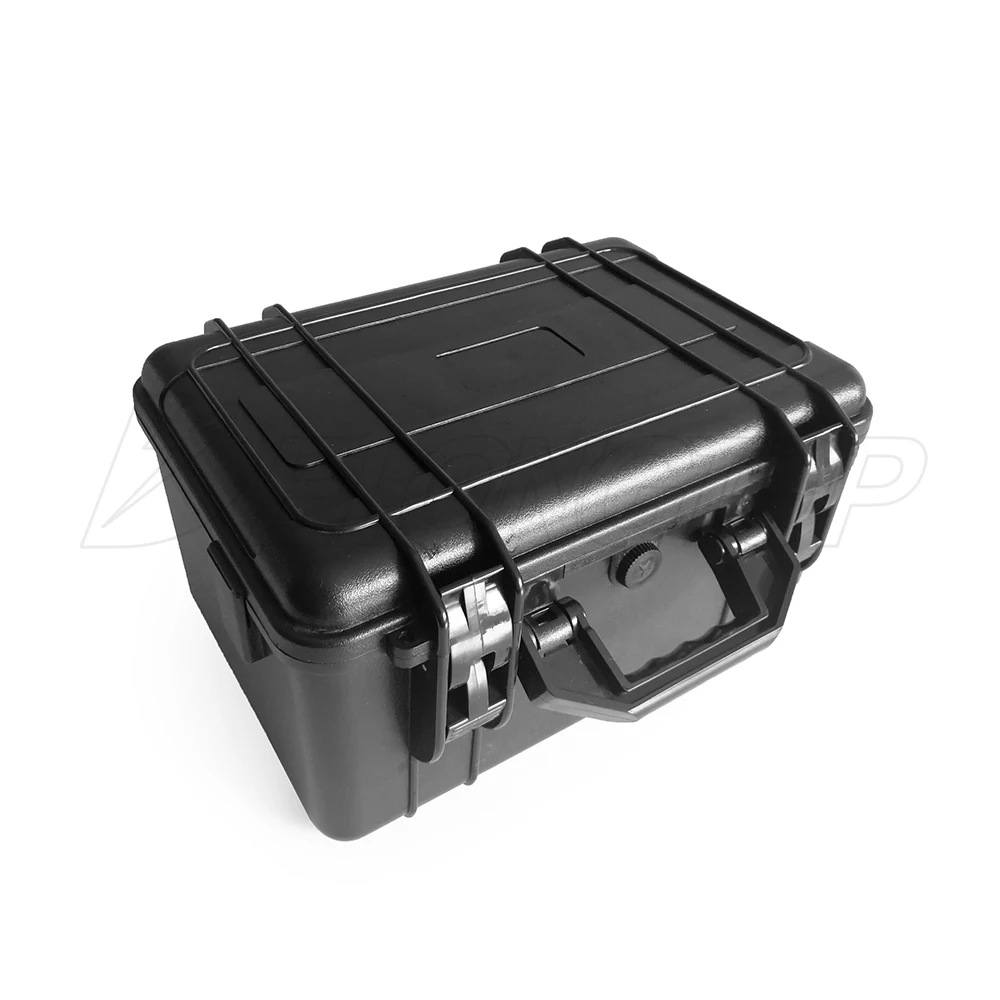

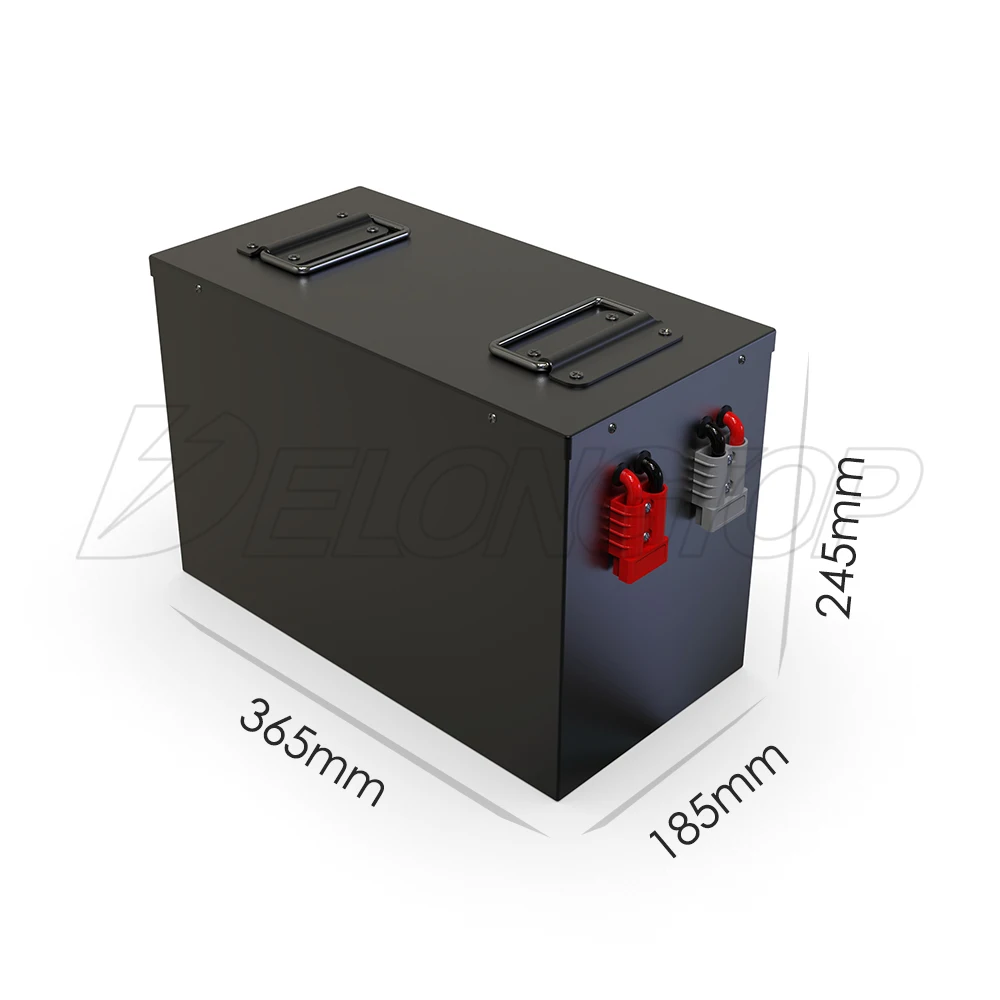

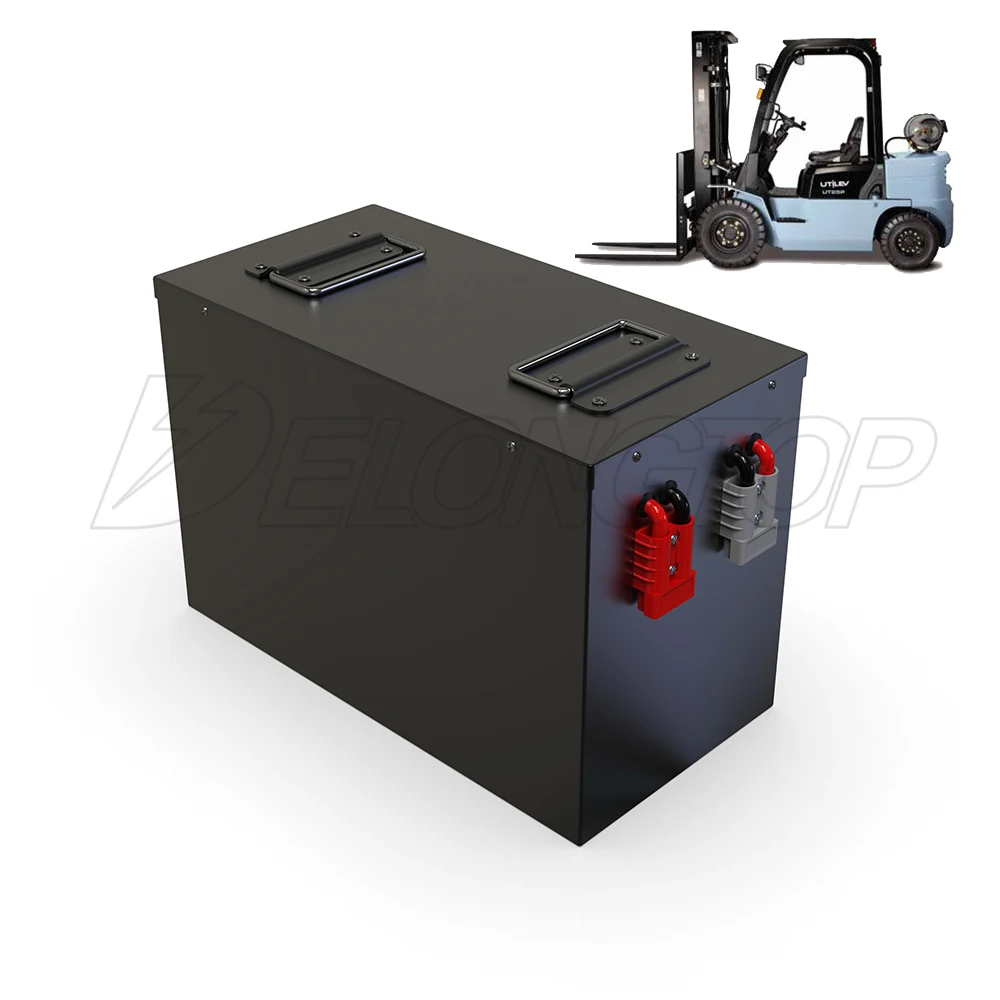

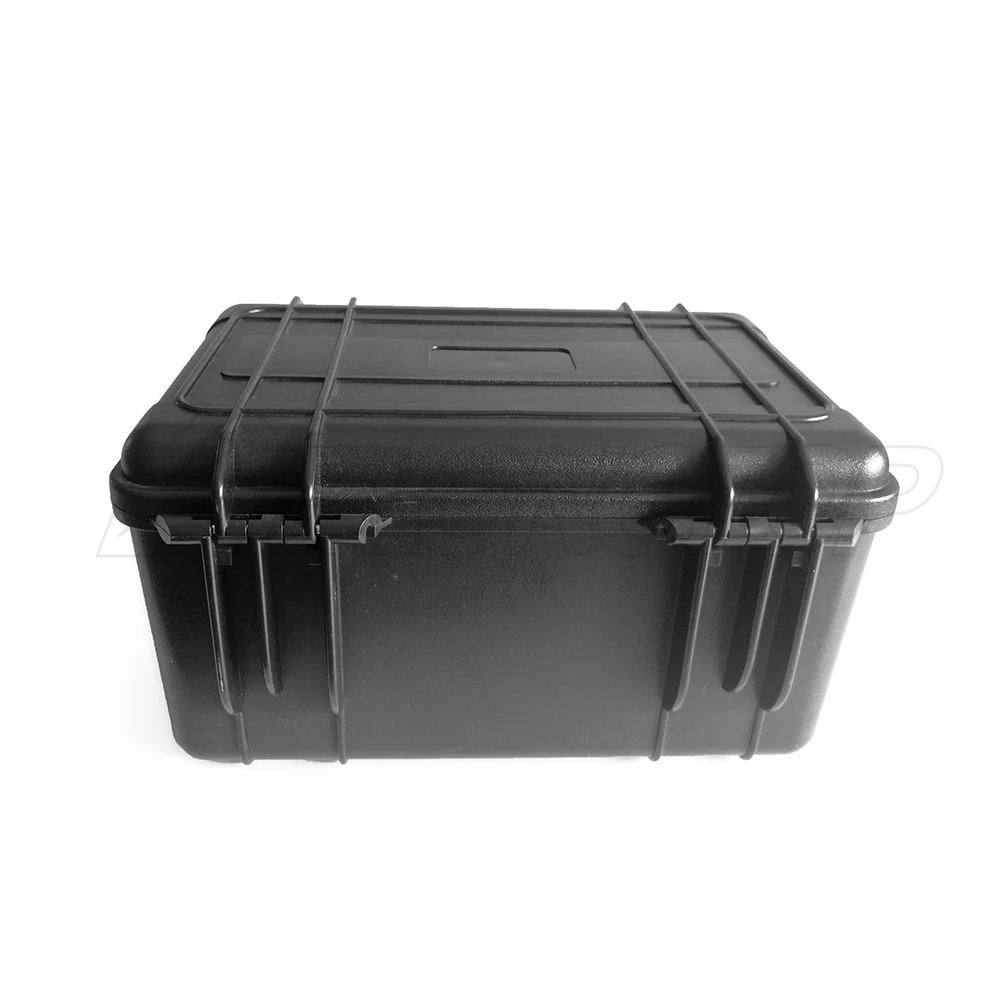

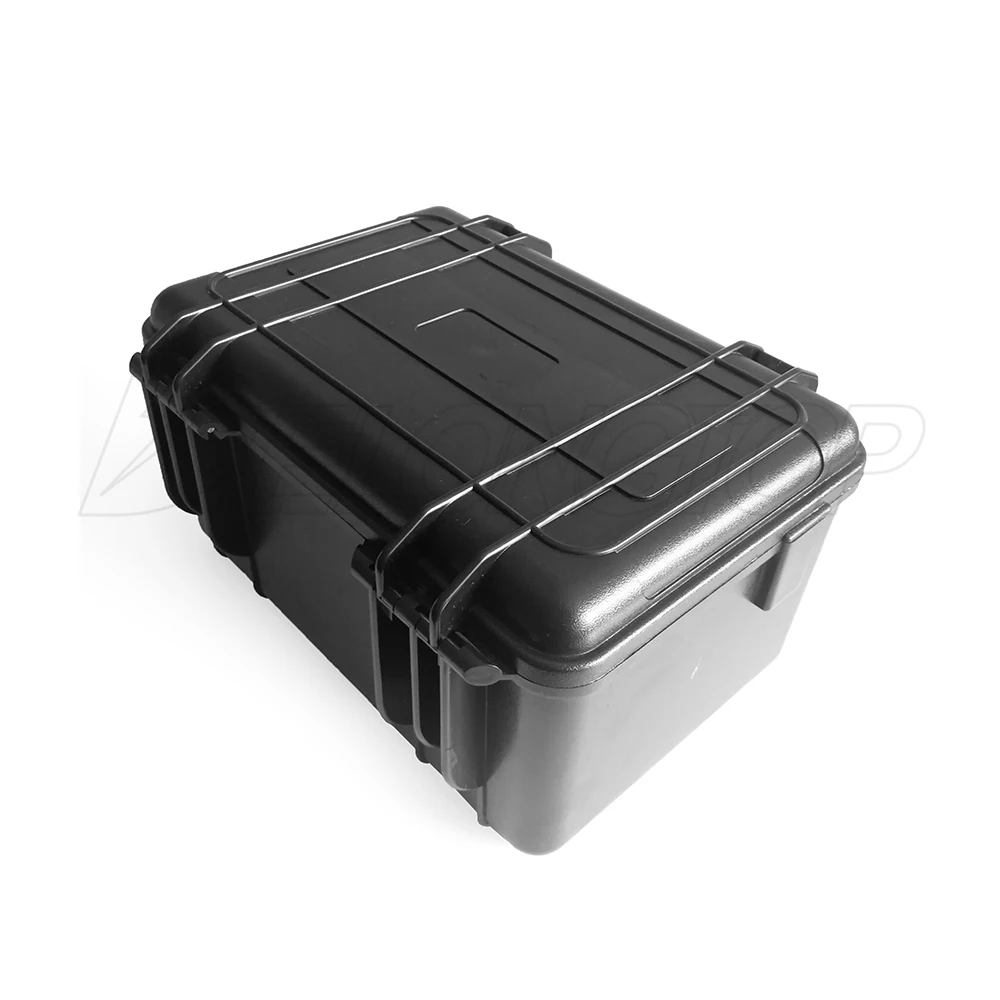

Photos for 24V 100ah with waterproof case：
other products:

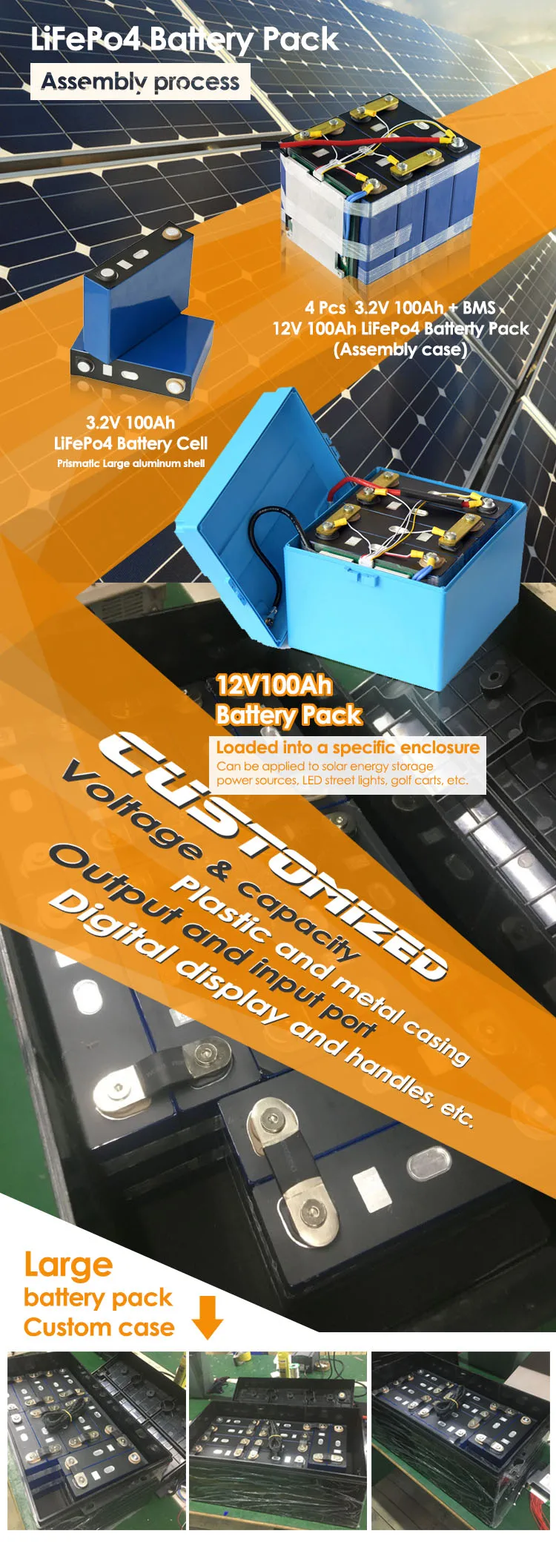

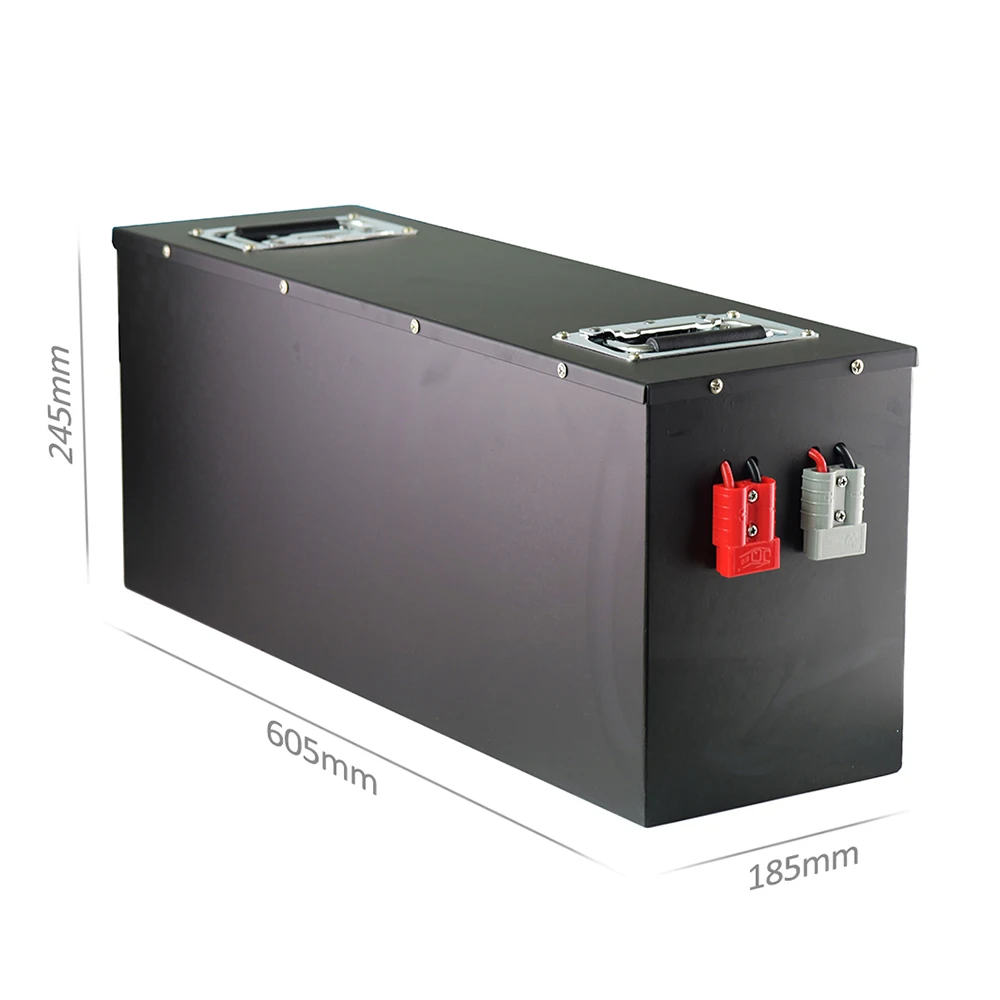

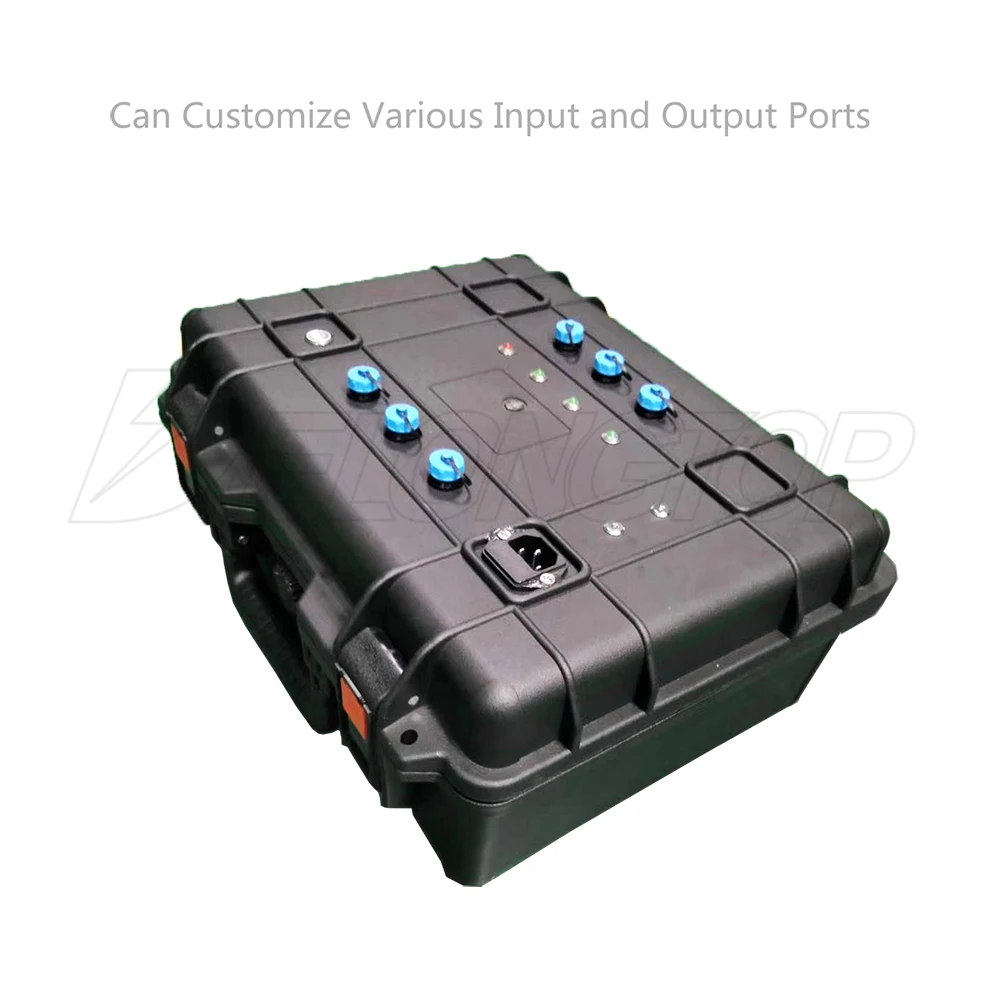

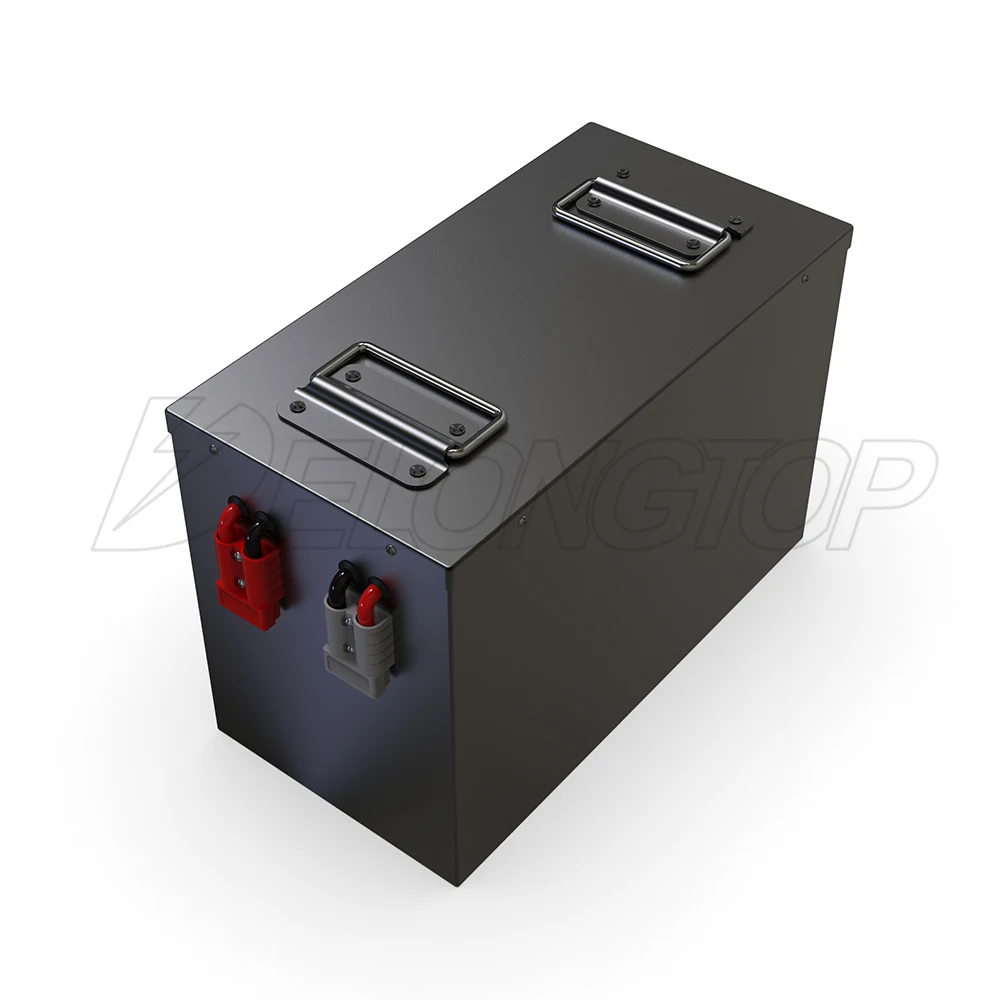

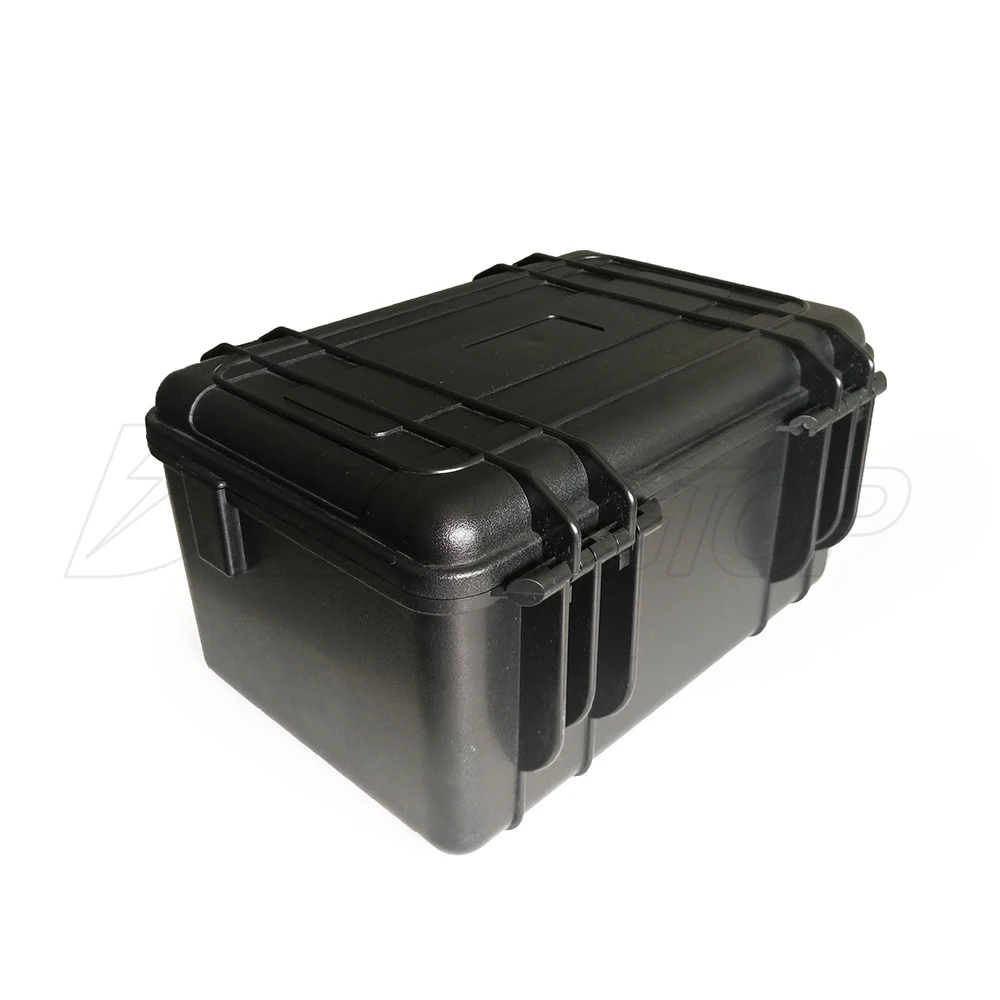

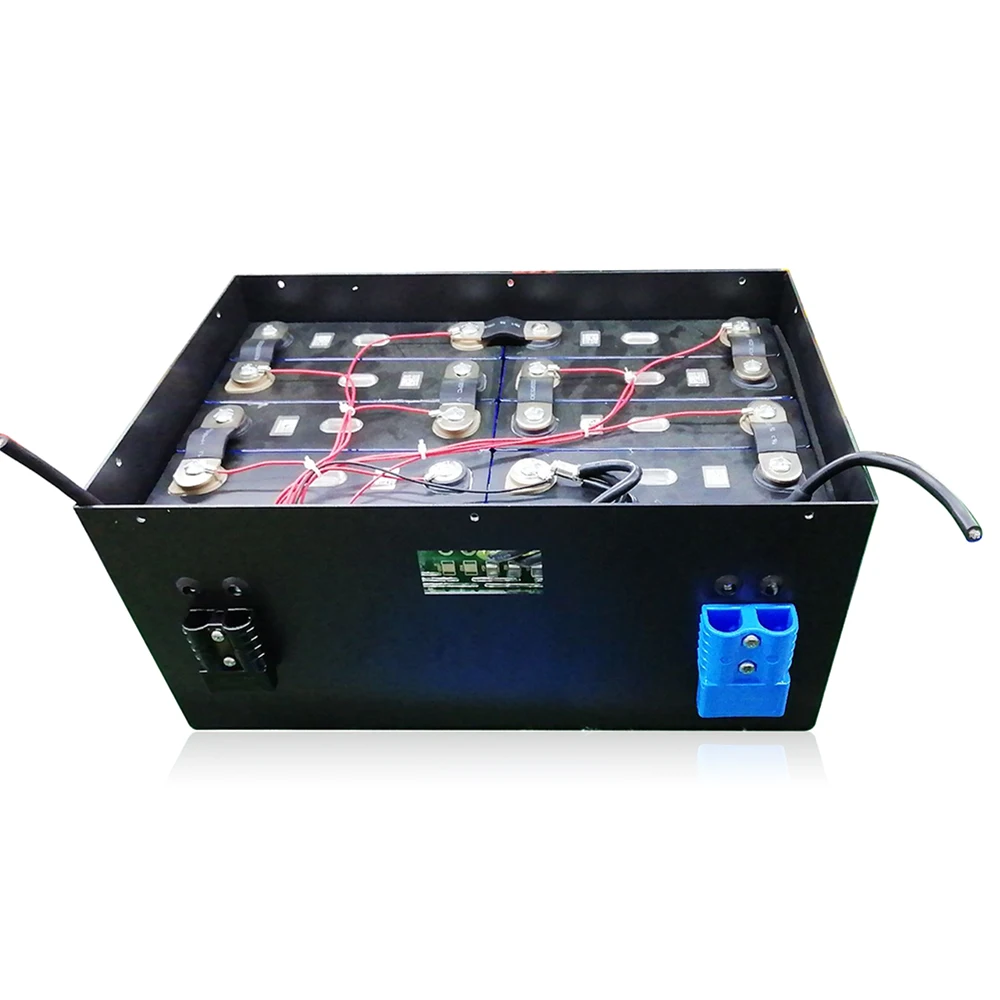

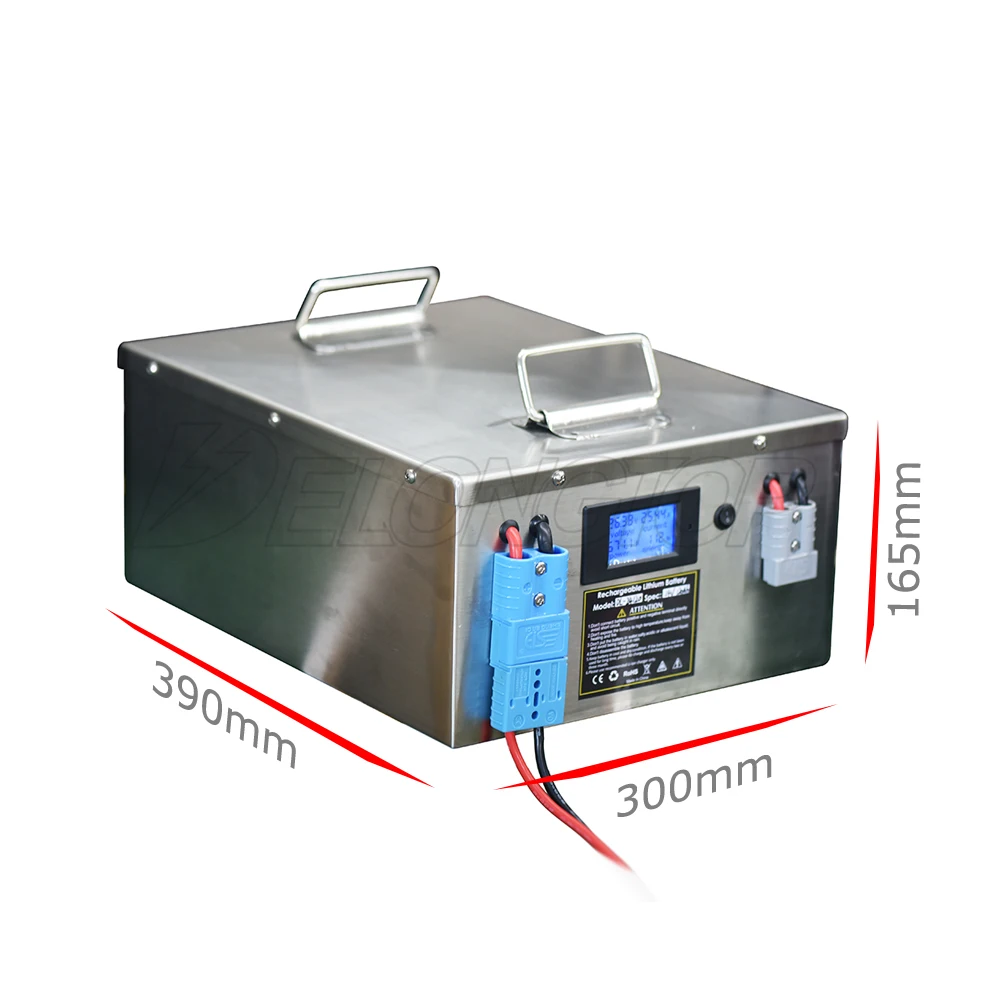

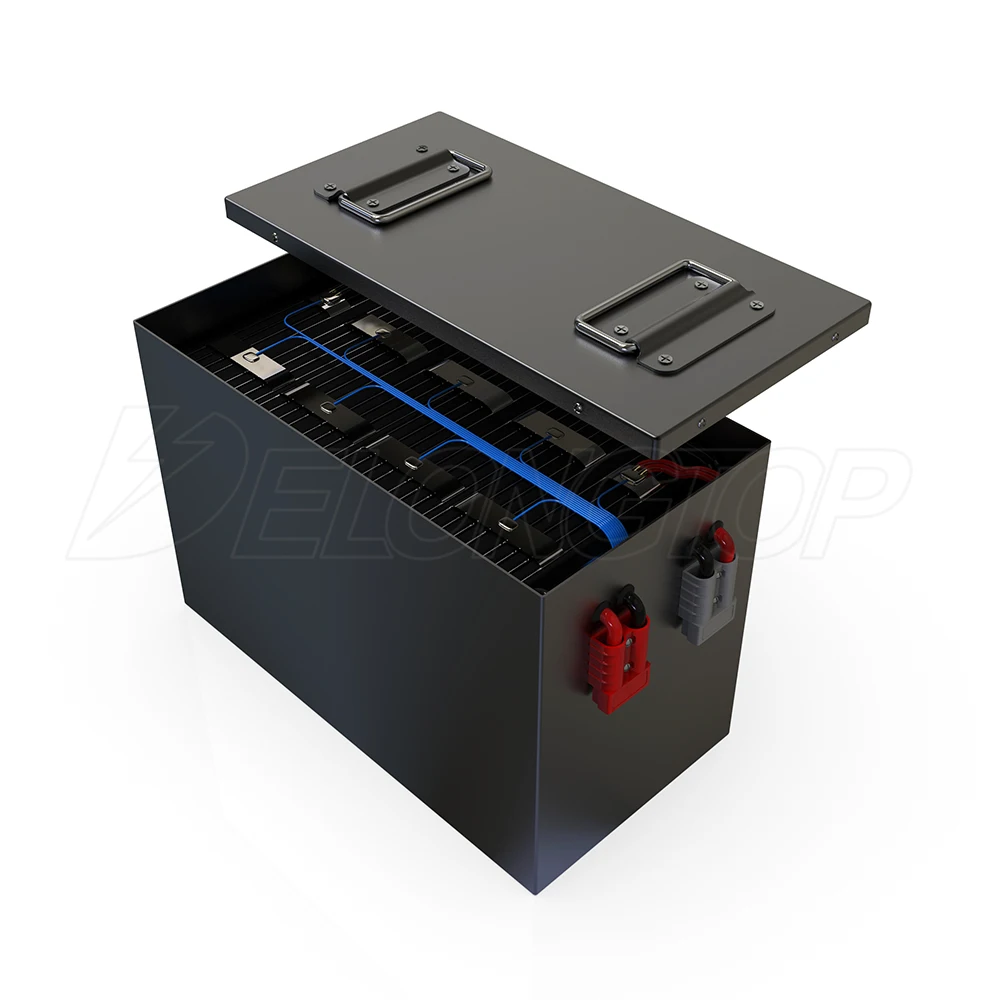

other lifepo4 battery pack with different case:
Details Images
Accessory for 24v 100ah battery

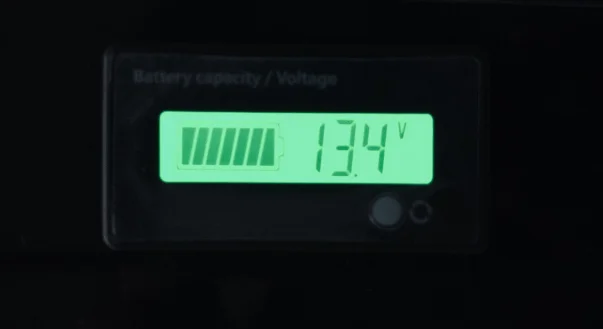

display

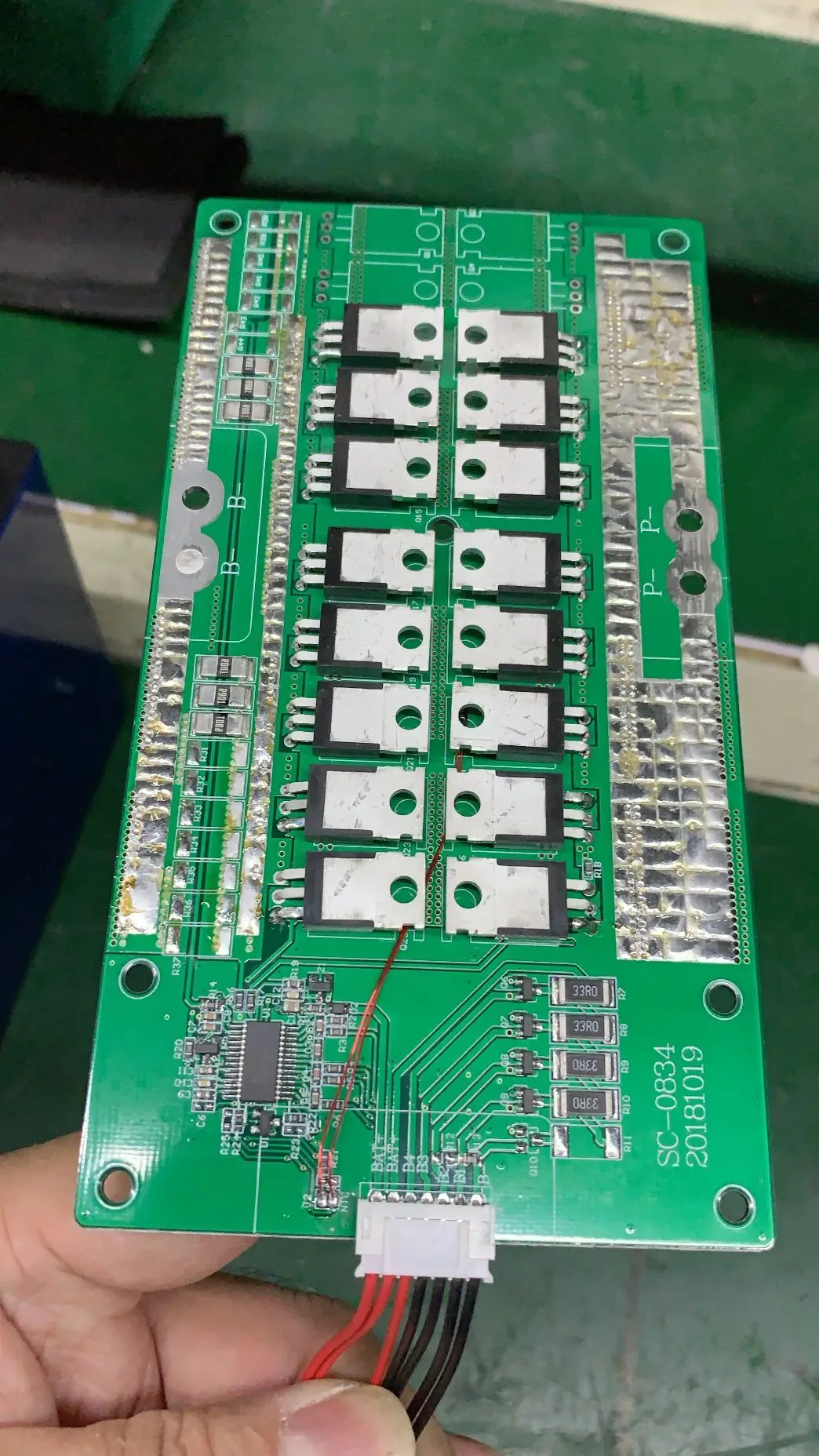

8S 100A bms
battery sticker
Product Usage
Applications of 24V lifepo4 battery :
♦ Solar-Wind Power System♦ City Grid (On/Off) Back-up solar System and UPS
♦ Power tools: electric drills, toys Energy Storage
♦ Solar-Wind Power System♦ City Grid (On/Off) Back-up solar System and UPS
♦ Power tools: electric drills, toys Energy Storage
Applications of 24V lifepo4 battery :
Electric Propelling Applications
♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel
chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment Other Applications
♦ Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Electric Propelling Applications
♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel
chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment Other Applications
♦ Security and Electronics, Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
Related Products
Packing&Shipping
Delivery time :
Normally delivery within 7-20days, but can arrange in advance if order confirm or priduce faster according to
quanity or other reason.
quanity or other reason.
Payment:
1.We accept T/T, PAYPAL , Western Union, Cash and so on.& Trade assurance order.
2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy.
3. FOB , EXW and CIF all are available.
4. Samples can accept Paypal.
5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.
1.We accept T/T, PAYPAL , Western Union, Cash and so on.& Trade assurance order.
2. Payment: 30% before mass production;70% balance will be paid before shipment or after bill of copy.
3. FOB , EXW and CIF all are available.
4. Samples can accept Paypal.
5. If you place the Trade Assurance order on Alibaba,we also can accept credit card(VISA,Master Card),e-checking.
Company Introduction
★ Delong company has focused on research,
manufacture and sales of lithium battery industrial over 8 years
①Original factory+
②Competitive price+
③Reliable after-sales services +
④Complete quality management system+Real certificate(CE,RoHs, UN38.3, MSDS ETC）+
⑤Cooperated with many big distributors in many countries, such as USA, CA, UK, France, Italy and so on
Other on-line contact way:
EM：Battery003@delongbattery.com WA: +86 17325986629
EM：Battery003@delongbattery.com WA: +86 17325986629
Customer Feedback
FAQ
Q: Are you trading company or manufacturer?
A: We are DELONG original factory from shenzhen , China.
Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed.
Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.
Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in thisperiod, Please show us video or photos for confirm before we sent solution.
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and the balance before shipment.
Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
A: We are DELONG original factory from shenzhen , China.
Q. Can I print my LOGO on it？
A: YES, LOGO/sticker/OEM/ODM welcomed.
Q. Can your battery be wired in series or parallel?
A: YES，YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 7 days.and buyer pay for sample cost and shipping cost.
Q. What warranty do I have？
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in thisperiod, Please show us video or photos for confirm before we sent solution.
Q: Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q. Does the app allow to check the voltage of each cell?
A: YES, the App allows you to read the voltage of each at any time.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Alibaba payment way and so on. If order amount>10K usd, The payment term will be 30%T/T for deposit and the balance before shipment.
Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Using lithium chargers to wake up the battery. The lithium charger wakes up the batteries automatically.
