WAMFLO Pulse Jet dust filters Flanged Round Dust Collectors FNC3J22VA for Cement Silo
Description

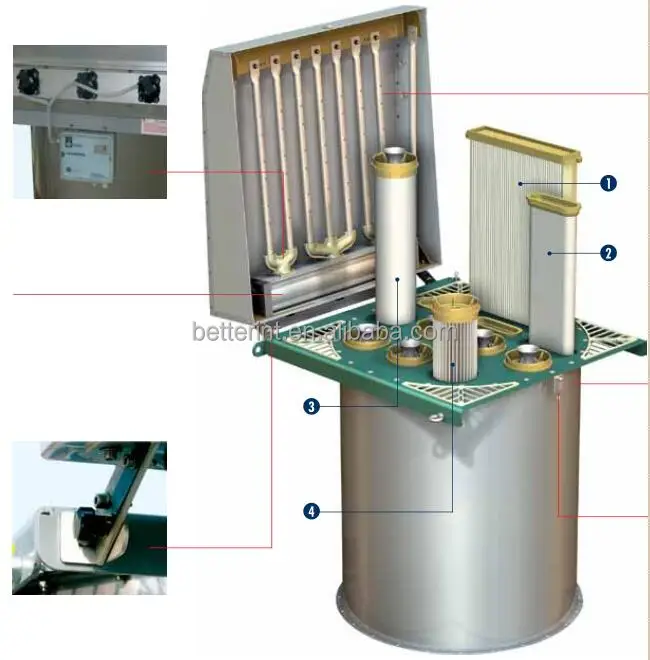

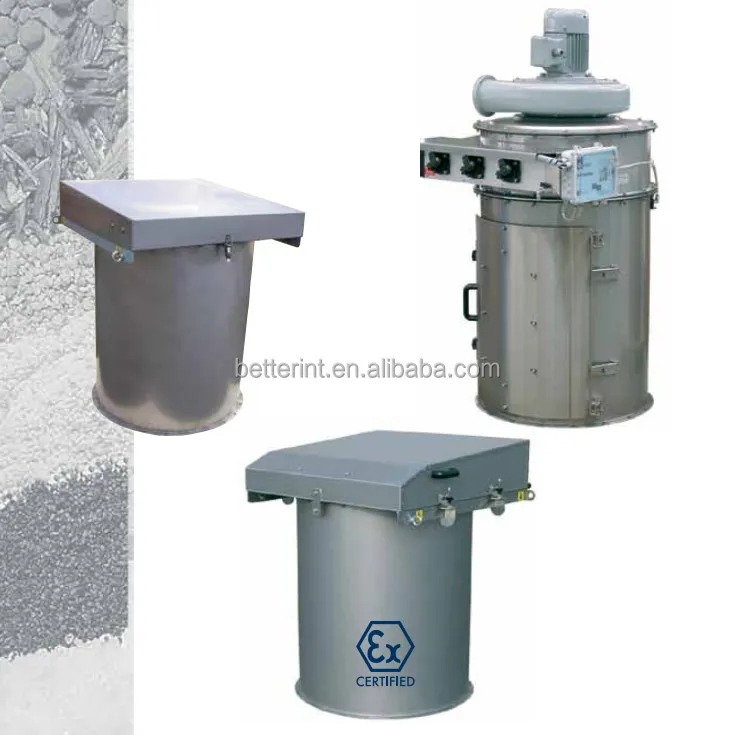

WAMFLO Dust Collectors are equipped with a cylindrical stainless-steel casing and flanged bottom ring, which contains vertically mounted bag-type, cartridge-type or high-efficiency POLYPLEAT filter elements.
A compressed air pulse-jet filter element cleaning system is integrated into the hinged top cover or connecting top flange.

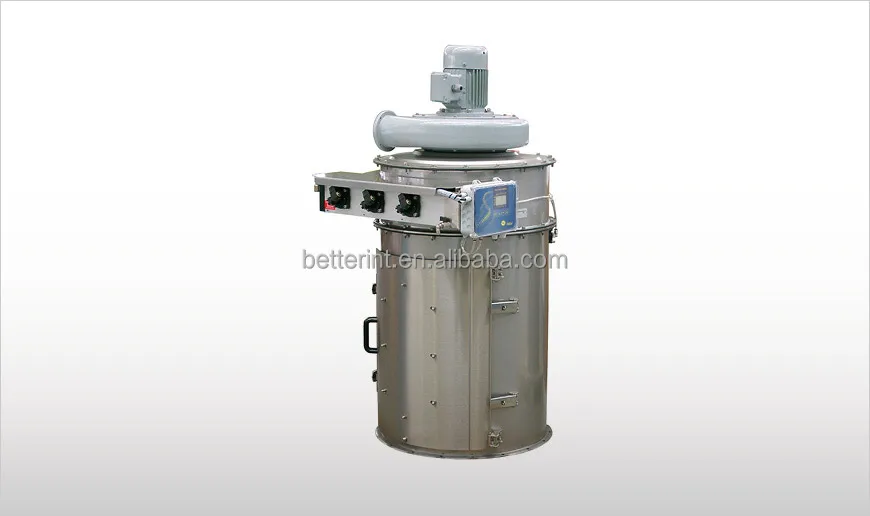

WAMFLO Dust Collectors are available with or without suction fan. As an option for applications with top-mounted suction fan or in case of limited headroom, WAMFLO can be equipped with a large front door which facilitates access to the filter elements form the dirty air side in case of inspection or maintenance.
WAMFLO is supplied with an integrated modular electronic control panel that manages cleaning cycles according to the specific requirements of the work process.

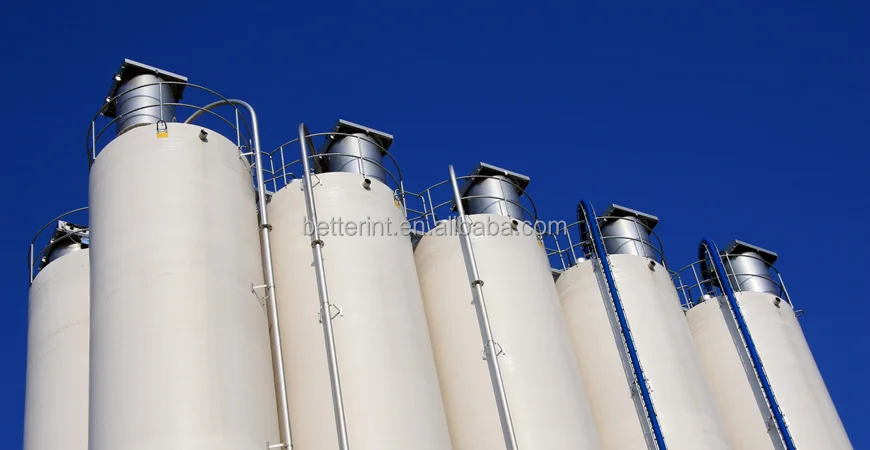

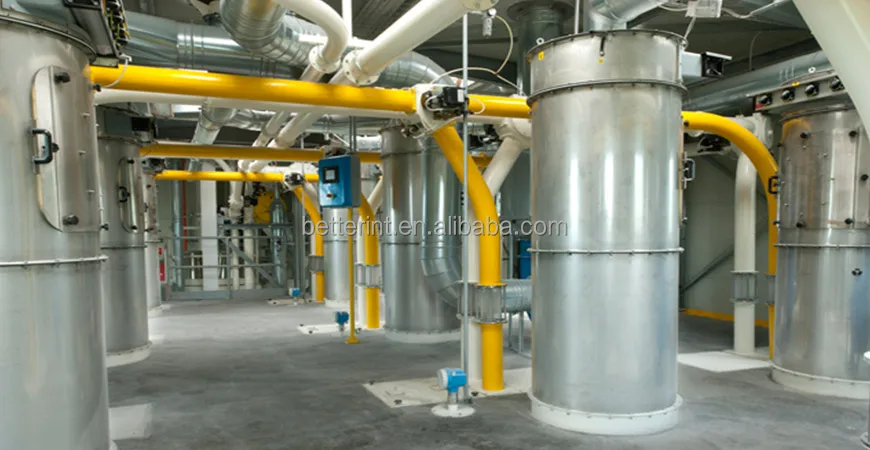

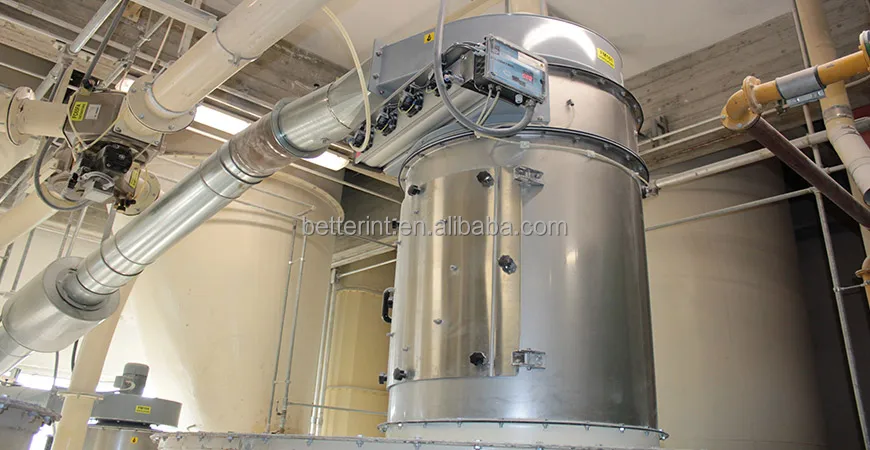

The collector can be installed on top of a silo or on any other equipment that requires dedusting (belt conveyor, bucket elevator,chain conveyor, etc.), or as a “stand-alone” unit fixed on a standard DK-type WAM dust collecting hopper.
A compressed air pulse-jet filter element cleaning system is integrated into the hinged top cover or connecting top flange.
WAMFLO Dust Collectors are available with or without suction fan. As an option for applications with top-mounted suction fan or in case of limited headroom, WAMFLO can be equipped with a large front door which facilitates access to the filter elements form the dirty air side in case of inspection or maintenance.
WAMFLO is supplied with an integrated modular electronic control panel that manages cleaning cycles according to the specific requirements of the work process.
The collector can be installed on top of a silo or on any other equipment that requires dedusting (belt conveyor, bucket elevator,chain conveyor, etc.), or as a “stand-alone” unit fixed on a standard DK-type WAM dust collecting hopper.
Function
WAMFLO separates dust particles carried in suspension by an air flow using filter elements. The dusty air current passes through the filter media, which holds back the dust particles allowing the air to flow through.
WAMFLO Dust Collectors can be configured for venting, suction and vacuum applications.
WAMFLO Dust Collectors can be configured for venting, suction and vacuum applications.
Features
* Filter surface: 1 ~ 48 m² (11 ~ 517 sq ft)
* Air volume: 60 ~ 6,000 m³/h (35 ~ 3,530 cfm)
* Filter elements: round bags, elliptical bags, cartridges, POLYPLEAT
* Compressed air pulse-jet cleaning system (4 ~ 6 bar)
* Dust temperature: -20 ~ 80 °C (-4 ~ 176 °F)
* Cylindrical stainless-steel casing with bottom flange
* Quick and safe filter element replacement from clean or dirty air side
* Multifunctional multi-voltage electronic control panel
* Tool-free filter element replacement
* Designed for outdoor installation
* Air volume: 60 ~ 6,000 m³/h (35 ~ 3,530 cfm)
* Filter elements: round bags, elliptical bags, cartridges, POLYPLEAT
* Compressed air pulse-jet cleaning system (4 ~ 6 bar)
* Dust temperature: -20 ~ 80 °C (-4 ~ 176 °F)
* Cylindrical stainless-steel casing with bottom flange
* Quick and safe filter element replacement from clean or dirty air side
* Multifunctional multi-voltage electronic control panel
* Tool-free filter element replacement
* Designed for outdoor installation
Benefits
* Low emission level due to WAM filter elements and media (BIA/IFA-certified)
* Easily configurable for a wide range of dusts
* Reliable, versatile and durable for a variety of applications
* High cleaning efficiency due to "Full Immersion" solenoid valves incorporated into aluminium air tank
* Low air consumption with FILCONTROL CONNECT
* Easy and quick installation and maintenance
* Multiple voltages meeting different electric specifications
* Worldwide after-sales service and spare parts provided by WAM subsidiaries
* Easily configurable for a wide range of dusts
* Reliable, versatile and durable for a variety of applications
* High cleaning efficiency due to "Full Immersion" solenoid valves incorporated into aluminium air tank
* Low air consumption with FILCONTROL CONNECT
* Easy and quick installation and maintenance
* Multiple voltages meeting different electric specifications
* Worldwide after-sales service and spare parts provided by WAM subsidiaries
Options
* Fan or connecting flange for centralised dust suction
* Insertable and/or vacuum versions available
* Increased casing thickness
* 304 / 316 stainless-steel casing and seal frame
* Inspection hatch or maintenance door
* Flanged or clamped connection
* Advanced electronic control panel with a variety of controls and differential pressure meter (MDPE)
* Winter protection for solenoid valves
* Insertable and/or vacuum versions available
* Increased casing thickness
* 304 / 316 stainless-steel casing and seal frame
* Inspection hatch or maintenance door
* Flanged or clamped connection
* Advanced electronic control panel with a variety of controls and differential pressure meter (MDPE)
* Winter protection for solenoid valves
Accessories
* Dust collecting HOPPER with flow aid, butterfly valve and bucket
* Flanged or clamped BOTTOM RING
* Choke VALVE and SILENCER
* Dust emission SAMPLING KIT
* ELBOW for lateral connection
* Flanged or clamped BOTTOM RING
* Choke VALVE and SILENCER
* Dust emission SAMPLING KIT
* ELBOW for lateral connection
Specification
Model | FNC3J22VA | FNC3J22VC | FNC4J44VA | FNC4J44VC |
Filter diameter | φ800 | φ800 | φ1000 | φ1000 |
Filter surface | 22m2 | 22m2 | 44m2 | 44m2 |
Suction fan | 2.2kw | - | 3kw | - |

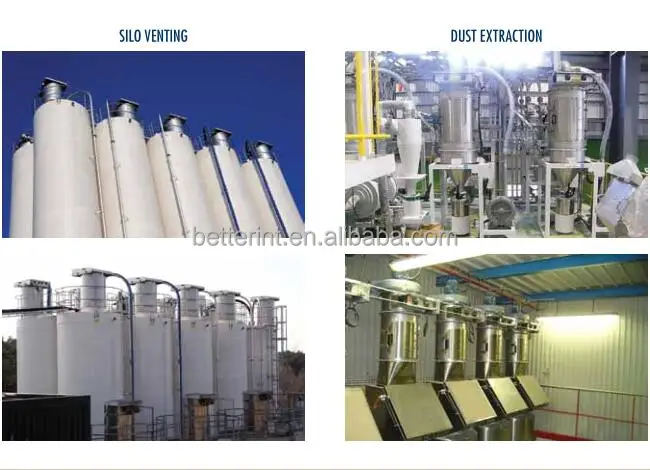

Application
Packing & Delivery
WAMFLO Pulse Jet dust filters Flanged Round Dust Collectors FNC3J22VA for Cement Silo
wooden pallet with shrink film
