ALLTOP 2022 Module 48100 Pack 48v 600 Amp Hour 280ah Lifep04 Battery
- Category: >>>
- Supplier: Zhongshan ALLTOP Lighting Co. Ltd.
Share on (1600548598447):
Product Overview
Description
Company Strength
Product Parameter

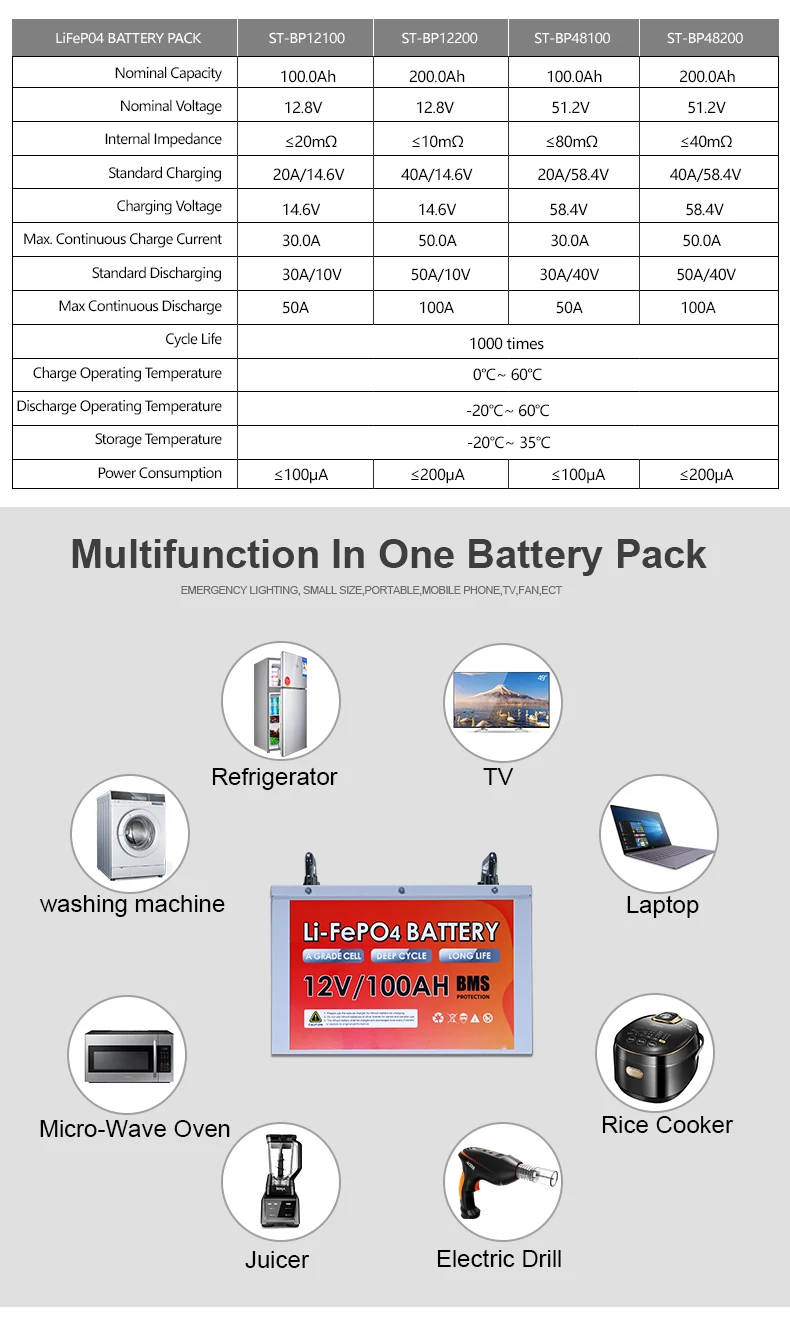

Product parameters
| Brand Name | ALLTOP | |||
| Item No | ST- BP12100 | ST- BP12200 | ST- BP48100 | ST- BP48200 |
Rated Capacity | 12V/100AH | 12V/200AH | 48V/100AH | 48V/200AH |
Nominal Capacity | 100.0Ah | 200.0Ah | 100.0Ah | 200.0Ah |
Nominal Voltage | 12.8V | 12.8V | 51.2V | 51.2V |
Internal Impedance | ≤20mΩ | ≤10mΩ | ≤80mΩ | ≤40mΩ |
| Standard Charging | 20A/14.6V | 40A/14.6V | 20A/58.4V | 40A/58.4V |
| Charging Voltage | 14.6V | 14.6V | 58.4V | 58.4V |
| Max. Continuous Charge Current | 30.0A | 50.0A | 30.0A | 50.0A |
Standard Discharging | 30A/10V | 50A/10V | 30A/40V | 50A/40V |
| Max Continuous Discharge | 50A | 100A | 50A | 100A |
| Cycle Life | 1000 times | 1000 times | 1000 times | 1000 times |
| Charge Operating Temperature | 0℃~ 60℃ | 0℃~ 60℃ | 0℃~ 60℃ | 0℃~ 60℃ |
| Discharge Operating Temperature | -20℃~ 60℃ | -20℃~ 60℃ | -20℃~ 60℃ | -20℃~ 60℃ |
| Storage Temperature | -20℃~ 35℃ | -20℃~ 35℃ | -20℃~ 35℃ | -20℃~ 35℃ |
| Power Consumption | ≤100μA | ≤100μA | ≤100μA | ≤100μA |
| Weight | 10kg | 19kg | 40kg | 80kg |
