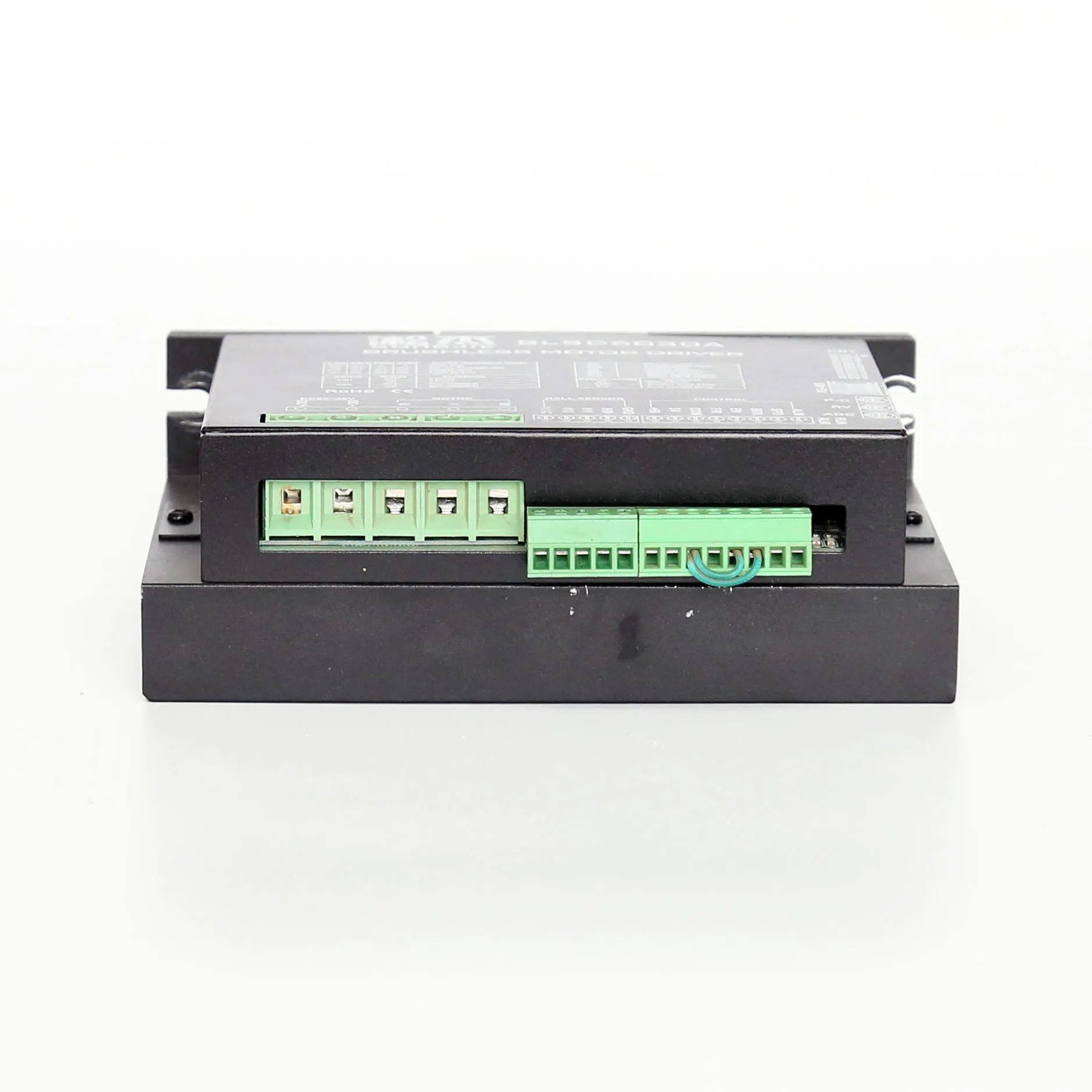

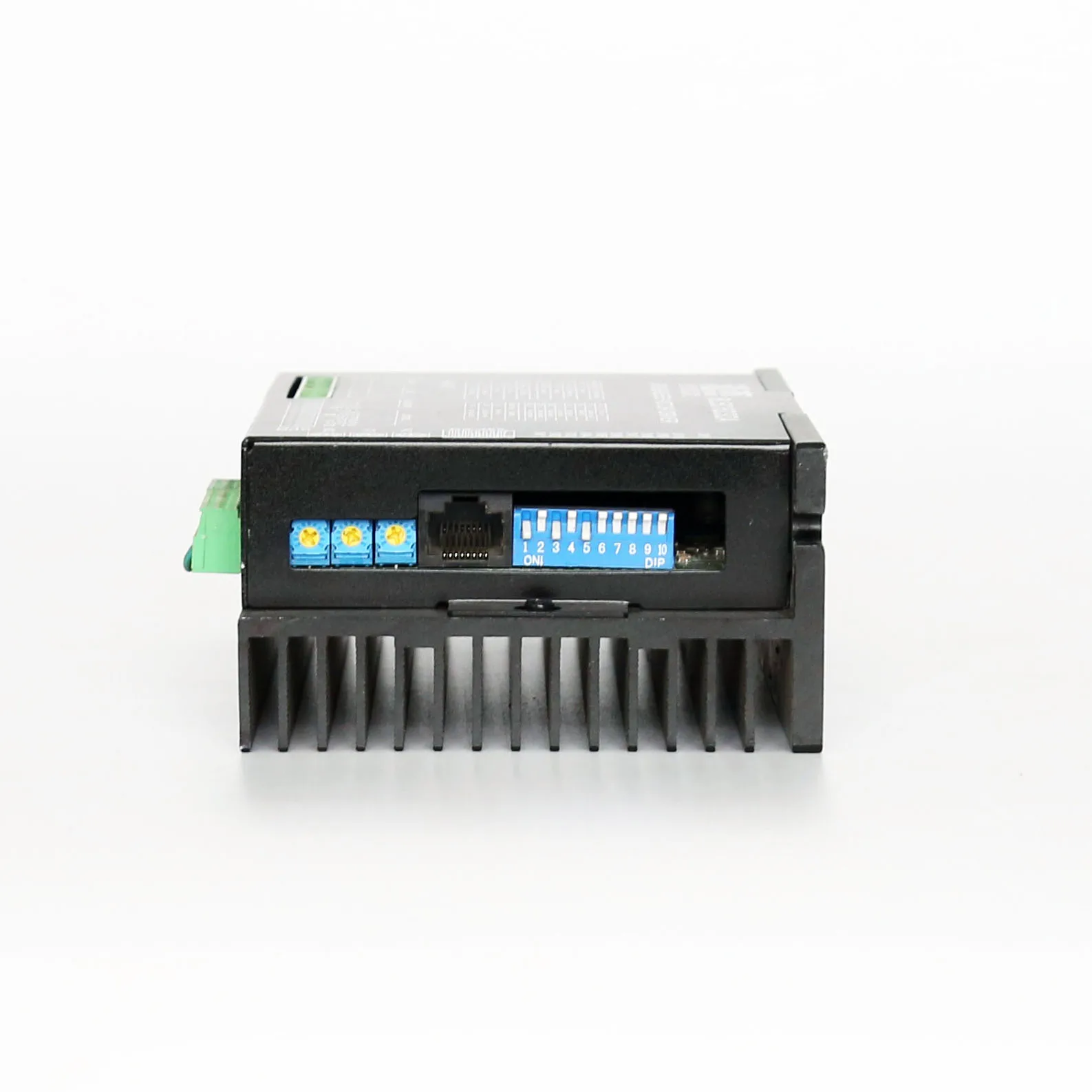

brushless motor controller 36v 800w bldc motor controller 24v 48v bldc motor driver
- Category: >>>
- Supplier: Changzhou Songjie Motor Electrical Ltd.
Share on (1600548618540):
Product Overview
Description
Product Description
brushless motor controller 48v 800w bldc motor controller 24v 48v bldc motor driver
Technical specifications
Item | Minimum | Typical values | Maximum | Unit |
VDC | 20 | 36 | 60 | V |
Current | 4 | 30 | 60 | A |
Logical input current | 10 | 20 | 50 | mA |
Hall power supply |
| 5 |
| VDC |
Speed control | 150 | 3000 | 50000 | Rpm |

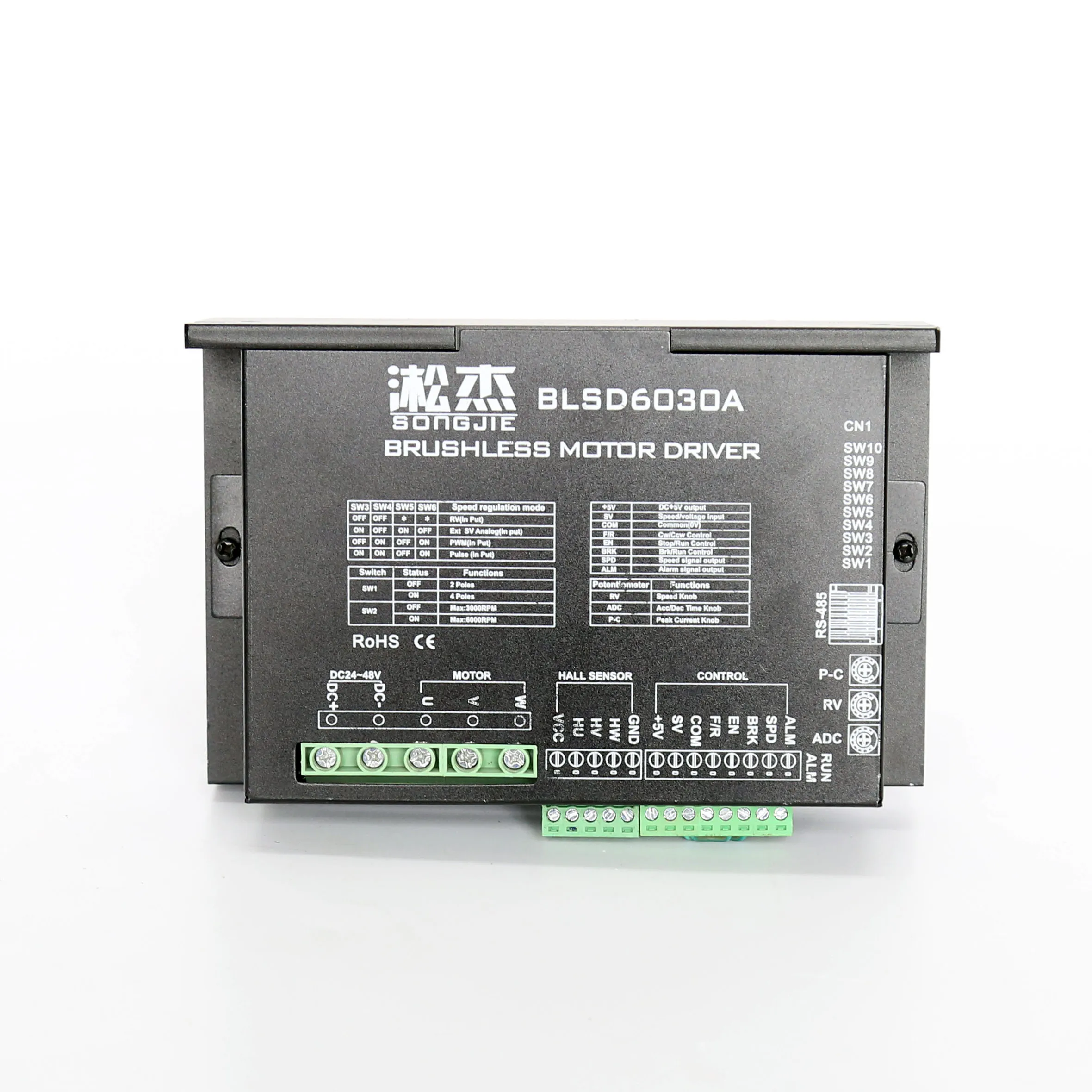

Digital control signal port:
Name | Instructions |
DC+/DC- | Dc voltage input terminal (DC24V~DC48V) |
U,V,W | Motor phase line |
Hu,Hv,Hw | Hall signal line |
VCC | Hall power supply +(+5VDC) |
GND | Hall power supply -(0V) |
+5V | External potentiometer power supply |
SV | External speed regulation. Hover when using internal speed control |
COM | Common port (low level) |
F/R | Direction, suspension or high power normally for positive turn, low level reversal |
EN | The control signal enables the energy terminal to stop at high level and operate at low level |
BRK | Brake, low power normally for normal work, high level stop |
SPEED | Speed signal output terminal |
ALARM | Alarm signal |
