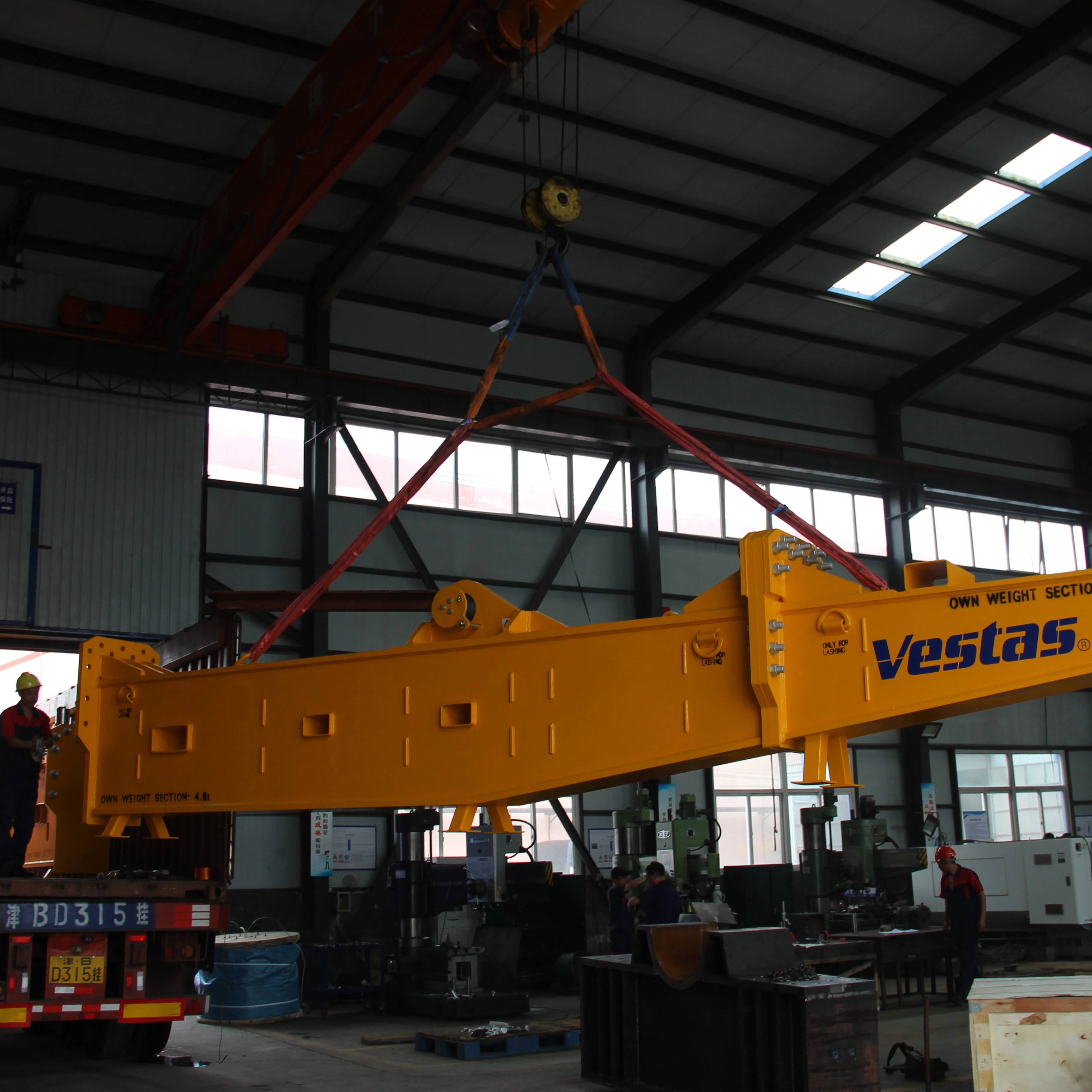

Heavy lifting beam large tonnage balance beam lifting appliance large Container Spreader
- Category: >>>
- Supplier: Beijing Tianma Sling Co. Ltd.
Share on (1600548619916):
Product Overview
Description
Product Description
factory price yellow color heavy duty spreader bar lifting beam

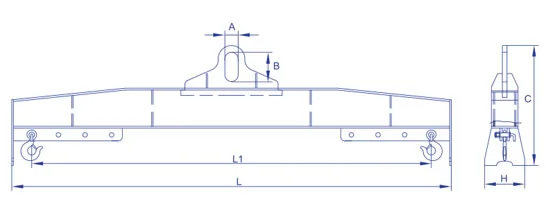

Specification
WLL (ton) | Adjusting scope (m) | Effect Length (m) | Dimensions(mm) | Self weight(kg) | ||||||||
A | B | C | L | H | ||||||||
2 | 2-3 | 3 | 80 | 150 | 570 | 3184 | 180 | 145 | ||||
3.2 | 3-5 | 5 | 100 | 220 | 830 | 5200 | 300 | 400 | ||||
5 | 3-5 | 5 | 100 | 220 | 935 | 5300 | 300 | 520 | ||||
8 | 4-6 | 6 | 160 | 360 | 1140 | 6312 | 340 | 980 | ||||
10 | 4-6 | 6 | 160 | 360 | 1140 | 6312 | 340 | 1140 | ||||
12.5 | 4-6 | 6 | 180 | 400 | 1320 | 6320 | 370 | 1385 | ||||
16 | 6-8 | 8 | 180 | 430 | 1370 | 8320 | 450 | 2325 | ||||
20 | 6-8 | 8 | 180 | 430 | 1485 | 8360 | 450 | 2635 | ||||
25 | 6-8 | 8 | 200 | 500 | 1755 | 8500 | 530 | 3110 | ||||
32 | 8-10 | 10 | 220 | 600 | 2135 | 10640 | 650 | 5435 | ||||
40 | 8-10 | 10 | 220 | 600 | 2165 | 10640 | 650 | 5880 | ||||

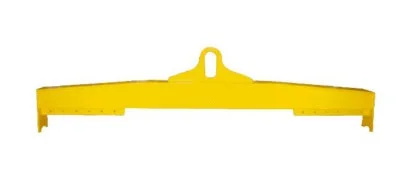

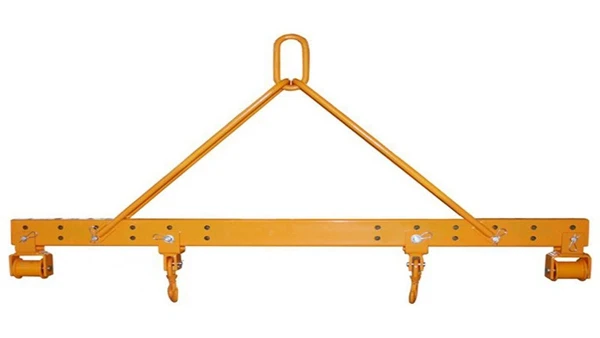

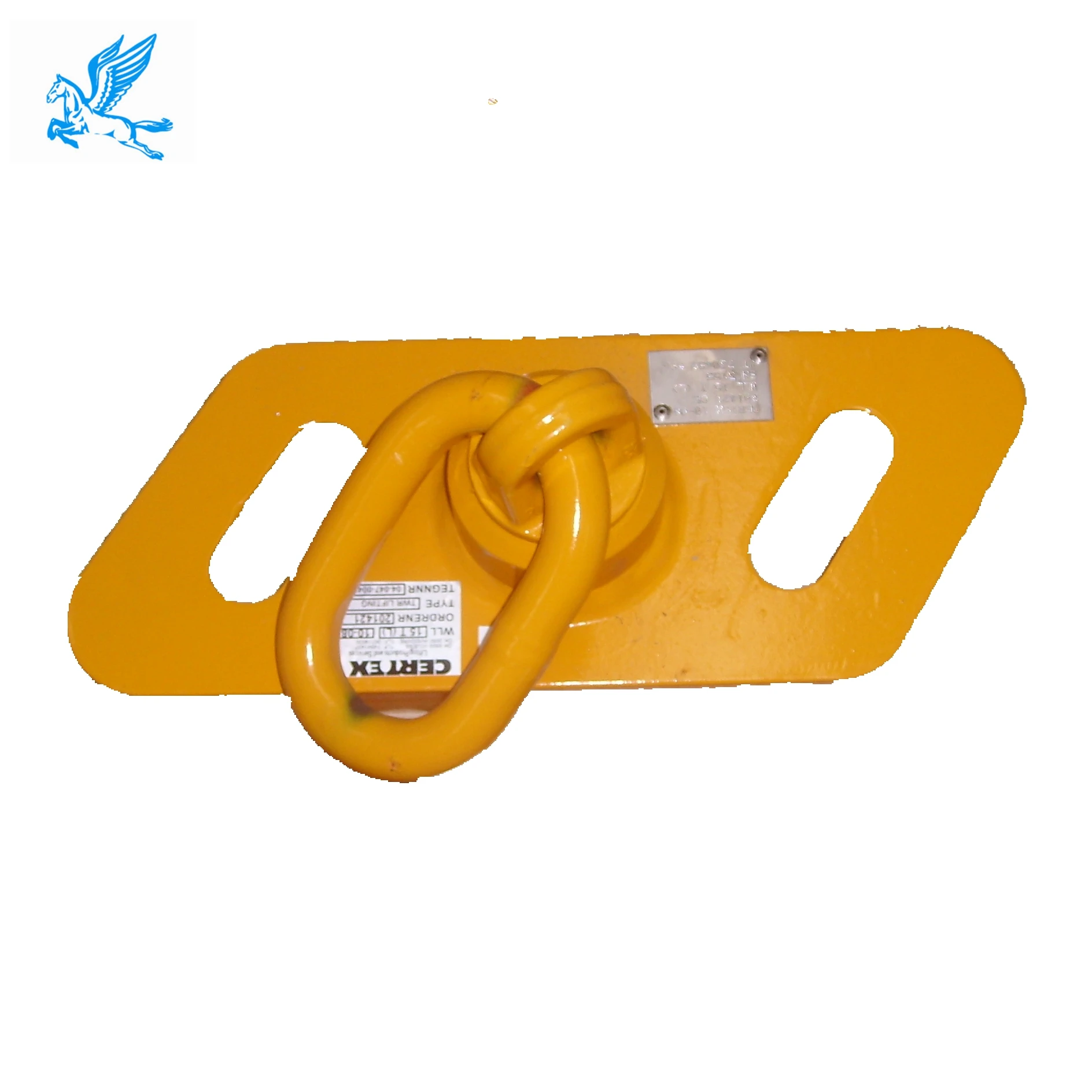

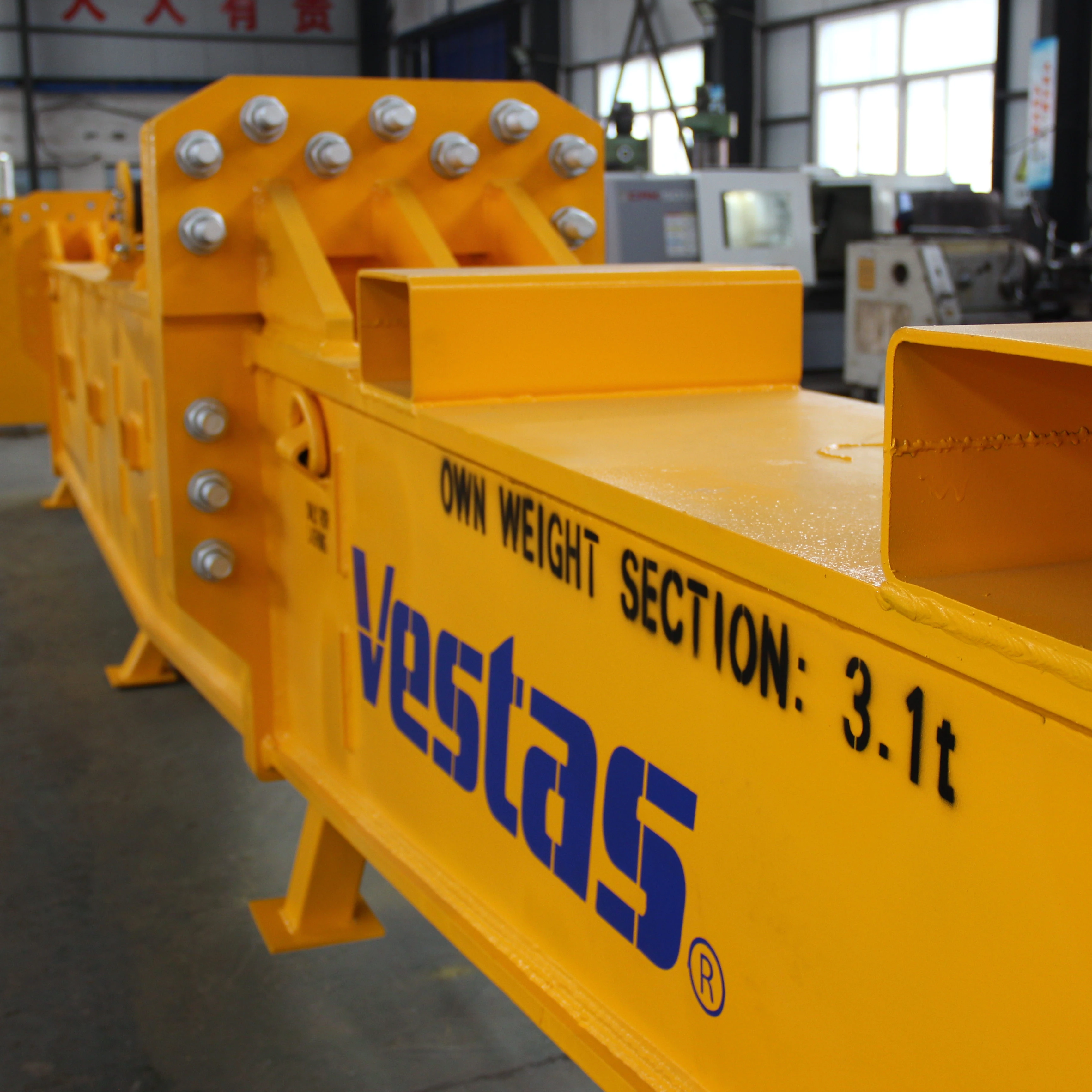

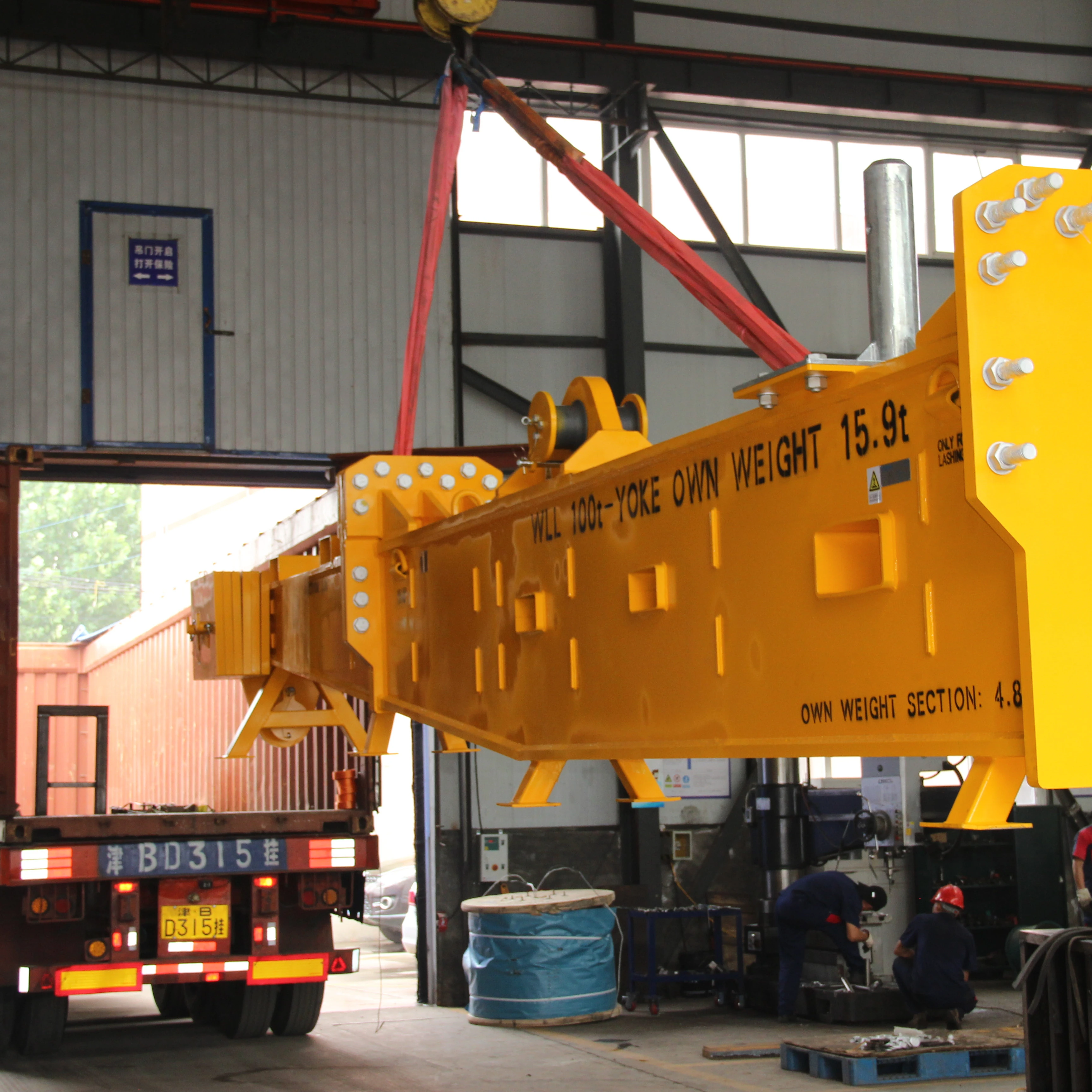

DETAIL DISPLAY

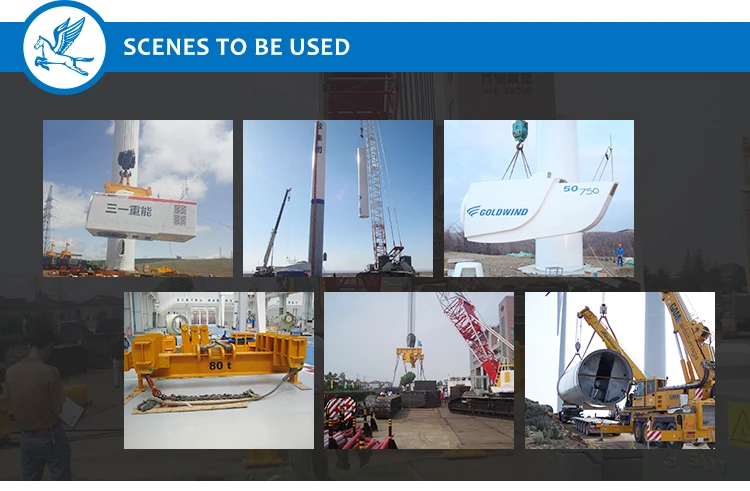

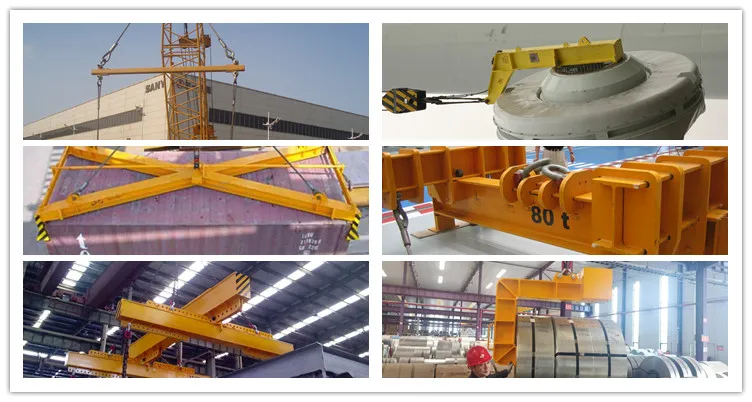

Application area

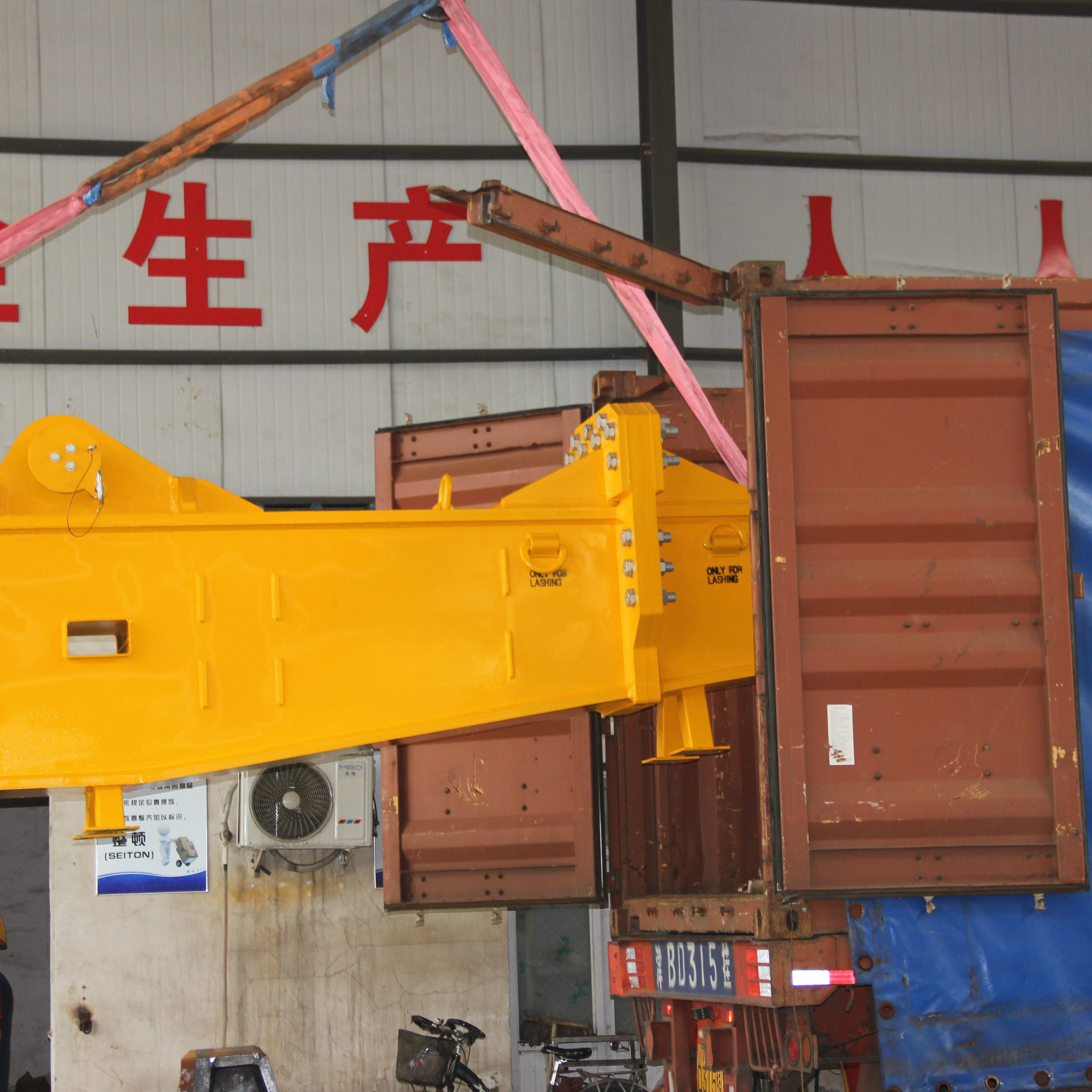

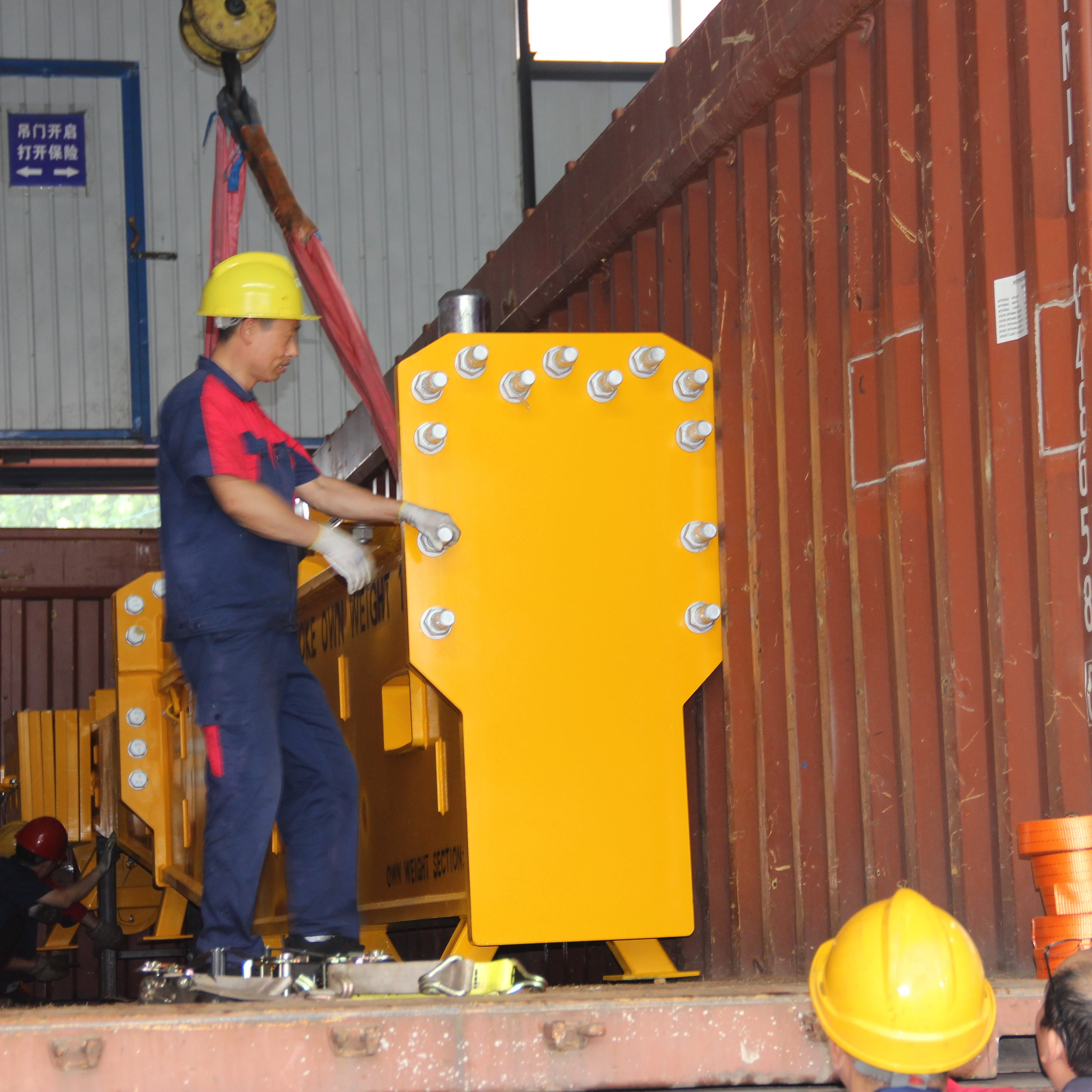

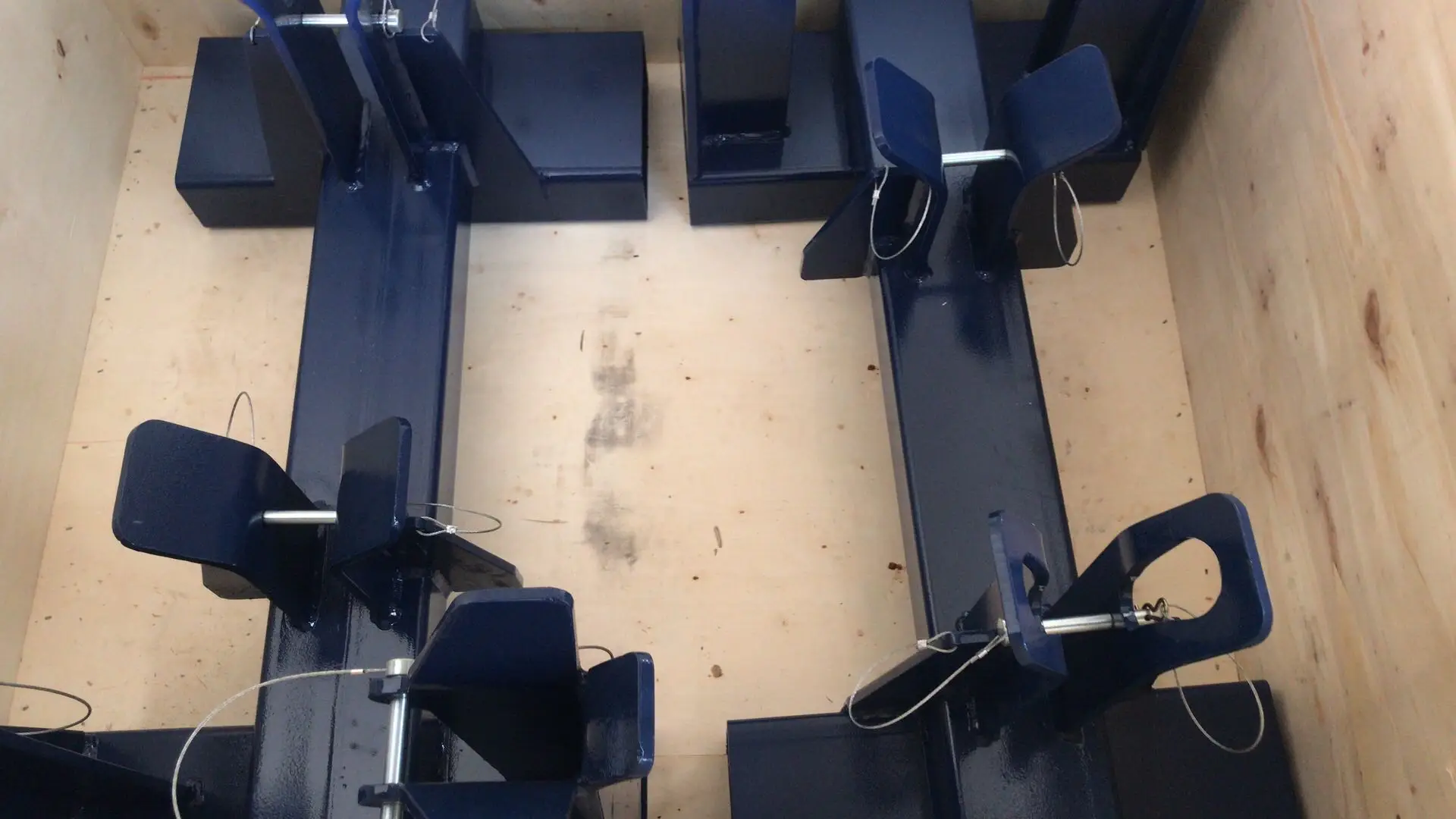

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
Beijing Tianma Sling Co., Ltd has been in heavy lifting industry for more than 20 years. We are specialized in manufacturing all sizes of webbing slings, round sling, lashing straps, towing straps, polyester webbing, wire rope press machine, hydraulic testing machines, wire rope sling and other rigging equipment to the world market.
