Junai 1 roll 10mm Thick Thermal Resistant Rcf Paper
- Category: >>>
- Supplier: Shaanxi Junai Energy Saving Technology Co. Ltd.
Share on (1600548633600):
Product Overview
Description
Products Description

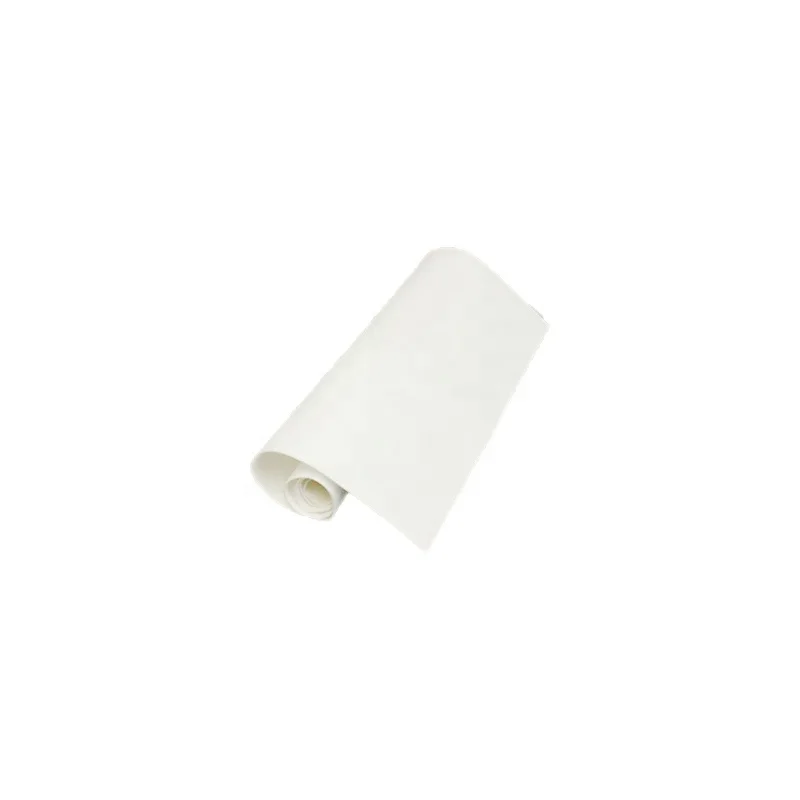

Junai ceramic fiber paper
Junai ceramic fiber paper adopts advanced production technology, equipment and process to make fiber distribution very uniform, and paper thickness, uniformity and bulk density can also be strictly controlled. Due to its flexibility, ceramic fiber paper is easy to handle and cut and can be used for a wide range of thermal insulation applications. Ceramic fiber paper can replace asbestos products and is suitable for heat insulation, heat preservation, sealing, filtration, etc. at high temperature.
It is an advanced lightweight and flexible refractory material. It is especially suitable for applications with space constraints and high appearance requirements. It is an advanced thermal insulation material. Products are divided into two categories: aluminum foil veneer and no veneer.
It is an advanced lightweight and flexible refractory material. It is especially suitable for applications with space constraints and high appearance requirements. It is an advanced thermal insulation material. Products are divided into two categories: aluminum foil veneer and no veneer.

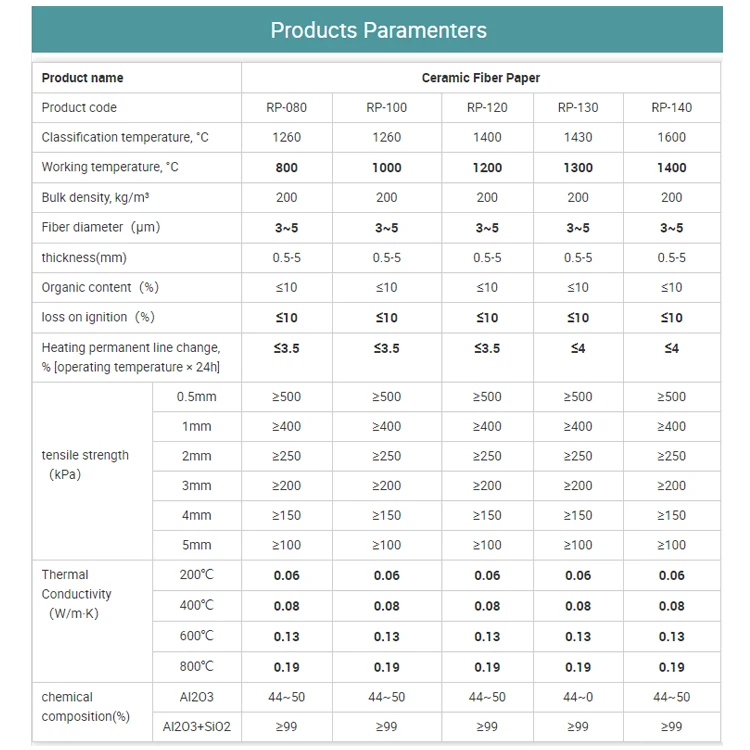

Products Paramenters
Product Name | Refractory Fiber Paper | ||||||||||
Product Code | RP-080 | RP-100 | RP-120 | RP-130 | RP-140 | ||||||
Classification temperature（℃） | 1260 | 1260 | 1400 | 1430 | 1600 | ||||||
Working temperature（℃） | 800 | 1000 | 1200 | 1300 | 1400 | ||||||
Bulk density（kg/m³） | 200 | 200 | 200 | 200 | 200 | ||||||
Fiber diameter（μm） | 3~5 | 3~5 | 3~5 | 3~5 | 3~5 | ||||||
thickness (mm) | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | 0.5-5 | ||||||
Organic content（%） | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ||||||
loss on ignition（%） | ≤10 | ≤10 | ≤10 | ≤10 | ≤10 | ||||||
Heating permanent line change, % [operating temperature × 24h] | ≤3.5 | ≤3.5 | ≤3.5 | ≤4 | ≤4 | ||||||
tensile strength（kPa） | 0.5mm | ≥500 | ≥500 | ≥500 | ≥500 | ≥500 | |||||
1mm | ≥400 | ≥400 | ≥400 | ≥400 | ≥400 | ||||||
2mm | ≥250 | ≥250 | ≥250 | ≥250 | ≥250 | ||||||
3mm | ≥200 | ≥200 | ≥200 | ≥200 | ≥200 | ||||||
4mm | ≥150 | ≥150 | ≥150 | ≥150 | ≥150 | ||||||
5mm | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | ||||||
Thermal Conductivity（W/m·K） | 200℃ | 0.06 | 0.06 | 0.06 | 0.06 | 0.06 | |||||
400℃ | 0.08 | 0.08 | 0.08 | 0.08 | 0.08 | ||||||
600℃ | 0.13 | 0.13 | 0.13 | 0.13 | 0.13 | ||||||
800℃ | 0.19 | 0.19 | 0.19 | 0.19 | 0.19 | ||||||
chemical composition（%） | Al2O3 | 44~50 | 44~50 | 44~50 | 44~0 | 44~50 | |||||
Al2O3+SiO2 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ||||||

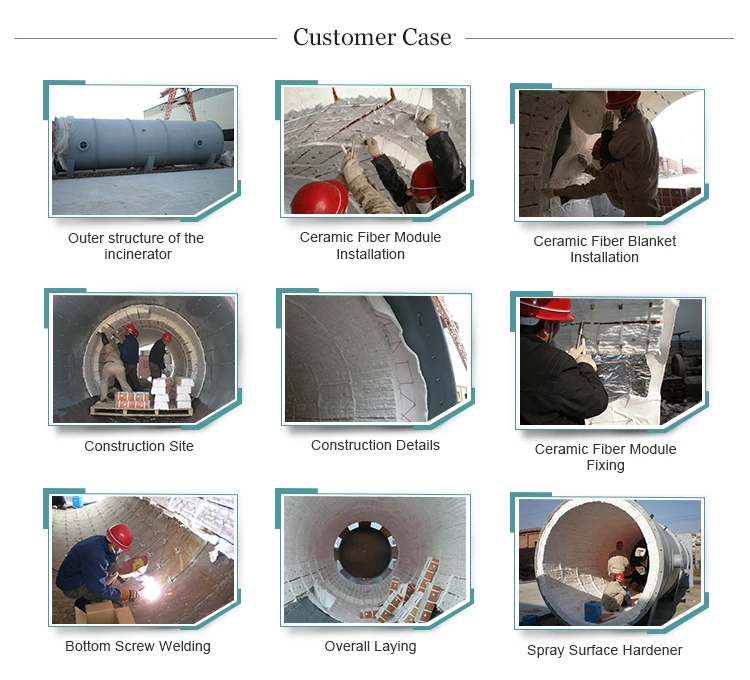

Product Application
Our products are widely used and experienced in these industries.
We can provide the system solutions in the field of high and low-temperature industry energy-saving including project design, product supply, site instruction, and technical support.4e979d
Production line
Company Profile
Shaanxi Junai Energy-saving Technology Co., Ltd
We are the overseas business division of Luoyang Naiyan Ceramic Fiber Co, Ltd, a subsidiary of Sinosteel Cooperation Luoyang Refractory Research Institute Co., Ltd. We are founded in 1963, and are recognized as the pioneer and forerunner in the field of refractory fiber and nano microporous thermal insulation material in China.
Professional Team
At present, we have 39 R & D personnel, including 17 scientific researchers with the title of the engineer or above. Over several decades focus on refractory, cold chain, energy saving, thermal insulation materials, and equipment R&D and manufacturing.
Certificate and Honor
Junai has the most authoritative certificate and honor system.
Packaging and Delivery
Payment and delivery
Payment can be done by T/T, Credit Card, Western Union, PayPal and more.
delivery：By sea/by air/by train/DHL/Fedex/ups/EMS/TNT etc.
FAQ
1.Are you a factory ？
We are a manufacturer founded in 1963, located in Henan China.
We also can offer system solutions including project design, site instruction, and technical support.
2.What is your main product?
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
Such as ceramic fiber products, microporous thermal insulation panels, vacuum insulation panels and other thermal insulation products.
3. Can I get free sample?
Yes, you only need to pay the fright and this fee will return to your formal order.
4. What is your MOQ?
No specific moq, but good price for large quantity.
5. Is there any discount?
5. Is there any discount?
Yes, it depends on the quantity.
6.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime !
