High Throughput Higher Efficient Milk Egg Yolk Powder Spray Drying equipment
- Category: >>>
- Supplier: Liaoyang,Wintech,Industrial,Co.,Ltd.
Share on:
Product Overview
Description

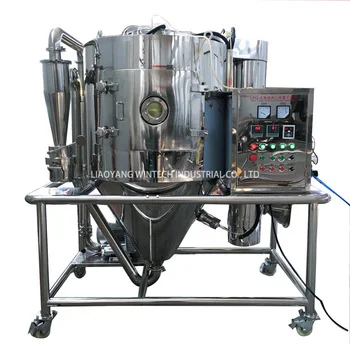

High Throughput Higher Efficient Milk Egg Yolk Powder Spray Drying equipment

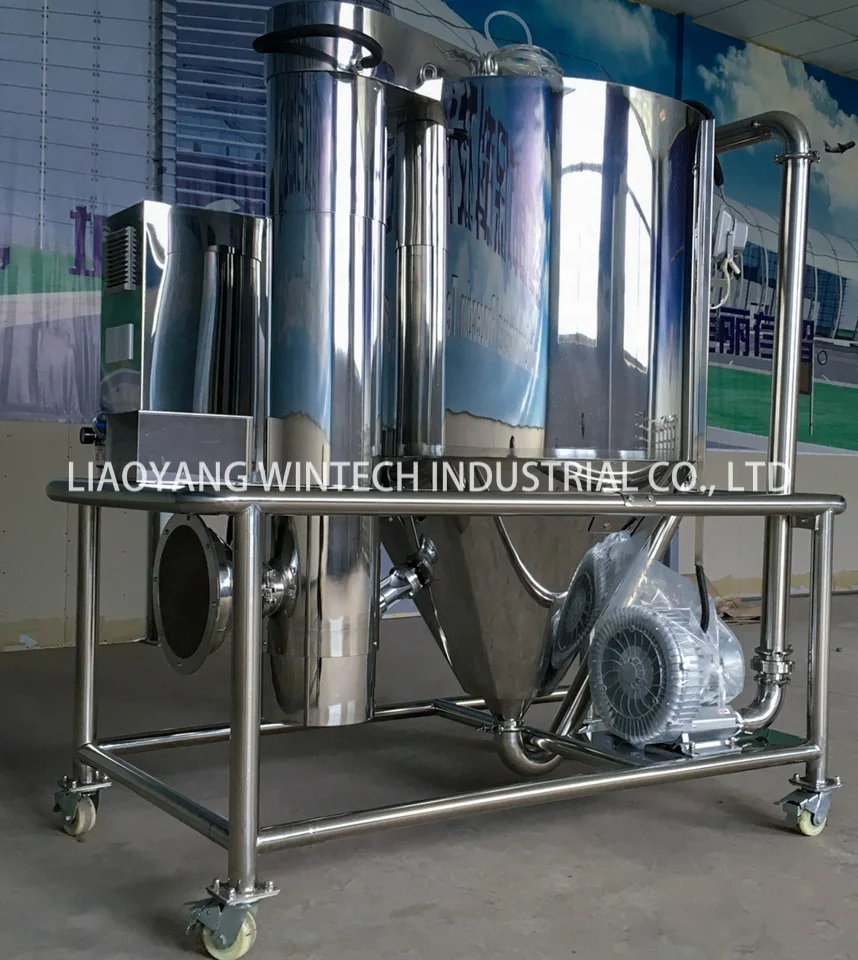

Spray dryer
Spray dryer is a drying method which disperses raw material liquid into fog drops by atomizer, and dries the fog drops with hot
air to obtain products.The feed liquid may be solution, emulsion, suspension, or molten liquid or paste.The dry product can be
made into powder, granule, and others according to the need.
air to obtain products.The feed liquid may be solution, emulsion, suspension, or molten liquid or paste.The dry product can be
made into powder, granule, and others according to the need.
Application Field
1. Chemical industry: sodium fluoride (potassium), basic dye pigment, dye intermediates, compound fertilizer, formaldehyde silicate,catalyst, sulfuric acid agent, amino acid, white carbon black, etc.
2. Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, dense adhesive (urea) formaldehyde resin, polyethylene,polyvinyl chloride and so on.
3. Food industry: rich milk powder, elastomeric, cocoa milk powder, milk powder, hunting blood powder, egg white (yellow), etc.
4. Food and plants: oats, chicken juice, coffee, instant tea, flavoring meat, protein, soybean, peanut protein, hydrolysates, etc.
5. Sugars: corn pulp, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
6. Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder, etc
2. Plastic resin: AB, ABS emulsion, urea-formaldehyde resin, phenolic resin, dense adhesive (urea) formaldehyde resin, polyethylene,polyvinyl chloride and so on.
3. Food industry: rich milk powder, elastomeric, cocoa milk powder, milk powder, hunting blood powder, egg white (yellow), etc.
4. Food and plants: oats, chicken juice, coffee, instant tea, flavoring meat, protein, soybean, peanut protein, hydrolysates, etc.
5. Sugars: corn pulp, corn starch, glucose, pectin, maltose, potassium sorbate, etc.
6. Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder, etc
Features
1. Due to the large surface area of the droplet group, the drying time is very short (in seconds).
2. in the high temperature air flow, the surface temperature of wetting material is not high, because of the rapid drying,and the final product temperature is not high.Therefore, spray drying is especially suitable for heat sensitive materials.
3. It is flexible to meet the quality request of various products, such as particle size distribution, product shape, product
properties and others and final product moisture content.
4.Simplify the processing.The raw liquid can be directly made into powder products in the drying tower.
2. in the high temperature air flow, the surface temperature of wetting material is not high, because of the rapid drying,and the final product temperature is not high.Therefore, spray drying is especially suitable for heat sensitive materials.
3. It is flexible to meet the quality request of various products, such as particle size distribution, product shape, product
properties and others and final product moisture content.
4.Simplify the processing.The raw liquid can be directly made into powder products in the drying tower.

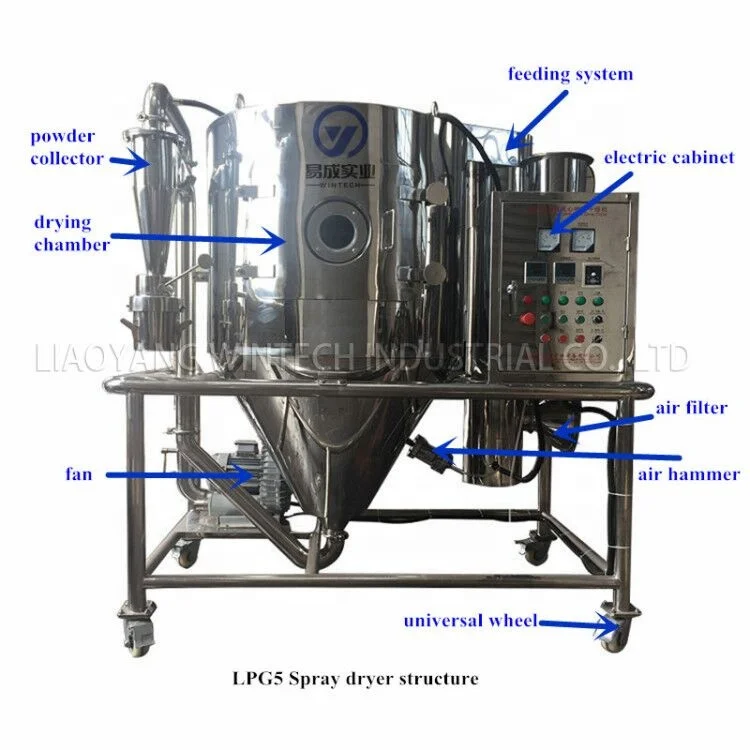

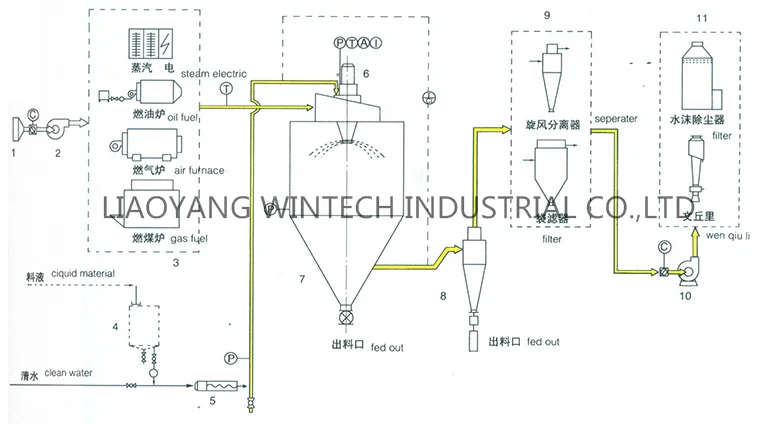

Working Principle
After filtering and heating, the air enters into the air distributor at the top of the dryer, and the hot air enters the drying
chamber uniformly in a spiral shape.The feed liquid through the high-speed centrifugal atomizer at the top of the tower body,(rotating) spray into a very fine mist liquid beads, and contact with hot air,the it is dried in a very short time.The finished products are continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is emptied by the induced draft fan.The working principle of spray dryer and the operation method flow of spray dryer.
chamber uniformly in a spiral shape.The feed liquid through the high-speed centrifugal atomizer at the top of the tower body,(rotating) spray into a very fine mist liquid beads, and contact with hot air,the it is dried in a very short time.The finished products are continuously output from the bottom of the drying tower and the cyclone separator, and the exhaust gas is emptied by the induced draft fan.The working principle of spray dryer and the operation method flow of spray dryer.

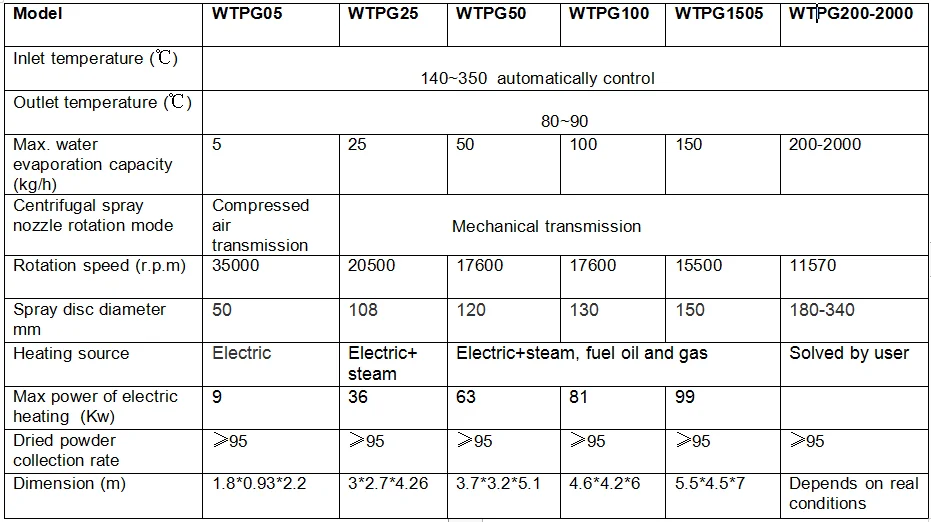

Technical Parameters
The above parameter is just for reference.the exact should be subject to the final design. | ||||||||

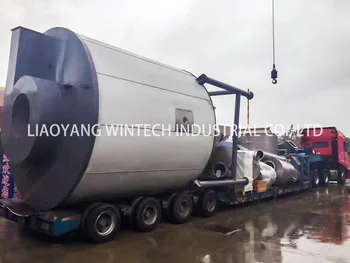

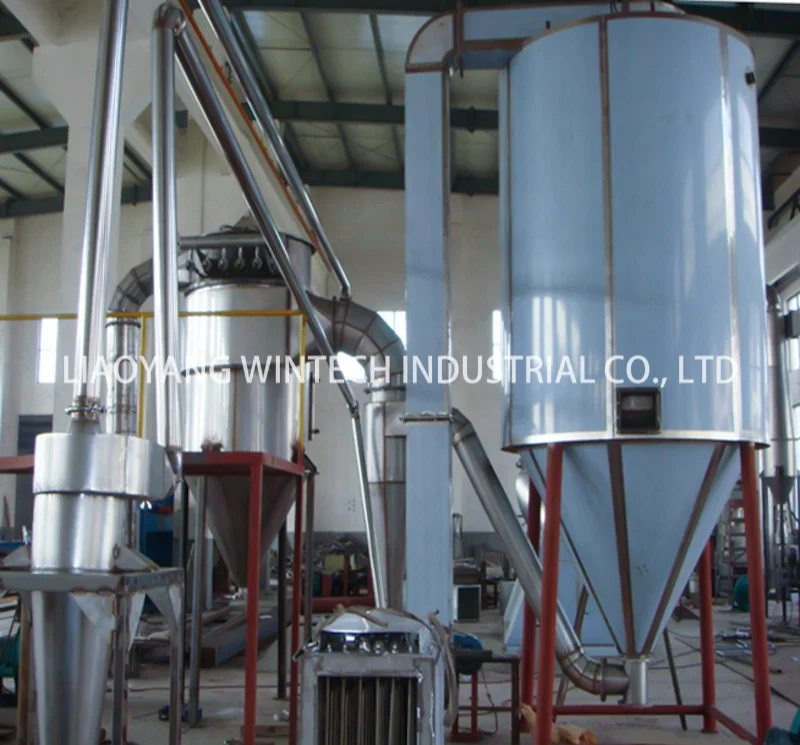

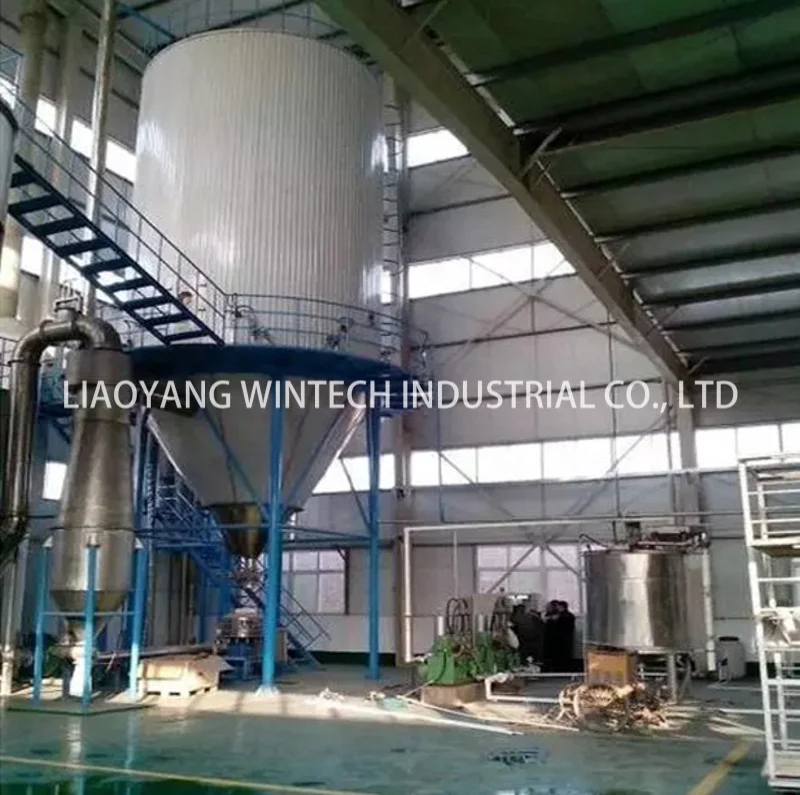

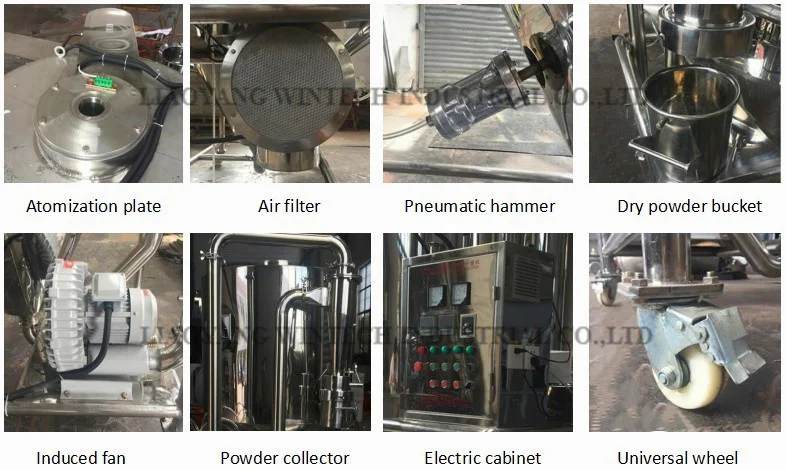

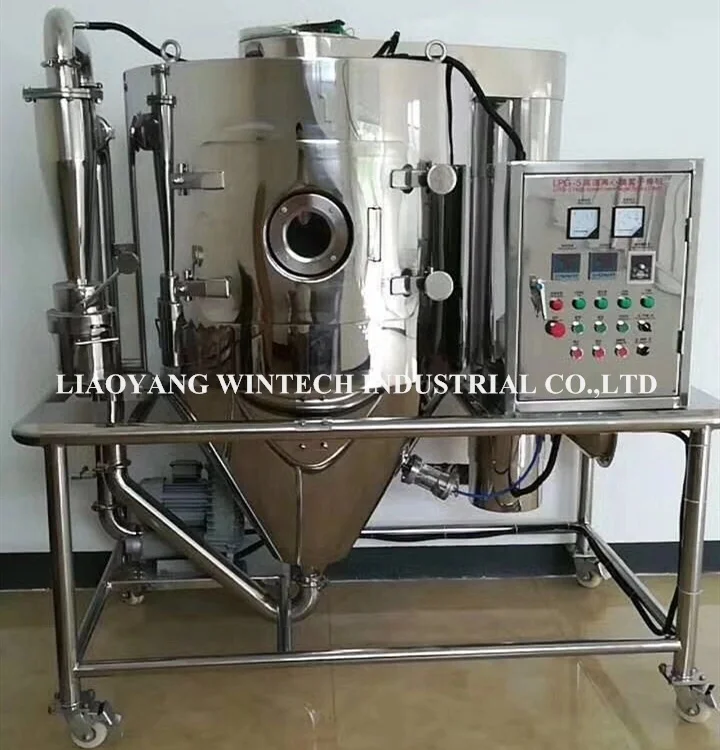

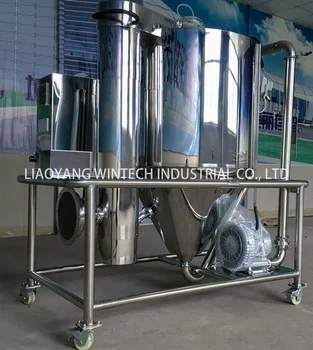

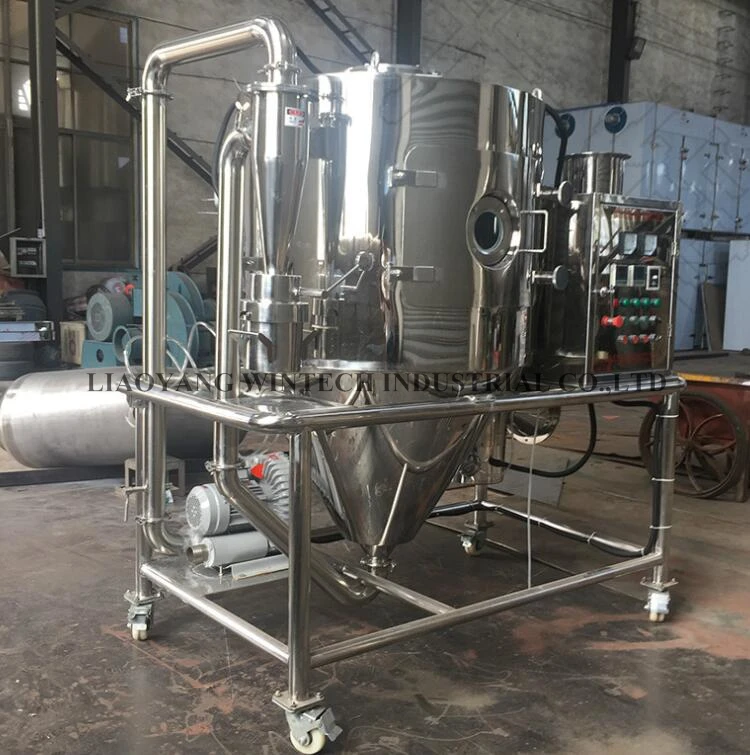

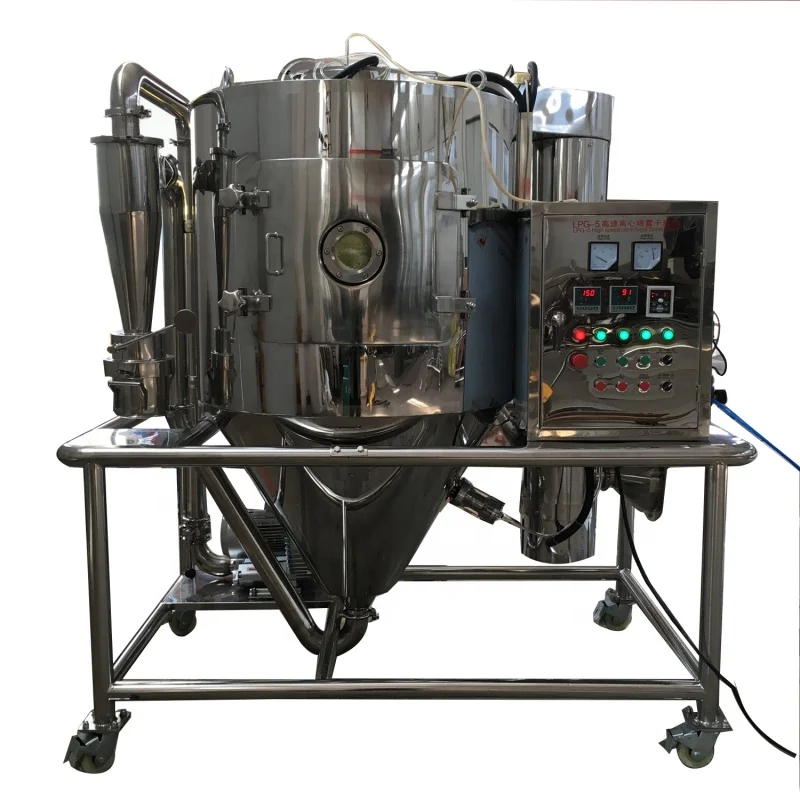

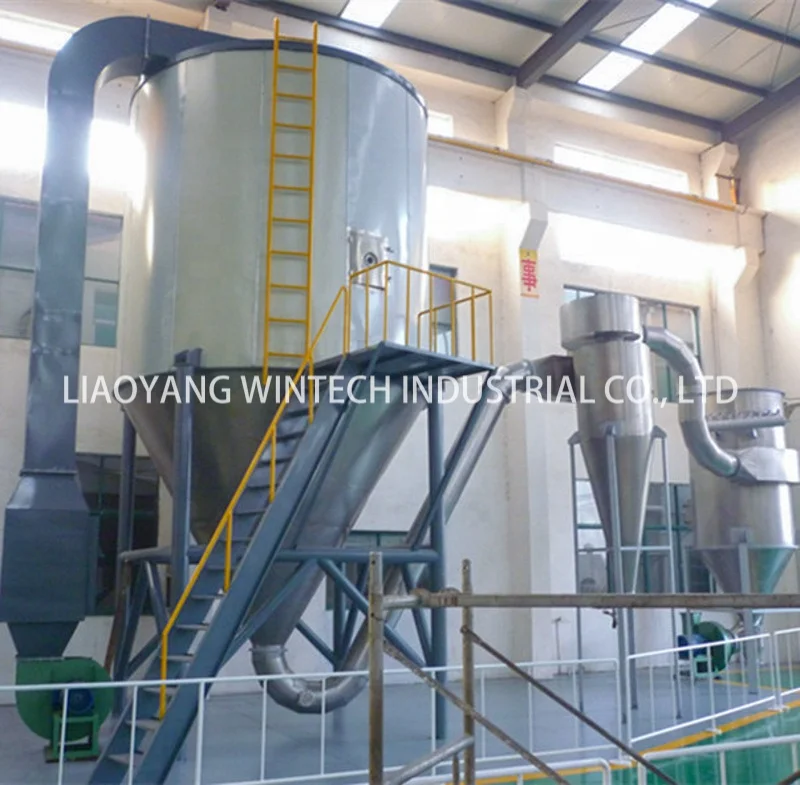

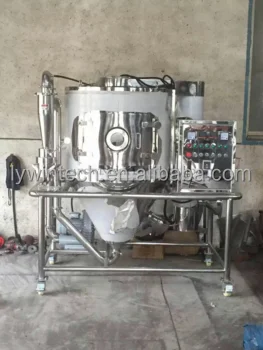

Product More Pictures
Our Honors
We seek excellence. We are motivated and innovating day by day in order to offer solutions to our customers,provide our experience and create value in long-term relationships.
Our Service
1.24 hours online inquiry service
2.One-year warranty to make sure your machine runs consistently.
3. Professional guiding for the installation and adjustment and training operators.
2.One-year warranty to make sure your machine runs consistently.
3. Professional guiding for the installation and adjustment and training operators.
Customer Photos
Welcome to our factory and we are always ready here to provide following professional service and high quality machine for you.

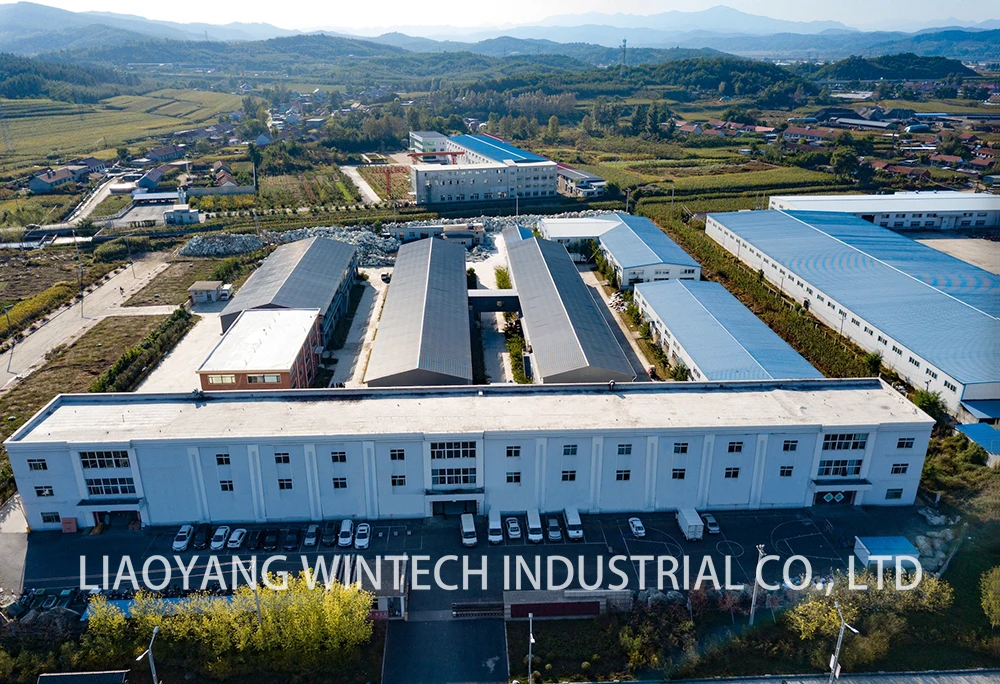

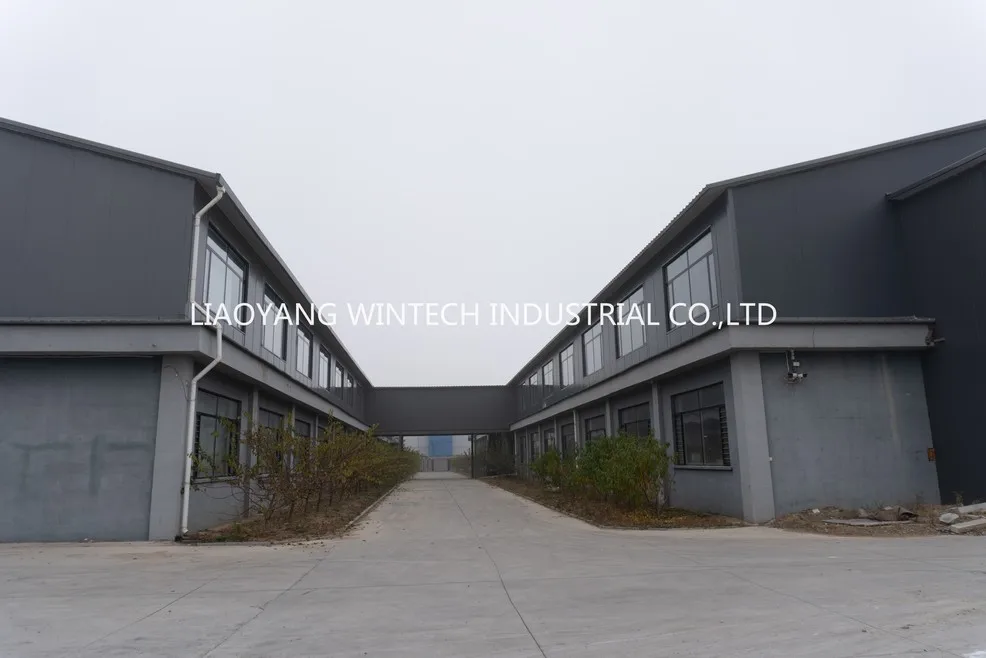

Company Profile
