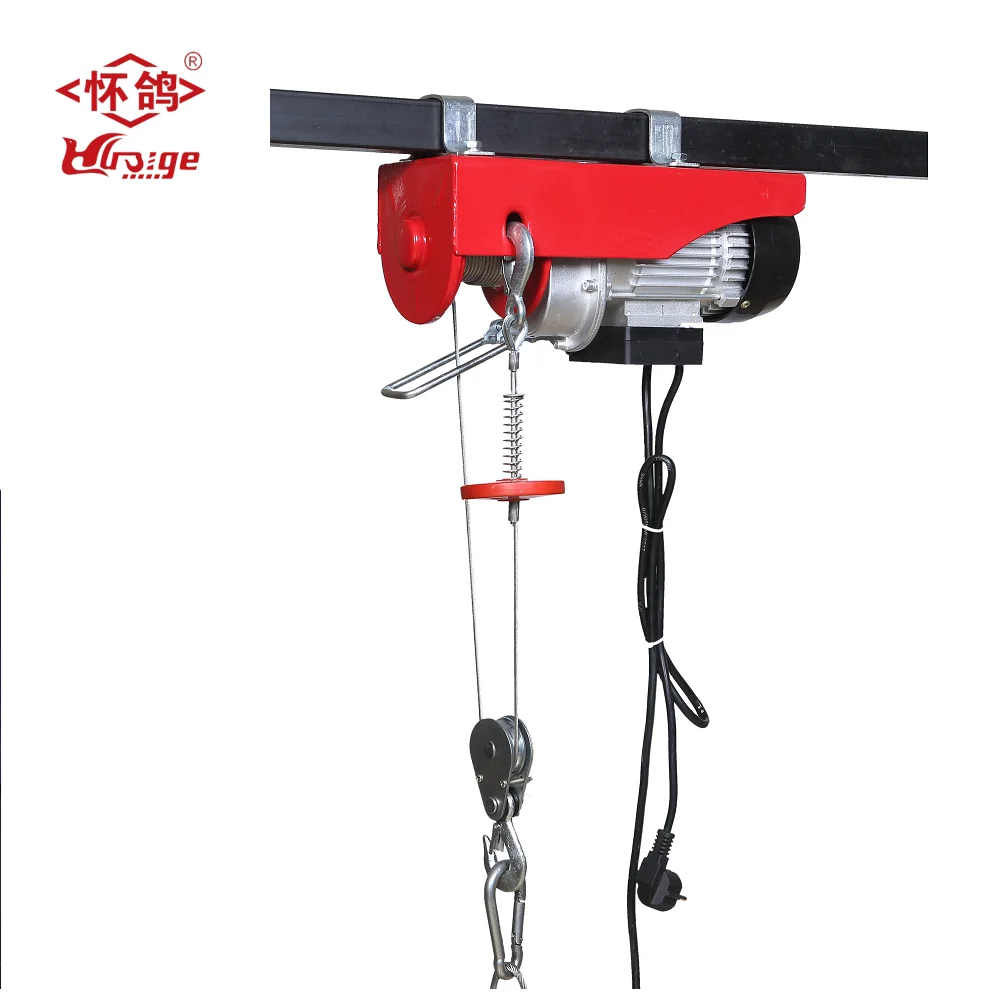

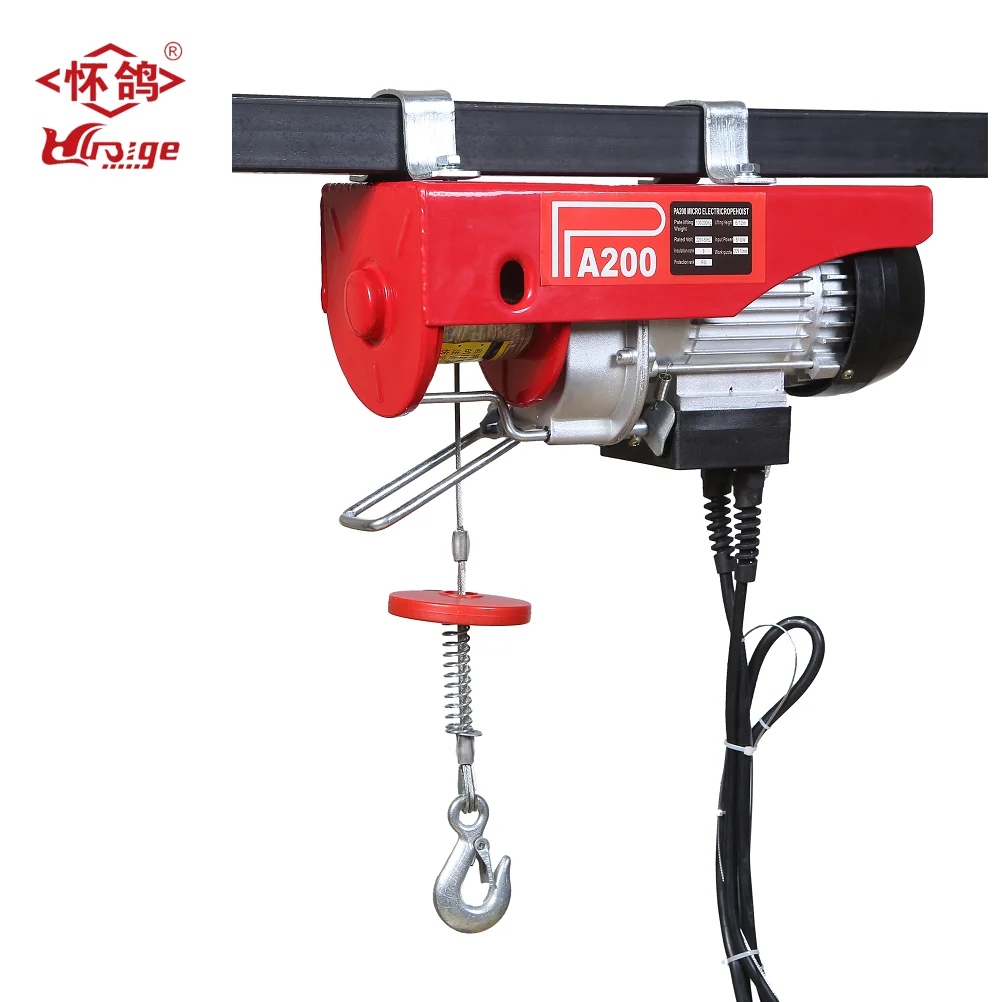

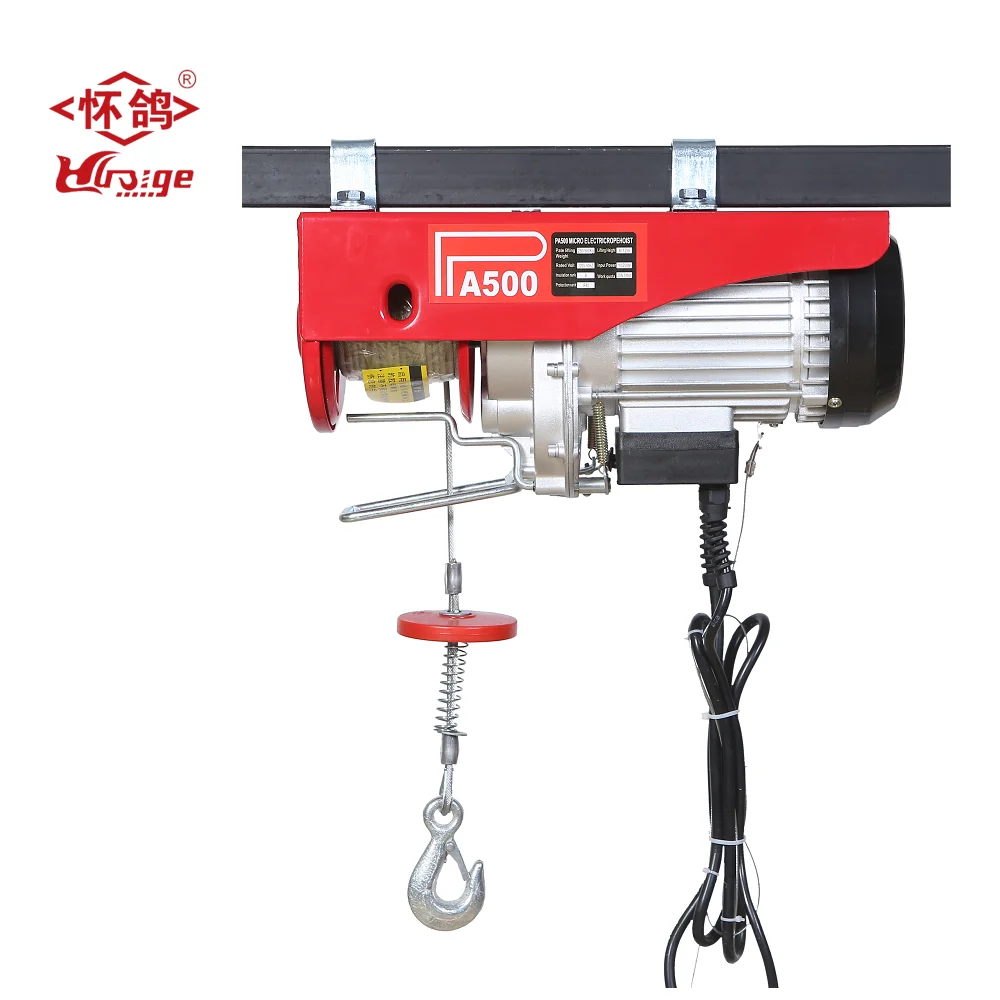

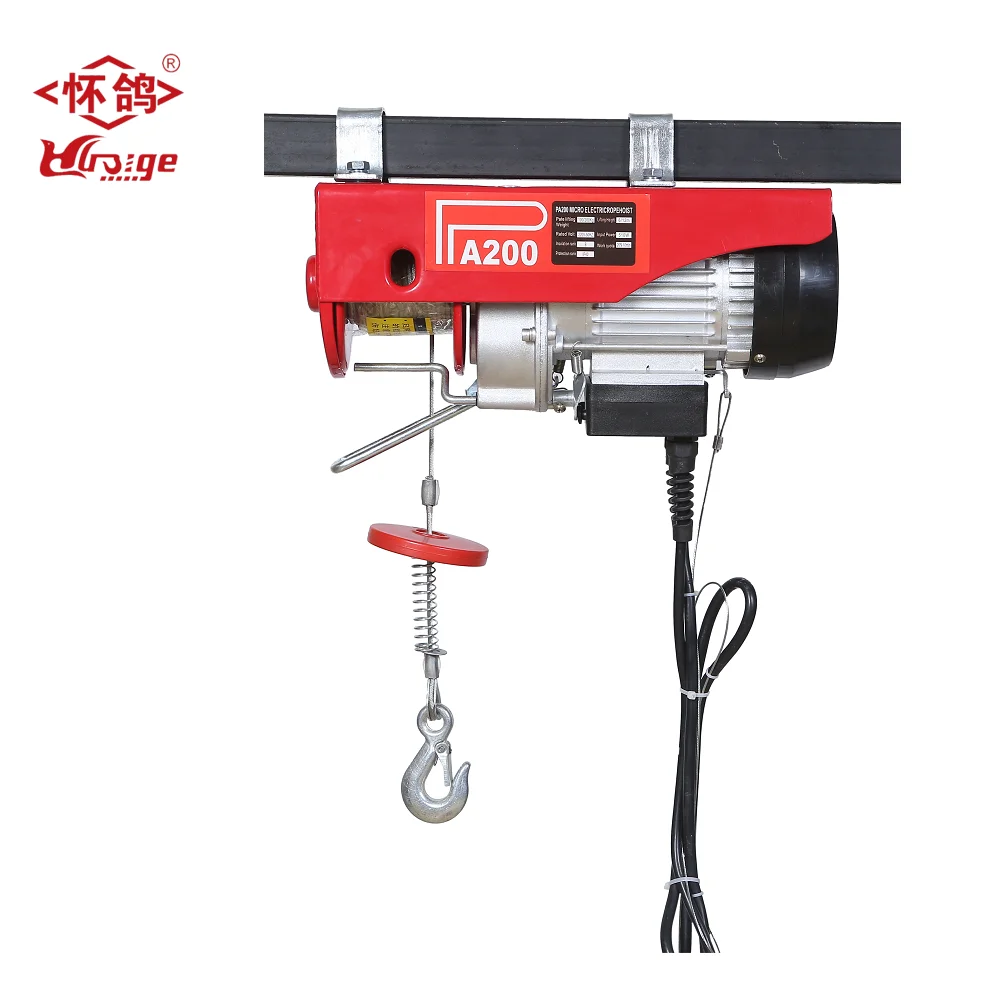

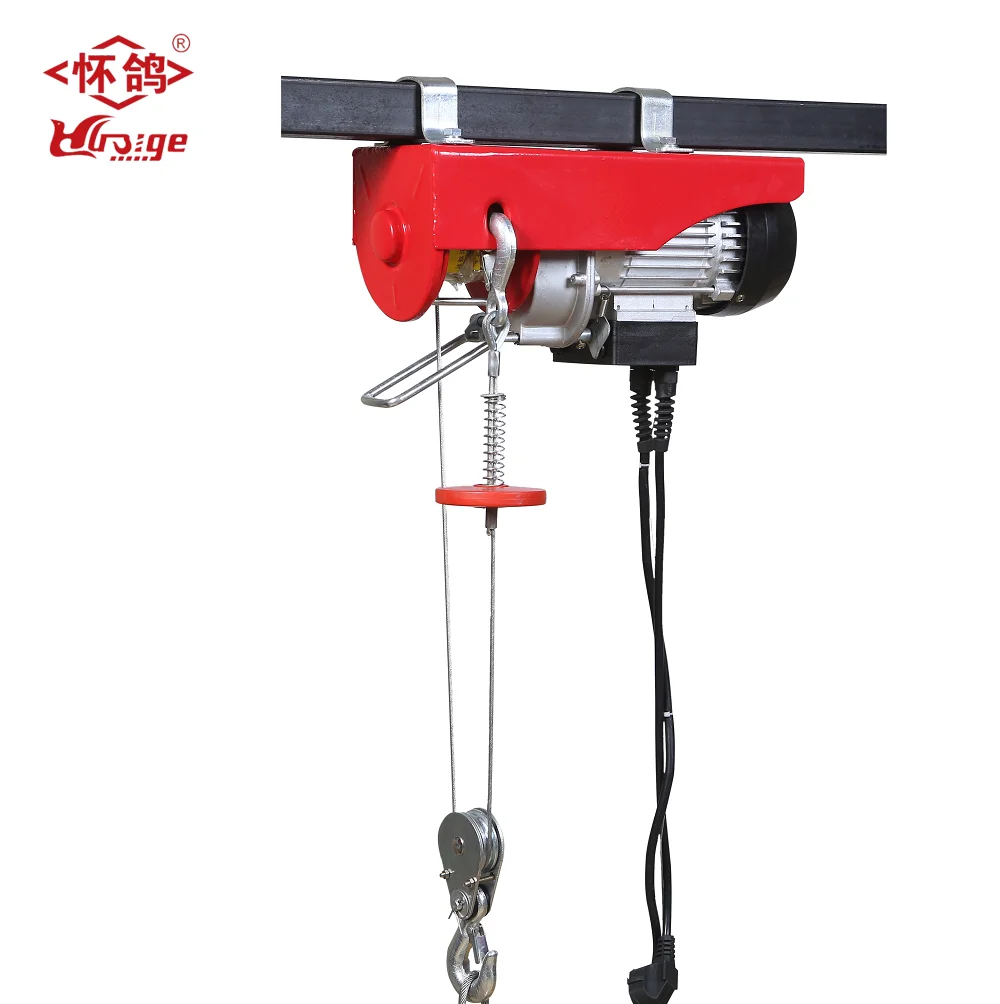

Mini Electric Construction Crane 220v CE Certified Hoist Winch 1000kg

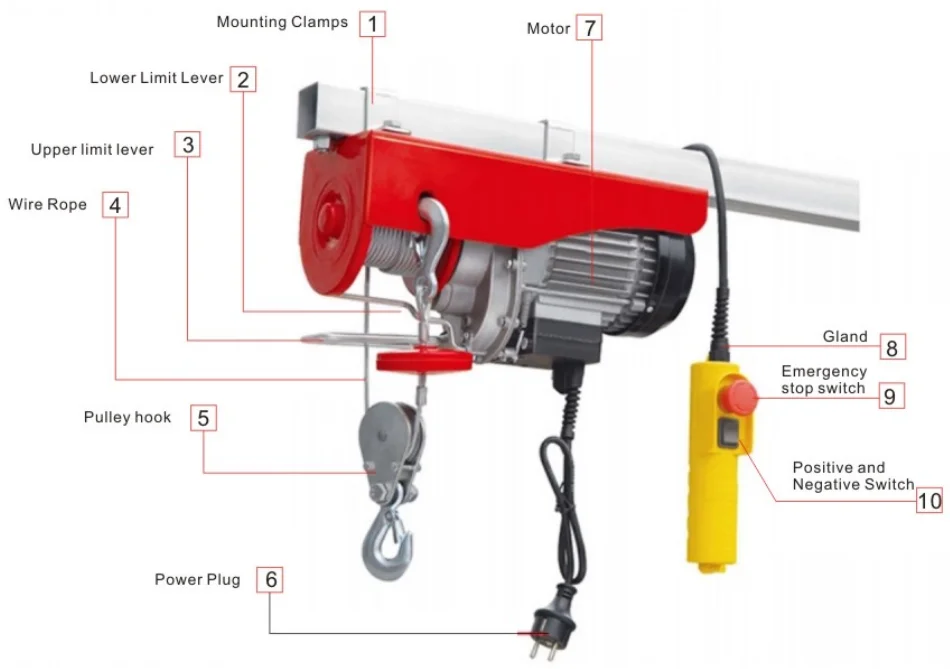

1. Mounting Clamps
2 pcs included in the product, to fit for the support arm (an optional accessory) which it is size 45*45 mm square tube and the thickness should be more than 1.8 cm. if not using the fixing ring, please fix the electric hoist trough 4 screw holes on the motor housing.

2. Lower Limit Lever.
When the wire rope is going down to the position we designed, the wire rope will automatically act the limit lever to stop the hoist. The lower limit lever also prevents the wire rope improperly windling in the reverse direction on the drum.
3. Upper limit lever
When the load is lifting at the position we designed, the counter weight and limit stopper will automatically act the upper
limit lever to stop the hoist.
4. Wire rope
19*7 structure and anti-twist aircraft rope with breaking force up to at least 4 times than the rated lifting capacity.
5.Pulley Hook.
Included in the products. When the load exceeds the lifting capacity of the single hook but less than max. lifting capacity, use the pulley hook to lift the load.
6. Power Plug
All of plug styles are available in all over countries and regions, and approved by VDE or UL.
7. Motor
With automatic brake system and thermal protection function. The thermal protection terminal will be automatically
disconnected to project the motor when motor becomes overheated.
8. Gland To fasten the power cord and prevent bending of the power cord to extend the lift time.
9. Emergency stop switch
With TUV approval. In case of a failure or accident occurred, to press the red emergency stop switch to immediately stop the machine for safety.
10. Positive and Negative Switch
With TUV approval, controlling up and down function of the hoist, it is simple to use and easy to be replaced.
