OUTES air condition for the supermarket office air condition fragnence air condition inverter homer
- Category: >>>
- Supplier: Zhejiang Zhongguang Electrical Co. Ltd.
Share on (1600548651167):
Product Overview
Description
Product Description
Specification
Factory Model | 12000BTU | ||||||
Climate type | T1 | ||||||
Power supply | Ph-V-Hz | 230V/50HZ | |||||
Type | Split | ||||||
Control type | Remote | ||||||
Cooling | Capacity | W | 3500(660-3700) | ||||
Power Input | W | 1190(250-1600) | |||||
Rated Current | A | 5.5(1.1-9.6) | |||||
SEER | W/W | 6.1 | |||||
Energy Level-Cooling | A++ | ||||||
Heating | Capacity | W | 3500(660-3800) | ||||
Power Input | W | 950(250-1600) | |||||
Rated Current | A | 4.4(1.1-10.0) | |||||
SCOP | W/W | 4.0 | |||||
Energy Level-Heating | A+ (Average Season) A+++ (Warmer Season) | ||||||
3200 | |||||||
2500/2500 | |||||||
Moisture removal | L/h | 1.1 | |||||
Max. input consumption | W | 1600 | |||||
Max. current | A | 10 | |||||
Indoor unit | Indoor fan motor | Model | RPG15(AL)/Y4S476A762L/RA15L | ||||
Brand | Welling/Broad-Ocean/LT/Tongde | ||||||
Power output | watts | 15 | |||||
Capacitor | uF | 1.2 | |||||
Motor speed (TU/Hi/Mi/Lo) | RPM | 1320 | |||||
Evaporator | a.Number of rows | 2 | |||||
b.Tube pitch(a)x row pitch(b) | mm | 21x12.7 | |||||
c.Fin material | Hydrophilic | ||||||
d.Tube outside dia.and type | mm | Φ7 | |||||
e.Coil length x height x width | mm | 612x252x25.4 | |||||
Fan | Indoor fan Diameter | mm | Φ90.4*609 | ||||
Indoor air flow | m3/h | 550/500/450/400 | |||||
Sound Pressure Level (Hi/Mi/Lo) | dB(A) | 42/40/38/36 | |||||
Sound Power Level (Hi/Mi/Lo) | dB(A) | 52/48/43/37 | |||||
Unit dimension (W*H*D) | mm | 790*200*270 | |||||
Packing (W*H*D) | mm | 870*265*335 | |||||
Outdoor unit | Outdoor fan motor | Model | ZKFP-30-8-232 | ||||
Brand | Welling | ||||||
output power | Watt | 30 | |||||
Capacitor | uF | / | |||||
Motor speed | Rpm | 900 | |||||
Fan | Diameter | mm | Φ355*138 | ||||
No. of Blade | Pieces | 3 | |||||
Condenser | a.Number of rows | 1 | |||||
b.Tube pitch(a)x row pitch(b) | mm | 22x19.05 | |||||
c.Fin material | Hydrophilic | ||||||
d.Tube outside dia.and type | mm | Ф7.94 | |||||
e.Coil length x height x width | mm | 654x504x19.05 | |||||
Sound Pressure Level | dB(A) | 52 | |||||
Sound Power Level | dB(A) | 64 | |||||
Unit dimension (W*H*D) | mm | 665*530*260 | |||||
Packing (W*H*D) | mm | 785*600*340 | |||||
Refrigerant type | R32 | ||||||
Refrigerant charge | Kg | 0.58 | |||||
Packing & Delivery
1. Cartons/Plywood Package.
2. Per Customer's Requested.
2. Per Customer's Requested.

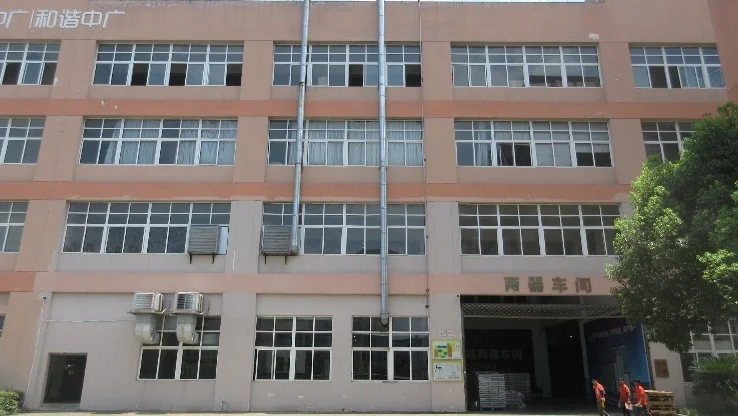

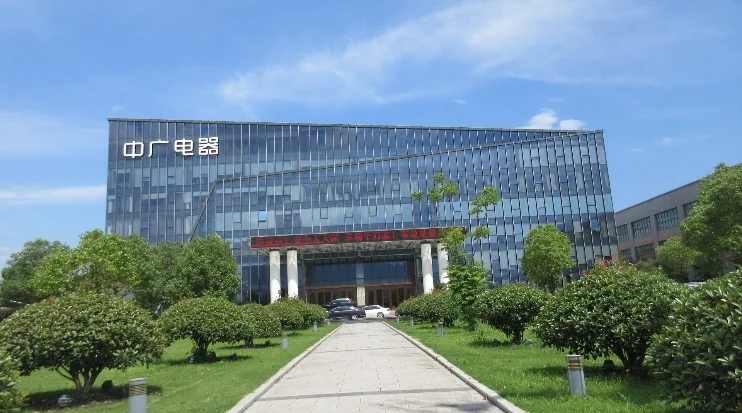

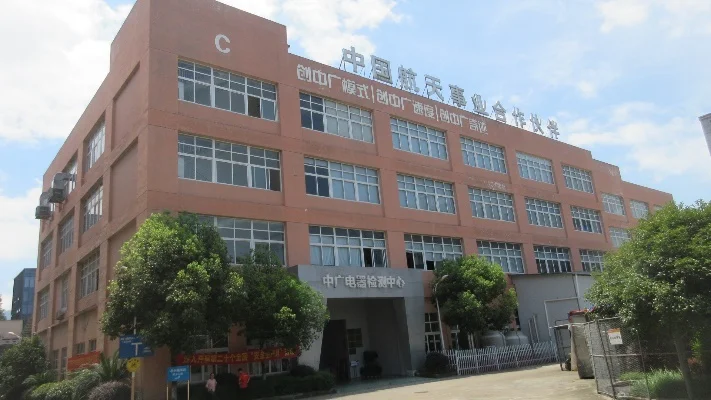

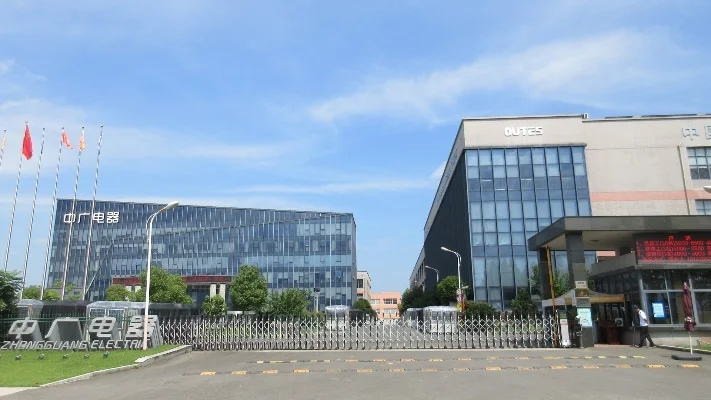

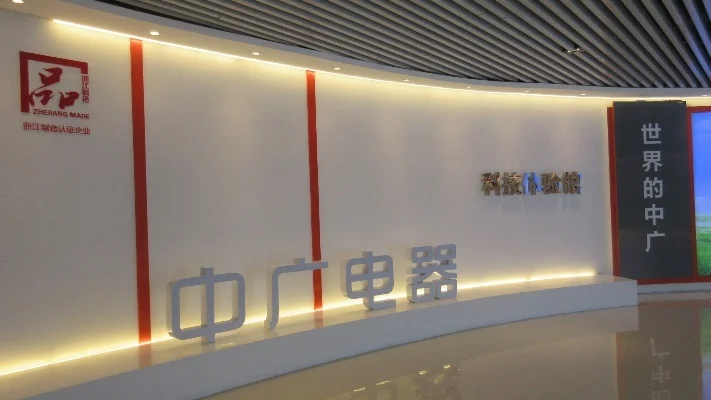

Company Profile
Zhejiang Zhongguang Electrical Co., Ltd was established in 2006. We are a new-and-high-tech enterprise specialized in research,production and sales of the household air source heat pump water heaters,commercial air source heat pump water heaters and multi-generation air source heat pump system.We are covering an area of 9200sqm and building area of 135000sqm ,is the largest-scale manufacturing base in domestic air source&heat pump industry.

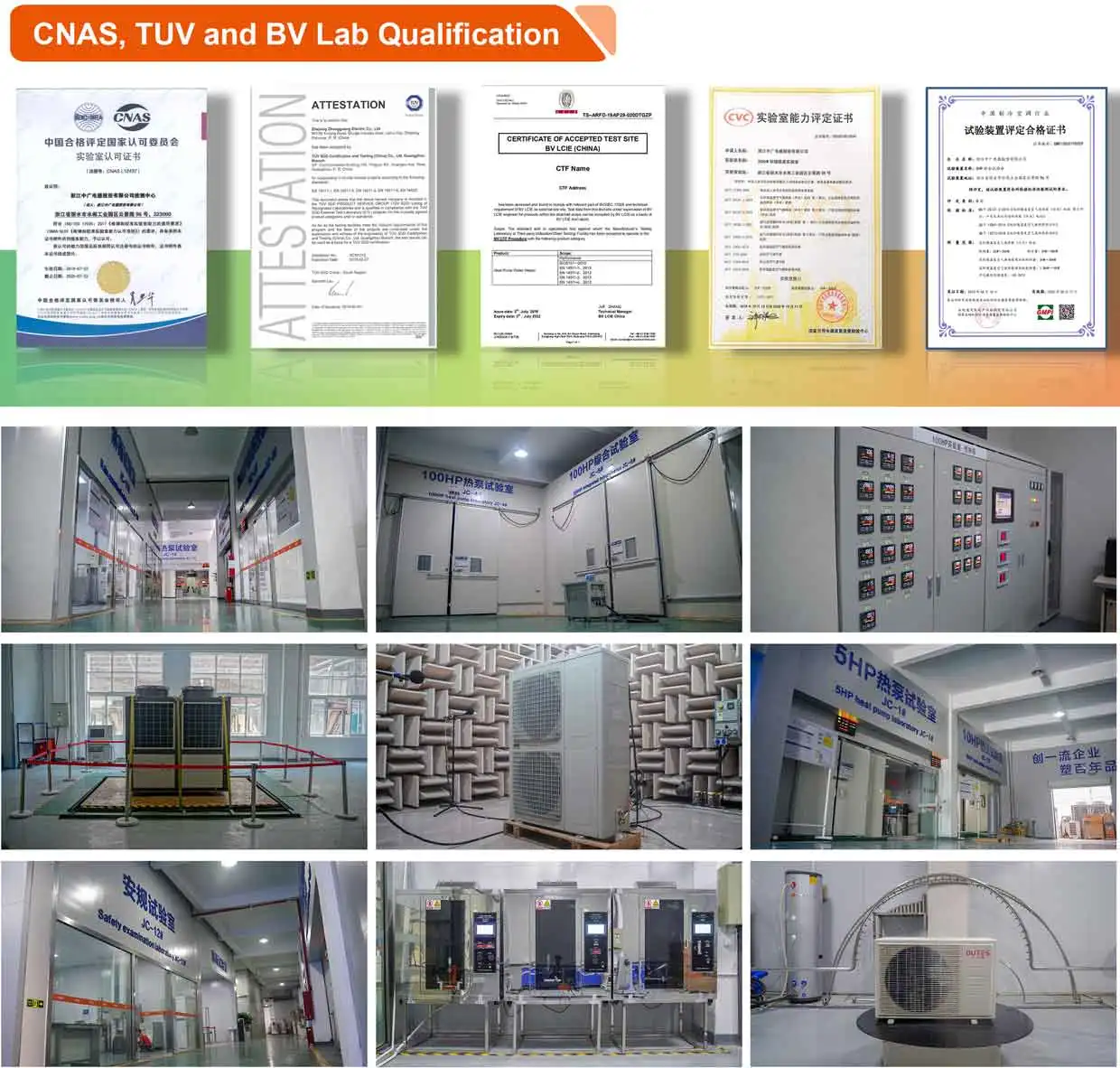

OUTES has the world-class production lines and has the leading intelligent laboratory group approved by CNAS,TUV and SGS. it is the top level supplier not only for Comfort Home products but also Commercial System solutions for Ventilation,Clean Water, Cooling, Heating & Hot Water equipment.
As "A COOPERATIVE PARTNER OF CHINA SPACE" in air source industry,our trademark"OUTES" obtain"Energy-saving industry AAA Level enterprise Credit Rating","Zhejiang Famous Trademark","Zhejiang Famous Brand Product" etc.
To create first-class enterprise and build century brand! Our company will take"create value"as mission,and adhere to promote renewable energy worldwide together with customers at home and abroad for supply global consumers a new environment-friendly,low carbon hot-water experience.
OUTES has the world-class production lines and has the leading intelligent laboratory group approved by CNAS,TUV and SGS. it is the top level supplier not only for Comfort Home products but also Commercial System solutions for Ventilation,Clean Water, Cooling, Heating & Hot Water equipment.
As "A COOPERATIVE PARTNER OF CHINA SPACE" in air source industry,our trademark"OUTES" obtain"Energy-saving industry AAA Level enterprise Credit Rating","Zhejiang Famous Trademark","Zhejiang Famous Brand Product" etc.
To create first-class enterprise and build century brand! Our company will take"create value"as mission,and adhere to promote renewable energy worldwide together with customers at home and abroad for supply global consumers a new environment-friendly,low carbon hot-water experience.
Our Advantages
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2017,sell to Domestic Market(99.00%),Western Europe(00.00%). There are total about 1000+ people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Central Air Conditioner/Central Cooling & Heating,Central Hot Water,Central Water Purifier,Central Fresh Air
4. why should you buy from us not from other suppliers?
OUTES has 11pcs production lines with 135000sqm and the labs approved by CNAS,TUV and SGS. The products include Air Conditioners, Hot Water Heat Pumps, Cooling&Heating Heat Pumps, Pool Heat Pumps, Air Ventilation Unit, Air Purifiers and Water Purifiers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2017,sell to Domestic Market(99.00%),Western Europe(00.00%). There are total about 1000+ people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Central Air Conditioner/Central Cooling & Heating,Central Hot Water,Central Water Purifier,Central Fresh Air
4. why should you buy from us not from other suppliers?
OUTES has 11pcs production lines with 135000sqm and the labs approved by CNAS,TUV and SGS. The products include Air Conditioners, Hot Water Heat Pumps, Cooling&Heating Heat Pumps, Pool Heat Pumps, Air Ventilation Unit, Air Purifiers and Water Purifiers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
