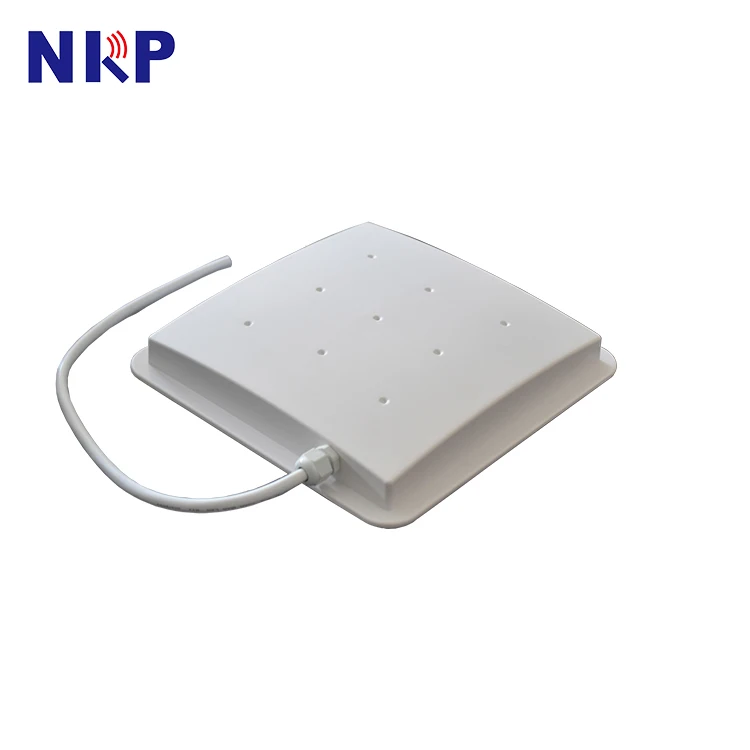

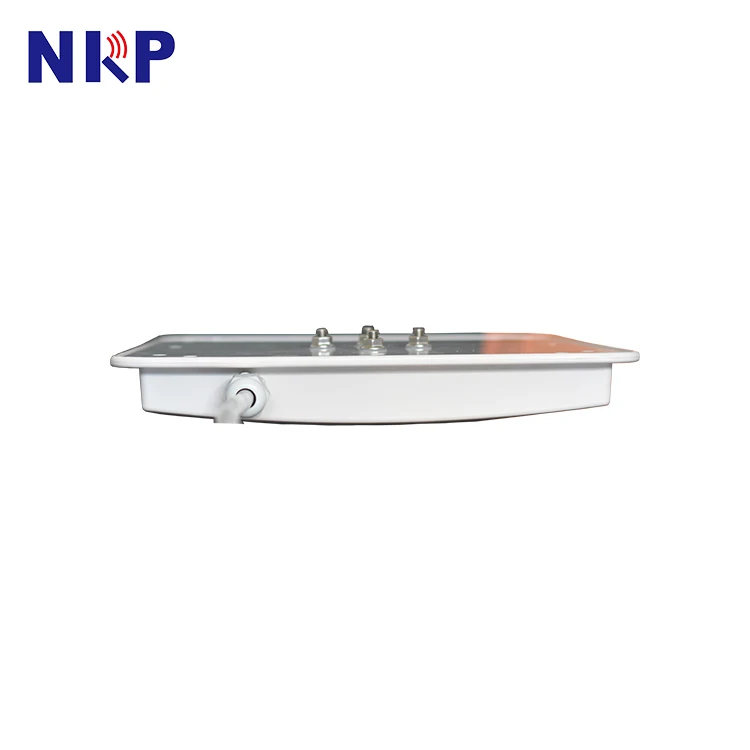

Enruipu R915N01S Factory Direct Sales EPC Gen2 Middle Range 8m RS232 UHF RFID Reader For Access Control
- Category: >>>
- Supplier: Shenzhen Enruipu Technology Co. Ltd.
Share on (1600548653214):
Product Overview
Description
Products Description
Product Features

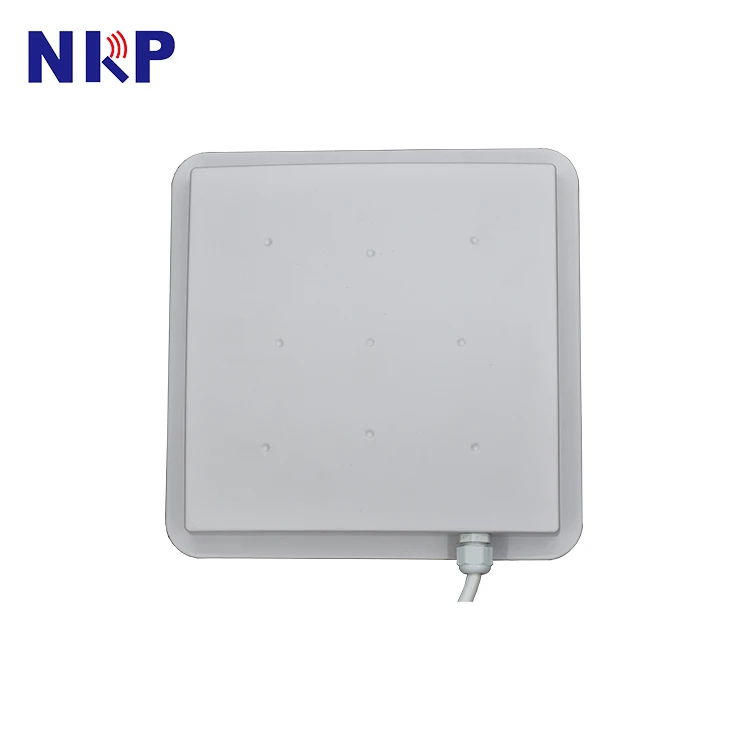

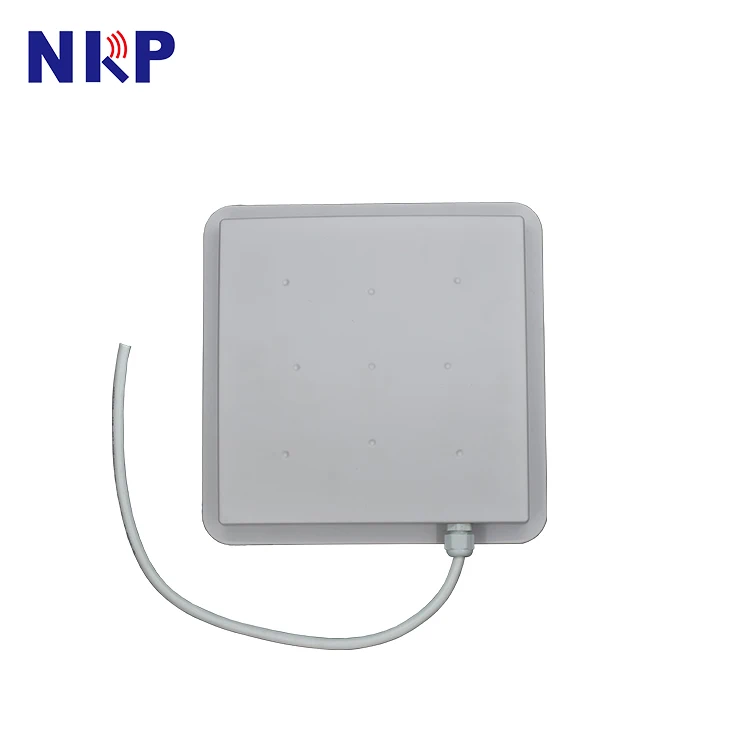

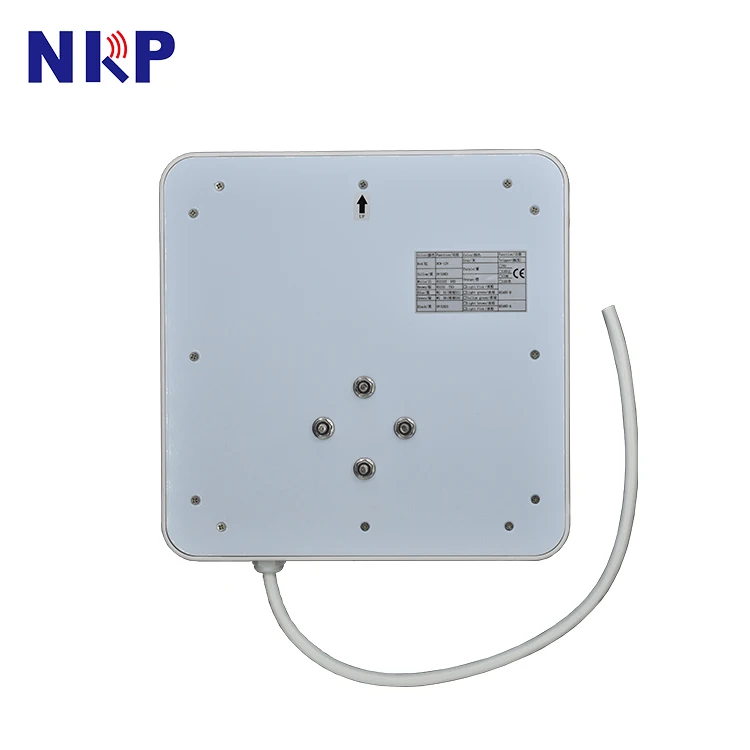

R915N02 adopts a dedicated chip design and is a standardized and modular product. The output power can reach 30dBm, and the performance is stable and reliable. Equipped with 8dBi radio frequency antenna, the card reading distance is 6~12 meters. Used in intelligent transportation, intelligent access control and other fields.
The reader supports RS232 communication, SIM Card communication, and 4G. It is widely used in vehicle management systems, personnel attendance and other fields.
R915N02 adopts a dedicated chip design and is a standardized and modular product. The output power can reach 30dBm, and the performance is stable and reliable. Equipped with 8dBi radio frequency antenna, the card reading distance is 6~12 meters. Used in intelligent transportation, intelligent access control and other fields.
The reader supports RS232 communication, SIM Card communication, and 4G. It is widely used in vehicle management systems, personnel attendance and other fields.
Color | Function |
Red | DC9-12V + |
Yellow | 0V —— |
Gray | Enable |
Blue | WG D1 |
Green | WG D0 |
Black | 0V Ground |
Brown | RS232 TXD |
White | RS232 RXD |
Purple | Normally open relay 1 |
Orange | Common relay 1 |
Light blue | Normally open relay 2 |
Cyan/ | Common relay 2 |
Light green | RS485-B |
Light brown | RS485-A |

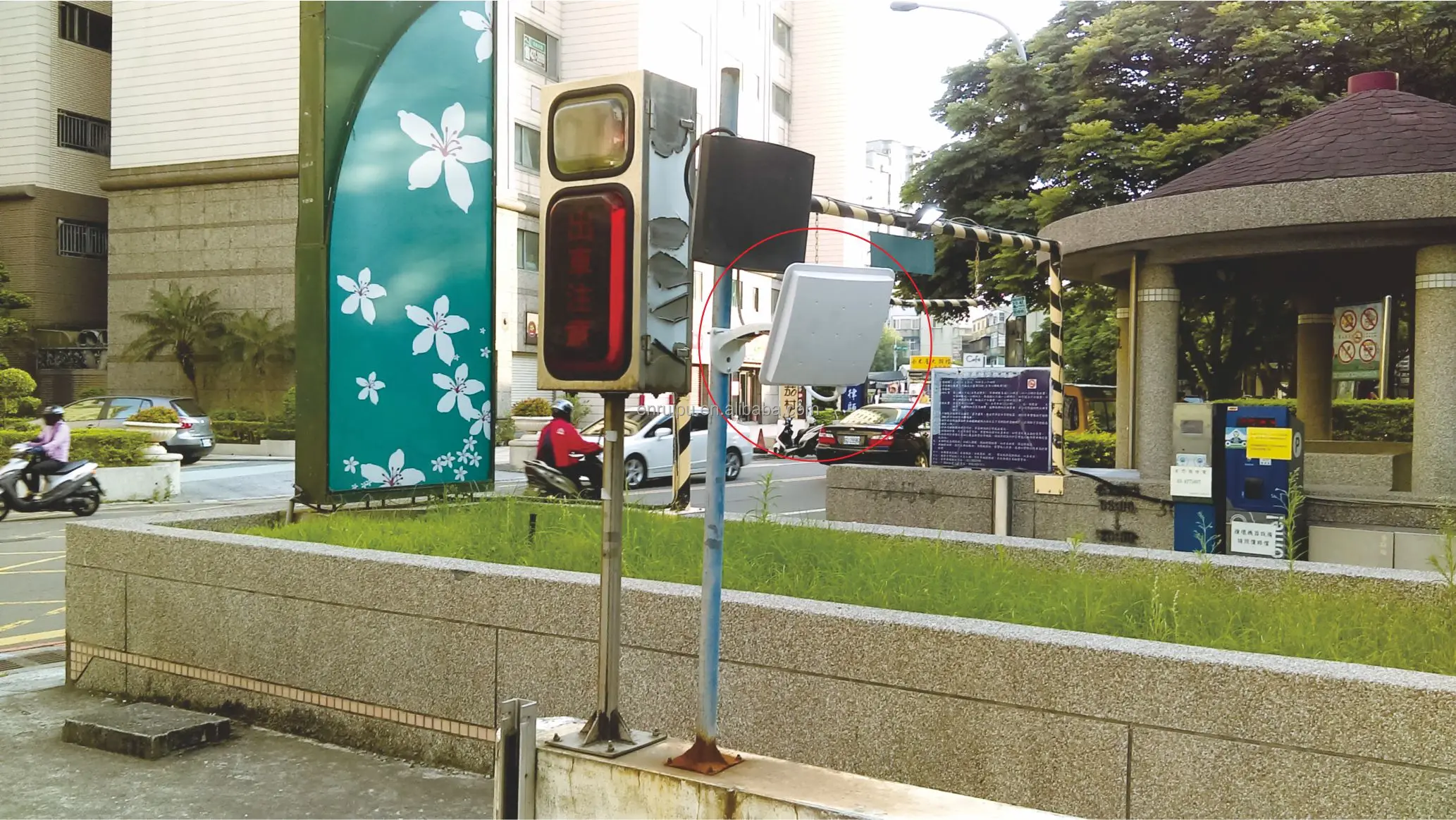

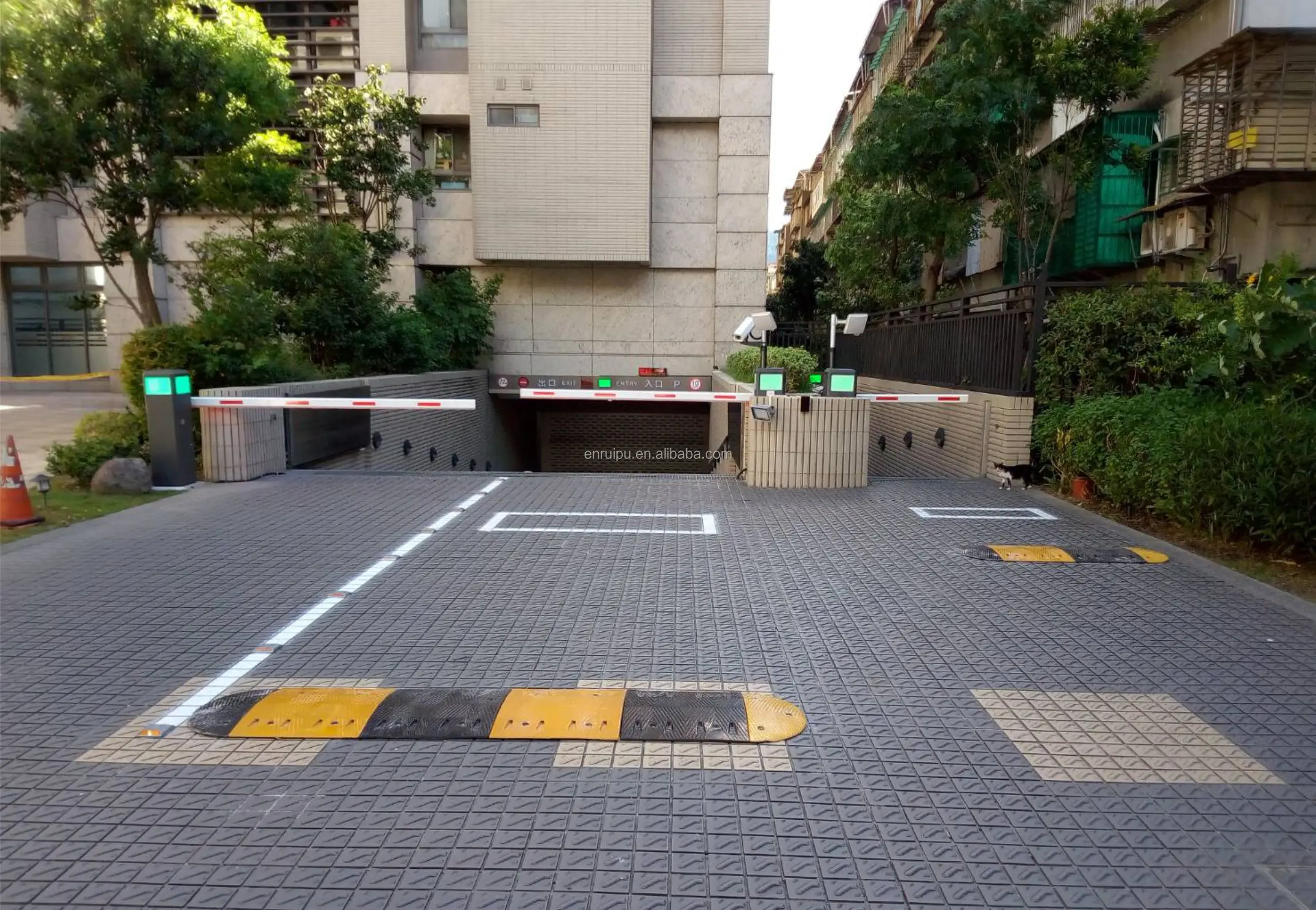

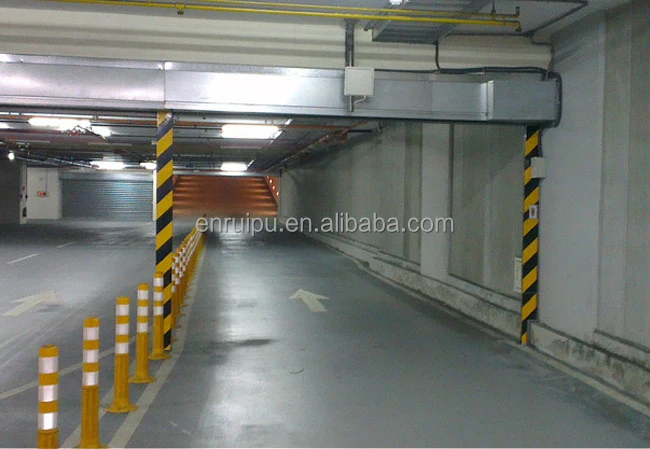

Application Fields
Company Profile
Our Advantages
Shipping & Payment

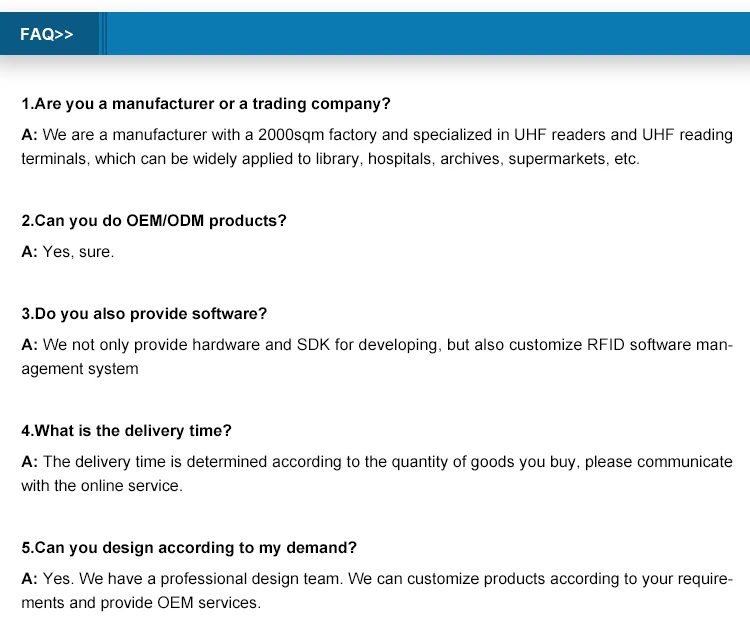

FAQ
